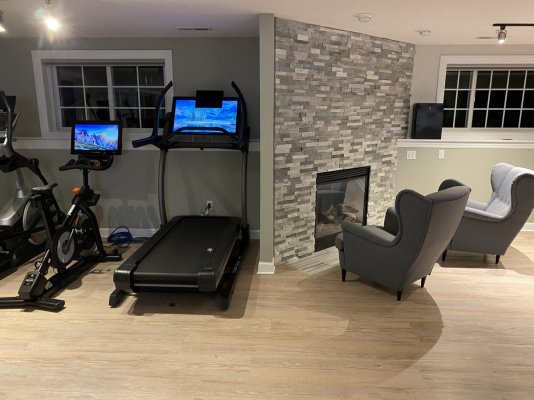

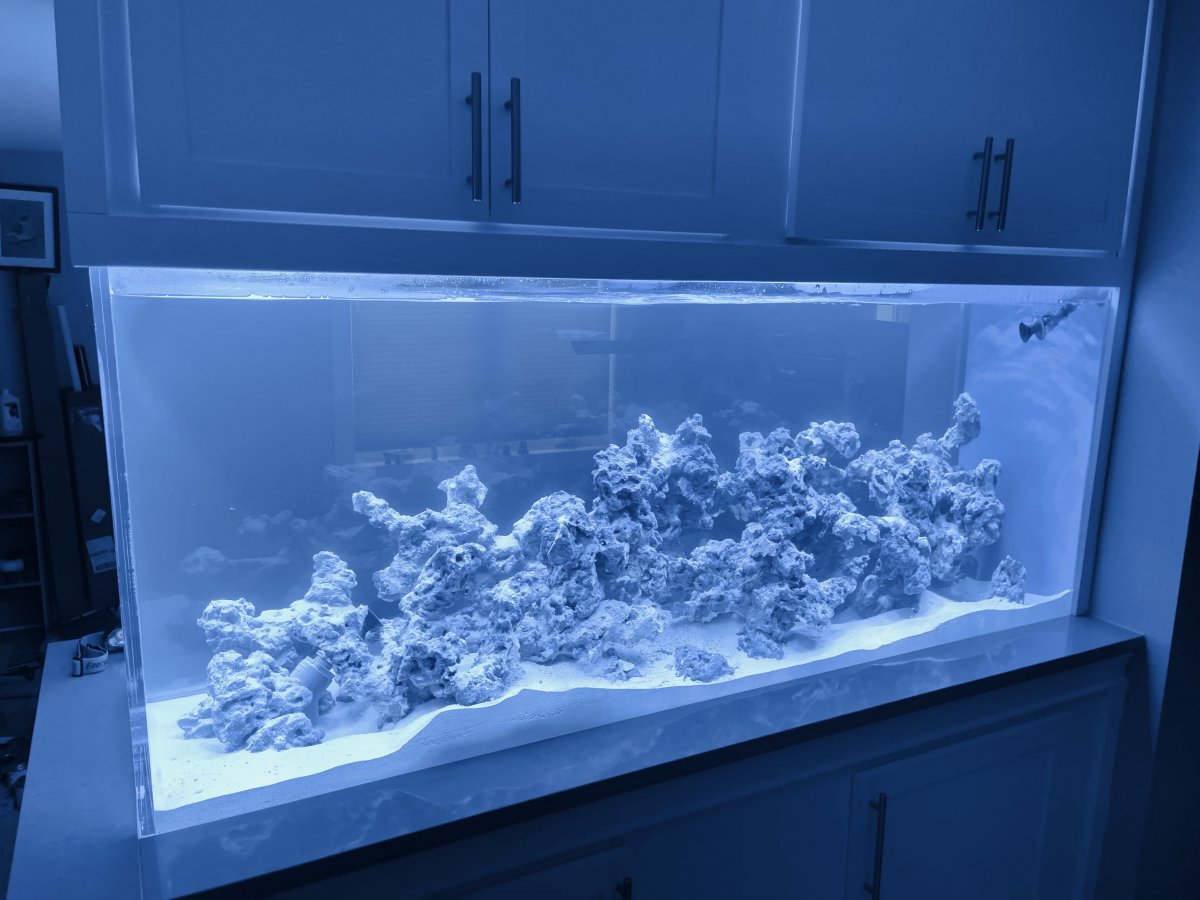

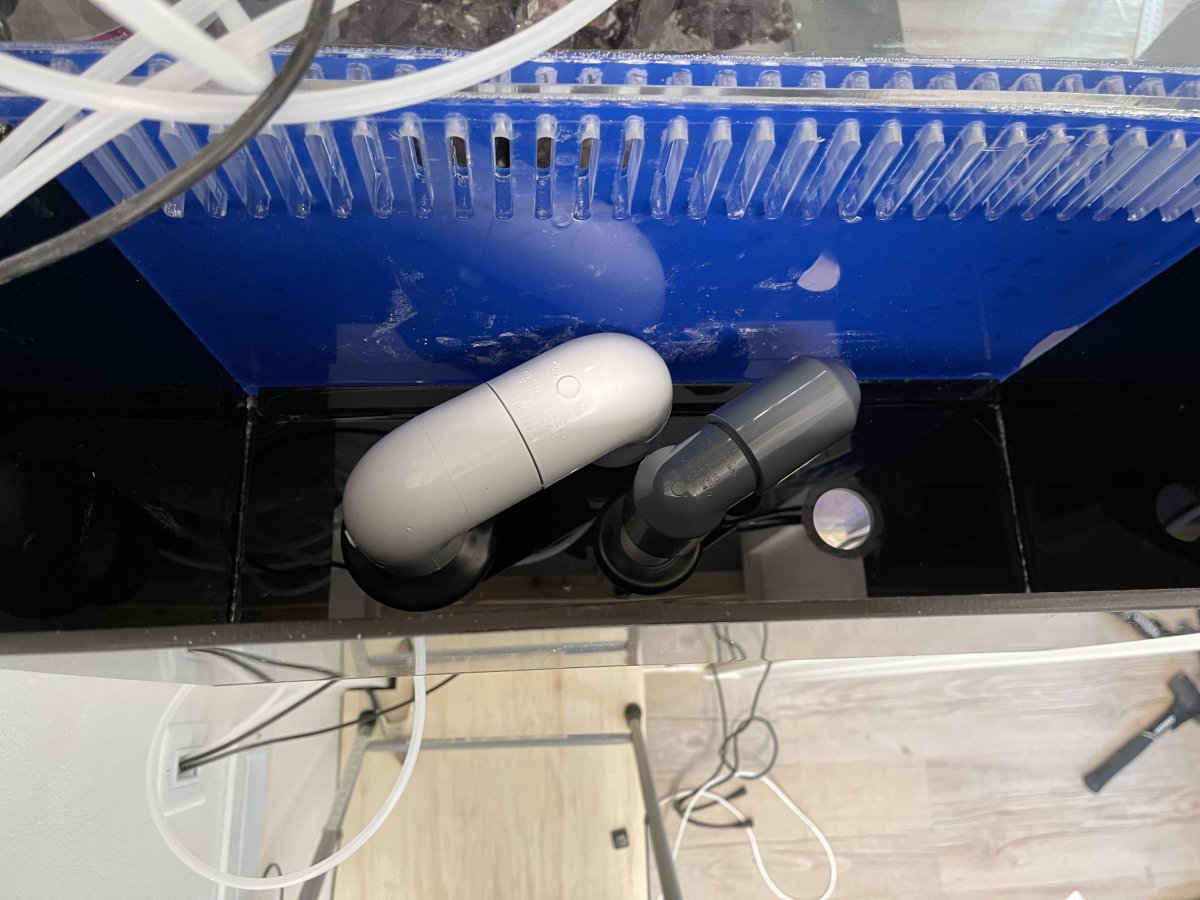

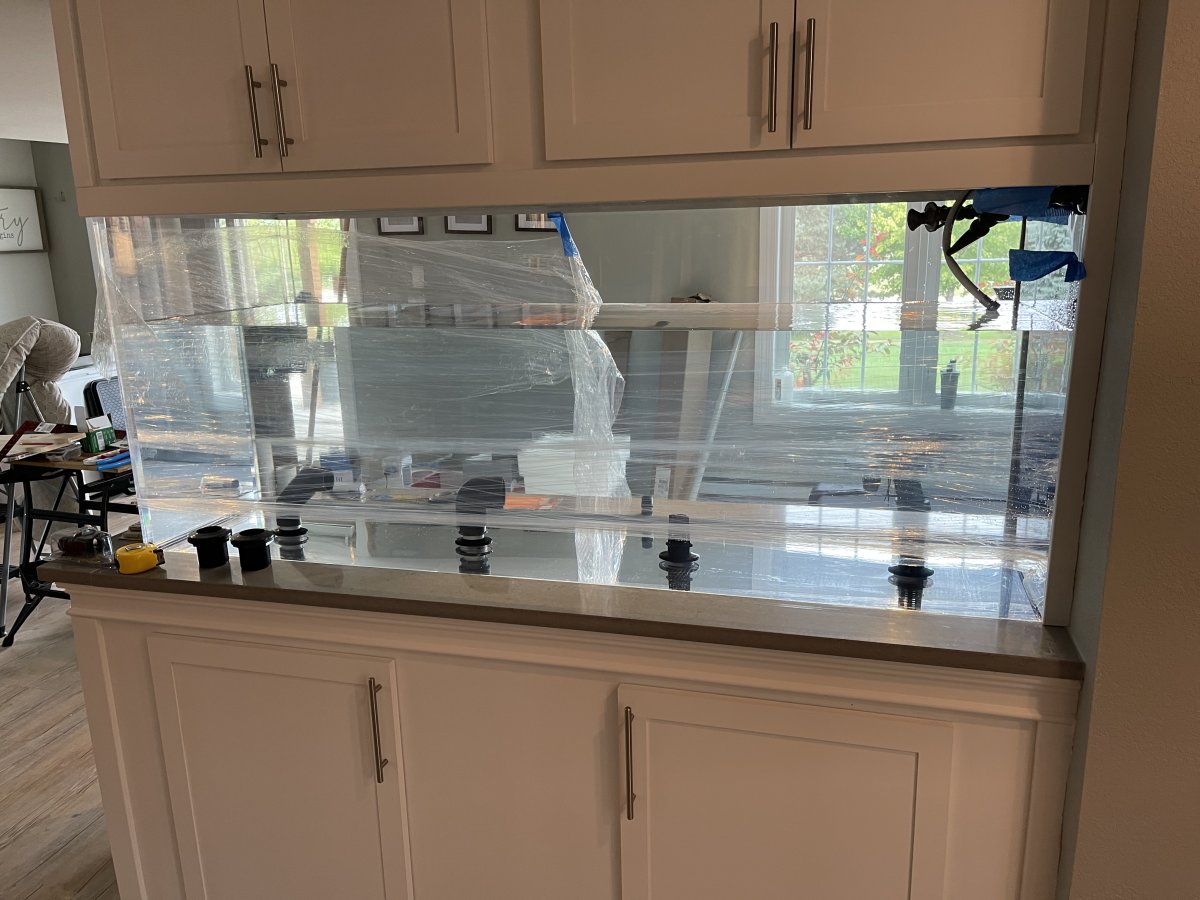

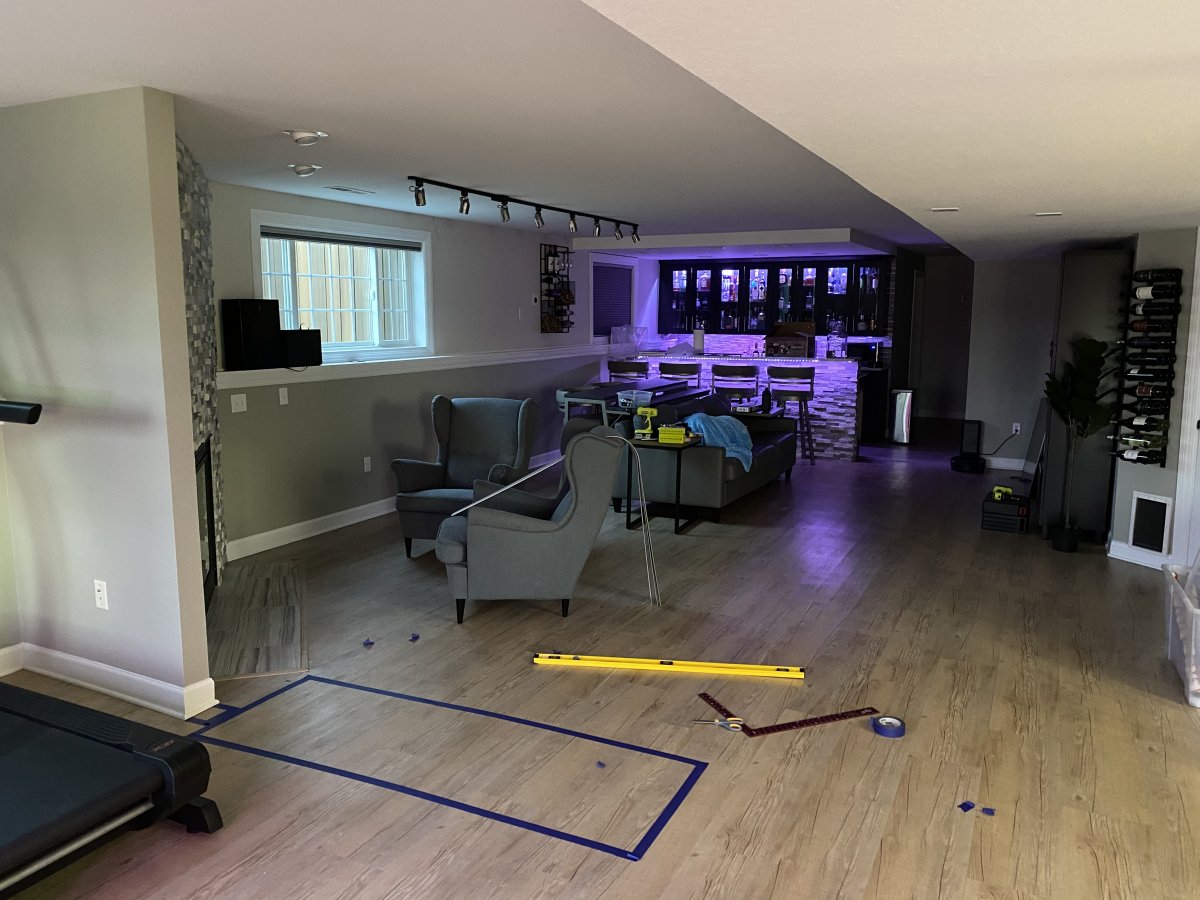

We bought our house with the basement mostly finished but have remodeled almost everything in the last few years. The basement is long and the different areas never seemed cohesive so I was lucky enough to get my wife on-board for a room divider aquarium! The tank itself is 72x24x30 custom acrylic with ghost overflow and 2 closed loops planned to help with flow.

C41C73F1-F2F3-4A3D-A3A0-CE3353AB3F48.jpeg 09745D41-A15C-4AFF-A508-3FCDFA93EAFB.jpeg


Attachments

  • Bean Overflow Aquarium Client-Layout1.pdf
    513.7 KB · Views: 12
Top Shelf Aquatics
OP
S

SEWIreefer

New Member
Review score
+0 /0 /-0
View Badges
Joined
Sep 25, 2021
Messages
9
Reaction score
46
Review score
+0 /0 /-0
Location
Waterford, WI

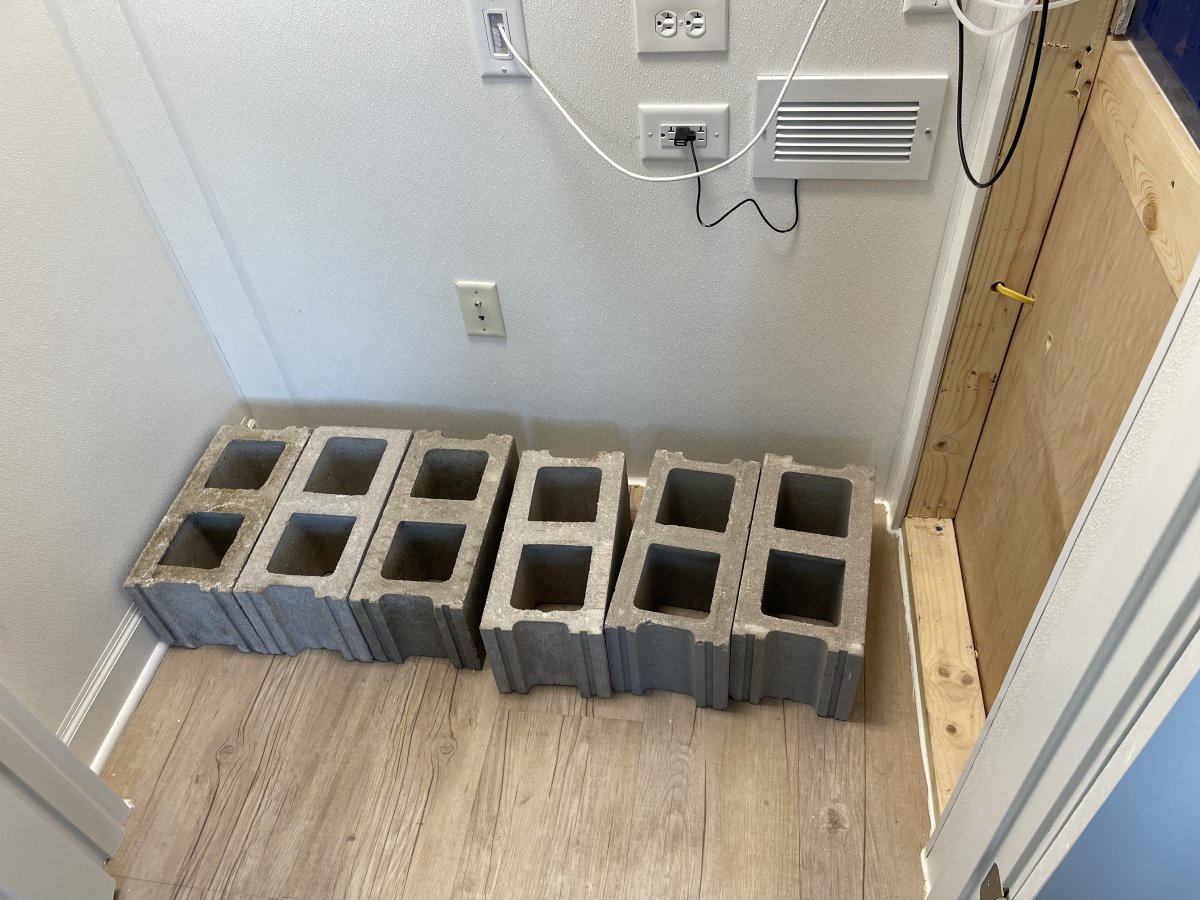

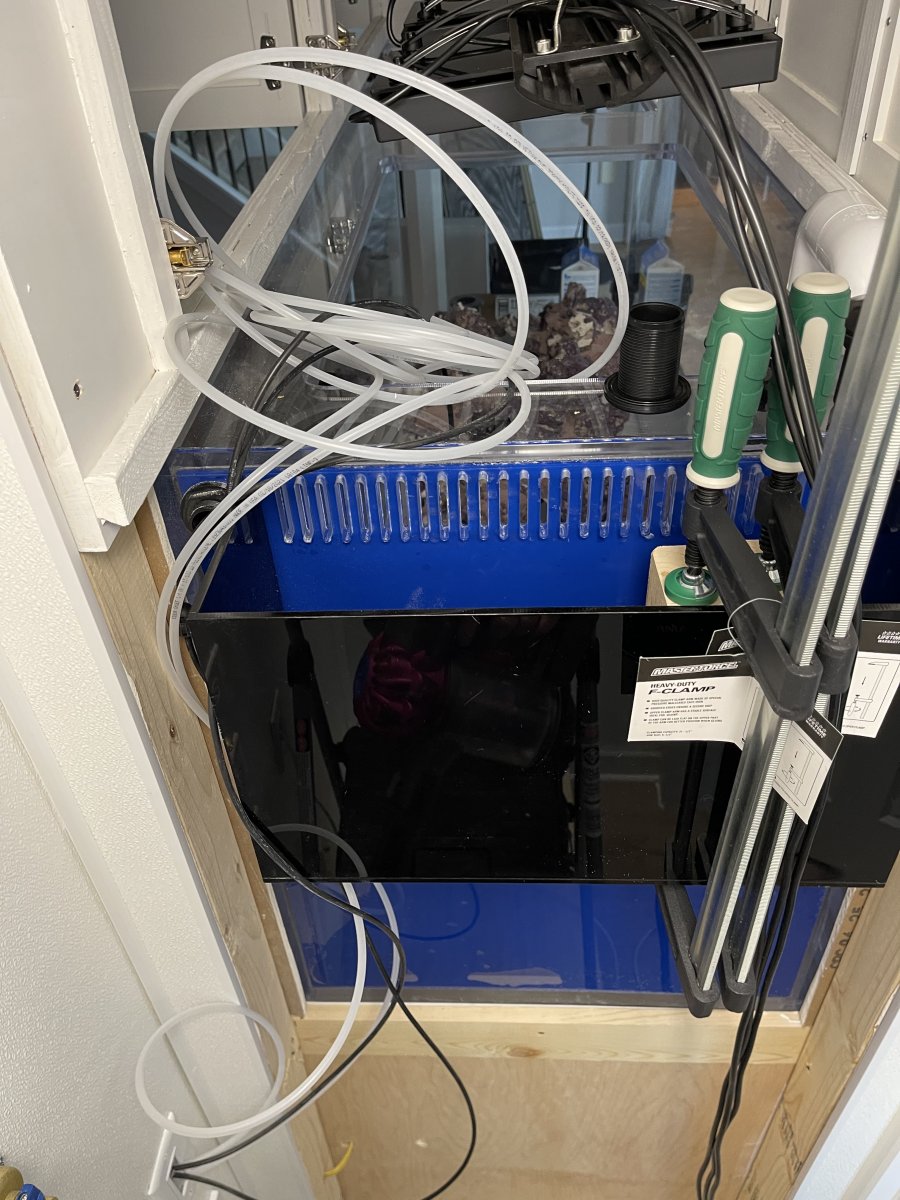

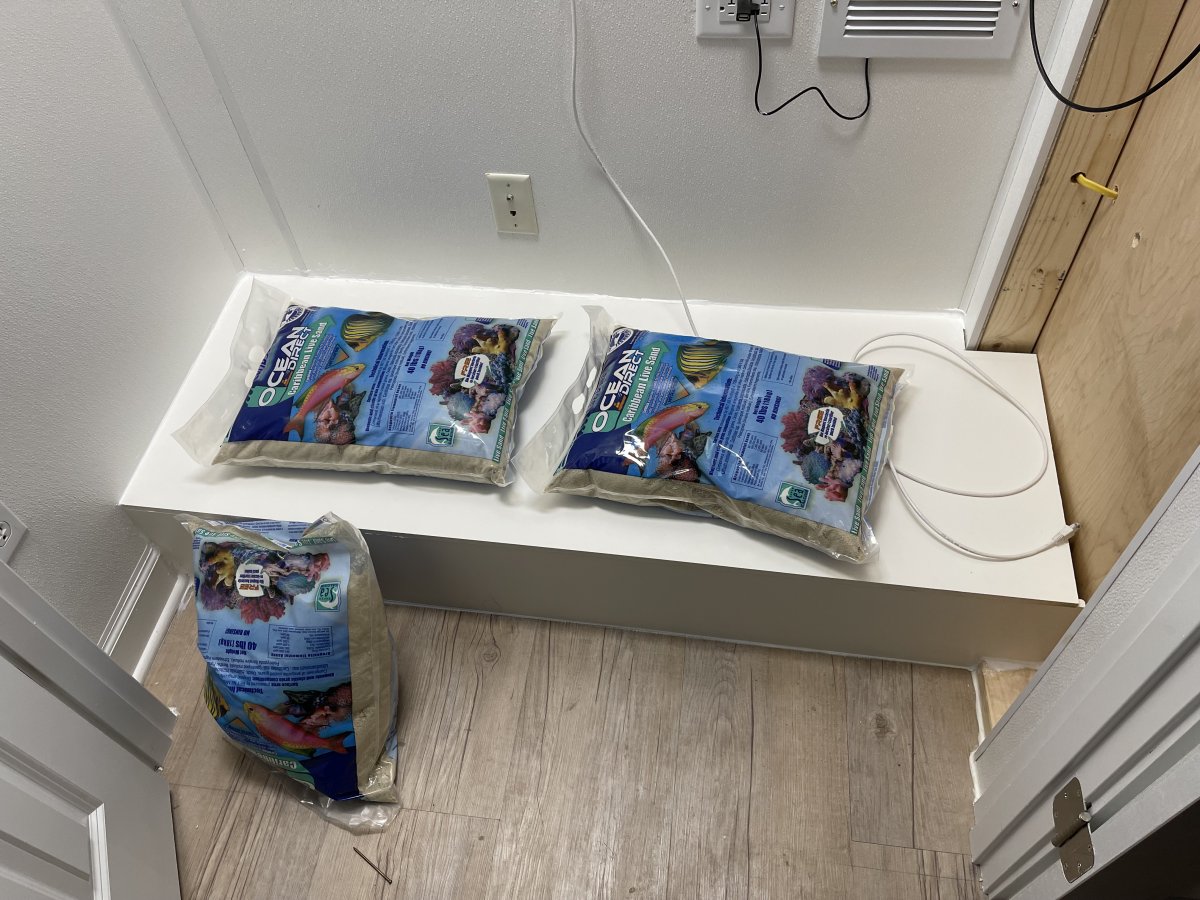

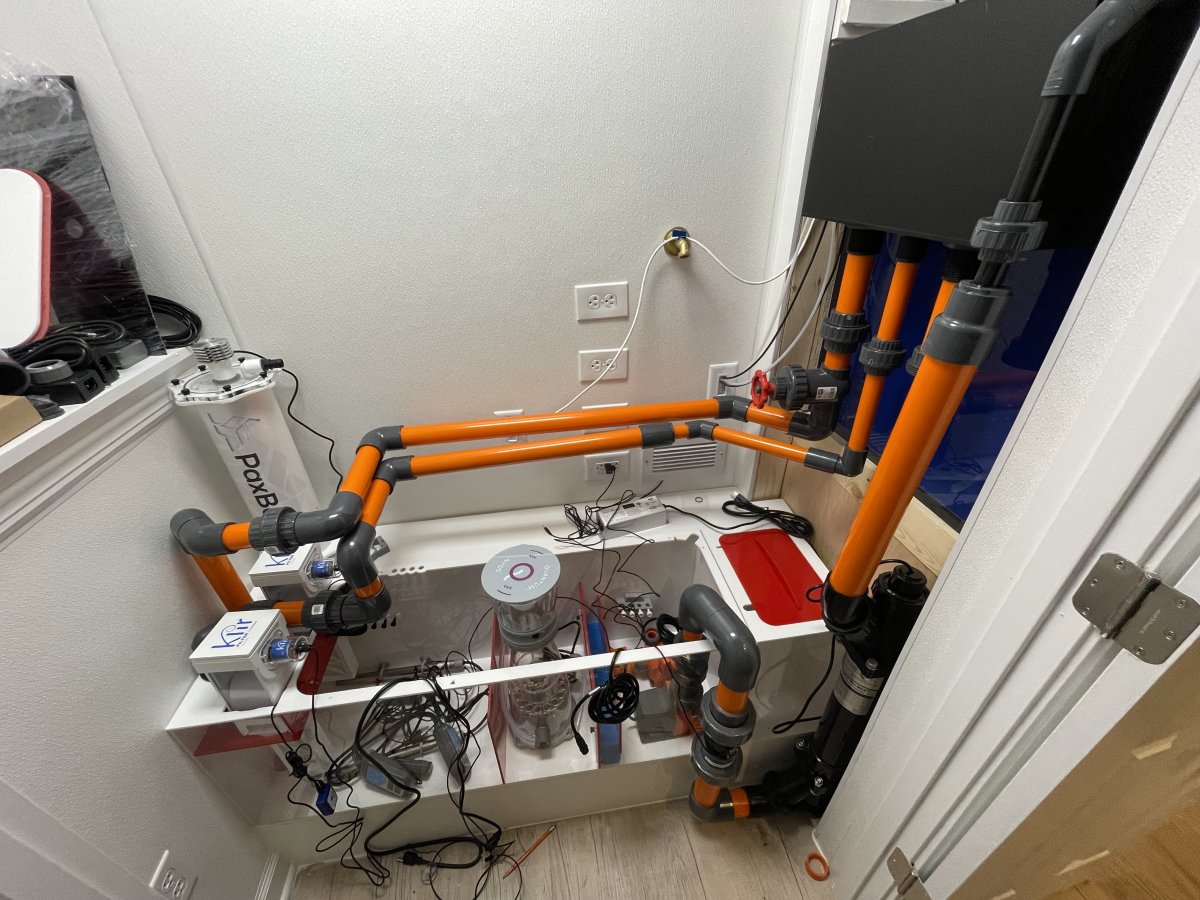

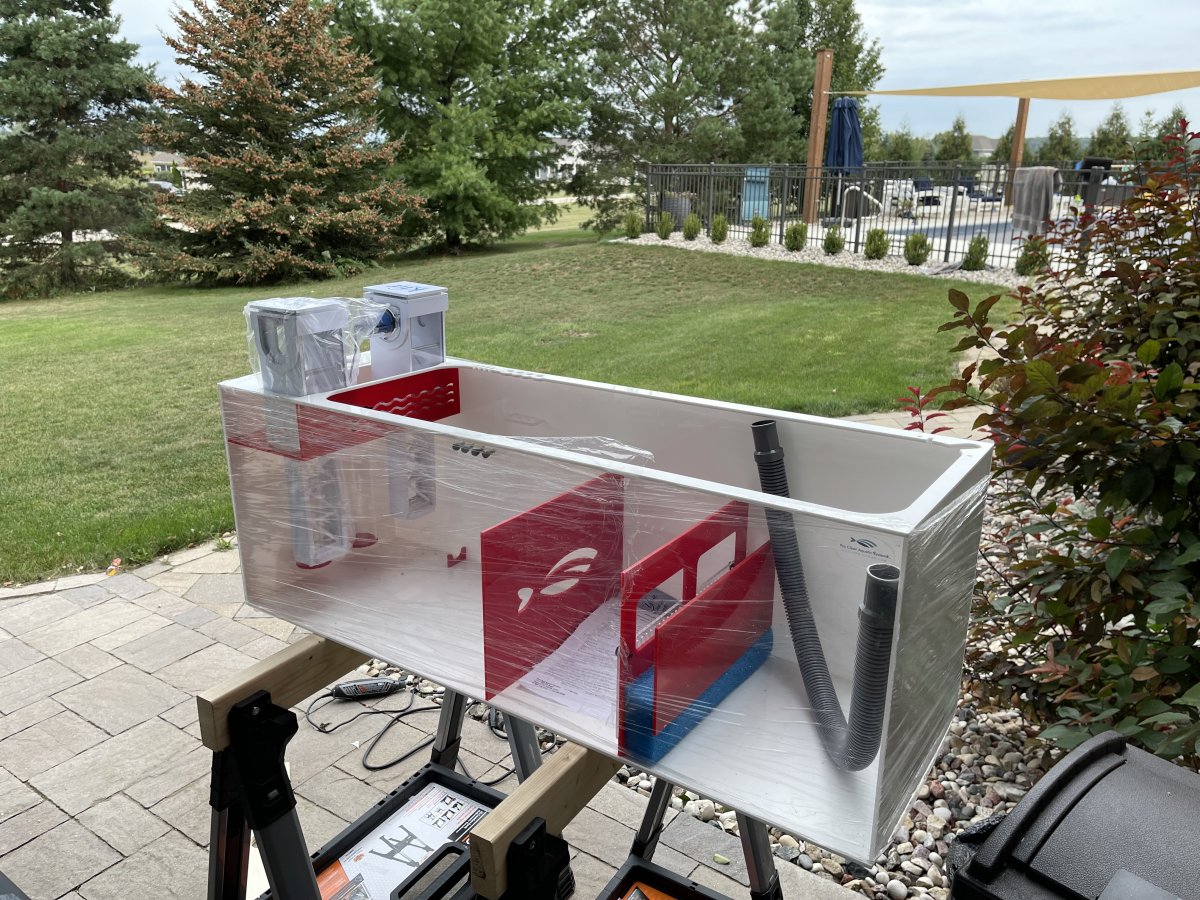

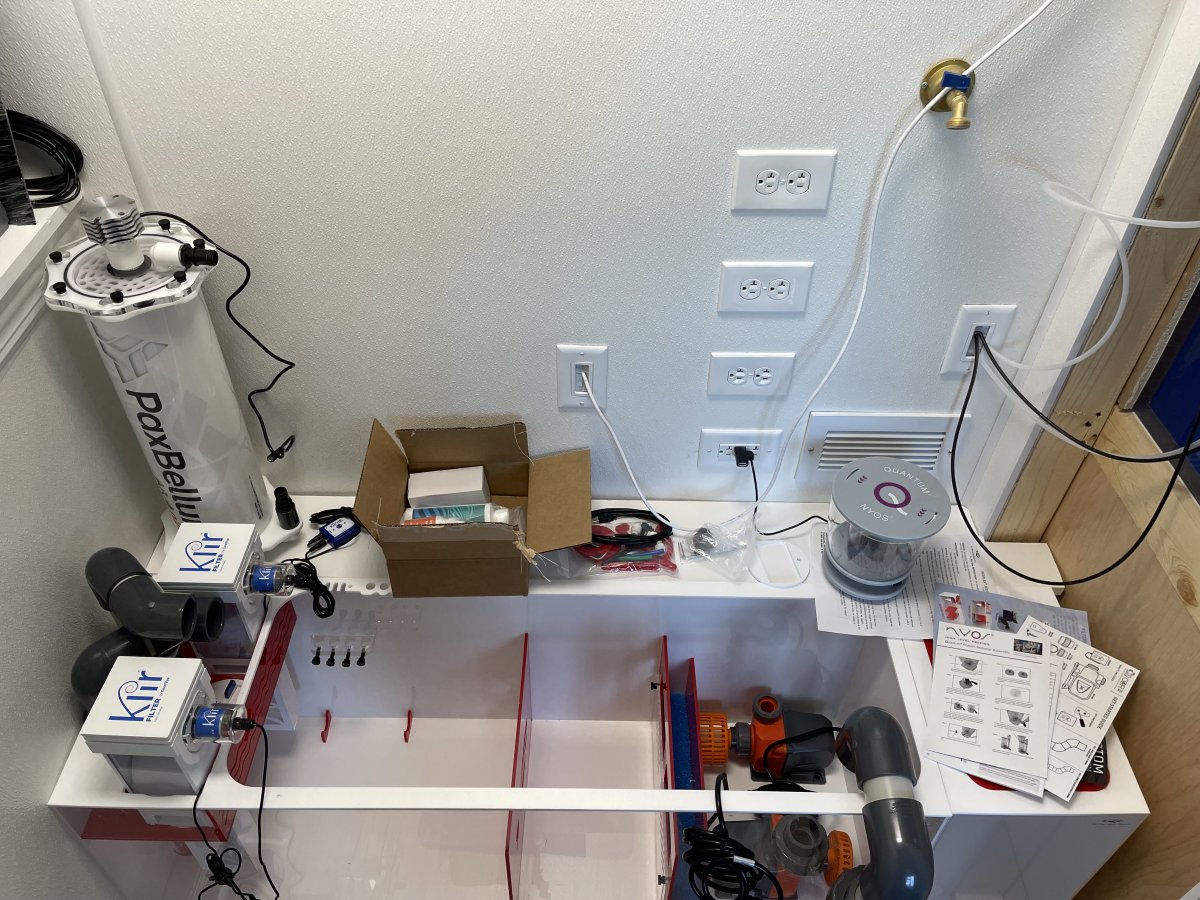

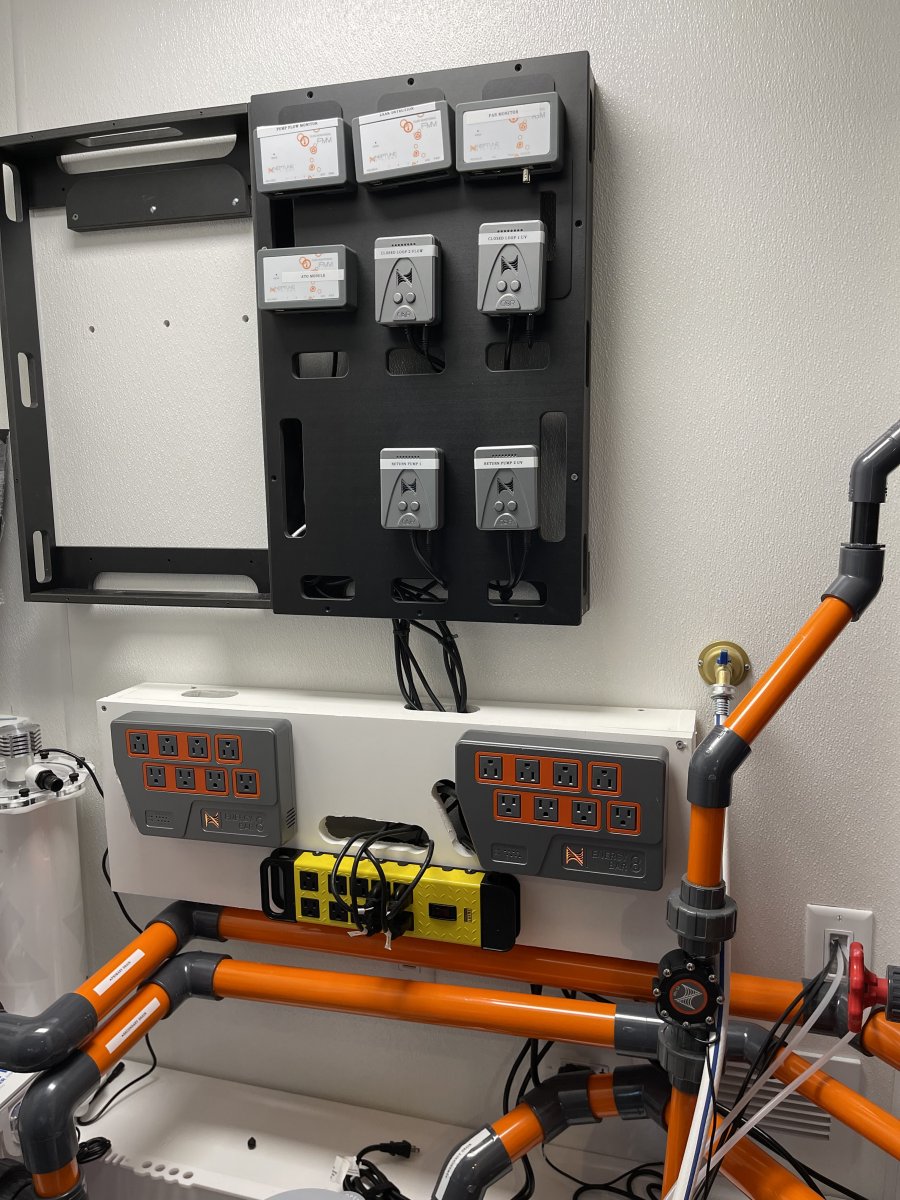

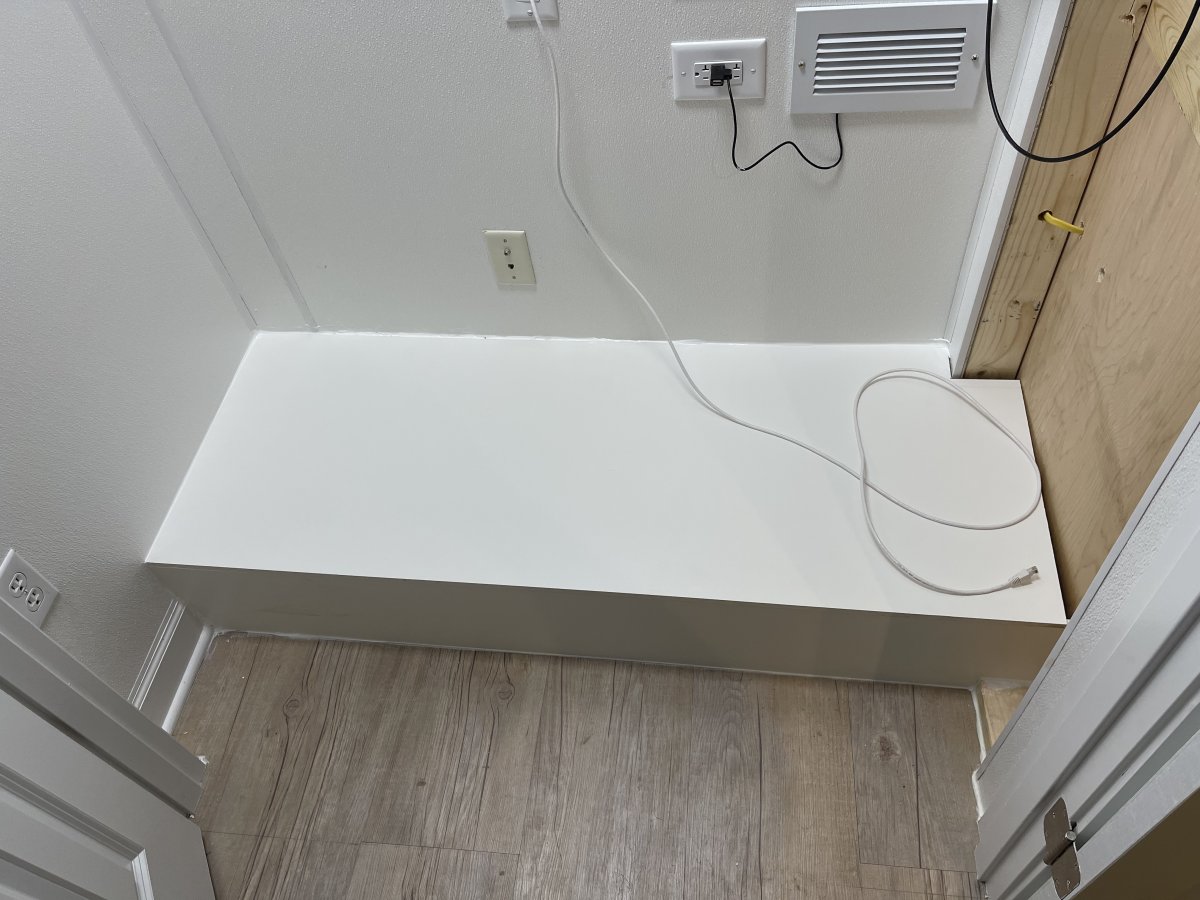

After ordering the tank and having my contractor look at where we wanted to put it, we came up with room behind the tank to create a sump closet and keep things out from under the tank. We also were able to create a water change station in the unfinished part of the basement and ran hose line through the ceiling so I can fill the tank directly from the station with no buckets. I also ran lines for a Neptune Dos so water changes can happen automatically.


Attachments

  • 635C137F-BE09-4DF9-A346-63A07EBB36E7.jpeg
    171.1 KB · Views: 42
  • 41ED632A-A766-4A6A-9C30-7F54307F23FB.jpeg
    166.7 KB · Views: 38
  • 5EFDCBC0-7210-4F2D-8349-F004D141197C.jpeg
    187.3 KB · Views: 33
  • 940CAB40-BF9B-435A-84E9-7C91228D3A28.jpeg
    152.5 KB · Views: 41
OP
S

SEWIreefer

New Member
Review score
+0 /0 /-0
View Badges
Joined
Sep 25, 2021
Messages
9
Reaction score
46
Review score
+0 /0 /-0
Location
Waterford, WI

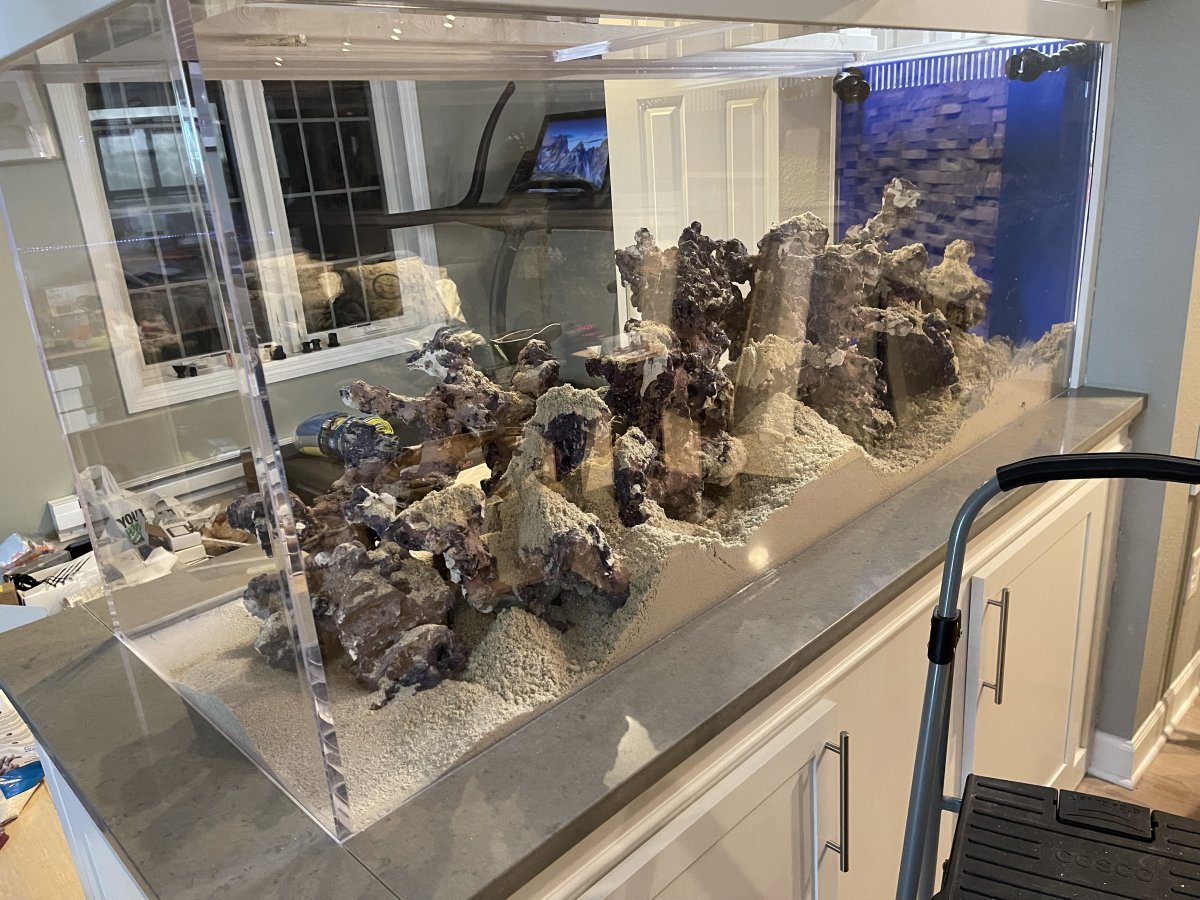

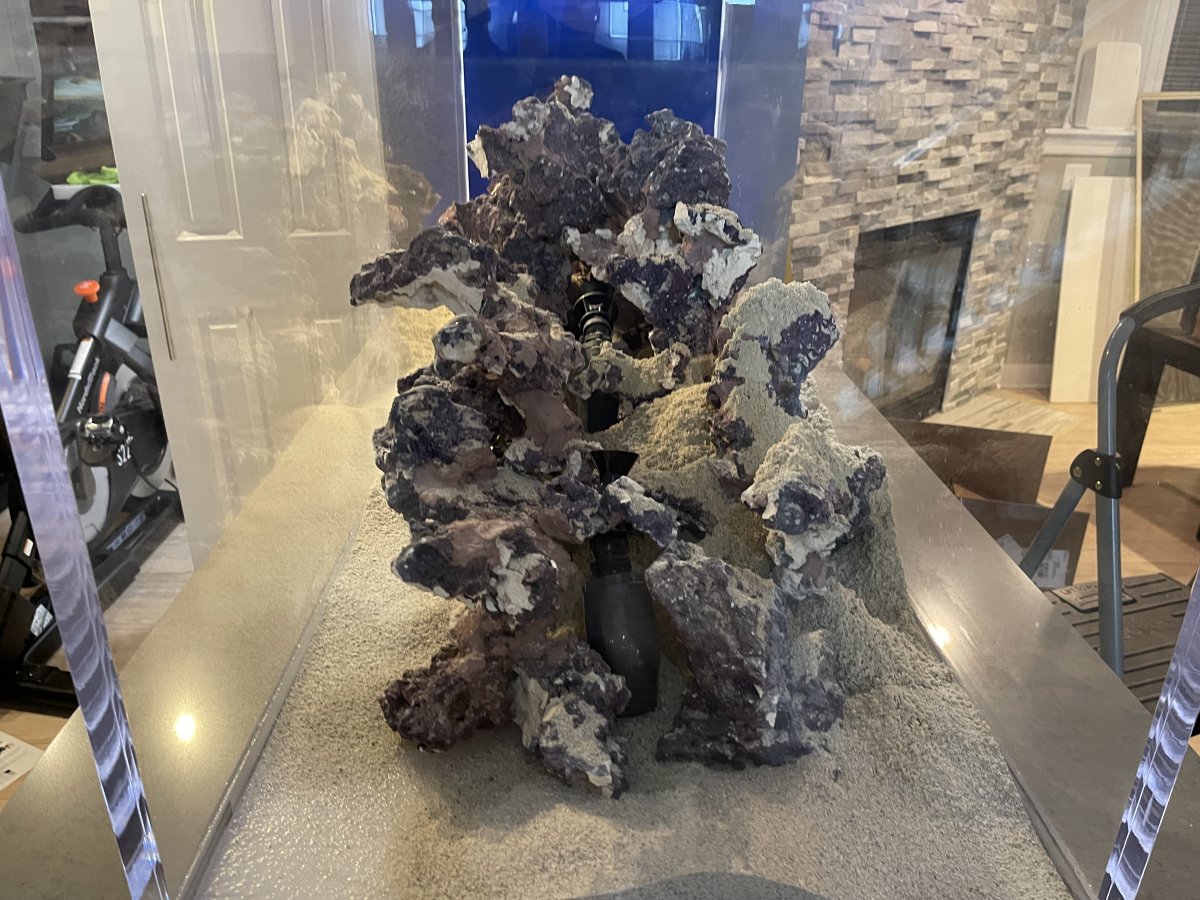

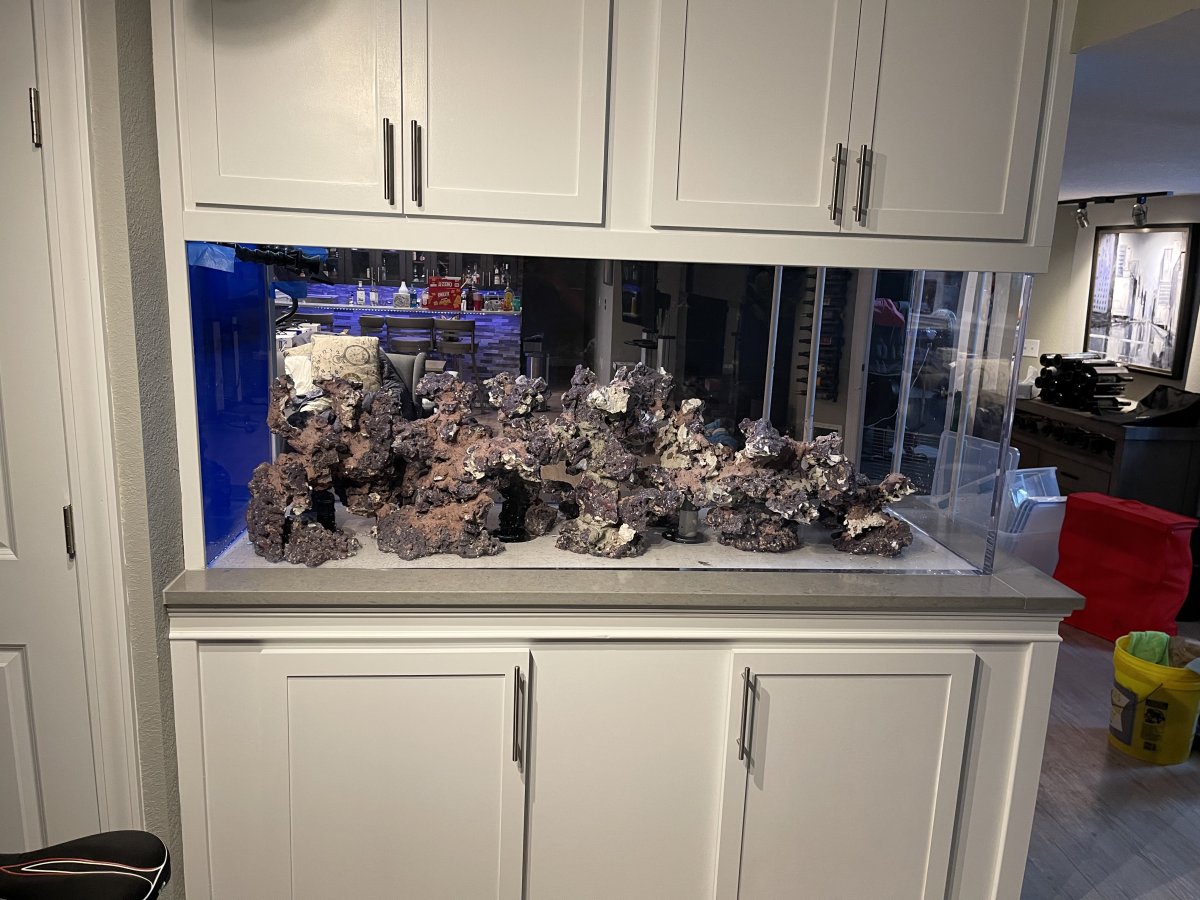

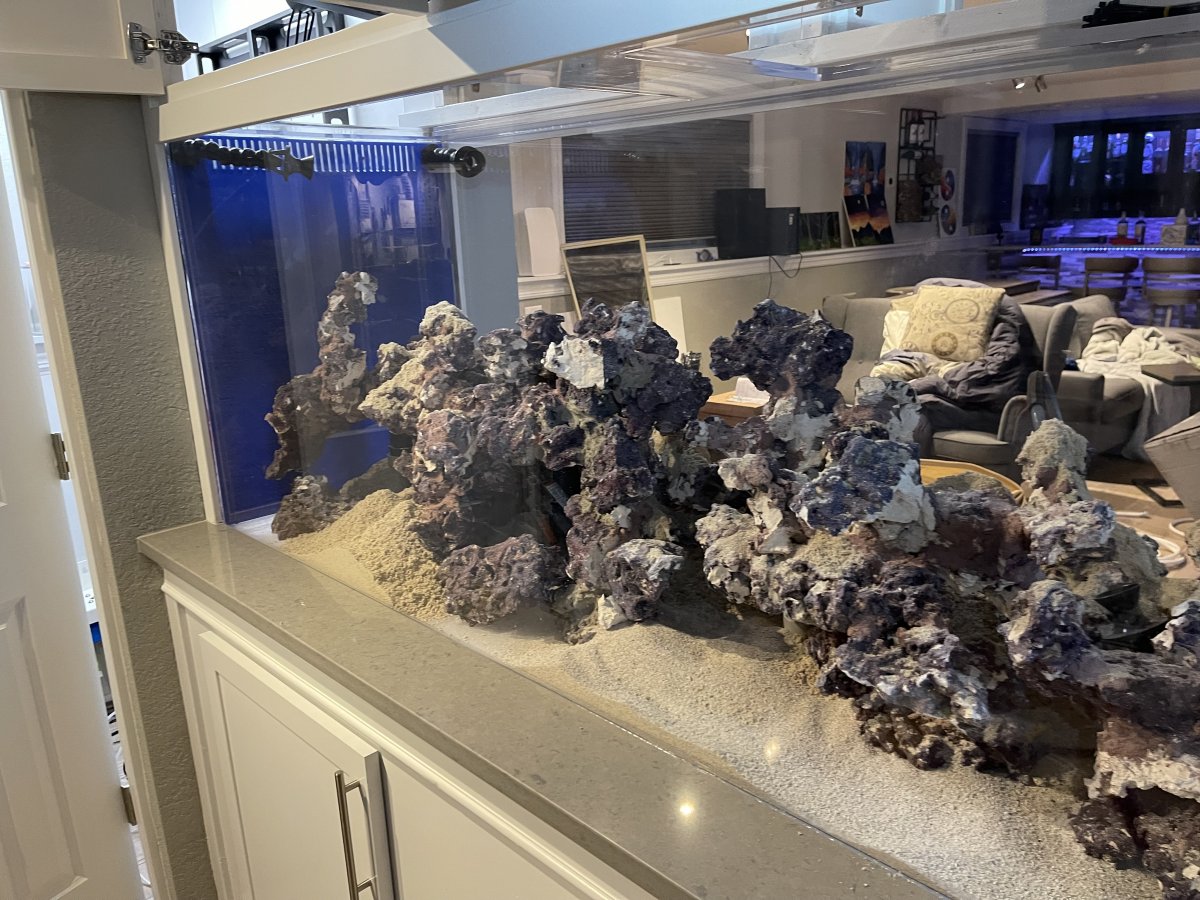

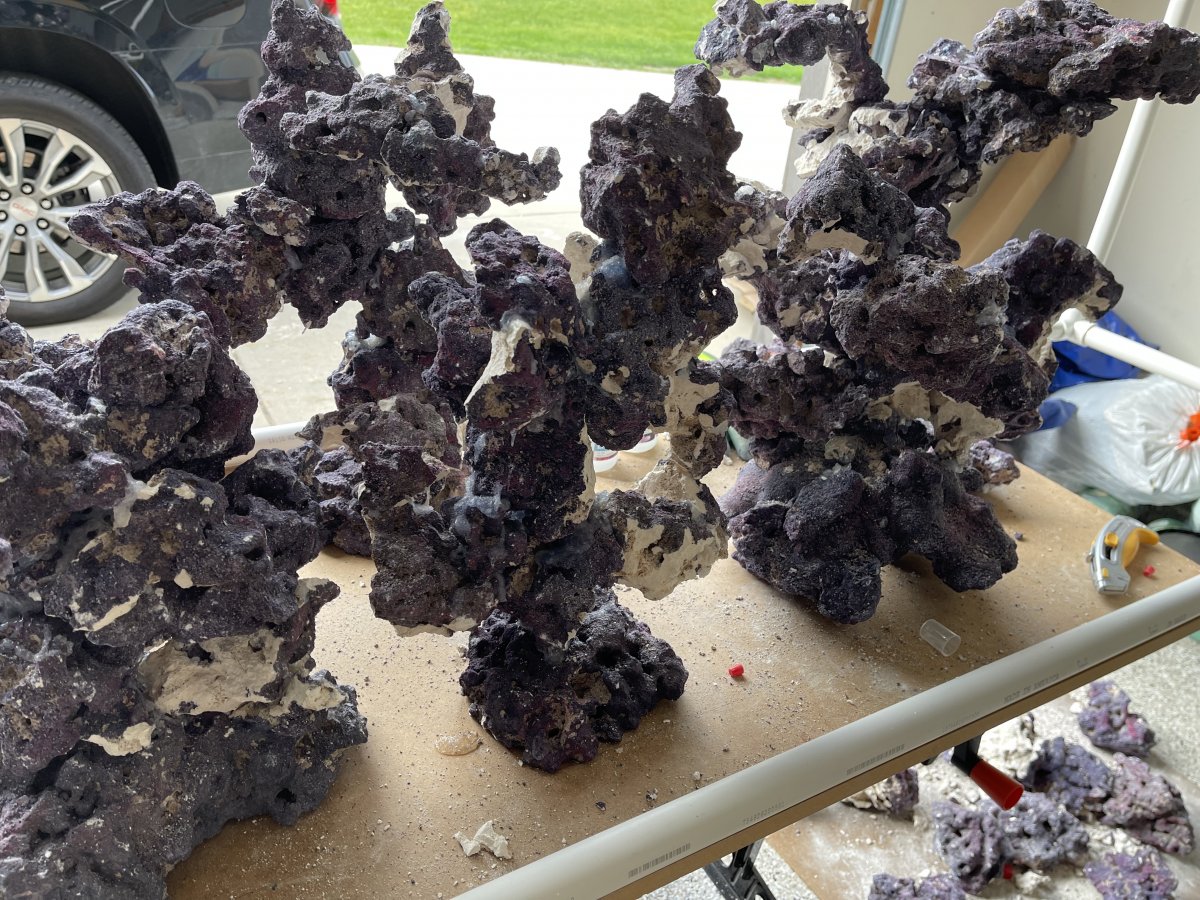

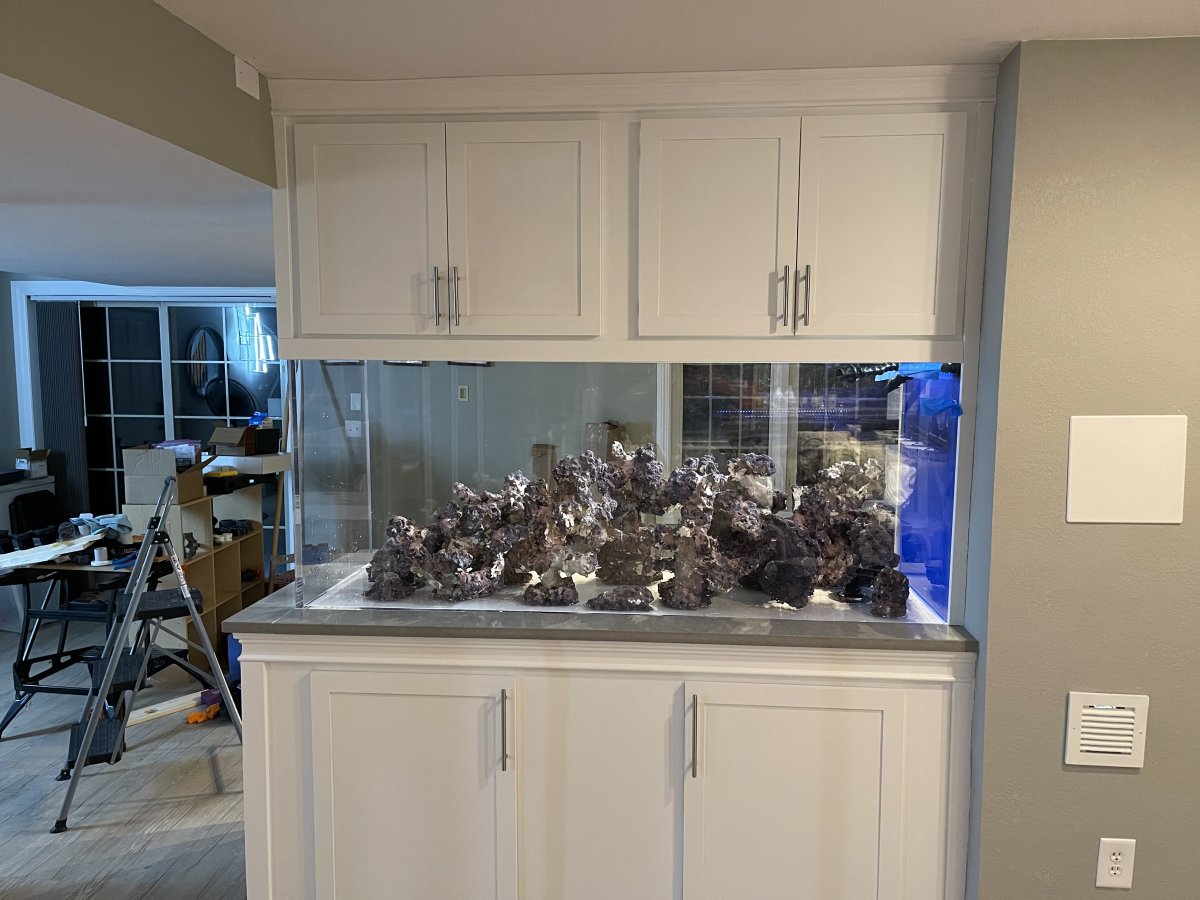

I opted for a NSA style aquascape built in about 9 separate pieces that allowed a channel through the center for the closed loop pumps to move water. I used caribsea liferock and Marco pink mortar. I followed the video on BRS, used their superglue and insta-set but skipped putting sand into the mortar. I think the pink Marco mortar looks great with the life rock!


Attachments

  • 8AB89602-3020-418F-B9A7-D6E424784E72.jpeg
    241.7 KB · Views: 36
  • 580FD799-DFC0-48B0-8696-6BCDB6709705.jpeg
    316.6 KB · Views: 35
  • E36180A1-03EC-4AB4-8CCB-BBDC84426D4B.jpeg
    199.7 KB · Views: 41
  • E086B1C1-DCAB-42F7-9EE3-72A84ADC76C0.jpeg
    161.9 KB · Views: 44
  • 965F8339-F59B-4098-A2A2-F71A6889851D.jpeg
    186.5 KB · Views: 43
  • C8BA4813-3FA5-449D-A640-D2B731AF7841.jpeg
    190.4 KB · Views: 43
Maxout
OP
S

SEWIreefer

New Member
Review score
+0 /0 /-0
View Badges
Joined
Sep 25, 2021
Messages
9
Reaction score
46
Review score
+0 /0 /-0
Location
Waterford, WI

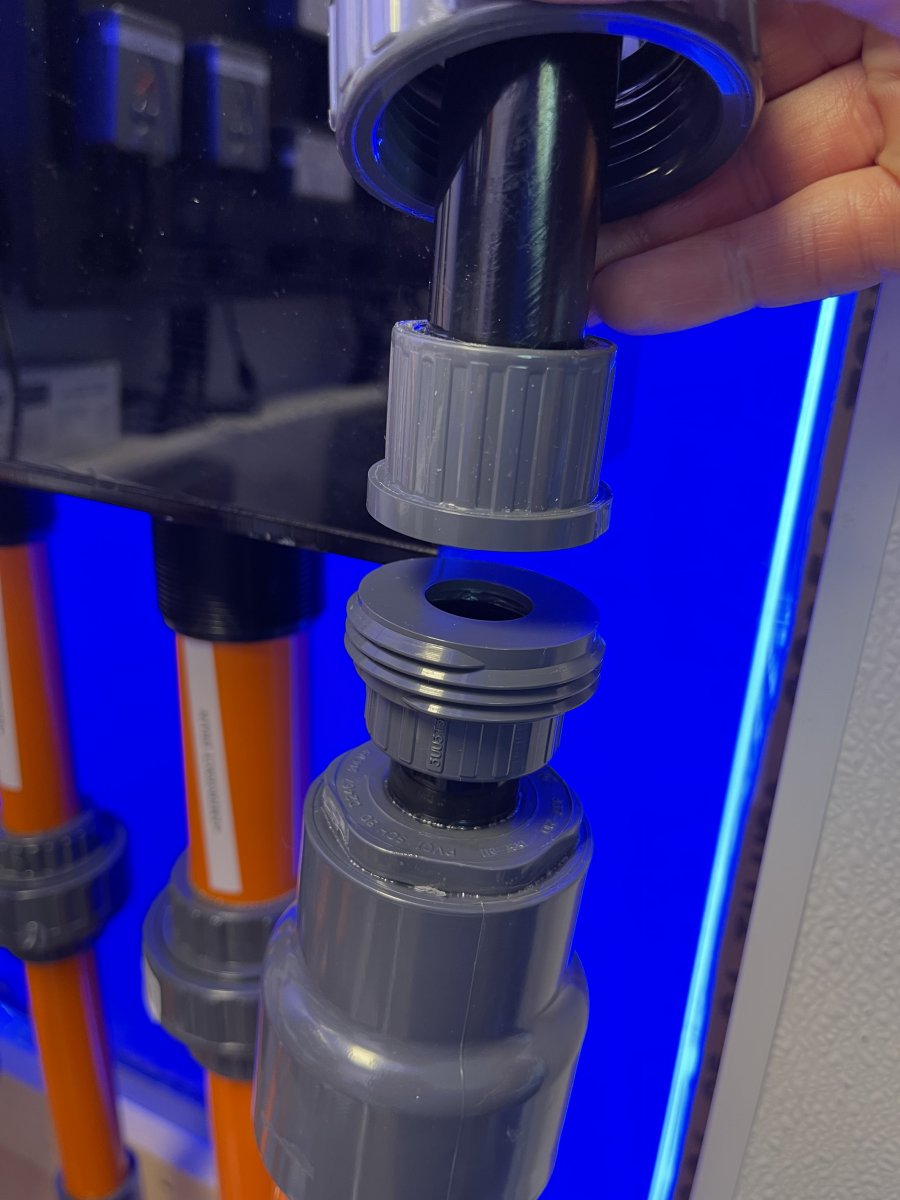

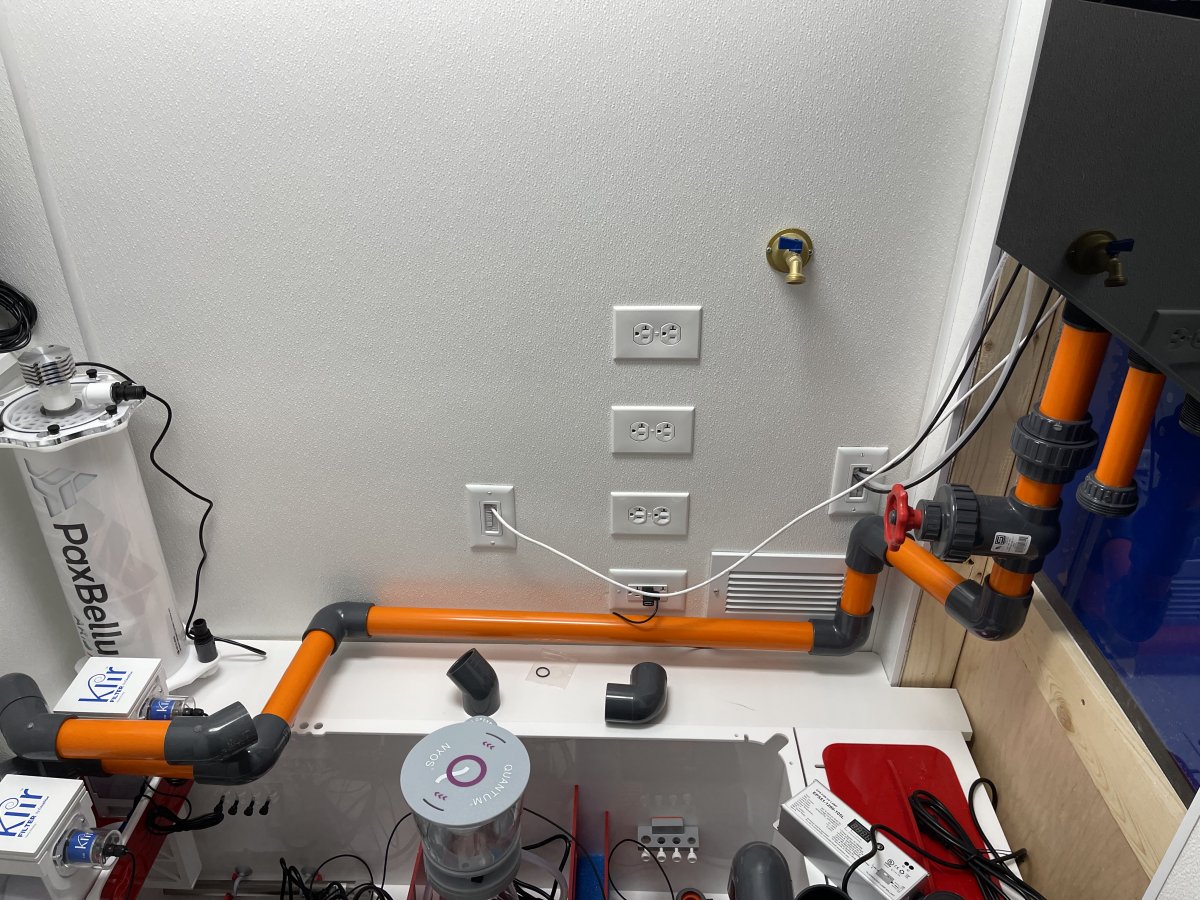

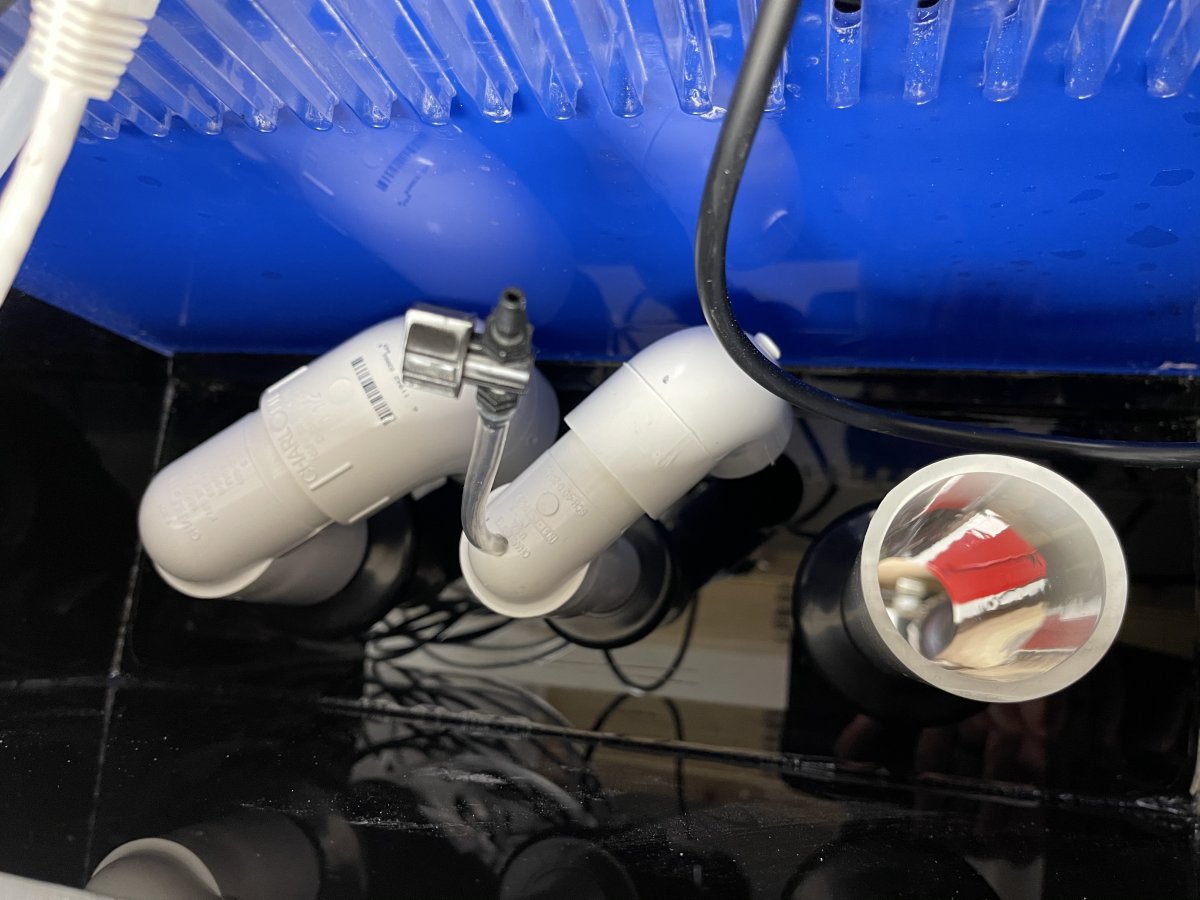

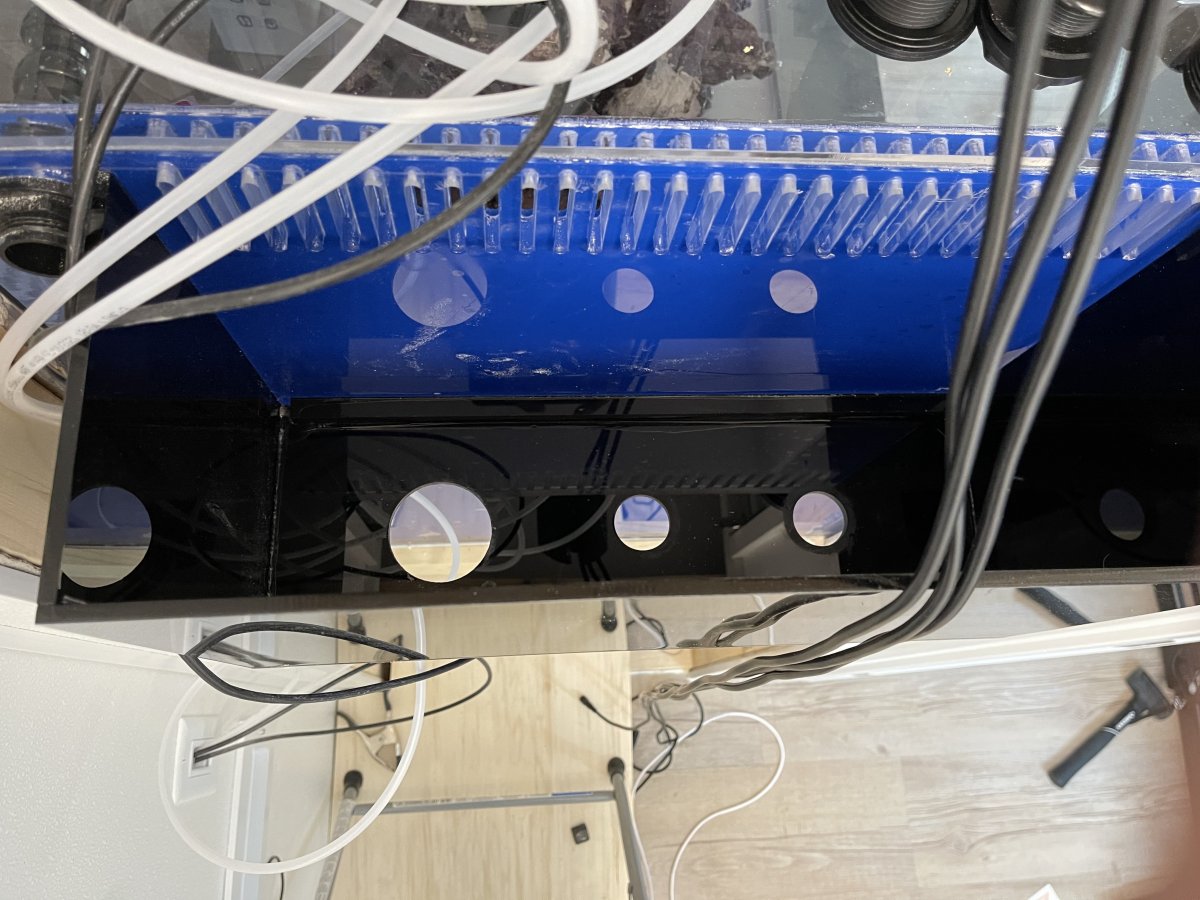

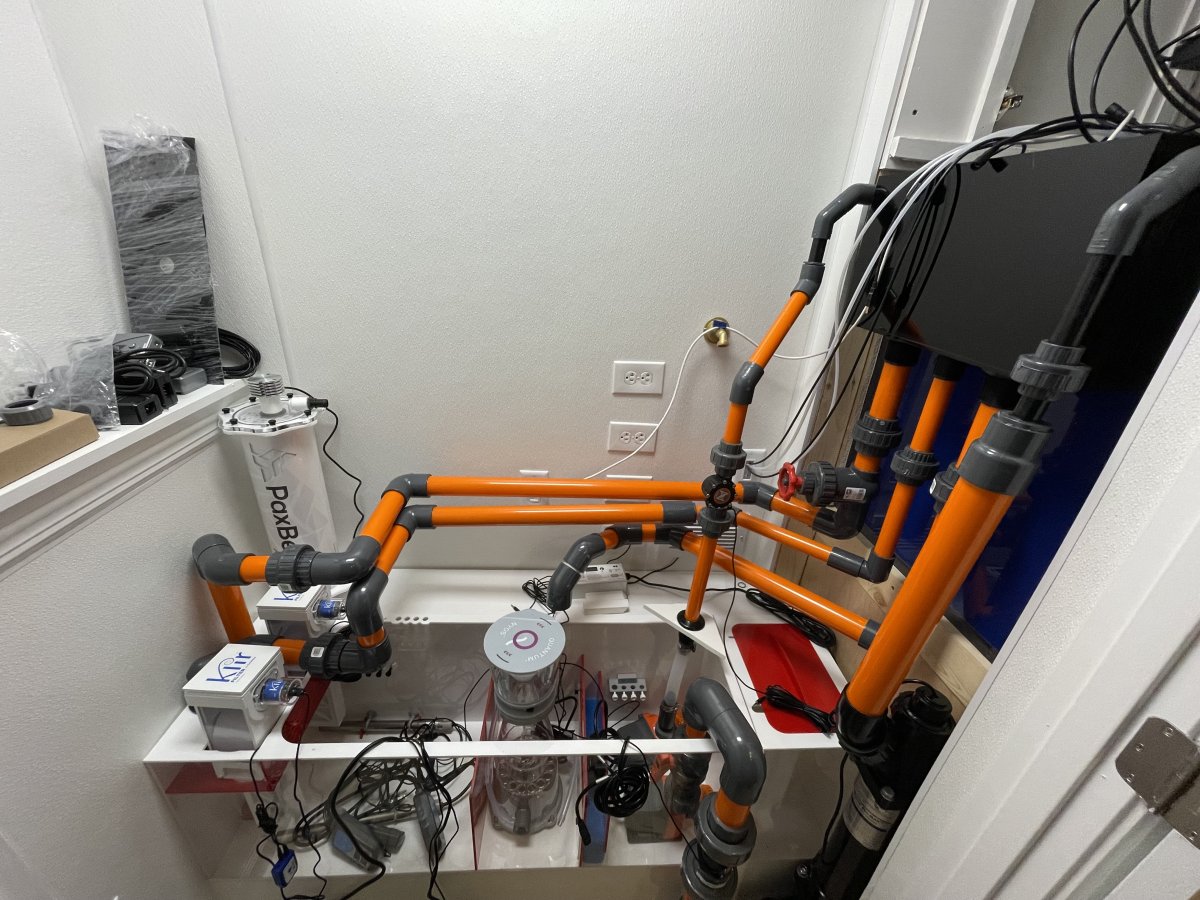

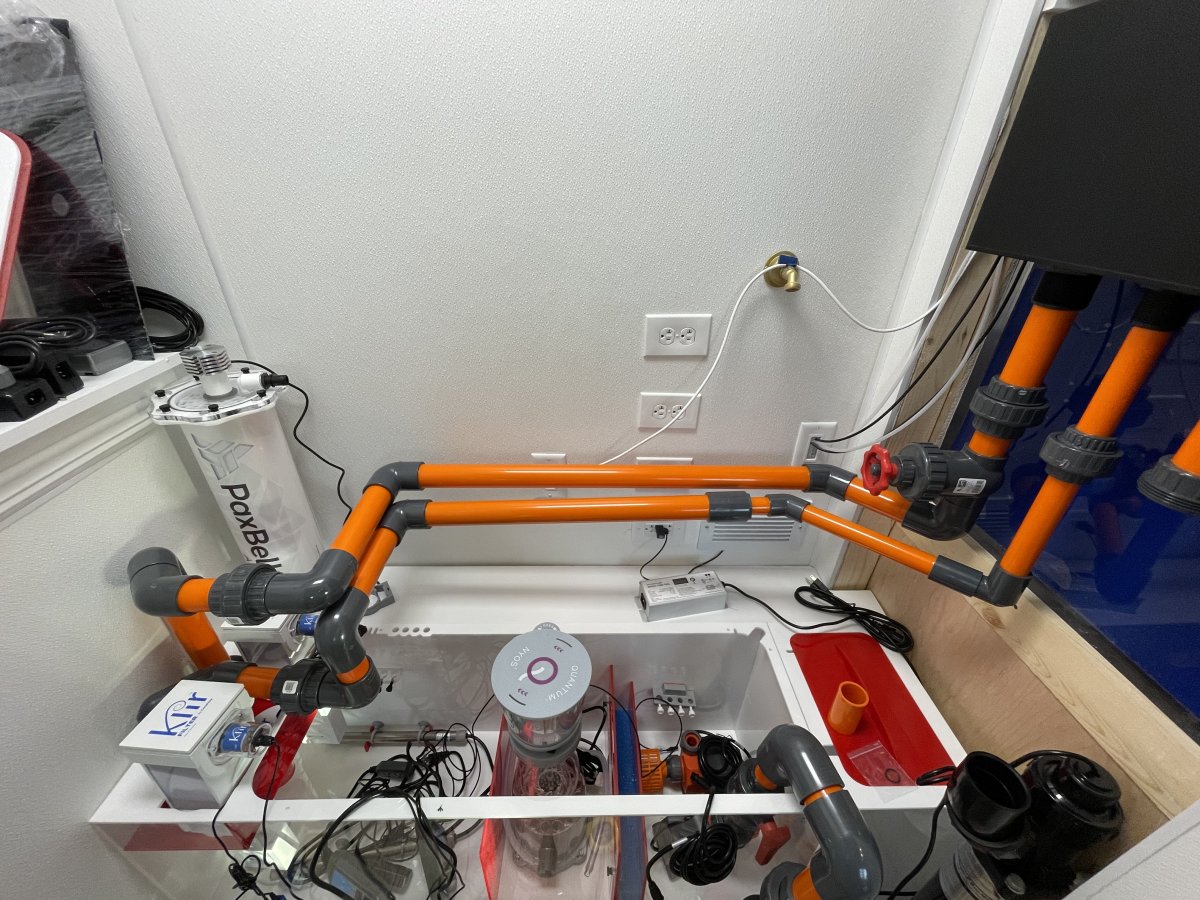

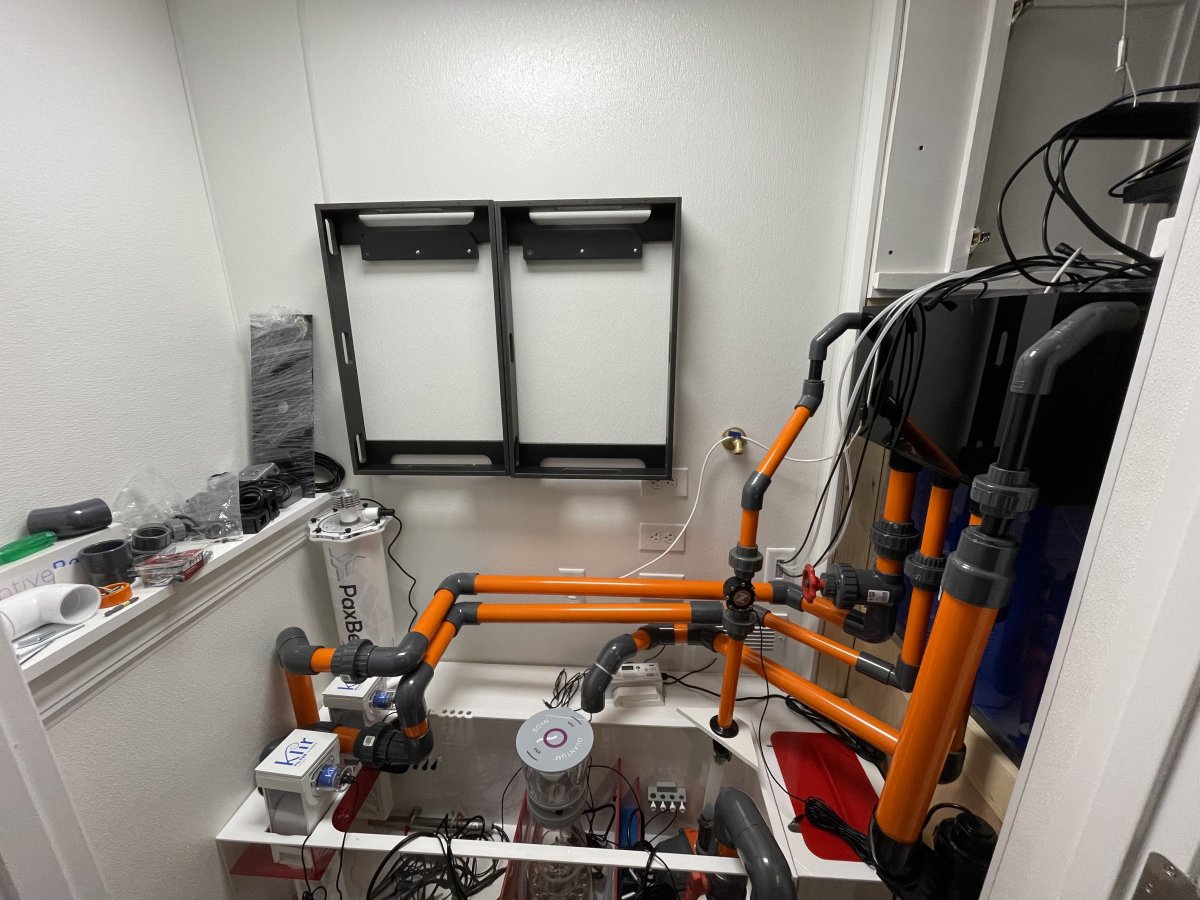

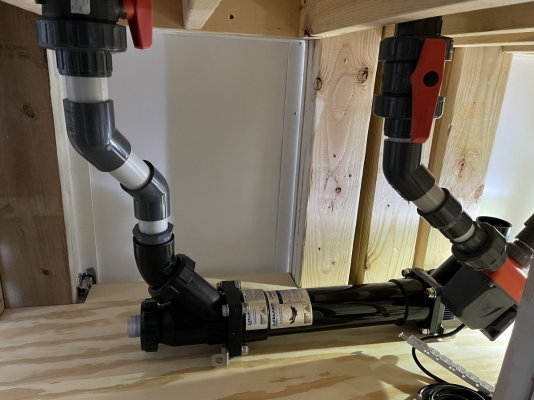

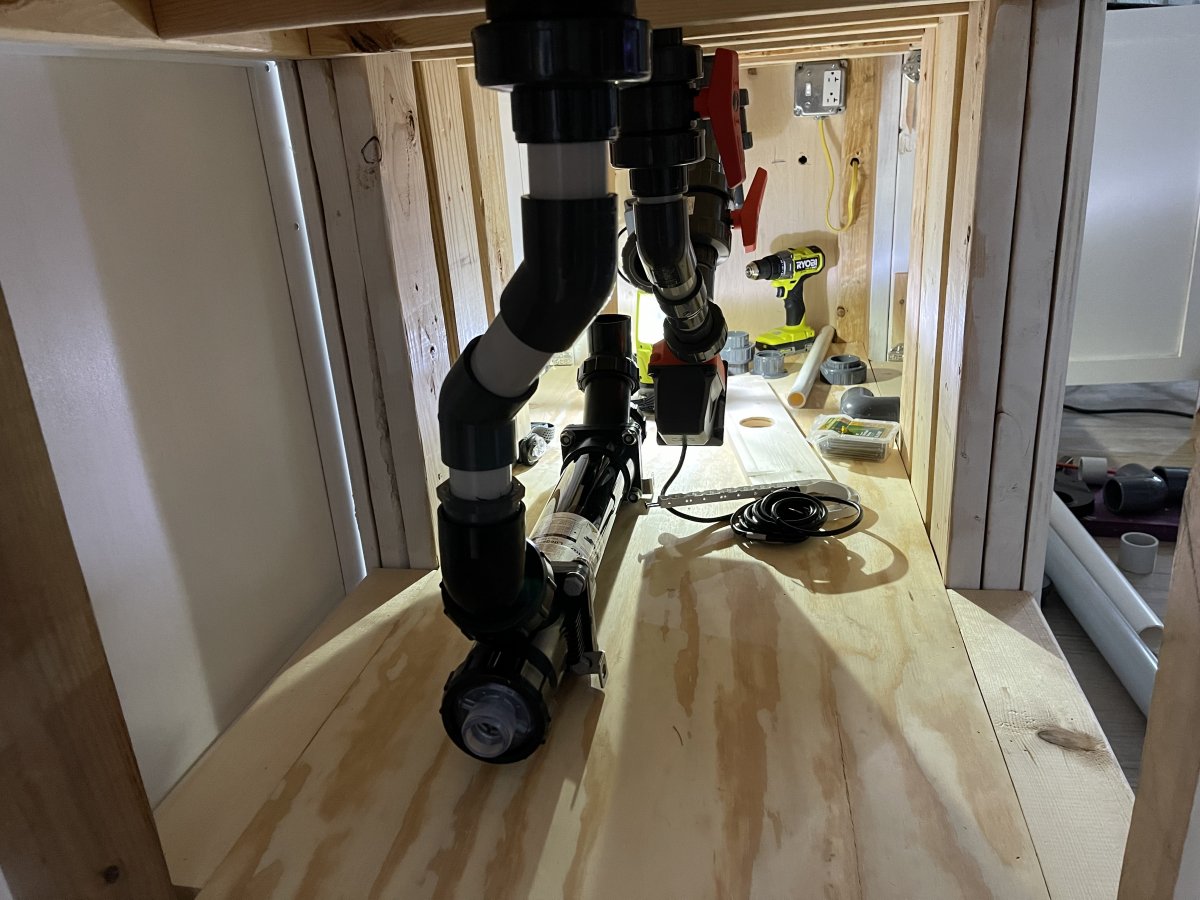

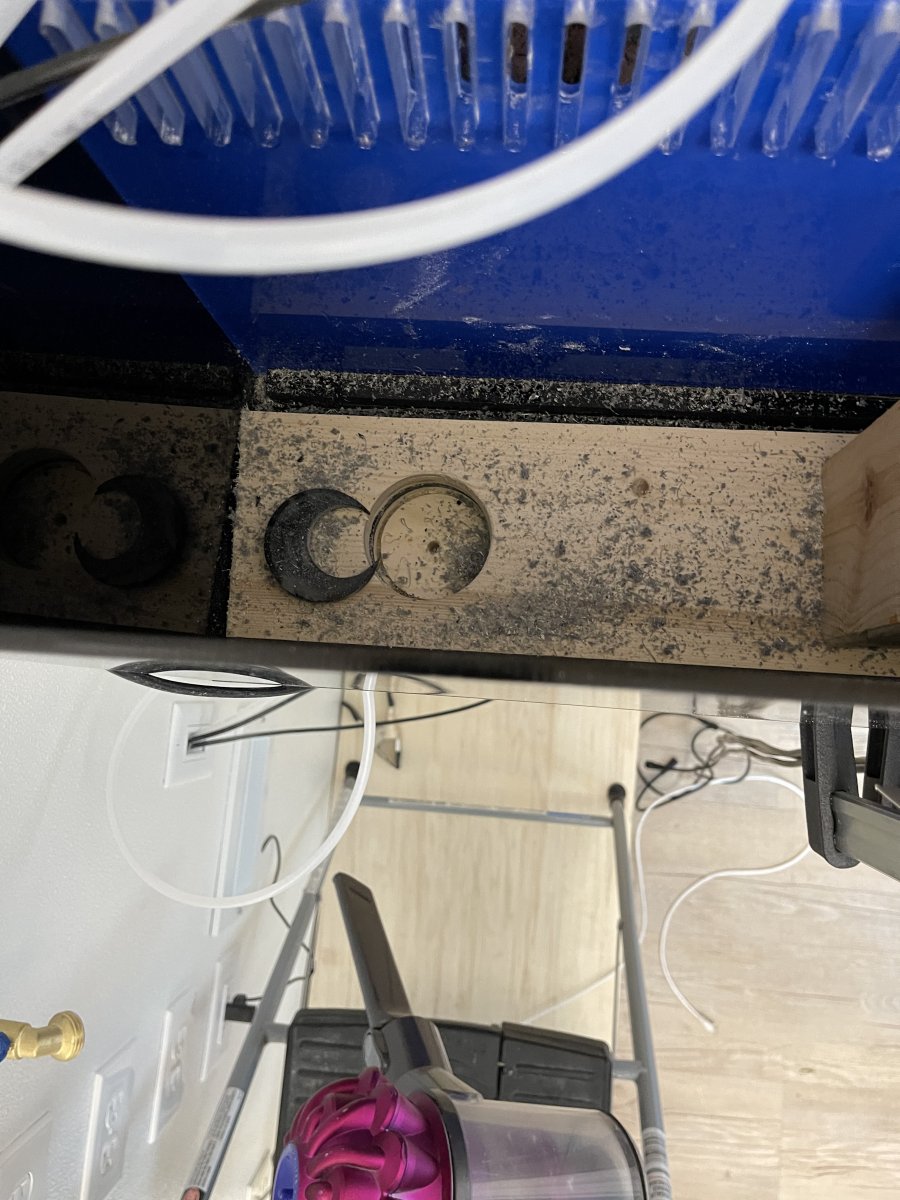

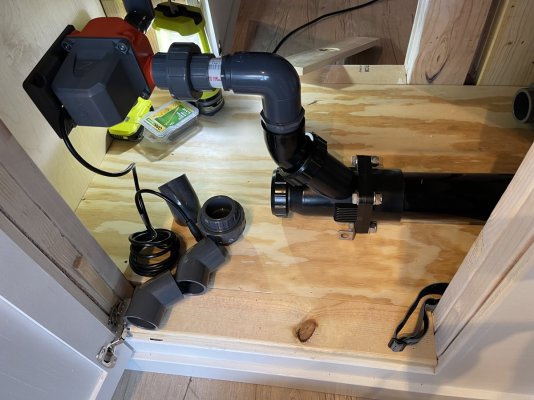

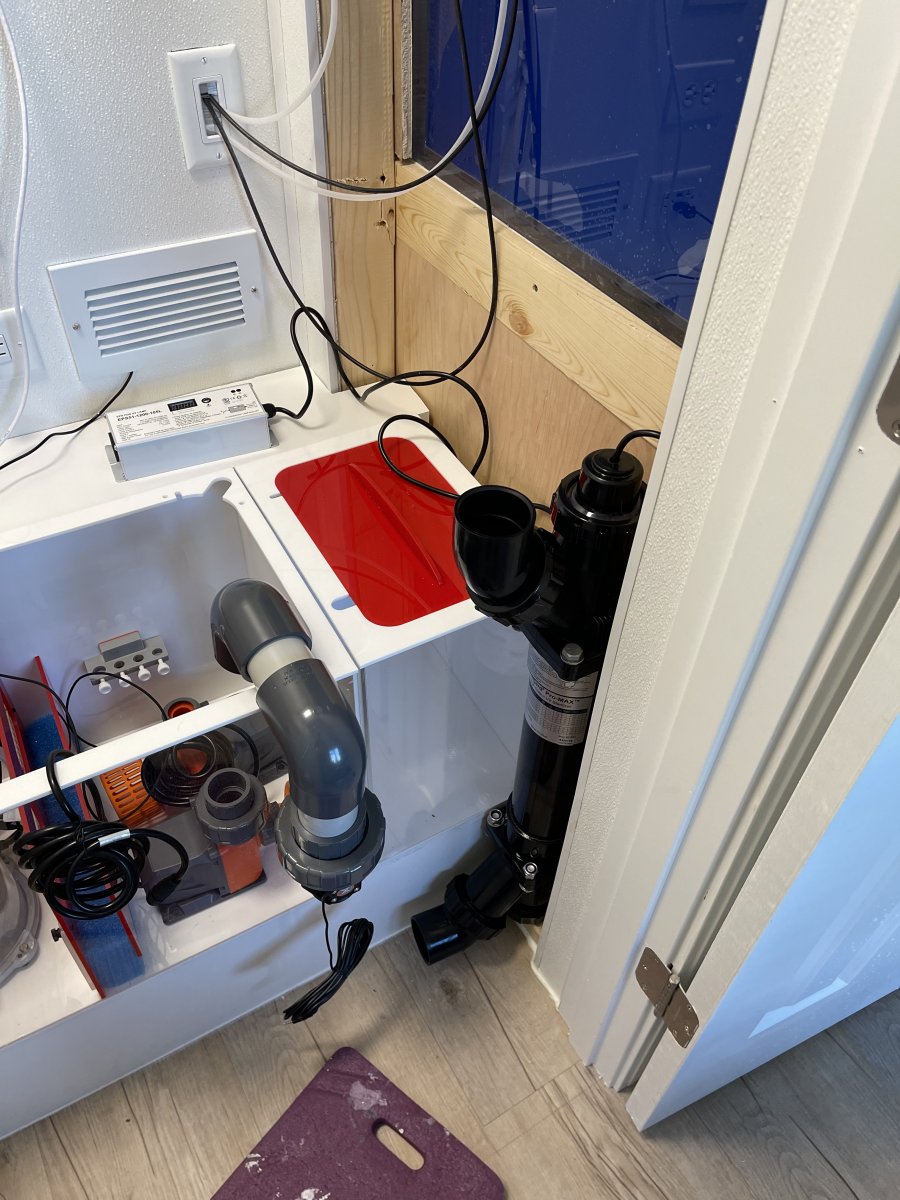

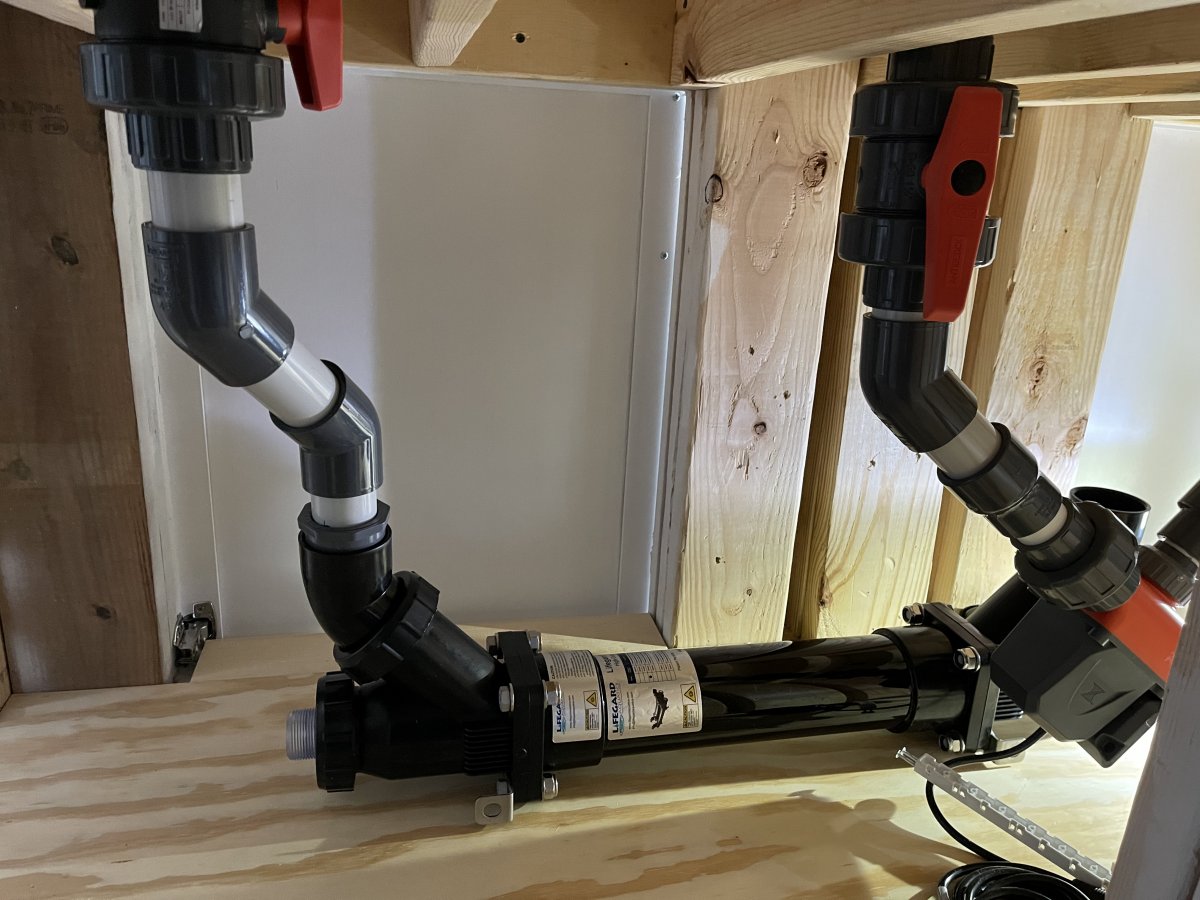

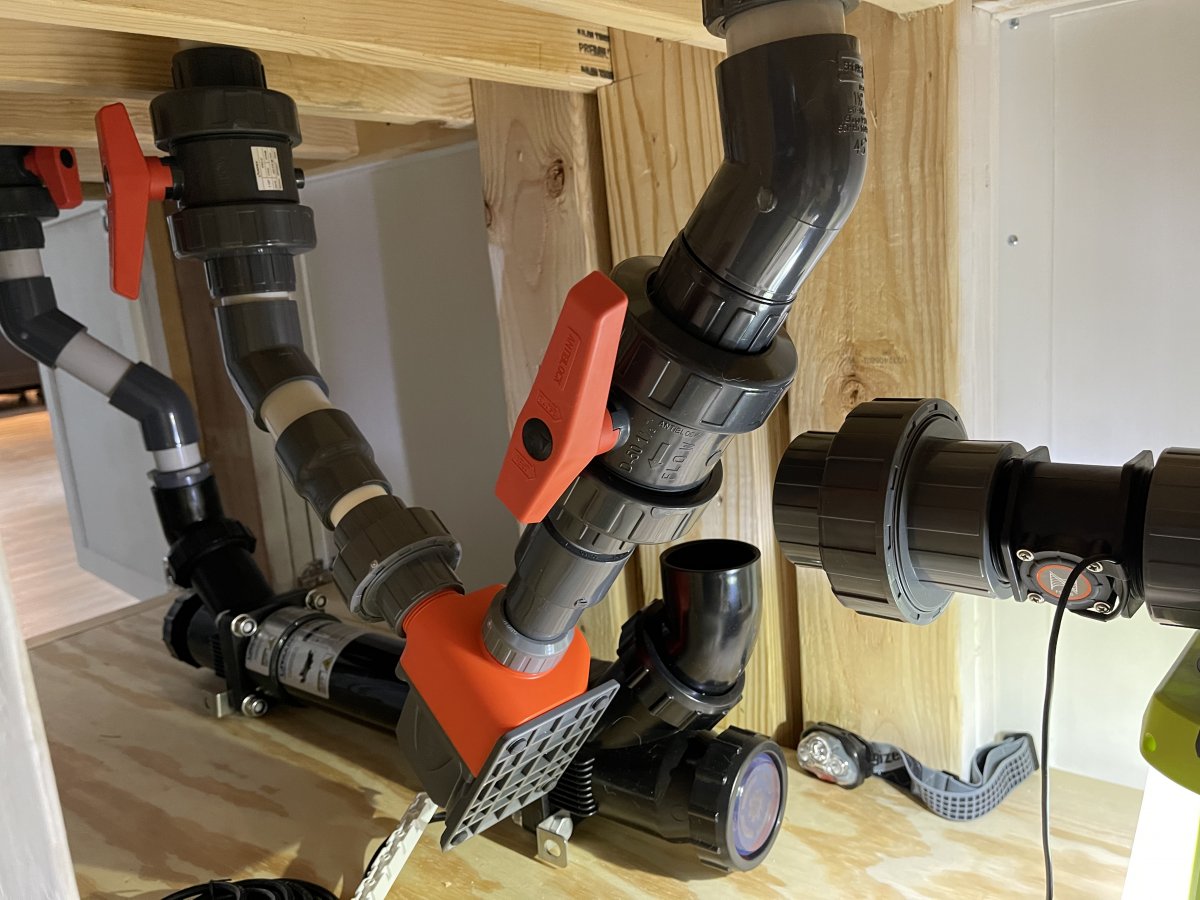

Plumbing the closed loops was more challenging than I anticipated. I have a lifeguard pro max 90 watt high output UV plumbed into the loop that draws water in from the hole nearest the overflows and returns water at the far end of the peninsula. The second closed loop draws in water from the next closest hole to the return. Both returns direct water back towards the overflow.


Attachments

  • 19D7A978-1750-4701-8DE3-85FF3B7677D4.jpeg
    185.2 KB · Views: 38
  • D6221C9D-4CD6-42EC-98C6-6E45FC5A4D9B.jpeg
    164.7 KB · Views: 34
  • 1933436E-440D-42A4-B852-7A85622053D0.jpeg
    159.8 KB · Views: 29
  • 07EE86B8-57CF-415C-AB38-FE3578EC890B.jpeg
    159.7 KB · Views: 31
  • 83D6AAAE-8CB7-4646-AE64-CBA3E3CCF7DD.jpeg
    166.6 KB · Views: 32
  • D3974BD5-9FBE-4679-A2B9-B7A9F8E7D7BE.jpeg
    158.6 KB · Views: 30
  • 0C9F137A-4335-4B42-8375-C939AC744182.jpeg
    185.1 KB · Views: 30
  • 9F4AF695-A233-4378-AB40-A3CD6AB8C420.jpeg
    192.7 KB · Views: 29
