Hello all,

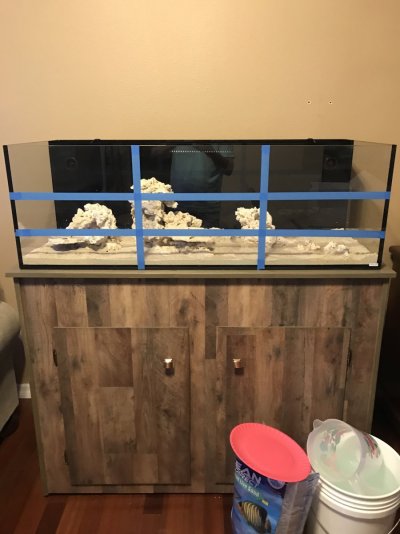

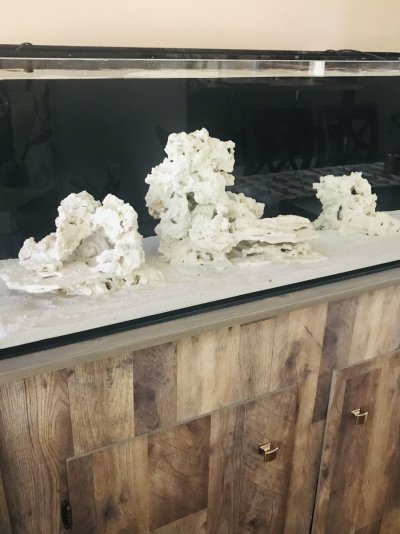

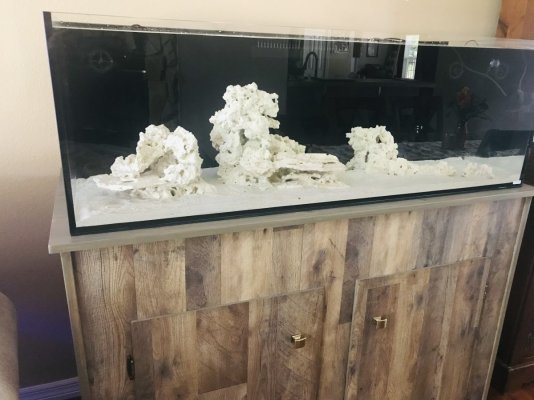

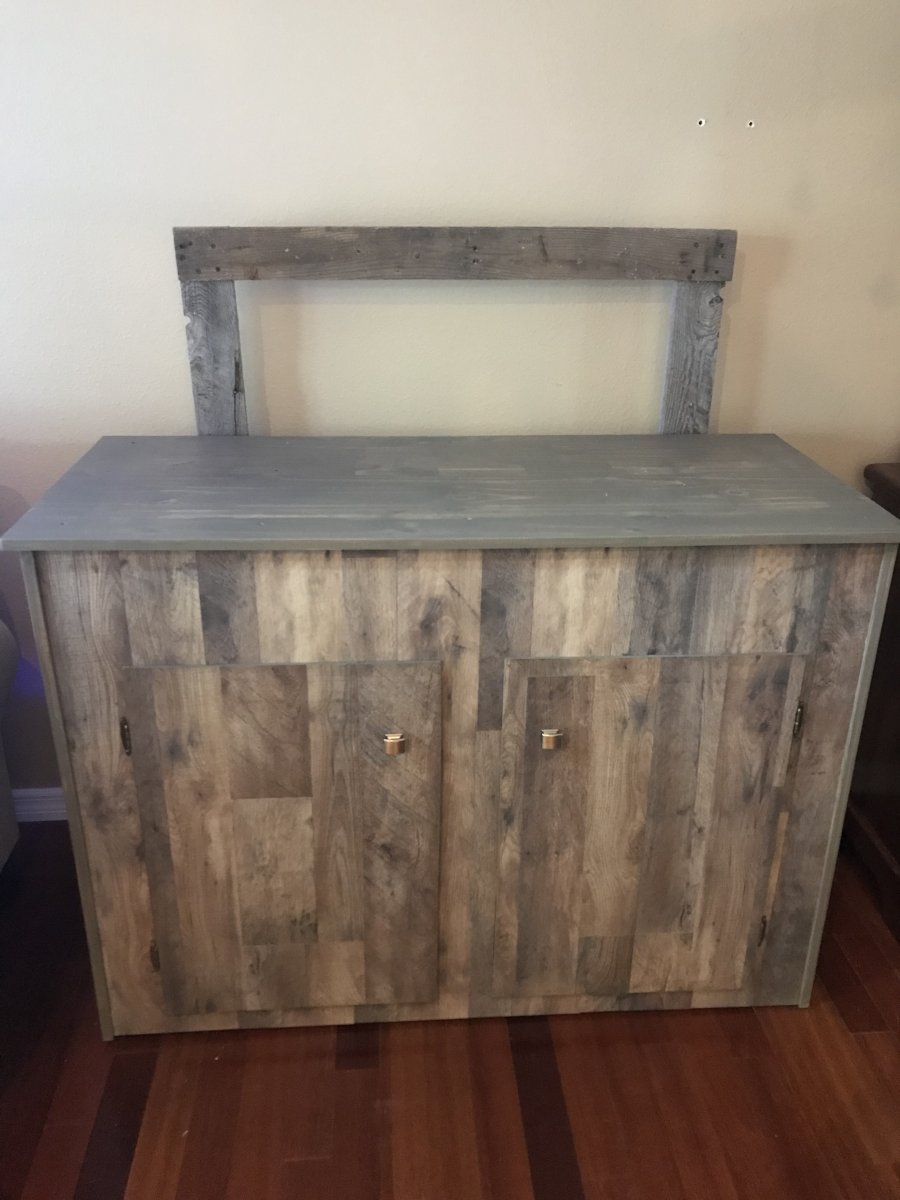

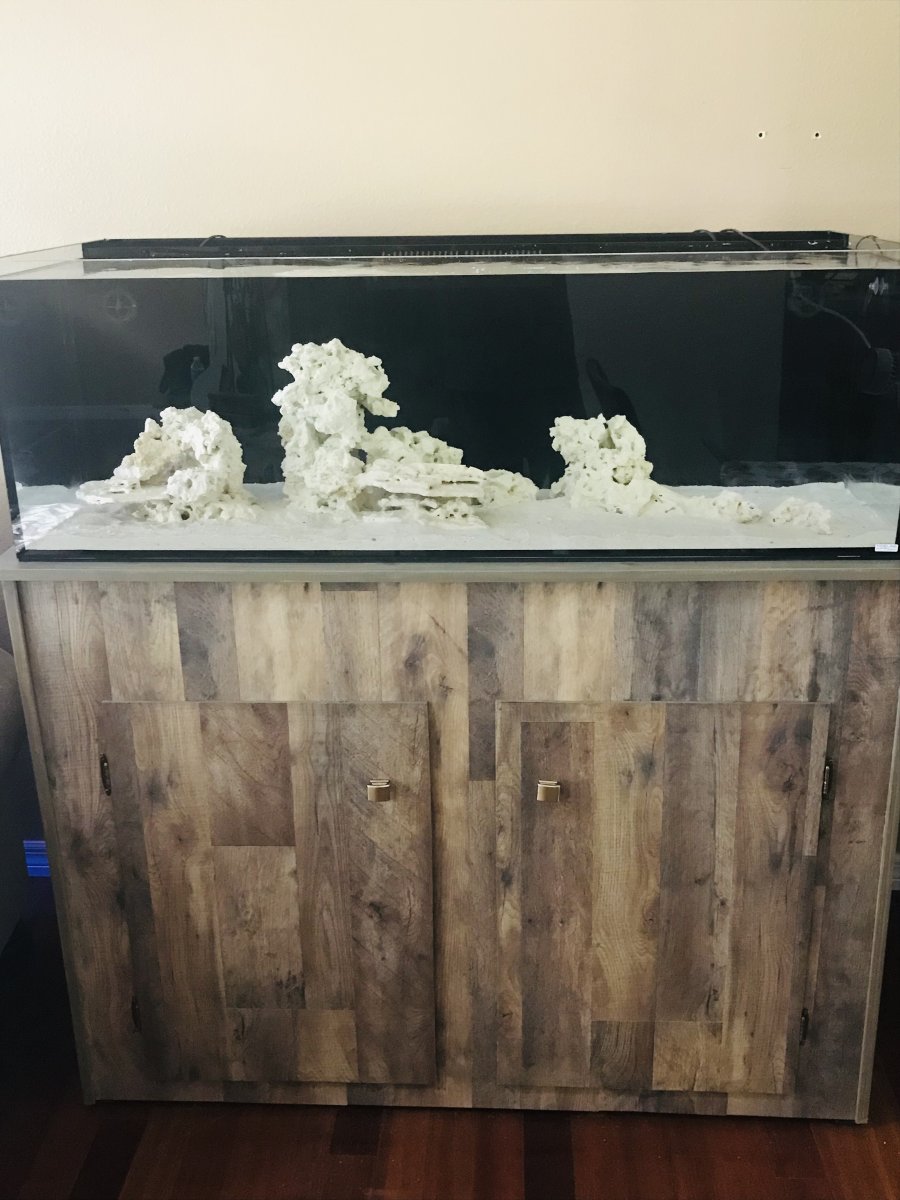

After starting in the hobby in the late 90’s I took a leave of absence up until 2 1/2 years ago. Now after thoroughly enjoying my mixed reef Nuvo 20 and finding I love the AIO tanks I have begun a long awaited larger build. My choose was the 62 gallon Tideline lagoon. After a delay in ordering I found a 65 had come out allowing just a bit more width so that worked out. I ordered and received it in early September. So stand built, negative space habitat aquascape completed, sand and water in on 9/10. So began a four month cycle which I chose to do again after excellent success with the Nuvo 20. I thought I would share my tank and experience with it as I went through the process. Hope you enjoy.

C9D10A1A-0FE1-4D09-9B54-F9EB1FBD06B9.jpeg 31FAE8BC-27AD-4C8A-BD84-D76DE124AC60.jpeg 0DE2E557-557F-49EE-B291-CBBC2DCAFE90.jpeg 9F9C7714-A310-48D3-A48F-6D6E361D3D33.jpeg 732E913F-68E3-46BE-964C-8C1BC995508F.jpeg

World Wide Corals
OP
Briansreef

Briansreef

New Member
Review score
+0 /0 /-0
View Badges
Joined
Oct 29, 2022
Messages
23
Reaction score
25
Review score
+0 /0 /-0
Location
Brooksville
Rating - 0%
0   0   0

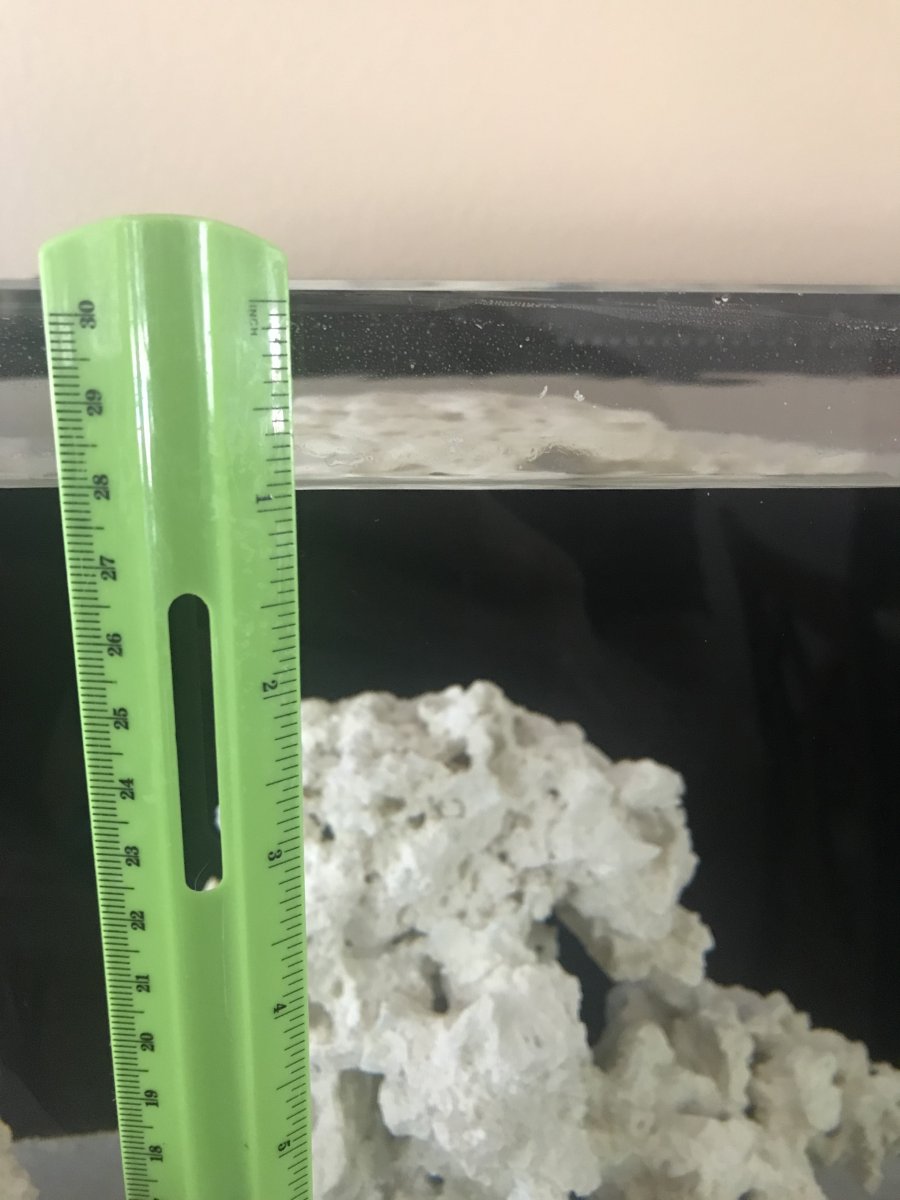

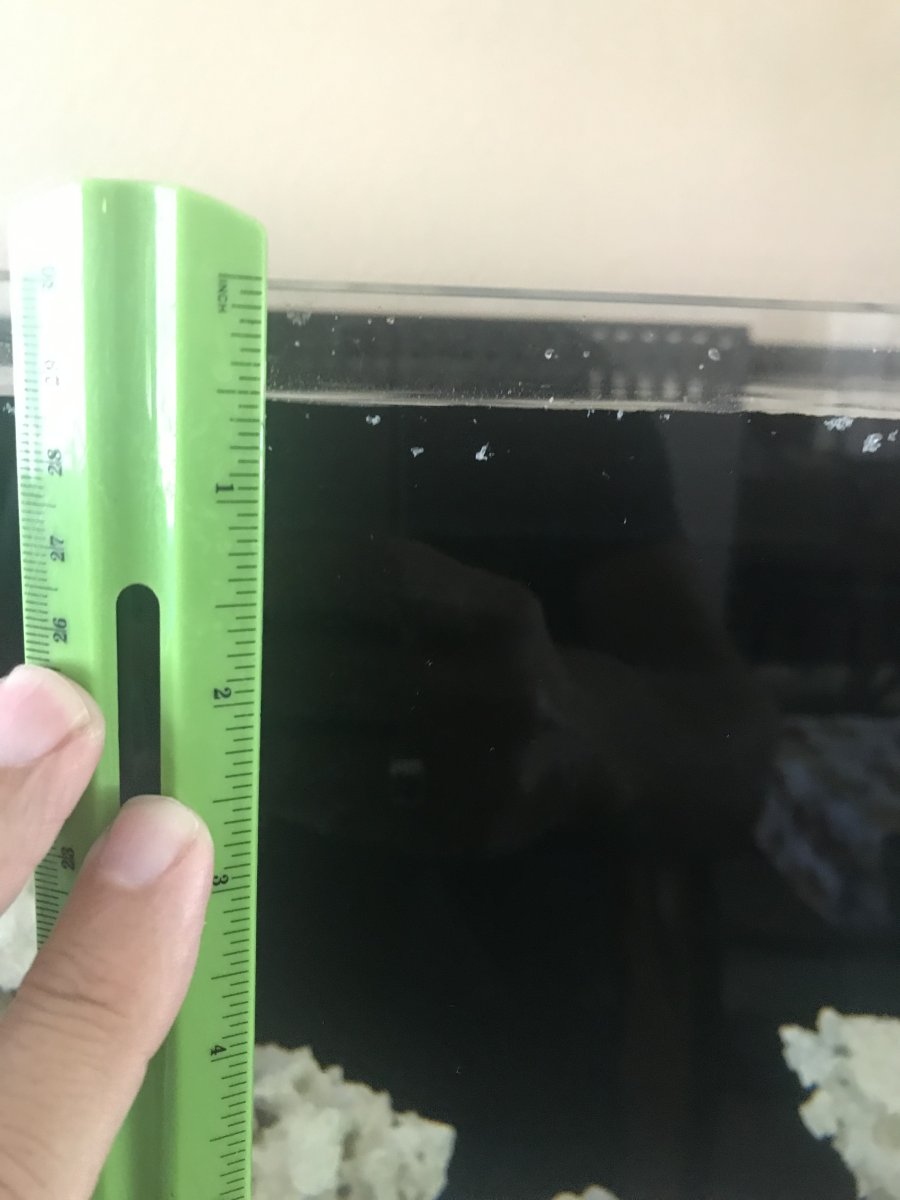

First change made was to raise the water level. I found the waterline to be far too low for my liking. I had a custom over flow grate built and superglued it over the built in overflow at a level that raised the waterline.


Attachments

  • 75B478BE-E070-4C92-8A44-A59BCD51351D.jpeg
    100.6 KB · Views: 33
  • 522FD892-F726-42D3-BDAE-8F4F99572F38.jpeg
    106.4 KB · Views: 32
  • 1D88CD09-CDB5-439E-BD56-4DD6FABD644C.jpeg
    77.4 KB · Views: 32
  • 0C08A84F-E8BF-4B59-9CEF-66DD74199703.jpeg
    84.3 KB · Views: 32
  • 682FBA52-32D6-4D97-B925-02BD7B874E82.jpeg
    216 KB · Views: 37
Top Shelf Aquatics

OutColdCoral

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Dec 23, 2021
Messages
302
Reaction score
292
Review score
+0 /0 /-0
Location
shreveport
Rating - 0%
0   0   0
First change made was to raise the water level. I found the waterline to be far too low for my liking. I had a custom over flow grate built and superglued it over the built in overflow at a level that raised the waterline.
Where did you have the over flow made from?

www.dinkinsaquaticgardens.com
OP
Briansreef

Briansreef

New Member
Review score
+0 /0 /-0
View Badges
Joined
Oct 29, 2022
Messages
23
Reaction score
25
Review score
+0 /0 /-0
Location
Brooksville
Rating - 0%
0   0   0
Where did you have the over flow made from?
On ebay Jax.racks is the seller he has an item called design to spec. It’s .99 then he contacts you for measurements and quotes you a price. Turn around was FAST quality is excellent.

Avast
Tidal Gardens
OP
Briansreef

Briansreef

New Member
Review score
+0 /0 /-0
View Badges
Joined
Oct 29, 2022
Messages
23
Reaction score
25
Review score
+0 /0 /-0
Location
Brooksville
Rating - 0%
0   0   0
OP
Briansreef

Briansreef

New Member
Review score
+0 /0 /-0
View Badges
Joined
Oct 29, 2022
Messages
23
Reaction score
25
Review score
+0 /0 /-0
Location
Brooksville
Rating - 0%
0   0   0
Created a space in rear chamber for a refugium. Removed a square of the black vinyl backing and attached grow light. Built an eggcrate chaeto holder. I did this by ordering custom cut black acrylic partitions to block light from entering either side of the new chamber. They were cut to allow plenty of flow. There is now a built in refugium working perfectly. There is a similar party on on the other side but it has grates cut up one side and across the bottom to insure hood flow.


Attachments

  • 647BF243-4EB4-416B-9E95-90D087825F79.jpeg
    184.9 KB · Views: 18
  • 32CE46D2-F5EC-4A92-941C-318759456947.jpeg
    181 KB · Views: 12
  • 433C939C-92DC-4F2D-B622-AD87EC86B64D.jpeg
    157.4 KB · Views: 14
  • 4BA6ED54-8CF1-49A9-9F51-82126C4D0939.jpeg
    86 KB · Views: 13
AS
OP
Briansreef

Briansreef

New Member
Review score
+0 /0 /-0
View Badges
Joined
Oct 29, 2022
Messages
23
Reaction score
25
Review score
+0 /0 /-0
Location
Brooksville
Rating - 0%
0   0   0

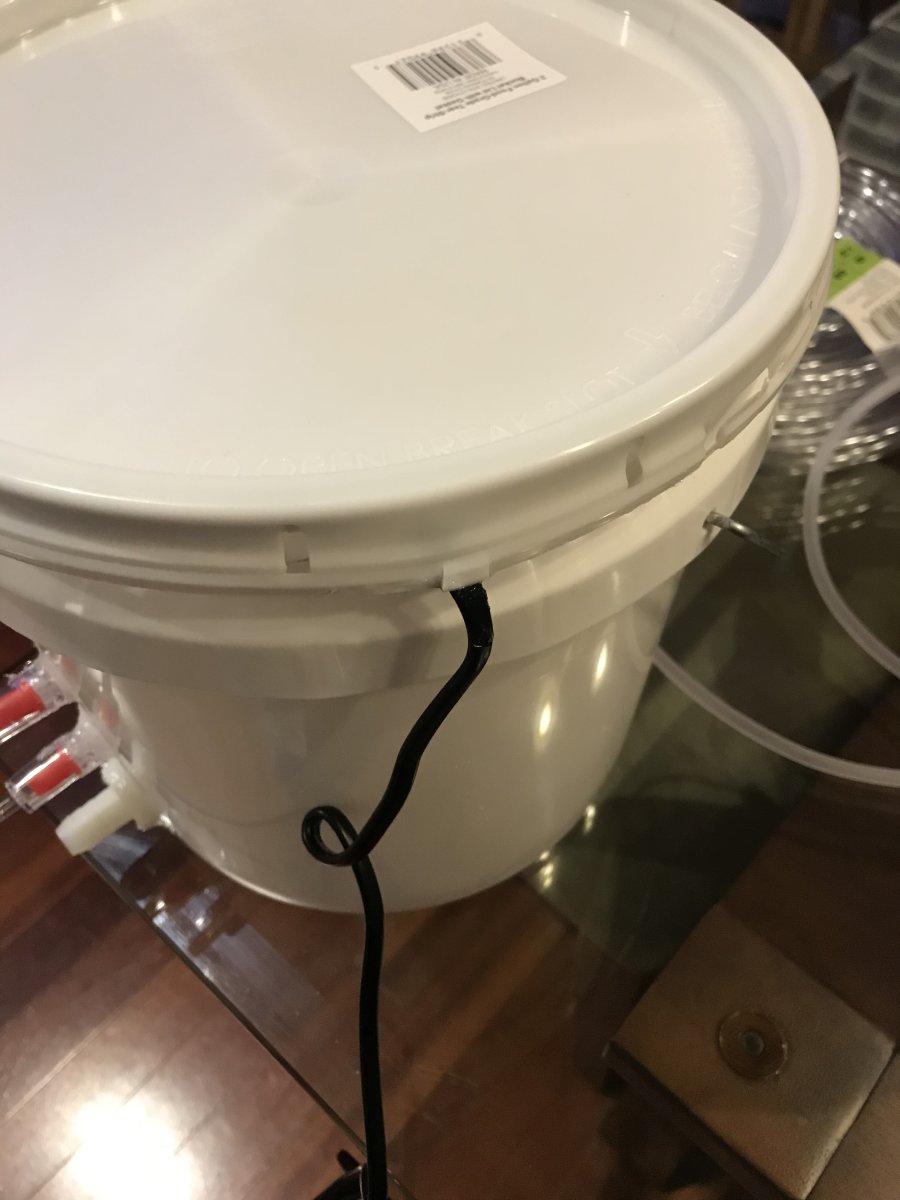

The bubbles in the chamber next to refugium my have caught your eye. This is not my first tank and I know my home is heavy with Co2 greatly effecting my PH. If I do nothing it will be 7.6 and I can hardly keep anything alive. I have resolved this with heavy aeration from outside air. I have a high volume air pump that can run six large air stones running 2 micro bubble flat stones on full power. The pump is sealed into a bucket and the outside air source attaches. PH now 7.9 to 8.2 once my Kalk is back online today I should see 8.1 to 8.3 pretty steady.
Also had to use filter block and make a custom lid to capture spray and silence the hurricane of bubbles.


Attachments

  • D5DA32E0-96D7-4665-B1EA-36938E49FEC7.jpeg
    108.8 KB · Views: 12
  • 786E68AD-F81A-431A-809F-F089F6337566.jpeg
    78.3 KB · Views: 11
  • DAF0EB0E-2812-4CF6-BC9C-5F5D29B4B4CC.jpeg
    86.1 KB · Views: 10
  • 4AFAA6C4-06E0-4940-980C-F304239213CA.jpeg
    229.4 KB · Views: 9
  • BE700A2F-41B0-4E8C-ABF6-BA17E6670A4C.jpeg
    171.3 KB · Views: 9
  • 18F6D951-7F50-48CA-BF57-CCDE90DFC173.jpeg
    266.8 KB · Views: 13
OP
Briansreef

Briansreef

New Member
Review score
+0 /0 /-0
View Badges
Joined
Oct 29, 2022
Messages
23
Reaction score
25
Review score
+0 /0 /-0
Location
Brooksville
Rating - 0%
0   0   0
Changed out the shadow wave return nozzle because one never worked and the other hardly did. That being said I don’t think it’s necessary for them to spin at all and I really like them being flush to the tank so the return doesn’t shadow corals. So I have kept them and they might go back on. For now though I purchased 3/4” threaded bulkheads and a 3/4 to 1/2 loc line adapter. I reused my random flow outlet heads. One note the stock elbow that went into the back of the shadow wave bulkhead DID NOT fit fully in new bulkhead. I had to wrap it several time with plumbers tape and then all was fine.


Attachments

  • 2E68E53A-F418-42DA-85A7-B061C24C2616.jpeg
    163.4 KB · Views: 13
