Tunze Osmolator 3

[Brink1]

Hello,

I just purchased a Tunze Osmolator 3 last week, the green light stays on and the water level keeps dropping. The pump will not kick on to fill. Any suggestions? I already cleaned with Vinegar.

Thank you



[rvitko]

Can I get a photo of the controller/sensor? The clearer the better, there is a specific detail I am looking for with sensor/board line up. Is it possibly being used in an area with a growlight spectrum light?



[Brink1]

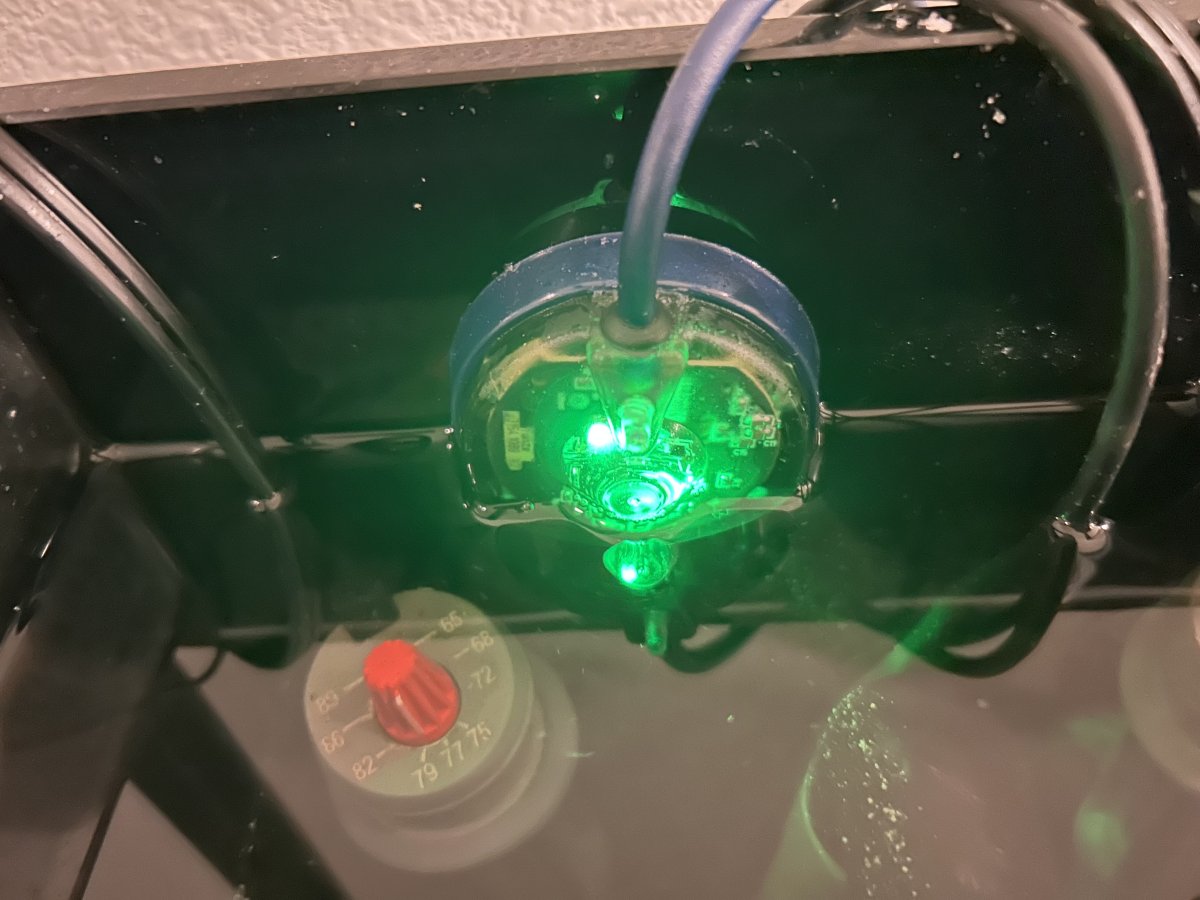

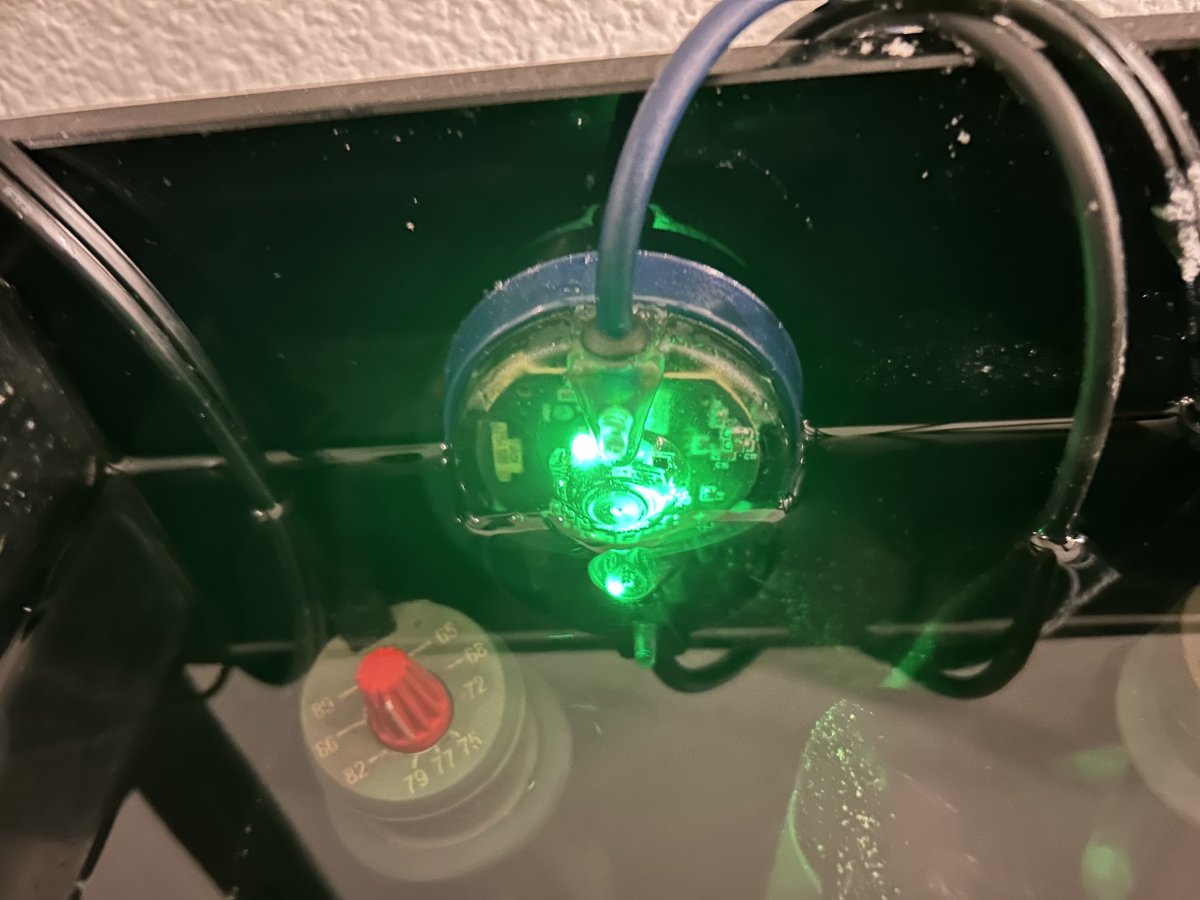

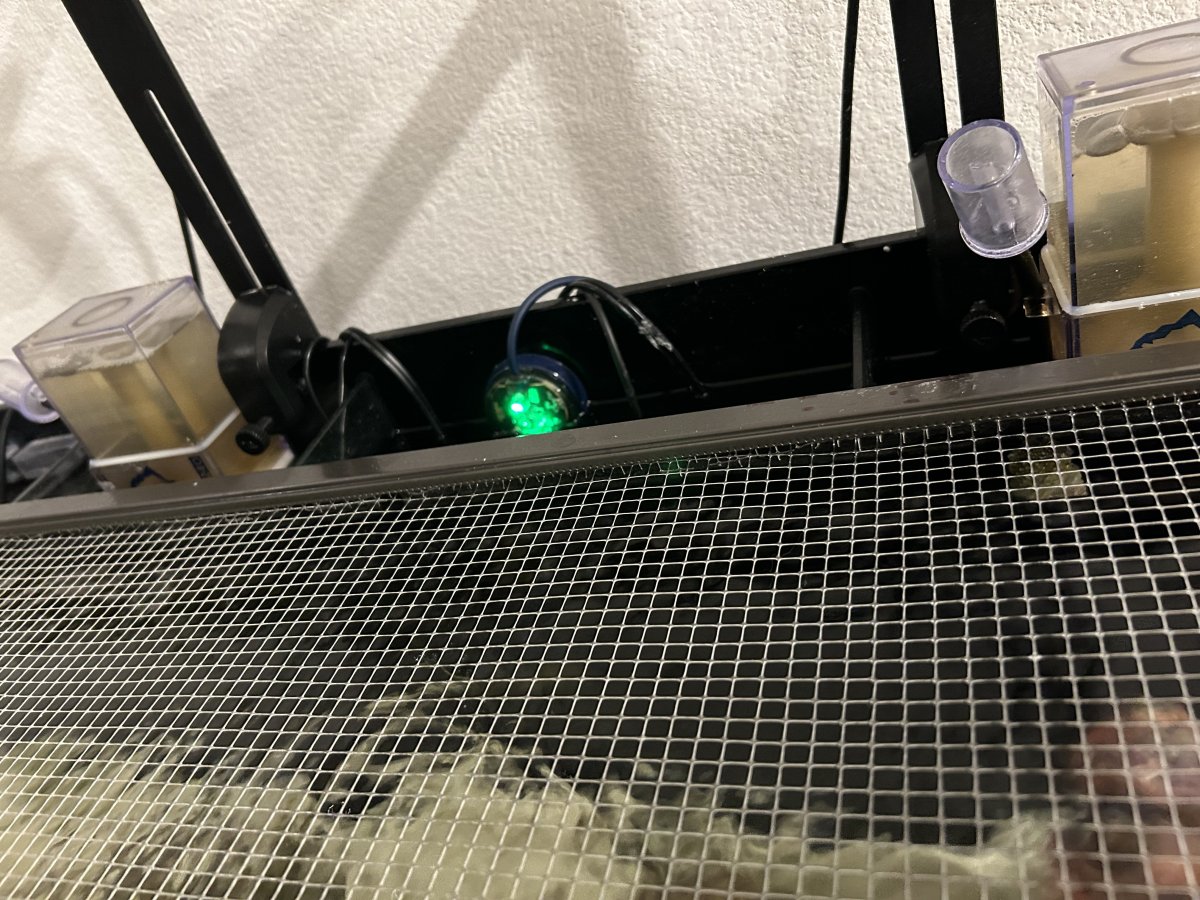

Hello, thank you for responding so quickly. It is back in the return pump chamber of my ATO. Here are some photos. Thank you again for your help.



[Brink1]

Can I get a photo of the controller/sensor? The clearer the better, there is a specific detail I am looking for with sensor/board line up. Is it possibly being used in an area with a growlight spectrum light?

Attached are some photos above. Thank you.



[gill7784]

Mine is doing the exact same thing. 1 week old and the light stays green despite a low level in my sump.



[rvitko]

In both cases, I need a photo just sitting on a table powered off, I am looking to see the circuit board alignment with the lens as well as any lens defects/blemishes. I will also need serial number and receipt to get them exchanged, can you please PM me this info and include your address. I assume that you have lifted them completely out of water as a test? It is difficult to perceive the water line with the light on for me looking at these photos. To be clear the pump should turn off and on a little below the middle point of the cone in the middle.



[gill7784]

Here's a pic out of the water and powered off.

Where is the serial number located on these? Nevermind, found it!



[MeanGreenStompa]

Mine, after replacing the previous model, is also doing precisely the same thing. I checked after realizing I'd not needed to top off the RO water in the reservoir in a week, the water had dropped by several gallons and the salinity jumped up several points. Highly irritated by this and seeking a more reliable ATO now.



[rvitko]

If you prefer to buy something else, I cannot stop you, but if you want to resolve the issue with this one it has a 5 year warranty, I need a lot more info though to work on. The grass may look greener somewhere else but it is definitely Chinese astroturf.



[MeanGreenStompa]

If you prefer to buy something else, I cannot stop you, but if you want to resolve the issue with this one it has a 5 year warranty, I need a lot more info though to work on. The grass may look greener somewhere else but it is definitely Chinese astroturf.

I would much rather keep with Tunze as it's been my go-to brand for years. What do you need from me? A photo of the circuit as above? I have pm'd you with photos and the receipt from BRS.



[Australian_Reef]

Looking at the osmolator 3.. mixed reviews. Did you guys manage to get your troubles resolved?



[jackson6745]

I had the same thing happen to with mine. Roger replaced the optic and it has been flawless since. I have it backed up with optics from hydros and a camera pointed at it just in case lol.



[Australian_Reef]

I had the same thing happen to with mine. Roger replaced the optic and it has been flawless since. I have it backed up with optics from hydros and a camera pointed at it just in case lol.

Just a concern when the previous model was so well regarded and can still be bought. I’d be buying a euro model and using it in Australia so I’d be unsure about the 5 year warranty being covered. Tunze obviate backing it though and they are a top tier company. I want to buy but need reassurance at €180



[*unique*]

I had it when it first came out never ever had an issue , maybe a prob with the newer dated ones?



[rvitko]

While initially we had a software bug and mislignment of optic sensors, this only affect the first week or so of production, this was corrected very early on and the US was the first launch so only US customers saw these issues. There is also a problem with user error and not reading the manual that results in many "issues" simply submerging it too deep results in being stuck in a perpetual initialization. The safety sensor is a heater and temperature sensor, it cannot calibrate if it is submerged as the water is taking away the heat, this will resolve itself eventually when the water level drops, but this results in a lot of panic instead of just hmm, maybe I should read the manual.



[Warpigdave]

I recently got the Tunze 3 and I’m having a problem with the light not turning green. It just turns blue and keeps filling the will flash green then right back to blue. This happened after i unplugged it because I was changing my water level. I tried plugging it back in and letting it flash white but then same thing.



[rvitko]

Is there any other infrared lights source? Any other optic sensor based device or a growlight spectrum light or direct sunlight? Is the ATO hose touching the tank water surface so it can pump in then siphon it back and ends up in a constant loop of refilling and siphoning?



[Warpigdave]

The only lights under my sump are from my return pump controller and some small LEDs that I can turn on and off that I installed in my stand so I can see. The tubing is not touching the tank water. It seemed to be working before, but now I’m not so sure. But it will turn blue sometimes red and flash green for a quick second after it pumped a little water in . Then it mostly goes back to blue. And maybe red. It is in my return pump chamber of my sump. I tried fiddling with it for about two hours last night, then gave up. I purchased this two days ago.



[rvitko]

The calibration is not really something you can disrupt, so we can rule that out, unplugging it and plugging it back in, will not do anything. Are you certain that the correct power supply is connected to it, the Tunze 3154.120 power supply? A wrong power supply will tend to cause a driver issue and can destroy the controller, in this case usually you get purple and red lights.



[Warpigdave]

The calibration is not really something you can disrupt, so we can rule that out, unplugging it and plugging it back in, will not do anything. Are you certain that the correct power supply is connected to it, the Tunze 3154.120 power supply? A wrong power supply will tend to cause a driver issue and can destroy the controller, in this case usually you get purple and red lights.

so I may have figured it out I think it could be just a little bit of a light being produced by the UV sterilizer directly above it. The light is barely noticeable. But I noticed when I unplugged the uv sterilizer it seemed to work. It’s definitely working without the sterilizer plugged in.

Can I just cover the UV sterilizer with something?
