What does this blue wire do?

Benhuan

Member
View Badges
Joined
Aug 16, 2017
Messages
68
Reaction score
12
Hi,
I bought a Radion xr30w pro I’m not sure the gen second hand. The lights work fine but I noticed that the fans don’t turn on. So I opened the light up and it revealed this blue wire isn’t connected to anything. Is that the reason? I can’t seem to find anywhere to plug it.
thanks



Retro Reefer

Slow and steady wins the race!
View Badges
Joined
Dec 15, 2015
Messages
7,002
Reaction score
40,189
Location
Manassas Va
The blue wire (PWM) on PC fans is typically used to control fan speed with some kind of resister. Not sure if or how it’s applied in these lights.


Strawberry

Well-Known Member
View Badges
Joined
Oct 3, 2019
Messages
664
Reaction score
901
It looks like they’ve modified the wiring. Just search the manufacturer and model number to get more info on whether it can be wired differently for different speed settings// incoming power.


Aquarium Specialty - dry goods & marine livestock

Strawberry

Well-Known Member
View Badges
Joined
Oct 3, 2019
Messages
664
Reaction score
901
Typically in DC applications, red (+) and black (-) correspond to the positive and negative incoming voltage. In a lot of applications, blue wires are typically “control” wires and use low voltage among inputs like your temperature sensor so that the controller knows when to actuate (turn on) the fan. It looks like they’ve spliced those two voltage lines together to complete a circuit, possibly because the thermostat wasn’t working correctly to tell the fan when to come on, or just a damaged connector and instead of fixing it they just did it the lazy way.


Strawberry

Well-Known Member
View Badges
Joined
Oct 3, 2019
Messages
664
Reaction score
901

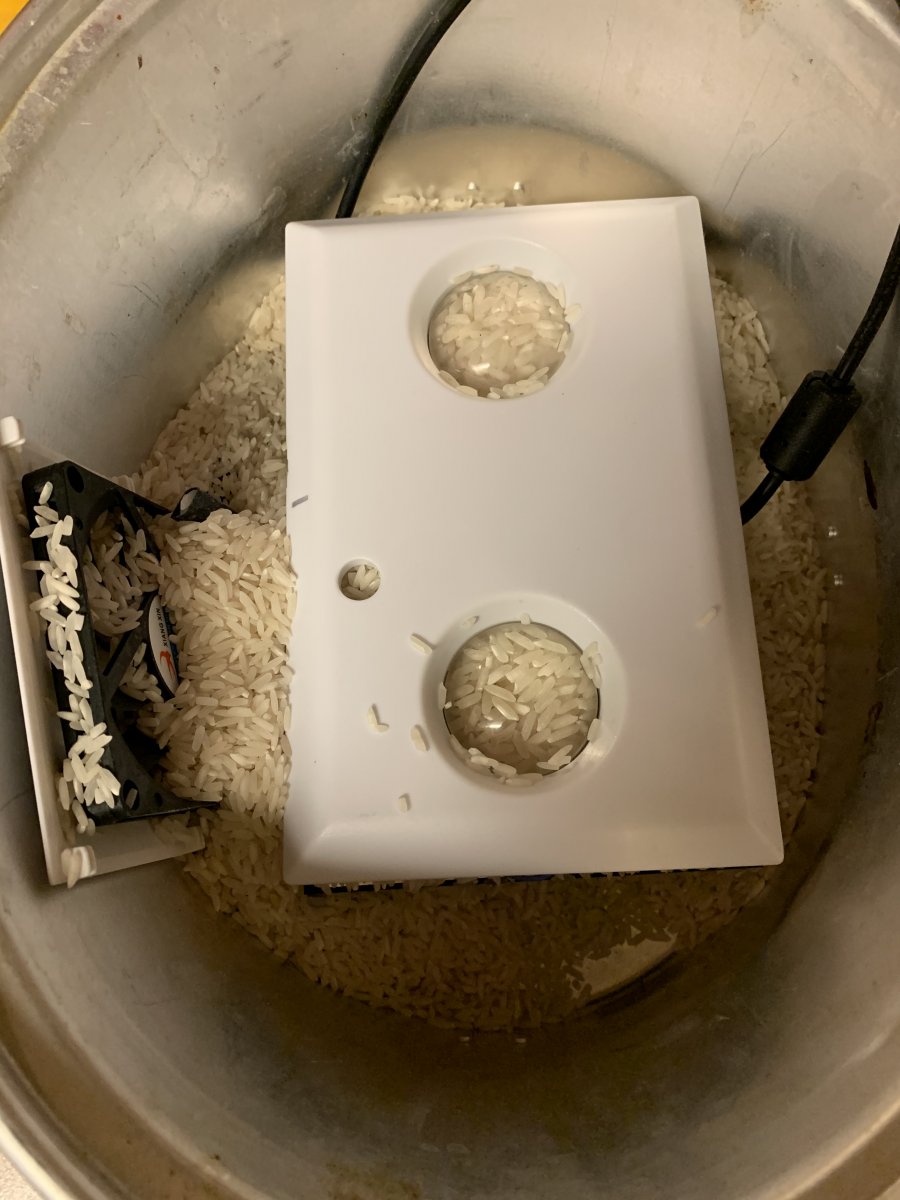

If you can, post some more pictures of the board and I’ll see if I can make anything of it. I just repaired my noopsyche the other day after it decided to take a swim!


Sisterlimonpot

Valuable Member
View Badges
Joined
Jul 15, 2009
Messages
1,028
Reaction score
1,526
Location
Litchfield Park
Hi,
I bought a Radion xr30w pro I’m not sure the gen second hand. The lights work fine but I noticed that the fans don’t turn on. So I opened the light up and it revealed this blue wire isn’t connected to anything. Is that the reason? I can’t seem to find anywhere to plug it.
thanks

I'm quite certain that isn't an original fan. I've replaced a few of the early generation fans and none of them had 3 wires to the fan only 2.

I suspect that the original owner needed to replace the fan and bought one locally.

I don't think ETM offers those fans anymore, which is probably why you see a 3 wired fan in yours. And if yours isn't working anymore, a fan with the same dimensions will work.

Somewhere in my build thread I detail fan replacement....


Brew12

Electrical Gru
View Badges
Joined
Aug 14, 2016
Messages
21,248
Reaction score
53,913
Location
Decatur, AL
I doubt that the blue wire is your problem. Fans normally default to maximum speed when the PWM wire is not connected. I would check to see if you have 12VDC at the fan wiring inputs.
