So again, a huge THANK YOU to Hunter (evolved) for coming over last night to help fix a minor leak and install the UV sterilizer.
The former owner, Chris (Siasl), ran this tank with a UV sterilizer and after a few email exchanges with him and other reefers, along with my own research, I thought it would be a good addition to the tank. It's a 114-watt AquaUV sterilizer that I'll be running it according to Mojo's recommendation in this post, which at about 325 gallons/hr should kill ich. And, from Elliott's recommendation, I'll be running it for about 4-6 hrs in the morning, say 4am-10am, or something like that because that's when ich is most active.
I wanted to give some more details on the plumbing and took some pictures with my cell phone last night. Hopefully they can help demonstrate what was done.
The tank has 7 holes in the overflow: 1-1.5", 4-1", 2-0.5" drains. The tank is set up to run "Herbie" style, meaning it runs at full siphon with an emergency drain that is capable of handling the entire flow in-case the main siphon is clogged.
So here's how it's set up:
1.5" drain has a 17" piece of PVC in the overflow box. The 17" is the height that the water will backflow to, so you cut this according to how much room you have in your sump. Underneath the tank, it attaches to a gate valve (very important to use a quality gate valve for accuracy). The gate valve is on spa flex so I can toss a filter sock underneath it if necessary (for example, when I start adding sand to the tank).
A single 1" drain acts as the emergency and at full siphon can handle the water volume being pumped into the tank. It's cut just just above the running water line, at 28-inches. I run the overflow around 27" so that there's no trickling sound. Again, you need a quality gate valve to make fine-tuned adjustments and it's easily achieved with the gate-valve. The emergency line drains through 1" spa-flex underneath the tank without any restriction.

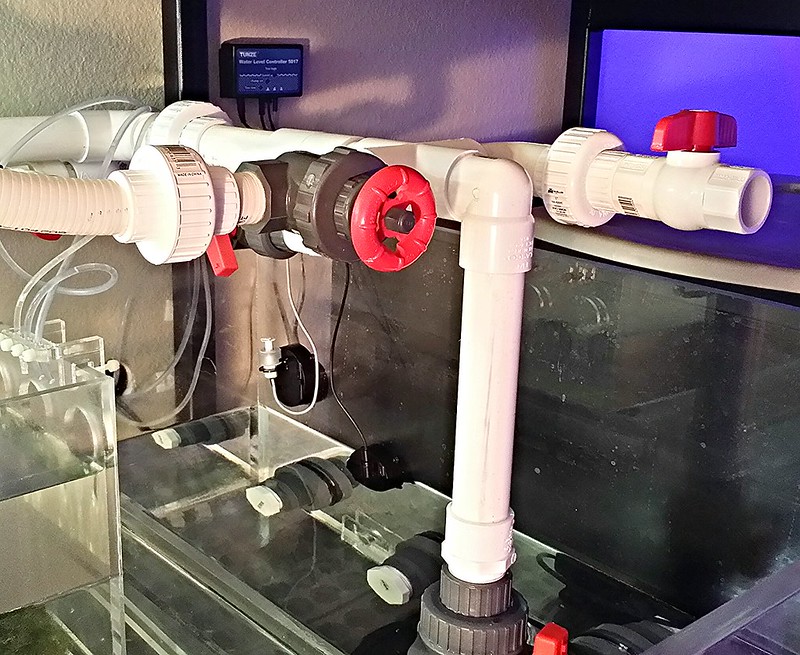

You can see the gate valve and emergency line (the closest black spa flex line) here:

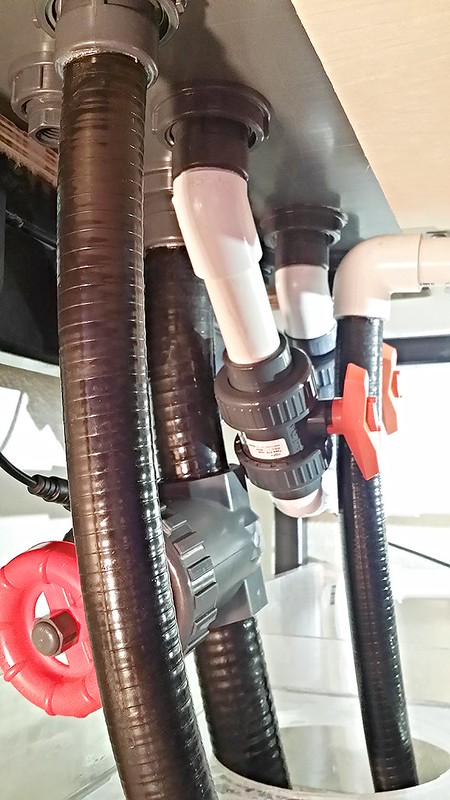

Two 1" lines are used for the returns. They are controlled via ball-valves because they operate as on/off. Actual flow is controlled using the Waveline (a DC pump) controller. Hunter cleverly split these with a "y" and it came out very clean:
The remaining bulkheads are used as "pass-throughs" for cords. They are cut about an inch above the emergency drain line and water shouldn't ever enter them. If they do for some reason, water will drip into the sump and I'd have far more serious issues on my hands to deal with (water would literally be overflowing from the top of my tank. The only way that happens is if both the full 1.5" siphon and 1" emergency drain are clogged. Very, very unlikely -- **knocks on wood**. I've only utilized one of the 1" drains so far because I'll have to cut and reconnect cords when everything is set up. I'm going to wait to do so until the aquascaping is finalized before tackling that project.
The heart of the plumbing is a Waveline DC12000, which feeds the main display tank, the smaller 50-gallon ADA on the otherside of the wall (via ball valve), the UV sterilizer (via gate valve) and a "quick-water change" port that I'll eventually get fitted for a garden hose to pump water directly into our desert rock-scaped front yard or into the sewer. You can see all of that here:
In the picture above, you can see a 50-gallon aquarium that is going to be used for ATO. It's currently set up with a Tunze Osmolator.

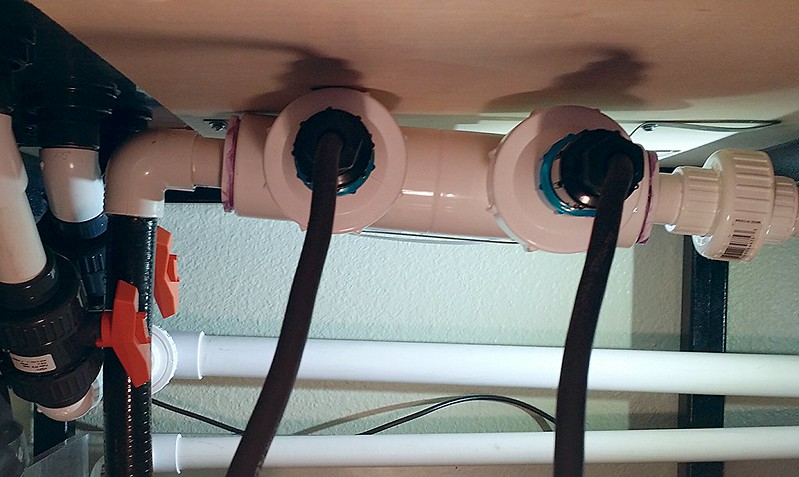

The UV sterilizer is attached to the underside of the aquaruim for easy access and cleaning. Unions were used for a quick dismantle and it's held in using straps that are drilled into the plywood base. It feeds into the sump's first chamber that feeds into the chamber where the skimmer sits.
A few other things worth mentioning: The overflow from the smaller 50-gallon tank that sits in our bedroom is routed into the refugium and has a gate valve to regulate the flow if necessary -- I'm planning to keep this running at full speed. I placed a Jaebo wp25 in the fuge to tumble chaeto-- it's currently bare bottom and I'll likely leave it this way. A "maggie muffler" keeps the smaller bedroom tank pretty quiet even with a good amount of flow coming in. Hunter and Jason created a slight slope to both the ADA overflow and the AGE return lines to help facilitate waterflow back into the sump in case of power-loss.
Hopefully that all makes sense!
The former owner, Chris (Siasl), ran this tank with a UV sterilizer and after a few email exchanges with him and other reefers, along with my own research, I thought it would be a good addition to the tank. It's a 114-watt AquaUV sterilizer that I'll be running it according to Mojo's recommendation in this post, which at about 325 gallons/hr should kill ich. And, from Elliott's recommendation, I'll be running it for about 4-6 hrs in the morning, say 4am-10am, or something like that because that's when ich is most active.
I wanted to give some more details on the plumbing and took some pictures with my cell phone last night. Hopefully they can help demonstrate what was done.
The tank has 7 holes in the overflow: 1-1.5", 4-1", 2-0.5" drains. The tank is set up to run "Herbie" style, meaning it runs at full siphon with an emergency drain that is capable of handling the entire flow in-case the main siphon is clogged.
So here's how it's set up:
1.5" drain has a 17" piece of PVC in the overflow box. The 17" is the height that the water will backflow to, so you cut this according to how much room you have in your sump. Underneath the tank, it attaches to a gate valve (very important to use a quality gate valve for accuracy). The gate valve is on spa flex so I can toss a filter sock underneath it if necessary (for example, when I start adding sand to the tank).
A single 1" drain acts as the emergency and at full siphon can handle the water volume being pumped into the tank. It's cut just just above the running water line, at 28-inches. I run the overflow around 27" so that there's no trickling sound. Again, you need a quality gate valve to make fine-tuned adjustments and it's easily achieved with the gate-valve. The emergency line drains through 1" spa-flex underneath the tank without any restriction.
You can see the gate valve and emergency line (the closest black spa flex line) here:
Two 1" lines are used for the returns. They are controlled via ball-valves because they operate as on/off. Actual flow is controlled using the Waveline (a DC pump) controller. Hunter cleverly split these with a "y" and it came out very clean:
The remaining bulkheads are used as "pass-throughs" for cords. They are cut about an inch above the emergency drain line and water shouldn't ever enter them. If they do for some reason, water will drip into the sump and I'd have far more serious issues on my hands to deal with (water would literally be overflowing from the top of my tank. The only way that happens is if both the full 1.5" siphon and 1" emergency drain are clogged. Very, very unlikely -- **knocks on wood**. I've only utilized one of the 1" drains so far because I'll have to cut and reconnect cords when everything is set up. I'm going to wait to do so until the aquascaping is finalized before tackling that project.
The heart of the plumbing is a Waveline DC12000, which feeds the main display tank, the smaller 50-gallon ADA on the otherside of the wall (via ball valve), the UV sterilizer (via gate valve) and a "quick-water change" port that I'll eventually get fitted for a garden hose to pump water directly into our desert rock-scaped front yard or into the sewer. You can see all of that here:
In the picture above, you can see a 50-gallon aquarium that is going to be used for ATO. It's currently set up with a Tunze Osmolator.
The UV sterilizer is attached to the underside of the aquaruim for easy access and cleaning. Unions were used for a quick dismantle and it's held in using straps that are drilled into the plywood base. It feeds into the sump's first chamber that feeds into the chamber where the skimmer sits.
A few other things worth mentioning: The overflow from the smaller 50-gallon tank that sits in our bedroom is routed into the refugium and has a gate valve to regulate the flow if necessary -- I'm planning to keep this running at full speed. I placed a Jaebo wp25 in the fuge to tumble chaeto-- it's currently bare bottom and I'll likely leave it this way. A "maggie muffler" keeps the smaller bedroom tank pretty quiet even with a good amount of flow coming in. Hunter and Jason created a slight slope to both the ADA overflow and the AGE return lines to help facilitate waterflow back into the sump in case of power-loss.
Hopefully that all makes sense!
