Ok. Sounds good. I was considering 2 return pumps for redundancy 1 going to UV then Y junction bringing flow from both pumps together then up to tank
@tritonpower what you're describing there would be plumbing them in parallel, which is certainly doable. For my situation, I'm trying to plumb the sterilizer in so that it is more accessible for me, so it's a good distance from the return line... As such, head pressure would severely cap the high flow rates provided by the pumps. To plumb this up in a way that increases head pressure (while not increasing flow rate), it helps to plumb the returns in series: that is, the output of the first pump is directly plumbed into the input of the second pump. A good explanation can be found here.

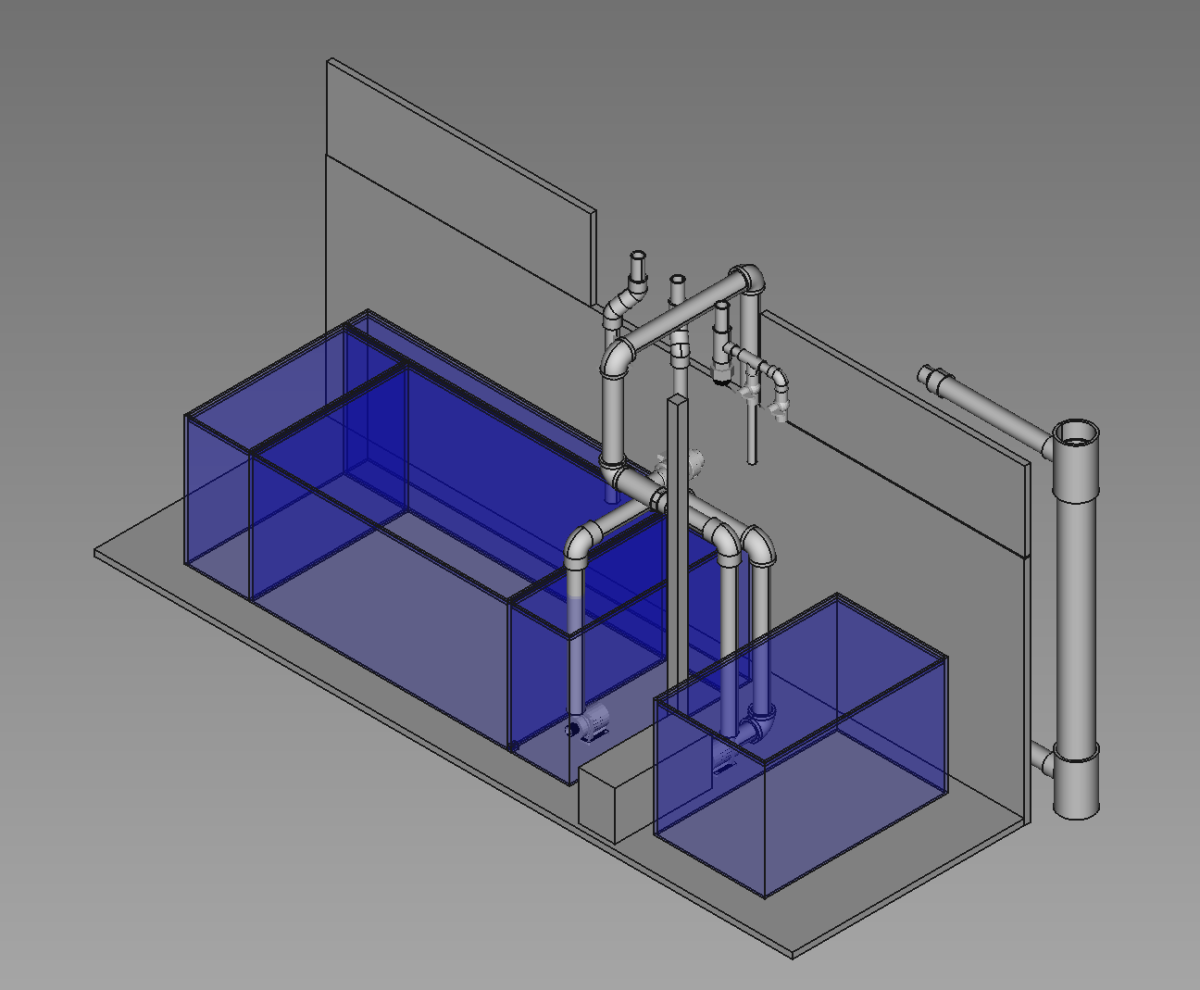

Here's the model I spoke about, it's mostly finished. The gate valve (pictured as a ball valve here) is going to adjust the amount that goes straight up to the display, and the rest goes through the sterilizer, then back. The sterilizer takes 1.5" PVC, so there's a reducer to 1" PVC coming out of the sterilizer (and then into the 1" return to the display).
As for why I haven't done this yet... There's a couple reasons. The first reason is I don't see a need for it right now. I have an ozone generator, and that keeps the water clear and can kill the bad guys. I am really happy with the results from it so far!
