Aquarium frame splitting!

Discussion in 'Tank Emergency' started by bluneon, Nov 27, 2017.

  1. bluneon

    bluneon Member

    Joined:
    Nov 27, 2017
    Messages:
    7
    Likes Received:
    4

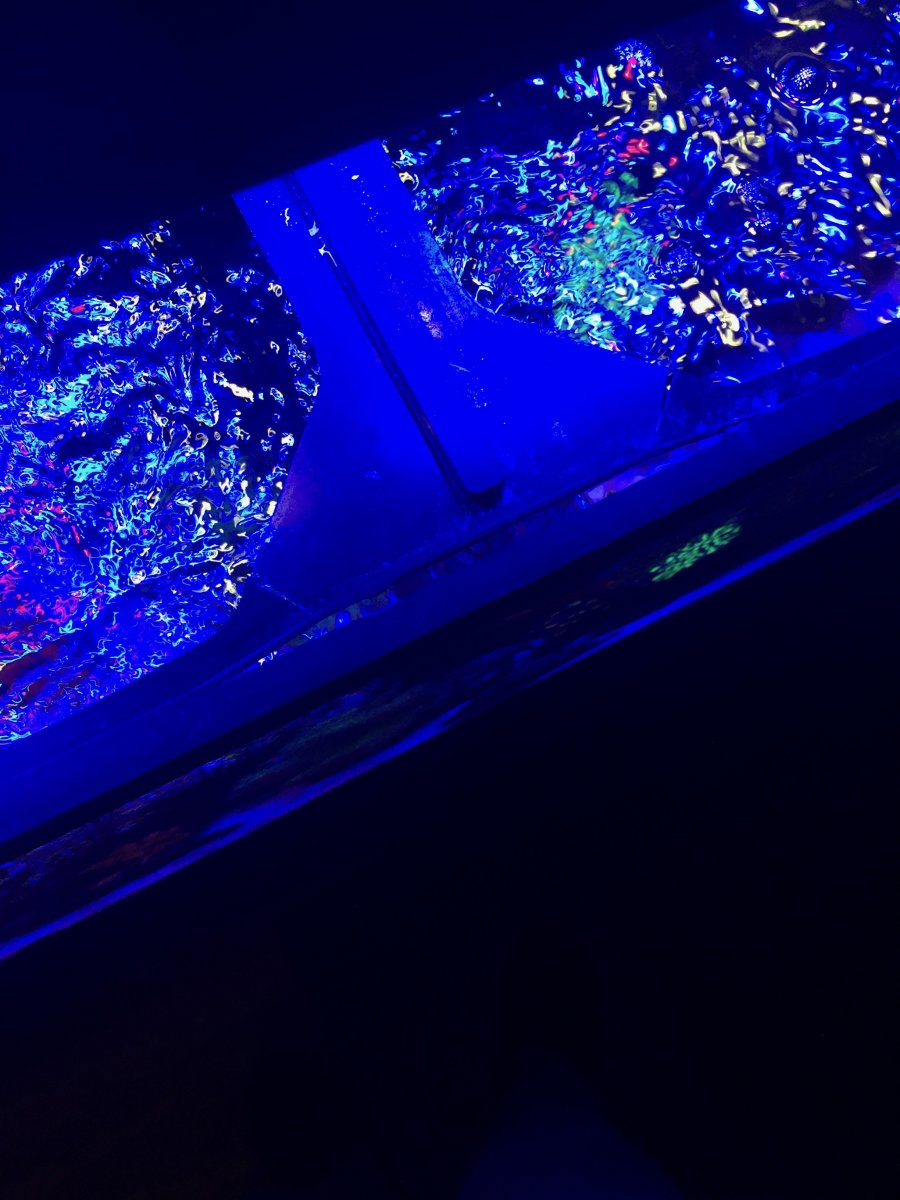

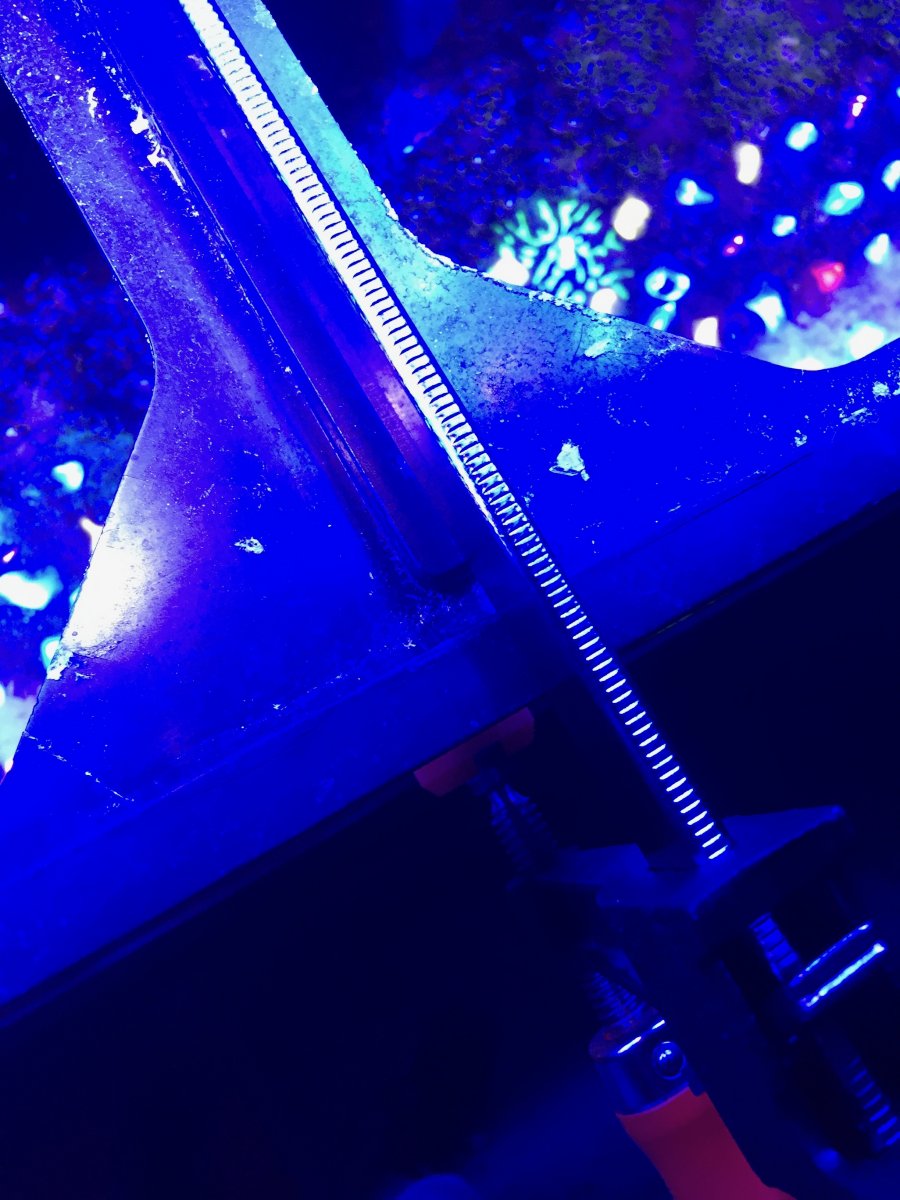

    I noticed yesterday evening that the center brace frame on my 55 gallon tank has began splitting and there was a slight bow on the front glass. I ran to Home Depot and bought a bar clamp to help stabilize the pressure in the meantime.

    I am looking for suggestions on what to do, thanks!




  2. Reefing Madness

    Reefing Madness Carbon Doser Staff Member Team R2R R2R Supporter R2R Excellence Award

    Joined:
    Oct 27, 2012
    Messages:
    17,929
    Likes Received:
    1,346
    Location:
    Glendale, AZ.
    Cut it out and silicone in a glass brace. Keeping the bar clamp in place until silicone has cured fully.

    6Bolt likes this.
  3. MaddyP

    MaddyP 'Til Reefdom Come... R2R Supporter R2R Excellence Award SCMAS Member Build Thread Contributor Partner Member 2018

    Joined:
    Jul 21, 2016
    Messages:
    1,233
    Likes Received:
    2,725
    Location:
    San Pedro, CA
    Replace the tank immediately.

    Also, welcome to the forum!

    Cherub, Robink, don_chuwish and 3 others like this.
  4. bluneon

    bluneon Member

    Joined:
    Nov 27, 2017
    Messages:
    7
    Likes Received:
    4
    Do you think ordering a new top frame from glasscages.com would be a viable solution?

    Dom likes this.
  5. Reefing Madness

    Reefing Madness Carbon Doser Staff Member Team R2R R2R Supporter R2R Excellence Award

    Joined:
    Oct 27, 2012
    Messages:
    17,929
    Likes Received:
    1,346
    Location:
    Glendale, AZ.
    Yea, you can do that also.
    The glass euro bracing is stronger and will last longer, but you can order a new top, hard to get those babies off. Make sure its clean before installing a new one.

  6. bluneon

    bluneon Member

    Joined:
    Nov 27, 2017
    Messages:
    7
    Likes Received:
    4
    I may consider installing a new top and then a glass panel underneath for added support.

    Reefing Madness likes this.
  7. MnFish1

    MnFish1 Valuable Member R2R Supporter Build Thread Contributor Partner Member 2018

    Joined:
    Dec 28, 2016
    Messages:
    1,004
    Likes Received:
    684
    Ew tanks aren’t that expensive. Depending. Relying on a diy fix may not be cost effective jmho. But a bigger tank lol

    Cherub, S-t-r-e-t-c-h and Mikedawg like this.
  8. Forsaken77

    Forsaken77 Valuable Member

    Joined:
    Sep 26, 2016
    Messages:
    1,421
    Likes Received:
    788
    Location:
    Long Island, NY
    I would contact the manufacturer and get it replaced. If the glass is bowing, it could potentially have already weakened or stretched the side joints. Replacing it is the best option. The top of the tank is the most critical as far as support goes.

  9. bluneon

    bluneon Member

    Joined:
    Nov 27, 2017
    Messages:
    7
    Likes Received:
    4
    Since I don't have the receipt, the manufacturer isn't able to provide a refund or replacement, so I'd either have to shell out about $140 for a new 55 gallon tank and recruit people to help move both tanks or pay $18 for a new frame.

  10. Greybeard

    Greybeard Valuable Member R2R Supporter Reef Squad R2R Excellence Award Build Thread Contributor

    Joined:
    Feb 10, 2017
    Messages:
    1,503
    Likes Received:
    2,825
    Hit Craigslist... check around your local club for a used 55, see if Petco has a black friday sale... Whatever it takes. A $140 tank is a bargain compared to 55 gallons of water on your living room floor, and a dead reef. Not the kind of thing I'd take a chance on.

    SaltLifer, Dom, MnFish1 and 1 other person like this.
  11. S-t-r-e-t-c-h

    S-t-r-e-t-c-h Well-Known Member R2R Supporter Reef Squad R2R Excellence Award

    Joined:
    Aug 28, 2017
    Messages:
    514
    Likes Received:
    1,007
    Location:
    Gainesville, FL
    The amount of bowing in the photos is not confidence inducing. Mark me down in the replace column too.

    I know it's easy for someone that doesn't actually have to deal with the actual expense and relocationto say "just buy another one" but seems the right decision in this case. Choose your adventure: turn to page 15 or turn to page 97...

    Good luck either way...

    Greybeard and MnFish1 like this.
  12. bluneon

    bluneon Member

    Joined:
    Nov 27, 2017
    Messages:
    7
    Likes Received:
    4
    How much time do you think the bar clamp buys me? I have people that could help swap in a new tank in about a week and a half.

  13. S-t-r-e-t-c-h

    S-t-r-e-t-c-h Well-Known Member R2R Supporter Reef Squad R2R Excellence Award

    Joined:
    Aug 28, 2017
    Messages:
    514
    Likes Received:
    1,007
    Location:
    Gainesville, FL
    I don’t know that there is an answer to this question but I’d work with the assumption it needs to be fixed ASAP.

    Is this a tank with an overflow? If not, reducing the water level even a little could help...

    Dom and MnFish1 like this.
  14. Forsaken77

    Forsaken77 Valuable Member

    Joined:
    Sep 26, 2016
    Messages:
    1,421
    Likes Received:
    788
    Location:
    Long Island, NY
    Like someone else said, it's impossible to answer this question. The tank has started to fail and may cause leaks elsewhere as well. The top frame is the main support for rimmed tanks. Most people assume it's the bottom, but it's the top.

    Petco or Dr Foster & Smith usually have a sale around now for $1 per gallon on new tanks. So a 55 would be $55.

    I would also try to buy a tank new, especially if it's a mass produced tank. A used tank will buy you time, and save money, but I wouldn't bother with a used tank to save $50 and have other potential problems.

    Also, a 55 is pretty light and skinny, as far as tanks go. One other person, even a woman, could easily help move an empty 55 gallon. You could probably do it yourself with a padded hand truck and a bungie cord to strap it on.

    The harder part is going to be emptying and storing all the rock and livestock to make sure it stays wet and aeration and heat for the fish. Just make sure you're all prepared before you pick up the new tank.

  15. bluneon

    bluneon Member

    Joined:
    Nov 27, 2017
    Messages:
    7
    Likes Received:
    4
    No overflow, just your typical 55 gallon. I did take out almost 1/3 of the water to alleviate pressure in addition to the bar clamp.

  16. Forsaken77

    Forsaken77 Valuable Member

    Joined:
    Sep 26, 2016
    Messages:
    1,421
    Likes Received:
    788
    Location:
    Long Island, NY
    DP

  17. don_chuwish

    don_chuwish Valuable Member R2R Supporter Build Thread Contributor Partner Member 2018

    Joined:
    Mar 21, 2012
    Messages:
    1,323
    Likes Received:
    904
    Location:
    Southern Oregon
    Yeah that size tank, definitely replace it. Don't even bother with used. Get new. The few dollars difference isn't worth the time/effort/worry of any other choice.

  18. Old Glory

    Old Glory Active Member Build Thread Contributor

    Joined:
    May 20, 2017
    Messages:
    133
    Likes Received:
    76
    No brainer. Get a new one. You can move an empty 55 by yourself. Get a bunch of totes and use them to temporarily house the livestock and rocks. Switch tanks fill new tank and replace livestock rock and sand. Be sure to have extra salt water made up.

    MnFish1 likes this.
  19. 40B Knasty

    40B Knasty Valuable Member

    Joined:
    Feb 17, 2017
    Messages:
    1,559
    Likes Received:
    1,180
    Location:
    Massachusetts
    Get a new tank. If you are housing a lot that is important to you.
    The most important thing is save your bacteria as best as possible. Keep flow on your live rocks while they are in a bin. Have heaters for the live stock in them.
    The other best option is getting Nature's Ocean Nutri-Seawater. They are a 4.4g jug that gives you instant gratification. No cycling needed. Personally I would pick up some Nite-Out 2 and dump it on your biological filtration.
    I had a 40B crack down the middle at 4am in the morning. Talk about a nightmare!
    If your sand is still in the 6 month to a year range. Take your sand and fill up a bucket halfway. Take it outside to the hose and rinse it for 30-45 minutes. It is a lot easier when the bucket is not all the way full with sand. Keep sticking your hand to the bottom and tumble the sand with the bucket tilted a little so the water is getting all the detritus kicked up and out of the bucket. Clean the other bucket halfway full of sand. Then do them both over again. For another 20-30. Get it as clean as you can.
    Here is what happened to me. This may help you.

  20. Swoody

    Swoody Active Member R2R Supporter Build Thread Contributor Partner Member 2018

    Joined:
    Dec 3, 2016
    Messages:
    347
    Likes Received:
    307
    A lot of sage advice given so far and I would add that if you are using wavemakers, that you lower the setting and place it in a steady flow mode versus a mode which actually causes wave action to reduce additional stress on what is clearly a failing tank.

    recess62 likes this.
