Daniel Bodily
Community Member
I going to try to build a bolt together fish tank out of Polycarbonate (Lexan). I have been drilling and tapping it and it drills and taps so easy that I'm going to try to build aquarium out of it.
Bolt together Fish Tank
- Thread starter Daniel Bodily
- Start date
- Tagged users None
Reefing Madness
Moderator
Staff member
Super Moderator
Ultimate Member
Excellence Award
Hospitality Award
Wouldn't it be easier, and less chance using Acrylic, and glueing it together?
OP
OP
Daniel Bodily
Community Member
So this is going to be a freshwater tank for my son but this is a test for my Sump tank I want to be able to take it apart.
It going to be silicone gasket seal so if I need to change anything I can just unbolt it and change it.

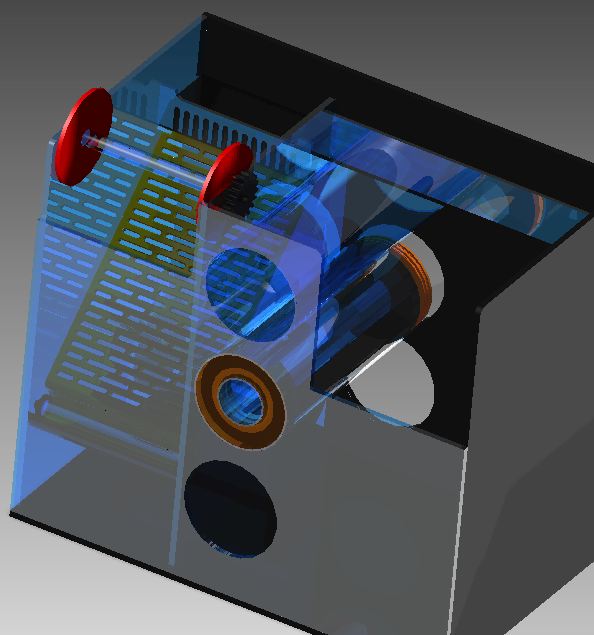

Attached is my sump design
The design is compact with the filter, magnetic reactor for Zeovit, media filter, and algae scrubber.
I also may add a built in skimmer.
It going to be silicone gasket seal so if I need to change anything I can just unbolt it and change it.
Attached is my sump design
The design is compact with the filter, magnetic reactor for Zeovit, media filter, and algae scrubber.
I also may add a built in skimmer.
Interesting experiment, not sure it won't have long term leaks/gasket replacement issues, but I will be following to see how it turns out. Good luck, I hope you have a floor drain in that room.
OP
OP
Daniel Bodily
Community Member
Also acrylic sometimes does not hold together and you have a huge water disaster to clean up. I have also got mixed filling on how to hold Lexan together the stuff that I use at work is not rated fish safe
Macdaddynick1
Valuable Member
thats glass though.I don't want this. Bolt will never do this and nothing can easily be change when glued
Kershaw
2500 Club Member
On my experience. Poly carbonate is stronger then standard acrylic, dose not warp, or discolor. I think that for your idea that is your best bet. Plus if it's thick enough. It can stop bullets.
This doesn't make sense to me....is there a reason you want to bolt it together rather than using the tried and true method of gluing it? Seems like a TON more work and money than just gluing it....am I missing something here ? Is it a "just to see if it could work" experiment?
If you have a wife and this thing explodes....I hope she is understanding....mine would have me put it by the curb and lock me out with it.
With your picture above, this probably happens 2% of the time if that often. I have only heard of it happening 1 time in 20 years in this hobby/business
If you have a wife and this thing explodes....I hope she is understanding....mine would have me put it by the curb and lock me out with it.
With your picture above, this probably happens 2% of the time if that often. I have only heard of it happening 1 time in 20 years in this hobby/business
OP
OP
Daniel Bodily
Community Member
I really want to use polycarbonate for a sump tank and there are really good glues for polycarbonate but non that I can find that are fish safe. IPS weld on 2 part for acrylic is one of the best but not sure if it's works as good on polycarbonate as acrylic. It says that you can use it for polycarbonate to attach to acrylic. But I don't know how strong that bond is. So I have titanium screws and A full CNC mill that will make it easy to build and I'm going to try it
OP
OP
Daniel Bodily
Community Member
As for exploding tank I did a pull test today with one 1/4 -20 titanium screw got 1700 pounds before the polycarbonate could hold on
That is a 100 x strong the acrylic glue with IPS 40 and that is only one screw
That is a 100 x strong the acrylic glue with IPS 40 and that is only one screw
george1381
Active Member
I like the idea! Maybe put the screws 6inch on center. What if a screw would start to back out? Is there anything you could use as a thread lock. Would they be counter sunk or hex head?
Kershaw
2500 Club Member
Another thing to consider is to tighten all screws to he same torq. And doing them in a set pattern to ensure even tension across all screws. Plus in a sump application the tank will only be full when you **** the return off. I think it could work just not in a mass production setting. Also you could use glue and screws.
george1381
Active Member
Oops if I quoted a post, I did not mean to.
I think disassembly/reassembly will exponentially increase your risks of leaks. Please don't think that I am trying to discourage you at all, as I am very intrigued by the concept and excited to see it work, just going from an eyes wide open perspective.
