Cannot tune output of sump

elcapitan1993

Active Member
View Badges
Joined
Jan 4, 2021
Messages
143
Reaction score
64
Location
white city
I cannot for the life of me get my output tuned with my intake, it was fine for two days and now it’s way lower and yes I have been keeping up on topping off and also no matter how much water I add it dropsback down from the marked line within 30 seconds so it’s not Evaporation, I have a gate valve to tune the intake and a dc pump to help tune the output, still cannot get them matched and it takes days sometimes to figure out that it’s not EVAP, I have added a first standpipe to make it quieter and have a trickle going down my emergency drain, I thought that any extra pumped in would go down the emergency and keep it leveled ? Can someone please help me this is my first sump and I’m just about to throw it in the trash

Last edited:

WIReefer

Taking it day by day
View Badges
Joined
May 10, 2017
Messages
4,790
Reaction score
24,770
Location
Wisconsin
Can you tell us a little about the system? Pictures would be helpful as well so we can get this straightened out for you!

OP
E

elcapitan1993

Active Member
View Badges
Joined
Jan 4, 2021
Messages
143
Reaction score
64
Location
white city

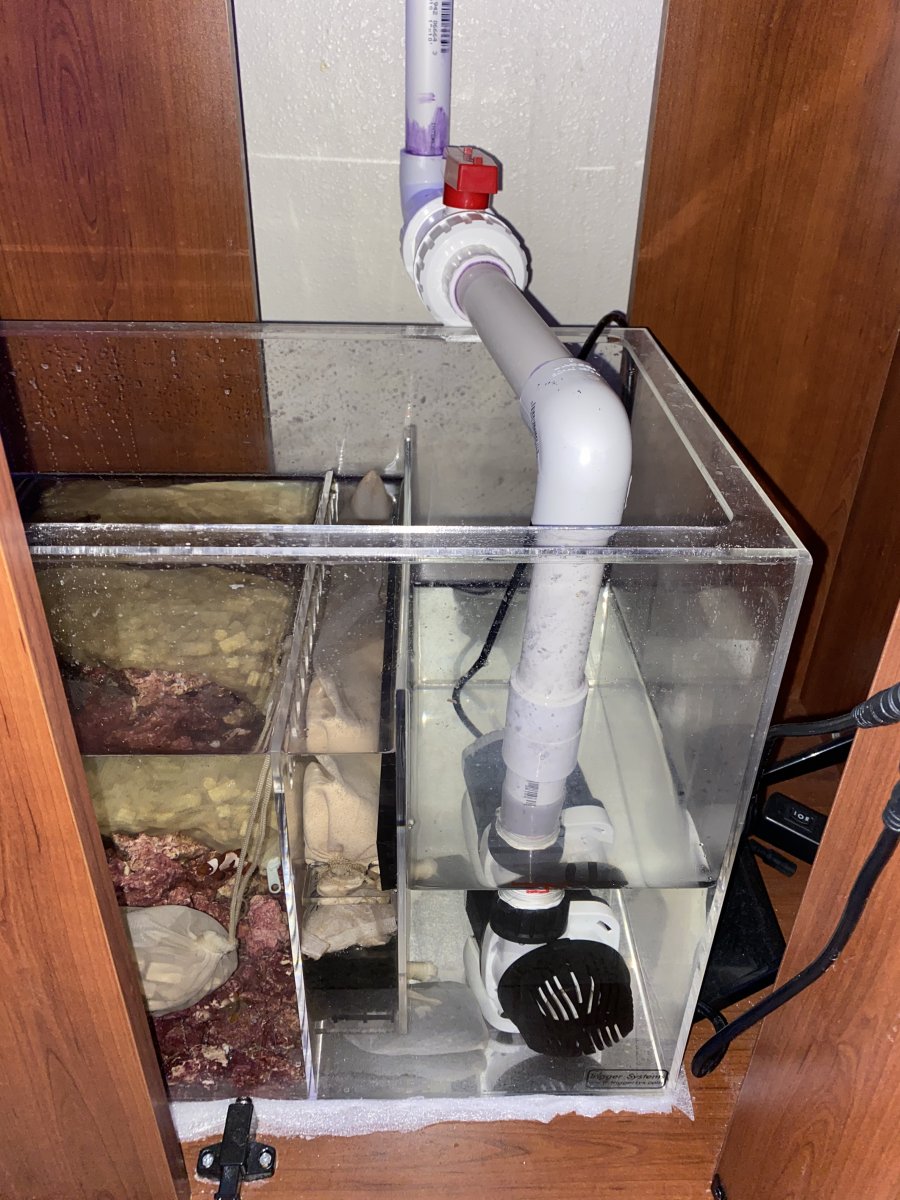

I got the h20verflow with the stealth box, supposedly does 1200 GPH or more, I have a economy gate valve in my intake and a ball valve on my output but do not use it to help tune, the intake is 1-1/2 inch pvc and the output is 1 inch pvc using the orlushy 24v dc pump witch does up to 1350 GPH.

231F46AB-933D-405A-A906-14DB2B9A90B5.jpeg 41754625-A12A-4892-AEA3-47BF042C7A07.png 45AF20E9-CAB2-450F-B58A-45D6C6297F9C.png 34B075C4-EA61-4CD2-924F-1E9118580A20.jpeg 727EF53D-D03E-45AE-9DC5-226B1502B793.jpeg 5A9A7F32-2139-4C44-BE36-6EAA18494BCC.jpeg

Last edited:

RocketEngineer

Active Member
View Badges
Joined
Sep 3, 2019
Messages
373
Reaction score
380
1) Whoever designed that overflow doesn’t understand flow. It will never handle 1200gph.
2) Termonology: Drains from tank to sump, return from pump to tank. :cool: Inlet/outlet is too confusing.

SO, all that aside, you need to tune either the drains or the return. To start, have everything full open and the return pump off. Fill the sump to 1-2” from totally full with saltwater. Then, turn the pump on max and watch the level in the tank, being ready to turn it off if the level gets too high. A second person helps.

One of two things happens, the drains can handle the flow but are noisy OR the drains can’t handle the flow. If the drains can handle the flow, close down the gate valve a little at a time until the noise level drops. If the return is too much, step the pump down a notch and repeat. Once you have the pump set you can go about reducing the noise as described above.

And that’s how to set drains for a Herbie or BeanAnimal setup.

Good luck.

OP
E

elcapitan1993

Active Member
View Badges
Joined
Jan 4, 2021
Messages
143
Reaction score
64
Location
white city
1) Whoever designed that overflow doesn’t understand flow. It will never handle 1200gph.
2) Termonology: Drains from tank to sump, return from pump to tank. :cool: Inlet/outlet is too confusing.

SO, all that aside, you need to tune either the drains or the return. To start, have everything full open and the return pump off. Fill the sump to 1-2” from totally full with saltwater. Then, turn the pump on max and watch the level in the tank, being ready to turn it off if the level gets too high. A second person helps.

One of two things happens, the drains can handle the flow but are noisy OR the drains can’t handle the flow. If the drains can handle the flow, close down the gate valve a little at a time until the noise level drops. If the return is too much, step the pump down a notch and repeat. Once you have the pump set you can go about reducing the noise as described above.

And that’s how to set drains for a Herbie or BeanAnimal setup.

Good luck.
Thank you, I tried that but still causing me trouble fine tuning it, how long should I wait in between each tiny adjustment? As soon as I see it go down a little I adjust it but am I not waiting long enough? Is there something I’m missing? It seems like nothing I do works and I have been making adjustments for hours each day for weeks and I just cannot take it anymore this is ridiculous

Top Shelf Aquatics

RocketEngineer

Active Member
View Badges
Joined
Sep 3, 2019
Messages
373
Reaction score
380
If you open the gate valve all the way, and run the pump in the lowest setting, what happens? Mine normally balances out at the new settings in about 5 minutes. I don’t make adjustments any more frequent than that.


RocketEngineer

Active Member
View Badges
Joined
Sep 3, 2019
Messages
373
Reaction score
380
Also, are you seeing evaporation and topping off before making adjustments? You may be seeing water level changes from evaporation and not flow imbalances.

OP
E

elcapitan1993

Active Member
View Badges
Joined
Jan 4, 2021
Messages
143
Reaction score
64
Location
white city
When I open the valve with my pump on the lowest setting my sump wants to overflow,as for evaporation I can say for sure that’s not it I keep 10 gallons of ro water by my sump and fill it every day, even after I pour new water in there it just back down to the spot it lowered to overnight not matter how much water I add it drops back down to the point it lowered to , I check my salinity twice a day with the Milwaukee refractometer being sure to calibrate it with ro water to make sure it’s accurate. If it was EVAP wouldn’t my salinity be fluctuating?

Fritz
OP
E

elcapitan1993

Active Member
View Badges
Joined
Jan 4, 2021
Messages
143
Reaction score
64
Location
white city
Because if my flow valve is all the way open and my pump is on the lowest setting more water is going into the sump then out, I basically have to have my gate valve completely closed for the pump to kind of stabilize on the lowest setting, right now I’m trying wave mode and seeing if I can get it stable that way
Ok, very confused. If the pump is on the lowest setting, why is the sump going to overflow?
i


NotASpammerDude

Valuable Member
View Badges
Joined
Oct 25, 2018
Messages
1,898
Reaction score
2,111
Location
Georgia OTP
When your return pump is turned off, your sump HAS to be able to handle all water that drains into it. If it doesn't then you need a new larger sump, or you need to drill a hole in the return line close to the outlet/water surface, or some how get your return outlet closer to the water surface so that when it back-drains into the return pump, air will quickly enter the return line and stop the flow.


RocketEngineer

Active Member
View Badges
Joined
Sep 3, 2019
Messages
373
Reaction score
380
How can you have more water draining out of the tank than the pump is pushing into it? That’s what I don’t understand. Trying to help but still confused.


RocketEngineer

Active Member
View Badges
Joined
Sep 3, 2019
Messages
373
Reaction score
380

Corals.com

schuby

Well-Known Member
View Badges
Joined
Jun 24, 2019
Messages
772
Reaction score
589
Location
Orange County, CA
If your sump is overflowing, then you have too much water. With your gate valve open and the return pump off, your sump should still have 1-2 inches of open space. What is your situation?

It is very easy to remove water. I just scoop it out with a pitcher.
