Communication Error Apex Fusion

[ReefSharkBuilder]

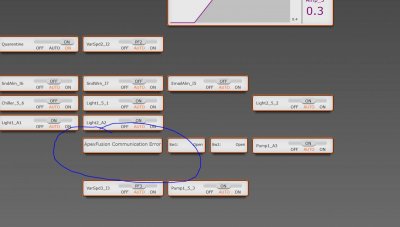

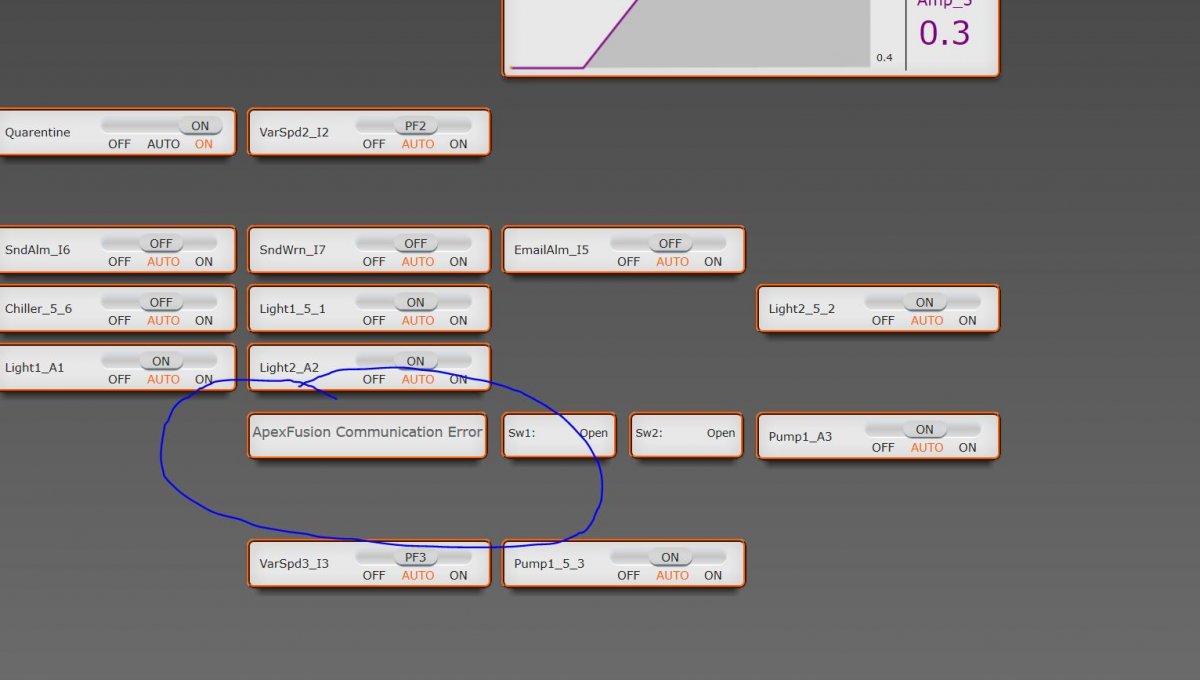

I purchased an Apex classic second hand. I factory reset the unit and have it connected to the internet via ethernet to an access point. I can access the local dashboard via the IP address. However, it gives me an error when I try to generate the token for the apex fusion connection. On the Apex control screen it says, "No Comm" next to the Apex Fusion selection. On the web dashboard it says, "Apex Fusion Communication Error" as shown in the attached image.
I have followed the instructions on the support website at the following link

Apex Fusion Communication Error

If you are experiencing an Apex Fusion communication error, then likely we need to make some slight adjustments in your network settings to make them compatible with Apex Fusion: Check to make sure DHCP is enabled on your controller and re...

support.neptunesystems.com

All 4 steps yeilded nothing. I need everyone's help that can please!



[SuncrestReef]

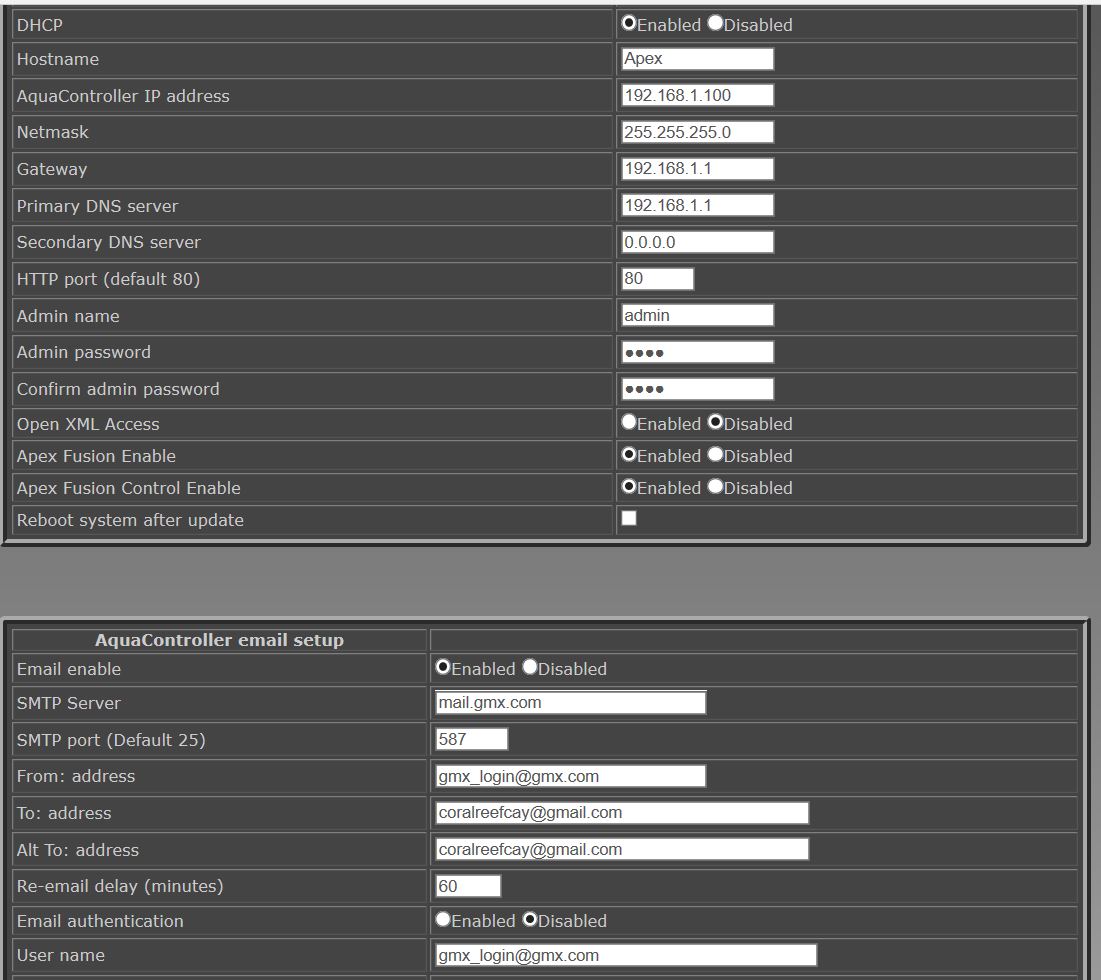

Can you post a screenshot of the Network Setup screen?



[ReefSharkBuilder]

ya here it is
