DIY LED light. Layout advice please.

Lasse

10K Club member
View Badges
Joined
Mar 20, 2016
Messages
10,884
Reaction score
29,887
Location
Källarliden 14 D Bohus, Sweden
Rating - 0%
0   0   0
It is true, I had a Pacific Sun fixture without any white LEDs and it works out very good. When it broke this spring I did not know what I should use instead. In the end - I get som GHL mitras LED bar 2 because they have rather much of RGB diods but also white LEDs - but it was the closet I could come to my beloved PS fixture and I did want to test some new things. I run my RGB LED s (472, 530 and 630 nm) for 100 % between 12 and 22. My blues (425,450 and 455) for 100 % between 12 and 21:30 and my white LEDs (8000 K, 6500 K and only 10 pcs 4500 K) for 100 % during 15:00-19:00. All channels have some ramping up and down The reason why I want white LEDs in this case was that I want some wavelengths > 700 nm. But I do not need the "white" LEDs just in order for it to look white - the RGB fix that

I´m very pleased with both my old fixture and my new one. In this thread all of this is discussed and in the post 230 I compare some of my settings. The camera I use is a compact camera Olympus tough III where you can do an automatic white balance.

Sincerely Lasse

OP
OP
CFR

CFR

Community Member
View Badges
Joined
Mar 15, 2018
Messages
43
Reaction score
55
Rating - 0%
0   0   0

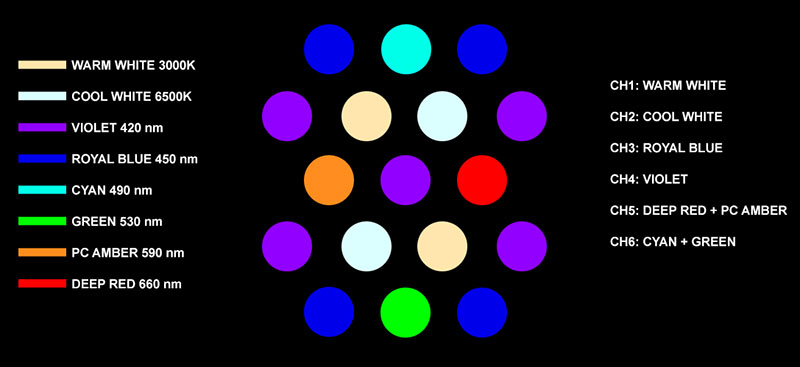

Am I on the right track?

OP
OP
CFR

CFR

Community Member
View Badges
Joined
Mar 15, 2018
Messages
43
Reaction score
55
Rating - 0%
0   0   0
OP
OP
CFR

CFR

Community Member
View Badges
Joined
Mar 15, 2018
Messages
43
Reaction score
55
Rating - 0%
0   0   0

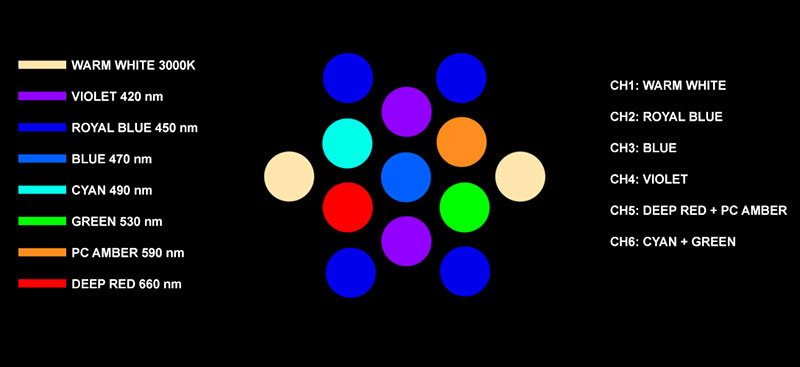

Never mind my last question. Just noticed that I can't have 5 Violets (10 in total), because it's 3.6V each. So, back to the drawing board. I think this layout covers all bases.



What do you guys think?

OP
OP
CFR

CFR

Community Member
View Badges
Joined
Mar 15, 2018
Messages
43
Reaction score
55
Rating - 0%
0   0   0

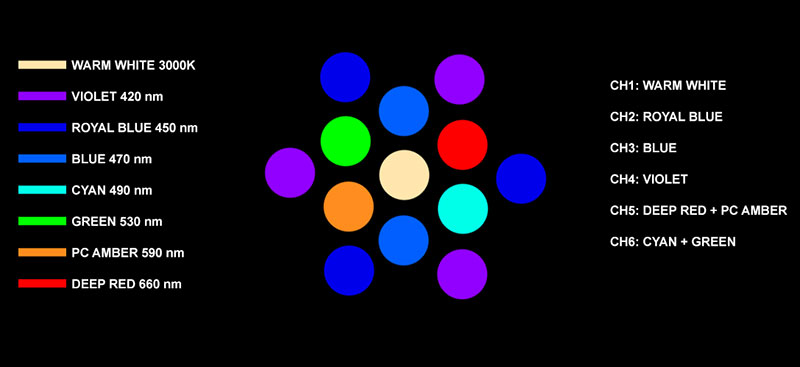

Or perhaps this is even better... ?
