DIY Radeon clone?

[oreo54]

I did buy in aliexpress two this punk. What need buy to this led configuration with app in cell?
See here tell very much... LDD, but no understand .

All the information is there to figure out the drivers and power supply.
First question though is do you want every channel to be used. You can combine some to save on drivers though it will generally mean a larger voltage power supply.
As it is designed.. 8 LDD drivers. The ONE yellow may be problematic.
LDD-LW's go down to 2V though.

"W" has wires for ease of construction if you don't buy a driver board.
Many driver boards require a controller though or they force the drivers to be off.

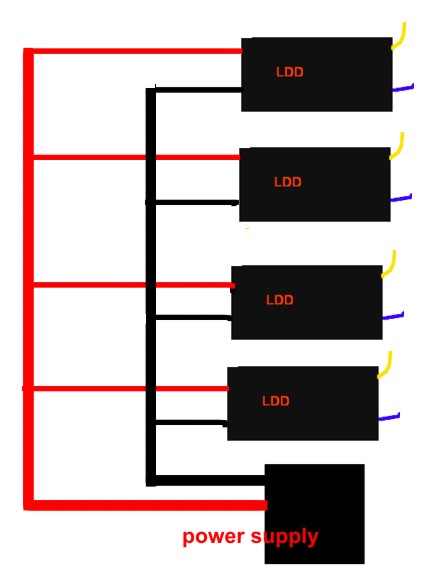

Red and black go to the DC power out supply of course.

You can use either hdd-L's or hdd-W's (HDD-LW, HDD-HW)


Power supply 24V 100W will do.

I would suggest running violets/uv lower than 700mA though (350-500) so they last longer.
Your amperage is your choice btw.

Hopefully I got an idea what you are asking.
If you combine the violet and UV in series like I did for red/yellow the total voltage is 19.6 and would only need one 500mA driver
Of course you now have only 9.8 watts compared to as designed 13.7 x .7 + 6.6 x .7 = 14.21 watts.
At 350mA = 6.9

OH DO NOT turn it on without being mounted to a heat sink..
Lastly according to the sheet the max required voltage is 14V
LDD's need 3V more than max so the minumum power supply would be 17-18V.
Again about 100W

If you do combine channels stick to LIKE colors like UV/V B/RB
With some combinations you would need to get a larger voltage power supply
B/DeepB = 26V + 4 (LDD adjustment)= 30V so 36V ps

LDD's act as a VOLTAGE regulator so more voltage is never really an issue.That is how they control
the current.



[danielch2008]

All the information is there to figure out the drivers and power supply.
First question though is do you want every channel to be used. You can combine some to save on drivers though it will generally mean a larger voltage power supply.
As it is designed.. 8 LDD drivers. The ONE yellow may be problematic.
LDD-LW's go down to 2V though.

"W" has wires for ease of construction if you don't buy a driver board.
Many driver boards require a controller though or they force the drivers to be off.

Red and black go to the DC power out supply of course.

You can use either hdd-L's or hdd-W's (HDD-LW, HDD-HW)


Power supply 24V 100W will do.

I would suggest running violets/uv lower than 700mA though (350-500) so they last longer.
Your amperage is your choice btw.

Hopefully I got an idea what you are asking.
If you combine the violet and UV in series like I did for red/yellow the total voltage is 19.6 and would only need one 500mA driver
Of course you now have only 9.8 watts compared to as designed 13.7 x .7 + 6.6 x .7 = 14.21 watts.
At 350mA = 6.9

OH DO NOT turn it on without being mounted to a heat sink..
Lastly according to the sheet the max required voltage is 14V
LDD's need 3V more than max so the minumum power supply would be 17-18V.
Again about 100W

If you do combine channels stick to LIKE colors like UV/V B/RB
With some combinations you would need to get a larger voltage power supply
B/DeepB = 26V + 4 (LDD adjustment)= 30V so 36V ps

LDD's act as a VOLTAGE regulator so more voltage is never really an issue.That is how they control
the current.

can i replace the LDDs by TC421 controller? Do these TC420 and TC421 work as LDDs?



[danielch2008]

as you wrote, I understand that LDDs only work with colors above 3V and yellow has 2V, correct?! then you said they work with LDD-LW(this one probably work below 3V) so can i mix LDD with LDD-LW? Do you have plates ready with this mixture?



[danielch2008]

Another question... If each LDD is for a color channel... If I buy other Pucks of Leds, can I connect them to the same LDD? or will i have to buy 8 LDDs for each puck?



[danielch2008]

I want to put 4 pucks little by little. Where is paint.



[theatrus]

No, as the TC controllers can’t regulate voltage to act as a constant current drivers. People have used them as dimmers to LDDs.



[oreo54]

Another question... If each LDD is for a color channel... If I buy other Pucks of Leds, can I connect them to the same LDD? or will i have to buy 8 LDDs for each puck?

You can run 2 to 3 off one ldd and 48 (44 effective) volt power supply.
13 v * 3 = 39 volts.

To run 4 you need 52v plus 4= 56 v power supply. About 250 watts(roughly calculated).
One ldd per channel.
You need ldd-h's though for that high of voltage.

The "A" or "AB" version is adj to 56v

https://power.sager.com/hlg-240h-54-2525443.html

50-57volts


As I wrote above and per Meanwell ldd-L and ldd-h spec sheet it did state 2 volt channel was ok



[oreo54]

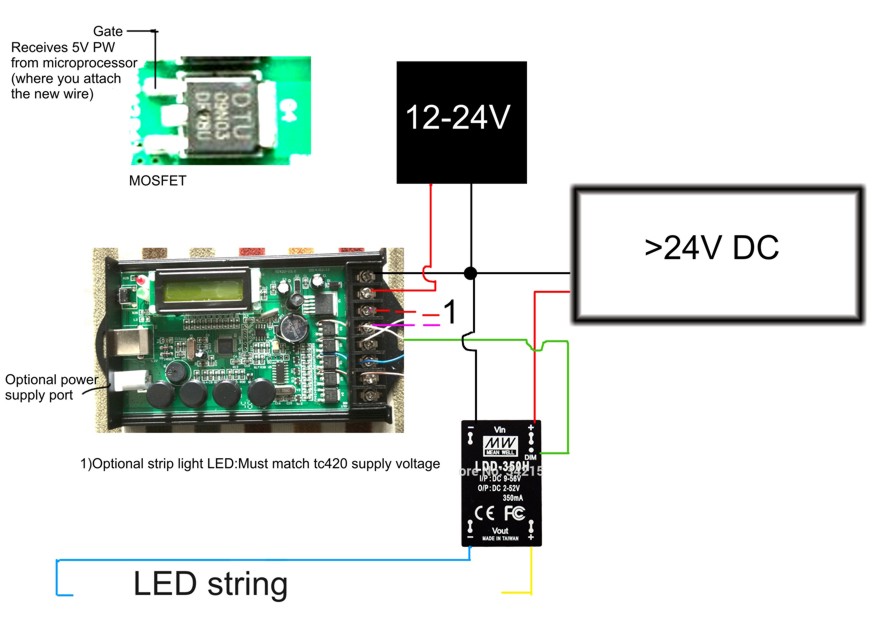

How to use a tc-420 or 421 with ldd's
12-24v is a cheap voltage regulator board from ebay.



[danielch2008]

You can run 2 to 3 off one ldd and 48 (44 effective) volt power supply.
13 v * 3 = 39 volts.

To run 4 you need 52v plus 4= 56 v power supply. About 250 watts(roughly calculated).
One ldd per channel.
You need ldd-h's though for that high of voltage.

The "A" or "AB" version is adj to 56v

https://power.sager.com/hlg-240h-54-2525443.html

50-57volts


As I wrote above and per Meanwell ldd-L and ldd-h spec sheet it did state 2 volt channel was ok

Why 250w ? If 4 unit puck X 69w = 296
Too no understanded 13v × 3= 39. Volts what is 13v? Why X 3?



[oreo54]

Why 250w ? If 4 unit puck X 69w = 296
Too no understanded 13v × 3= 39. Volts what is 13v? Why X 3?

They aren't 69 watts each.

Watts = Volts x Amps.

13 volt string
4 deep blue diodes in series
3.25 volts each

+3.25...+3.25....+3.25.....+3.25....

13 * .7 = 9.1 watts

Do that for every channel
4 are 9.1w = 36.40
4.4 * .7 = 3.08
6.4 * .7 = 4.48
2.2 * .7 = 1.54
6.6 * .7 = 4.62

50.12 watts not 69 watts
200.48 watts for 4
Less if you use recommended 500 or 350 mA drivers for violet and UV.

69 used like peak current....1000 mA



[danielch2008]

They aren't 69 watts each.

Watts = Volts x Amps.

13 volt string
4 deep blue diodes in series
3.25 volts each

+3.25...+3.25....+3.25.....+3.25....

13 * .7 = 9.1 watts

Do that for every channel
4 are 9.1w = 36.40
4.4 * .7 = 3.08
6.4 * .7 = 4.48
2.2 * .7 = 1.54
6.6 * .7 = 4.62

50.12 watts not 69 watts
200.48 watts for 4
Less if you use recommended 500 or 350 mA drivers for violet and UV.

69 used like peak current....1000 mA

What is Pro and Con tô put driver?
350... 500 no understand

Less par of light ?! Cors mix?!
My tank reef is 2,20m X 0.5m(altura) X 0,6

I have one maxspect 240 but and two nacional more less quality.



[danielch2008]

They aren't 69 watts each.

Watts = Volts x Amps.

13 volt string
4 deep blue diodes in series
3.25 volts each

+3.25...+3.25....+3.25.....+3.25....

13 * .7 = 9.1 watts

Do that for every channel
4 are 9.1w = 36.40
4.4 * .7 = 3.08
6.4 * .7 = 4.48
2.2 * .7 = 1.54
6.6 * .7 = 4.62

50.12 watts not 69 watts
200.48 watts for 4
Less if you use recommended 500 or 350 mA drivers for violet and UV.

69 used like peak current....1000 mA

Very good explanation



[oreo54]

What is Pro and Con tô put driver?
350... 500 no understand

Less par of light ?! Cors mix?!

UV and violet diodes are less efficient than other colors.

Less current means less heat means longer life.



[danielch2008]

You can run 2 to 3 off one ldd and 48 (44 effective) volt power supply.
13 v * 3 = 39 volts.

To run 4 you need 52v plus 4= 56 v power supply. About 250 watts(roughly calculated).
One ldd per channel.
You need ldd-h's though for that high of voltage.

The "A" or "AB" version is adj to 56v

https://power.sager.com/hlg-240h-54-2525443.html

50-57volts


As I wrote above and per Meanwell ldd-L and ldd-h spec sheet it did state 2 volt channel was ok

R$ 303,99 10%de desconto | Mean well-fonte de alimentação, 240w, 54v, a, ip67, corrente e tensão, ajustável, 2 peças

https://a.aliexpress.com/_mLJlfJu

The ldds H what number? Tô 4 pucks? No understand this numbers.. ldds300 ldd 500 ldd700...



[danielch2008]

UV and violet diodes are less efficient than other colors.

Less current means less heat means longer life.

What do to pass less current? And it light up



[oreo54]

What do to pass less current? And it light up

Less current, less light yes. Still lights.



[oreo54]

R$ 303,99 10%de desconto | Mean well-fonte de alimentação, 240w, 54v, a, ip67, corrente e tensão, ajustável, 2 peças

https://a.aliexpress.com/_mLJlfJu

The ldds H what number? Tô 4 pucks? No understand this numbers.. ldds300 ldd 500 ldd700...

R$ 303,99 10%de desconto | Mean well-fonte de alimentação, 240w, 54v, a, ip67, corrente e tensão, ajustável, 2 peças

https://a.aliexpress.com/_mLJlfJu

The ldds H what number? Tô 4 pucks? No understand this numbers.. ldds300 ldd 500 ldd700...

Easiest is 8 Ldd's.. 7 if you combine red and yellow.



[danielch2008]

In aliexpress have not Ldd HW :(



[oreo54]

In aliexpress have not Ldd HW :(

Too bad. Do you have ebay?
Where are you?


You could use these but you would need. 28- 32 of them.
You would need to know how to measure the current and adjust accordingly.

https://www.aliexpress.com/item/1005001429699215.html

Change back to 24v power supply.



[danielch2008]

Too bad. Do you have ebay?
Where are you?


You could use these but you would need. 28- 32 of them.
You would need to know how to measure the current and adjust accordingly.

https://www.aliexpress.com/item/1005001429699215.html

Change back to 24v power supply.

I am from Brazil. I think so can buy ebay.
If i use LDD need o ly of 7 to 4 pucks. And if use this of aliexpress i will need of 28?!
