Jashemash!

This is Borat again - showing off superior Kazakh skills. Support this post with your likes - I will appreciate the attention.

On a path to more complex devices, I have already built these:

DIY light bar

DIY Calcium Reactor

DIY Alkalinity Monitor

DIY Peristaltic Pump

DIY Kalk Reactor

Now is the time to build a robotic tester similar to MasterTronic...

Follow this thread - it will be very interesting!

Printed Reef - Custom Reef Accessories
OP
Borat

Borat

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 4, 2021
Messages
789
Reaction score
794
Review score
+0 /0 /-0
Location
United Kingdom

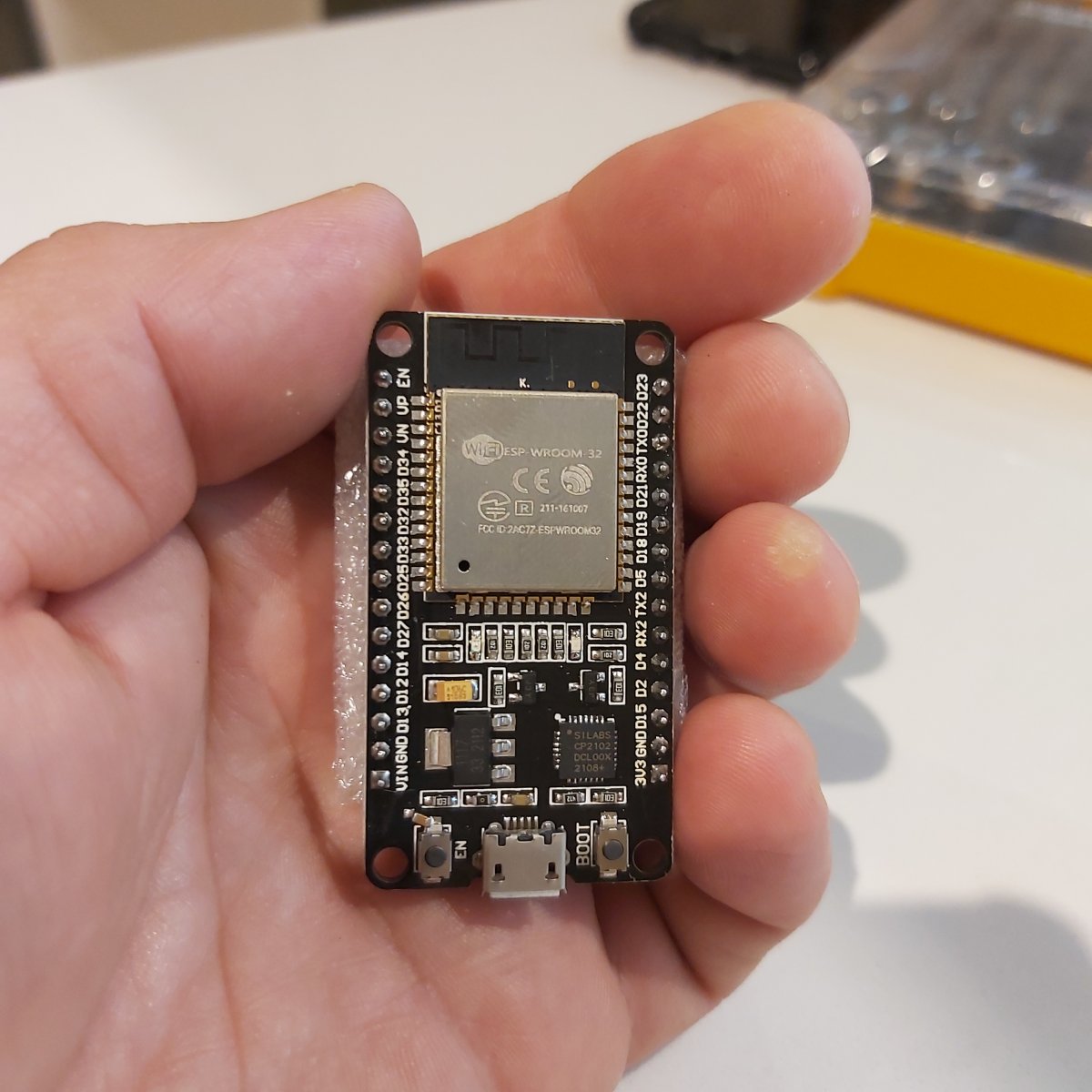

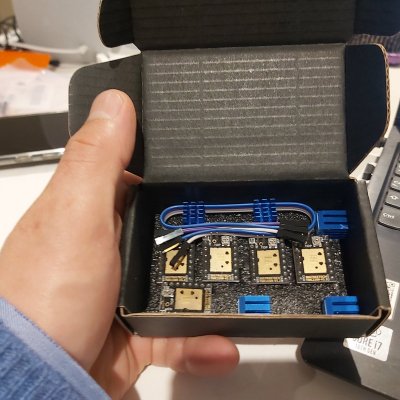

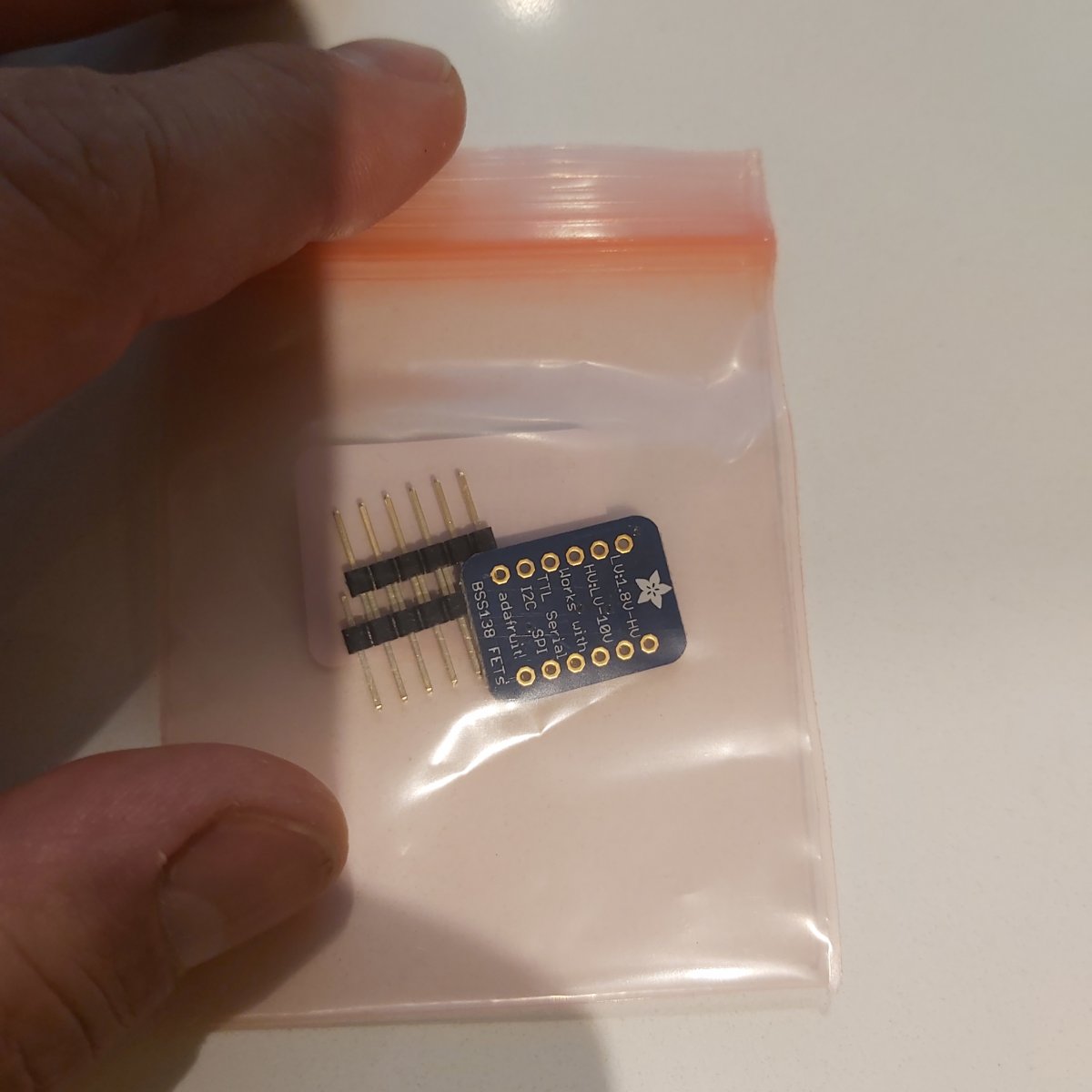

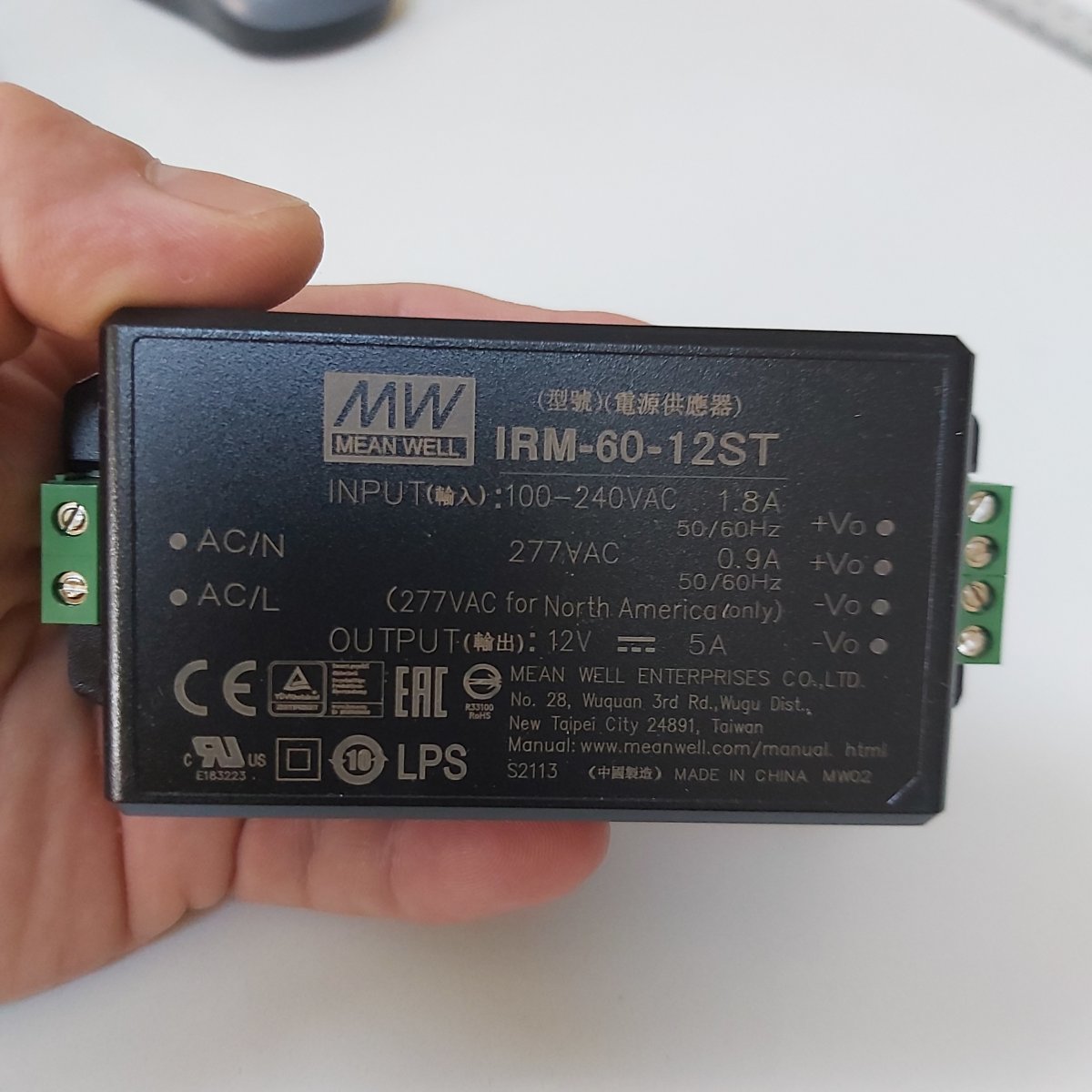

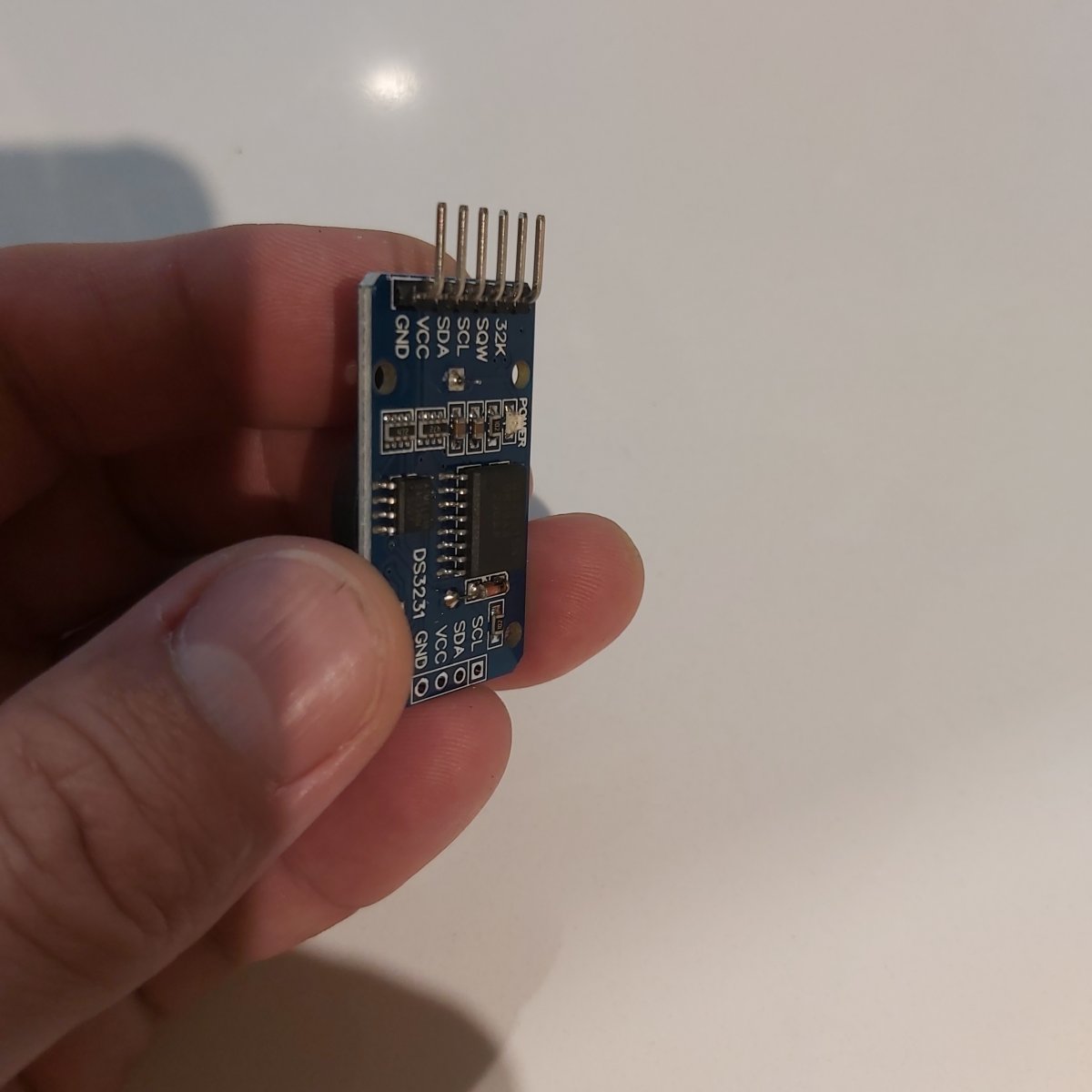

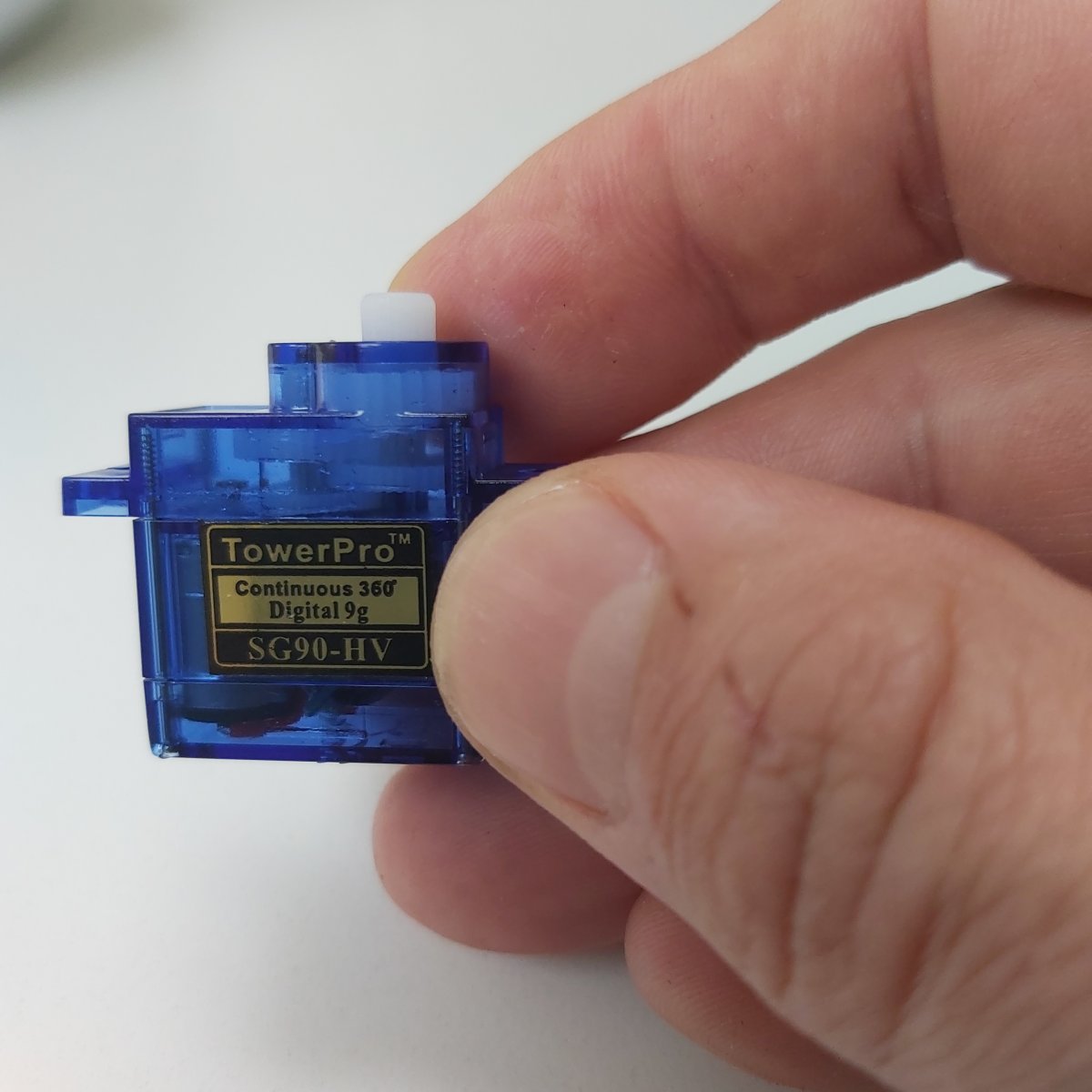

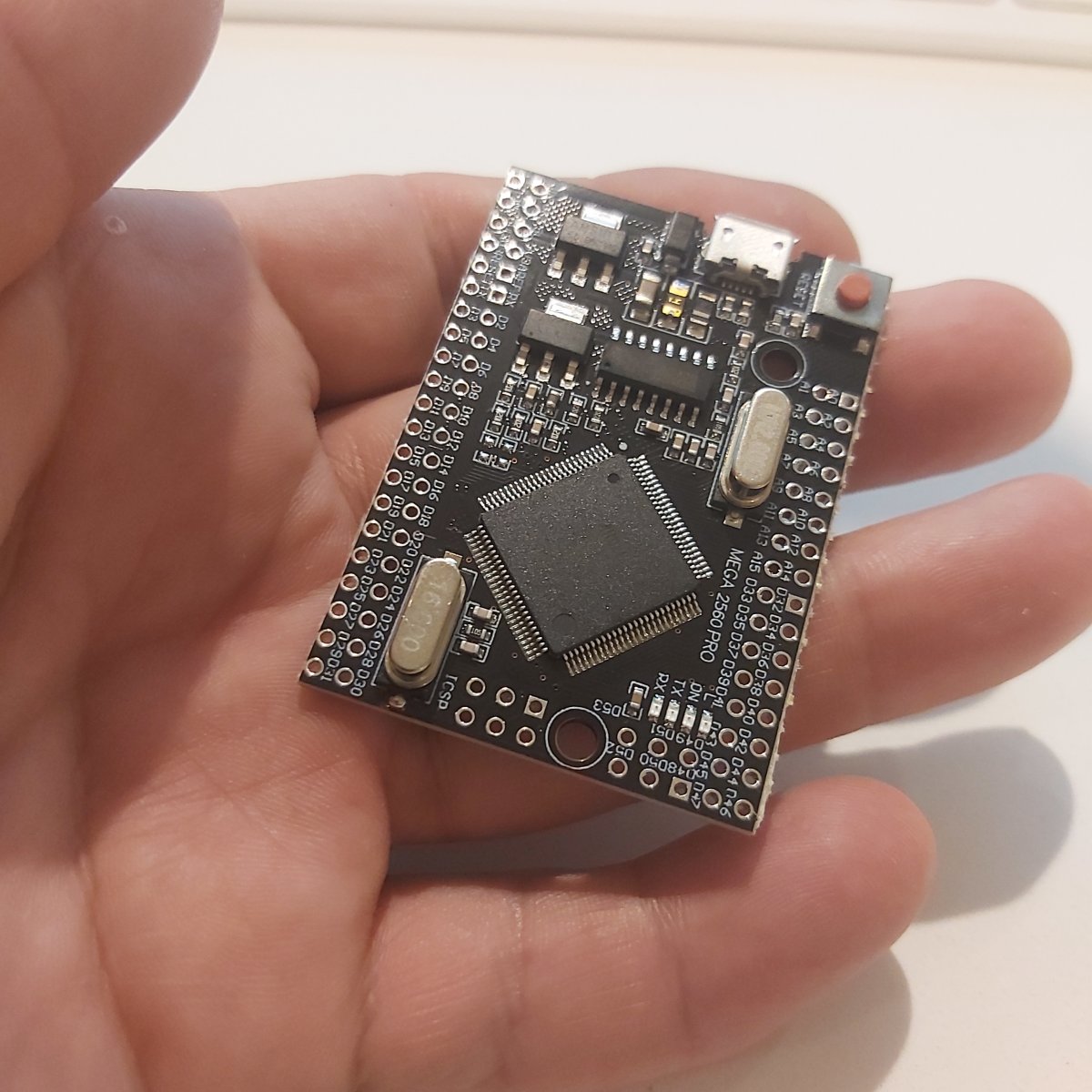

So I am currently in the process of sourcing the parts for this build. The footprint of this device will be the same as MasterTronic (slightly smaller) - I will explain some of the peculiarities of MasterTronic build later in this thread.

OP
Borat

Borat

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 4, 2021
Messages
789
Reaction score
794
Review score
+0 /0 /-0
Location
United Kingdom

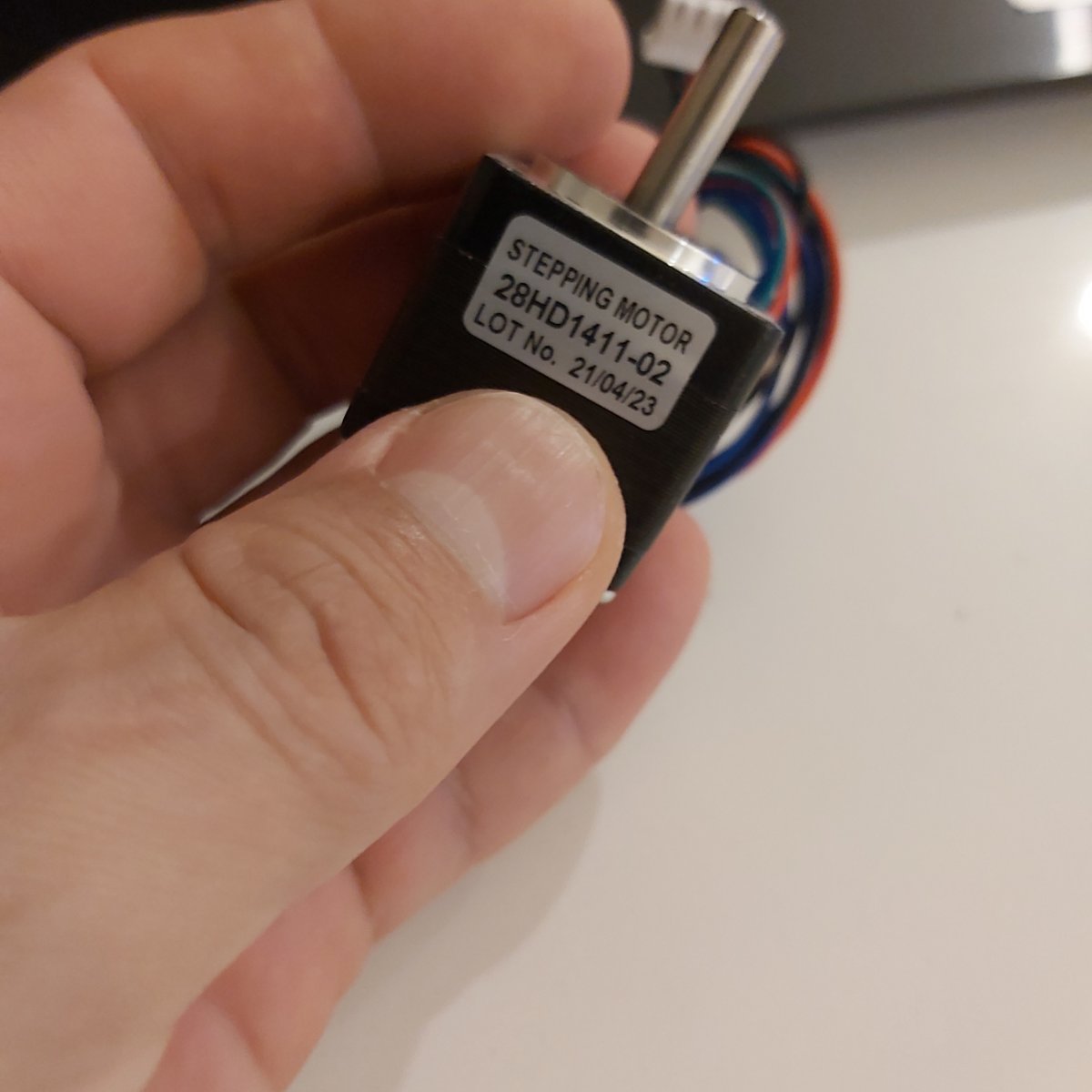

4X peristaltic pump heads - ordered from China

AS
Corals.com
OP
Borat

Borat

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 4, 2021
Messages
789
Reaction score
794
Review score
+0 /0 /-0
Location
United Kingdom

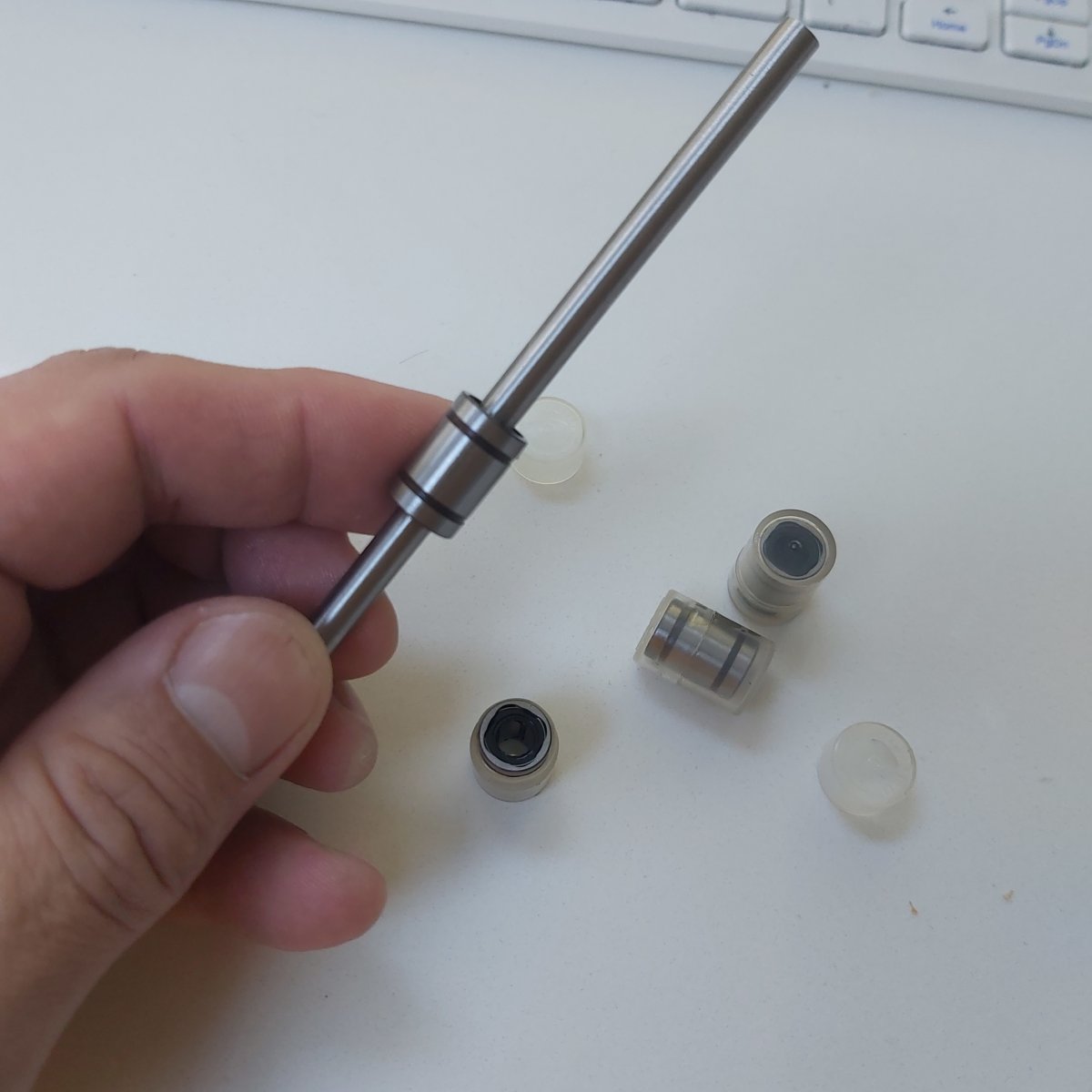

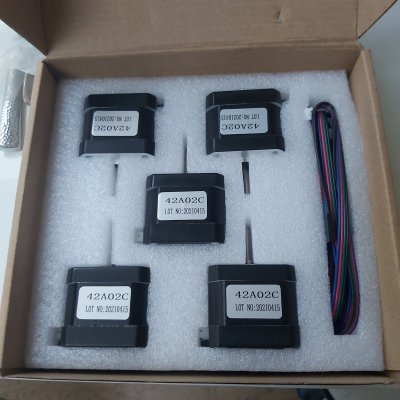

Some CNC bits and blobs

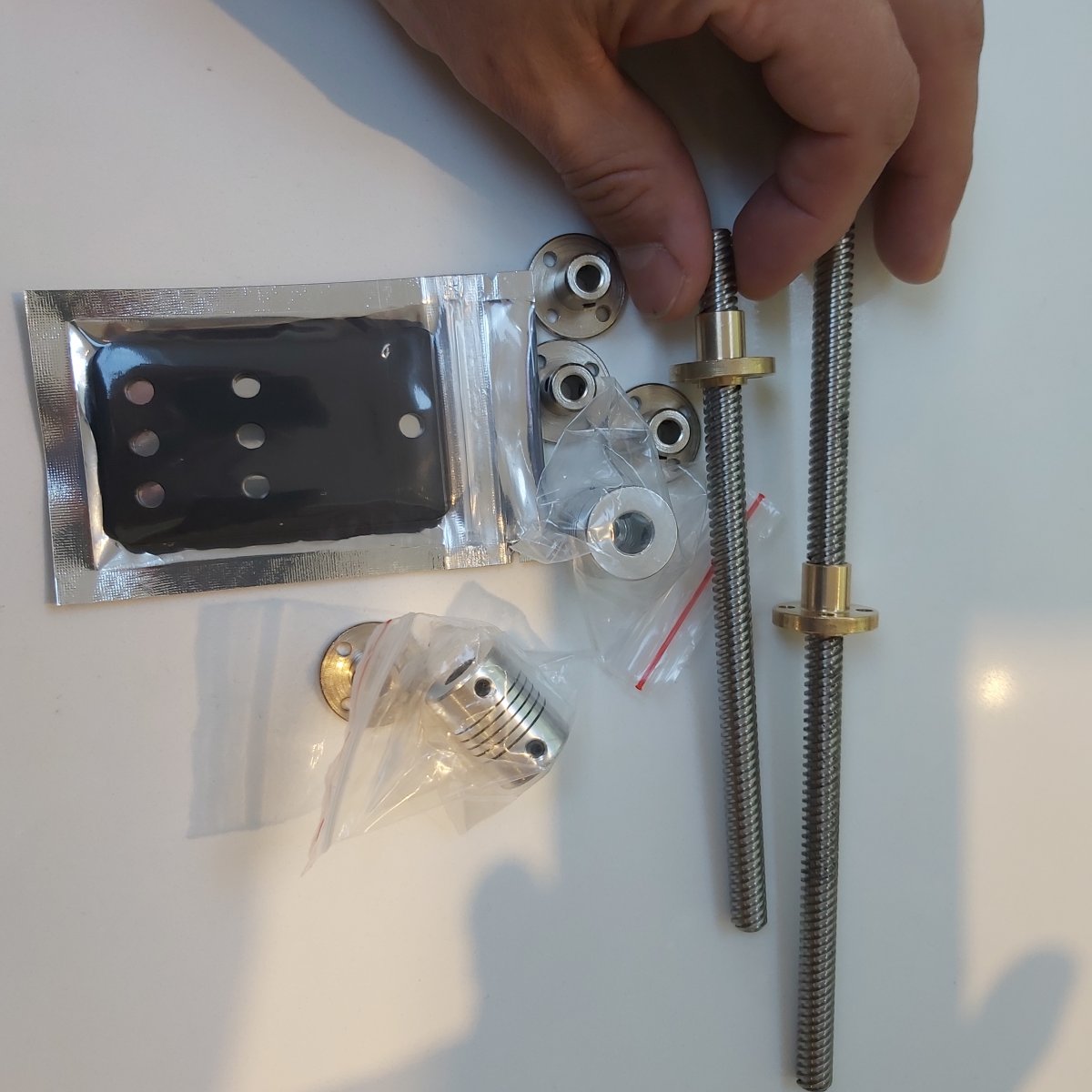

8mm lead screws
5mm rigid flunge coupling
Idler puller mount plate
flexible shaft couping (5mm motor to 8mm lead screw)

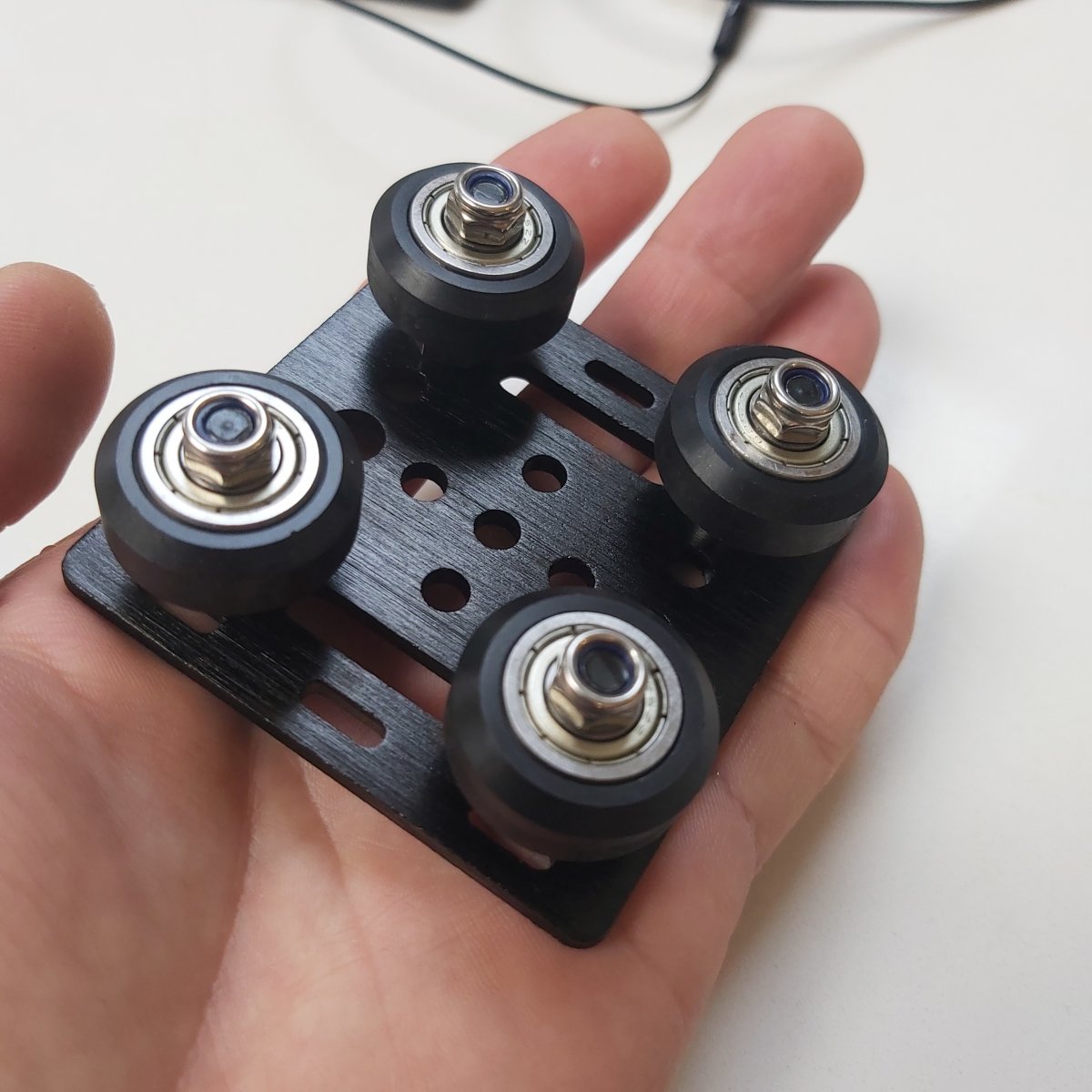

2020 V-slot pulley
20211208_143655 (1).jpg

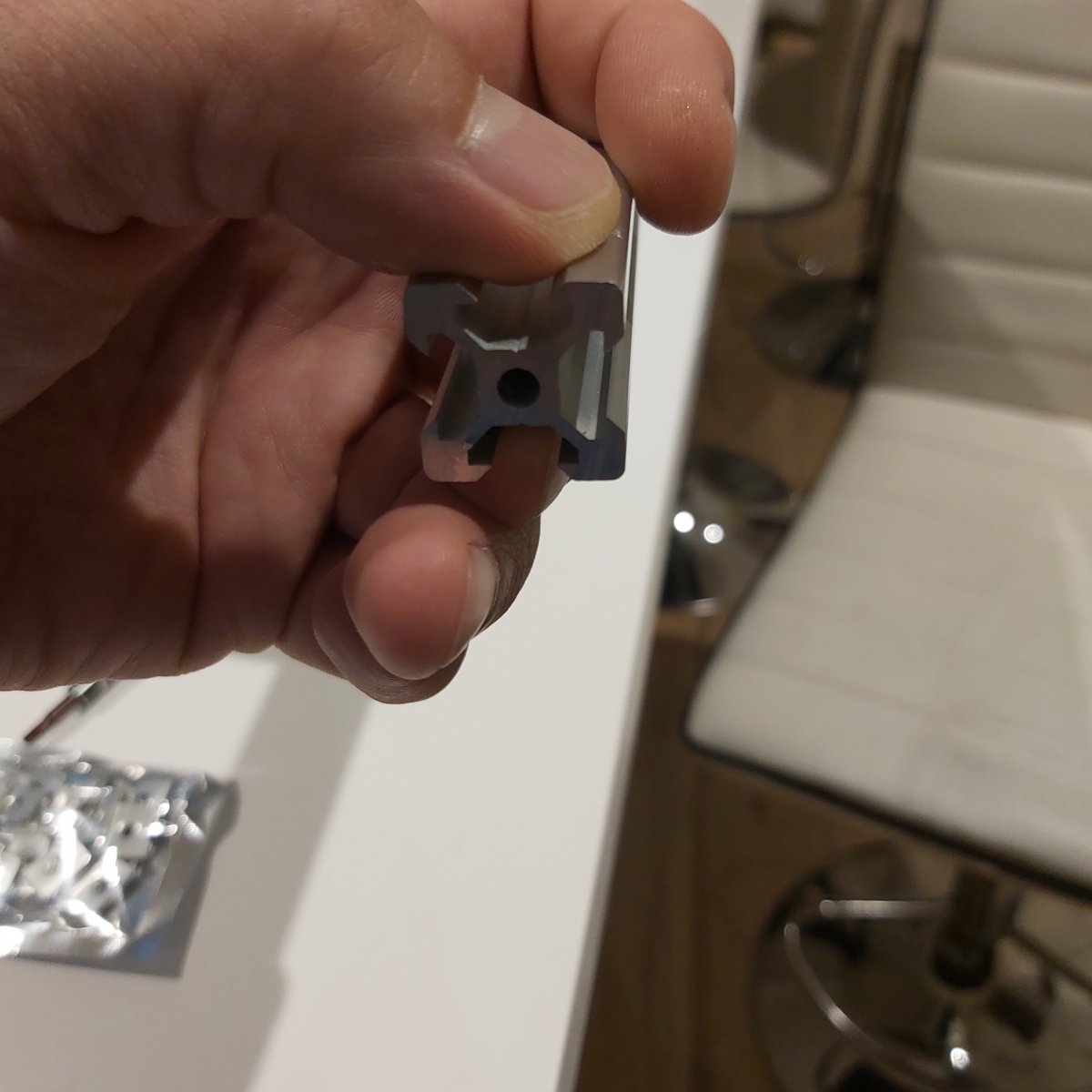

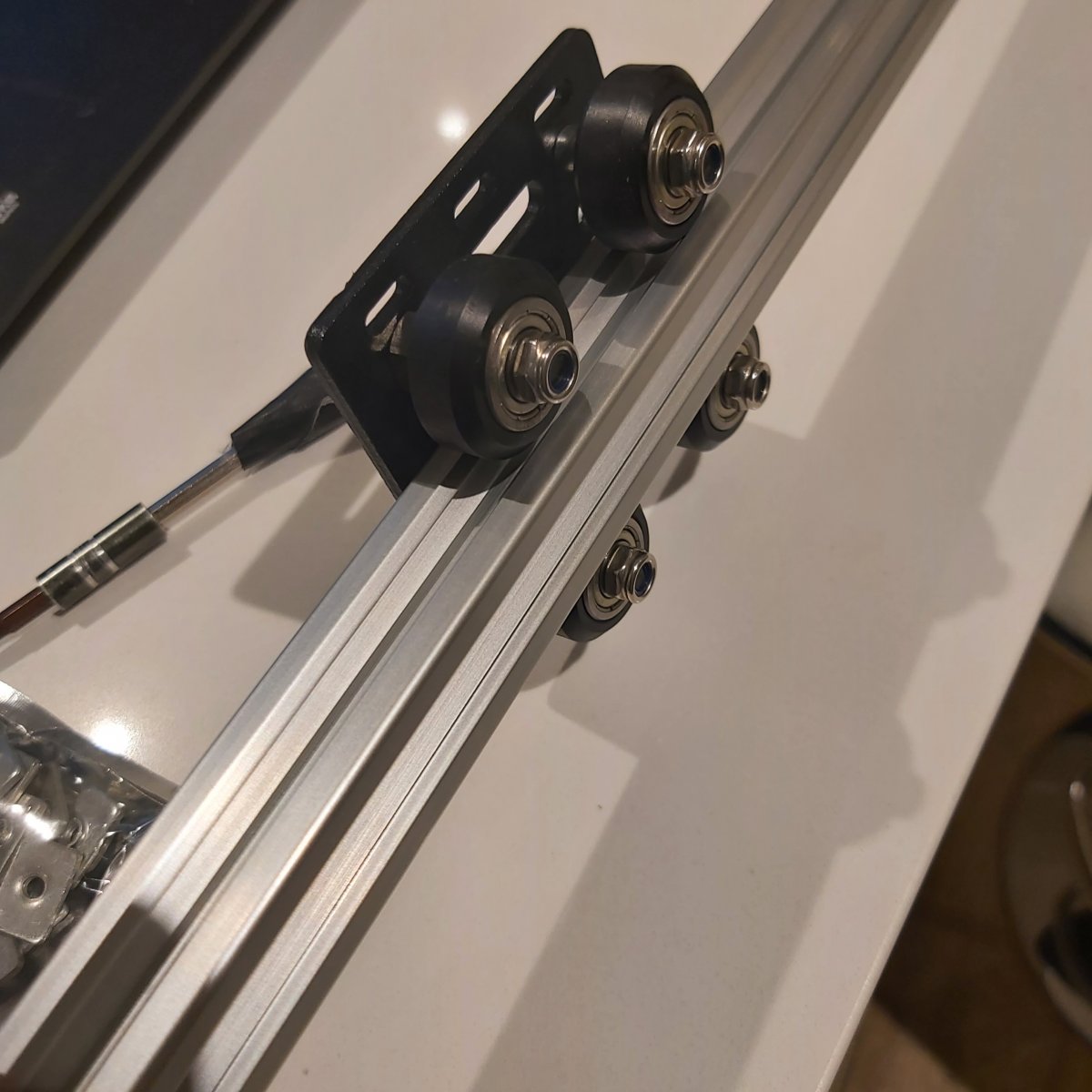

2020 V-slot aluminium profile
20211208_194531 (1).jpg

20211208_194544 (1).jpg

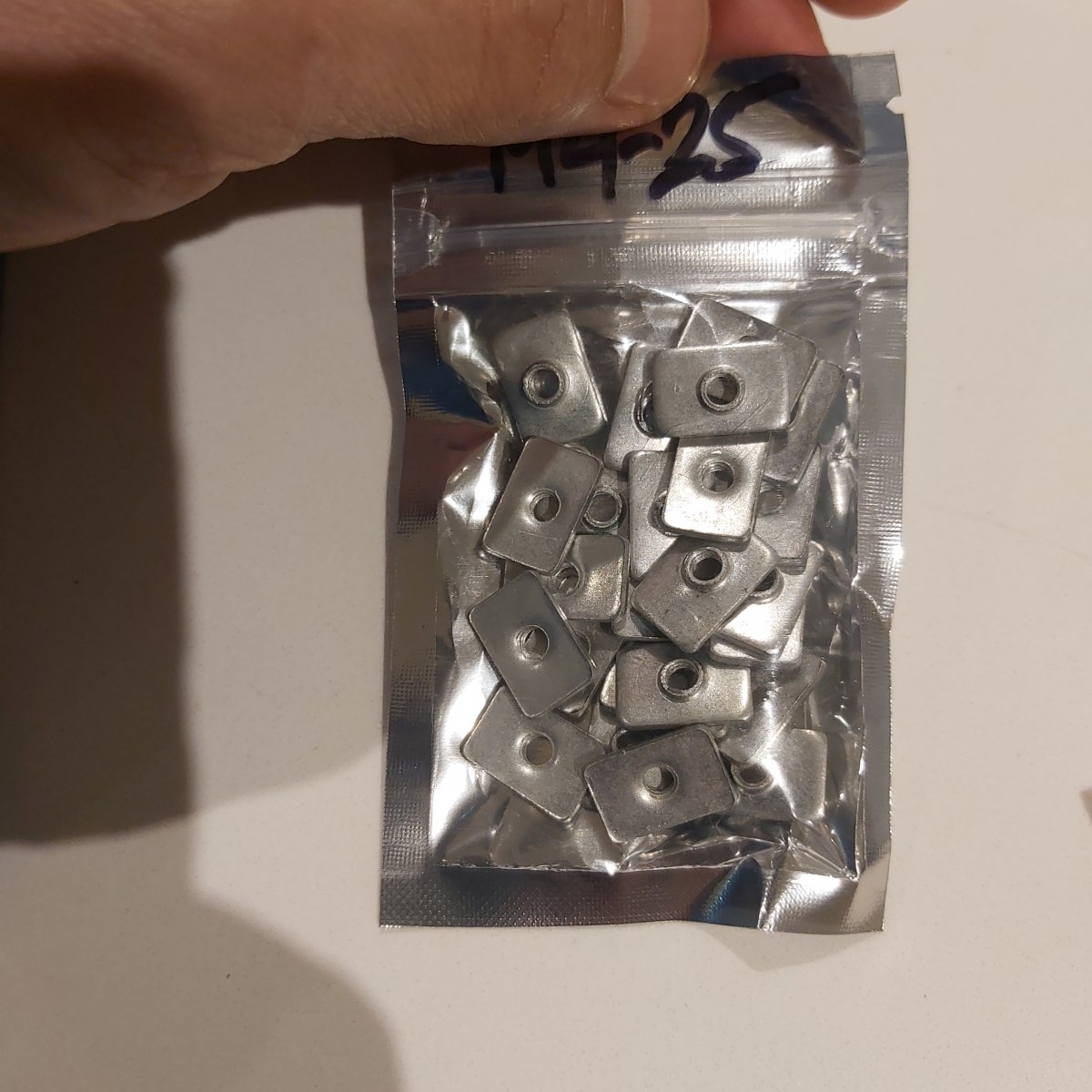

T-nuts for 2020 V-slot profile
20211208_194550 (1).jpg

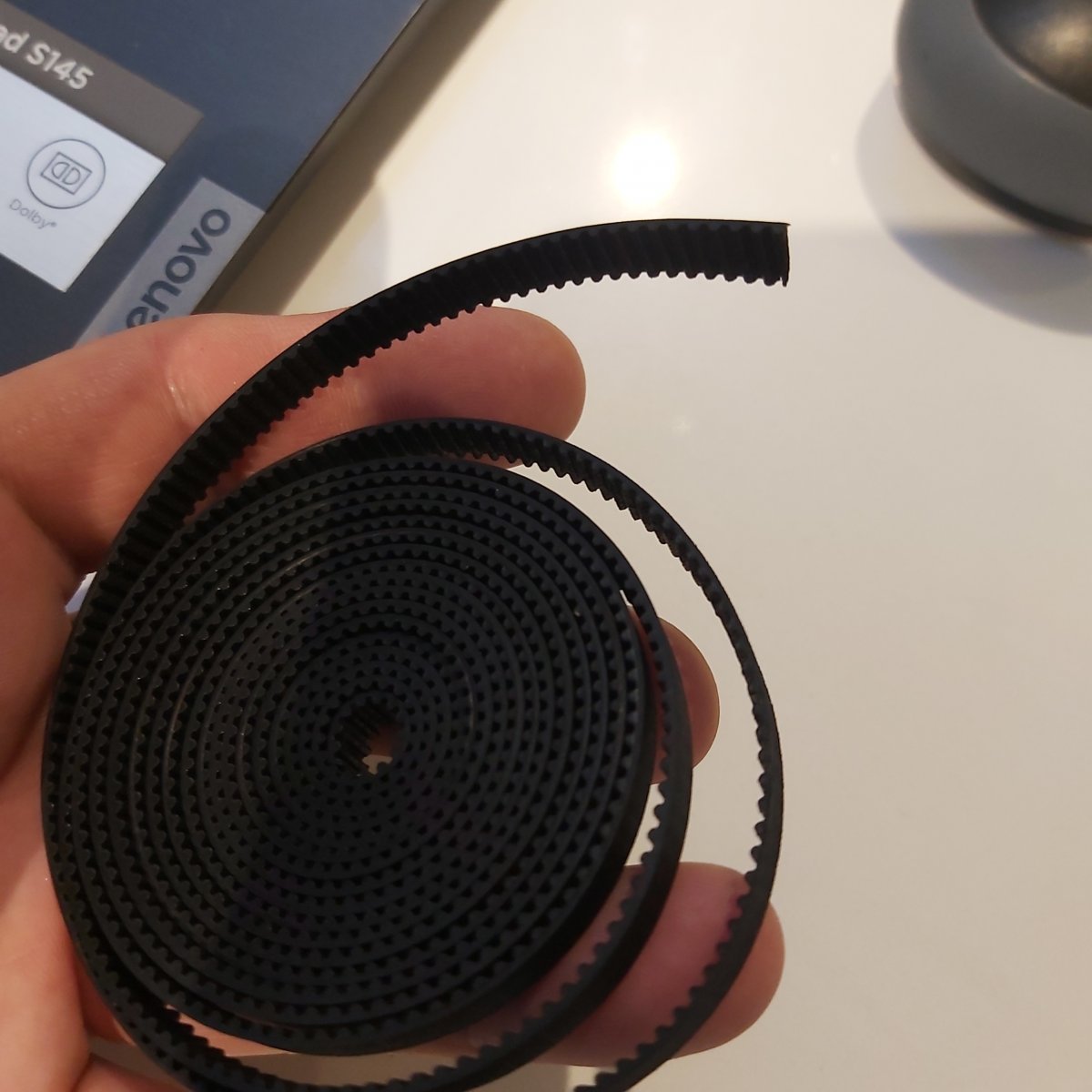

6mm GT2 timing belt
20211211_150317 (1).jpg

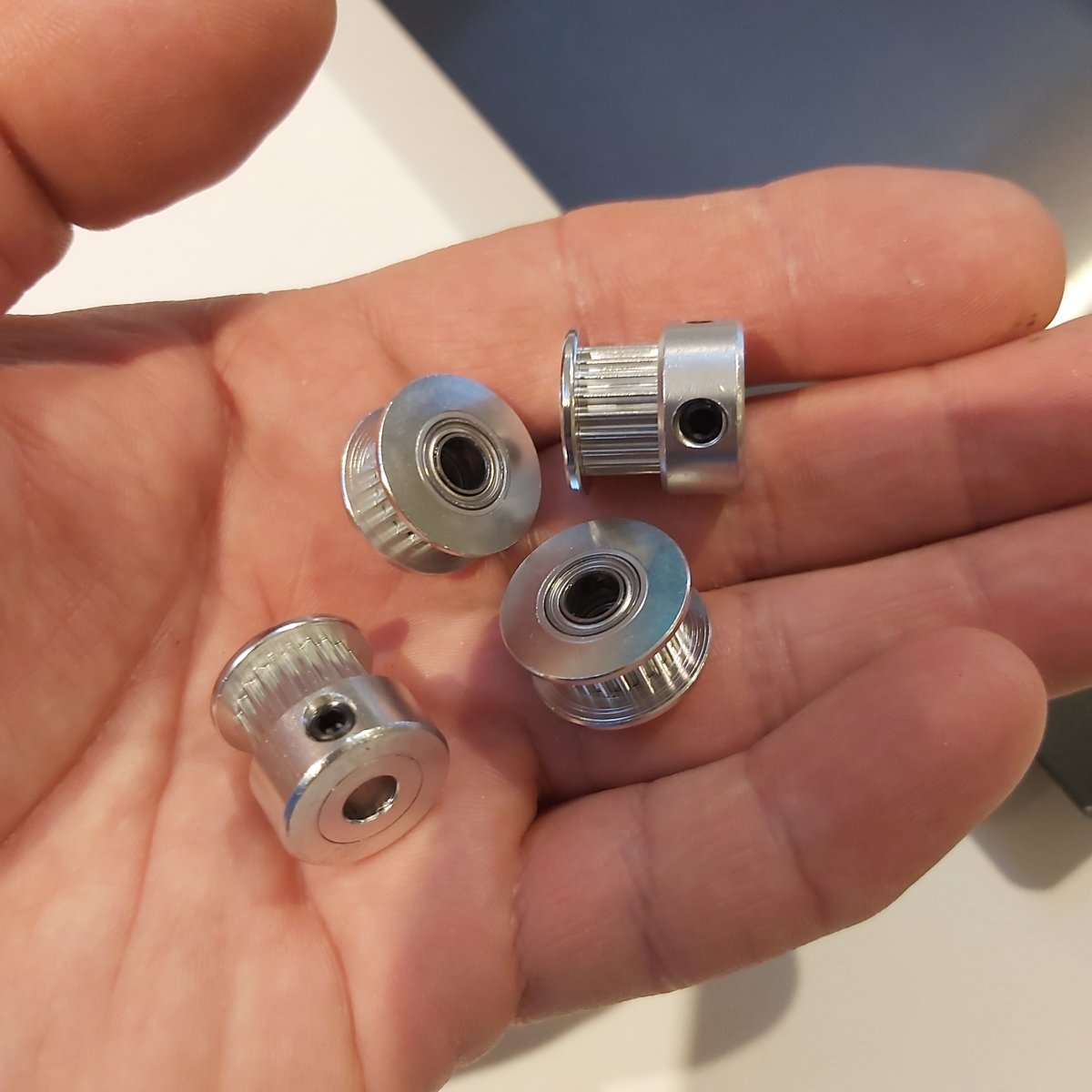

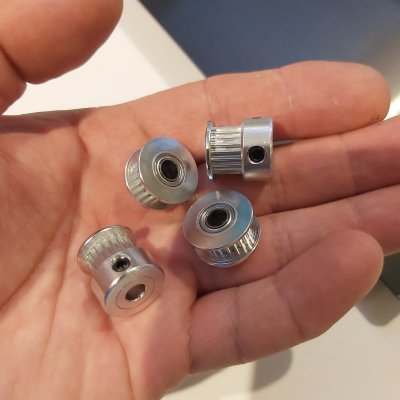

GT2 drive pulley and toothed idler pulley
20211211_150305 (1).jpg

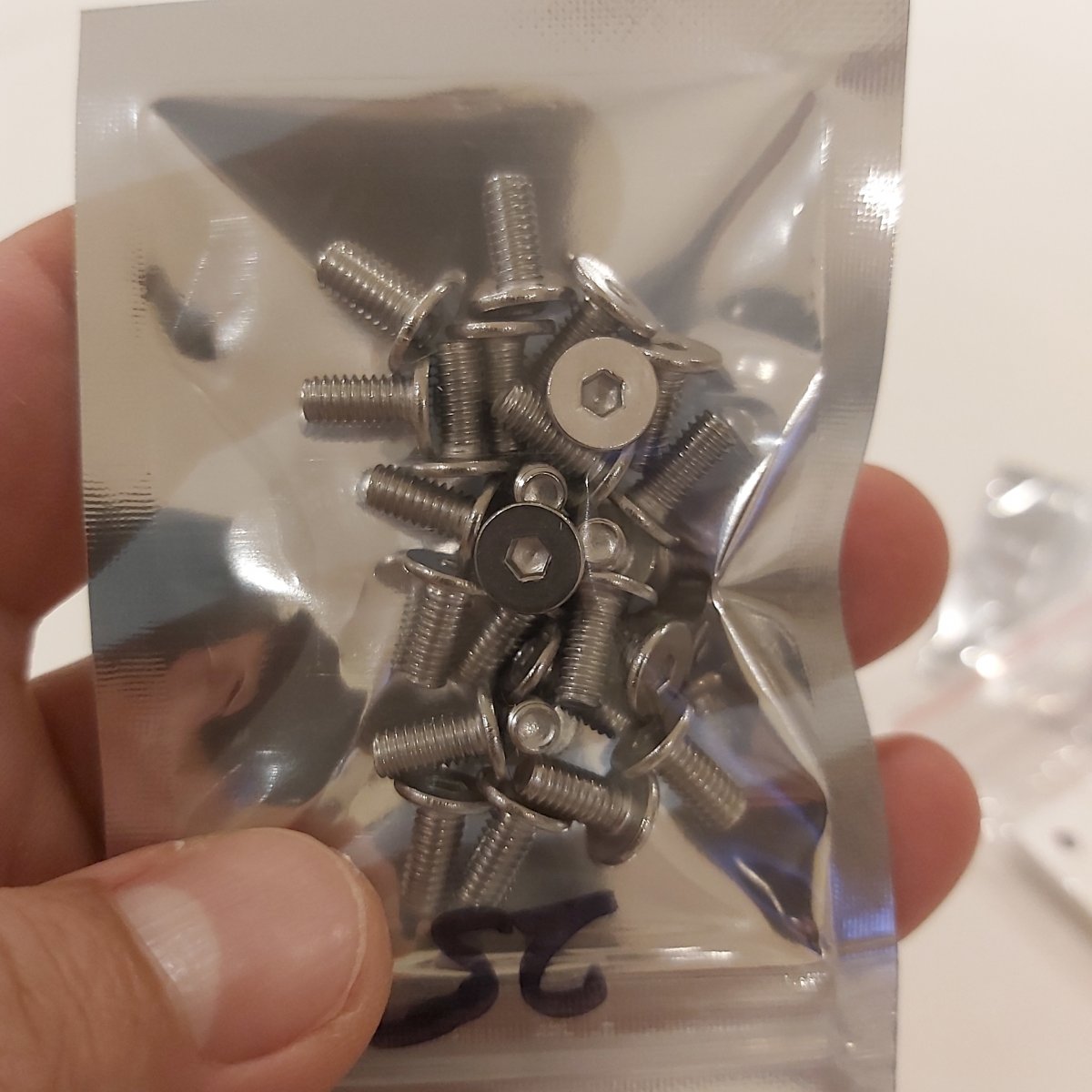

Short M4 waffle thin head screws
20211214_155558 (1).jpg

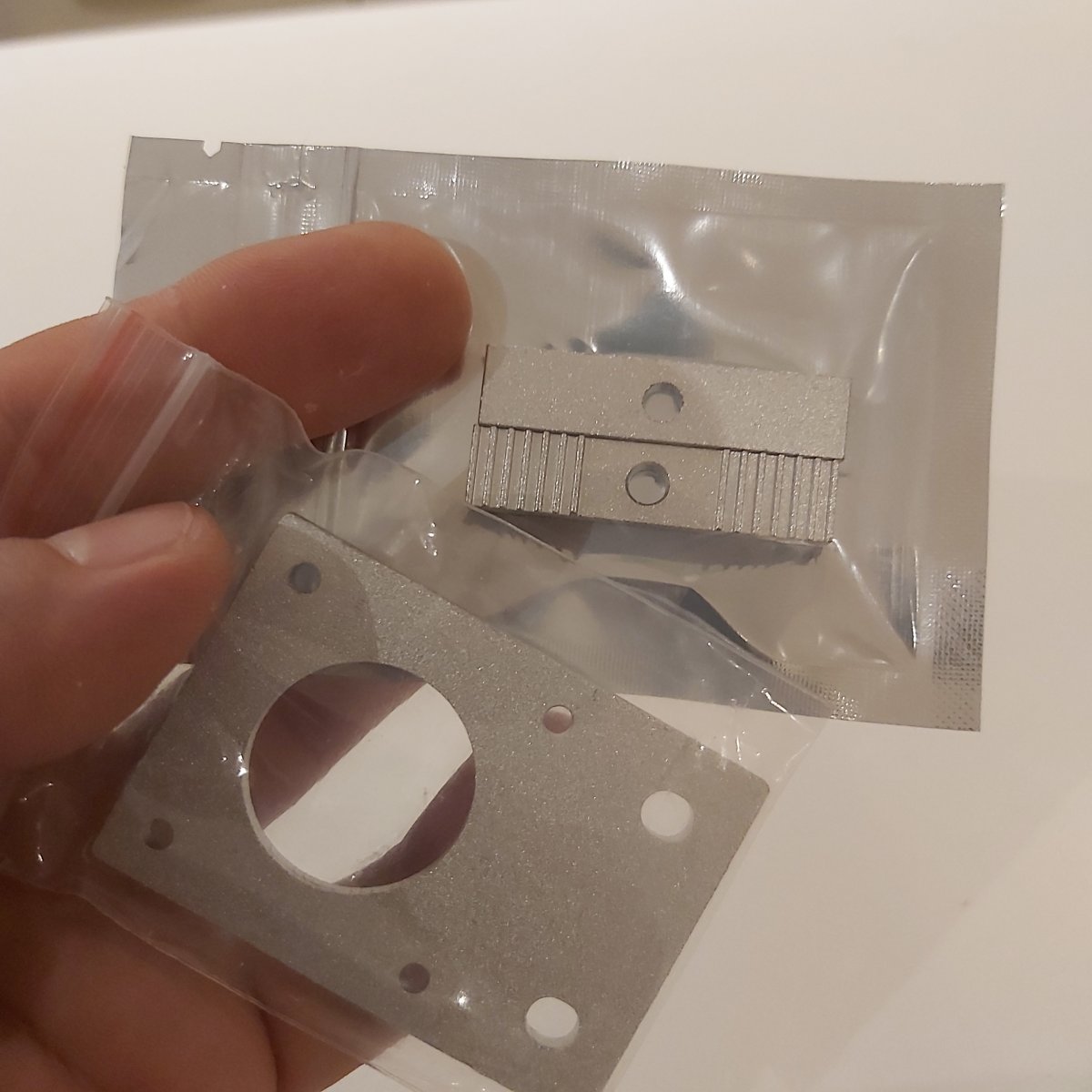

Nema 17 mount plate (to try) and timing belt clamp
20211214_155550 (1).jpg

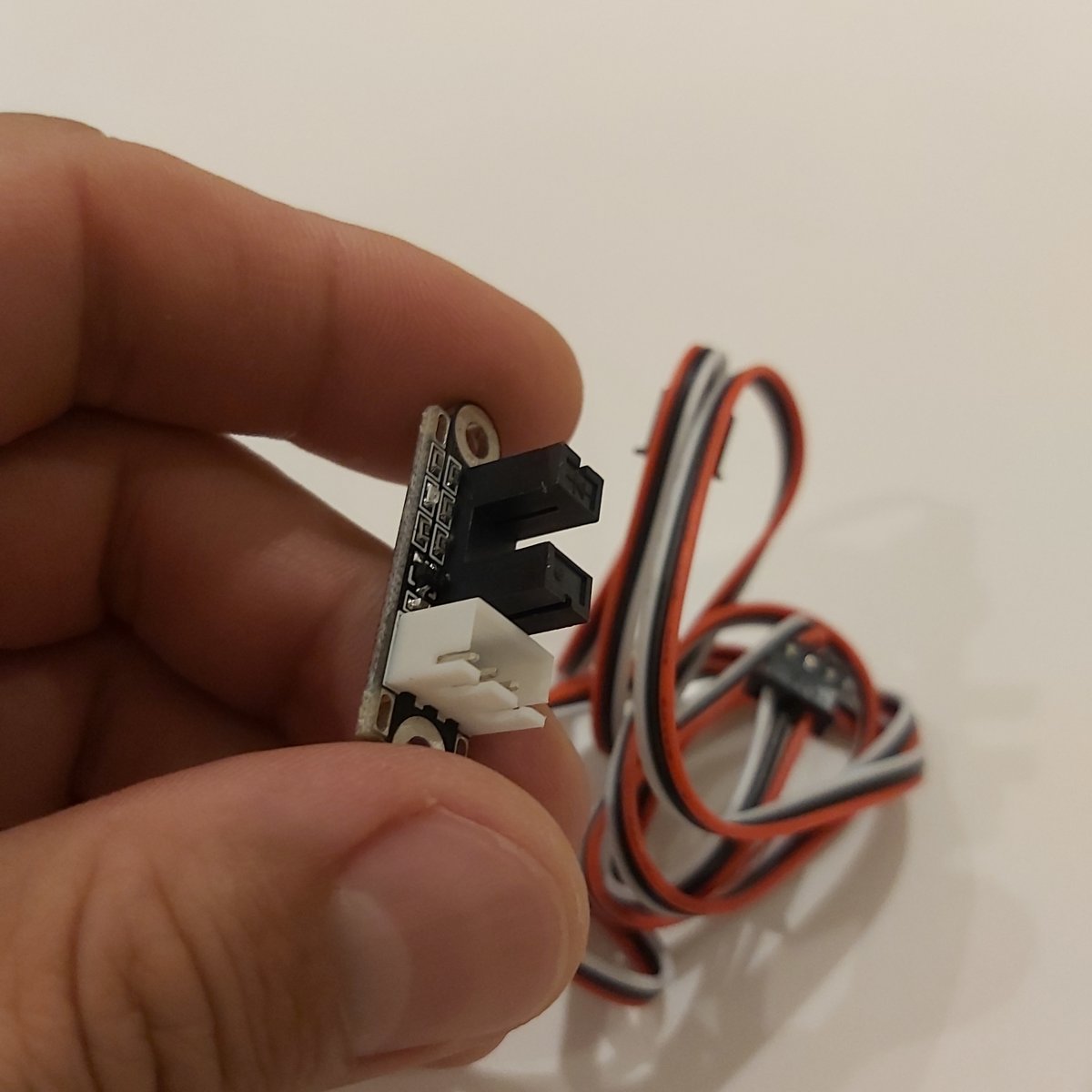

Optical switch
20211214_155526 (1).jpg

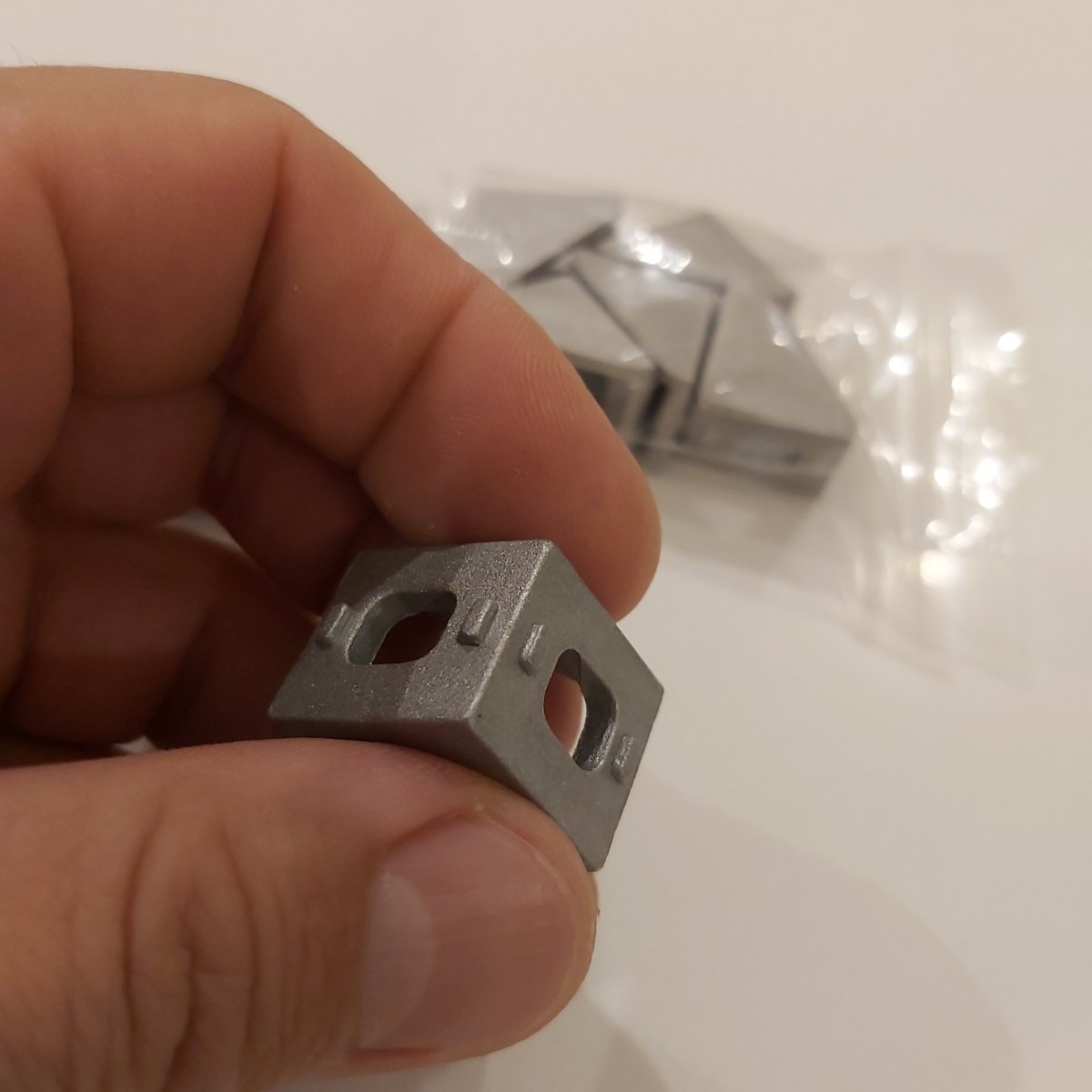

Pack of 10 aluminium alloy connectors:
20211214_155452 (1).jpg

Top Shelf Aquatics
World Wide Corals
CLICK TO VIEW
OP
Borat

Borat

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 4, 2021
Messages
789
Reaction score
794
Review score
+0 /0 /-0
Location
United Kingdom

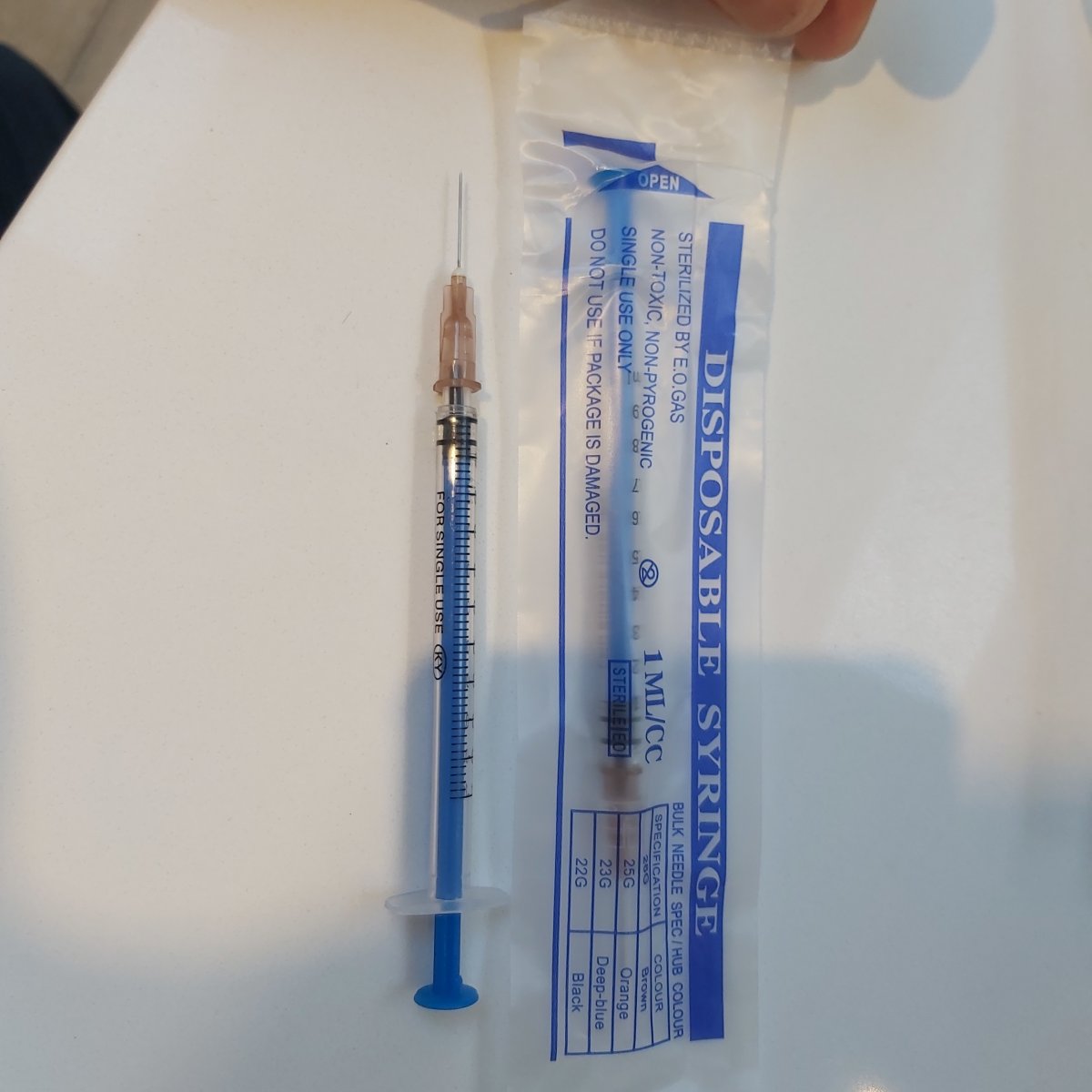

Some syringes:

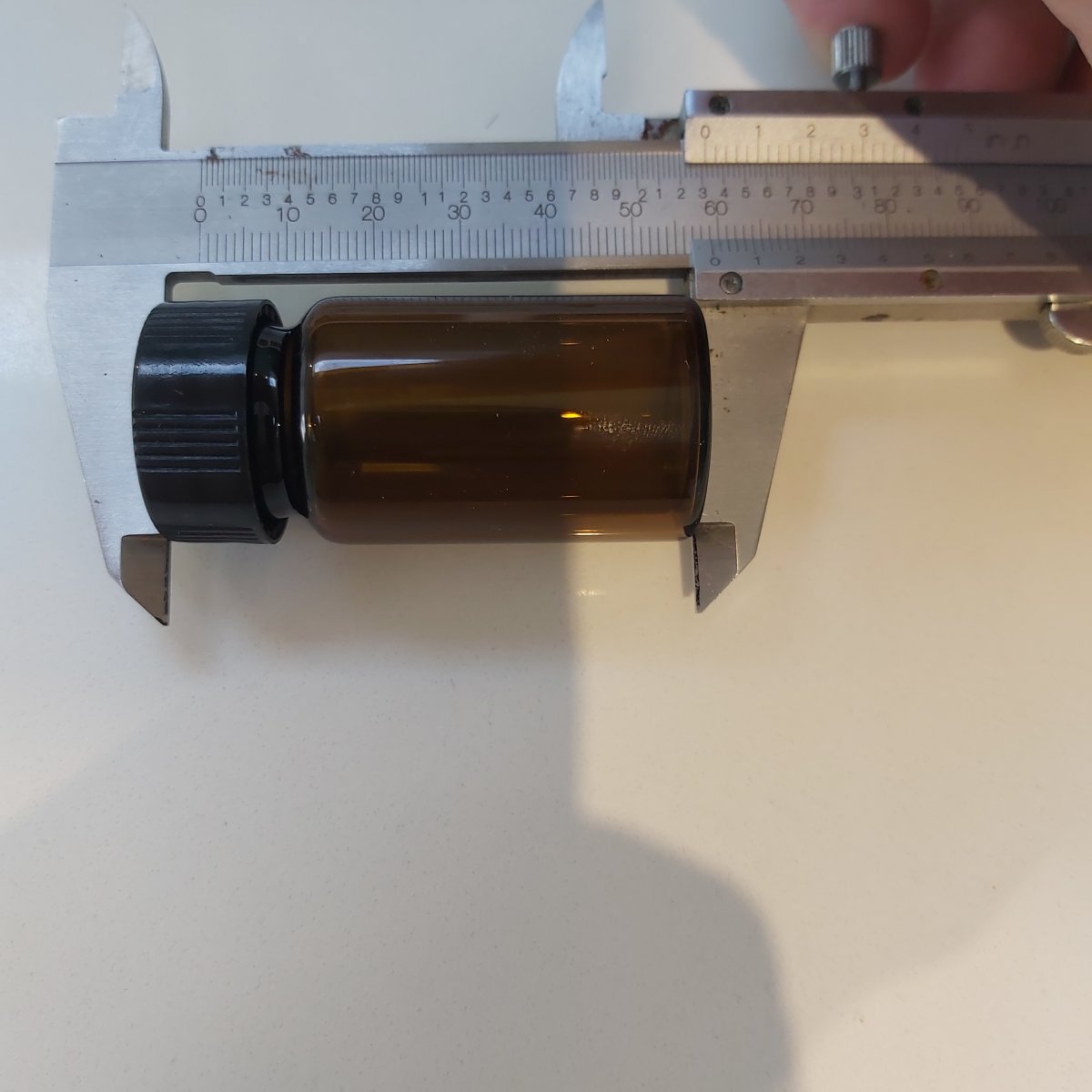

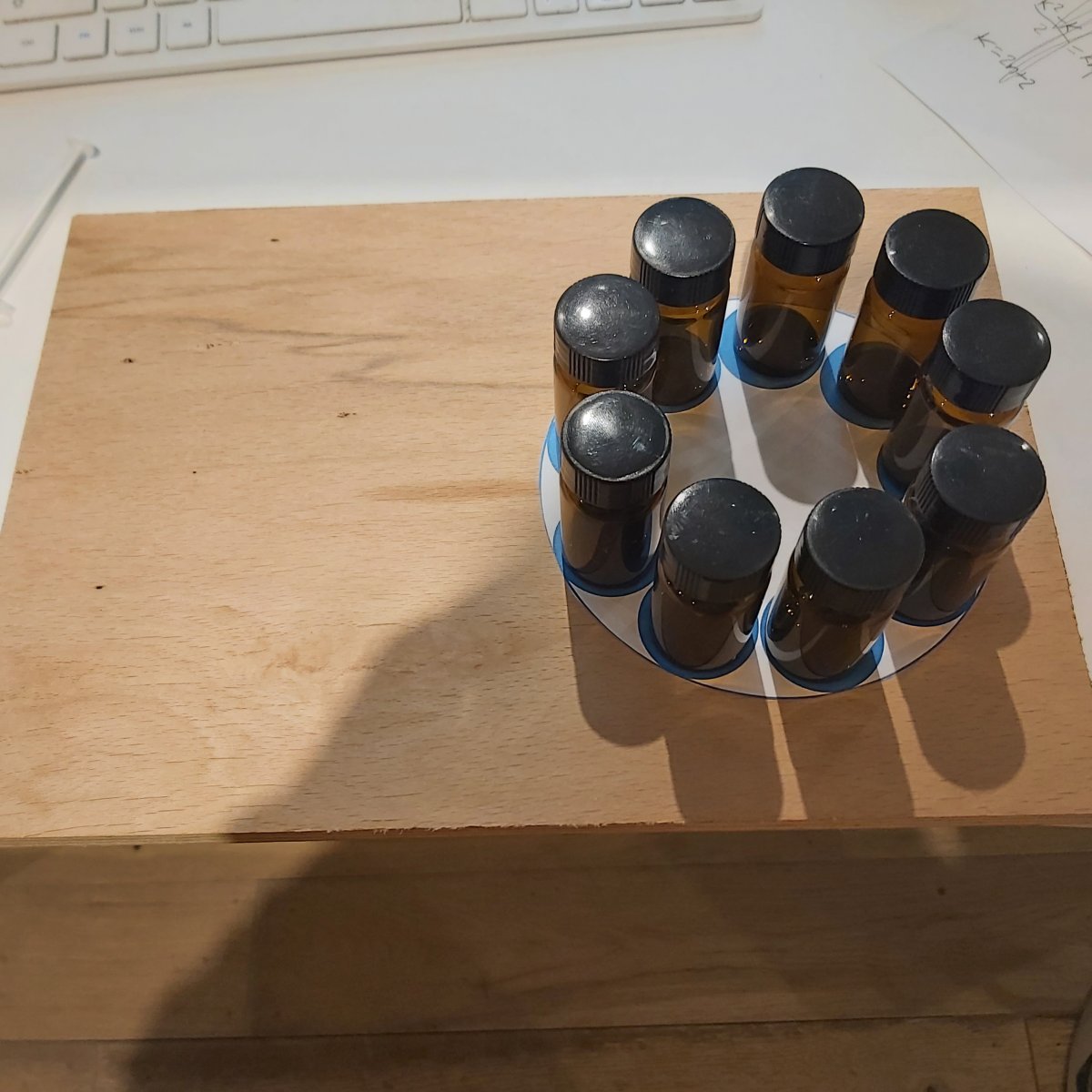

I bought a wrong set of syringes - as I knew nothing about them. Firstly, the needle needs to be at least 80mm. MasterTronic erroneously (probably by design fault) uses 60mm needes and for that reason it's unable to draw the majority of reagent from vials as the vials themselves are 60mm tall (it can draw a maximum of 12ml out of 20ml available, i.e. only 60% of reagent!).

Secondly - there are different ways in which the needle is connected to the syringe: one is called Luer Slip and another is called Luer Lock.

Luer Slip is what you encounter most - by just pushing the needle into syringe until it's firmly in it. Luer Lock is where the needle screws into syringe.

Disclaimer: I don't have a MasterTronic - but I inferred it from reading the MasterTronic manual and studying the technicalities of syringes.

So after getting wrong type of needles (too short), I re-ordered 100x of 80mm needles but these came with with Luer Lock connector. I then had to order new 20x syringes with Luer Lock Connector. Waiting for delivery...




Last edited:

thatmanMIKEson

Reefing ain't easy$
Review score
+0 /0 /-0
View Badges
Joined
Jan 10, 2021
Messages
3,293
Reaction score
2,774
Review score
+0 /0 /-0
Location
florida
I love the parts list...your like a super genius in the stuff im interested in!

Hey could you make short videos of some assembly or soldering or something when your getting hands on. I'd love to see a little of your genius @ work!

And when your ready to start selling some of these will there be a r2r discount? I hope so!

Nice trinkets gypsy

World Wide Corals
OP
Borat

Borat

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 4, 2021
Messages
789
Reaction score
794
Review score
+0 /0 /-0
Location
United Kingdom
I think you could save a bit of pain by 3d printing a lot of parts. How will you calibrate against the different reagents? How will you store results?
I am 100% fluent with acrylic, gluing complex parts and machining it to desired shape - if you visit my other builds you can see it for yourself.

My 11yo son has a 3D printer and he prints an occasional part for me - I use those very infrequently as they are never as good as acrylic parts.
