DIY Robotic Tester - BoraTronic

OP
Borat

Borat

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 4, 2021
Messages
530
Reaction score
474
Review score
+0 /0 /-0
Location
United Kingdom

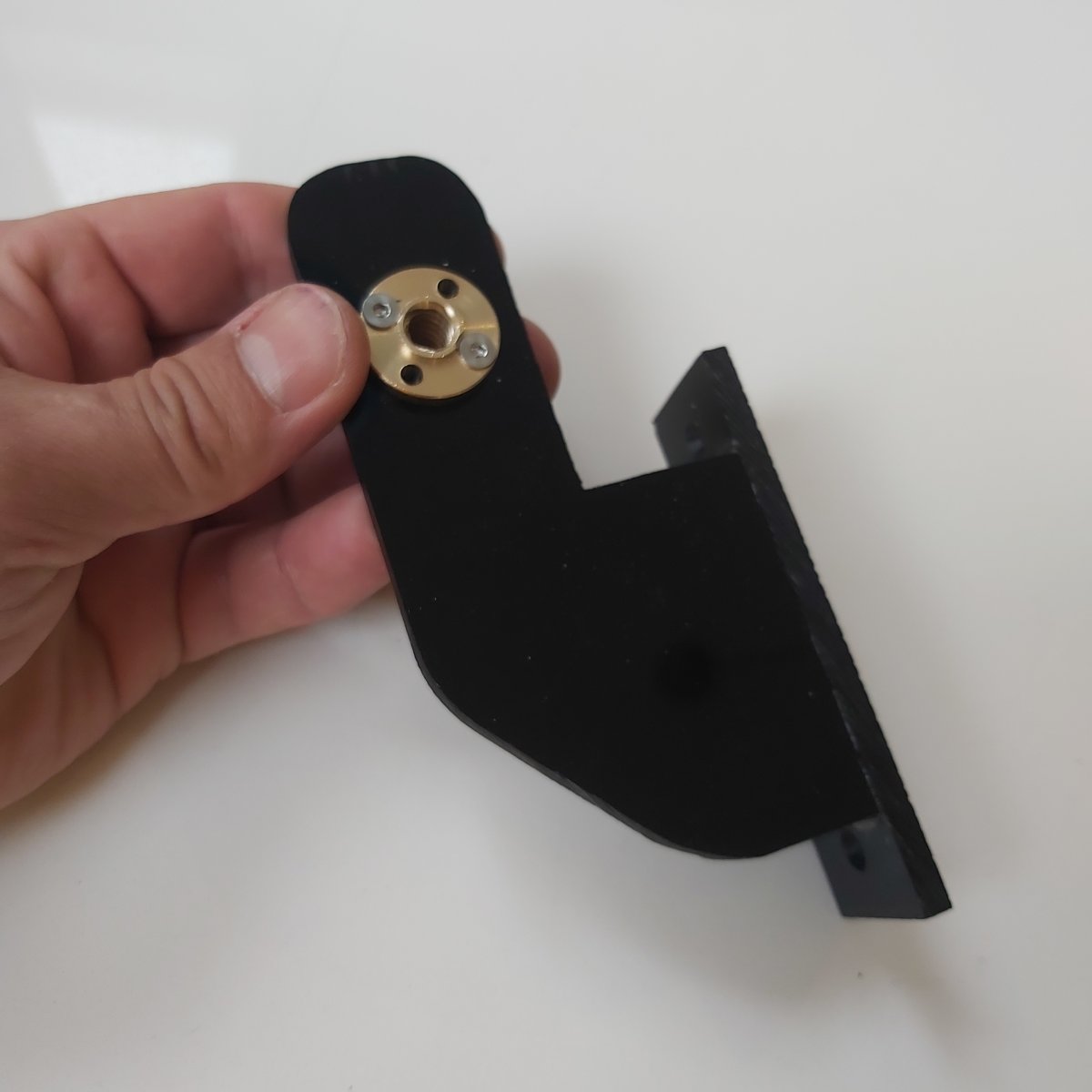

The rig is attached to the temporary platform - don't worry about final acrylic body, it will be done easily!




AquaCave Logo Banner

[email protected]

Living the Reef Life
Review score
+0 /0 /-0
View Badges
Joined
Nov 18, 2012
Messages
33,548
Reaction score
48,820
Review score
+0 /0 /-0
Location
Fontana, California
This is some other level innovation right here!

Lazy's Coral House

JNalley

Valuable Member
Review score
+0 /0 /-0
View Badges
Joined
Oct 12, 2021
Messages
1,077
Reaction score
1,392
Review score
+0 /0 /-0
Location
Grandview
I don't know if this has been discussed in the previous 3 pages, but ReefBot already exists, and instead of moving the vials, it moves the needle (which I think would be easier). Also, one of the things I thought about while looking at the reefbot was, why not make it cylindrical and have the needle move around an axis, seems much easier than trying to do it on a track. Anyways, posting so I can be updated, this looks like a really neat build/project


vahegan

Community Member
Review score
+0 /0 /-0
View Badges
Joined
Sep 9, 2019
Messages
38
Reaction score
29
Review score
+0 /0 /-0
Adafruit RGB sensor- I will use 2 of those, one to check the colour of testing vial and another to position reagent rack.
Hi Vlad,
Another interesting project you have started. Will follow with interest, although I think it is easier for me to manually test for phosphate and nitrate once in a while. I believe that maintaining constant Alkalinity is much more important. Anyway, good luck with an interesting new endeavour.
As for the colour detection, I found that AS7341 is much more promising compared with that TCS3472 sensor. It has 9 bands built in, in the range from 415 through 910nm, and is ideally suited for determining light levels at different wavelength bands.



I've got one of these, was planning to make a DIY PAR meter with it, but as always with my projects, I have very little time and energy for the implementation. I think this sensor would be best suited for determining the colour in water tests as well. Maybe you would like to give it a try. I ordered mine from China, but you can find a variety of modules based on this chip on Amazon, and DFROBOTS too has a similar and very compact module. These are a tad more expensive than the more common RGB module, though, though.
Screen Shot 2022-01-12 at 11.28.44 AM.png

Last edited:
Reef Chasers Aquaculture
OP
Borat

Borat

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 4, 2021
Messages
530
Reaction score
474
Review score
+0 /0 /-0
Location
United Kingdom
Hi Vlad,
Another interesting project you have started. Will follow with interest, although I think it is easier for me to manually test for phosphate and nitrate once in a while. I believe that maintaining constant Alkalinity is much more important. Anyway, good luck with an interesting new endeavour.
As for the colour detection, I found that AS7341 is much more promising compared with that TCS3472 sensor. It has 9 bands built in, in the range from 415 through 910nm, and is ideally suited for determining light levels at different wavelength bands.



I've got one of these, was planning to make a DIY PAR meter with it, but as always with my projects, I have very little time and energy for the implementation. I think this sensor would be best suited for determining the colour in water tests as well. Maybe you would like to give it a try. I ordered mine from China, but you can find a variety of modules based on this chip on Amazon, and DFROBOTS too has a similar and very compact module. These are a tad more expensive than the more common RGB module, though, though.
Screen Shot 2022-01-12 at 11.28.44 AM.png
The thing with the bands range - it is important for a par level sensor (I have been reading about DIY par meters a few days ago as a matter of curiocity). For a test to determine the colour of the solution, or the colour depth - this sensor capabilities should hopefully suffice.


dadarara

Community Member
Review score
+0 /0 /-0
View Badges
Joined
Nov 16, 2020
Messages
74
Reaction score
31
Review score
+0 /0 /-0
Location
Israel
Hope that what political upheaval going on in the glorious country of Kazakhstan (being so near Kazakistan) , does not affect your state of mind and thus hinder your project work.
stay strong, stay vigilant !! I say FU%$#%# the Russians . (disclosure: I was born in USSR)

Personally: I WILL most definitely build an automatic tester machine, as I am a lazy ******* to do it manually. and I am a "constant data flowing measurements" junky and I want to have Alkalinity (Alk), Calcium (Ca), Magnesium (Mg), Nitrate (NO3), Phosphate (PO4), Nitrite (No2), Ammonia (NH3), Copper (Cu) and Iodine (I2) and more, on my dashboard. (compliments to ReefBot capabilities.. but for 900$ without shipment tax , bribe etc.. I think DIY would be better option. Better spend some $$$ on regents anyways.

Last edited:
OP
Borat

Borat

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 4, 2021
Messages
530
Reaction score
474
Review score
+0 /0 /-0
Location
United Kingdom
Hope that what political upheaval going on in the glorious country of Kazakhstan (being so near Kazakistan) , does not affect your state of mind and thus hinder your project work.
stay strong, stay vigilant !! I say FU%$#%# the Russians . (disclosure: I was born in USSR)

Personally: I WILL most definitely build an automatic tester machine, as I am a lazy ******* to do it manually. and I am a "constant data flowing measurements" junky and I want to have Alkalinity (Alk), Calcium (Ca), Magnesium (Mg), Nitrate (NO3), Phosphate (PO4), Nitrite (No2), Ammonia (NH3), Copper (Cu) and Iodine (I2) and more, on my dashboard. (compliments to ReefBot capabilities.. but for 900$ without shipment tax , bribe etc.. I think DIY would be better option. Better spend some $$$ on regents anyways.
So if you would be building your own automatic tester - I can tell you it's easier done if you don't have size constraints, i.e. if you are NOT forced to be within Mastertronic's dimensions (which are already quite tight - probably the minimal size practically achievable) the build is much easier.

Well.. simplest routes are not my thing, therefore optimising every inch of space in my build - is the largest challenge here. I also aim to make it aesthetically pleasing - hopefully it will look professional enough that you would not think it's a DIY job.

I have seen (a couple of) people having built similar testing devices in the US, but they are typically the size of Victorian cupboard and don't have the look/appeal of a comercial product.

Follow the thread - it's going to become more interesting as I go along..

OP
Borat

Borat

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 4, 2021
Messages
530
Reaction score
474
Review score
+0 /0 /-0
Location
United Kingdom
I don't know if this has been discussed in the previous 3 pages, but ReefBot already exists, and instead of moving the vials, it moves the needle (which I think would be easier). Also, one of the things I thought about while looking at the reefbot was, why not make it cylindrical and have the needle move around an axis, seems much easier than trying to do it on a track. Anyways, posting so I can be updated, this looks like a really neat build/project
Thanks for extra info - this is quite helpful. As you can see - it is really is restricted to the number of vials and it's relatively large in size (for 8 reagent vias it uses against 12 in Mastertronic).

To your question about rotating rack:
- it's obviously simpler if your reagents are firmly fixed and form a single row of vials, along with your sample vial and RO vial, however you then need to have a number of magnetic stirrers organised under each reagent vial (with rotating rack - you just need to have one stirrer for the rack and one stirrer for the sample water vial)
- you cannot put your sample water and RO water vials on the rack, just because these require tubing connectors to stepper motors, therefore the only 2 setups possible (as I see it) is either ReefBot design or Mastertronic.
- you may rotate the syringe but then you still have the problem with having to have multiple stirrers, possibly problem with wires twisting as you rotate the syringe and the problem of having to have open space for rotating syringe. All-in-all you are likely to be worse off to either Mastertronoc or Reefbot designs.
Mastertronic is a better design for me - due to its much more compact footprint.

Hope this makes sense..

Last edited:
BRS

KonradTO

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 11, 2021
Messages
425
Reaction score
192
Review score
+0 /0 /-0
Location
Germany
Hi! following with great interest the thread. I have been thinking for few months since I followed your Alk controller build about a DIY testing device. What do you think about using a broken/secondhand 3D printer as main build and substitute the extruder with the syringe dispenser? It would be bigger obviously but then you will have all the material there and ready to be modified. I am considering to build something that can also be used in a molecular lab for low accuracy jobs (like bacterial inoculations), and I think the accuracy of a 3d printer would be more than enough for 96 well plates

OP
Borat

Borat

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 4, 2021
Messages
530
Reaction score
474
Review score
+0 /0 /-0
Location
United Kingdom
Hi! following with great interest the thread. I have been thinking for few months since I followed your Alk controller build about a DIY testing device. What do you think about using a broken/secondhand 3D printer as main build and substitute the extruder with the syringe dispenser? It would be bigger obviously but then you will have all the material there and ready to be modified. I am considering to build something that can also be used in a molecular lab for low accuracy jobs (like bacterial inoculations), and I think the accuracy of a 3d printer would be more than enough for 96 well plates
What I am buiding is effectively a 3D printer rig, except it moves in 2D axis only (in 3d printing the third axis is achieved by moving the bottom mount plate). You will need to buil a syringe actuator which is somewhat of a delicate job - but once you will see my design (using acrylic) - you can 3D print all parts to implement it yourself.

Once I am done with the rig and move on to electircs, I will publish the PCB Gerber files - you can then order your PCB and soldier compoents...

So perfectly do-able in my opinion..


JNalley

Valuable Member
Review score
+0 /0 /-0
View Badges
Joined
Oct 12, 2021
Messages
1,077
Reaction score
1,392
Review score
+0 /0 /-0
Location
Grandview
What I am buiding is effectively a 3D printer rig, except it moves in 2D axis only (in 3d printing the third axis is achieved by moving the bottom mount plate). You will need to buil a syringe actuator which is somewhat of a delicate job - but once you will see my design (using acrylic) - you can 3D print all parts to implement it yourself.

Once I am done with the rig and move on to electircs, I will publish the PCB Gerber files - you can then order your PCB and soldier compoents...

So perfectly do-able in my opinion..
Not all 3D printers drop the bed for Z-axis, some raise the carriage of the X-axis and the bed is the Y-axis (Prusa/Bed Slinger design). I believe @KonradTO was possibly referring to the fact that you'll have the vials moving in either X or Y, but your needle will need to move in Z in order to move into the vials and out of the vials. But I could be mistaken.

OP
Borat

Borat

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 4, 2021
Messages
530
Reaction score
474
Review score
+0 /0 /-0
Location
United Kingdom

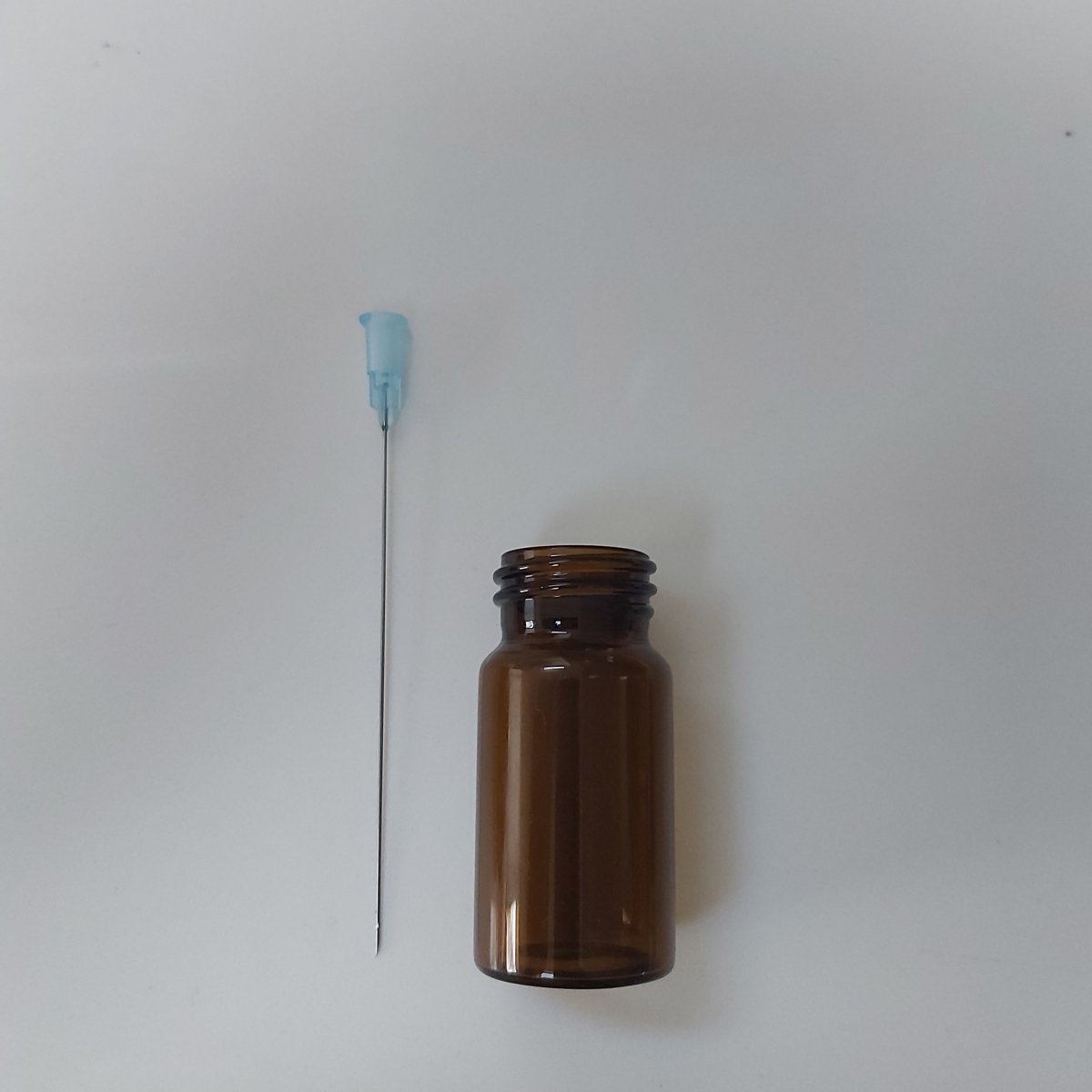

Today I received my 100x of 80mm needles: it seems they fit both Luer Lock and Luer Slip syringes that I bought! So now I have 10 year worth of syringe supplies for my future device..





KonradTO

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 11, 2021
Messages
425
Reaction score
192
Review score
+0 /0 /-0
Location
Germany
Not all 3D printers drop the bed for Z-axis, some raise the carriage of the X-axis and the bed is the Y-axis (Prusa/Bed Slinger design). I believe @KonradTO was possibly referring to the fact that you'll have the vials moving in either X or Y, but your needle will need to move in Z in order to move into the vials and out of the vials. But I could be mistaken.
Not exactly. My idea would be to keep the vials still and move the arm only. You would basically need to move the arm on the z axis, x axis (and y axis if you want to work with plates instead of vials). There's some interesting opensource material developed for molecular lab pipetting..and aquarium tests are nothing much different than that

Fritz

What do you use?

  • Gfo

    Votes: 23 6.3%
  • Carbon

    Votes: 133 36.6%
  • Carbon & GFO

    Votes: 118 32.5%
  • Water changes

    Votes: 247 68.0%
ReefHOTSPOT
Top
