Dos and Vertex 5.0T Dosing Container

Discussion in 'Neptune Systems' started by fabutahoun, Jul 11, 2017.

  1. fabutahoun

    fabutahoun Well-Known Member R2R Supporter Build Thread Contributor

    Joined:
    Sep 18, 2015
    Messages:
    584
    Likes Received:
    679
    Location:
    Riyadh Saudi Arabia
    I have been thinking to get the DOS system for while, the only problem that I have that the DOS reservoir is too small for my tank consumption (180 gallons sps tank) and 2 liters will not be enough for more than 2 weeks. so if I got 2 vertex 5 liter container and added 2 optical sensor then connected these optical sensors to DOS, will i got the same result and controllable as The DOS & DDR Dosing System Package?

    jsker likes this.
    Tags:

  2. jsker

    jsker Reefing is all about the adventure R2R Supporter R2R Excellence Award Reef Squad Leader Build Thread Contributor Article Contributor Partner Member 2018

    Joined:
    Apr 11, 2015
    Messages:
    12,762
    Likes Received:
    14,667
    Location:
    Central Florida
    Lets see if we can get some input here

    fabutahoun likes this.
  3. Westec818

    Westec818 Well-Known Member

    Joined:
    Jan 17, 2015
    Messages:
    52
    Likes Received:
    21
    Location:
    West hills
    Don't do it they suck I have them and alll the straw goin in break offf not a good design

  4. fabutahoun

    fabutahoun Well-Known Member R2R Supporter Build Thread Contributor

    Joined:
    Sep 18, 2015
    Messages:
    584
    Likes Received:
    679
    Location:
    Riyadh Saudi Arabia
    Hope the Guys from Neptune come and share there opinion, or start manufacturing 5.0 liters version

  5. cthedaytrader

    cthedaytrader Well-Known Member

    Joined:
    Mar 13, 2011
    Messages:
    194
    Likes Received:
    15
    Location:
    ny
    The answer to your question is really a yes and a no, it really depends on what functions you are looking for. I will start off by saying i have the Apex and have had it since it first came out, and I had the older one before that, so I am a fan of Neptune and the Apex. I also have the DOS, and the DDR.

    So, yes I believe you could get two different dosing containers and install float switches or optical sensors, to alert you when the containers are low, but not through the DOS, it would be similar to a ATO set up, through a breakout box. There maybe a different way with the new modules though.

    However, that is not the full function of the DDR, and if you ask me, this is where Neptune has failed, and intentionally, in order to make people purchase the DDR. The optical sensors are there to alert you when the container is running low. They are not measuring the fluid in the container they are simply acting as float switches. They will not tell you exactly how much is left in the container, or display the tile (diagrams of the containers in Fusion) that show you the containers and the fluid as it is being dosed. Unfortunately, that function is tied into the DDR and not to the DOS or Fusion. If Fusion knows how much you are dosing with the DOS, then why cant they make a function that simply subtracts the amount dosed from the starting amount.

    I see no reason why they couldn't add it as stand along function of Fusion, other than to force people to buy the DDR. Even if it is a hardware problem and not a programming issue, then why not sell a cheaper module similar to the one that powers the DDR (without the containers) that can be used with any container. For example, there is nothing stopping me from leaving my DDR hooked up and using larger containers for the actual two part, and I could simply increase the starting volume amount and Fusion will subtract what is being dosed.

    I would note, I haven't updated by latest firmware, so I don't know if they have finally added this function, but I doubt they did.

    Another issue with the DDR that I found is with the optical sensor in the ALK container often becomes clouded as you dose. A film forms over the sensor and prevents it from tripping. I am not sure if other people have this issue, but I do constantly.

    I would add, I do like the DOS itself, its very robust, I haven't had any issues with it, and its very accurate and easy to use.

    One thing I did do when I got the DDR was switch to B-Ionic, its is more concentrated than regular two part, (I think it requires about 1/3 less), so it allows the containers to last longer.

    One final note, is you might want to look at Building an Obsession, they make containers, I have one that I use for MG, they are larger than the DDR and they also have a float switch option built in for small up charge.

    jsker and fabutahoun like this.
  6. fabutahoun

    fabutahoun Well-Known Member R2R Supporter Build Thread Contributor

    Joined:
    Sep 18, 2015
    Messages:
    584
    Likes Received:
    679
    Location:
    Riyadh Saudi Arabia
    Thanks For your input, I have more understading now about how the DDR works and integrate with DOS. also had a quick look at Building an Obsession and I like what I see. For the two part I mix my own from dry calcium chloride and Soda Ash per BRS instructions.

    jsker likes this.
  7. MaddyP

    MaddyP 'Til Reefdom Come... R2R Supporter SCMAS Member Build Thread Contributor Partner Member 2018

    Joined:
    Jul 21, 2016
    Messages:
    735
    Likes Received:
    661
    Location:
    San Pedro, CA
    Yes, this is completely possible. Here is a thread I bookmarked to do exactly this.

    https://www.reef2reef.com/threads/apex-dos-diy-level-switch.246352/#post-2897212

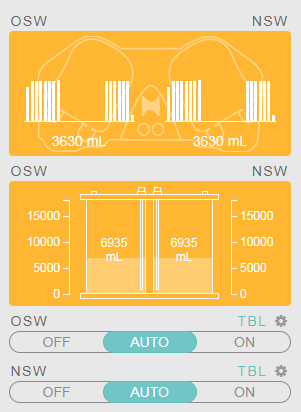

    If you follow the instructions, it works great! I currently have a dummy connection on my DOS to reveal the DDR features on Fusion. This is with (2) 5 gallon jugs.


    I haven't yet ordered optical sensors to hook up, but these are the ones I'll be using. These should screw directly into the port BuildingAnObsession uses in their containers for a float switch...

    https://www.amazon.com/Optical-Infr...qid=1500325402&sr=8-4&keywords=optical+sensor

    Last edited: Jul 17, 2017
    fabutahoun likes this.
  8. fabutahoun

    fabutahoun Well-Known Member R2R Supporter Build Thread Contributor

    Joined:
    Sep 18, 2015
    Messages:
    584
    Likes Received:
    679
    Location:
    Riyadh Saudi Arabia
    Interesting Stuff, Thanks man this is perfect

    MaddyP likes this.
