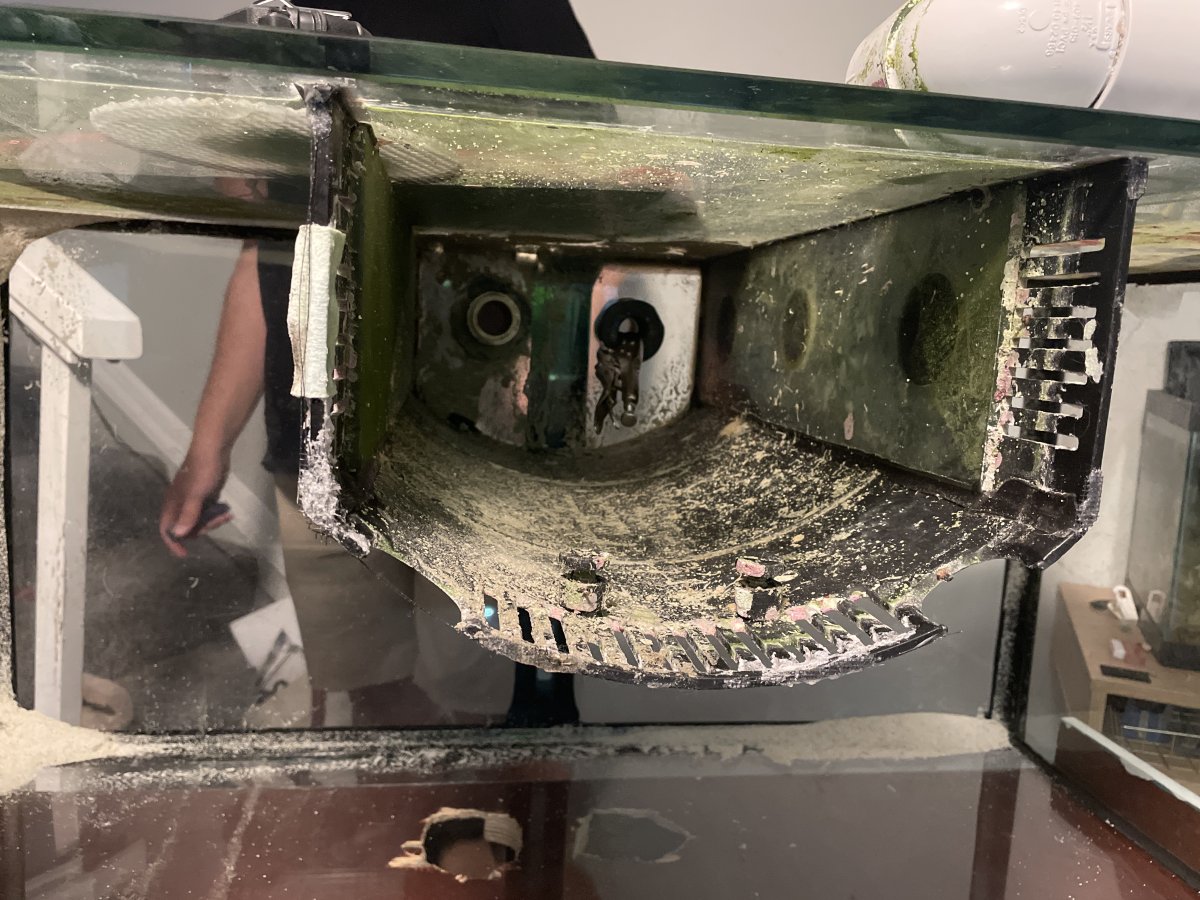

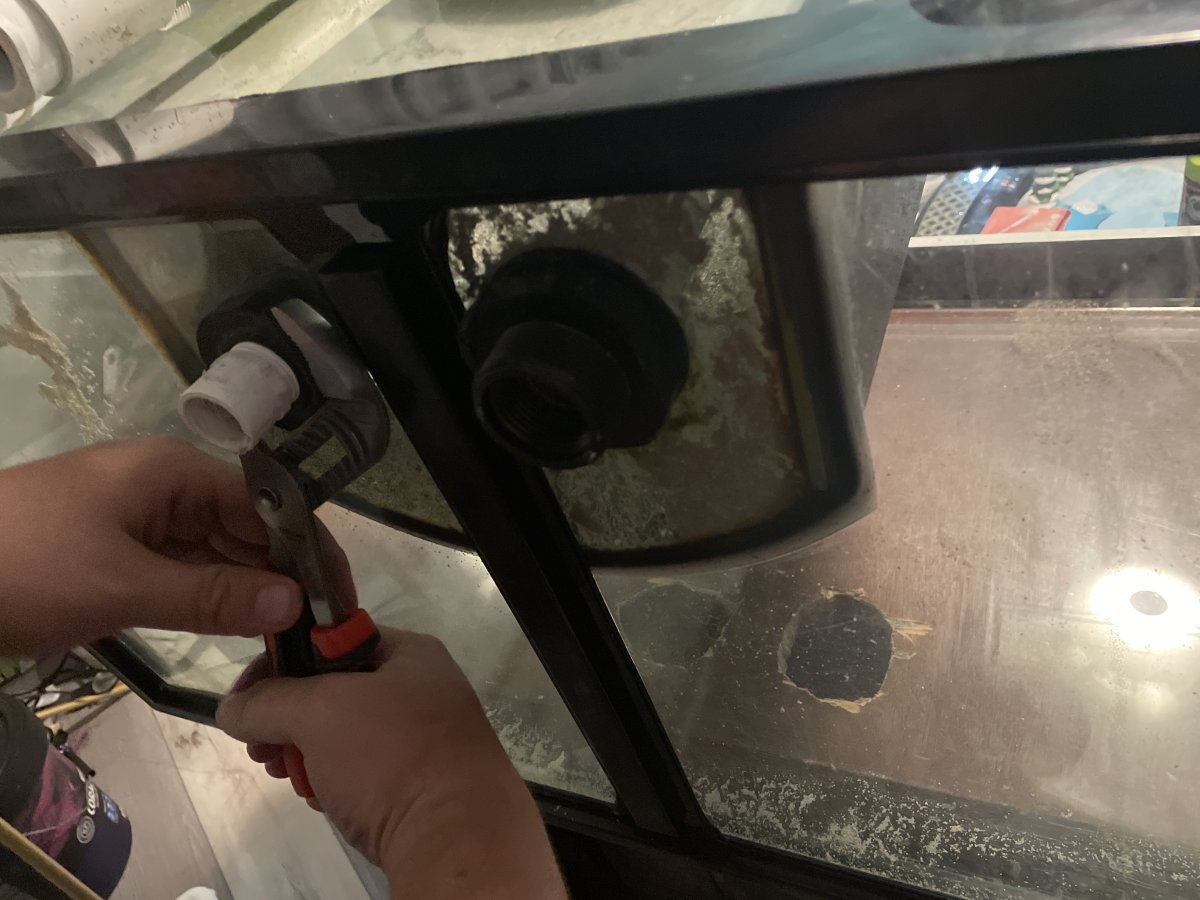

Hello!!! This is my first time plumbing an overflow/sump. It is a predrilled tank with 2 holes at the bottom of the overflow. I’m attempting to run it as safe as possible (preventing overflows), but there is no room to drill a 3rd hole. Previous owner ran the tank with one drain and one return. Is there any other way to run the tank safer in the event of a drain clog or lose of power.


redfishbluefish

Stay Positive, Stay Productive
View Badges
Joined
Mar 22, 2012
Messages
11,957
Reaction score
26,415
Location
Sayreville, NJ
Rating - 0%
0   0   0
It sounds like the tank was originally set up as an overflow containing a durso drain and a return line. There's nothing wrong with this setup and I've never heard of the durso clogging or causing flooding.

As @fishyjoes said, you could set up a dual durso, but I'll warn you that you'll have to play with the two dursos to balance them and also still might have a "flushing" sound with that much flow to the sump. You don't mention tank size, but typically the drain was 1 inch while the return was 3/4. And again, used in many tanks and nothing wrong with this setup.

Last edited:
OP
OP
C

code43

Community Member
View Badges
Joined
Apr 8, 2023
Messages
25
Reaction score
20
Location
Brandon
Rating - 0%
0   0   0
It sounds like the tank was originally set up as an overflow containing a durso drain and a return line. There's nothing wrong with this setup and I've never heard of the durso clogging or causing flooding.

As @fishyjoes said, you could set up a dual durso, but I'll warn you that you'll have to play with the two dursos to balance them and also still might have a "flushing" sound with that much flow to the sump. You don't mention tank size, but typically the drain was 1 inch while the return was 3/4. And again, used in many tanks and nothing wrong with this setup.
It’s a 65 gallon tank and yes those were the drain and return size

OP
OP
C

code43

Community Member
View Badges
Joined
Apr 8, 2023
Messages
25
Reaction score
20
Location
Brandon
Rating - 0%
0   0   0
Hello!!! This is my first time plumbing an overflow/sump. It is a predrilled tank with 2 holes at the bottom of the overflow. I’m attempting to run it as safe as possible (preventing overflows), but there is no room to drill a 3rd hole. Previous owner ran the tank with one drain and one return. Is there any other way to run the tank safer in the event of a drain clog or lose of power.


Attachments

  • image.jpg
    135 KB · Views: 30
  • image.jpg
    193 KB · Views: 30
