Howto: 0-10v Control Return Pump

[Jgoal55]

Did you shut of the socket or the 1-10 V

Sincerely Lasse

The 1-10v

I think it’s that I turned it back on (stopped maint mode) too quickly after having entered maint mode.

I tried again a couple of times today and it worked perfectly fine after I waited a few minutes before exiting maint mode.



[Jgoal55]

Just a quick update here: the illumination channels are working perfectly for my RD3 pumps. Thank you @Lasse for the suggestion!!

on another note, while setting up and calibrating my KHD last night, I came across another one of your posts that really helped me. Thanks for all your help and contributions on these forums!



[TehBrainz]

I know I'm resurrecting an old post, but I've been attempting a similar setup and running into issues.

I've been attempting to rewire a 3.5mm jack into the RJ12 coupler, but the various wires I've been attempting to use don't have solid wires, they are braided and I can't seem to get them to align properly in the RJ12. Maybe it's me, maybe it's the braided wires. I'd rather rewire than use the GHL module so I just have a single wire going between my profilux and Varios.

Regardless, I found an ice cap Y cable at BRS. I'm thinking I should be able to snip the RJ45 and rewire into an RJ12. I don't want to buy a 3rd wire and it not work though.

Thoughts?

Should I keep attempting with the braided wires or give the ice cap one a shot?



[TehBrainz]

So I'm a bit at a loss with controlling my varios return pump with 0-10v.

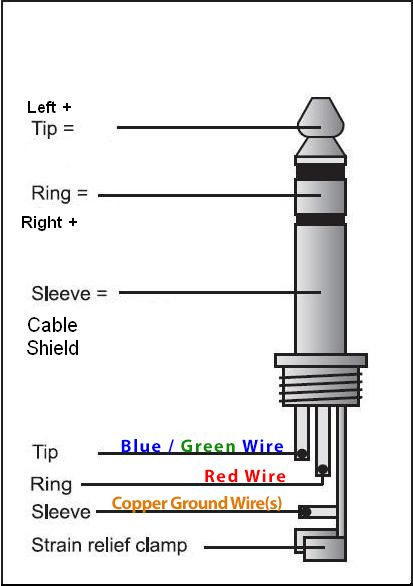

I found a 3.5mm jack with bare wires at the end. I verified the wiring as shown with my ohm meter and wired into an RJ12 connector as mentioned by others in this thread. I verified connection with my ohm meter again. All good. However, after I set up my stream group per this thread (and the literature from GHL), I don't seem to have any control of the pump. Ive tried adjusting the max % and turning on and off feed pauses, but the pump is constant.

Some oddities I've noted while running:
1. I still can change the speed of the pump from the Varios controller, although it doesn't seem to match up with speeds when 0-10v is unplugged
2. I'm watching the watts via Kasa strip. Bounces between 75 and 85 watts at Speed 3 on the controller and "80%" in GCC. When 0-10v I'd unplugged, wattage is 66.2 with ~0.2 watt fluctuations.
edit: I'm a dummy and had to strike these out as I didn't have the connection fully seated in the Varios controller

Could really use some help figuring this out.

New wire


Profilux setup:



[TehBrainz]

So I'm a dummy. The random wattage and ability to still use the controller when plugged in with 0-10v was due to not having the 3.5mm jack all the way inserted. Doh!

Now I can't change speed using the varios controller (as expected), but I get ZERO flow no matter what settings are in the pump and pump group



[TehBrainz]

@Lasse , @Macca_75 , or @Vinny@GHLUSA any ideas?



[Lasse]

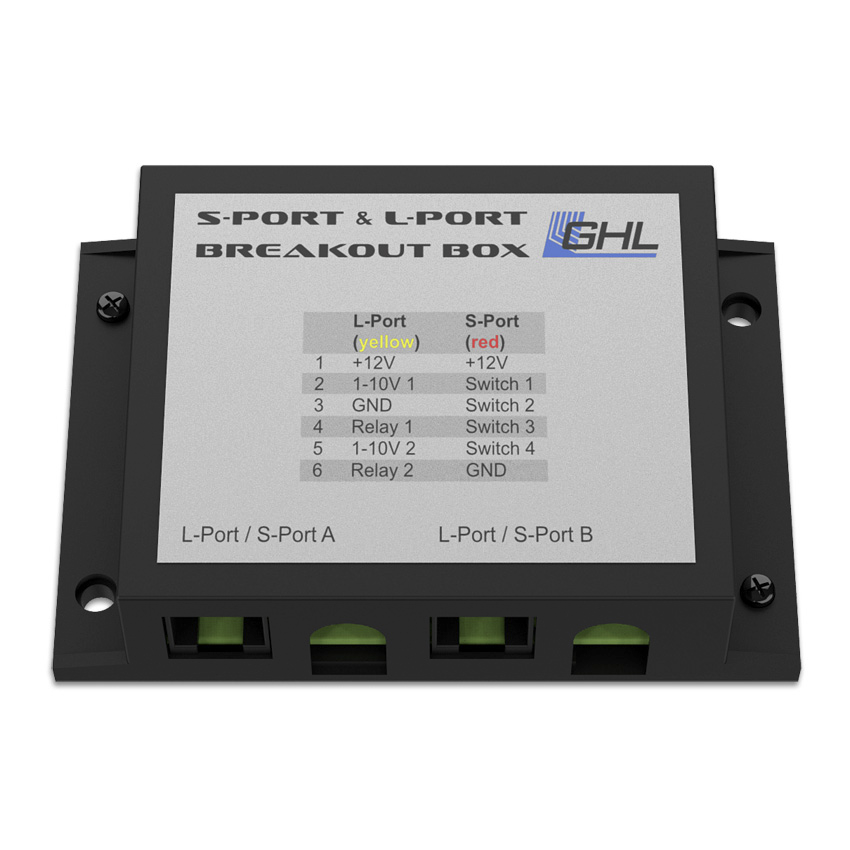

How have you connected the RJ12 to your cable? Pin 2 is + for channel 1, pin 3 is gnd (-) for both channels and pin 5 is + for channel 2. However - its a little mysteries how GHL connect the pins and how they count them I´ll think that it is this way. The flap in direction from you. I have noted that they use different colours for the different pins sometimes - I think its differ between L and S cables. This is an old L cable with the cables mounted (from pin 1 to 6) in this order Black, Brown, Red, Orange, yellow and green. another combination I have seen is (pin 1 -6) white Brown, green, yellow, lilac and red

Hope it helps

Sincerely Lasse



[TehBrainz]

How have you connected the RJ12 to your cable? Pin 2 is + for channel 1, pin 3 is gnd (-) for both channels and pin 5 is + for channel 2. However - its a little mysteries how GHL connect the pins and how they count them I´ll think that it is this way. The flap in direction from you. I have noted that they use different colours for the different pins sometimes - I think its differ between L and S cables. This is an old L cable with the cables mounted (from pin 1 to 6) in this order Black, Brown, Red, Orange, yellow and green. another combination I have seen is (pin 1 -6) white Brown, green, yellow, lilac and red

Hope it helps

Sincerely Lasse

Thank you, it really did.

You know....sometimes I think I'm a pretty bright individual, but then this happens. I was so particular about the position of the wiring into the connector on the first attempts with the cheap wires, that when my new "good" wire came in I mistakenly wired into terminals 4 and 5, thinking they were the appropriate 2 and 3.

UGH

Worked perfectly well once I had connections corrected.

GHL: 145
Me: 0

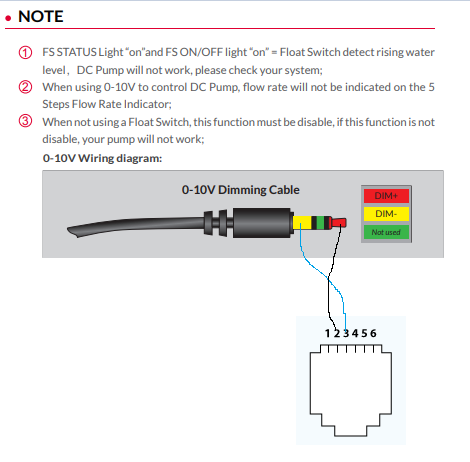

My improper RJ12 connection (clip down)

Edited picture so others wouldn't mistake it as correct positioning
