reef-pi :: An opensource reef tank controller based on Raspberry Pi.

[cvrle1]

Thanks for all the info and guides on reef-pi. This will be my winter project, and am looking forward to playing around with it, and seeing what other controllers and gadgets are added in the future.



[pickupman66]

@Ranjib I am not getting any of the io.adafruit feeds. I deleted what I had a redid them all but still no feeds of data. how can I reset it completely and start over?



[Ranjib]

@Ranjib I am not getting any of the io.adafruit feeds. I deleted what I had a redid them all but still no feeds of data. how can I reset it completely and start over?

What version of reef-pi you are running?



[pickupman66]

running 2.0.0-rc0 on a pi3.



[Ranjib]

running 2.0.0-rc0 on a pi3.

your telemetry is enabled? and no errors in log?



[pickupman66]

Yes. I didnt have a Prefix though. do I need that? Log shows no errors but adafruit shows no feeds.



[Ranjib]

Yes. I didnt have a Prefix though. do I need that? Log shows no errors but adafruit shows no feeds.

Nope



[pickupman66]

OK. removed all adafruit telemetry info from Reef-pi. I then reloaded. then I regenerated a new key from adafruit and re-activated the telemetry in reefpi and input this new key. I see feeds now in adafruit, but some do not have data.

Here is what I see on the feeds. none of the temperature ones are getting information.



[DirtDiggler2823]

@Ranjib , your 4th module is up on Adafruit now. What are the sizes of the two holes that don't have anything in them yet in the picture, so I don't build myself into a corner?



[Joseph Lim]

Hello, everybody. This thread is amazing. I'm quote a noob in this aspect so I would like to check the software out, will it work without an actual Raspberry Pi?



[Ranjib]

@Ranjib , your 4th module is up on Adafruit now. What are the sizes of the two holes that don't have anything in them yet in the picture, so I don't build myself into a corner?

They are for 3.5 mm audio jacks . Same as temperature probe connector. I plan to use one of them for light controls and another as secondary temperature sensor .



[Ranjib]

Hello, everybody. This thread is amazing. I'm quote a noob in this aspect so I would like to check the software out, will it work without an actual Raspberry Pi?

Welcome to reef2reef. I develop reef-pi on Mac , OSX. I think it will work on Linux and window laptops/desktop as well . You have to build / compile locally . If you have no command line experience with computers, it can be little complicated and it’s best to get a pi and use it without any extra electronics



[Ranjib]

OK. removed all adafruit telemetry info from Reef-pi. I then reloaded. then I regenerated a new key from adafruit and re-activated the telemetry in reefpi and input this new key. I see feeds now in adafruit, but some do not have data.

Here is what I see on the feeds. none of the temperature ones are getting information.

So, no data even after few minutes ? Can you share which probes are missing feeds? Does reef-pi dashboard shows data/chart for the same ?



[Joseph Lim]

@Ranjib I have a little experience in using the command line. I can try it out. If it fails...then I will buy a pi. I don't have a mac, but i have access to windows and ubuntu.



[DirtDiggler2823]

They are for 3.5 mm audio jacks . Same as temperature probe connector. I plan to use one of them for light controls and another as secondary temperature sensor .

My lights are non-dimming T5s, so i can't use the light control, but where would the second temperature probe go?



[Ranjib]

@Ranjib I have a little experience in using the command line. I can try it out. If it fails...then I will buy a pi. I don't have a mac, but i have access to windows and ubuntu.

Here is the example of setting up dev environment in MacOS, https://reef-pi.github.io/additional-documentation/development/



[DirtDiggler2823]

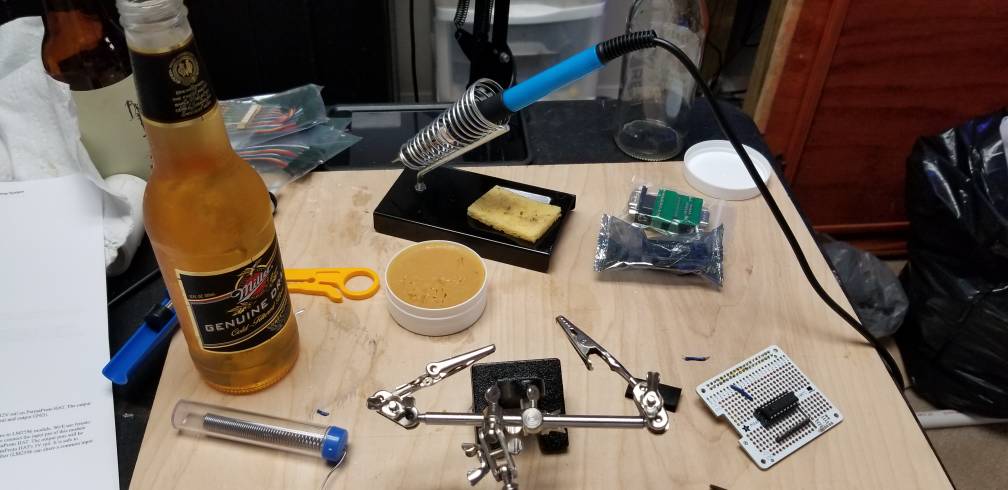

So, it begins....



[Ranjib]

So, it begins....

Godspeed



[DirtDiggler2823]

Godspeed

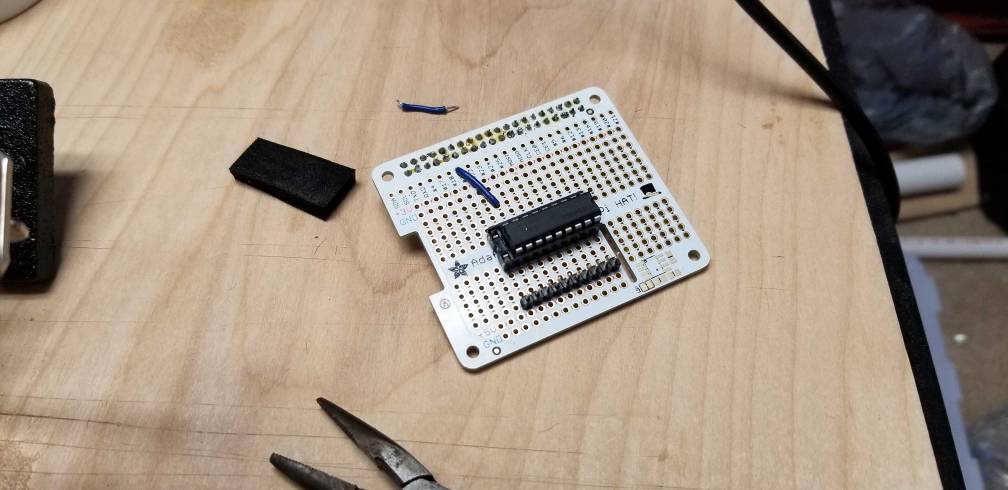

Thank you, sir. I'm trying to wire the first two modules in tonight. I've already built the pi itself, but I'm sure it needs an update.



[Erica-Renee]

WOW

Things are moving along Quickly in here.. I have been Way over busy at work and then LAST Saturday my Tank sprung a Leak.. We now have a Brand new 220 gallon tank on a Brand new Built in stand , Drilled and new Overflow box installed today.. I will soon be back to working on the Reef Controller. This coming week or next weekend .

Hope everyone is well

Erica Renee
