Other questions on reef-pi, and this might be stretching it a bit...
I use https://dlidirect.com/products/new-pro-switch for power control. It has built in scripting, web UI, and outlet control (for a fraction of an Apex cost), and a Ranco ETC (http://www.rancoetc.com/etc-controllers) for temp control.
The power controller has an API that I could probably interface with in reef-pi to get outlet info and control (I already do this with a custom python app I wrote for my linux box) - would this API interface actually be possible in the reef-pi?
The Ranco is probably the biggest unknown, and there may not be anything I can do remotely with it. If not, that's cool, and I can use another sensor for temp monitoring and logging. I've emailed them asking if it's possible to pull the reading from the sensor.
I use https://dlidirect.com/products/new-pro-switch for power control. It has built in scripting, web UI, and outlet control (for a fraction of an Apex cost), and a Ranco ETC (http://www.rancoetc.com/etc-controllers) for temp control.
The power controller has an API that I could probably interface with in reef-pi to get outlet info and control (I already do this with a custom python app I wrote for my linux box) - would this API interface actually be possible in the reef-pi?
The Ranco is probably the biggest unknown, and there may not be anything I can do remotely with it. If not, that's cool, and I can use another sensor for temp monitoring and logging. I've emailed them asking if it's possible to pull the reading from the sensor.
dmolavi
Well-Known Member
Here's the dimmer for the inventronics. Looks like a pot of some sort. Feeds into the driver via a 3.5mm audio jack.
dmolavi
Well-Known Member
Found the datasheet on the pot. Looks like it's the following:
Carbon film, 24mm, -10 - +85C, Panel Mount, Single Unit, Single Shaft, Right Angle Ear-Lug Terminals, 20mm single shaft, linear resistance, 20k ohm.
Carbon film, 24mm, -10 - +85C, Panel Mount, Single Unit, Single Shaft, Right Angle Ear-Lug Terminals, 20mm single shaft, linear resistance, 20k ohm.
Diamond1
Valuable Member
Can some one familiar with the reef-pi code tell me how reef-pi controls the incremental increase of light control percentage? In other words how does reef-pi control the brightness from 0% to 100% over the 2 hour auto ramping?
I remember seeing it in this thread but can't find it now.
I remember seeing it in this thread but can't find it now.
OP
OP
It interpolates the values between two consecutive time interval linearly and applies it every minute. So if your target value is 10% at 8 am and 30% at 10 am then reef-pi will apply 20% at 9 am
Adding an interface for this would be possible. I’m in the midst of a large PR to the code base to add drivers throughout the code base, at least for the existing inlet/outlet/jack types (which is what you’ll need for control).
I don’t think the Ranco has any exposed interfaces?

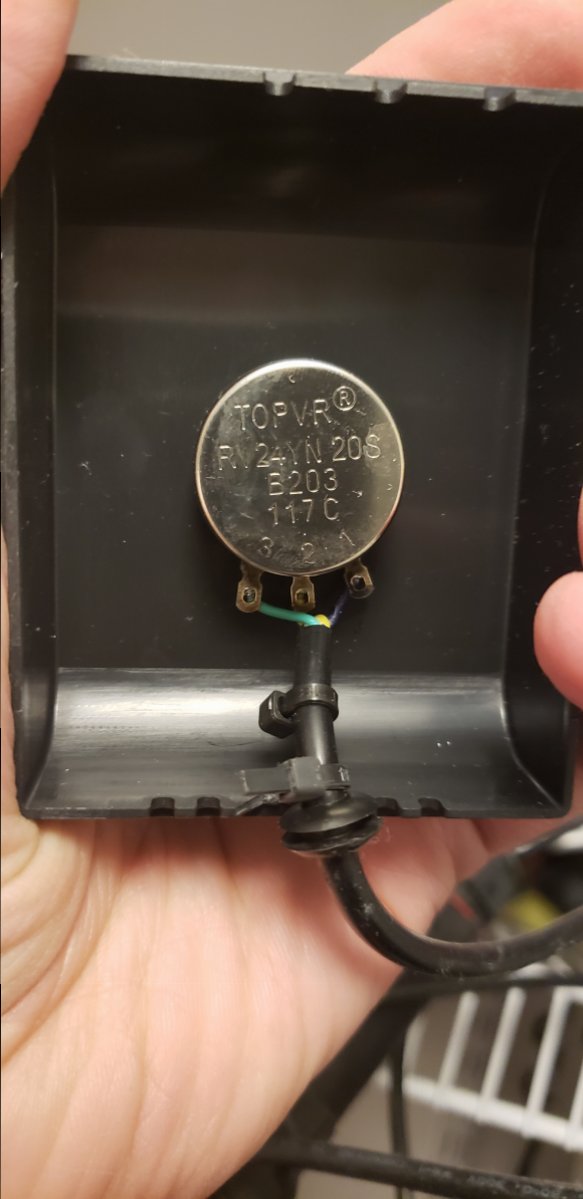

Here's the dimmer for the inventronics. Looks like a pot of some sort. Feeds into the driver via a 3.5mm audio jack.
Can you measure the voltage between the two outer legs on the pot? It would be constant.
You can use an analog output to feed into the connector for the center leg of the pot, referenced to the bottom/ground leg.
Matt Carden
Valuable Member
So I bought 3 - 16" basic SB reeflights and nodded them for Apex control. I have spent more than $2500 on my SCA 150 before I bought the Apex. So I've decided to wait awhile to drop $800 on the Apex and decided that I would try a Kessil Spectral controller to control my modded SB reeflights.
The Kessil appears to output a 0-10v signal on 2 channels (color-ch1, intensity ch2). To my dismay the Kessil did nothing to change the intensity of either channel. I thought maybe I did something wrong and I went over and over the wiring. I rewired every combination I could. Only 3 wires for control circuit with 2 going together in all combinations. I finally thought about using a constant known voltage to test the modded wiring. I used a AA battery hotwired to a 3.5 mm cable with the end cut off and the other end in the lights. The light dimmed to approximately 15%.
The question is the Kessil outputting a PWM 0-10v signal and that's why it's not working or am I missing something?
Would a reef-pi solve my problem or is that also a PWM signal which may also not work?
I have the skills and some extra parts (resistors, wire, soldering iron, circuit boards) to build the hardware part of a reef-pi but it's the coding that has me hesitant to try that route. That and the 7000 post thread of technical jargon to read through which I only understand about half of.
I built a low pass filter using a 821Ohm resistor and a 1uF Capacitor splicing it online between the Kessil port and the light with no change in intensity. I also switched out the 1uF Cap for a 100uF Cap still no change. Kessil controller is set to 10%. With the filter inline I register 1.6v at 10% at the light. Again the AA battery dims the light.
Thanks in advance of any help.
The Kessil appears to output a 0-10v signal on 2 channels (color-ch1, intensity ch2). To my dismay the Kessil did nothing to change the intensity of either channel. I thought maybe I did something wrong and I went over and over the wiring. I rewired every combination I could. Only 3 wires for control circuit with 2 going together in all combinations. I finally thought about using a constant known voltage to test the modded wiring. I used a AA battery hotwired to a 3.5 mm cable with the end cut off and the other end in the lights. The light dimmed to approximately 15%.
The question is the Kessil outputting a PWM 0-10v signal and that's why it's not working or am I missing something?
Would a reef-pi solve my problem or is that also a PWM signal which may also not work?
I have the skills and some extra parts (resistors, wire, soldering iron, circuit boards) to build the hardware part of a reef-pi but it's the coding that has me hesitant to try that route. That and the 7000 post thread of technical jargon to read through which I only understand about half of.
I built a low pass filter using a 821Ohm resistor and a 1uF Capacitor splicing it online between the Kessil port and the light with no change in intensity. I also switched out the 1uF Cap for a 100uF Cap still no change. Kessil controller is set to 10%. With the filter inline I register 1.6v at 10% at the light. Again the AA battery dims the light.
Thanks in advance of any help.
Ryan115
Well-Known Member
I have my 32" Basic SbReefLight controlled from reef-pi. I am using the straight 10V PWM for control (when I tried an RC filter on the dimming, it would not work).
I am not sure what the Kessil is outputting, but the PWM frequency may be the cause of the compatibility issue.
This is the circuit I built, it is plug and play internal to the light, and it uses the 12V directly from the driver.
(Disregard the RC filter, this picture was from the initial test.
dmolavi
Well-Known Member
I don't have anything to drive the input except for the actual LED driver itself. I'm assuming we should be seeing 12VDC?
I'll measure 1-3 (input) and 1-2 (output).
Last edited:
I'm interested in the range of the dimmer input. e.g., is it 0-10V? 0-12V? 0-5V? etc. By measuring across the two fixed terminals in the potentiometer we know the full range of the dimmer input.
b4tn
Valuable Member
I asked earlier but it got buried in in the thread. But what are the units of measure in the CPU and memory graphs? When have you reached the upper limit of what the raspberry can handle? Here is my current graph shown from November 28th. When should utilization become a concern? Its hard to see an average because I mess with it a lot experimenting with settings but I currently have Power, ATO, Temp, 2 dosers on the built in PWM, and 2 light channels with the driver set to PCA 9685 but the hardware is not present. Check intervals are set to 10 seconds, light output was set to diurnal but I changed it to auto this morning. What concerns me is that memory creeps up as time goes buy. I need to set it and leave it for a week without touching it and see if it eventually levels out.
dmolavi
Well-Known Member
OK. Not sure I'll have time tonight (gonna be a long day at work), but I will get to this ASAP.
Edit:
Actually, looks like this may already be answered...
ScottBrew
Active Member
Looks similar to mine. Looking at my historical though, it dumps memory every so often.I asked earlier but it got buried in in the thread. But what are the units of measure in the CPU and memory graphs? When have you reached the upper limit of what the raspberry can handle? Here is my current graph shown from November 28th. When should utilization become a concern? Its hard to see an average because I mess with it a lot experimenting with settings but I currently have Power, ATO, Temp, 2 dosers on the built in PWM, and 2 light channels with the driver set to PCA 9685 but the hardware is not present. Check intervals are set to 10 seconds, light output was set to diurnal but I changed it to auto this morning. What concerns me is that memory creeps up as time goes buy. I need to set it and leave it for a week without touching it and see if it eventually levels out.
Johan Fe Scheepers
New Member
Have anyone experienced where they measure in Celsius and they get a Fahrenheit reading returned? I have two temp sensors and only the one does it.
running reef-pi 2
running reef-pi 2
ScottBrew
Active Member
When you are in temperature tab, and edit each temp sensor, there is a dropdown box for units, Fahrenheit or Celsius. Is that accessible to you?Have anyone experienced where they measure in Celsius and they get a Fahrenheit reading returned? I have two temp sensors and only the one does it.
running reef-pi 2
Nicolas Sabrun
Active Member
Anyone ever made a feed button for reef-pi?
I would like a feed button that would trigger a timer (I.e 15 mins ) and shut down my return pump that is connected to one of the outlet on a SRP 8 power bar.
It would be nice to push the button, feed the fish and done. I know you can turn the outlet off manually but I sometimes forget to turn it back on for awhile.
Thanks
I would like a feed button that would trigger a timer (I.e 15 mins ) and shut down my return pump that is connected to one of the outlet on a SRP 8 power bar.
It would be nice to push the button, feed the fish and done. I know you can turn the outlet off manually but I sometimes forget to turn it back on for awhile.
Thanks
b4tn
Valuable Member
If I recall correctly interrupts are on the list of "To Do" stuff possible for 3.0.
