did I get it all right I want to start putting mine together just need to know I'm seeing and reading it right
Do you need the exact same configuration? i.e. 3 kessil light and 12V moon light ? I would recommend not mixing them, and just go with only kessil or only mosfet (moonlight/led strip) circuits. Circuits involving PWM are very prone to aberrations. I am having a hard time reading the tiny texts, but I think they are mostly correct, or I could not spot any wrong labeling from the first look


bishoptf

Valuable Member
View Badges
Joined
Jan 1, 2019
Messages
1,345
Reaction score
1,722
Location
Missouri
Rating - 0%
0   0   0
@lotus02 have you seen the adafruit guide? The circuit layout has pretty detailed diagrams. https://learn.adafruit.com/reef-pi-lighting-controller/circuit-construction

Agree, the fritz diagrams for the most part detail the circuit construction, however it's only a starting place, most of theses circuits can be done in multiple ways. I'm not an electronic person either but what I found helpful is instead of just trying to duplicate things to try to understand the components and how it works. Takes more time depending on the circuit but makes things easier in the long run.

:)


lotus02

Community Member
View Badges
Joined
Jan 29, 2018
Messages
58
Reaction score
69
Rating - 0%
0   0   0
@lotus02 have you seen the adafruit guide? The circuit layout has pretty detailed diagrams. https://learn.adafruit.com/reef-pi-lighting-controller/circuit-construction

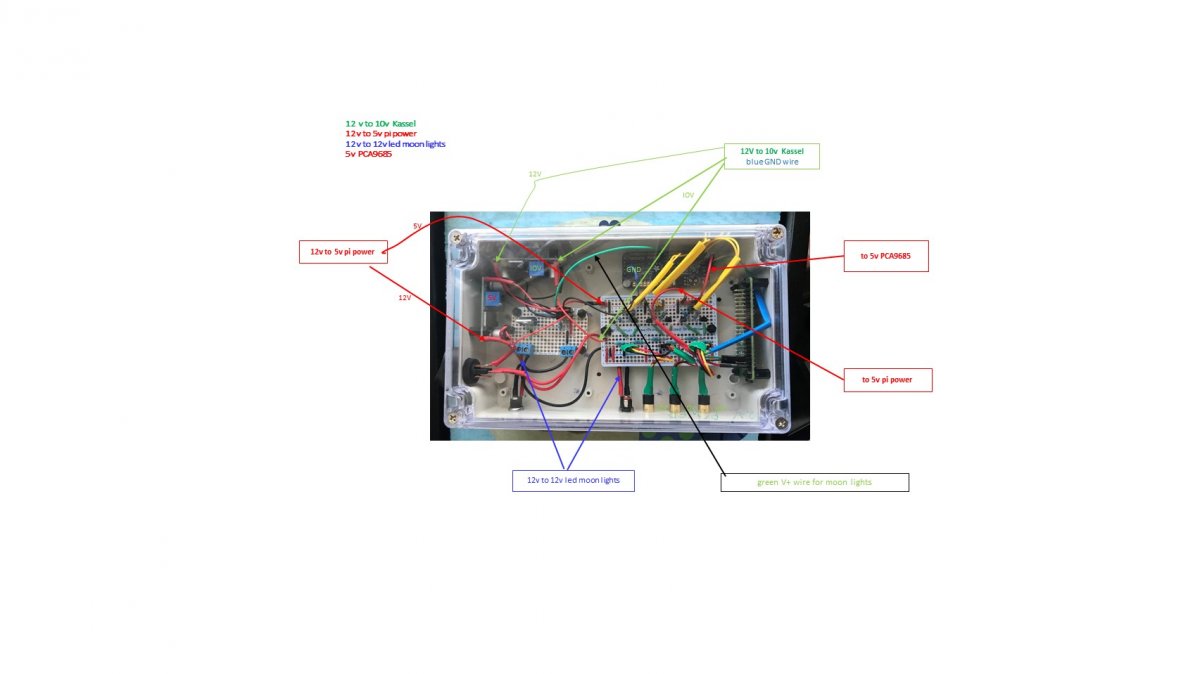

Have look at the 12v to 10v board layout and the finished board picture to me it looks like only have of it is there but I'm new to this so I thought I would make a PowerPoint file of what think is right. Could not load the file on here so I converted to pic files and posted them. Let's just say if took the layout diagram and put the part I see on it than pull up the picture after they would look the same. But with all that was put in to that with the pictures and the writing up on how to do it think I got
Like I said I'm new and if I start soldering stuff together I'm wrong it's a waste of parts.
Again thank you for making the DIY files.
I was think other newbies like me may get something out of the pictures I made?


lotus02

Community Member
View Badges
Joined
Jan 29, 2018
Messages
58
Reaction score
69
Rating - 0%
0   0   0
All the other diagrams see how it will make what's in the pictures of the finished board
I was just having a hard time with that power board.
Again thank you to all guys on here for the help.


b4tn

Valuable Member
View Badges
Joined
Jun 17, 2015
Messages
1,673
Reaction score
2,242
Location
Columbia MD
Rating - 0%
0   0   0
I have a feature suggestion. I just realized I went the past 4 days with my alkalinity doser disabled. I have a second alkalinity doser rule setup for adjustment and meant to disable it but disabled the one above it instead. The way the drop downs are sometimes its confusing which timer you are working with the one above or the one below. It might be nice to have a disable button next to the calibrate, edit, delete buttons. Likewise it would be nice to have the same next to the timers edit, delete buttons. It would be handy to have a quick button to instantly disable instead of opening up, editing, then selecting the drop down to disable.

Just a thought


lotus02

Community Member
View Badges
Joined
Jan 29, 2018
Messages
58
Reaction score
69
Rating - 0%
0   0   0
In the end mine will be different as I will not have the board in the same box. And I will have a 10v power supply for the kessil lights 12v for moon LEDs. 5v to the pi and pca9685.
This is what I will or try to control:
5 a360we kessil lights.
6 mars black boxes
2 T5 with 2 bulbs on each run at different times
Moon light LEDs
Temperature prob controls heater
Float switch to turn a light on if level low and email me if low and if temp is out.
My phone keeps changing what I type

OP
OP
Ranjib

Ranjib

7500 Club Member
View Badges
Joined
Apr 16, 2016
Messages
9,847
Reaction score
17,077
Location
Pleasant Hill, Concord
Rating - 0%
0   0   0
I have a feature suggestion. I just realized I went the past 4 days with my alkalinity doser disabled. I have a second alkalinity doser rule setup for adjustment and meant to disable it but disabled the one above it instead. The way the drop downs are sometimes its confusing which timer you are working with the one above or the one below. It might be nice to have a disable button next to the calibrate, edit, delete buttons. Likewise it would be nice to have the same next to the timers edit, delete buttons. It would be handy to have a quick button to instantly disable instead of opening up, editing, then selecting the drop down to disable.

Just a thought
Sounds reasonable. You mind filing an issue on the repo (https://github.com/reef-pi/reef-pi) ?


dmolavi

Well-Known Member
View Badges
Joined
Jan 3, 2015
Messages
509
Reaction score
644
Location
United States
Rating - 0%
0   0   0

dmolavi

Well-Known Member
View Badges
Joined
Jan 3, 2015
Messages
509
Reaction score
644
Location
United States
Rating - 0%
0   0   0
Question...I have a panel mount DC jack and a terminal block DC jack for the pico board. I know the center pin goes to the positive terminal. Do I solder the other 2 together and to the negative?


theatrus

Valuable Member
View Badges
Joined
Mar 26, 2016
Messages
2,123
Reaction score
3,513
Location
Sacramento, CA area
Rating - 0%
0   0   0
Question...I have a panel mount DC jack and a terminal block DC jack for the pico board. I know the center pin goes to the positive terminal. Do I solder the other 2 together and to the negative?

Yes, though when a cable is inserted only one makes contact with the outer sleeve (assuming this is a switched contact)
