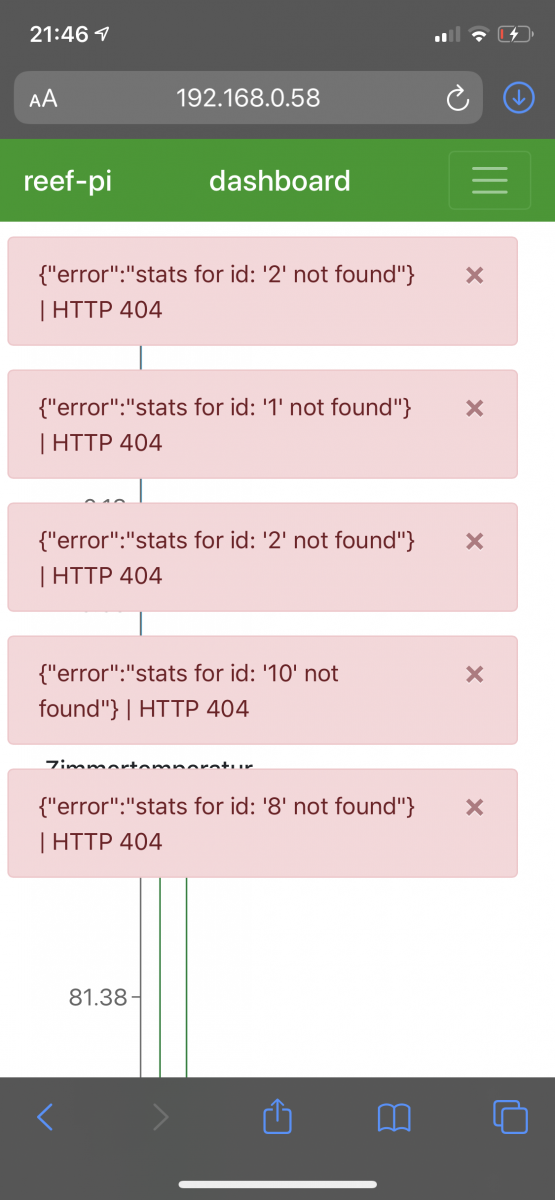

Thank you for reporting this. I think I understand the problem a bit better now. Can you confirm following:Now here is my Problem. After Restart i get some Errors from Temp Probes. But i only have to delete and recreate the Probes because they are always aviable to choose.
I hope you know what i mean.
I am postulating a theory that sensors and other i2c devices are being initilized after reef-pi starts, as a result when reef-pi starts it does not find them.. I dont know how to verify this, as im never encountered it, but i am aware of some trick on systemd level we can do to make sure reef-pi starts after those things are up and running, i 'll cross check how to get it done and what implications of this.
BTW, this is pi 4 or 3 or zero?
it still happens when i just reload
no it didn't resolve it.
Welcome to the development thread of reef-pi, an open-source, affordable, modular DIY reef-tank controller based on Raspberry Pi.
If you are trying to build a reef-pi controller, please check out the build guides linked below. You can use this thread to seek help and to stay updated with the latest development.
reef-pi provides following functionalities:
A beginner friendly list of reef-pi build guides are available on adafruit.io, if you are planning to build a reef-pi controller start with them.
- Equipment control or automated power strip (including digital timers to switch on/off equipment at periodic intervals)
- LED light control (24 hour cycle), diurnal cycle, fixed dimmig
- Auto Top Off (based on photoelectric water level sensor or float switch)
- Temperature monitoring and control (switch on/off heater & chiller)
- pH monitoring
- Dosing automation
- Macro (feed mode etc)
- And several other features like camera controls (periodic image capture and upload on google drive), telemetry (dashboard and alerting based on sensor values using adafruit.io), mobile friendly UI etc.
Since reef-pi is modular and customizable, the cost of individual builds varies. In our experience reef-pi controller are almost always cheaper than the commercial alternatives and costs anywhere between 100 to 550 USD. An example bill of materials can be found here as amazon list. If you are building a reef-pi controller, I highly encorage you start a build thread and tag it with #reefpi to seek help with your build
- Setup and installation
- Power controller
- Temperature controller
- Auto Top Off
- Light controller
- pH monitor
--------------------------- Original thread start ---------------------
Hello friends,
I am starting a master thread for a DIY reef tank controller that is based on all opensource software and hardware. I had started with this project with following goals:
- Build an opensource software and hardware based reeftank controller that anyone can use and hack
- Keep the controller well tested against a set of standard equipment I use, while make it possible for other equipment to be used
- Maintain my own tank build threads and their evolution, backed by this controller.
- Learn electronics and reef keeping along the way (I am biologist by education & software engineer by occupation)
Following are the details of what I have developed & tested till now:
Controller software:
- The main controller software is called reef-pi. It is written in go, its fast and performant. It used embd for hardware communication. It also runs a little web server which provides the UI for the controller. UI is written in React , and can be accessed from anything that has web browser. As of now, the reef-pi supports following things:
- AC 110/220 V socket on/off (uses optocoupled relays underneath). This is used to remotely switch on/off return pump, LED bulb, heater etc.
- 0-20 Volt DC PWM. This is used to control things like dimmable LEDs, DC pumps. I use it to control my Kessil A80, A360. As well as a 5V DC pump (i use it as wave maker in one of my pico with SPS). PWM is done using PCA9685 breakout board from adafruit. This board supports 16 channels. I am using only 5 at max, as of now.
- Analog sensor support using MCP3008 analog to digital converter. This supports 8 channels. i.e. I can use up to 8 sensors/probes. As of now, I have only tested temperature sensor with it.
Other than the following basic hardware/equipment support, the controller software provides following additional features:
- Setting up daily/weekly/monthly scheduled jobs. Like turning on/off certain equipment. I use this feature to run my AC20 HOB filter nightly.
- Setting up dusk-to-dawn like lighting using PWM. The UI gives 12 vertical slider based 0-24 hours (each slider representing 2 hours gaps). I combine two of these two control the kessil LEDs.
- Authentication using Google OAuth. Since the whole controller runs on raspberry pi and provides an web frontend, security of one of my concern. To mitigate this, I have added google authentication support, which when configured will allow only certain users to log in (email specified in the configuration value).
This is the summary of the core controller software and what features it has as of now. I am constantly writing/improving things around it. As of now, I have two reef tank powered by this. I 'll have seperate threads on the individual builds that will include the housing and ancillary hardware in nano-reef.com, as my tank build threads are there, but I'll share all the controller specific common bits here, including UI screen shots, and tank pics :)
Yes, and give free hugs in return :-)
Thank you so much for reporting this. I think this is a driver bug :-( . I’ll start working on a fix
I went with those because I didn’t know how the circuit will end up at the end. I can use them to feed 24/12/5v and get 10,12,5,3.3 out which I covers my entire range of use case. And their 3a rating helps as well. I definitely think you should tinker with better more appropriate converters. Unless we tinker we’ll never know. If you ask me , our current power circuitry is not good and I know for a fact things get dodgy (10v pwm) in all in one circuits.
Yes , thanksgiving is the target date . I am in process of updating the adafruit guides for that reason. Expect those to go live around same time (may be couple of days before or after)
