Salinity Probes that work with the Apex

[esquare]

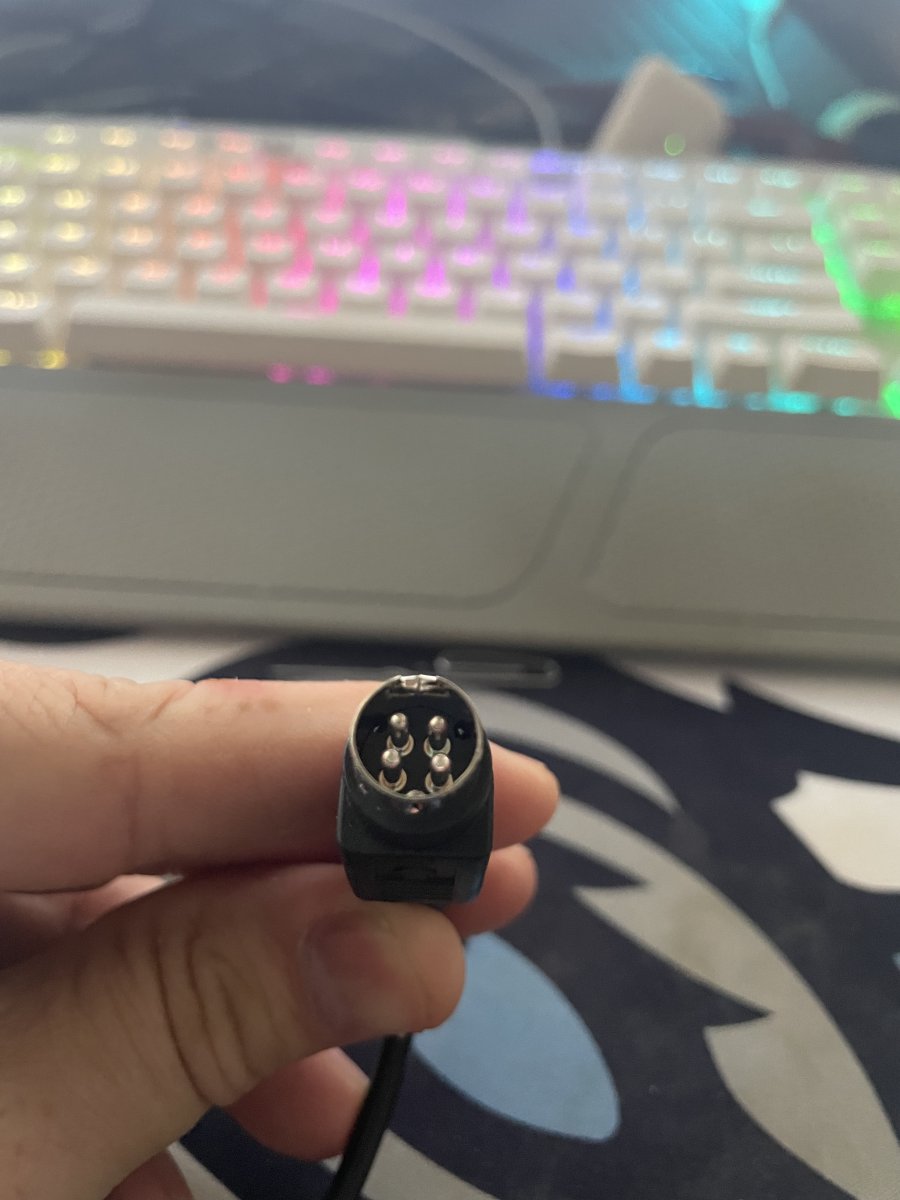

I'm not at home and I can't seem to find a pic I took of the Neptune connector but IIRC it's not completely found and has 2 notches on one side of the plug. I tried to find a closeup of the Reed connector and this was the best I could find

Assuming this is the same Reed probe and my old eyes are not playing tricks, that connector looks completely round with no notches.



[zoytoy]

I'm not at home and I can't seem to find a pic I took of the Neptune connector but IIRC it's not completely found and has 2 notches on one side of the plug. I tried to find a closeup of the Reed connector and this was the best I could find

Assuming this is the same Reed probe and my old eyes are not playing tricks, that connector looks completely round with no notches.

Yea it is a different plug.



[esquare]

Yea it is a different plug.

Darn, thanks for checking



[Lbrdsoxfan]

I'm having a TLDR moment, did any of ya'll try this AliE probe? I kinda want to order one for testing sake, but that 48$ tho... I may order one of those with a BNC and do the mini din swap (cheaper) and see what comes out of it.



[All_talk]

I recently did a deep dive and I believe this is the source for the APEX probe. I have not positively confirmed the connector, but from the description I believe its correct. I have not bought one yet, just wanted to put it out there. It is a good bit cheaper.

https://jencoi.com/product/107an/
https://www.jjstech.com/107a.html



[juarec0201]

I recently did a deep dive and I believe this is the source for the APEX probe. I have not positively confirmed the connector, but from the description I believe its correct. I have not bought one yet, just wanted to put it out there. It is a good bit cheaper.

https://jencoi.com/product/107an/
https://www.jjstech.com/107a.html

Nice find!!



[Raptor72]

I’m not sure if you’re talking about switching out the connector on that Jenco probe but I inquired on their site and they told me that the probe is only compatible with their controller and not the Apex.



[MnFish1]

I am going to make what sounds like a snarky comment - which is not meant to be so. Just buy a new Apex probe. Compared to the potential savings for the probe, the value of your tank is far more. Just stick with apex - or it may void your warranty.



[gbroadbridge]

Just stick with apex - or it may void your warranty.

I don't think so ...

Unless you must use Toyota Gas and Toyota Oil in your Toyota pickup :)



[MnFish1]

I don't think so ...

Unless you must use Toyota Gas and Toyota Oil in your Toyota pickup :)

Well - lets say you have a Toyota Pickup that uses regular gas, and you put diesel in... What do you think the service department would say? I mean - the point I made above is probably a moot point, since most people wouldn't need or want to replace a pH probe within the warranty period anyway. But - If you need one during that period, it doesn't cost anything to call and ask if XYZ probe is allowed to be used, right?



[wjcastiglione]

I recently did a deep dive and I believe this is the source for the APEX probe. I have not positively confirmed the connector, but from the description I believe its correct. I have not bought one yet, just wanted to put it out there. It is a good bit cheaper.

https://jencoi.com/product/107an/
https://www.jjstech.com/107a.html

Anybody confirm this yet?



[lakai]

Oakton Instruments WD-35608-51​

Platinum Sensor Epoxy Body
K=10



[helijamal]

Oakton Instruments WD-35608-51​

Platinum Sensor Epoxy Body
K=10

Have you personally tried this probe? Cable is too short but im sure that can be overcome



[Lbrdsoxfan]

Oakton Instruments WD-35608-51​

Platinum Sensor Epoxy Body
K=10

At the price of that in the wild, may as well buy the actual Apex probe.



[n1ng]

I'm having a TLDR moment, did any of ya'll try this AliE probe? I kinda want to order one for testing sake, but that 48$ tho... I may order one of those with a BNC and do the mini din swap (cheaper) and see what comes out of it.

I'm using this one. It's all plastic except for the two electrodes. I had a busted apex salinity probe donor for the din connector. I recall this diy being more straightforward than anticipated. The probe took about a week to stabilize. It's been pretty solid since (fluctuates between 52.3 - 53.7 mS/cm) been running for a few months now.



[Lbrdsoxfan]

I'm using this one. It's all plastic except for the two electrodes. I had a busted apex salinity probe donor for the din connector. I recall this diy being more straightforward than anticipated. The probe took about a week to stabilize. It's been pretty solid since (fluctuates between 52.3 - 53.7 mS/cm) been running for a few months now.

Good to know there is another alternative. Been using the Pasco for a year or so now, no issues.



[lakai]

I'm using this one. It's all plastic except for the two electrodes. I had a busted apex salinity probe donor for the din connector. I recall this diy being more straightforward than anticipated. The probe took about a week to stabilize. It's been pretty solid since (fluctuates between 52.3 - 53.7 mS/cm) been running for a few months now.

I didn't have any luck with this one. Mine pretty much arrived broken.



[ch0p]

I'm having a TLDR moment, did any of ya'll try this AliE probe? I kinda want to order one for testing sake, but that 48$ tho... I may order one of those with a BNC and do the mini din swap (cheaper) and see what comes out of it.

Yep, have ordered this one from Ali , works fine!!!



[nunoml]

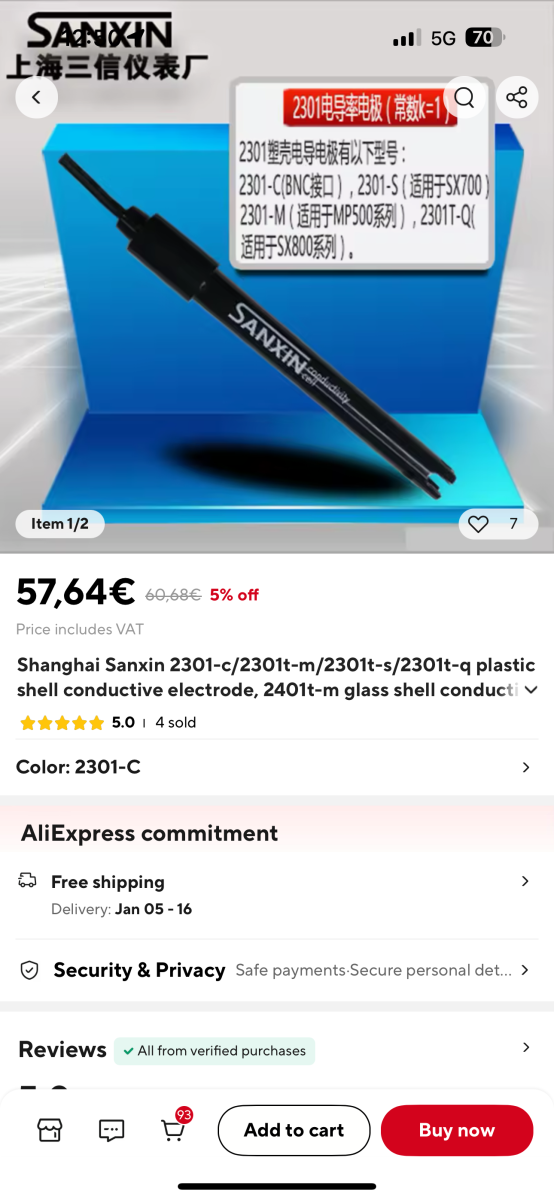

I just found this on AliExpress: 60,68€ | Shanghai Sanxin 2301-c/2301t-m/2301t-s/2301t-q plastic shell conductive electrode, 2401t-m glass shell conductive electrode.
https://a.aliexpress.com/_EHGfNmC
I find this one. Did anyone tried ?



[14 foot reef]

I just found this on AliExpress: 60,68€ | Shanghai Sanxin 2301-c/2301t-m/2301t-s/2301t-q plastic shell conductive electrode, 2401t-m glass shell conductive electrode.
https://a.aliexpress.com/_EHGfNmC
I find this one. Did anyone tried ?

What connector is on the end of this one ?
