Show Me Your Equipment Cabinets

[kschweer]

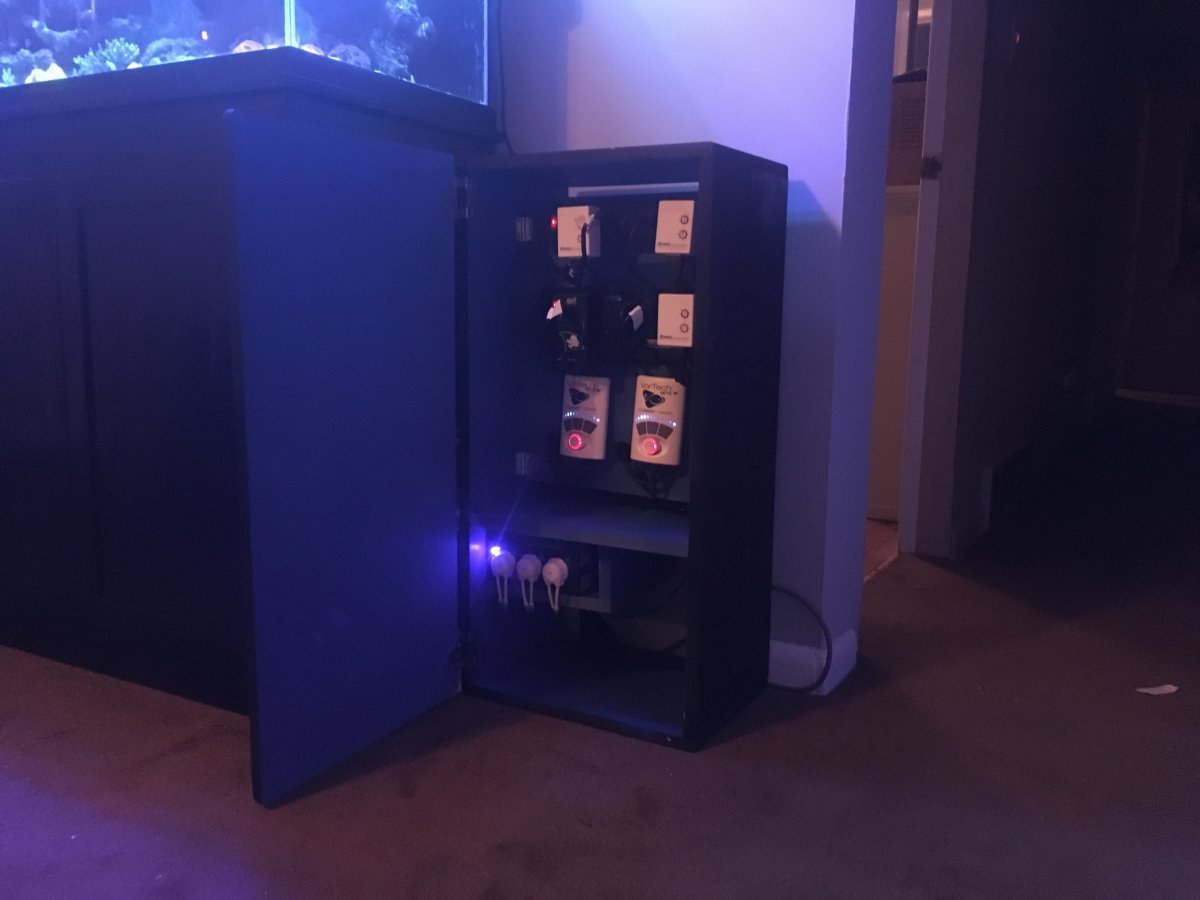

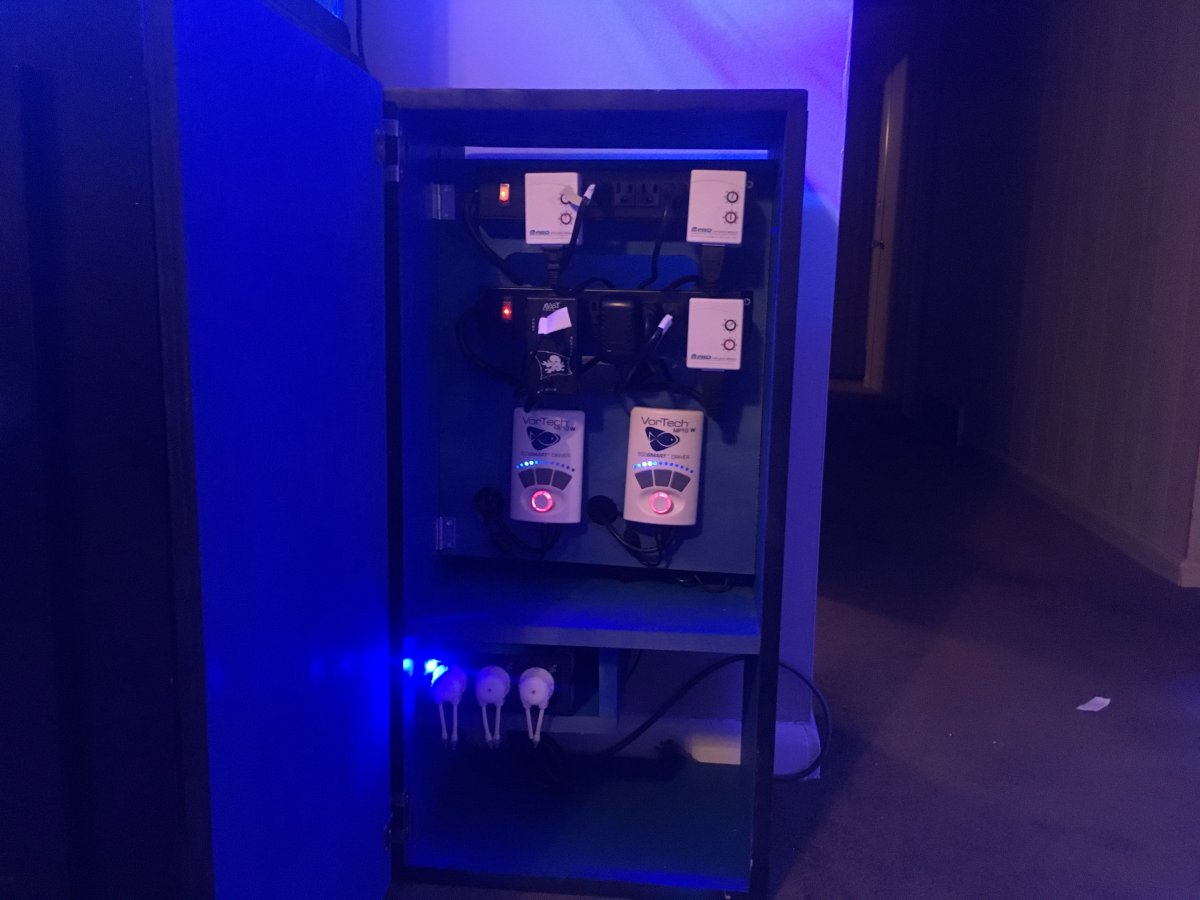

Not as impressive as some in this thread but I just finished mine up.



[bozo]

Not as impressive as some in this thread but I just finished mine up.

This is cool. Where did you get the cabinet?


Thanks!



[kschweer]

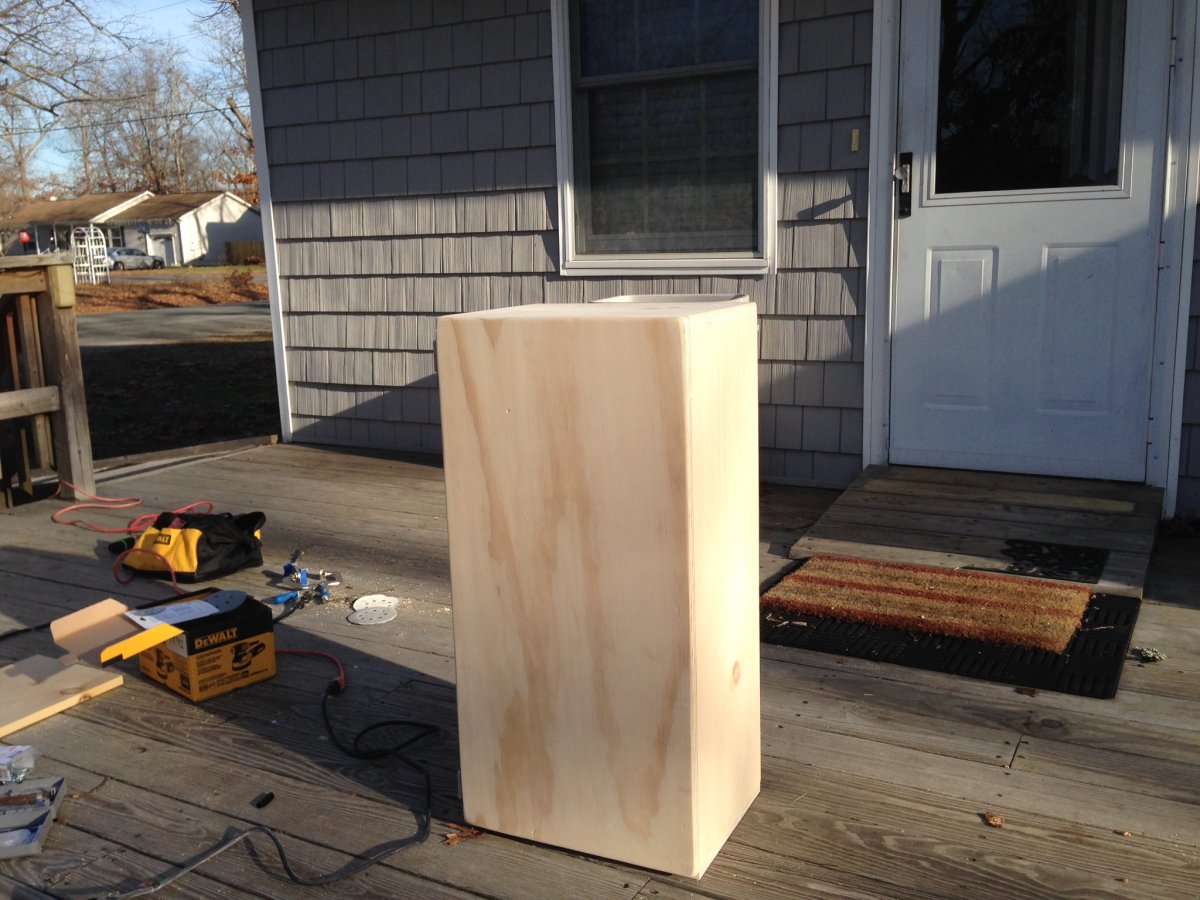

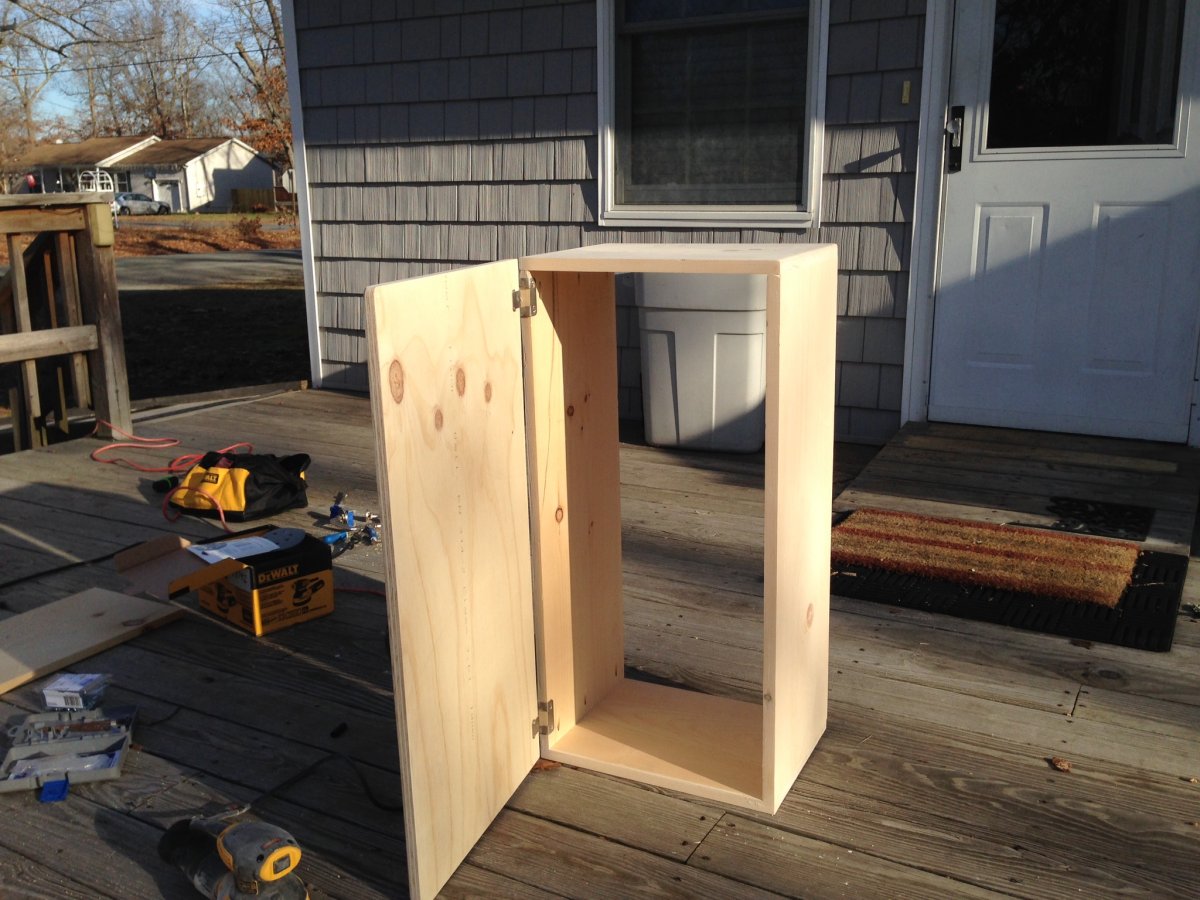

Thank you! I built the cabinet from 3/4" ply.



[bozo]

Thank you! I built the cabinet from 3/4" ply.

Thanks for the photos! Much appreciated!!

That looks dang awesome!! Im going to build my own now! Ive been scouring craigslist for cabinets and nothing works!

Great idea!



[kschweer]

Thanks for the photos! Much appreciated!!

That looks dang awesome!! Im going to build my own now! Ive been scouring craigslist for cabinets and nothing works!

Great idea!

Thank you. It's a very simple project. I would suggest picking up a kreg pocket hole jig. It makes a project like this very simple.



[msderganc]

That looks awesome. How wide is the drawer? Do you have any issues with cords pulling when you pull the drawer out? If so, how did you fix it?



[MarineDepot]

Fantastic



[s2nhle]

wow, it is awesome



[kevantheman35]



[Broadfield]

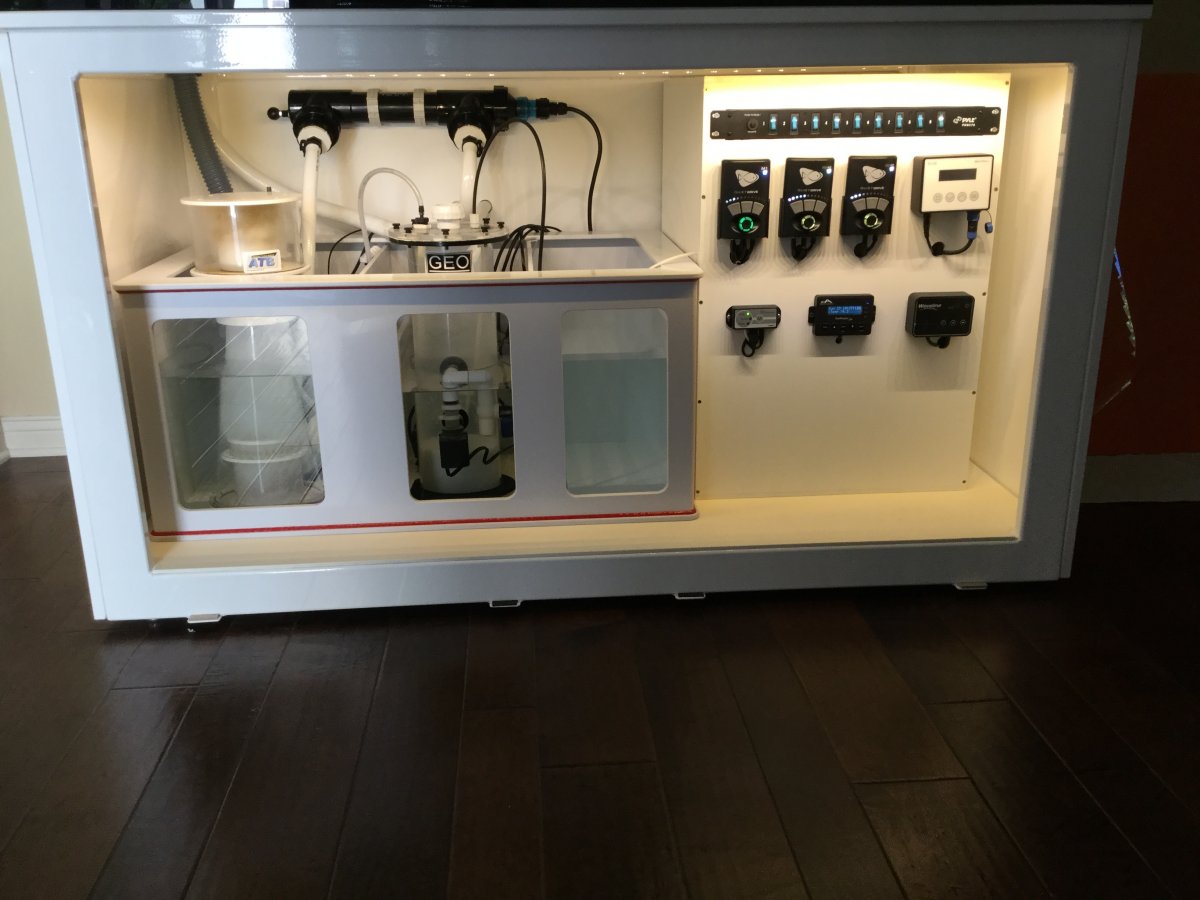

Kind of changed my setup:)

IMG_7102 by Toby Broadfield, on Flickr

IMG_7158 by Toby Broadfield, on Flickr

IMG_7088 by Toby Broadfield, on Flickr



[dbl]

Kind of changed my setup:)

IMG_7102 by Toby Broadfield, on Flickr

IMG_7158 by Toby Broadfield, on Flickr

IMG_7088 by Toby Broadfield, on Flickr

Show Off!!!!



[Scurvy]

Show Off!!!!

Can't say I blame him.... I'd have that thing on my front porch cased in 2" plexiglass for the whole world to see!



[dbl]

Can't say I blame him.... I'd have that thing on my front porch cased in 2" plexiglass for the whole world to see!

Not blaming him...lol. Toby's got skills I can only dream of!!!



[innerspark]

Kind of changed my setup:)

IMG_7102 by Toby Broadfield, on Flickr

IMG_7158 by Toby Broadfield, on Flickr

IMG_7088 by Toby Broadfield, on Flickr

You finally finished it! Looks good been following it in Flickr.



[Fin]

Kind of changed my setup:)

G7102 by Toby Broadfield, on Flickr

IMG_7088 by Toby Broadfield, on Flickr

Just curious, have you been happy with the flow you are getting with the M1 pump (I am assuming it is an M1 from the rest of your pics), supplying those reactors and the return? Lots of 90° fittings in there too. I have the same pump (well 2 pumps) and I had read some reviews where people were disappointed with the flow they got from them. Looks like it is doing a great job for you though. Thia whole set-up is just so darn awesome!



[Steelersfan]

Elos 160XL



[Broadfield]

Just curious, have you been happy with the flow you are getting with the M1 pump (I am assuming it is an M1 from the rest of your pics), supplying those reactors and the return? Lots of 90° fittings in there too. I have the same pump (well 2 pumps) and I had read some reviews where people were disappointed with the flow they got from them. Looks like it is doing a great job for you though. Thia whole set-up is just so darn awesome!

It's actually an L1... and yes, there's plenty of flow:). Probably more than needed, but I like the extra circulation I'm getting from the split return.



[Broadfield]

Elos 160XL

Looks awesome man! White stands/cabinets always look so good. I wish I could have a white stand, but it just wouldn't go with my decor.



[Steelersfan]

Looks awesome man! White stands/cabinets always look so good. I wish I could have a white stand, but it just wouldn't go with my decor.

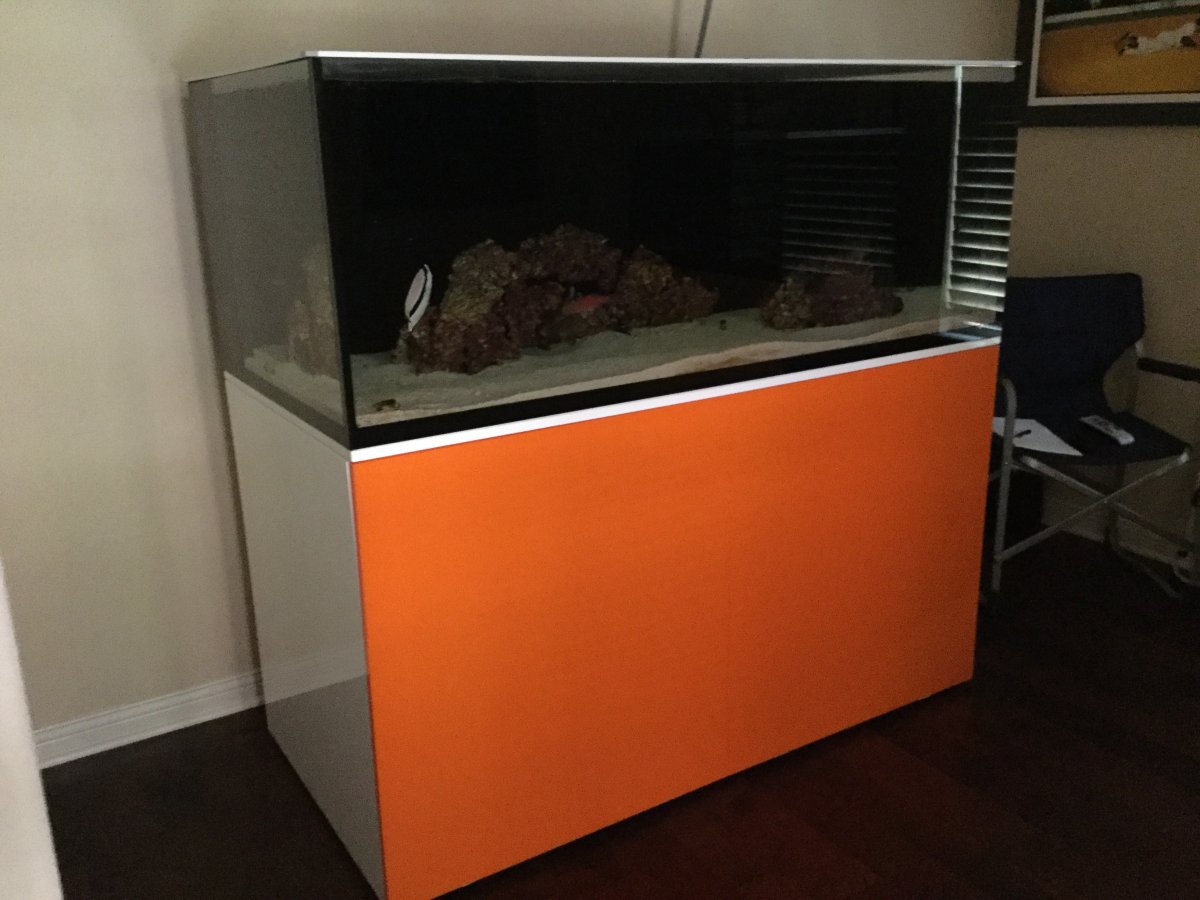

Thank you!!! Would these orange front panels work with your decor? :)
They are 18mm solid acrylic panels.



[Fin]

It's actually an L1... and yes, there's plenty of flow:). Probably more than needed, but I like the extra circulation I'm getting from the split return.

Ok, thanks. I saw a pic on Flickr of an M1 in with your other equipment, that's why I asked. :D
