SHOW ME YOUR RO/DI setup

[Kingsley_Reef]

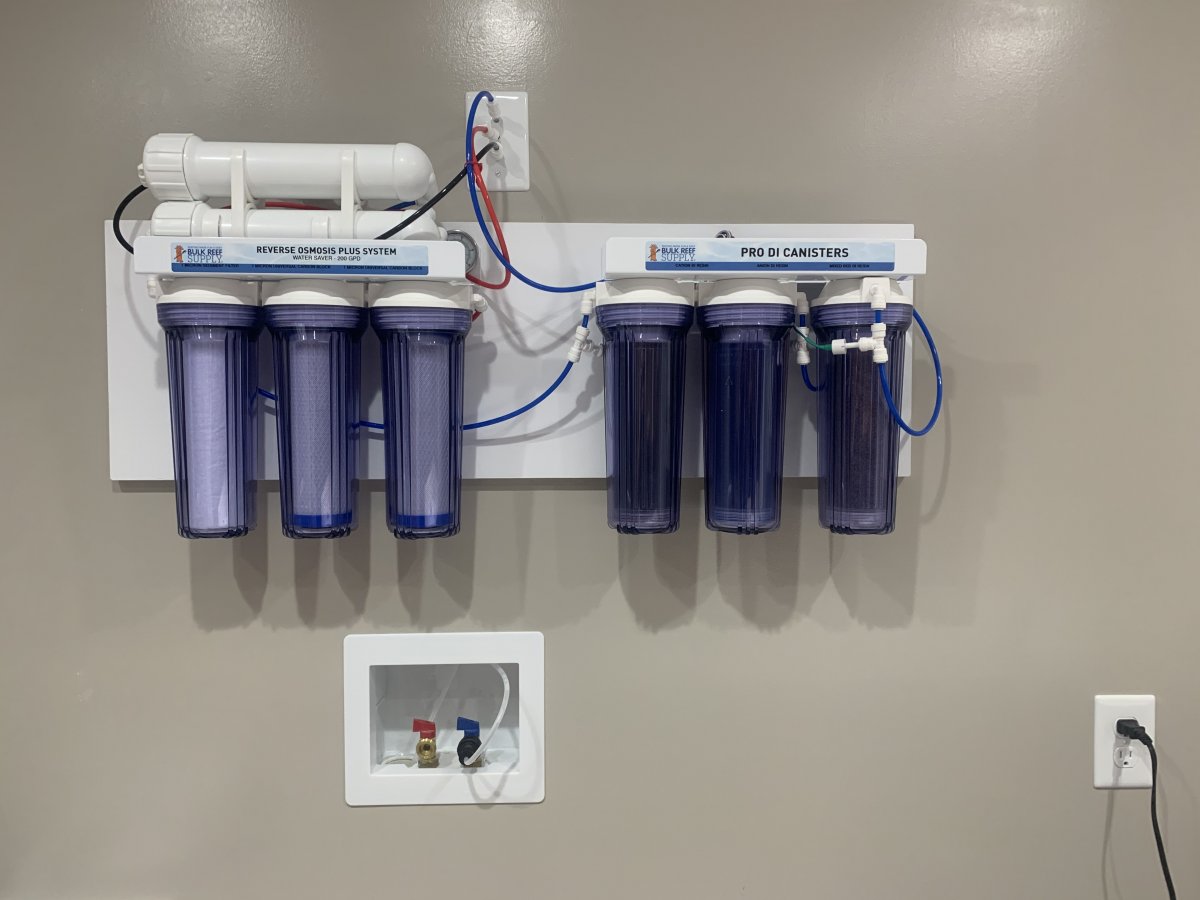

Proud new owner of a 7 stage BRS system will hopefully be hooking it up soon curious to see some other setups,tips,tricks
I’m also a little short on room has anyone Mounted them vertically like this:

leaving room to undo the canisters of course



[vetteguy53081]



[Gravity]

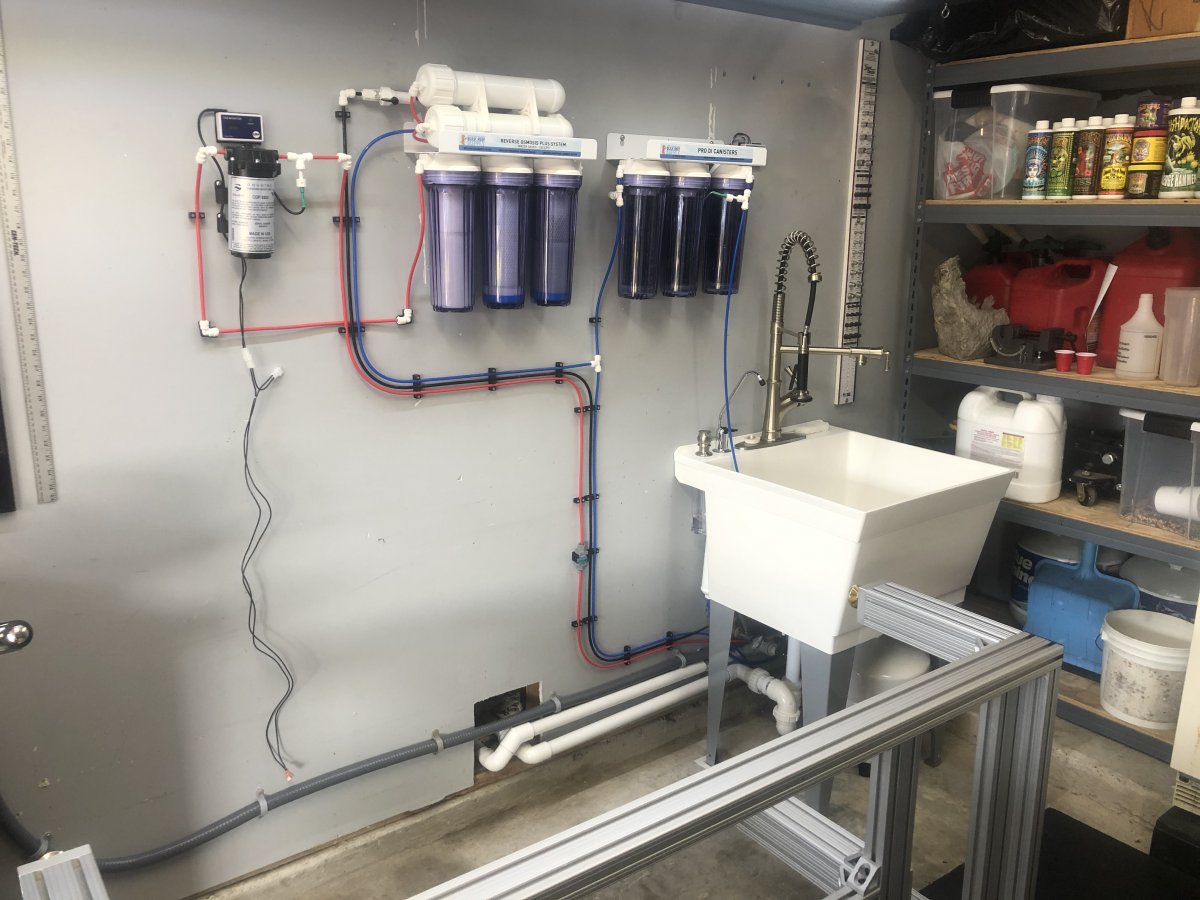

Here is my personal one. Mounted on two sides of a shelf with a garbage can storage and a pump for filling buckets.

Here is my work setup with a nice 10 gal poly tank that just gravity flows for rinsing stuff. For vertical mount just make sure to leave enough room to remove the media.



[air_run]

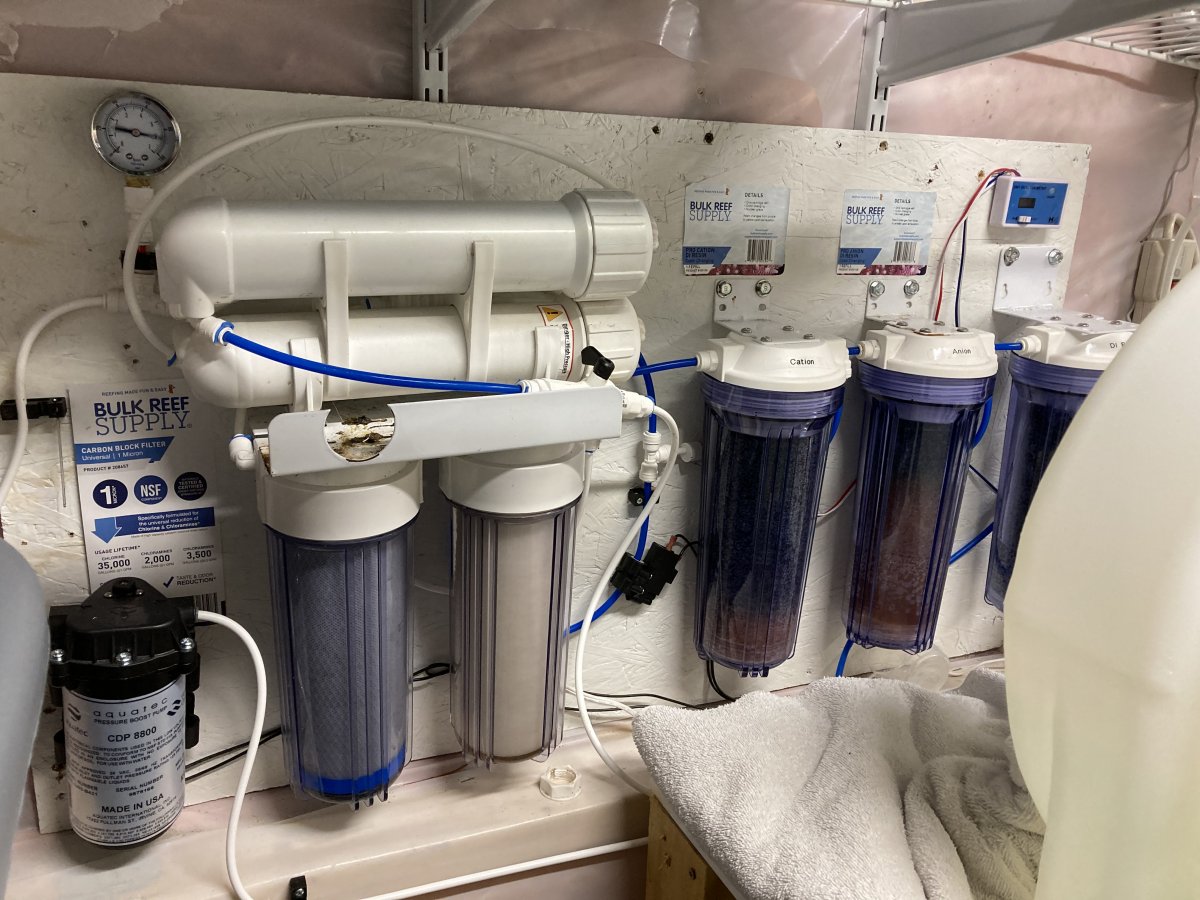

Here's my 7 Stage as well. It's functional for producing water but, I haven"t quite finished the plumbing yet.



[Nick Steele]

6 stage RODI unit. Easily stored underneath my bathroom sink. Just run the waste and product line to my shower to fill anything up just in case I forget it running one day.



[Kingsley_Reef]

Here's my 7 Stage as well. It's functional for producing water but, I haven"t quite finished the plumbing yet.

Curious about your tee here can you explain?



[Kazumi]

It looks like the Tee is going to the pressure holding tank under the sink or to that RO faucet on the sink.



[Billldg]

This is mine currently. I am in the process of finishing it. I just received 2 more stages of DI and will install it and then finish routing the tubing.



[air_run]

Curious about your tee here can you explain?

Oh, that tees off there before the DI stage as that goes to a RO drinking water add-on kit.



[Ray's-Reef]



[Ray's-Reef]



[JPHawkins]

My setup, a brs 7 stage 200gal a day.



[Tou]

Can anyone please tell me what this piece is called, I been trying to find one for a while now.
Thank You



[Nick Steele]

Can anyone please tell me what this piece is called, I been trying to find one for a while now.
Thank You

Faucet diverter



[JoshH]

Can anyone please tell me what this piece is called, I been trying to find one for a while now.
Thank You

Like mentioned above this is a Faucet Diverter valve you can find one here....

Chrome Faucet Diverter Valve

Diverter Valves are used to attach RO systems to most kitchen sink faucets. They allow RO units to remain connected to the sink. Simply turn the diverter valve lever to operate the RO unit and push back to use the sink faucet. This item is designed for use with our saltwater aquarium line of RO...

www.bulkreefsupply.com



[Tou]

Faucet diverter

Thank you for the fast reply. That's perfect.



[Mical]

Mine



[jeffrey750750]

Brs seven stage,20 gallon always filled brute in commandeered front door closet.. Two brutes in spare bedroom for water changes on roller dollies. No more lifting of water



[JumboShrimp]



[Tou]

Very nice set up, going to steal some ideas from you guys haha
