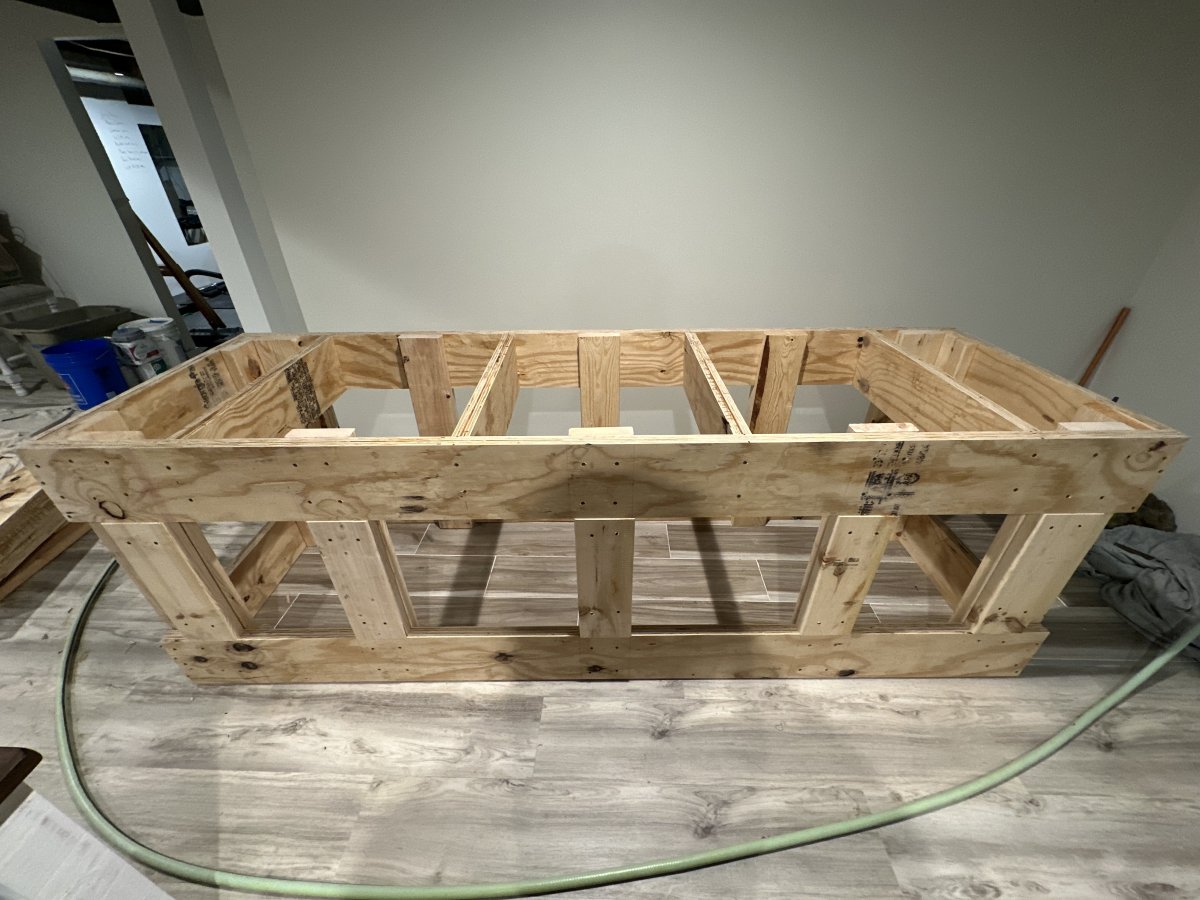

Finishing up the frame work for my stand. Was wondering if I needed to add any more supports.

Tank is a 300 gallon acrylic. All horizontal wood is 2 3/4” sheets of plywood glued together and vertical supports are 2x6.

Edit:
Have a couple more 2x6s left and 4 more pieces of the plywood cut to length for cross bracing.


Troylee

all about the diy!!!!!
View Badges
Joined
Jan 15, 2010
Messages
19,285
Reaction score
16,865
Location
Vegas baby!!!!
Rating - 0%
0   0   0
Finishing up the frame work for my stand. Was wondering if I needed to add any more supports.

Tank is a 300 gallon acrylic. All horizontal wood is 2 3/4” sheets of plywood glued together and vertical supports are 2x6.

Edit:
Have a couple more 2x6s left and 4 more pieces of the plywood cut to length for cross bracing.
Make sure you fully support the top with a sheet that’s perfectly flat! Acrylic needs full support unlike glass that only needs the perimeter.

OP
OP
thomas_neil

thomas_neil

Well-Known Member
View Badges
Joined
Aug 7, 2021
Messages
501
Reaction score
325
Location
Grand Rapids
Rating - 0%
0   0   0
Make sure you fully support the top with a sheet that’s perfectly flat! Acrylic needs full support unlike glass that only needs the perimeter.
The tank manufacturer recommended 2 sheets, the first sheet screwed right to the stand and the second sheet you shim to make very small adjustments to get it perfect, then add a layer of rigid foam.

I haven’t installed the second sheet as I still need to seal the main stand and want to add some joist hangers to my horizontal supports.

I think my main question is on the top for the horizontal cross pieces should I add a couple more? I have 4 going across the top at 2’ spacing or is that good? And I’m wondering the same for the bottom, I currently have nothing on the bottom except the perimeter.

My sump isn’t going under the stand so space under isn’t a problem, was just going to use it for dry goods storage.


Troylee

all about the diy!!!!!
View Badges
Joined
Jan 15, 2010
Messages
19,285
Reaction score
16,865
Location
Vegas baby!!!!
Rating - 0%
0   0   0
The tank manufacturer recommended 2 sheets, the first sheet screwed right to the stand and the second sheet you shim to make very small adjustments to get it perfect, then add a layer of rigid foam.

I haven’t installed the second sheet as I still need to seal the main stand and want to add some joist hangers to my horizontal supports.

I think my main question is on the top for the horizontal cross pieces should I add a couple more? I have 4 going across the top at 2’ spacing or is that good? And I’m wondering the same for the bottom, I currently have nothing on the bottom except the perimeter.

My sump isn’t going under the stand so space under isn’t a problem, was just going to use it for dry goods storage.
If you use 3/4” plywood on the top you should be fine. I think you have enough support myself. I normally build aluminum or steel stands with just a couple cross members then use a single sheet of 3/4” plywood with a piece of foam.
