Hey everybody! Long-time forum lurker and planted tank keeper here. Let me give you a little background on this build. Ive been researching reefkeeping for about 10 years with the plans on eventually doing a build and have finally started. This build has taken several different turns during the initial planning stages. Long story short, originally supposed to be a 75 gallon, then a 110 since it is the same footprint of a 75. I then saw an Aqueon 125 at the store so the 110 cherry stand/canopy went to my son's bearded dragon tank. I planned on running the full Triton system so I bought a Trigger Systems Triton 44 sump. One day it dawned on me that I would not be able to remove the sump from the stand if I wanted unless I cut it up since you had to put it in through the top. I definitely wouldn't be able to get another large sump back in it for sure.
Since I was building my dream tank, I wanted it to be perfect, so I reached out to have a custom stand built that would allow me to do everything I wanted. I found a stand builder who was able to do it but the time frame was really long so I started to think. For the price I was going to pay for a custom stand, for an Aqueon mind you, I could pay a little more and really get what I wanted. I just couldn't justify paying that much for stand for an Aqueon. Not to knock their products at all, but the price difference between the stand and tank was a little more than I could justify. So that leads me to where I am now, I sold the Aqueon and bought a Waterbox 220.6

Lazys Coral House
OP
DVal

DVal

Active Member
View Badges
Joined
Jan 12, 2017
Messages
273
Reaction score
211
Location
Chattanooga

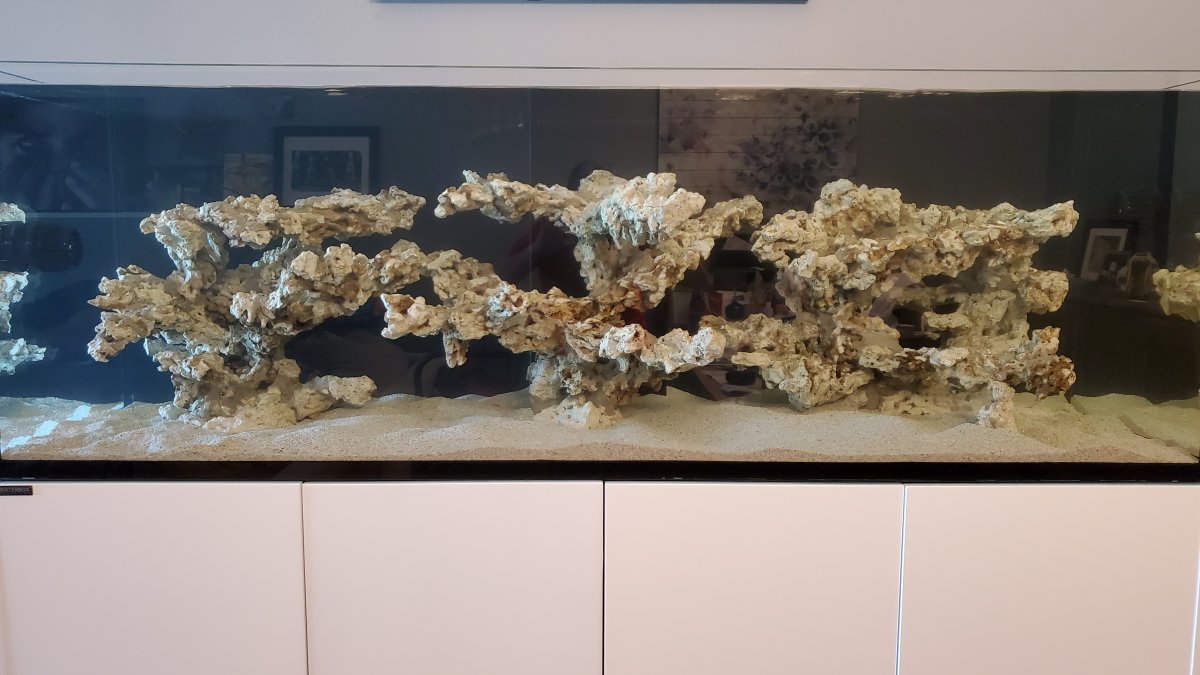

The rock work was just as bipolar. Started off with Pukani arranged in mostly a rock pile. Then I saw the NSA BRS series and decided to go that route. I used E-Marco mortar and BRS thick superglue

20191019_171743.jpg 20201018_140648.jpg

OP
DVal

DVal

Active Member
View Badges
Joined
Jan 12, 2017
Messages
273
Reaction score
211
Location
Chattanooga
Started adding water Oct 25 and I started the fishless cycle on Oct 31st with Dr Tim's all-in-one. Im following his recommendations from his Macna talk with lower salinity at 1.020 and higher temps at 83-84 initially then adjusting to 1.026 and 78 over the course of several days after cycle is complete.


OP
DVal

DVal

Active Member
View Badges
Joined
Jan 12, 2017
Messages
273
Reaction score
211
Location
Chattanooga
Current equipment:
Tank dimensions: 72.3"×25.3"×23.6
3 kessils A360x with plans to increase to 6 or add reefbrite strips
Varios 8 return
Osmolator
Vertex Omega 180i skimmer
2 MP40s
20 gallon ATO
2 Finnex titanium 300w heaters with InkBird controller.
BRS dual reactors. Currently being switched out with Phosban reactor due to the large size of the BRS.


Side note, the MP40's did NOT like the 3/4in glass at first. Continued to slide down the glass. I realized I didn't have the gasket in place. That solved that issue.

Maxout

LBReefer

Well-Known Member
View Badges
Joined
Jun 22, 2016
Messages
867
Reaction score
657
Location
Long Beach
The rock work was just as bipolar. Started off with Pukani arranged in mostly a rock pile. Then I saw the NSA BRS series and decided to go that route. I used E-Marco mortar and BRS thick superglue

20191019_171743.jpg 20201018_140648.jpg
Really nice scape. It looks way more natural. Any tips?

OP
DVal

DVal

Active Member
View Badges
Joined
Jan 12, 2017
Messages
273
Reaction score
211
Location
Chattanooga
Thank you! Use some accelerator when you initially attach it with glue and then go over it with E-Marcos mortar after you complete it. Order way more accelerator and glue than you think you'll need. I used double what I thought I would. Try not to move it for about 24 hours after putting on the mortar. And also mix very very small batches of the mortar at a time. It sets quick and is almost unusable in about 20 minutes.

BRS has a great video going through the steps.

I skipped the last step with adding sand since it will all be covered in coralline andthe same color eventually.

OP
DVal

DVal

Active Member
View Badges
Joined
Jan 12, 2017
Messages
273
Reaction score
211
Location
Chattanooga
Had a weird situation this morning. Im currently breaking in the skimmer. There were so many that bubbles are getting through the bubble trap to the return section. I came in this morning and found that my Osmolator had dumped about 8-10 gallons into my sump. Luckily no livestock yet. My safety float switch saved the day..in hindsight, it was probably too high. There shouldn't have been any siphoning with the line terminating well above waterline in the sump and ATO reservoir and the fact that the safety switch stopped the flow. There were alot of bubbles on the optic sensor. Im wondering if that may have caused a malfunction? I lowered the safety float switch for the Osmolator in case it happens again. I take it as a fail for the optic sensor but Win for the float switch!

Avast
OP
DVal

DVal

Active Member
View Badges
Joined
Jan 12, 2017
Messages
273
Reaction score
211
Location
Chattanooga

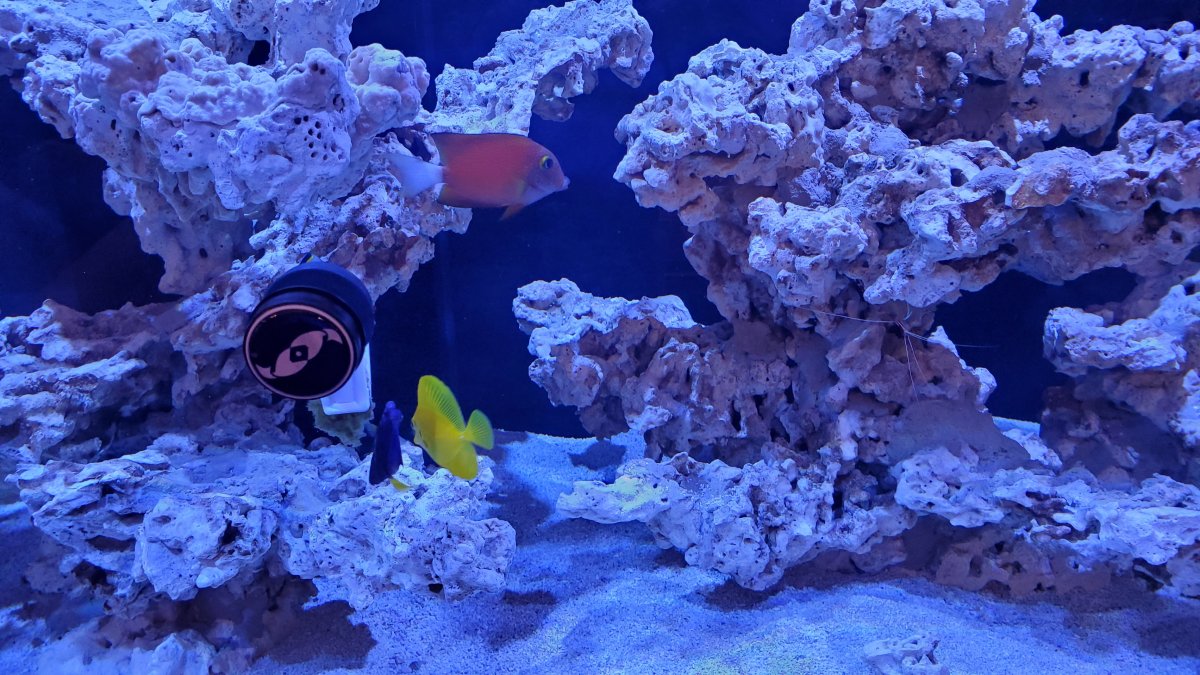

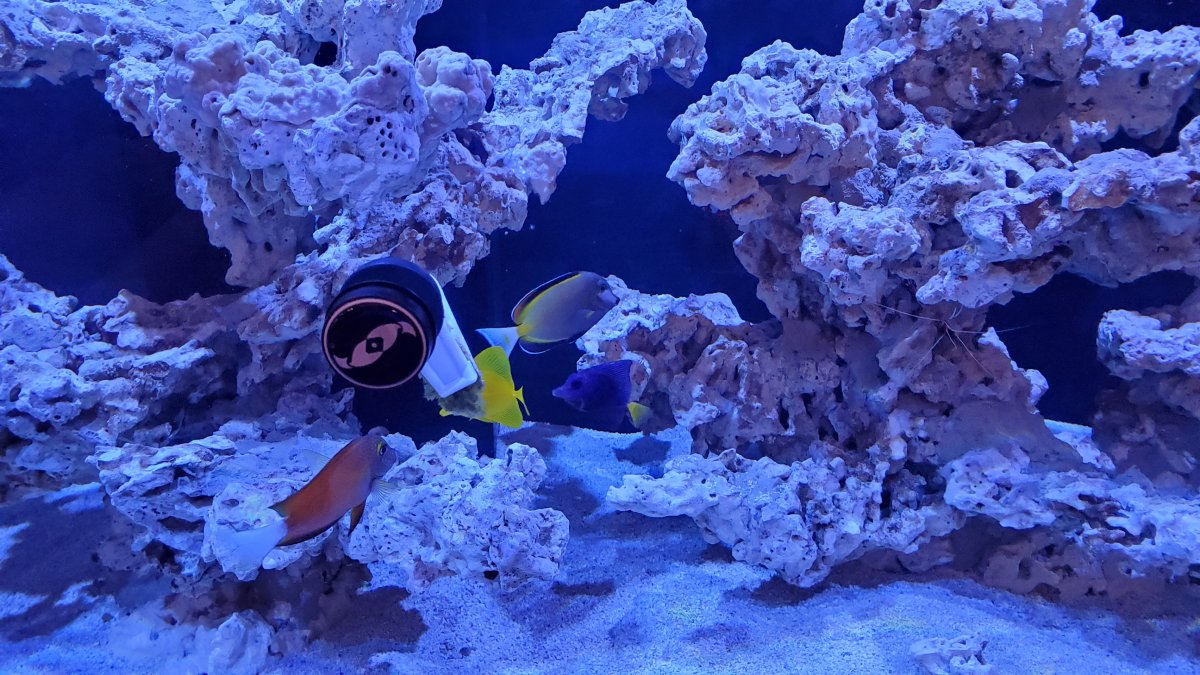

New additions added today from New Wave Aquaria (Thanks Jenn!!). They do a great job with a good quarantine process. Added a purple, powder brown, white tail, and yellow tang.


Attachments

  • 20201215_171948.jpg
    217.3 KB · Views: 32
  • 20201215_171941.jpg
    217.3 KB · Views: 37
