3D Printed HOB Algae Scrubber

[vandy]

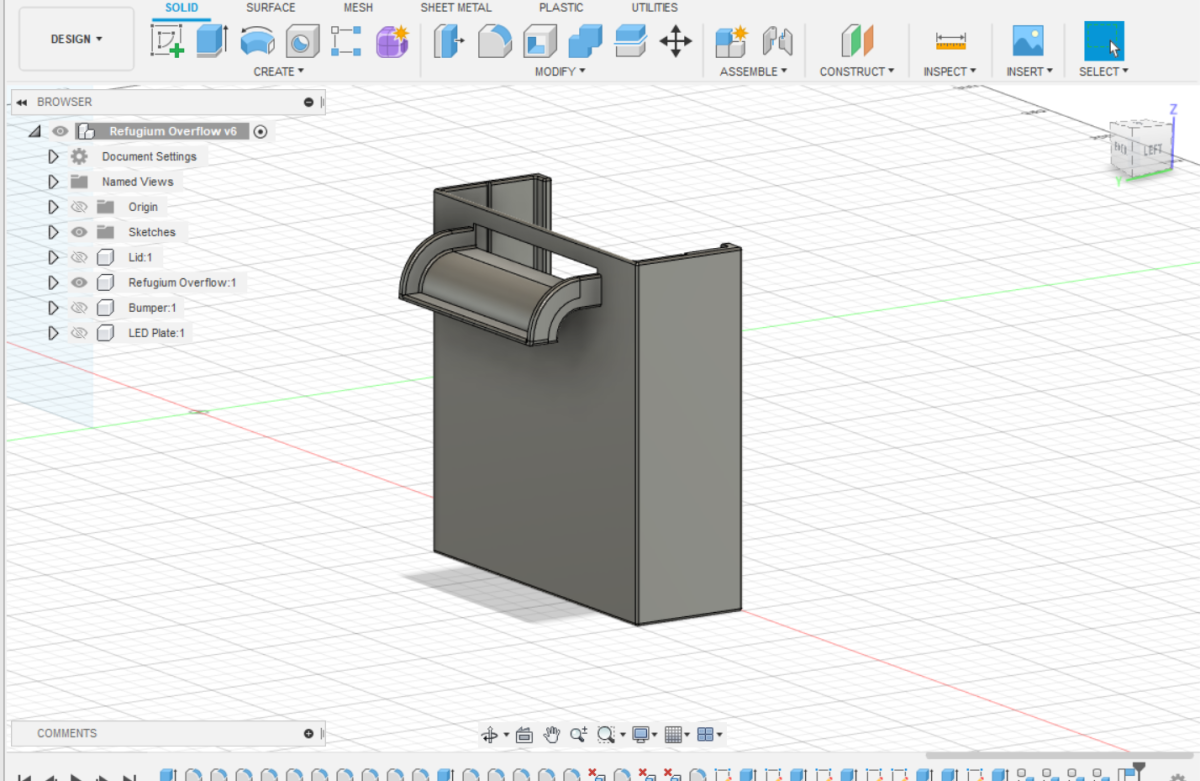

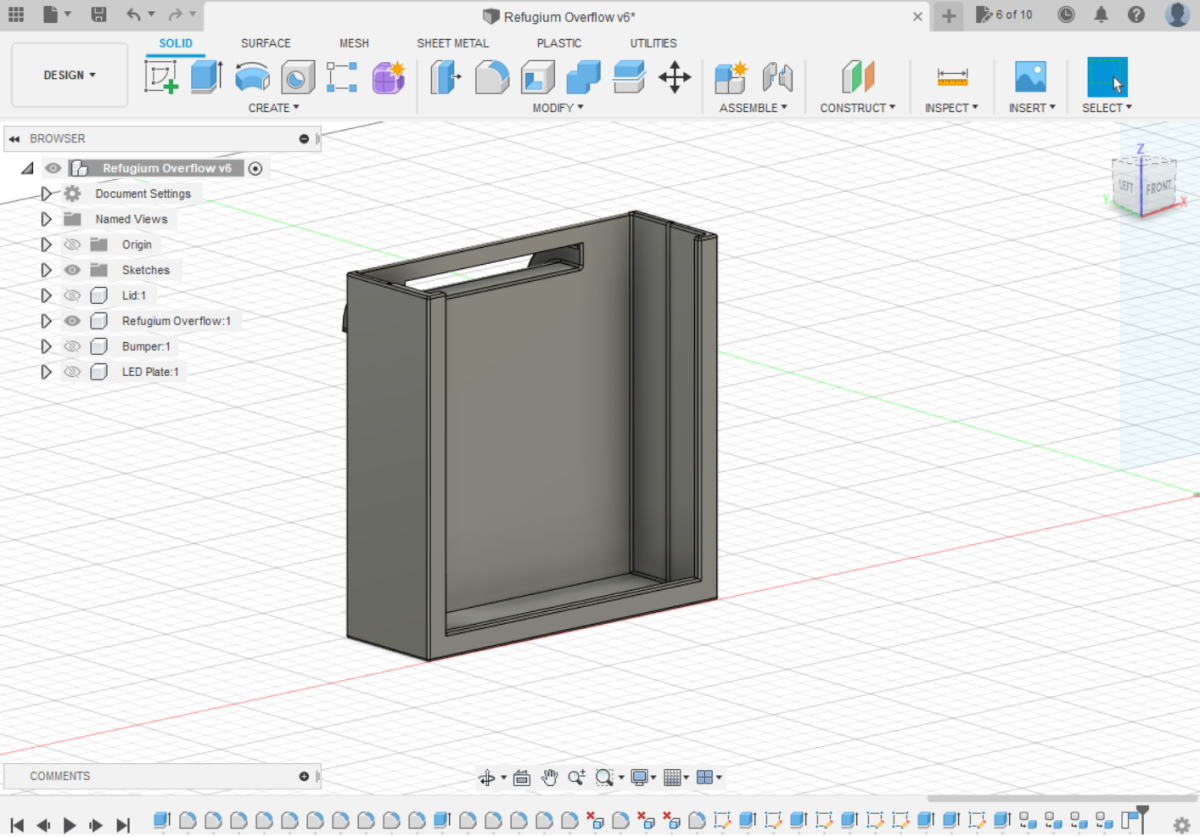

Wanted to design and build a HOB algae scrubber for my IM Nuvo 40 fusion. This iteration will have an acrylic window for the LEDs, and a 2mm slot inside for the mesh sheet to grow the algae. Plan is to just have a small pump with a vinyl tube running into the HOB from the rear section of the AIO. I figured it will hold 1.125 liters or 38 oz of water. Not sure it would have much of an impact on 40 gallons of water, but its just a project for fun.

Just finished printing

Waiting on the silicone to dry to the acrylic. Designed a lit, and a plate that the LEDs will mount on. Will print and update once those are finished.



[shakacuz]

awesome idea! pics for when you have it all running!!



[vandy]

Ran into some issues with the silicone. Turns out it was expired and never set correctly, so I had to scrape it all off and start over. I was able to get the LEDs wired up. Wasn’t my best work but it’ll work!



[ilikefish69]

How’s it working for you?
