ADA 120-P Reef Build - 65 Gallons

Discussion in 'Member Tanks' started by illuminata, Feb 6, 2018.

  1. illuminata

    illuminata Active Member R2R Supporter Build Thread Contributor

    Joined:
    May 21, 2017
    Messages:
    166
    Likes Received:
    96
    Greetings,
    Been on this project for some time now so thought I'd start sharing my progress (I'm about 40% into it). From building a stand from scratch to drilling glass my first time I feel it's coming along quite well. Having two toddlers and newborn I get to work on this maybe an hour or two once a week so it's been a slow journey.

    Tank:
    ADA Cube Garden 120-P Aquarium (Ultra High Clarity Glass) - 65 Gallons (48x18x18)
    (https://aquaforestaquarium.com/products/ada-cube-garden-120p-aquarium-ultra-high-clarity-glass)


    Stand:
    48" x 18" x 36"

    EDITED Equipment List:
    -Sump: Elos 30
    -2x XR30 G4P w/diffusers, Apex Wifi, COR-15, WAV's, ATK, Nyos 120


    I finally got a hold of a used 120P so I had to pick it up. Previous owner had it planted with a frosted vinyl background.

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Jul 6, 2018
    samnaz likes this.
    Tags:

  2. illuminata

    illuminata Active Member R2R Supporter Build Thread Contributor

    Joined:
    May 21, 2017
    Messages:
    166
    Likes Received:
    96
    I wanted a 36" tall stand so decided to try and build my own (still work in progress). Watched a couple videos on youtube and headed to Home Depot, bought 9x 2x4's and 2 boxes of wood screws.

    I had nothing to cut these with so I purchased a few things off Amazon. I went cheap on the equipment since I figure I'm only going to build one stand.
    Miter Saw:
    https://www.amazon.com/gp/product/B01LWYCCCT/ref=oh_aui_detailpage_o07_s00?ie=UTF8&psc=1
    Jigsaw:
    https://www.amazon.com/gp/product/B016100EIK/ref=oh_aui_detailpage_o07_s00?ie=UTF8&psc=1
    Sander:
    https://www.amazon.com/gp/product/B00MLSS1SW/ref=oh_aui_detailpage_o04_s00?ie=UTF8&psc=1
    Woodglue:
    https://www.amazon.com/gp/product/B001NN5T22/ref=oh_aui_detailpage_o06_s00?ie=UTF8&psc=1


    This is literally the first time I've used a Miter Saw.
    [​IMG]

    [​IMG]

    All pieces cut.
    [​IMG]

    samnaz, Brynn and peterj66 like this.
  3. mjlash22

    mjlash22 Well-Known Member R2R Supporter Build Thread Contributor

    Joined:
    Jan 13, 2016
    Messages:
    642
    Likes Received:
    412
    Location:
    Michigan
    Looks good so far! Will be interested to see how it goes!

  4. illuminata

    illuminata Active Member R2R Supporter Build Thread Contributor

    Joined:
    May 21, 2017
    Messages:
    166
    Likes Received:
    96
    I found that my garage flooring wasn't completely even so I decided to assemble the stand/wood pieces inside the house.

    I also purchased a right angle ruler for measurements and ratchet clamps.
    2x Ratchet clamps:
    https://www.harborfreight.com/24-in-ratcheting-bar-clampspreader-62112.html

    [​IMG]

    [​IMG]

    [​IMG]

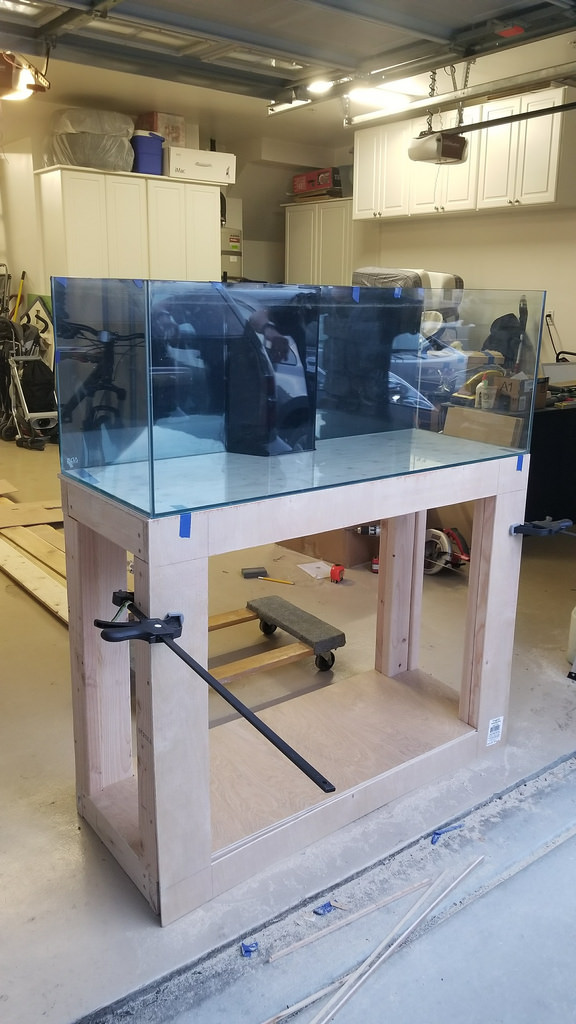

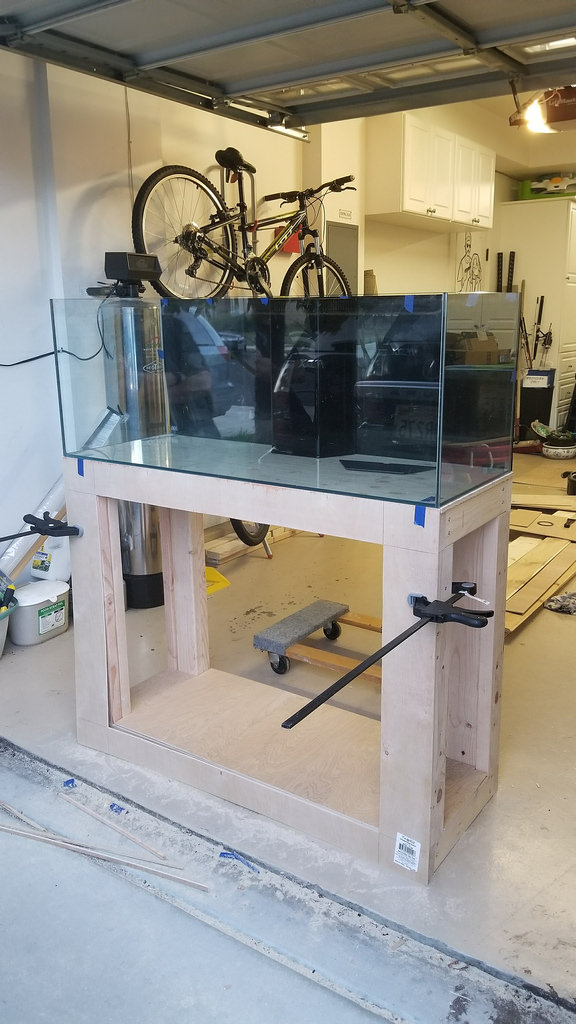

    Coming along.
    [​IMG]

    [​IMG]

    I didn't realize that some of the 2x4's could be warped so there was a gap I had to fill. I used the miter saw to slice up some thin pieces from some left over wood. Glued it up and hammered them in.

    [​IMG]

    Back to Home Depot for skin and doors. I chose a 1/4" skin and 3/4" mdf doors. Hindsight, if I were to do it all over again, I would reduced the size of the stand/2x4's and purchased a larger skin so I can incorporate the left over skin wood for doors.

    [​IMG]

    Got the top and sump flooring cut out and also test fitted the mdf doors.

    [​IMG]

    [​IMG]

    Last edited: Feb 6, 2018
    samnaz likes this.
  5. mjlash22

    mjlash22 Well-Known Member R2R Supporter Build Thread Contributor

    Joined:
    Jan 13, 2016
    Messages:
    642
    Likes Received:
    412
    Location:
    Michigan
    Looks good! Very clean stand build.

  6. illuminata

    illuminata Active Member R2R Supporter Build Thread Contributor

    Joined:
    May 21, 2017
    Messages:
    166
    Likes Received:
    96
    Thanks!

  7. illuminata

    illuminata Active Member R2R Supporter Build Thread Contributor

    Joined:
    May 21, 2017
    Messages:
    166
    Likes Received:
    96
    One of my dilemmas was what kind of overflow I wanted. External (reefsavvy/modular marine) or Internal (corner/center). I decided to go with the internal and since I find myself looking at the sides quite often I chose to go with the center.

    I remember seeing the Cadlights overflow and really liked the appearance of the trapazoid style. I did some research and found that the Versa 70 is 18" tall -- perfect! So I got in touch with them and was able to purchase the overflow and plumbing.

    Test fitting and plumbing.
    [​IMG]

    [​IMG]

    Overflow lid.
    [​IMG]

    Then the fun begins, drilling this thing. It was pretty easy but hindsight, I should have made a test run first since i've never drilled glass before. I just went for it.

    Lining things up for drill+silicone.
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Needed some drill bits so I purchased these off Amazon:
    https://www.amazon.com/gp/product/B07252J2Y7/ref=oh_aui_detailpage_o09_s00?ie=UTF8&psc=1

    And drilling begins. Since it was the first hole inside the tank, I just filled the tank up enough for a little layer of water. The second and third hole I had to have the water run since the water was being drained.
    [​IMG]

    [​IMG]

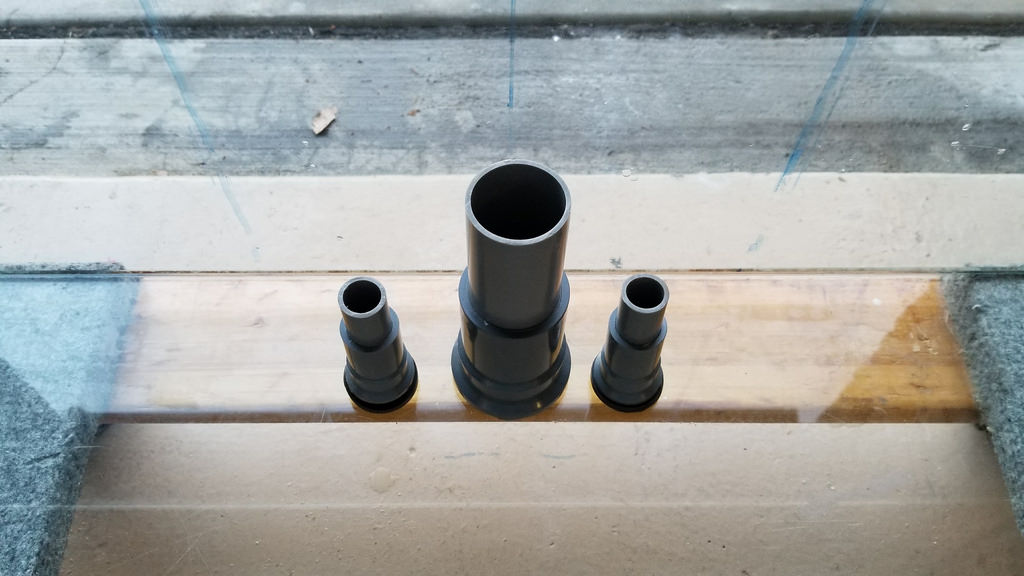

    All done. Testing the piping and overflow fitment.
    [​IMG]

    [​IMG]

    Time to put the overflow in with silicone - tape for spillage.
    Caulk gun:
    https://www.harborfreight.com/9-in-caulking-gun-62822.html
    Silicone used:
    https://www.amazon.com/gp/product/B00EZB2MDI/ref=oh_aui_search_detailpage?ie=UTF8&psc=1

    [​IMG]

    [​IMG]

    Turned out rather clean.
    [​IMG]

    [​IMG]

    Time to cure.
    [​IMG]

    [​IMG]

    [​IMG]

    Clayton Jessup and Streetdoc77 like this.
  8. mjlash22

    mjlash22 Well-Known Member R2R Supporter Build Thread Contributor

    Joined:
    Jan 13, 2016
    Messages:
    642
    Likes Received:
    412
    Location:
    Michigan
    Excellent job!

  9. illuminata

    illuminata Active Member R2R Supporter Build Thread Contributor

    Joined:
    May 21, 2017
    Messages:
    166
    Likes Received:
    96
    Fitting a black background on. Was thinking about painting but didnt know how the RMS mounts will effect the paint once clamped.

    [​IMG]

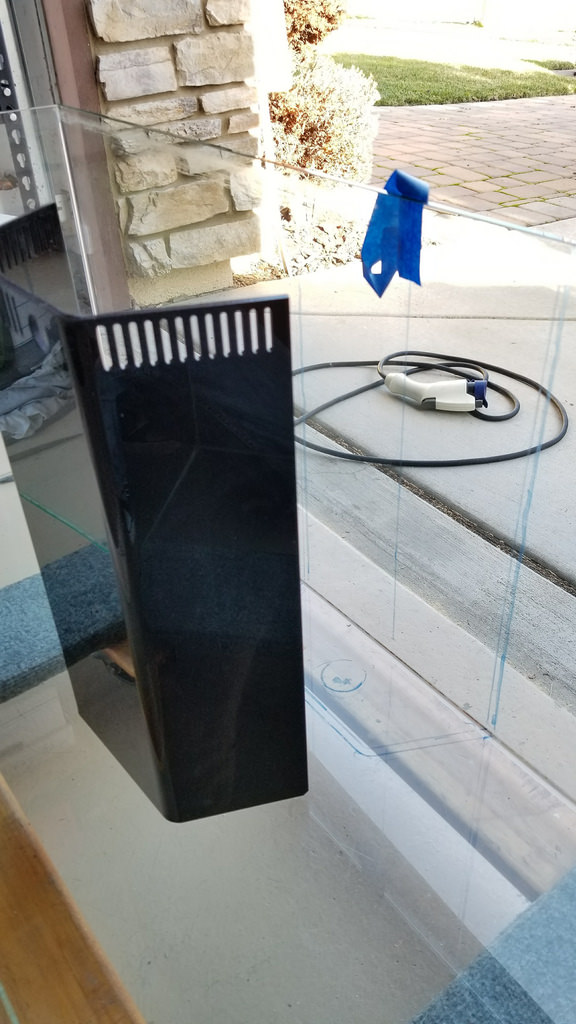

    Test fitting tank and front skin and marking cut outs for overflow.

    [​IMG]

    [​IMG]

    Streetdoc77 likes this.
  10. illuminata

    illuminata Active Member R2R Supporter Build Thread Contributor

    Joined:
    May 21, 2017
    Messages:
    166
    Likes Received:
    96
    Overflow section drilled out.

    [​IMG]

    For the skin on the back, I added some some small cutouts (for moving purposes and cords). Might add more closer to the bottom to hide cords better.

    [​IMG]

    Brynn and mjlash22 like this.
  11. illuminata

    illuminata Active Member R2R Supporter Build Thread Contributor

    Joined:
    May 21, 2017
    Messages:
    166
    Likes Received:
    96

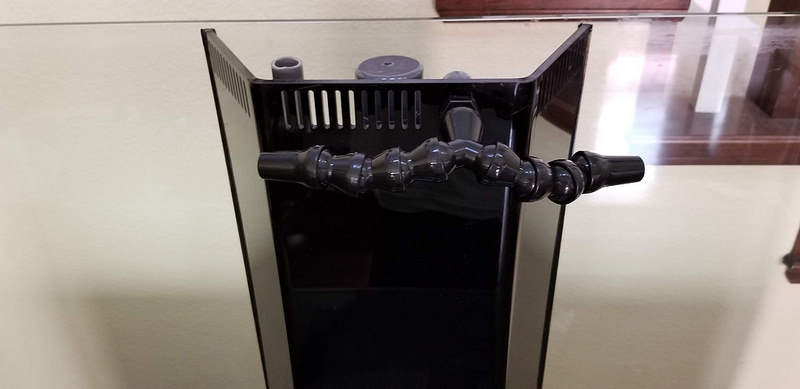

    Converted the Cadlight overflow with the single flare nozzle to dual loc lines with round nozzles..

    [​IMG]

    Ray Laneville and mjlash22 like this.
  12. illuminata

    illuminata Active Member R2R Supporter Build Thread Contributor

    Joined:
    May 21, 2017
    Messages:
    166
    Likes Received:
    96
    Made a template for the hinges. Will have 4 doors (2xfront and 2xsides)

    [​IMG]

    [​IMG]

    Front doors are in..

    [​IMG]

    Streetdoc77 likes this.
  13. illuminata

    illuminata Active Member R2R Supporter Build Thread Contributor

    Joined:
    May 21, 2017
    Messages:
    166
    Likes Received:
    96
    Quick update. All hinges are in and outer skin glued and nailed. Next steps is to prime this thing.

    [​IMG][​IMG]

    [​IMG]

  14. kodiak

    kodiak Active Member

    Joined:
    Jan 3, 2012
    Messages:
    130
    Likes Received:
    45
    Location:
    Northern California
    Cool, following along.
    I have the same tank.

  15. illuminata

    illuminata Active Member R2R Supporter Build Thread Contributor

    Joined:
    May 21, 2017
    Messages:
    166
    Likes Received:
    96
    Got some priming and sanding done. Next steps, lay some silicone I have left over in the cracks inside the stand and then spray! (semi gloss black and black fridge paint inside.. Almost there..

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  16. illuminata

    illuminata Active Member R2R Supporter Build Thread Contributor

    Joined:
    May 21, 2017
    Messages:
    166
    Likes Received:
    96
    Finally had the chance to put some paint on along with the doors. I used Black fridge paint for the interior and Semi-Gloss on the exterior. I lined up the interior gaps with black silicone (same thing I used for the overflow). By the way, I hate hinges.. Out of everything, putting the concealed hinges in must have been the most annoying part.

    Waiting for things to dry..
    [​IMG]

    A few chip marks below the door due to being to rough when lining up..
    [​IMG]

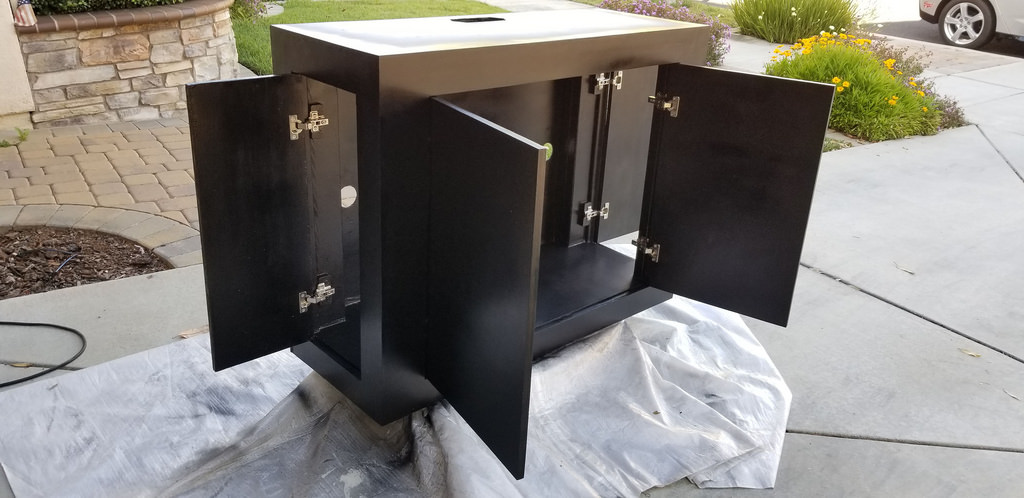

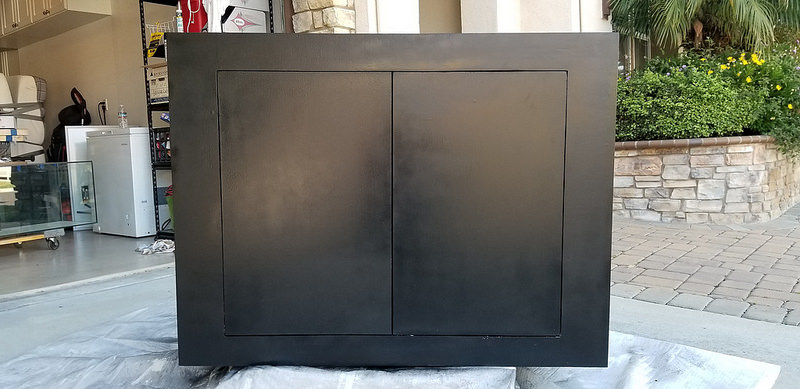

    Final product -- sort of, still need a day or two to completely dry. Did I mention I hate hinges?
    [​IMG]

  17. illuminata

    illuminata Active Member R2R Supporter Build Thread Contributor

    Joined:
    May 21, 2017
    Messages:
    166
    Likes Received:
    96
    Was able to move forward today. Added some push magnet latches to each door. Cut up the foam mat between the tank and stand and put on the piping.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    I will be hard piping this, not sure if I want to go colored or keep it sch80 grey. I picked up a sapphire 26 so dark blue might be in the works. Also got a new skimmer. My equipment actually changed quite a bit from my original post.

    [​IMG]

    samnaz likes this.
  18. samnaz

    samnaz Coral Nerd R2R Supporter R2R Excellence Award Build Thread Contributor

    Joined:
    Dec 30, 2016
    Messages:
    1,421
    Likes Received:
    1,906
    Location:
    Ann Arbor, Michigan
    Gorgeous tank.

  19. Txdragonslayer

    Txdragonslayer Well-Known Member

    Joined:
    Jul 1, 2015
    Messages:
    545
    Likes Received:
    238
    I here you on the hinges!!

    Clayton Jessup likes this.
  20. Clayton Jessup

    Clayton Jessup Valuable Member R2R Supporter R2R Excellence Award

    Joined:
    Apr 30, 2016
    Messages:
    1,418
    Likes Received:
    998
    Location:
    El Paso Tx
    The tank looks amazing I am totally following along on this build !!
