Started the sump build today. 20 long from marineland, building the sump dividers myself, all will be water level adjustable. had some left over 1/4 inch acrylic that I stated with. This will be a long thread since I'm a DIY guy. Wife still just wants a 40 gal so be it. Did not have much time today, working my day job for the next few days.

20230922_143743.jpg 20230922_143750 (1).jpg 20230922_143750.jpg 20230922_143806.jpg 20230922_143815.jpg 20230922_151715.jpg 20230922_151737.jpg 20230922_152218.jpg 20230922_152322.jpg


CasperOe

In it to win it!
View Badges
Joined
Feb 14, 2022
Messages
3,261
Reaction score
5,718
Location
Glasgow, United Kingdom
Rating - 0%
0   0   0
Sometimes that's the best way! You get it exactly the way you want- at at fraction of the price! :) And a bit of DIY is always fun..

OP
OP
ShakeyGizzard

ShakeyGizzard

RedNeck Member
View Badges
Joined
Sep 18, 2023
Messages
884
Reaction score
1,375
Location
West Central Georgia
Rating - 0%
0   0   0
will be adding 1 inch glass strips to support the acrylic dividers since as of late I have read that silicone does not hold very well. will post pics when I get to that. The sump will have the following:

-Theiling Compact Rollermat
-AquaMaxx WS-1 In-Sump Protein Skimmer (for a 40 gal)
- 2 for redundancy, Sicce Syncra Silent 1.5 Pump
- 2 for redundancy, 200W Titanium Aquarium Heater W/ Helio Controller
-Chaetomorpha Algae
- 3 Copepod Species (5280)
- still looking at fuge lights

OP
OP
ShakeyGizzard

ShakeyGizzard

RedNeck Member
View Badges
Joined
Sep 18, 2023
Messages
884
Reaction score
1,375
Location
West Central Georgia
Rating - 0%
0   0   0
Todays pics are just getting divider size set. no slots for water flow cut yet, but its easy if you have the equipment on hand. I do cabinet door and other woodworking on the side. the stand build will be included. this will be a long thread.

OP
OP
ShakeyGizzard

ShakeyGizzard

RedNeck Member
View Badges
Joined
Sep 18, 2023
Messages
884
Reaction score
1,375
Location
West Central Georgia
Rating - 0%
0   0   0
Cut and slotted the sump baffles. used my router table for this. Had to improvise the table fence to accommodate the large distances. Will wait till the sump equipment get here before putting the bubble trap together, this will allow me to adjust the size as needed. short video below


OP
OP
ShakeyGizzard

ShakeyGizzard

RedNeck Member
View Badges
Joined
Sep 18, 2023
Messages
884
Reaction score
1,375
Location
West Central Georgia
Rating - 0%
0   0   0
Framed up the stand today, picking up some quality hard wood plywood tomorrow to close it in. frame pics and a pic of what I'm duplicating look wise except the design on the footing in the front.

20231014_124414.jpg 20231014_173425.jpg 20231014_173540.jpg

Last edited:
OP
OP
ShakeyGizzard

ShakeyGizzard

RedNeck Member
View Badges
Joined
Sep 18, 2023
Messages
884
Reaction score
1,375
Location
West Central Georgia
Rating - 0%
0   0   0
Almost done with the stand, wood working is my hobby also. Made up the shaker style doors today, did impact the removal of the 20L sump if needed by requiring one door removal. Some sanding needed on the doors and painting. Already drilled the 40 breeder for the Eshopps small (600GPH) have not done the return bulkhead yet. I don't think you all need bored with the tank drilling since there is gobs of it out there. After painting I will show in detail my plumbing, since some my find it helpful.
20231019_130250 (1) - Copy.jpg
20231019_174727 - Copy.jpg
20231019_174742 - Copy.jpg
20231019_174749 - Copy.jpg
20231019_174749.jpg 20231019_174800 - Copy.jpg 20231019_174800.jpg

OP
OP
ShakeyGizzard

ShakeyGizzard

RedNeck Member
View Badges
Joined
Sep 18, 2023
Messages
884
Reaction score
1,375
Location
West Central Georgia
Rating - 0%
0   0   0
Holidays and some side work has put me way behind on the tank build, but did get the sump put together, plumbing is done but removed in the picture. Bubble magus gen. 2 filter roller, Bubble Magus Extreme Curve 3 skimmer, Sicce return pump. Fuge light is a Finnex , still have not decided to use this or spend on another one. The tank baffle install shows glass strips I added for support on the baffles. I heard that the finnex light is made by tunze, don't know if its true or not.

20240102_191557 (1).jpg
20240102_191535 (1).jpg

OP
OP
ShakeyGizzard

ShakeyGizzard

RedNeck Member
View Badges
Joined
Sep 18, 2023
Messages
884
Reaction score
1,375
Location
West Central Georgia
Rating - 0%
0   0   0
Been slow going, actually building a stand for someone right now, and my build is basically on hold. Thought I would up date my component list anyway

- 40g breeder
- custom DIY stand
- Eshopps 600 gph overflow
- 20g long for sump with DIY baffles
- Bubble Magus small gen. 2 filter roller
- Bubble Magus extreme curve 3 skimmer
- Sicce 3.0 return pump
- Finnex 20w fuge light
- Nicrew Hyper Reef 100w with controller lights (2)
- Current USA eFlux duel wave pumps (6014)
- DIY poly carbonate screen top
- Inkbird ITC-306a with 2 50w BRS Titanium Heater Element

Work in progress
- DIY ATO , with float switch in reservoir to disable pump when empty


Last edited:
OP
OP
ShakeyGizzard

ShakeyGizzard

RedNeck Member
View Badges
Joined
Sep 18, 2023
Messages
884
Reaction score
1,375
Location
West Central Georgia
Rating - 0%
0   0   0

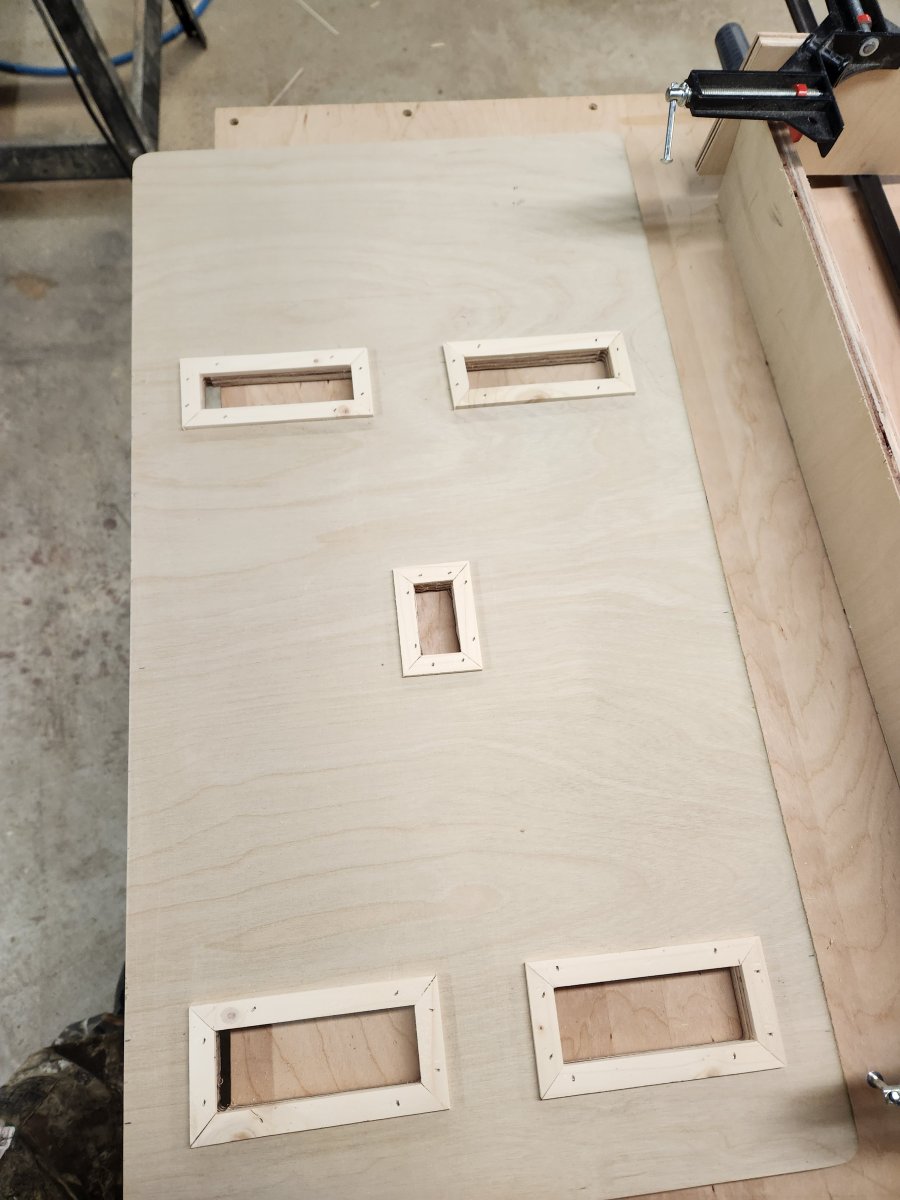

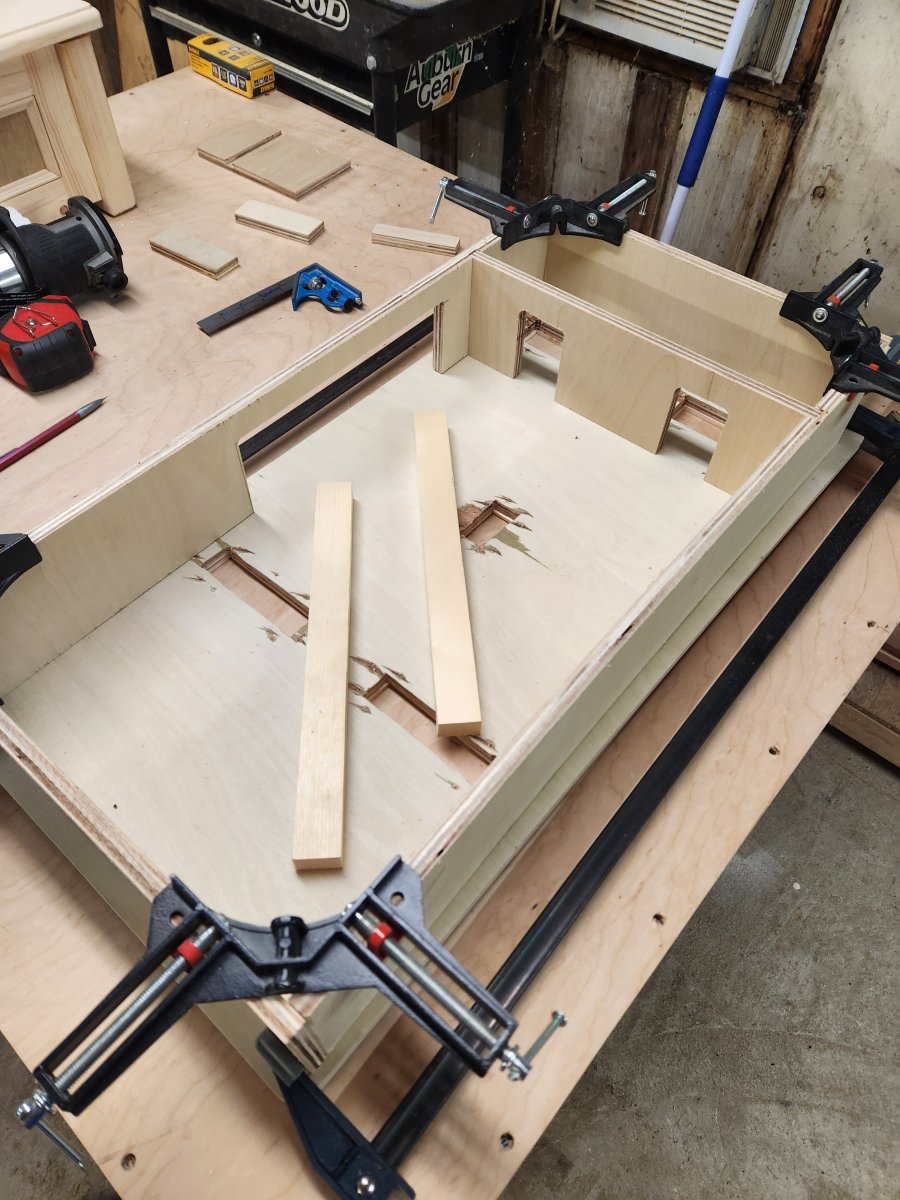

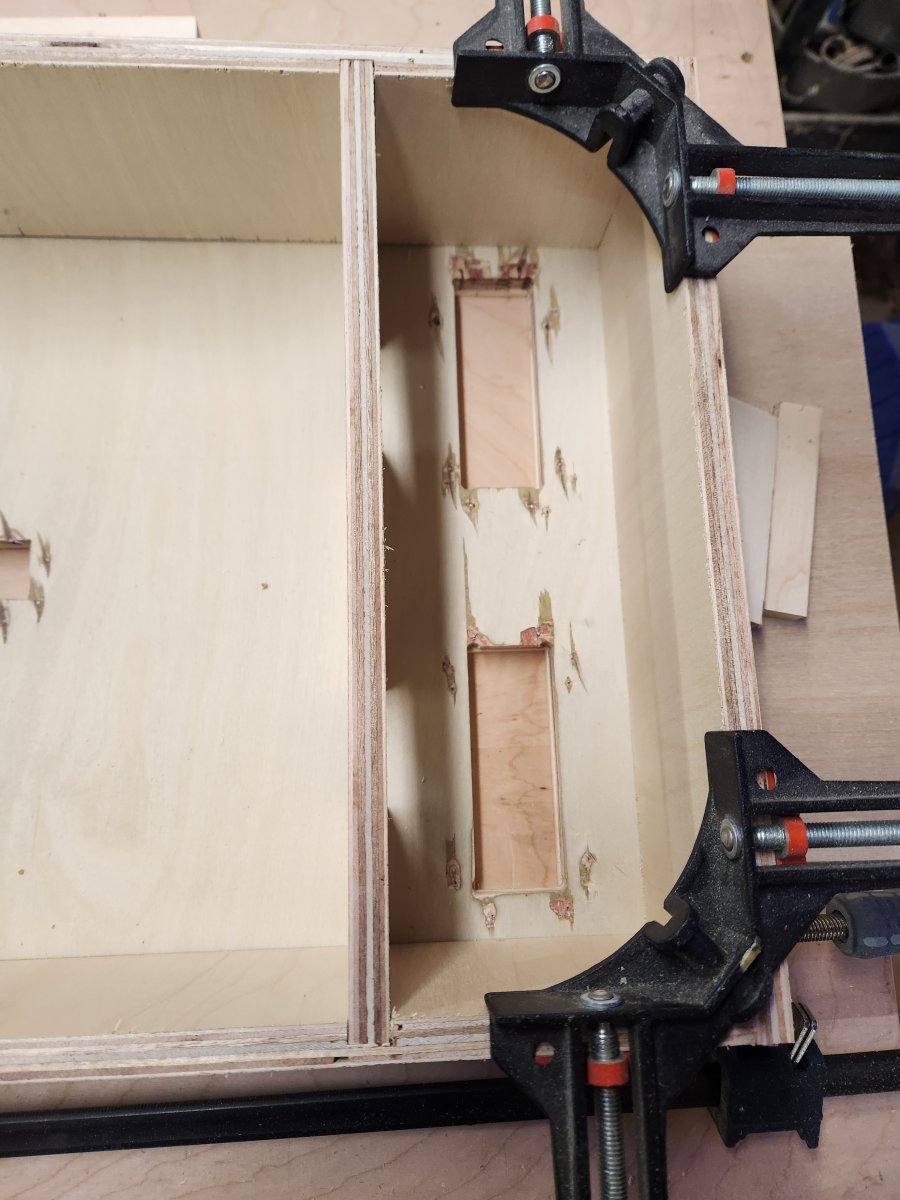

Building up a controller panel. Will house all the power bricks also. No apex planned for this one, but it can be easily removed. Decided to paint to match stand, DIY trim around cable openings . should blend in nicely when done. No screws will be visible when done. Will note, the pic shows a shelf inside for the power bricks. Have room for about 6 or seven controllers. should be plenty of room.


pic 1.jpg
pic 3.jpg
pic 4.jpg
