Decided to give my try at a custom tank. Went through a lot of different things to try and come up with something that is bigger but still manageable. This is a thread about things I learn along the way as well do's and dont's. So to start i did so research to select the glass that i was wanting to use and come up with a theme to it that would be unique to my build.
That theme was going to be a tinted side and back glass grey with a clear viewer front panel which should help with the light creep from sides and a true black back when applying the back paint. Next post will show the glass selection process as well as design and cuts.

Fragtacular After Sale
OP
N1tew0lf1212

N1tew0lf1212

Valuable Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 9, 2022
Messages
1,015
Reaction score
4,088
Review score
+0 /0 /-0
Location
Loveland
So was trying to come up with a good design that will help when sealing the tank. Decided to do a channel slot groove on the base glass with two seperate pieces that would be sealed together. Once creating the design the glass needed to be cut and thats when the theme all came together.


Attachments

  • image2022-07-03 20-41-56-435138.jpg
    image2022-07-03 20-41-56-435138.jpg
    71.3 KB · Views: 29
  • image2022-07-03 20-44-31-877245.jpg
    image2022-07-03 20-44-31-877245.jpg
    66.2 KB · Views: 31
OP
N1tew0lf1212

N1tew0lf1212

Valuable Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 9, 2022
Messages
1,015
Reaction score
4,088
Review score
+0 /0 /-0
Location
Loveland

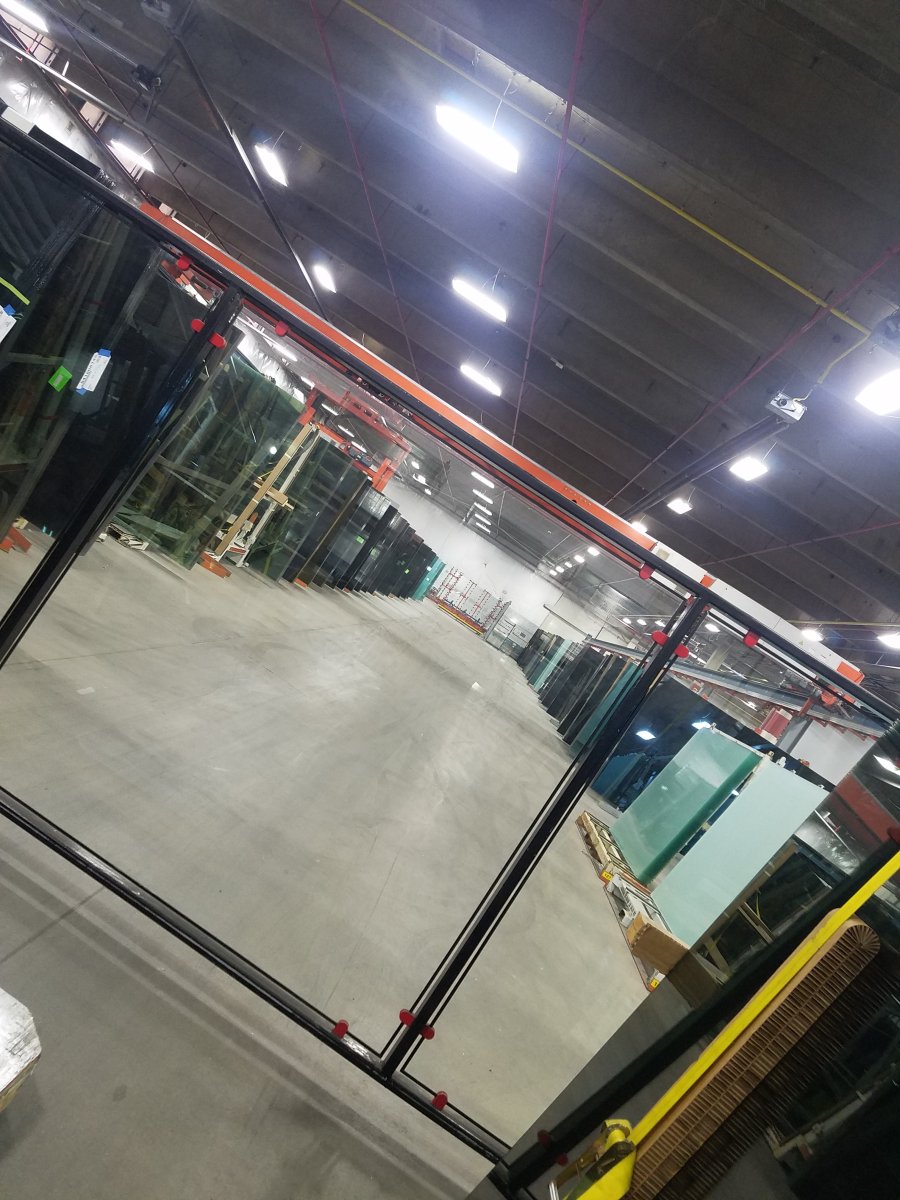

This post is all about my team of guys helping me get the right glass for my needs bottom front and sides are all tempered glass for the durability and strength. Back piece is annealed for now til the holes are drilled for the over flow box. Then it will be tempered as well. When selecting the glass i wanted something unique to just my tank thats when the grey and clear viewer came into play.


Attachments

  • 20220613_200040.jpg
    194.1 KB · Views: 28
  • 20220702_200931.jpg
    174.7 KB · Views: 25
  • 20220702_200847.jpg
    143.2 KB · Views: 24
  • 20220702_200827.jpg
    154.7 KB · Views: 25
OP
N1tew0lf1212

N1tew0lf1212

Valuable Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 9, 2022
Messages
1,015
Reaction score
4,088
Review score
+0 /0 /-0
Location
Loveland
Next was doing a dry set to see how everything came together and looked. Once the dry set was complete everything started becoming a reality and thats when things started to come together. It was at this moment i knew there was no coming back. The ATO was to be built first and set. This next part was trial and error.


Attachments

  • 20220704_210526.jpg
    160.3 KB · Views: 25
  • 20220704_210517.jpg
    154.9 KB · Views: 29
OP
N1tew0lf1212

N1tew0lf1212

Valuable Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 9, 2022
Messages
1,015
Reaction score
4,088
Review score
+0 /0 /-0
Location
Loveland
I did not do a dry set for the ato which in the end I wish I would have. I got all the tape in place with what i thought would be a good edging for the silicone. I will admit first time doing it and was i wrong. I did not have the tape placed wide enough so when I siliconed in place the tape pulled at the freshly laid silicone. This is why i recommend doing a dry set to get the tape where it needs to be in order to not pull the silicone seal. Ended up free handing the seal which i will admit was a challenge. And didnt turn out as I had hoped. I will be redoing the interior seal on the ato the correct way.


Attachments

  • 20220709_140147.jpg
    107.3 KB · Views: 25
  • 20220709_140151.jpg
    171.2 KB · Views: 23
  • 20220709_140142.jpg
    179.2 KB · Views: 27
OP
N1tew0lf1212

N1tew0lf1212

Valuable Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 9, 2022
Messages
1,015
Reaction score
4,088
Review score
+0 /0 /-0
Location
Loveland
Here is the ato so far and am proud but disappointed in myself about rushing and not taking into consideration the thickness of the glass when taping for the interior seal. Needless to say i will redo the interior and then be able to do the bigger tank without any flaws or issues this was the first ever attempt at doing this and i have learned a lot. For everyone wondering and going to ask how gard it was. I will admit some things were difficult and some things were easy. But moving forward I feel really confident in my ability to do it. Everything for the ato has turned out decent but ocd sucks lol. So i will continue to add to this post as things get done with more things on what i realized and found out.


Attachments

  • 20220709_144121.jpg
    180.8 KB · Views: 25
  • 20220709_144109.jpg
    213.9 KB · Views: 31
Tidal Gardens
Tidal Gardens

NowGlazeIT

Happy to help, Ask away.
Review score
+0 /0 /-0
View Badges
Joined
Oct 28, 2017
Messages
6,114
Reaction score
11,375
Review score
+0 /0 /-0
Location
Coachella Valley
The ato has a 22x20x20 spec. With a total of 39.5 gal when filled to 20 inches.
Very nice :drooling-face:
What’s the thickness of glass on her? Did you silicone the edge and then squish the glass up against or did you leave a gap and inject the cone through?

OP
N1tew0lf1212

N1tew0lf1212

Valuable Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 9, 2022
Messages
1,015
Reaction score
4,088
Review score
+0 /0 /-0
Location
Loveland
Very nice :drooling-face:
What’s the thickness of glass on her? Did you silicone the edge and then squish the glass up against or did you leave a gap and inject the cone through?
Its a 6mm glass with the squish sequence that was a hard part if you squish to much there is no silicone so you gotta be soft and sweet. I was wanting to do an injection but some of the clamps to do it with are a pretty penny. After the silicone sets up it is a good thing to add tape to press the joints a little more to get a good seal.
