You use the AdvWavemaker with the Archon ports I belive. I have not used the wavemaker functions since I have Vortech pumps. I think Lindsey has done this. He may even have a video on here for setting this up.
Follow along with the video below to see how to install our site as a web app on your home screen.
Note: This feature may not be available in some browsers.
When I set mine up I had to play around with it a little bit to figure out which channel it was onI just plugged the pumps back into the jebao controller for tonight as I have no more time to mess with this now. Thank you for helping me out so much. Ill do a search for those videos this weekend.

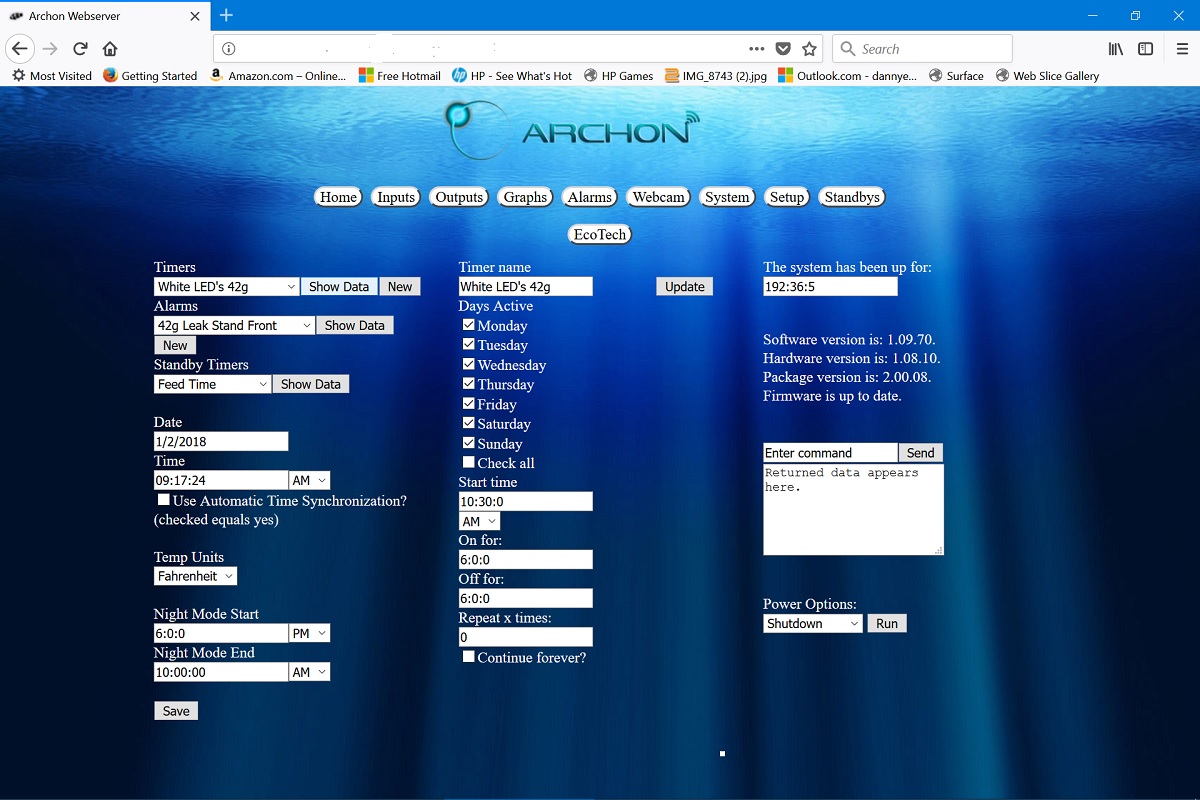

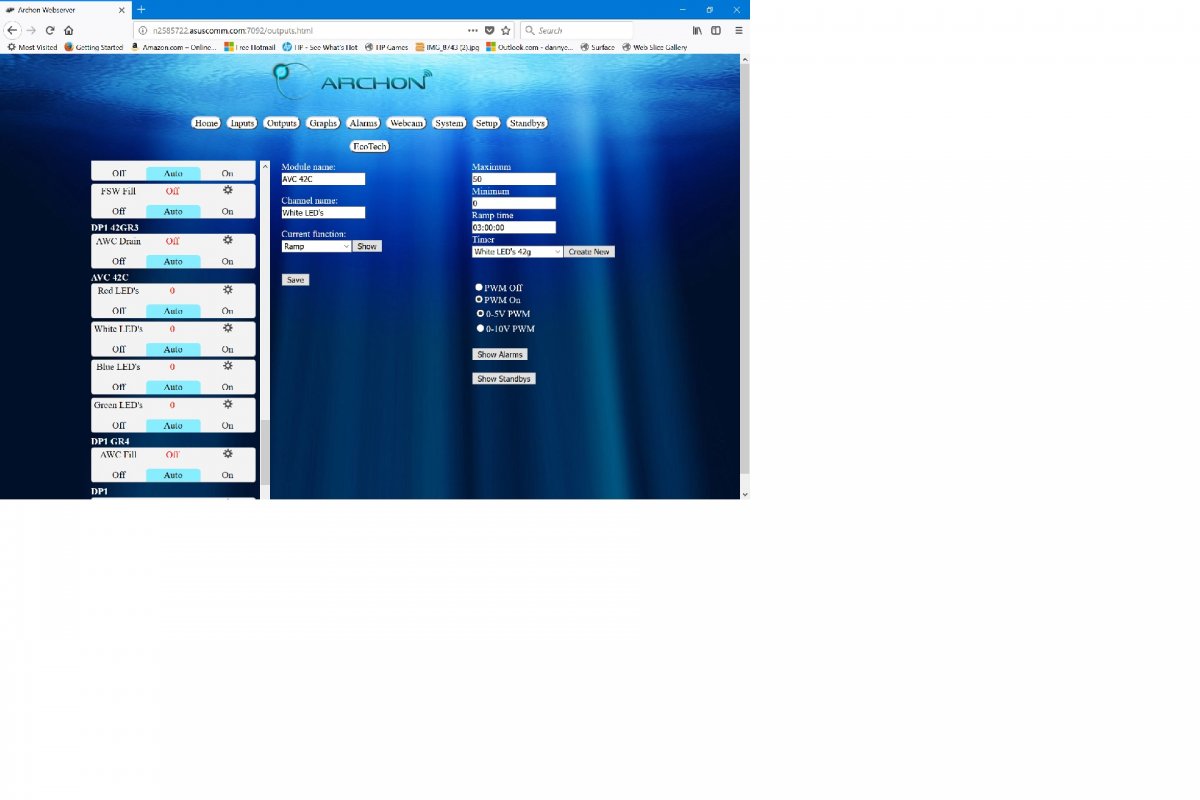

See images below. The wp25 is on the apc. Wp10 is on archon.For Jebao pumps, use advanced wavemaker when plugged into the archon. Use apc wavemaker when used with the apc. You can also control a DC return pump using the ramp function. Just use the standard 0-10v ports for them. Be sure your pump.power is put on both sides of the dci.
For Jebao pumps, use advanced wavemaker when plugged into the archon. Use apc wavemaker when used with the apc. You can also control a DC return pump using the ramp function. Just use the standard 0-10v ports for them. Be sure your pump.power is put on both sides of the dci.
You are right that the manual is sketchy at best. But there are great resources here that can answer your questions. I found a great reference for me was Danny’s build page. He does a great job of explaining the setup of the system. Maybe he could post a link to his thread. I’m not that savvy on how this is done from the iPhone. You can also do a search for his thread too.
In my 16 years in the hobby I have learned that for the most part refers stick together and always willing to help out someone else in the hobby.
