I need a timer to run for a few seconds. The only option I can see is for minutes. Is there a work around?

Thanks

David


Lasse

10K Club member
View Badges
Joined
Mar 20, 2016
Messages
12,722
Reaction score
31,438
Location
Källarliden 14 D Bohus, Sweden
Rating - 0%
0   0   0








Sincerely Lasse

OP
OP
Harpo

Harpo

Coral Junkie
View Badges
Joined
Jan 7, 2009
Messages
1,073
Reaction score
401
Location
Royal Oak, Mi
Rating - 100%
5   0   0
Is there a limit to how many timer events are allowed? It seems to only allow me 8 events (every 3 hours. Ideally, I would like to advance every 2 hours (12 events)


KStatefan

5000 Club Member
View Badges
Joined
Jun 24, 2015
Messages
5,593
Reaction score
5,018
Location
MHK
Rating - 0%
0   0   0
I think that is correct but you could combine two timers with the logic controls.
If you want to have something cyclical i am sure there is a way to do that but I have not used anything like that. Have you looked at the knowledge base?

OP
OP
Harpo

Harpo

Coral Junkie
View Badges
Joined
Jan 7, 2009
Messages
1,073
Reaction score
401
Location
Royal Oak, Mi
Rating - 100%
5   0   0
I have been to the GHL forum but could not find anything but I will inquire with them.


KStatefan

5000 Club Member
View Badges
Joined
Jun 24, 2015
Messages
5,593
Reaction score
5,018
Location
MHK
Rating - 0%
0   0   0

Lasse

10K Club member
View Badges
Joined
Mar 20, 2016
Messages
12,722
Reaction score
31,438
Location
Källarliden 14 D Bohus, Sweden
Rating - 0%
0   0   0

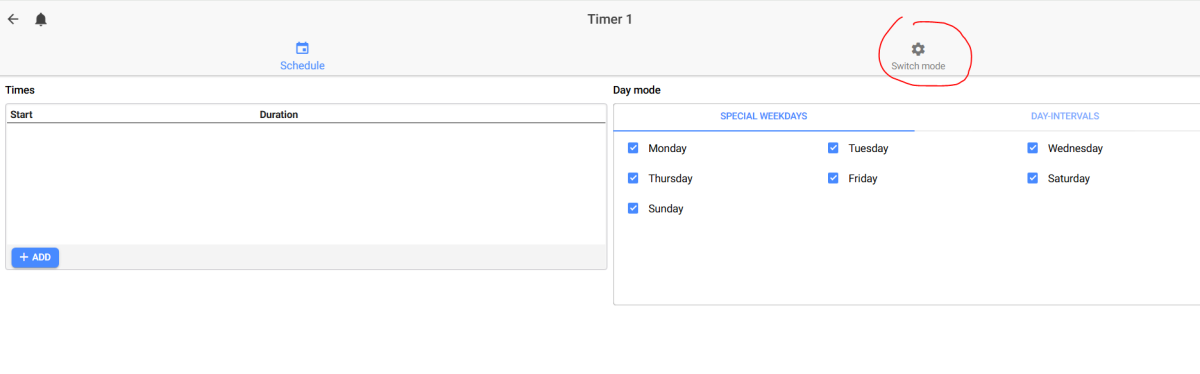

There is several options here

We start with the cyclic option






The sum should aleways be 7200 s = 2H. If you want 2 sec in - it will be 7198 and 2. When you enter your figures - always begin with the max value otherwise the web interface will reset the min when you add the max. Be aware of this. You can´t set start time but if you change the figures and save it - it starts with the on function.

2 You make 2 timers that together give max 16 on events - the first for AM and the other for PM - timer 1 AM and timer 2 PM and do a PL function like this



You knit this PL 1 to the outlet you want to run



If you want 8 more events - just make a new timer and make PL2 as PL1 OR timer 3 and knit this PL2 to the outlet
You can stack up to 8 different commands

However my most beautiful solution that also give you a possibility to record your activities is to create a virtual dose program. I use dos 32 in this example. I use rhe client-server program because you have a better view in this program. But you can do ut in the web interface too. Set calibration to 60 ml/min -> 1ml/min Record dosing - v. Set 12 times a day - 1 ml (read 1 sec . 2 ml is 2 sec and so on) Set a fix start time every day



You knit this "virtual" doser 32 to your outlet

The problem with GHL os not that you can´t do it - the problem is that there is several ways to do it. If you want to do it at special times - you can use 24 individual events with a dose pump. If you need more - just combine 2 or more "virtual pumps" the same way as above

Sincerely Lasse

OP
OP
Harpo

Harpo

Coral Junkie
View Badges
Joined
Jan 7, 2009
Messages
1,073
Reaction score
401
Location
Royal Oak, Mi
Rating - 100%
5   0   0
Thanks for taking the time to put together such a detailed explanation. Will this repeat every 2 hours?


Lasse

10K Club member
View Badges
Joined
Mar 20, 2016
Messages
12,722
Reaction score
31,438
Location
Källarliden 14 D Bohus, Sweden
Rating - 0%
0   0   0
It will run for 1 sec - stop and wait for 7199 sec. 7199 +1
= 7200 sec = 120 min = 2 h. Yes it will run 1 sec every second hour.

Sincerely Lasse
