Hi all,

I have a P3 setup with 2 power bars currently.

1 is PAB - assigned sockets 15-20


The other is a 6 point setup on port S1-4 - assigned sockets 9-14

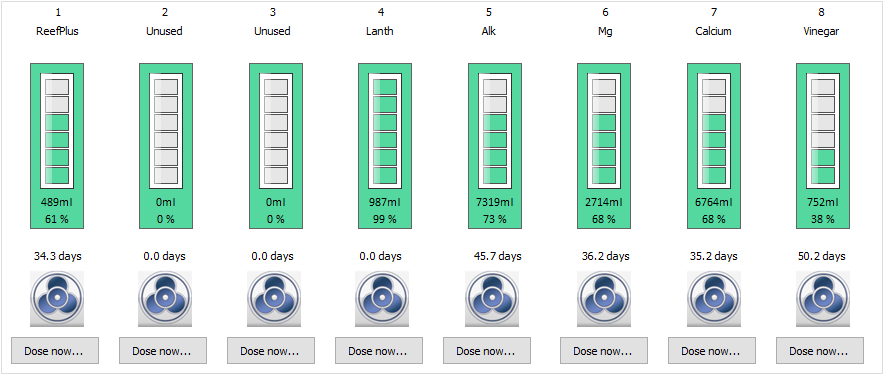

I also have an old doser connected via S5-8 - these are assigned to Dosing pumps 1-4 (but activating these pumps also "switches" sockets 5-8 (which don't physically exist) so I just leave them unassigned). I also have a doser 2 using PAB assigned to Dosing pumps 5-8 (see below)




Recently I picked up another 6point PAB powerboard - I believe it was previously assigned to switches 1-6 (it had stickers on it). Plugging into the PAB network the comms light comes on HOWEVER I cannot find it in the "Assign Devices under PAB. Furthermore when I "dose" pumps 1-4 it activates sockets 1-4 on the new powerboard.

Any idea how to "reset" the configuration of the PAB powerboard without resetting the entire PAB bus (or will resetting the entire PAB system even work?) Once I see the new powerboard I'll assign it to sockets 21-26

Thanks in advance

OP
OP
M

Macca_75

Active Member
View Badges
Joined
Jan 31, 2019
Messages
371
Reaction score
167
Rating - 0%
0   0   0
Oh - and if it matters this is the "switchable powerbars" for digitial powerbar setting.



kilnakorr

Well-Known Member
View Badges
Joined
Nov 4, 2020
Messages
943
Reaction score
585
Location
Denmark
Rating - 0%
0   0   0
First of, you need to make sure connection is right (no closed loop etc.).
It has to show up in the device section before you can set the socket/switch channel numbering.


Lasse

10K Club member
View Badges
Joined
Mar 20, 2016
Messages
11,050
Reaction score
30,261
Location
Källarliden 14 D Bohus, Sweden
Rating - 0%
0   0   0
How do you connect the new Power bar? Test different PAB ports. You need it to be shown in the assign list. If doser 1 (connected to S5 in your configuration) activate S1 on the PB - it probably are configured as S5-S10.

In one or another way - it must be assigned before you change the numbering. Use GCC its more stable - IMO.

In worst case - you do not see it on the assign list - you can test to force a FW update. Before you do that - all other PAB devices must be de- assigned

Sincerely Lasse

OP
OP
M

Macca_75

Active Member
View Badges
Joined
Jan 31, 2019
Messages
371
Reaction score
167
Rating - 0%
0   0   0
How do you connect the new Power bar? Test different PAB ports. You need it to be shown in the assign list. If doser 1 (connected to S5 in your configuration) activate S1 on the PB - it probably are configured as S5-S10.

In one or another way - it must be assigned before you change the numbering. Use GCC its more stable - IMO.

In worst case - you do not see it on the assign list - you can test to force a FW update. Before you do that - all other PAB devices must be de- assigned

Sincerely Lasse
Thats what I was afraid of - the system is so stable. Sounds like I need to take a back up, unplug all PAB (and S1-4/S5-8 devices) and just plug the 1 new to the system powerbar in.

It's not showing up on the assigned list unfortunately.
