Hamada
Active Member
So i want a way to mount my lights from the wall not the ceiling, there is no studs where i want to hang my light from and what bracket should i use, im ok with a solid diy mount or a ready to go one. Any help is appreciated.
How to mount Hydra 32hd from the wall
- Thread starter Hamada
- Start date
- Tagged users None
The Aquatic Arsenal
2500 Club Member
So I would recommend screwing at least a 1x4 piece of wood into the studs on both sides of tour setup. From there I would suggest buying the biggest shelf bracket that you can and try to figure out a way to mount the light from there. The only other way would to make some legs for it and set it on the ends of your tank. Probably the best way.
ADAM
@AK_Reefs on Instagram
TV/ Monitor Wall Mount. Had 2 26hd on these type for years. Used corner braces from Lowes/Home Depot to mount light to bracket, then pull the TV connector off and buy a longer bolt that will pass thru the corner braces up thru the hole left from the TV connector bolt. Looking at the mounts available on Amazon you can find many options for how far off the wall it will extend. Using “butterfly” bolts to mount the bracket will work well for non-stud areas.

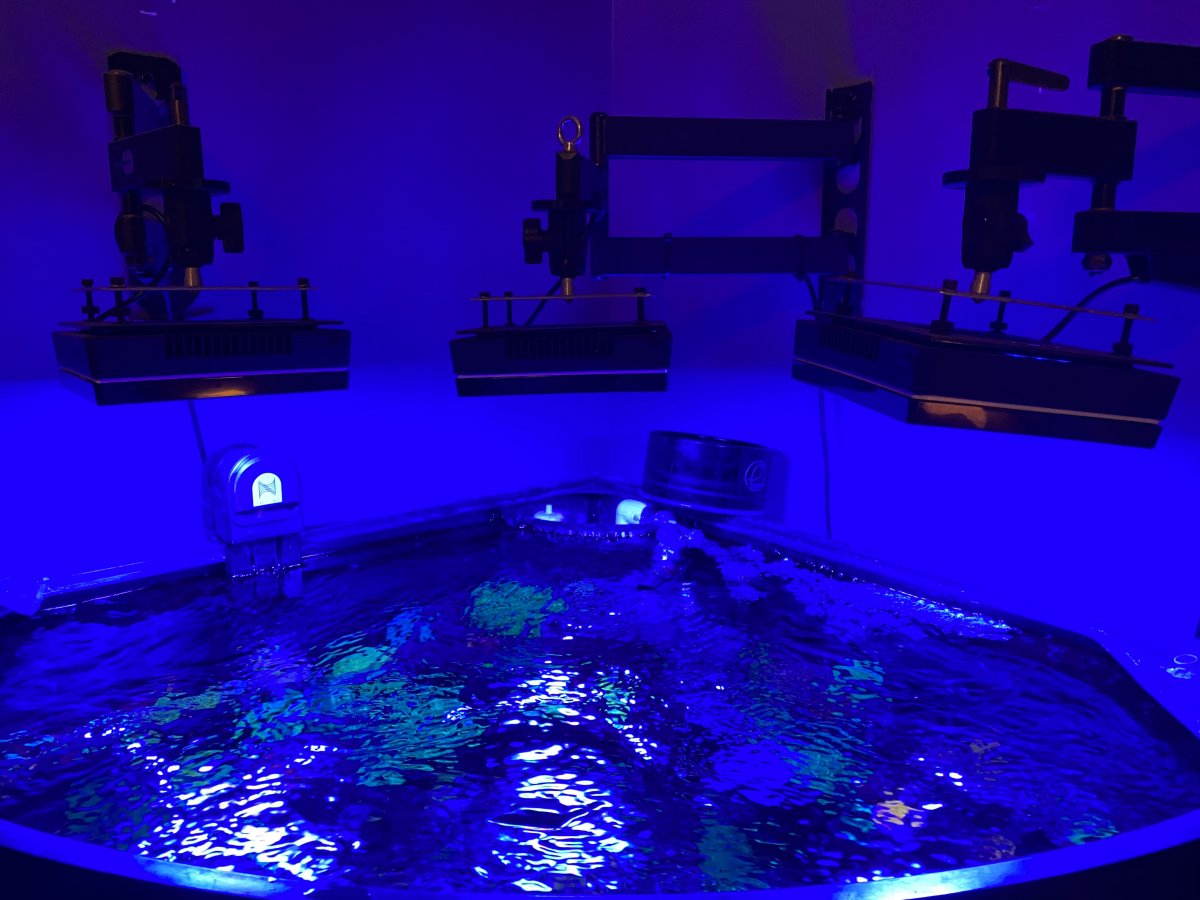

Pic shown with Radion XR15s and articulating mount from https://aquariumledmounts.com/
Pic shown with Radion XR15s and articulating mount from https://aquariumledmounts.com/
DesertReefT4r
Valuable Member
- Joined
- Mar 25, 2018
- Messages
- 2,457
- Reaction score
- 2,192

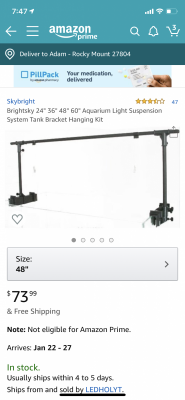

I used the AI hanging kits to mount mine from the ceiling, no studs needed.
TV/ Monitor Wall Mount. Had 2 26hd on these type for years. Used corner braces from Lowes/Home Depot to mount light to bracket, then pull the TV connector off and buy a longer bolt that will pass thru the corner braces up thru the hole left from the TV connector bolt. Looking at the mounts available on Amazon you can find many options for how far off the wall it will extend. Using “butterfly” bolts to mount the bracket will work well for non-stud areas.
Pic shown with Radion XR15s and articulating mount from https://aquariumledmounts.com/
When u say longer bolt to pass thru the corner brasses what are u referring too I have a mout like this one an I was going to get the other peace u suggest but when u take the tv bracket part oof it leaves the aa hole is th that were u put the longer bolt t to connect to the pivot head thing u reference too. I have hd 64
ADAM
@AK_Reefs on Instagram
On the area where the VESA adapter was mounted is where you will pass the bolt thru from your fixture bracket to secure. If the attachment device on your fixture does not have a singular hole to use for this bolt to pass thru then DIY’ing one is fairly easy. I’ll look thru my older pics and show how a couple corner braces from any big box store’s hardware section can accomplish this easily.
ADAM
@AK_Reefs on Instagram
@Aswswild found one pretty quickly! Note that if the included screws for the AI fixture are not long enough to pass thru the corner brace and thread into the fixture properly, you can find the specs on the screws from the manufacturer website or included documents and purchase some that a fractionally longer to make up for the bracket thickness. Being owned/ partners with Ecotech I imagine the new 32/64 fixtures probably use M5-.80 since buying and organizing one size screw is easier than ordering two sizes. I had to lengthen the attachment screws to add ventilation air space between my articulating plate mounts and fixtures, Lowes had a multitude of length options and head styles available in store.
*In the pic the silver part btwn the fixture and tv mount are the corner braces. You will also need appropriately sized nuts and bolts to secure the braces to each other. I would get additional washers to use for spacers to help aid in lining up the holes at the top crossing.
*In the pic the silver part btwn the fixture and tv mount are the corner braces. You will also need appropriately sized nuts and bolts to secure the braces to each other. I would get additional washers to use for spacers to help aid in lining up the holes at the top crossing.
I built a simple mount with 3/8" copper and a more robust one out of 1/2" when i replaced my hydra 26s with 52s.
Screws to the wall with ez anchors and copper pipe straps. The most difficult part is drilling holes straight for the lights. And then having to cut the heads off screws to make threaded rods to be able to mount the light from the bottom. But i feel its the cleanest look of any mounts besides factory.
Ps the materials are less than $20 if you already have a basic soldering kit. You might even be able to get by epoxying the pieces together since their non pressurized.
I clear coated the whole thing so theres no chance of copper contamination.
Screws to the wall with ez anchors and copper pipe straps. The most difficult part is drilling holes straight for the lights. And then having to cut the heads off screws to make threaded rods to be able to mount the light from the bottom. But i feel its the cleanest look of any mounts besides factory.
Ps the materials are less than $20 if you already have a basic soldering kit. You might even be able to get by epoxying the pieces together since their non pressurized.
I clear coated the whole thing so theres no chance of copper contamination.
ADAM
@AK_Reefs on Instagram
LOVE THE COPPER! Working in the HVAC industry I dont know why I didn't think of something similar
TY!
Im a building engineer by trade, my first diy mount around 7 years ago was bent EMT conduit. It worked great.
You can see it here before i refreshed this tank.
Before that i used a kessil gooseneck and hung my AI nano from it without issue.
Ok I got it now with ur pic thanks so much@Aswswild found one pretty quickly! Note that if the included screws for the AI fixture are not long enough to pass thru the corner brace and thread into the fixture properly, you can find the specs on the screws from the manufacturer website or included documents and purchase some that a fractionally longer to make up for the bracket thickness. Being owned/ partners with Ecotech I imagine the new 32/64 fixtures probably use M5-.80 since buying and organizing one size screw is easier than ordering two sizes. I had to lengthen the attachment screws to add ventilation air space between my articulating plate mounts and fixtures, Lowes had a multitude of length options and head styles available in store.
*In the pic the silver part btwn the fixture and tv mount are the corner braces. You will also need appropriately sized nuts and bolts to secure the braces to each other. I would get additional washers to use for spacers to help aid in lining up the holes at the top crossing.
Man that’s high from the water do u think it looks better from that high mine is like 5 in high off waterTY!
Im a building engineer by trade, my first diy mount around 7 years ago was bent EMT conduit. It worked great.
You can see it here before i refreshed this tank.
Before that i used a kessil gooseneck and hung my AI nano from it without issue.
Mine is placed based on lighting spread and PAR. I keep zoas at the top of my tank around the outside on racks and the light spread reaches them perfectly.
Honestly 5" off the water for any fixture is way too close. But if its what you specifically want....who am I. Lol.
Keep in mind its two hydra 52s on a 40 breeder tank lol. The wattage is dialed waaaaaaaaay down.
No o it’s what I kept my CBB at an just kept it like that when I did my par reading I am wondering if I will get better color if I move it higher up. An I made a homemade canopy to block the spill out light
