Lighting.....

Discussion in 'Battlecorals' started by SPotter, Oct 4, 2016.

  1. wopadobop

    wopadobop Active Member

    Joined:
    Sep 12, 2017
    Messages:
    146
    Likes Received:
    98

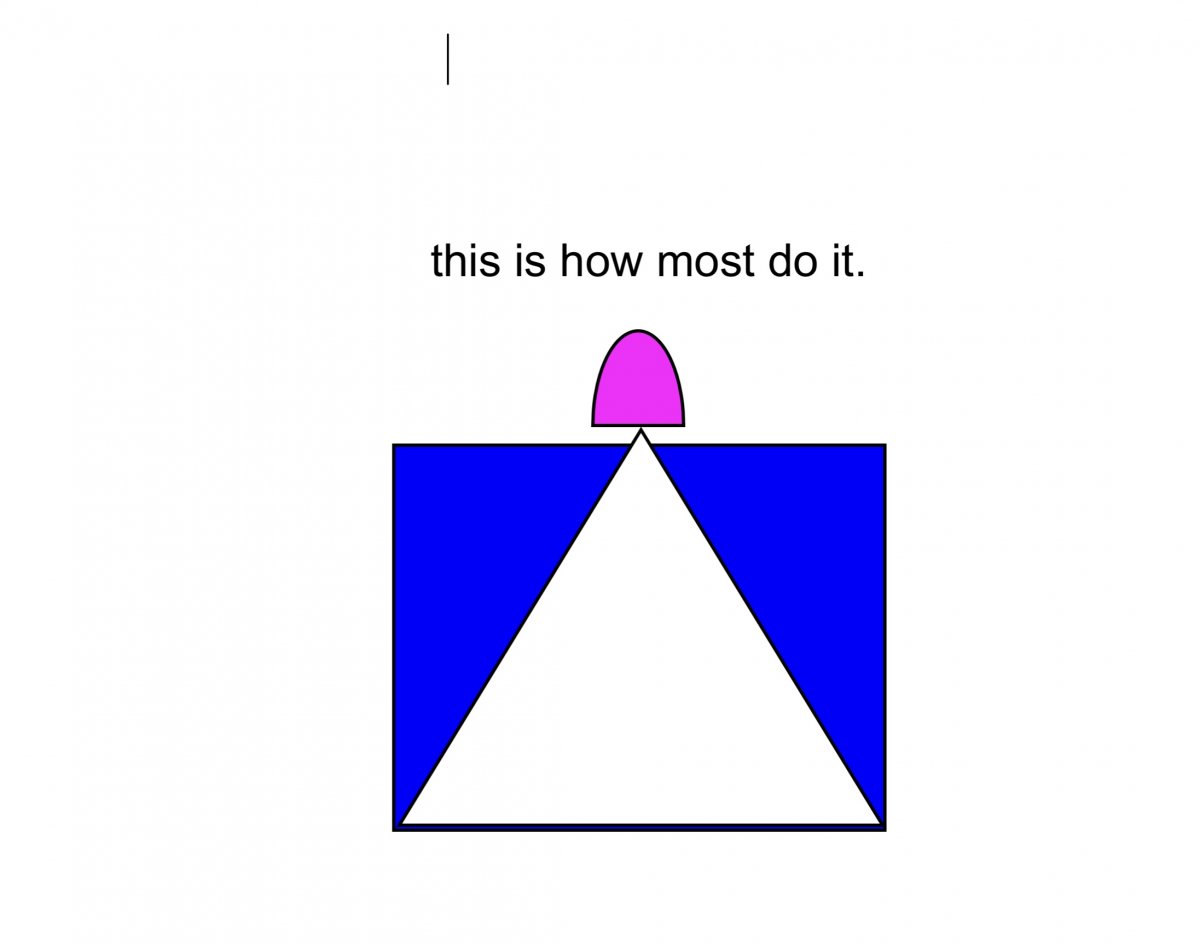

    To represent that graphically
    B0F12D00-CB5D-4EB7-9E72-89A96BBB3A81.jpeg DD7FE8B8-DB35-48BA-8901-AEB414077B81.jpeg

    Sebae, cpschult, billw and 4 others like this.

  2. saltyfilmfolks

    saltyfilmfolks Lights! Camera! Reef! R2R Supporter R2R Excellence Award Reef Squad Leader Photo of the Month Award Build Thread Contributor

    Joined:
    Feb 25, 2014
    Messages:
    24,741
    Likes Received:
    25,063
    Location:
    California
    Exactly.
    OR, put two of them lower.

    Ergodyne likes this.
  3. GoldeneyeRet

    GoldeneyeRet Well-Known Member R2R Supporter R2R Excellence Award

    Joined:
    Jul 7, 2016
    Messages:
    644
    Likes Received:
    611
    Location:
    Minnesota
    Or, put two of them higher?

  4. wopadobop

    wopadobop Active Member

    Joined:
    Sep 12, 2017
    Messages:
    146
    Likes Received:
    98
    There is a diminishing return on light spill at some point I’m sure lol

    saltyfilmfolks likes this.
  5. saltyfilmfolks

    saltyfilmfolks Lights! Camera! Reef! R2R Supporter R2R Excellence Award Reef Squad Leader Photo of the Month Award Build Thread Contributor

    Joined:
    Feb 25, 2014
    Messages:
    24,741
    Likes Received:
    25,063
    Location:
    California
    On the pictured example no.

    Draw that tank in pencil and put two of them low , and the lines of light in the tank.
    The upside down V will intersect , and accomplish a similar task.

  6. GoldeneyeRet

    GoldeneyeRet Well-Known Member R2R Supporter R2R Excellence Award

    Joined:
    Jul 7, 2016
    Messages:
    644
    Likes Received:
    611
    Location:
    Minnesota
    Wouldn't two higher give more light bouncing around just as it does with one?

  7. saltyfilmfolks

    saltyfilmfolks Lights! Camera! Reef! R2R Supporter R2R Excellence Award Reef Squad Leader Photo of the Month Award Build Thread Contributor

    Joined:
    Feb 25, 2014
    Messages:
    24,741
    Likes Received:
    25,063
    Location:
    California
    That becomes a question of dimensions.

    If the higher light picture had the light lower , and you added the second light the spread would be similar.

    It's likely the two lights would only need half as high as the first, depending on how far apart they are.

    Ergodyne likes this.
  8. GoldeneyeRet

    GoldeneyeRet Well-Known Member R2R Supporter R2R Excellence Award

    Joined:
    Jul 7, 2016
    Messages:
    644
    Likes Received:
    611
    Location:
    Minnesota
    Oh that makes sense. There is an optimal ppint in each set up and it varies with dimension spread etc.

    How do we find this point in a real world application?

    saltyfilmfolks likes this.
  9. saltyfilmfolks

    saltyfilmfolks Lights! Camera! Reef! R2R Supporter R2R Excellence Award Reef Squad Leader Photo of the Month Award Build Thread Contributor

    Joined:
    Feb 25, 2014
    Messages:
    24,741
    Likes Received:
    25,063
    Location:
    California
    Honestly, begin by drawing these concepts on paper.
    Also look at the specs on manufacturers sites.

    You can also take your light and put it close to the floor and slowly raise it up and actually see what happens.

    Then, when you get ready for a build, take your best guess.

    Like this , two kessil a 360 on a 48 in wide tank ? Or four Kessil 160?


    Me , I'd do six, but I'm a sicko.


    I have theee 16in bb on a 48w tank 8in from the water at 30%.

  10. GoldeneyeRet

    GoldeneyeRet Well-Known Member R2R Supporter R2R Excellence Award

    Joined:
    Jul 7, 2016
    Messages:
    644
    Likes Received:
    611
    Location:
    Minnesota
    Set it on the floor. ..what a great idea. The great ideas are always so simple...

    I'm off to take down my lights lol.

    This has been the most helpful thread i have read on this confusing subject

    Thanks to all who shared!

    saltyfilmfolks likes this.
  11. saltyfilmfolks

    saltyfilmfolks Lights! Camera! Reef! R2R Supporter R2R Excellence Award Reef Squad Leader Photo of the Month Award Build Thread Contributor

    Joined:
    Feb 25, 2014
    Messages:
    24,741
    Likes Received:
    25,063
    Location:
    California
    I'm a simpleton. What can I say.
    I also shine gigantic lights at the wall in many many houses and stages for a living.

    I used a max razor in this one.

    https://www.reef2reef.com/threads/lighting-upgrade-with-a-lux-meter-saltyfilmfolks.248417/

  12. GoldeneyeRet

    GoldeneyeRet Well-Known Member R2R Supporter R2R Excellence Award

    Joined:
    Jul 7, 2016
    Messages:
    644
    Likes Received:
    611
    Location:
    Minnesota
    Simpleton, I don't think so but you are certainly illuminating!

    dricc, Ergodyne and saltyfilmfolks like this.
  13. saltyfilmfolks

    saltyfilmfolks Lights! Camera! Reef! R2R Supporter R2R Excellence Award Reef Squad Leader Photo of the Month Award Build Thread Contributor

    Joined:
    Feb 25, 2014
    Messages:
    24,741
    Likes Received:
    25,063
    Location:
    California
    Hahaha !

    Ergodyne likes this.
  14. Battlecorals

    Battlecorals Aquaculturist R2R Supporter Gold Sponsor

    Joined:
    Oct 15, 2009
    Messages:
    3,940
    Likes Received:
    4,236
    Location:
    Wisconsin

    yeah thats pretty much my take exactly. the only complaint I can come up with for higher fixture, is bleed over, in fact I absolutely hate it myself, but I'm still a "hood" guy just for the reason. I really like the discussion and input here,guys

  15. saltyfilmfolks

    saltyfilmfolks Lights! Camera! Reef! R2R Supporter R2R Excellence Award Reef Squad Leader Photo of the Month Award Build Thread Contributor

    Joined:
    Feb 25, 2014
    Messages:
    24,741
    Likes Received:
    25,063
    Location:
    California
    Yup. That's also why I opted for the 3 bb on the canopoy. Best coverage possible , and I can still see the TV.

    wopadobop and Ergodyne like this.
  16. wopadobop

    wopadobop Active Member

    Joined:
    Sep 12, 2017
    Messages:
    146
    Likes Received:
    98
    Yeah at some point your gonna lose some radiation escaping over the top of the tank. At which point i think that’s about as high as you would want to go .
    @saltyfilmfolks has a great point about setting them on the floor and raising them up until they hit the spread you want. That’s a great way to measure your hanging height without over doing it. Simple yet elegant.

  17. mcarroll

    mcarroll Valuable Member R2R Supporter R2R Excellence Award

    Joined:
    Jan 8, 2012
    Messages:
    13,040
    Likes Received:
    6,353
    Location:
    Virginia
    I've done a lot of those....beggars can't be choosers – those diagrams take time to make. Level of complexity is reflected in the cost! :D

    Here's maybe the best one I've made that shows proportional reflections....it's a modelled Kessil:

    One showing "too high" resulting in spill and loss of internal reflections:

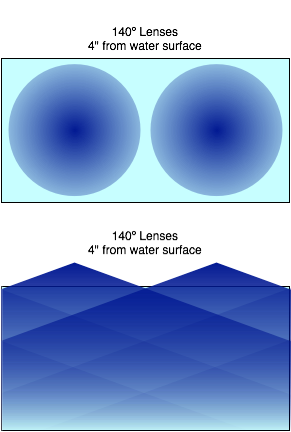

    And one showing a more ideal mouting height with no spill (this one shows above- and side-veiws):

    Ergodyne and wopadobop like this.
  18. Battlecorals

    Battlecorals Aquaculturist R2R Supporter Gold Sponsor

    Joined:
    Oct 15, 2009
    Messages:
    3,940
    Likes Received:
    4,236
    Location:
    Wisconsin
    Hey very cool.

    mcarroll likes this.
