New 305 Gallon Build

Sdot

Well-Known Member
View Badges
Joined
Aug 17, 2017
Messages
658
Reaction score
740
Hey family, clearly i need help!! After owning my 160 gallon build for nearly 2 years.... I'm an starting over. Bigger and better right? This may be a bit premature since i don't have the tank yet, but i want use this to document my experience and steps along the way. If successful, this build will be a culmination of my experience gained over the years, and ideas from some of the amazing reefs and designs that i have seen here.

To start out, this tank will be hard plumbed, a 1st for me. I will also have a manifold and a board designed to hold most of my equipment in an organized manner. I'm using you guys as a sounding board, if there is anything you think i need or missing...please suggest! I'm open!

I currently have Echo-tech radions g4 non pros... for the the new build i am moving to the new Orphek v4 g2. I have decided based on recommendations for my tank size to go with 4 panels mounted front to back. I went with Orpheks for the par and spectrum as i don't plan on adding t5's. Ill add pictures shortly.

Last edited:
OP
Sdot

Sdot

Well-Known Member
View Badges
Joined
Aug 17, 2017
Messages
658
Reaction score
740
Tank Design. 72.5L X 30.5W X 25.375 H by Planet Aquariums.
240 Gallon Display plus 60 gallons or so for the sump.
20191220_133411 (1).jpg




I went with an advanced Acrylics sump.... John is freaking amazing a total A+++ experience with them. The design is setup in 2 pieces plus an ATO. In the pic below starting from left to right: 22 Gallon fuge, Sump, and Ato.

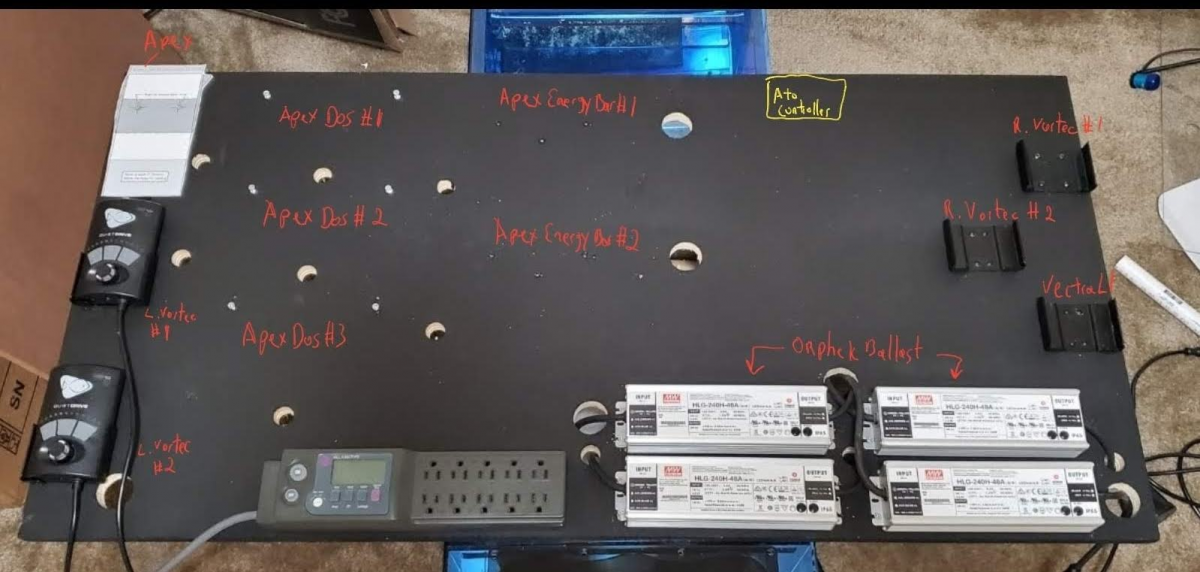

This is my mounting board for my controller, dosers, lighting ballast...etc. not sure if im going to paint it, but id figure id start by printing templates so i know how im going to mount everything. This is very much a work in progress.




Received my pipes and i have started working on a manifold design.....


Best reef aquarium LED lighting
OP
Sdot

Sdot

Well-Known Member
View Badges
Joined
Aug 17, 2017
Messages
658
Reaction score
740
Looks awesome! How many gallons is that ato? Looks like you might go through that pretty quick
ATO is about 10 gallons. My current ato is 5 gallons for the 160 tank and i go through it about a week. So as long as its consistent with that time frame im ok with that.

Aquarium Specialty - dry goods & marine livestock
OP
Sdot

Sdot

Well-Known Member
View Badges
Joined
Aug 17, 2017
Messages
658
Reaction score
740

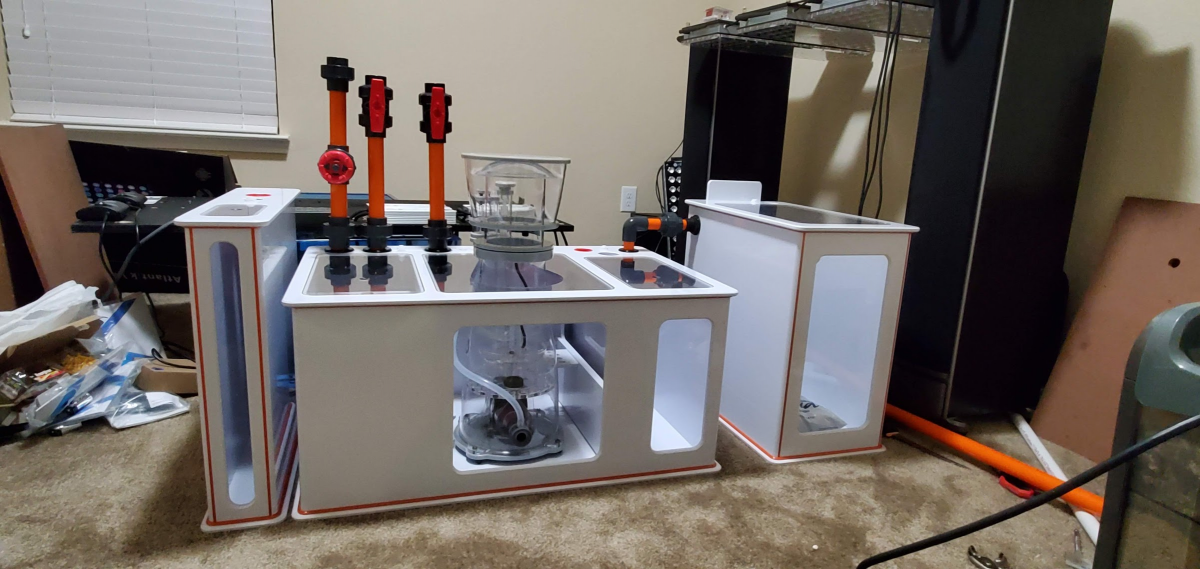

As promised more pix! I received my sump today...holy cow! Its heavy and well built. I struggled carrying it up my stairs! The sump alone is about 75lbs the fuge is 20 to 25lbs and the ato is 10 - 15 lbs. Starting dry plumbing for spacing purposes. Sorry for the mess guys... im storing all of my aquarium stuff in my spare bedroom until the build is complete!

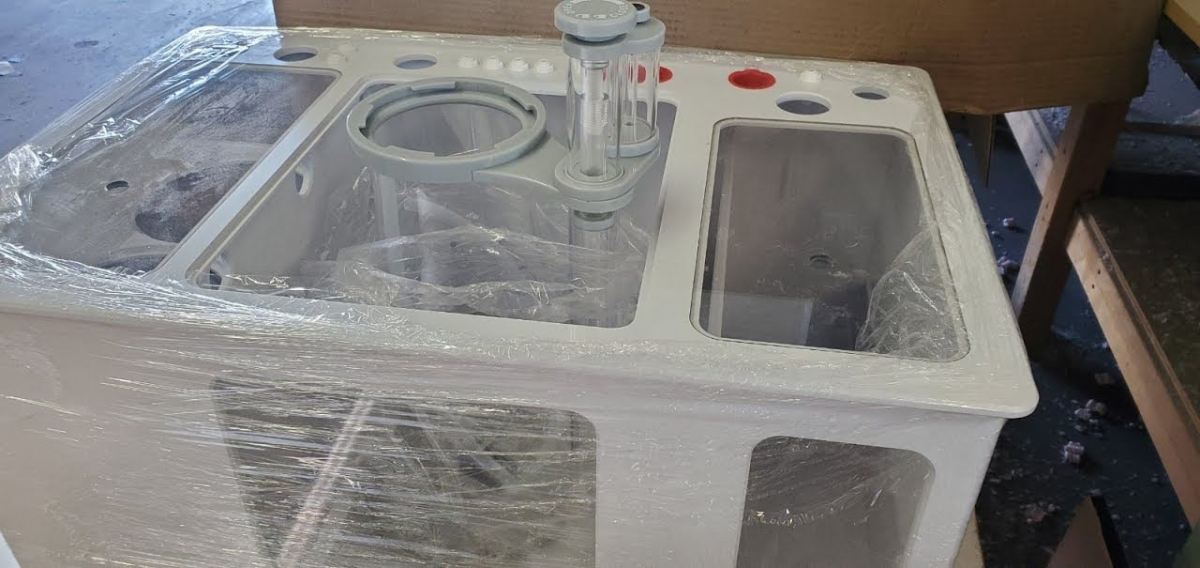

Very thick acrylic lids


Connection to fuge



Silencers...fyi i have orange ones on the way

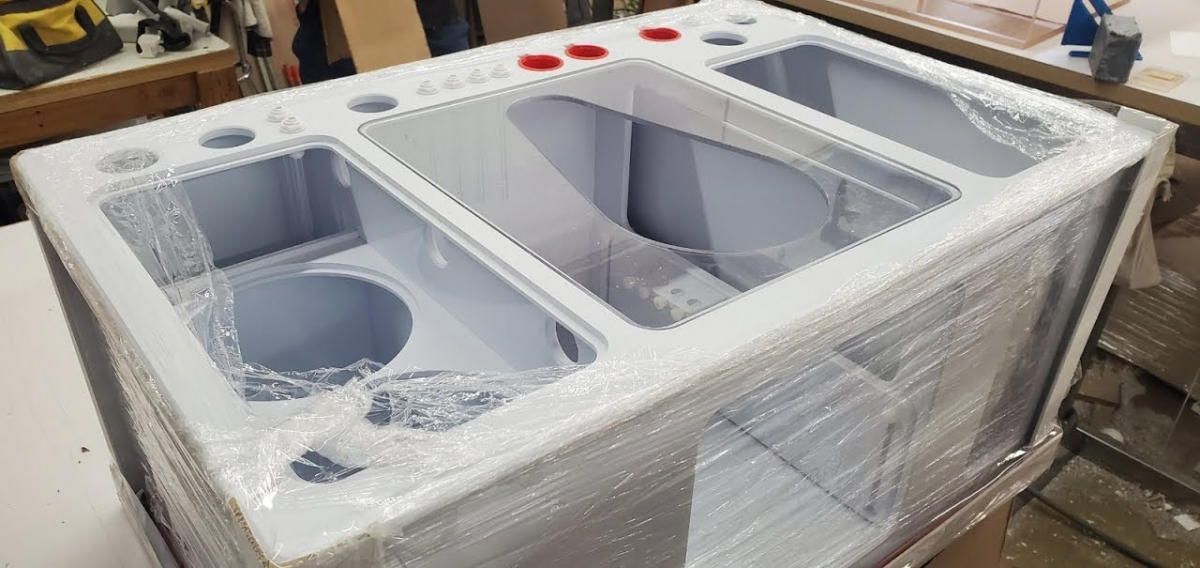

Sump arrived on a pallet, well packaged!


OP
Sdot

Sdot

Well-Known Member
View Badges
Joined
Aug 17, 2017
Messages
658
Reaction score
740
Hey family more updates. Tank has been delayed.... so hopefully this week. In the meantime i have been dry plumbing and gluing sections that i dont believe will change, fingers crossed.... hopefully that wont be an issue in the interim.







https://www.omegasea.net/
OP
Sdot

Sdot

Well-Known Member
View Badges
Joined
Aug 17, 2017
Messages
658
Reaction score
740
Slight changed i ordered the Vertex 1.5 media reactor, but its sits a bit lower that what i'd like so....i'm going to take advantage of the vertex sale and get the larger 2.5 version. It appears it will level nicely with my plumbing.


OP
Sdot

Sdot

Well-Known Member
View Badges
Joined
Aug 17, 2017
Messages
658
Reaction score
740

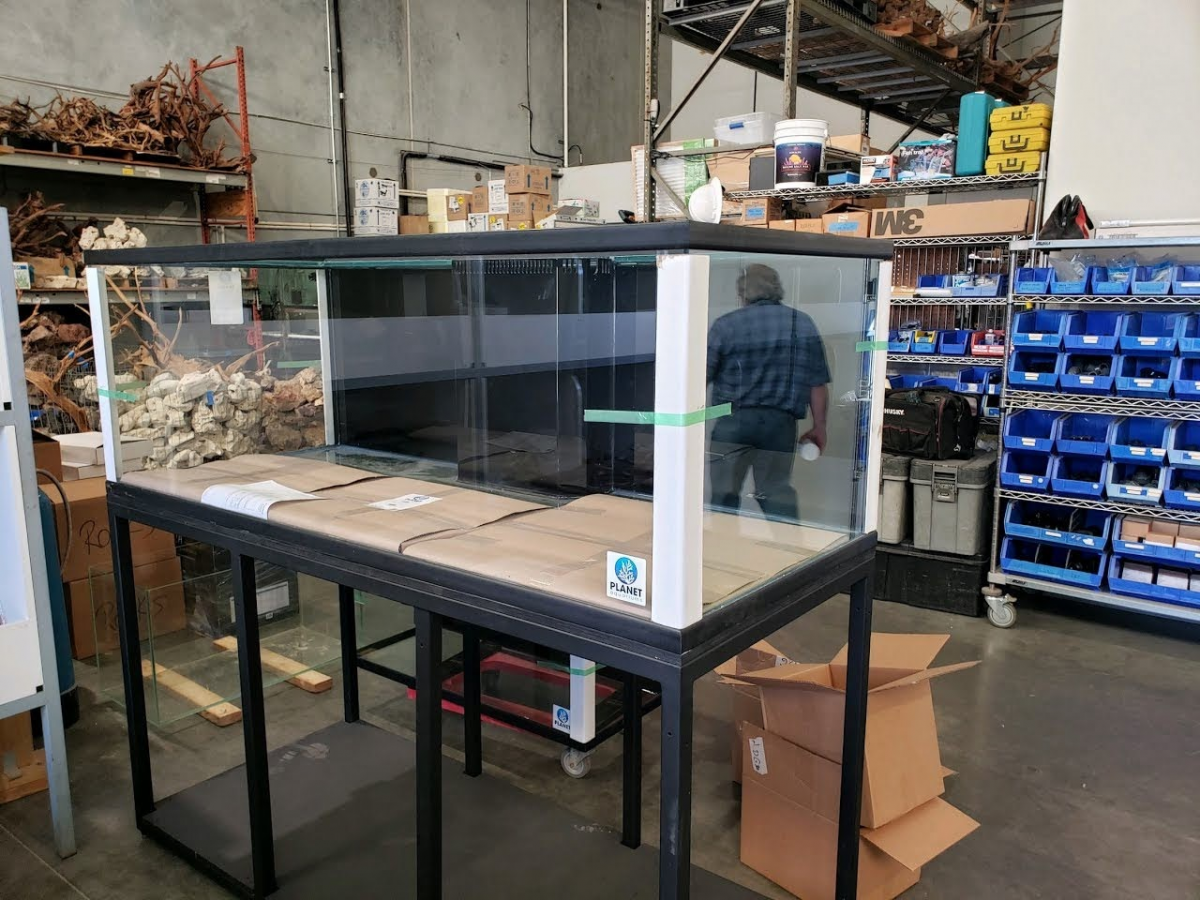

Finally!!! My Tank has arrived..... However it will be another week before its in my home. I have a cabinet guy matching my cabinets for the metal stand and creating a canopy for the top!
