New setup driver problem

[ManyBlenny]

I just installed a new setup and I was able to get the dashboard to bootup, but I'm not able to select any pins or drivers for any hardware. I assume this is related to an error I see in the service log which says:
driver-subsystem: Failed load raspberry pi driver. Error: can't build hal pin 20: strconv.Atoi: parsing "31+rpt": invalid syntax

The only things I've done so far is change the login details, change the internet port name, and enable single wire and i2c in the raspi-config.
My build:

• Raspberry Pi 3B
• Raspian Bookworm OS (July release)
• Reef Pi 6.0

systemd log:

Started reef-pi.service - raspberry pi based reef tank controller.
driver-subsystem: Failed load raspberry pi driver. Error: can't build hal pin 20: strconv.Atoi: parsing "31+rpt": invalid syntax
Successfully started subsystem: system
INFO: equipment subsystem: Finished syncing all equipment
Successfully started subsystem: equipment
Successfully started subsystem: ato
Successfully started subsystem: temperature
Successfully started subsystem: macro
Successfully started subsystem: timers
reef-pi version 6.0 is up and running
Starting http server at: 0.0.0.0:80
Methods: [GET]
API Doc path: /api/settings
Starting health checker

and then after that in the log there are only a bunch of GET requests.

Is there a fix for this?



[theatrus]

You're going to need to run a release of Raspbian prior to Bookworm. The GPIO pin mode ReefPi was using isn't compatible in newer releases of Raspbian (or the latest RPi hardware)



[ralphiee22]

For anyone who stumbles upon this thread, I was able to get around the issue using the above advice. Used this OS (bullseye)



[decdevero]

omg thankyou so much. ive been trying to make this work for like a week now



[ElZesto]

For anyone who stumbles upon this thread, I was able to get around the issue using the above advice. Used this OS (bullseye)

To any one who finds this: this legacy version has changed to bookworm which once again does not work :( You need to get a version on Bullseye, which is the critical piece to make it work. Go to here:

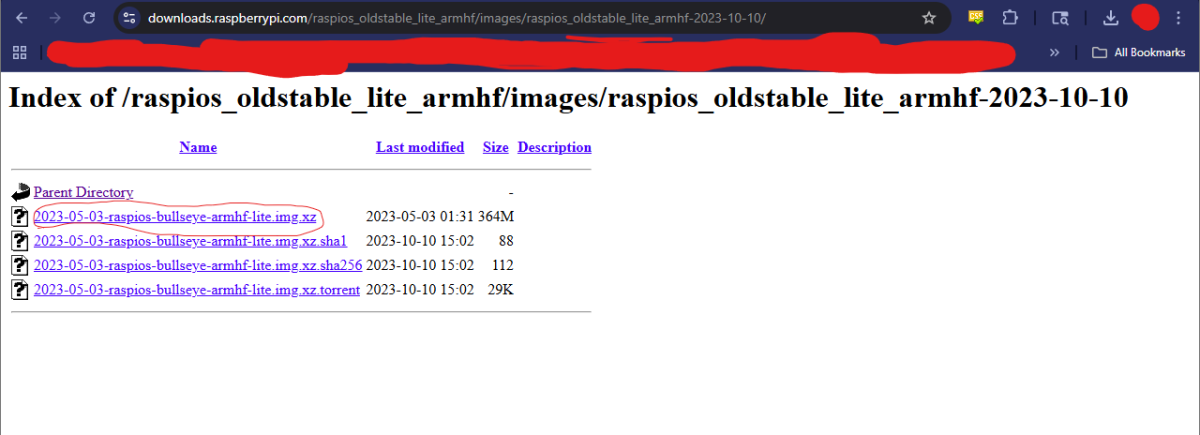

Index of /raspios_oldstable_lite_armhf/images/raspios_oldstable_lite_armhf-2023-10-10

When thats done, I tried some workaround to get ssh to auto work, but failed. I was only able to setup via mouse, keyboard, monitor. First setup User/Password. Then "sudo raspi-config" and setup system, configure SSID to your network. Then reboot. Thats where the reef-pi tutorial starts.

Follow the steps in the reef-pi guide to get the OS updated and get reefpi setup. https://learn.adafruit.com/reef-pi-installation-and-configuration/raspberry-pi-configuration


ps. 90% of my troubleshooting is Gemini. I have experience with rPi, but this stuff was much simpler using that. Highly recommend over other LLMs I've tried.



[ElZesto]

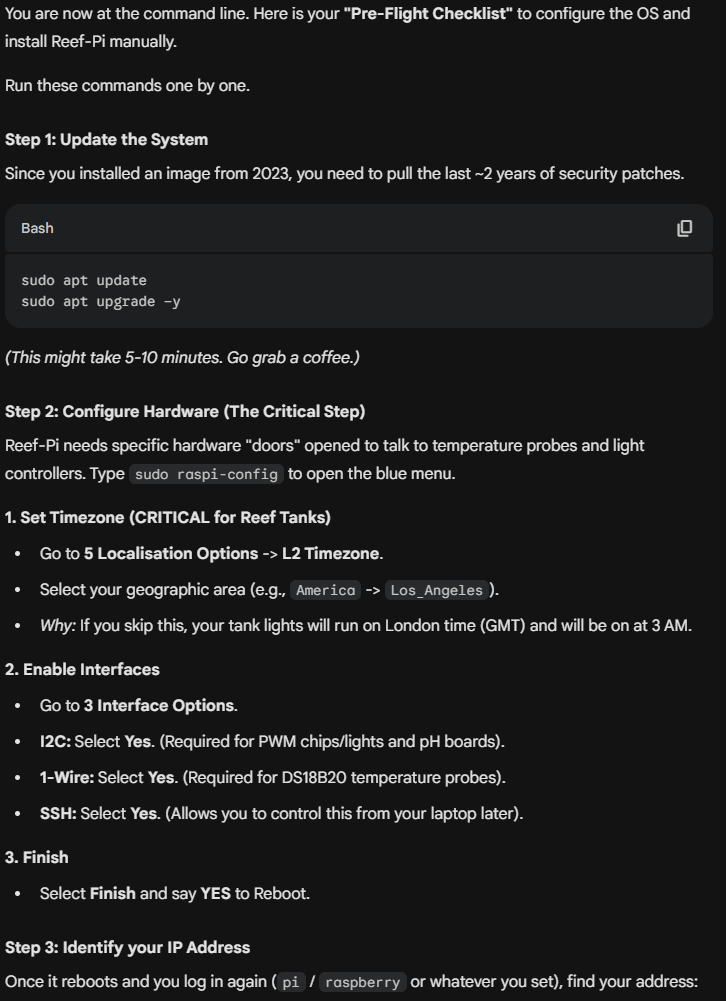

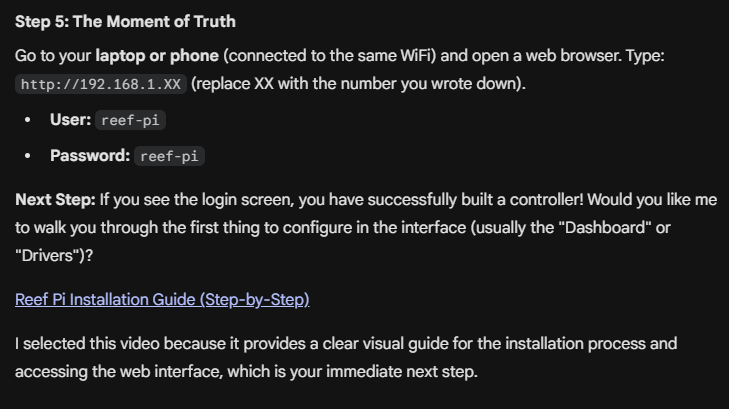

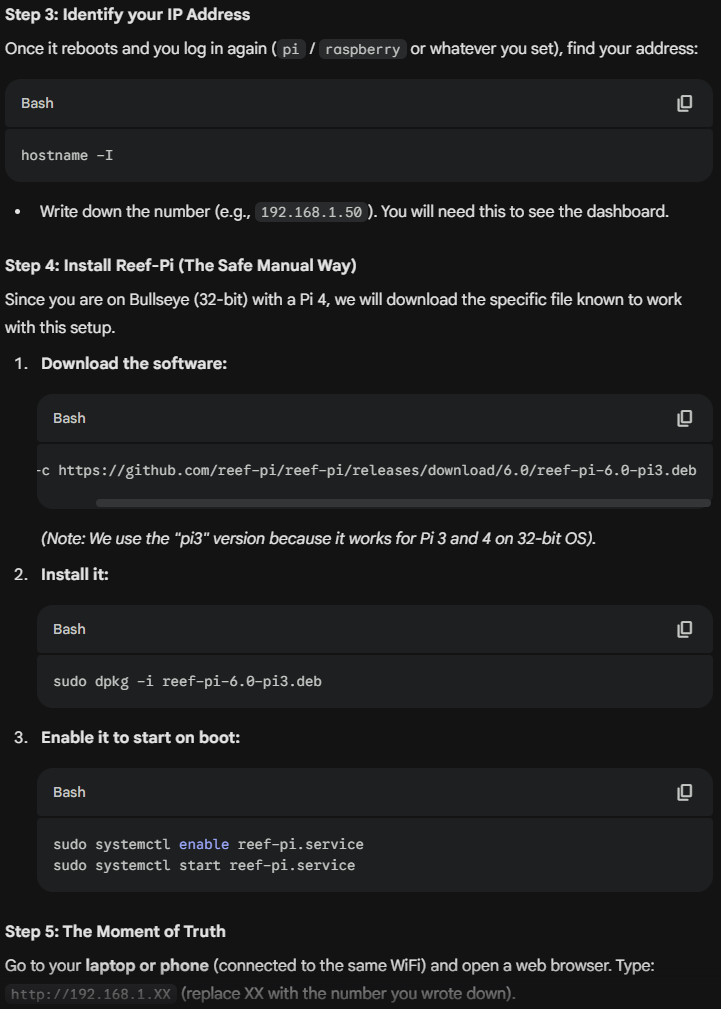

ok the steps in that reef-pi tutorial are outdated. Here's what I did, instructions from gemini (R2R keeps giving me browser error with the test idk whats up with that):



[ManyBlenny]

ok the steps in that reef-pi tutorial are outdated. Here's what I did, instructions from gemini (R2R keeps giving me browser error with the test idk whats up with that):

I wouldn't say that the adafruit page is outdated. It is very close to what Gemini told you. Good call on the new raspbian image location though.



[ElZesto]

yeah they're close enough, i think the only big differences was the raspi-config screen is changed making the adafruit page instructions confusing to someone a bit clueless like me, and the version of reef-pi. regardless, still working on this so ill update if this version works so ideally someone doesn't have to go through the full headache later.
