Photon V2+ 24" Lighting Schedule

Andrewrckt

Member
View Badges
Joined
Oct 24, 2019
Messages
13
Reaction score
8
Hello Everyone,

I have the Photon V2+ 24" lights and LOVE them. I have them over a 40 gallon breeder tank at about 12 inches above water surface. I just installed an egg create top to the tank to try and avoid jumping fish. This got me thinking about my lighting schedule as I read the egg crate may drop light intensity by about 5%. From there, I started second guessing my entire schedule as I think my maximum peak is probably low and resulting in slow coral growth. I have in the tank a: Toadstool Leather, Zoa, Torch Coral, Lobo (in the substrate), and some clove polyps. My schedule is attached. I would greatly appreciate any tweaking and input. I do realize, any change will need to be made slowly at about !0% per week to avoid stressing the corals.

Thanks!


Ron Reefman

Lets Go Snorkeling!
View Badges
Joined
Aug 12, 2012
Messages
5,354
Reaction score
12,659
Location
SW Florida
Lets start with 'Welcome to Reef2Reef!"




Am I reading your chart correctly. Your peak on channel 3 (royal blue) is only 30%?

Your tank is 16" tall. My 90g tank is 20" tall. Your fixture is 12" off the water, mine are 10" and I have both a 24" and a 32" Photon V2+. But my tank is 30" front to back and yours is 18". I have corals on the top rock that is only 4" below the water surface. That's all for comparison. Most of my tank is made up of zoas and RFAs.

I run channels 3 & 5 at 100% for 8 hours and channel 4 between 30 and 50% for 4 hours on the 24" fixture and even lower on the 32" fixture.

OP
A

Andrewrckt

Member
View Badges
Joined
Oct 24, 2019
Messages
13
Reaction score
8
Lets start with 'Welcome to Reef2Reef!"




Am I reading your chart correctly. Your peak on channel 3 (royal blue) is only 30%?

Your tank is 16" tall. My 90g tank is 20" tall. Your fixture is 12" off the water, mine are 10" and I have both a 24" and a 32" Photon V2+. But my tank is 30" front to back and yours is 18". I have corals on the top rock that is only 4" below the water surface. That's all for comparison. Most of my tank is made up of zoas and RFAs.

I run channels 3 & 5 at 100% for 8 hours and channel 4 between 30 and 50% for 4 hours on the 24" fixture and even lower on the 32" fixture.
Yes, I am a new reefer (1 year in), so I will be the first to say...I have no idea what I am doing, so I am looking for advice. I will definitely push my lights harder then. Do you have your schedule in an excel table or written down? Would be great to see what you are doing! I see your post from Feb 28, 2019 about your 20" cube lighting schedule. Do you still use this?

Thanks for the reply!

Last edited:

Ron Reefman

Lets Go Snorkeling!
View Badges
Joined
Aug 12, 2012
Messages
5,354
Reaction score
12,659
Location
SW Florida
I need to get my numbers into a spreadsheet. So I'll get that done and send it to you.

I run my 24" up front and run it more white, while the 32" is behind it and runs more blue. With 2 fixtures and the back being more blue, it makes the 30" tank look more like 5 feet than 30 inches!

BTW, do not jump up to my levels. Work your way up slowly over the next 4 to 6 weeks.

And this is what my 40g, 2 foot cube looked like with just the 24" Photon V2+.
Almost FTS June 2019.jpg

OP
A

Andrewrckt

Member
View Badges
Joined
Oct 24, 2019
Messages
13
Reaction score
8
I need to get my numbers into a spreadsheet. So I'll get that done and send it to you.

I run my 24" up front and run it more white, while the 32" is behind it and runs more blue. With 2 fixtures and the back being more blue, it makes the 30" tank look more like 5 feet than 30 inches!

BTW, do not jump up to my levels. Work your way up slowly over the next 4 to 6 weeks.

And this is what my 40g, 2 foot cube looked like with just the 24" Photon V2+.
Almost FTS June 2019.jpg
Thanks!!! This is a huge help to me. Seems like I have been running mine too low for awhile now. This would also explain the slow coral growth in my tank, so this is great news to hear. Also, I am glad to hear other experienced reefers use this light. I did a TON of research before purchasing the reef breeder lights, and very happy with the purchase.


will25u

Well-Known Member
View Badges
Joined
Oct 28, 2017
Messages
500
Reaction score
2,712
Location
Georgia
I am excited to get these lights soon. I had to check out this thread bc those are the lights I’m upgrading to; specifically the 32”.

Welcome to R2R, Andrew. Glad you posted this.


Ron Reefman

Lets Go Snorkeling!
View Badges
Joined
Aug 12, 2012
Messages
5,354
Reaction score
12,659
Location
SW Florida
I've been using Reef Breeder Photon fixtures for many years. I still have and use an older Photon (not even a V2 let alone and V2+). And these are made in China by EverGrow. I used EverGrow fixtures before there even was a Reef Breeders.

EverGrow is a very forward looking, user friendly company. I worked for a different company that also had fixtures made by EverGrow. And Reef Breeders is a top notch customer service distributor.

IMHO the Photon V2+ is the best value fixture for anybody looking to have sunrise/sunset control as well as 6 channel color control.

OP
A

Andrewrckt

Member
View Badges
Joined
Oct 24, 2019
Messages
13
Reaction score
8
I've been using Reef Breeder Photon fixtures for many years. I still have and use an older Photon (not even a V2 let alone and V2+). And these are made in China by EverGrow. I used EverGrow fixtures before there even was a Reef Breeders.

EverGrow is a very forward looking, user friendly company. I worked for a different company that also had fixtures made by EverGrow. And Reef Breeders is a top notch customer service distributor.

IMHO the Photon V2+ is the best value fixture for anybody looking to have sunrise/sunset control as well as 6 channel color control.
Just made my first adjustment (10% on each channel) based on your older lighting set up. I reduced my CH1 and CH2 to 0%. It was interesting that I was reading that the red and yellow channels may result in algae growth, so pushing CH1 to 0 might yield some interesting results. I am only going to adjust by 10% each iteration until I reach the intended targets.


Dj City

Valuable Member
View Badges
Joined
Mar 16, 2017
Messages
2,185
Reaction score
2,453
I need to get my numbers into a spreadsheet. So I'll get that done and send it to you.

I run my 24" up front and run it more white, while the 32" is behind it and runs more blue. With 2 fixtures and the back being more blue, it makes the 30" tank look more like 5 feet than 30 inches!

BTW, do not jump up to my levels. Work your way up slowly over the next 4 to 6 weeks.

And this is what my 40g, 2 foot cube looked like with just the 24" Photon V2+.
Almost FTS June 2019.jpg
Good morning.
Do you mind posting your schedule or sending it to me as well?
I have a 180g and 1 Photon 50 V2+ with 1 lumenbar (Hi octane UV) to supplement.

I could use the help, guidance, starting point.


Ron Reefman

Lets Go Snorkeling!
View Badges
Joined
Aug 12, 2012
Messages
5,354
Reaction score
12,659
Location
SW Florida

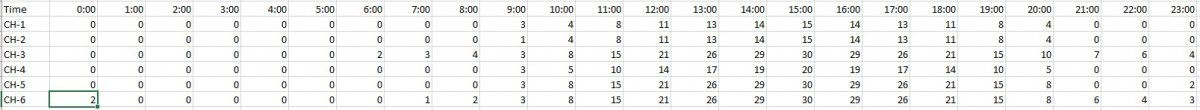

@Dj City, this isn't my current schedule, but the one I used over my 40g when I only ran one Photon. Now I have a 90g tank and it's 30" front to back, so I have 2 Photons for coverage and a trick look. The front one is very much like the schedule below and the one in back is much more blue. It makes the tank look like it's even more than 30" thick. BTW, my front fixture now runs some red and green (10% to 20% and back to 10%) during peak hours from 11am to 3 pm. But I really don't know that it makes any difference.

2017-03-20 06.27.54.jpg


ShellSea

Member
View Badges
Joined
Nov 8, 2016
Messages
57
Reaction score
16
Location
Destin, Florida
Hi. Just purchased the 24 v2+. Do you have any acclimate schedule that I can follow?
I also recently changed to the V2. I had v1 on the tank for the last 5 years and loved it. I went with the schedule in the manual reefbreeders sent. The one right after the default schedule. It puts blues at max 30%. Then I intend to increase by 10% once a week until I get to about 70% on blues.

Last edited:

ELL23

Member
View Badges
Joined
Jan 7, 2020
Messages
93
Reaction score
43
I also recently changed to the V2. I had v1 on the tank for the last 5 years and loved it. I went with the schedule in the manual reefbreeders sent. The one right after the default schedule. It puts blues at max 30%. Then I intend to increase by 10% once a week until I get to about 70% on blues.
Do you have your Green and Red at 0?


Heabel7

Active Member
View Badges
Joined
Aug 10, 2018
Messages
164
Reaction score
131

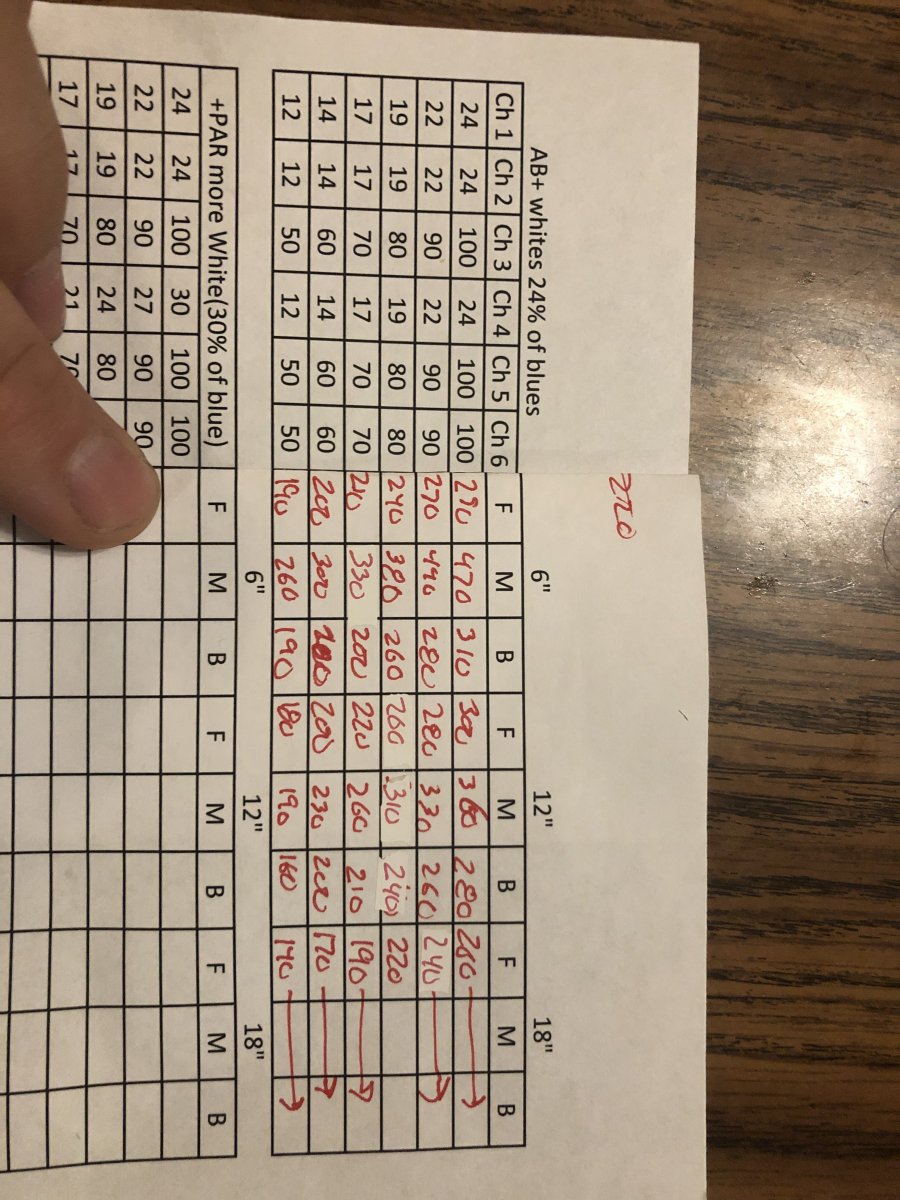

This might help you a bit. My fixture is 10” off the water line. Using the make shift AB+ spectrum. 100% everything blue and 24% everything white. 6” 12” 18” and front back center.
I have a standard 90 so Front is 7” off set from directly under light. Same with back. But I have a painted black glass so I thought the numbers would be way different, and they were just a bit. The bottom was a perfect blanket of light. Wish I could raise my lights to 12”s. To reduce hot spot.



Heabel7

Active Member
View Badges
Joined
Aug 10, 2018
Messages
164
Reaction score
131
In addition. If you like a whiter tank or want more par you can up the white channel. Avg of 15-20 par increase across the board each 10% you go up on whites.
