KGscv
Active Member

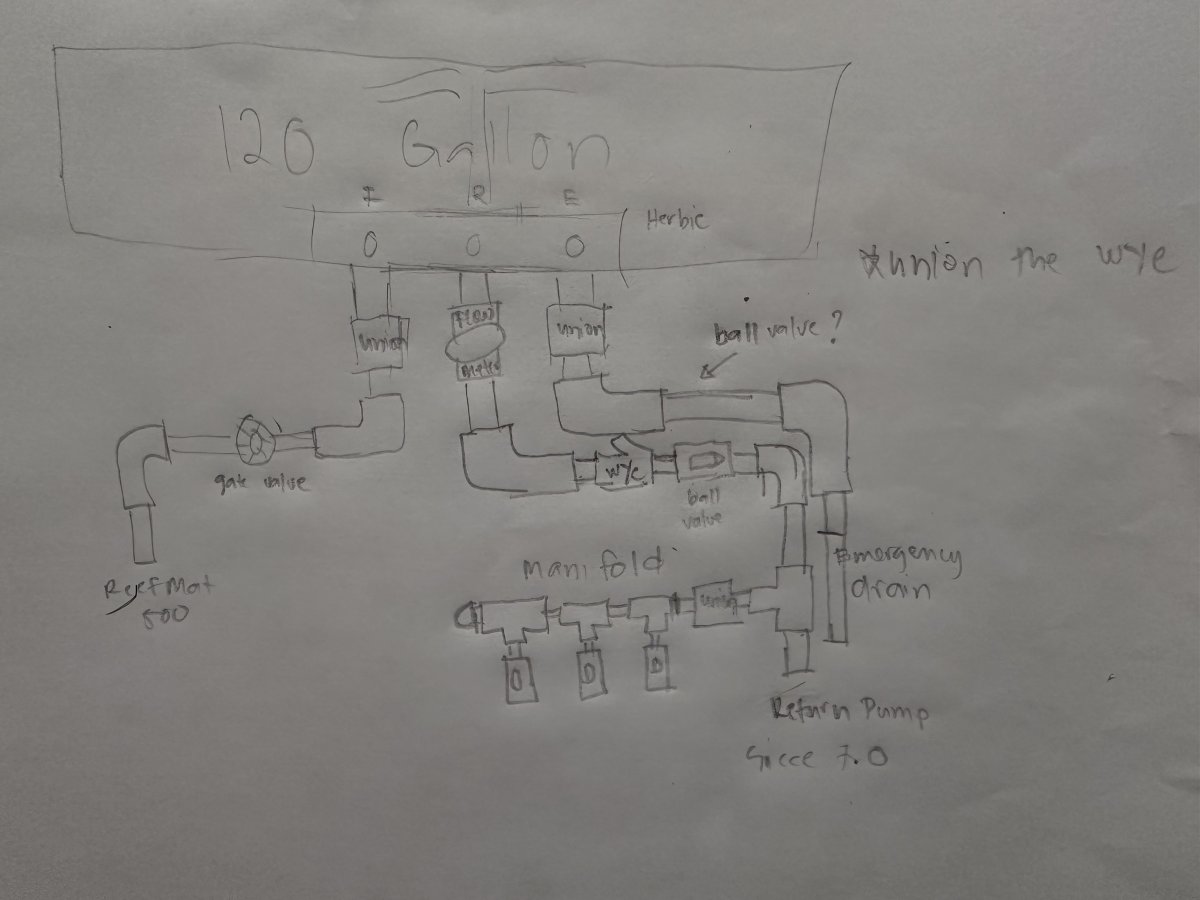

Going to plumb my new 120 gallon tank. This is my first time plumbing a sump. Been researching and planning for 2 weeks now. This what I have decided to do. Any suggestions on whats better? Its a SC Aquarium tank btw.
Plumbing suggestions (first time)
- Thread starter KGscv
- Start date
- Tagged users None
Crabs McJones
Regional Reef Manager (AKA Revhtree's Boss)
Staff member
Super Moderator
Ultimate Member
Reef Squad
Reef Squad Leader
Partner Member 2026
Excellence Award
Reef Tank 365
R2R Secret Santa 2024
R2R App User
Article Contributor
Hospitality Award
Reef Tank 365 Boss
Wisco Reefers
My Aquarium Showcase
Looks good! I wouldn't do the ball valve on the emergency line though, just let it free flow. That way when the main drain clogs the emergency line is fully accessible to handle it instead of causing an overflow issue because you forgot to open the ball valve after doing maintenance.....ask me how I know :grinning-face-with-sweat:
mfinn
likes zoanthids
Ultimate Member
Partner Member 2026
Reef Tank 365
Photo of the Month
R2R App User
Pacific Northwest Reefers
My Aquarium Showcase
I agree to skip the valve on the emergency drain line.
Also with the wye check valve, I think they should be in the vertical position to work properly. Also for them to continue working they need constant cleaning. I clean mine every two weeks. I tiny bit of algae or anything sticks to the piston and it will fail. One reason to not rely on them.
Also with the wye check valve, I think they should be in the vertical position to work properly. Also for them to continue working they need constant cleaning. I clean mine every two weeks. I tiny bit of algae or anything sticks to the piston and it will fail. One reason to not rely on them.
KGscv
Active Member
Yeah saw people put ball valve and not even use it once then the valve gets stuck.
Yeah not putting ball valve on the emergency drain anymore. cleaning it would not be a problem as i can just do them during my water changes. I think it can be used in any orientation from what ive researched.
RocketEngineer
Valuable Member
- Joined
- Sep 3, 2019
- Messages
- 1,355
- Reaction score
- 1,515
Check valves are worthless BECAUSE stuff grows on every surface of our systems. That includes valve sealing surfaces. All it takes is one bit of gunk to render a check valve useless. Instead design the system to handle the drainage volume. That way, physics dictates it can’t fail.
Have to what is called exercise all valves ie turn them on and off every so often. To each his or her own. I do like an anti siphon set up you don't show that part and is very straight forward will prevent your tank draining in power outage and keeps maintenance easy
Going to use this design as well in the upcoming weeks. Thanks for sharing!
KGscv
Active Member
Just so you know. I switched the ball valve with the wye so i can close the return line when i clean the wye valve

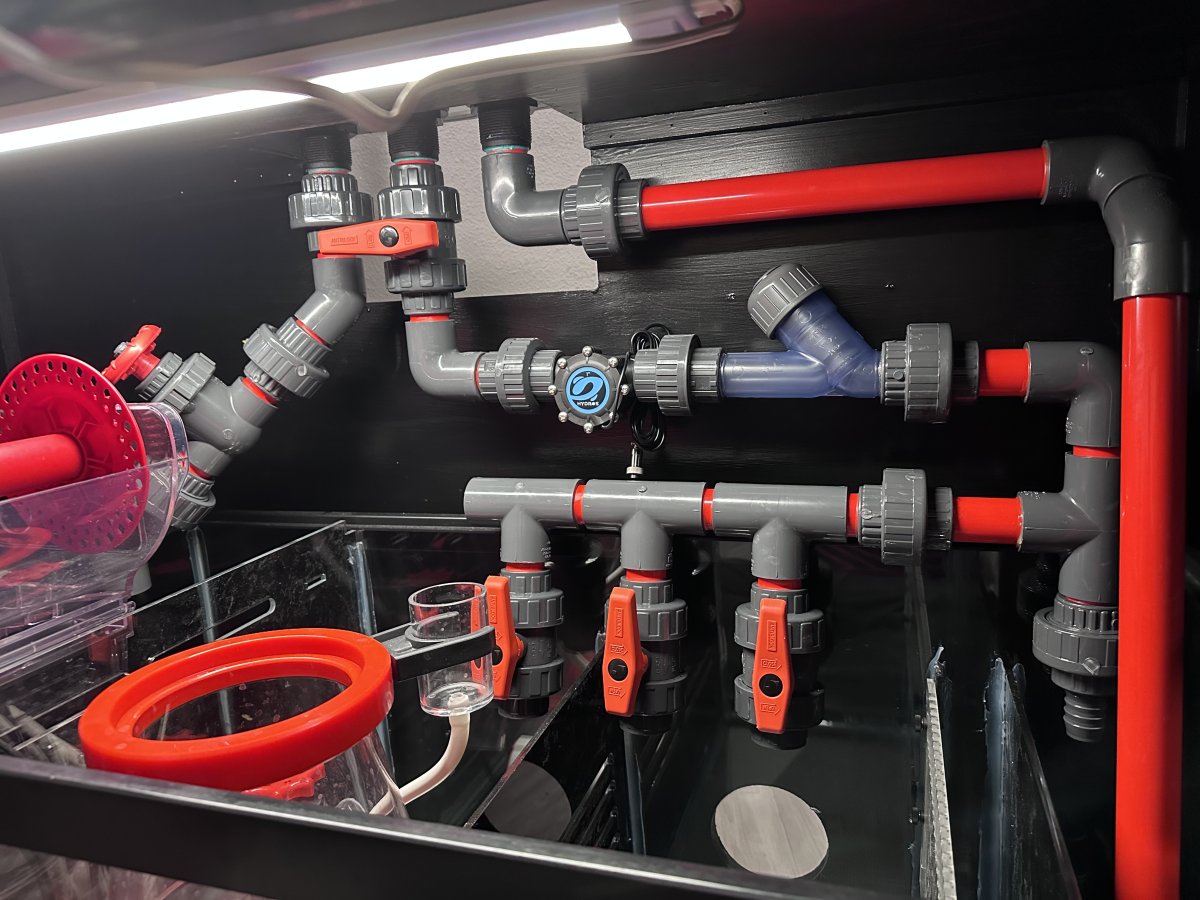

Looks like a really neat a tidy plumbing job for you first time! One thing I always do now is use male thread x female thread pieces with threaded bulkheads in case I ever need to completely take the tank off the stand for whatever reason. The unions won't fit through the hole in the tank where the bulkheads go through.
If I don't want to spend the extra money on those parts and just want to use slip x slip bulkheads I make sure to leave 1-2" pvc exposed out of the Bulkhead before I add my union so I can cut the pcv if I ever need to. Maybe you move and need to disconnect the tank, etc.
KGscv
Active Member
Never thought of that. I will do that if i setup another tank.
PharmrJohn
The Dude Abides
Partner Member 2026
R2R App User
Hospitality Award
Pacific Northwest Reefers
So......JUST answered another thread. And I'm gonna copy and paste what I wrote, as it has some relevance here as well......
Just make sure you can disconnect your plumbing at multiple points so you can easily add, subtract and modify your set up with future projects. When I plumb my sump, I'll have the ability to remove the plumbing in a New York second if I need to get my sump outta there. In addition, I'll have release points lower down in case I decide to add a piece of equipment or two. I know......more leak potential......I'll just have to make sure I tighten things down!
Just make sure you can disconnect your plumbing at multiple points so you can easily add, subtract and modify your set up with future projects. When I plumb my sump, I'll have the ability to remove the plumbing in a New York second if I need to get my sump outta there. In addition, I'll have release points lower down in case I decide to add a piece of equipment or two. I know......more leak potential......I'll just have to make sure I tighten things down!
Absolutely beautiful. Stay on top of it and exercise those valves or they will freeze. Want to see it again a year from now
How much actual pipe did you use?
KGscv
Active Member
About 7-8ft
KGscv
Active Member
Thank you!
