Reef Breeders Meridians

[mrpontiac80]

Reefbreeders has longer bolts available? I designed a set of mounts to match the Meridian to my current Primes and Blades until I can transition to all Meridian but the screws are too short. I was going to look into barrel nuts but longer bolts would be cleaner. These are just test prints using the PETG that happened to be installed on my printer since I still need to resolve the screw height issue.

Yes they do. I think it is the same bolts that are used for their BOT brackets. Unfortunately I ordered them on the 7th and didn’t realize shipping is paused from May 7-14th, so I still haven’t been able to try the lights out yet.

I did search for something that would work local but the track on the reefbreeders light is so short in depth, nothing would fit without being modified. Even my 8020 T nuts are too thick. Ordering new bolts from reefbreeders seemed to be the easiest way to go.

https://reefbreeders.com/products/xl-photon-bolts



[tharbin]

Yes they do. I think it is the same bolts that are used for their BOT brackets. Unfortunately I ordered them on the 7th and didn’t realize shipping is paused from May 7-14th, so I still haven’t been able to try the lights out yet.

I did search for something that would work local but the track on the reefbreeders light is so short in depth, nothing would fit without being modified. Even my 8020 T nuts are too thick. Ordering new bolts from reefbreeders seemed to be the easiest way to go.

https://reefbreeders.com/products/xl-photon-bolts

I took a good look at the screws and realized nothing locally available was going to work so I was looking into barrel nuts but that isn't nearly as good a solution as just a longer screw. Thanks for the link.

I just have the light sitting on my tank cover right now and it is already getting old.



[Saltysav96]

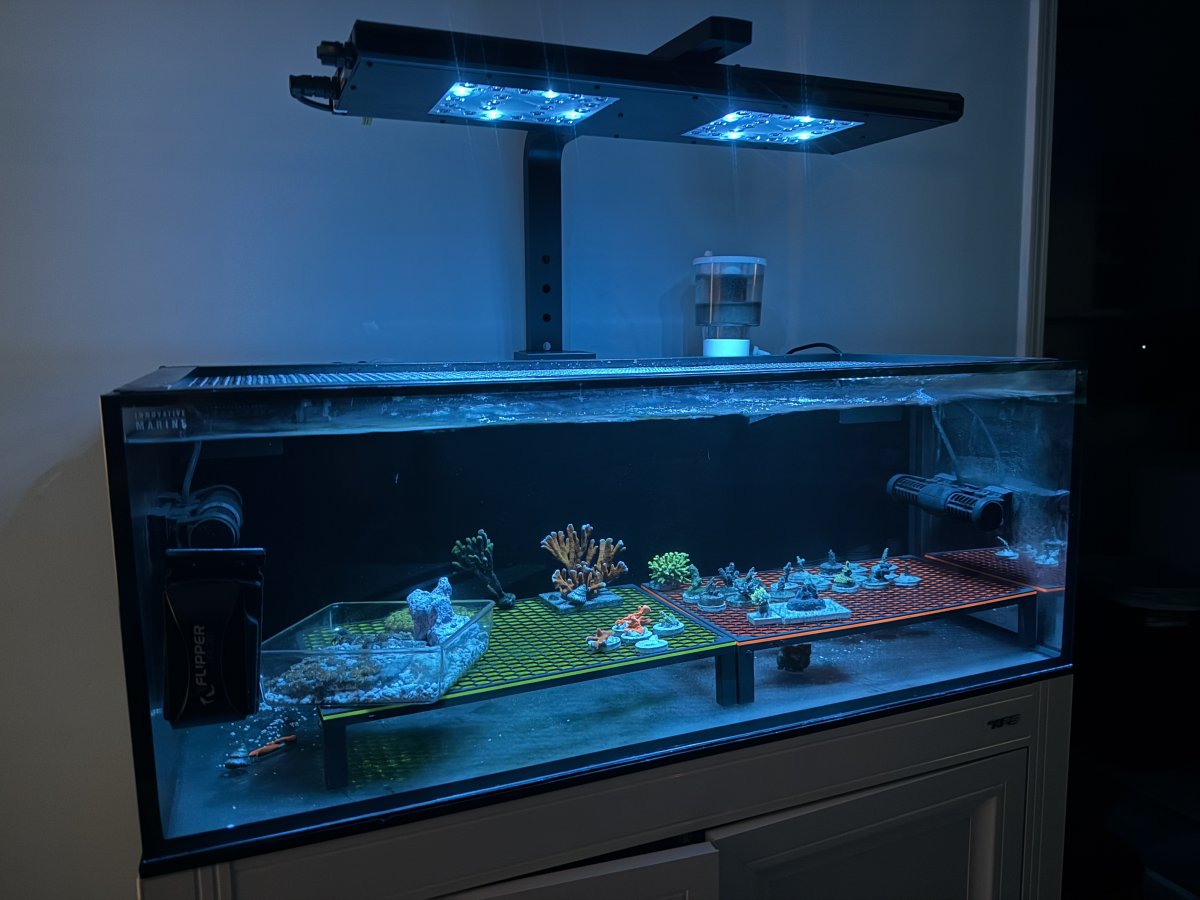

This is how the moonlight looks… very bright at 0.1% and not very appealing to look at



[VintageReefer]

That’s odd, my moonlight is not that bright.



[Saltysav96]

That’s odd, my moonlight is not that bright.

that was at 5:30 this morning when i left for work... is your moonlight the same color ?



[exnisstech]

I’m excited for you!

I like the app. It works well, and the community schedule sharing is integrated perfectly. And yes, you can have tons of segments if you like that zig zag type of highs and lows to mimic clouds. It’s easy to program and use, and it’s only going to get better in the future as they add more enhancements.

Meridians have actually converted me to a white light user. When you look at pics, the clues for someone using heavy blues isn’t the coral, it’s the objects around the coral..the frag shelves, plug stems, rock, sand etc

A few of these pics are heavy blue, but a lot of them aren’t and instead are a day spectrum with whites turned up higher than the blues. The corals still have great color and fluorescence

Hey @VintageReefer do you have the schedule these images were taken under? I found your schedule yesterday using the app but it is very blue looking to my eyes.
Is this the same white settings used for the above images? TIA

EDIT: I'm trying to come up with a schedule that will be beneficial for clams and SPS



[Saltysav96]

Hey @VintageReefer do you have the schedule these images were taken under? I found your schedule yesterday using the app but it is very blue looking to my eyes.
Is this the same white settings used for the above images? TIA

i thought the very opposite with his schedule. im looking for more of a heavier blue spectrum and this one looked more white.



[exnisstech]

i thought the very opposite with his schedule. im looking for more of a heavier blue spectrum and this one looked more white.

I dunno, I may be running higher whites on my other tanks with different lights which makes these settings look more blue to me.



[VintageReefer]

I dunno, I may be running higher whites on my other tanks with different lights which makes these settings look more blue to me.

Yes that’s my schedule I have shared

To be honest I don’t recall the settings used for those pics. It is possible I manually adjusted channels for pics. Sometimes I add in more white or lower white.

i thought the very opposite with his schedule. im looking for more of a heavier blue spectrum and this one looked more white.

I dunno, I may be running higher whites on my other tanks with different lights which makes these settings look more blue to me.

Hilarious. One says not blue enough and the other says to blue! We are all different that’s for sure! and ok!

My schedule is what I find ideal and is intended to be a starting point for others. Some use it and love it! Others may want to tweak it. You can certainly load it, and then edit and increase the white set points, or reduce blues to meet your goals



[Troylee]

Arie made this for us recently, but he did not account for the UV being only 80% accurate so technically the numbers are a little bit higher than what is listed.

This was tested with a Vabira which I’ve heard could be around one percent less accurate than the apogee.

Test Setup:

• Fixture: 11” Meridian 75W LED
• Settings: 100% on all channels with balanced lens
• Mounting Height: 13” above the top of the tank
• Tank Size: 9-gallon (14” L × 13” W × 13” H)
• Water Line (W/L): Just under the surface
• PAR Meter Depths:
  • Top: 13” from light (just above water)
  • Water Line: 14” from light
  • Middle: 19” from light
  • Bottom: 26” from light

• Position	Top	Water Line	Middle	Bottom
  Front Left	309	272	300	293
  Front Center	796	537	351	285
  Front Right	406	281	326	309
  Middle Left	413	277	325	302
  Middle Center	760	435	313	270
  Middle Right	360	249	321	294
  Rear Left	303	215	271	288
  Rear Center	652	417	288	257
  Rear Right	270	204	313	347

@Miami Reef



[Troylee]

I’ll pull some par numbers today when I get home as I’m curious now that I’ve cranked these up!



[Zuluuz]

This is how the moonlight looks… very bright at 0.1% and not very appealing to look at

You have to use manual moonlight setting. Auto does not work



[Saltysav96]

You have to use manual moonlight setting. Auto does not work

that is manual moonlight setting...



[VintageReefer]

that was at 5:30 this morning when i left for work... is your moonlight the same color ?

Yes it’s a dim, cool blue



[Saltysav96]

Yes it’s a dim, cool blue

yeah idk. mine were bright as heck on both tanks. i submitted a ticket to @Reef Breeders regarding how bright they are.



[Zuluuz]

that is manual moonlight setting...

lol ok



[Troylee]

yeah idk. mine were bright as heck on both tanks. i submitted a ticket to @Reef Breeders regarding how bright they are.

Yeah I agree they’re a little bright.. I haven’t played with them yet but I’m sure you can make a schedule with a different color such as royal blue to run at 1% over night and maybe that will be better idk.. it’s just the number of overall LEDs that are lit on that blue channel that makes it so bright. I’m still running my Neptune moon lights as I haven’t had time to play with the meridians setting yet! I tried them once and saw how bright it was so I left my Neptune lights on.



[jermzisurmom]

Does the edge 12 with app control have moon settings



[Zuluuz]

Does the edge 12 with app control have moon settings

No just the main fixture



[jermzisurmom]

No just the main fixture

Missed opportunity @Reef Breeders ....
