I apologize if this was covered, I searched the thread but couldn't find it.

Which tplink plugs are usable by reefpi ?


MikeSpike

Member
View Badges
Joined
Jan 2, 2019
Messages
26
Reaction score
39
Hi I would like to measure the water level in a tank using my reef pi. (That is the actual water level not just the level is low with a traditional optical sensor)

Have come across the ‘etape liquid level sensor’ (google it). It says it works the same way as a thermistor. Could I define it as a thermometer to report water level (or any other way within reef pi? Thank you

OP
Ranjib

Ranjib

Valuable Member
View Badges
Joined
Apr 16, 2016
Messages
6,811
Reaction score
11,829
Location
Palo Alto, Bay Area
Hi I would like to measure the water level in a tank using my reef pi. (That is the actual water level not just the level is low with a traditional optical sensor)

Have come across the ‘etape liquid level sensor’ (google it). It says it works the same way as a thermistor. Could I define it as a thermometer to report water level (or any other way within reef pi? Thank you
long back (pre 1.0) reef-pi used to support etapes (reef-pi used to be called as reefer during that time). I dropped its support due to lack of usecases and the complexity in wiring (SPI involves more wire), in favor of photoelectric sensor and float switches.
Now that we have HAL (hardware abstraction layer), it wont be hard to bring back support for etapes, but I have to sort out the usecases.

Top Shelf Aquatics

MikeSpike

Member
View Badges
Joined
Jan 2, 2019
Messages
26
Reaction score
39
long back (pre 1.0) reef-pi used to support etapes (reef-pi used to be called as reefer during that time). I dropped its support due to lack of usecases and the complexity in wiring (SPI involves more wire), in favor of photoelectric sensor and float switches.
Now that we have HAL (hardware abstraction layer), it wont be hard to bring back support for etapes, but I have to sort out the usecases.
Thanks for the swift response. Any eta on when you think this might be added?


Michael Lane

Active Member
View Badges
Joined
Aug 11, 2018
Messages
254
Reaction score
510
Hi I would like to measure the water level in a tank using my reef pi. (That is the actual water level not just the level is low with a traditional optical sensor)

Have come across the ‘etape liquid level sensor’ (google it). It says it works the same way as a thermistor. Could I define it as a thermometer to report water level (or any other way within reef pi? Thank you
Another common technique is to measure the weight of the reservoir and calculate the level or volume from the weight. reef-pi doesn't support load cell weight sensors yet, but the driver system with v3.0 will make this much easier.

OP
Ranjib

Ranjib

Valuable Member
View Badges
Joined
Apr 16, 2016
Messages
6,811
Reaction score
11,829
Location
Palo Alto, Bay Area
Thanks for the swift response. Any eta on when you think this might be added?
I have no plan for it right now. As I was saying I want to understand how I’ll be using this to solve a specific problem related to reef keeping or any aquarium setup in general. Those bits are essential to understand what other pieces needed and if there exist alternate techniques

Get Fish & Corals directly for the suppliers

MikeSpike

Member
View Badges
Joined
Jan 2, 2019
Messages
26
Reaction score
39
I have no plan for it right now. As I was saying I want to understand how I’ll be using this to solve a specific problem related to reef keeping or any aquarium setup in general. Those bits are essential to understand what other pieces needed and if there exist alternate techniques
Some possible uses
1. Measuring how much water is let in R.O. rather than just 'Refill'
2. Using Reefpi to automate water changes in a more dynamic way e.g. 10l or 20l rather than at a set point of the infrared sensor


Mad_Deuce

Member
View Badges
Joined
Sep 16, 2014
Messages
15
Reaction score
8
Hi Ranjib it is possible if you can tell know how much current does the kessil A80 0-10v draw per channel? I figure must be slow low 50ma ish per channel?

I'm calculating to see if my sinking output can handle the job or not. I'm using an automation hat there 3x 24v sinking output on board but can only handle 500ma combine. I already got one of the output slotted out to run 2x 12v fan at 150ma each. So not much amp left to share.

OP
Ranjib

Ranjib

Valuable Member
View Badges
Joined
Apr 16, 2016
Messages
6,811
Reaction score
11,829
Location
Palo Alto, Bay Area
Hi Ranjib it is possible if you can tell know how much current does the kessil A80 0-10v draw per channel? I figure must be slow low 50ma ish per channel?

I'm calculating to see if my sinking output can handle the job or not. I'm using an automation hat there 3x 24v sinking output on board but can only handle 500ma combine. I already got one of the output slotted out to run 2x 12v fan at 150ma each. So not much amp left to share.
under 40ma, but use common npn transistors (2n222a ) to gate the pi or pca9685 pwm output

OP
Ranjib

Ranjib

Valuable Member
View Badges
Joined
Apr 16, 2016
Messages
6,811
Reaction score
11,829
Location
Palo Alto, Bay Area
Some possible uses
1. Measuring how much water is let in R.O. rather than just 'Refill'
2. Using Reefpi to automate water changes in a more dynamic way e.g. 10l or 20l rather than at a set point of the infrared sensor
This first use case is incomplete, like what to do after you know the level .. the second use case can be done using peristaltic pumps, folks already does this and without using any water level sensor, as we need to only add /remove fixed amount of water for this.

OP
Ranjib

Ranjib

Valuable Member
View Badges
Joined
Apr 16, 2016
Messages
6,811
Reaction score
11,829
Location
Palo Alto, Bay Area

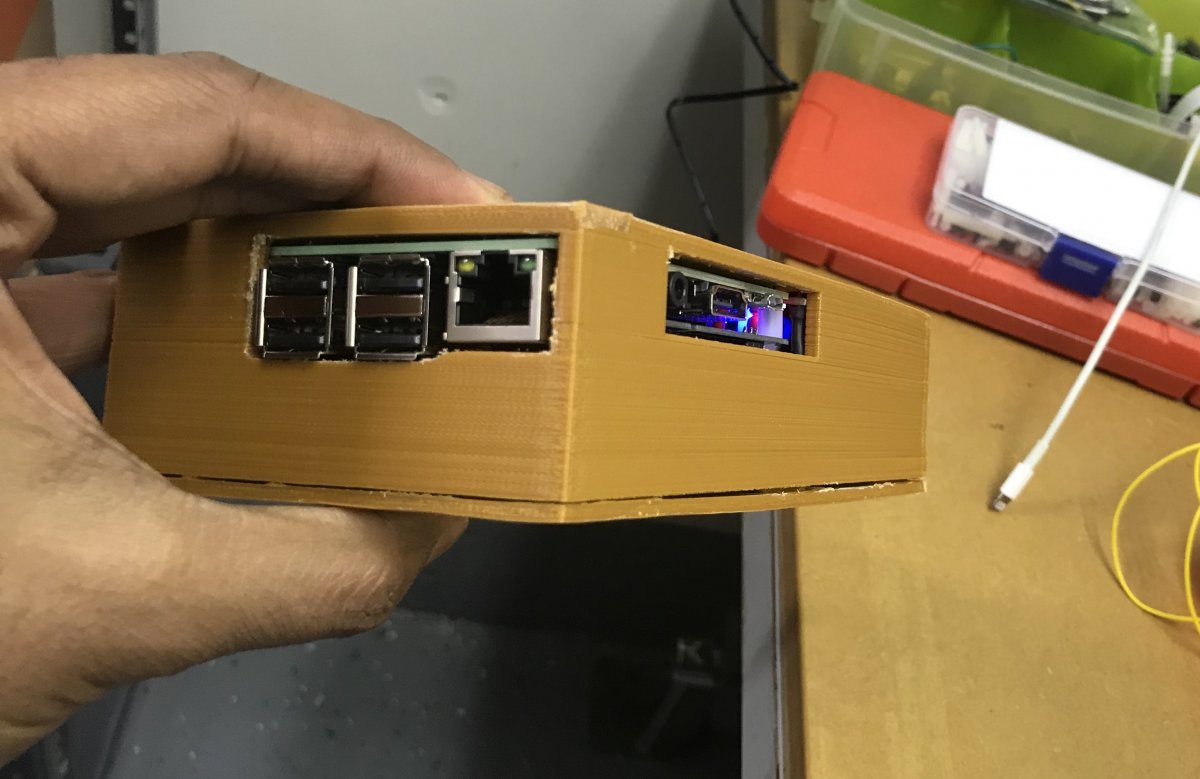

Just finished a pi3 all in one build with 3d printed enclosure .


This one can do one temp sensor, one float switch , one kessil and one ph probe .



Similar to the last all in one build (I’m upgrading my builds to use 3d printed enclosures) this one has space for accessing pi 3 usb and hdmi ports




The electronics is very similar to other all in one build except it does not have the adj powerstrip control circuit involving 12v and uln2893a.


Overall pretty happy with the result . I used 3mm walls for this build , which made it pretty sturdy .

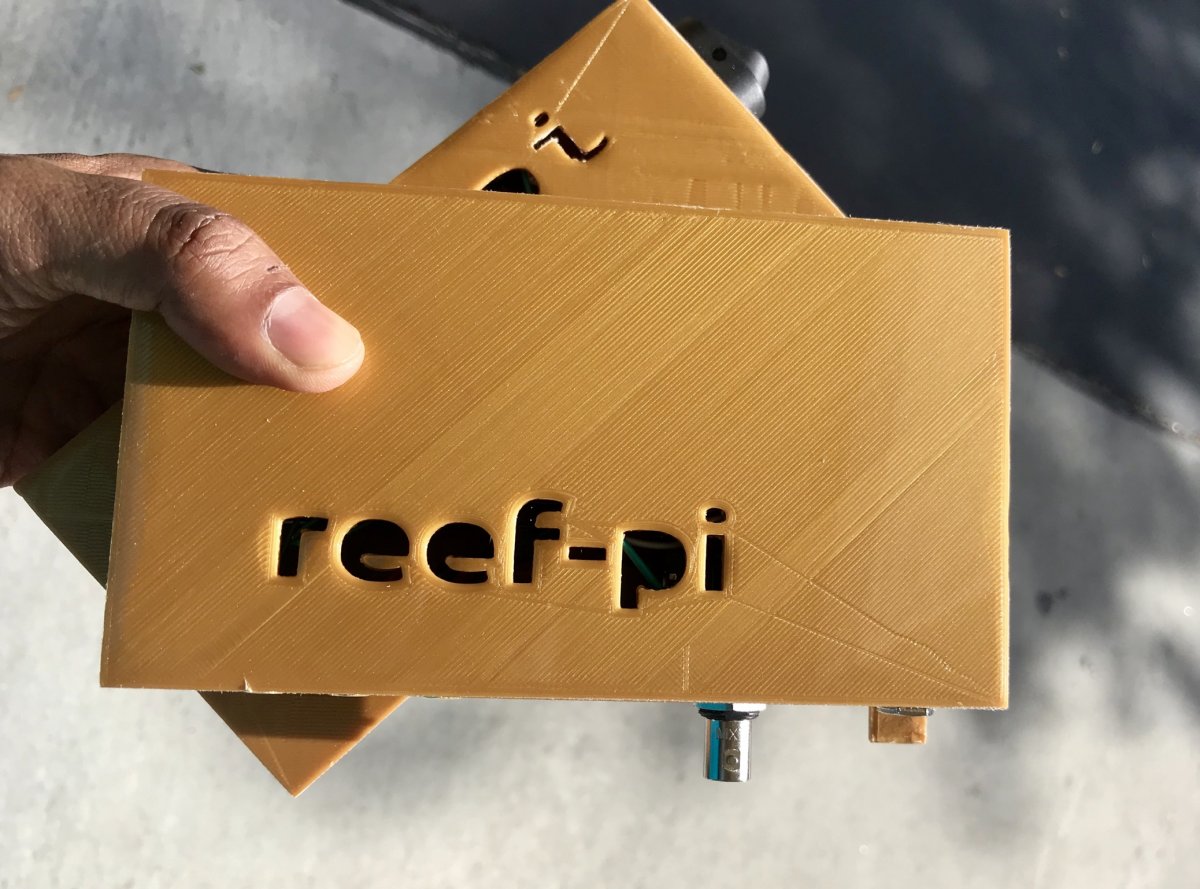

Here are both of my 3dprinted builds



Now back to 3.0 feature development ..:)


AbjectMaelstroM

Member
View Badges
Joined
Jul 21, 2019
Messages
53
Reaction score
56
Location
Richmond
Just finished a pi3 all in one build with 3d printed enclosure .


This one can do one temp sensor, one float switch , one kessil and one ph probe .



Similar to the last all in one build (I’m upgrading my builds to use 3d printed enclosures) this one has space for accessing pi 3 usb and hdmi ports




The electronics is very similar to other all in one build except it does not have the adj powerstrip control circuit involving 12v and uln2893a.


Overall pretty happy with the result . I used 3mm walls for this build , which made it pretty sturdy .
Here are both of my 3dprinted builds



Now back to 3.0 feature development ..:)
Lookin good!

I want a 3D printer.


Bigtrout

Well-Known Member
View Badges
Joined
Dec 16, 2018
Messages
739
Reaction score
1,884
Just finished a pi3 all in one build with 3d printed enclosure .


This one can do one temp sensor, one float switch , one kessil and one ph probe .



Similar to the last all in one build (I’m upgrading my builds to use 3d printed enclosures) this one has space for accessing pi 3 usb and hdmi ports




The electronics is very similar to other all in one build except it does not have the adj powerstrip control circuit involving 12v and uln2893a.


Overall pretty happy with the result . I used 3mm walls for this build , which made it pretty sturdy .
Here are both of my 3dprinted builds



Now back to 3.0 feature development ..:)
Very nice...send me one...lol!


Alaa

Member
View Badges
Joined
Nov 28, 2018
Messages
32
Reaction score
23
Hi all
Quick question
Can i use pi roi and pca board on the same time ine to control lights and the other fot doser if so do i connect both pca board and the motor board to same raspberry pi pins
Thanks for all your support
