Rodi issues

[bebetekracecraft]

Hey r2r community .its my first post here I been in the game for about 8 years .still feel like newbie lol..I’m having issues with my rodi system
I have a brs 4 stage value plus water saver 150gpd system
I just changed all the filters,one new membrane,new Aquatec 8800 pump
My house only provides 20psi of water
With the booster pump I only get 25 psi max no matter which way I adjust the regulator on the pump

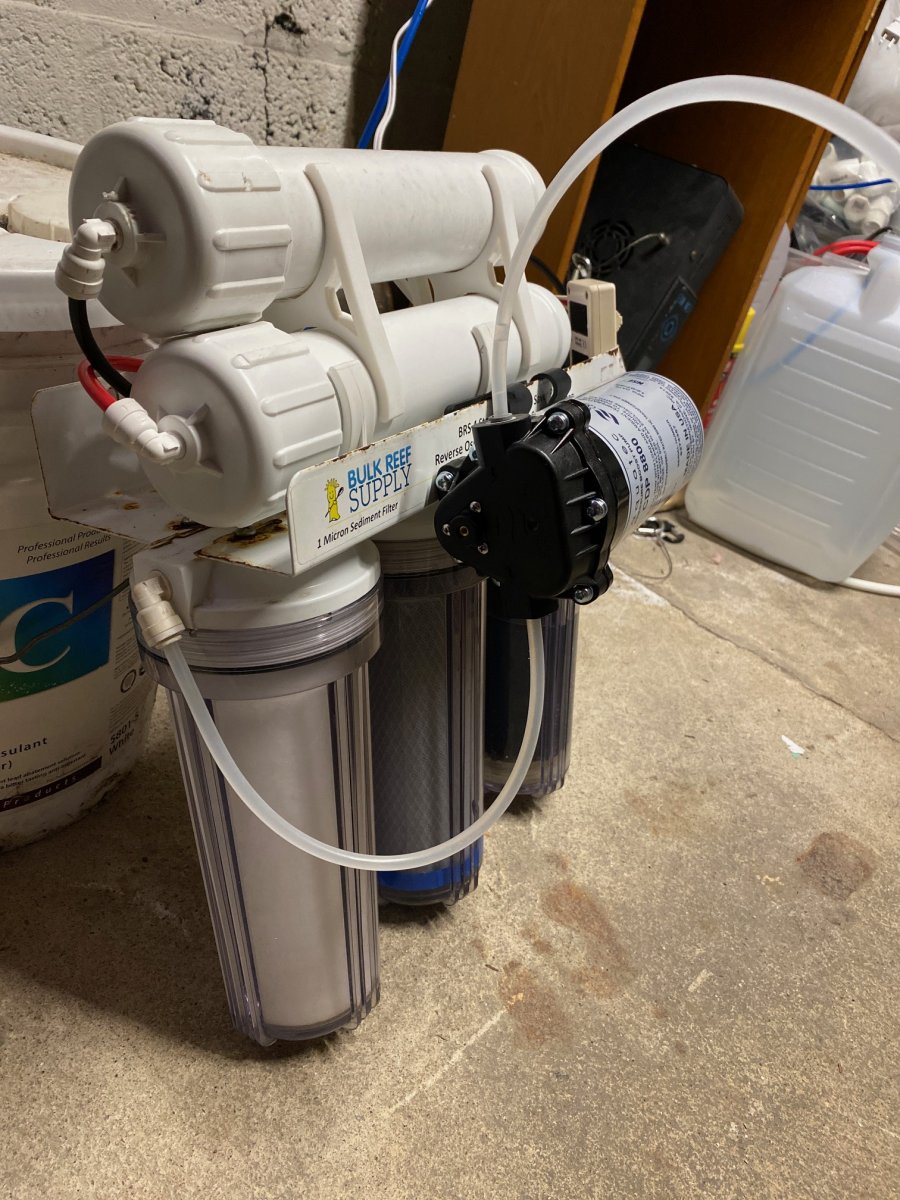

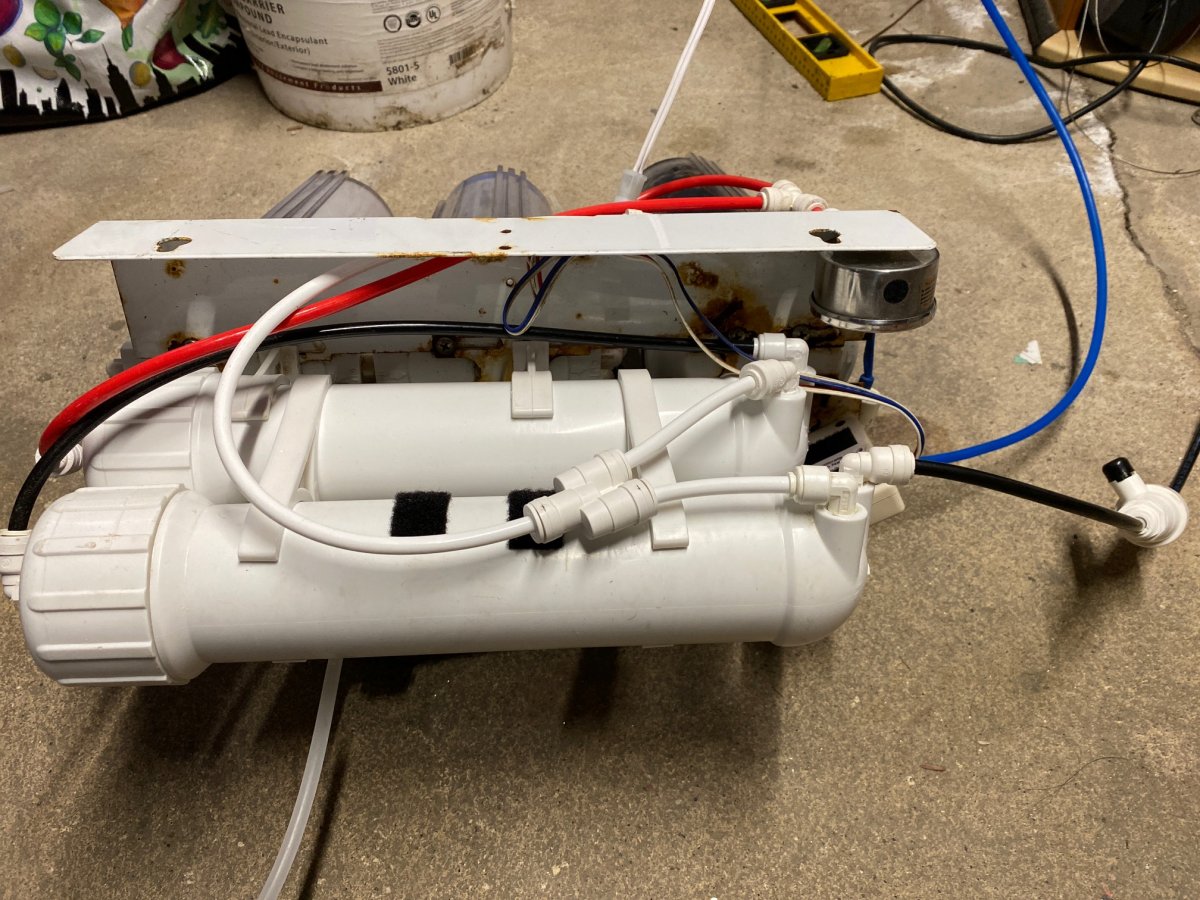

I make 5 gallons of water coming out of my do resin before I make 1/2 a quart of waste water..it’s got me stumped.im going to include some pics maybe one of u guys can point the obvious out.brs has no videos or instructions on hose routing



[Gtinnel]

Hello.
It looks like your flow restrictor is open to wash the membrane which would cause little to no pressure buildup. But with it open all of your water should go to waste.



[bebetekracecraft]

Hello.
It looks like your flow restrictor is open to wash the membrane which would cause little to no pressure buildup. But with it open all of your water should go to waste.

Figured it out.waste and product was backwards on the membrane
