What's up guys. It's finally time I begin my build thread. I've been slowly working on this tank for the past 5 months now. With work, family, and school I've not had the time to put in a lot of work into the build like I would have wished. That said, I just recently finished my college courses and now have my weekends back!

I bought the tank used off of Craigslist. I was looking for a 120, but the dimensions of this 90 gallon fit my spot just perfectly, and I really enjoyed that it's rimless. So I decided to go ahead and pick it up. Here's a picture of the tank when I brought it home. Note* to the right of the tank is an Ikea cabinet that I purchased so that I can put all of my electronics in.



After a bit of time, I decided that the stand was just plain boring. So I ventured to spruce it up a bit. I completely disassembled it, added several pieces of trim, and then made the decision to paint it white. This now means, that I wasted my money on the black Ikea cabinet and need to make another trip to Indy Ikea to purchase the same cabinet, but in white.

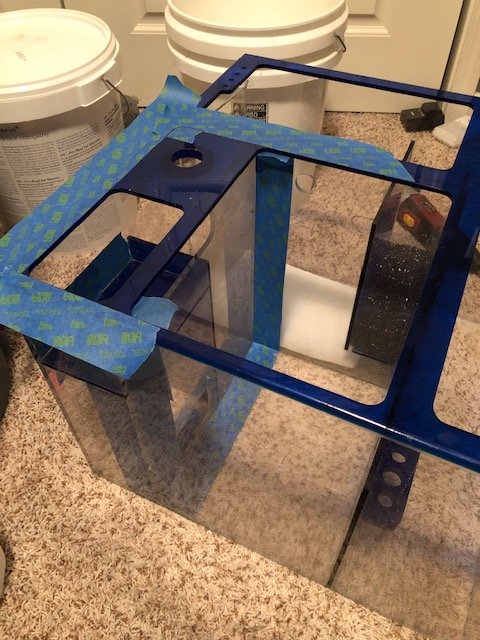

Now on to the sump...When I bought the tank on CL, it came with a Trigger cube sump. I really enjoyed the form factor and how it still left a bit of room in the stand for other pieces of equipment. That said, I was really sold on the rollermats versus having to change out the filter socks every so often. So I purchased a ClariSea Roller Filter and used an reciprocating saw to retro fit the roller filter. I completely cut out the filter sock section and then spent hours sanding down all of the remaining edges of acrylic. After sanding, I then bought an acrylic polishing kit to try and hide as much as I could. I think it came out pretty decent. Just thinking about how much effort that took, I wish I would have just bought a new sump with the roller mat already built in LOL. Here's some photos of that process:


After completely destroying the sump to make it fit the roller mat, and after several weeks working on the stand this is what I've come up with. Don't pay attention to the dirty/dusty tank. I haven't had time to clean it yet!

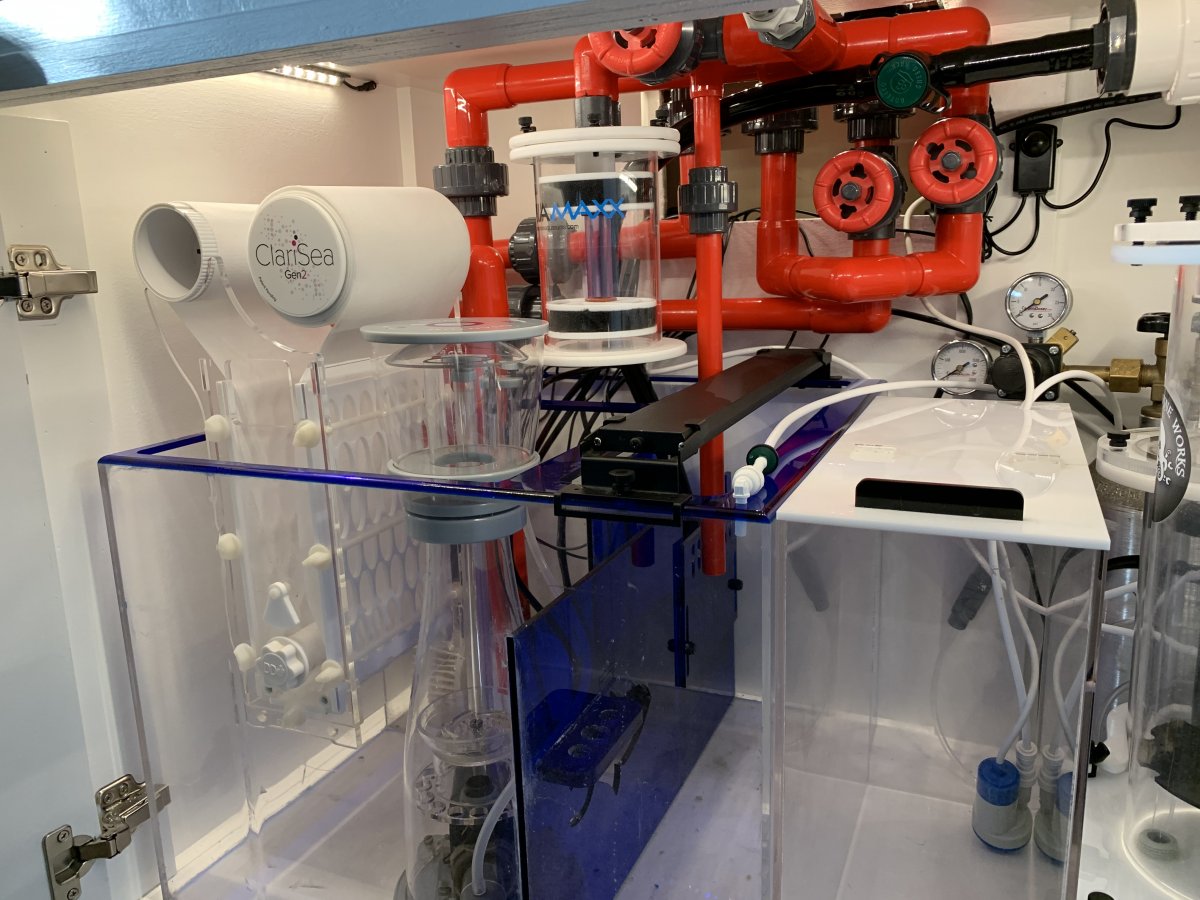

Ok, so on to plumbing...I've gained inspiration from several reefers on this forum through all of their amazing plumbing skills and I wanted to follow suit. Just to name a couple, @Broadfield & @Eight both have amazing build threads with very detailed walkthroughs on how they went about their plumbing. Aside from the labor that I put into the plumbing, I would not have come out with such an amazing end result without those two build threads, amongst others as well. So, here's some photos of my sump area that's all plumbed, and has most of my equipment in place. Don't mind the lack of cable management; nothing other than the sump lights are plugged in as I still need to build the control panels (and buy the new cabinet).

And here's a short video clip of the sump area. If you made it this far through my post, thanks for reading and stay tuned for the next step; aquascaping!
IMG_1304.jpg IMG_1304.jpg

OP
Okinawa_reefer

Okinawa_reefer

Active Member
View Badges
Joined
Dec 7, 2017
Messages
150
Reaction score
73
Location
Lafayette
Is it going to be difficult getting your CO2 tank out of there to refill?
Slightly. In order to take it out, I actually have to pull the ATO container out. I've left ample slack in all of the wires and tubing to allow me to slide it forward without needing to unplug anything. Not the best case scenario, but sometimes you've got to work with what you got!

OP
Okinawa_reefer

Okinawa_reefer

Active Member
View Badges
Joined
Dec 7, 2017
Messages
150
Reaction score
73
Location
Lafayette
Plumbing looks great! Like seeing the Avast CaRx that is going to be used as well. Following along!
Thank you for the kind words. I was on the hunt for a CaRx and was initially going to order one from Geo’s Reef, but then came across the thread for the Avast Marine reactor that was recently revamped. They had a sale for the initial orders so I decided to jump on it. I tested it with tap water in my sink and was pretty impressed. It’s going to be a while before I have a need for it, so now it just sits there holding it’s place, patiently waiting to be filled with media and saltwater lol.

Best reef aquarium LED lighting
OP
Okinawa_reefer

Okinawa_reefer

Active Member
View Badges
Joined
Dec 7, 2017
Messages
150
Reaction score
73
Location
Lafayette
Here’s my attempt at a NSA. I know the lighting isn’t the greatest. And my garage is a mess. I need to use the marco mortar on all of the joints. That’ll have to wait for another day. When I get that part done I’ll do some new photos of the scape in the tank.

F71590C9-3A5E-476B-8D2B-DE3D1808F743.jpeg C5FE7064-6839-4600-AE17-AD56F7383209.jpeg 5DACD07D-9AE8-4480-BF02-56B9AB538E00.jpeg F0CFAB15-0B46-49D3-8A19-A55E66D969A6.jpeg 651712E7-6C76-4C48-9E40-96EADE5F12C8.jpeg 9A4C910D-4AF0-43D9-8A37-B0F6442553D7.jpeg


Attachments

OP
Okinawa_reefer

Okinawa_reefer

Active Member
View Badges
Joined
Dec 7, 2017
Messages
150
Reaction score
73
Location
Lafayette
It’s been a while since I’ve posted. Tank was filled with water approximately three weeks ago. I’ve elected to use the Microbacter dry rock starter kit to do a fish less cycle. I dosed the ammonia and. XLM last Monday. I’m also using my Seneye to monitor the ammonia in the tank. Currently sitting at 0.052 ppm ammonia.

55024F5D-9419-404A-A678-FA78B2A76BDF.jpg 07C9EEAF-4C0D-4D79-9395-C94C31CCB755.jpeg
