Viparspectra 165watt, Anyone using these?

Aquarium Specialty - dry goods & marine livestock

Pau Hana Reefer

got reef?
View Badges
Joined
Dec 18, 2018
Messages
1,305
Reaction score
9,871
Location
Pennsylvania
Awesome job. Would be curious to see how things change if you raise the lights.

Thanks and likewise. I'll planning to run through all the same measurements after I raise the lights. I'm also curious to see how it impacts the "dead spot" in the middle.

I need to figure out how I'm going to raise the lights... right now I'm most likely going to cut open the top of my canopy.

OP
Nicholas Dushynsky

Nicholas Dushynsky

Valuable Member
View Badges
Joined
Jul 30, 2017
Messages
1,167
Reaction score
1,256
Location
Devon, England
To be honest I do like the actinic look, Abject. However it does come at the expense of the fishes colours doesn't it. Definitely good to hear your opinion though. I'll certainly be taking that into consideration.

You have any photos of your tank lit, before and after? I love to see a map of your configuration if you have to to hand.

Does anyone re-apply thermal paste when replacing LEDs?

EDIT: Perhaps switching out a 4 more whites could be enough for me.

I replaced the thermal paste on mine. This is mine as of today 9" off the water all but the outer ring of lenses removed to save light spilling out the tank, and the new layout of mine.
settings are turned down to 35 blue, 1 white as when I was running it higher the hammers which are up the top didn't like it as much and not fluff up.


Attachments

  • 20210131_194428.jpg
    191.6 KB · Views: 12

tim132

Active Member
View Badges
Joined
Jul 22, 2020
Messages
114
Reaction score
69
Location
Morecambe, Lancs
I took off the lenses and I like the look much better but there's a lot of light spillage in the room. Im going to keep the lenses off antway. I can tell the corals seem to like it .

I took my lenses off about a month ago, no going back. Great coverage and pretty good blending.

I 3D printed some "side skirts" to help with spillage into the room.

Yeah I’m realizing the spill kinda sucks, now I have to build a canopy. Welcome to reefing, it’s always something lol

I removed my lenses and realised there was a lot of light spill. I then realised you can actually remove the inner part of the lens from the white outer surround. Reattach just the white surround and it helps no end with light spill!

Fritz

tim132

Active Member
View Badges
Joined
Jul 22, 2020
Messages
114
Reaction score
69
Location
Morecambe, Lancs
I replaced the thermal paste on mine. This is mine as of today 9" off the water all but the outer ring of lenses removed to save light spilling out the tank, and the new layout of mine.
Funny you should say that, that's exactly what I did. So glad you started this post off, it's been a massive help.

Took me 6 months to get the confidence to go ahead and make the mods though. Wish I hadn't waited so long!




If anyone is interested and would like more information on how diodes are replaced and some tips, I put together a youtube video.


OP
Nicholas Dushynsky

Nicholas Dushynsky

Valuable Member
View Badges
Joined
Jul 30, 2017
Messages
1,167
Reaction score
1,256
Location
Devon, England
Funny you should say that, that's exactly what I did. So glad you started this post off, it's been a massive help.

Took me 6 months to get the confidence to go ahead and make the mods though. Wish I hadn't waited so long!




If anyone is interested and would like more information on how diodes are replaced and some tips, I put together a youtube video.

I'm glad I started it, and all the help that's come from it to help myself and others. Can I ask what settings you are still running.

OP
Nicholas Dushynsky

Nicholas Dushynsky

Valuable Member
View Badges
Joined
Jul 30, 2017
Messages
1,167
Reaction score
1,256
Location
Devon, England
did you put all of the empty lens cases back on or just the outer ones?
I took all the lenses off including the cases on the centre, and just left the lenses as they are on the outer ring. This helps direct the light straight down and not spread outwards as even with my floating light canopy it spills underneath. But now I'm contemplating taking the lenses out of the holder to keep better spread within the tank and not spilling into the room, I didn't even think about doing that.


Wolf94

New Member
View Badges
Joined
Aug 31, 2019
Messages
21
Reaction score
25
Hey all,

I've been following this thread for some time and haven't chimed in for a while. This thread gave me a lot of guidance and made me realize a couple years ago that I had my Viparspectras turned up way too high. After adjusting my lights based on everything shared in this thread, my corals continued showing signs of under and over lighting, so I've been me wondering about my tank's actual PAR. When the Apogee SQ-520 went on sale last summer, I jumped on it.

I played around quite a bit back in August and September and have been meaning to share the results. Below are the results of four different tests/measurements. Please note that I used the same picture of my tank for all of the results below and they do not indicate the actual lighting intensity/coloration mentioned in each test.

About my set-up:
- 90 gallon (48" W x 18" D x 24" H)
- (2) Viparspectra 165w
- Bottom of lights to water surface is 6.5" (this is too low, I do not recommend this. I have plans to raise the lights)
- Apogee SQ-520 connected to my PC, using ApogeeConnect app

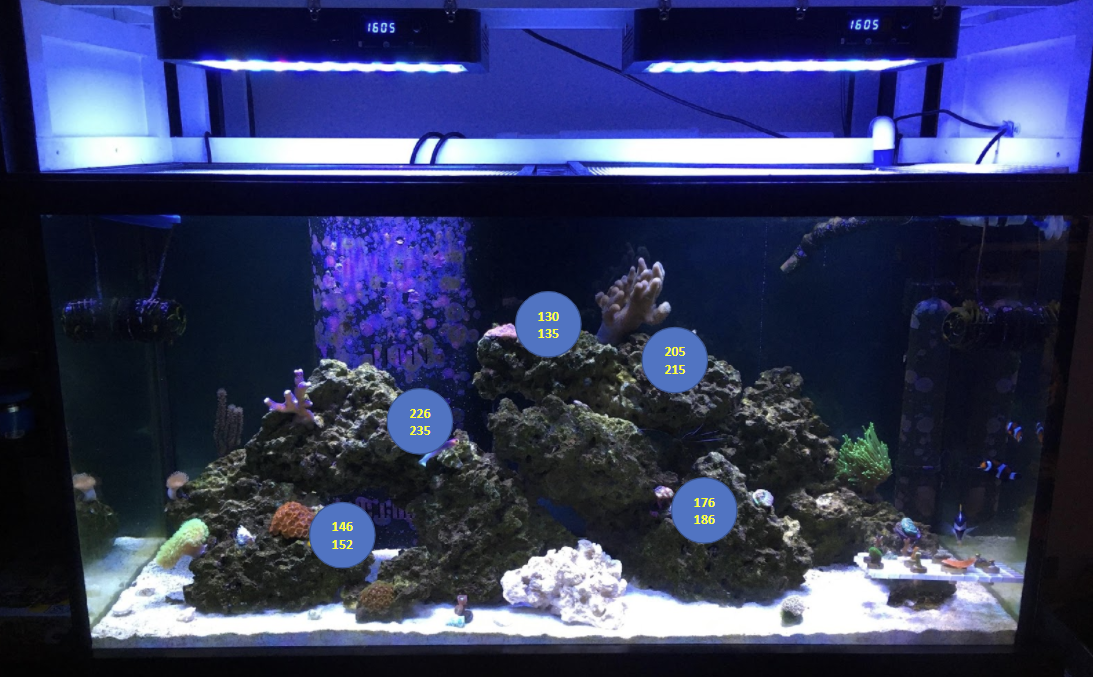

Test 1 - Impact of Screen Netting
I have DIY screen nets on top of my tank to keep my wrasses in the tank. The netting is 1/4" clear netting, similar to this one. I wanted to understand if and how this netting impacted PAR.

The top number in each circle represents PAR with the netting on and the bottom numbers are without netting. The netting appears to lower the lighting by about 10 PAR for any areas directly under the light. The difference in the bottom left circle (146/152) is different, I believe due to shadowing caused by the rocks above it. The top middle circle (130/135) did not see a similar decrease in PAR with the netting in, I believe due to the fact that it is not directly under the lights.

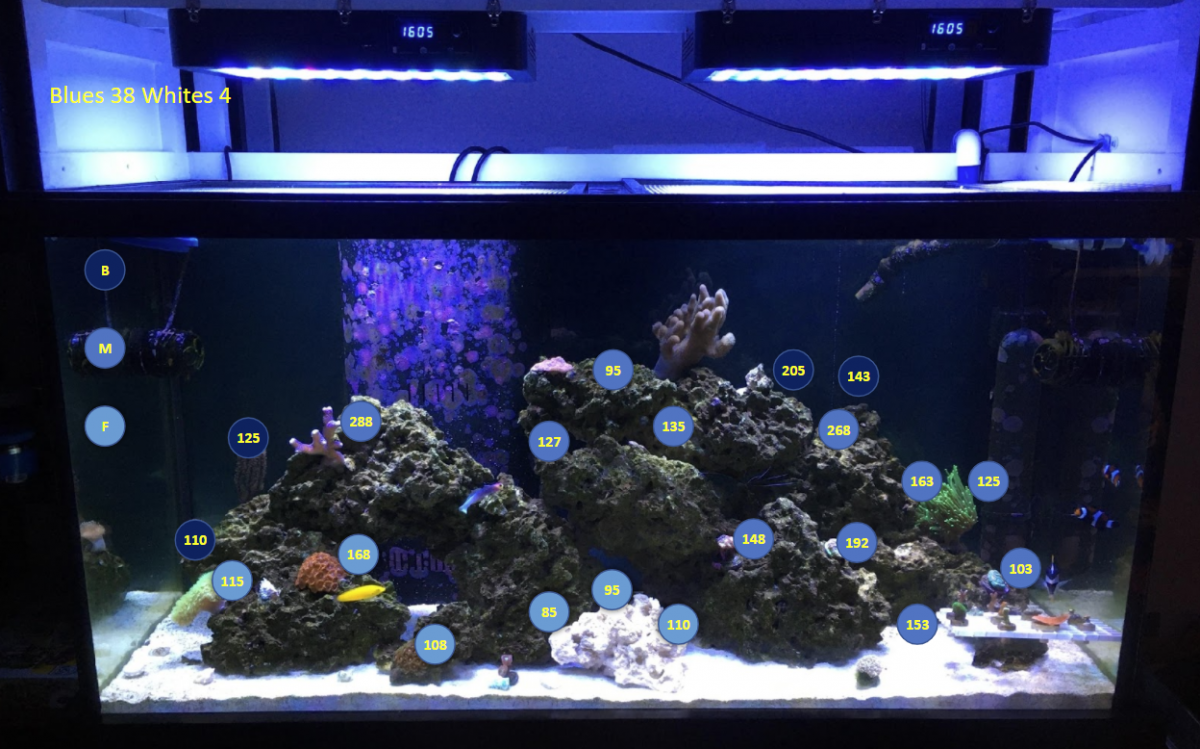

Test 2 - PAR with Blues at 38 and Whites at 4 (with netting)
This shows PAR measurements in various parts of my tank with my blues at 38 and whites at 4. The shade of the circle indicates whether the measurement is for the back of the tank (dark blue), middle of the tank (blue), or front of the tank (light blue).

Notice how my setup causes the PAR to significantly drop off in the area between my lights? I will be raising my lights in the coming months to see if I can minimize some of this drop off. Because this is not a rimless tank, I have a plastic brace in the middle that also causes additional shadowing.

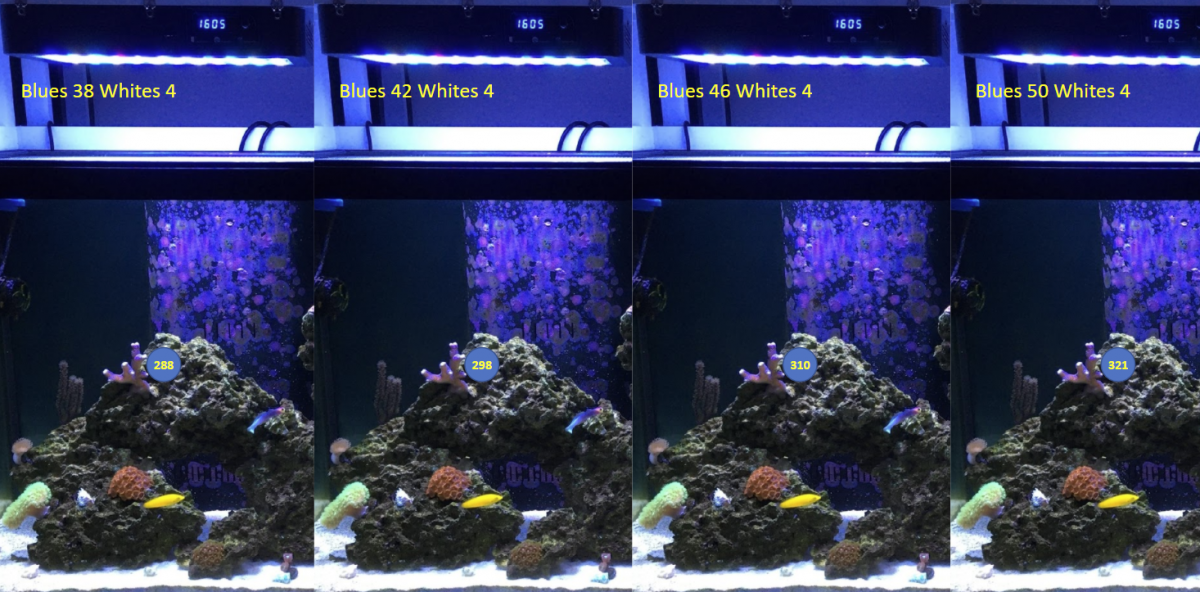

Test 3 - Raising Just Blues (with netting)
How does turning up just the blues or just the whites impact PAR? I first measured how PAR is impacted when just turning up the blues. I started at the baseline used in Test 2 (Blues 38, Whites 4) and turned up the blues in increments of 4.

In my setup, the area directly under the lights at mid tank (both height and depth) goes up by approximately 10 PAR when you turn the blues setting up 4. I also tested this without netting and saw similar results.

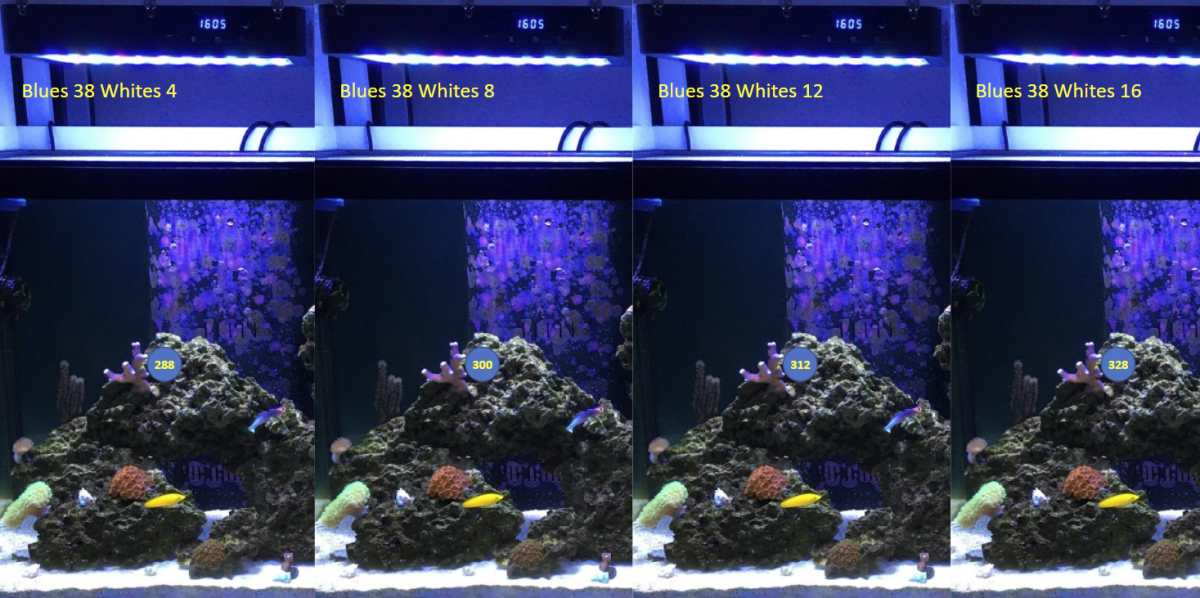

Test 4 - Raising Just Whites (with netting)
And I did the same for the whites, starting with the baseline of Blues 38 and Whites 4.

And in my setup, it appears PAR directly under the lights at mid tank (both height and depth) goes up by approximately 12 PAR when you turn the whites setting up by 4. I'm unsure why it increased by 16 PAR when whites were turned up from 12 to 16. I measured this multiple times to confirm it wasn't an error. I also tested this without netting and saw similar results.


Hope this info helps.
Hello

So you think that 85 blue and 25 whites is too much for softies ?

In France, settings are more 40% whites and 90-100 blues
How Many PAR you think in m'y tank with 85 25 ?

Viparspectra are 20cm up water. And my tank is 50cm water.

Cordially.

Corals.com

tim132

Active Member
View Badges
Joined
Jul 22, 2020
Messages
114
Reaction score
69
Location
Morecambe, Lancs
I'm glad I started it, and all the help that's come from it to help myself and others. Can I ask what settings you are still running.
Sorry I haven't replied sooner Nicholas. So I'm putting my lenses back on tomorrow.

I'm glad it's given you the idea to try for yourself though and as your lights are mounted lower and you don't need as much power I'm sure removing all the lenses from the surround could work for you.



I currently have my lights mounted at 14 inches. It's the lowest I get them due to high ceilings.

I've been steadily increasing them up since the mod and removing lenses but today I was able to measure the lux at the water surface, ch1/100 ch2/45 and I'm only getting 13000 in the center on the fixture, with minimum fall off towards the edges.

This equates "roughly" to 13000÷50= 260par. I need to be hitting 400par min at the surface. Therefore the lenses are going back on to give me the extra punch.

In all fairness I only removed the lenses to remove the disco effect which apparently can be avoided by removing just the red and green lenses... I'll leave those lenses off still. And report back.

All lenses off @15" above water line
Ch1/100 Ch2/45
Par at surface 260

Last edited:
OP
Nicholas Dushynsky

Nicholas Dushynsky

Valuable Member
View Badges
Joined
Jul 30, 2017
Messages
1,167
Reaction score
1,256
Location
Devon, England
Sorry I haven't replied sooner Nicholas. So I'm putting my lenses back on tomorrow.

I'm glad it's given you the idea to try for yourself though and as your lights are mounted lower and you don't need as much power I'm sure removing all the lenses from the surround could work for you.



I currently have my lights mounted at 14 inches. It's the lowest I get them due to high ceilings.

I've been steadily increasing them up since the mod and removing lenses but today I was able to measure the lux at the water surface, ch1/100 ch2/45 and I'm only getting 13000 in the center on the fixture, with minimum fall off towards the edges.

This equates "roughly" to 13000÷50= 260par. I need to be hitting 400par min at the surface. Therefore the lenses are going back on to give me the extra punch.

In all fairness I only removed the lenses to remove the disco effect which apparently can be avoided by removing just the red and green lenses... I'll leave those lenses off still. And report back.

All lenses off @15" above water line
Ch1/100 Ch2/45
Par at surface 260
Thanks for the info. As mine is only lps and as you say lower at 9 inches. Ideally I need to try and find a par meter to borrow or hire in the uk. I just want to find the best settings and just leave it there and stop tinkering all the time.
I am tempted to take a couple whites out and maybe even the red and green.


tim132

Active Member
View Badges
Joined
Jul 22, 2020
Messages
114
Reaction score
69
Location
Morecambe, Lancs
No problem. It's nice to share back some information. I definitely think that could work for you. I think once you find the par you're looking for you can leave it be.

I couldn't find a par meter to hire so going down the lux meter route. As long as I can get around 20k-25k lux which should be around 400-500par at the surface.

I have a bird's-nest which has been growing nicely but also a struggling sebae anemone that's sand dwelling so need to get a decent amount of light down to him so hopefully he can recover!


JMAwoodworks

Community Member
View Badges
Joined
Feb 14, 2020
Messages
43
Reaction score
61
No problem. It's nice to share back some information. I definitely think that could work for you. I think once you find the par you're looking for you can leave it be.

I couldn't find a par meter to hire so going down the lux meter route. As long as I can get around 20k-25k lux which should be around 400-500par at the surface.

I have a bird's-nest which has been growing nicely but also a struggling sebae anemone that's sand dwelling so need to get a decent amount of light down to him so hopefully he can recover!
Im at 9" off the water on my 40 Gallon with the lens removed. One thing Im thinking about doing is putting the empty lens cases back on to help with the light spillage.I do have a canopy but I think they will still help out. As for all of my sps and lps they are doing great. Blue at 60 and white at 20 with no lens .

OP
Nicholas Dushynsky

Nicholas Dushynsky

Valuable Member
View Badges
Joined
Jul 30, 2017
Messages
1,167
Reaction score
1,256
Location
Devon, England
No problem. It's nice to share back some information. I definitely think that could work for you. I think once you find the par you're looking for you can leave it be.

I couldn't find a par meter to hire so going down the lux meter route. As long as I can get around 20k-25k lux which should be around 400-500par at the surface.

I have a bird's-nest which has been growing nicely but also a struggling sebae anemone that's sand dwelling so need to get a decent amount of light down to him so hopefully he can recover!
Good luck, keep us up to date and with what your readings are after the lenses are back on.

Fritz
OP
Nicholas Dushynsky

Nicholas Dushynsky

Valuable Member
View Badges
Joined
Jul 30, 2017
Messages
1,167
Reaction score
1,256
Location
Devon, England
Im at 9" off the water on my 40 Gallon with the lens removed. One thing Im thinking about doing is putting the empty lens cases back on to help with the light spillage.I do have a canopy but I think they will still help out. As for all of my sps and lps they are doing great. Blue at 60 and white at 20 with no lens .
Do you know your par at all?


tim132

Active Member
View Badges
Joined
Jul 22, 2020
Messages
114
Reaction score
69
Location
Morecambe, Lancs
Im at 9" off the water on my 40 Gallon with the lens removed. One thing Im thinking about doing is putting the empty lens cases back on to help with the light spillage.I do have a canopy but I think they will still help out. As for all of my sps and lps they are doing great. Blue at 60 and white at 20 with no lens .
Certainly makes a difference dropping the lights a little lower doesn't it. Have you replaced any diodes in your unit?

Good luck, keep us up to date and with what your readings are after the lenses are back on.
I will update tomorrow mate.


tim132

Active Member
View Badges
Joined
Jul 22, 2020
Messages
114
Reaction score
69
Location
Morecambe, Lancs
Update...
All lenses off @15" above water line
Ch1/100 Ch2/45
PAR at surface 184
LUX at surface 12k
(Using conversion rate of 12k÷65)

All lenses on @15" above water line (except red and green lenses)
Ch1/100 Ch2/45
PAR at surface 415
LUX at surface 27k
(Using conversion rate of 27k÷65)

Massively surprised by these results!!

Last edited:
