Any input is appreciated
There are Par readings in this thread. At all output lvs. Towards the beginning.

I’m at 46 blue and 3 white over a 40 breeder. 30 “ from light to bottom of tank. Started at 20 blue and 1 white months ago.


MagnoliaTanks

New Member
View Badges
Joined
May 13, 2021
Messages
9
Reaction score
5
Location
Ocean Springs
Rating - 0%
0   0   0
For a 5 foot tank, you might need another viparspectra unit but place them perpendicular over the tank. These things are only slated for 2x2 foot areas and you're mounting higher up. BRS tested at that mounting height and recommended 100% blues and 30% whites.
Thanks for the refresh I couldn’t remember. I built the bracket for these, and built it for 2 lights so it’s staying until I can afford something better. Plus I had already owned these from a freshwater planted tank I did.


Uncle99

7500 Club Member
View Badges
Joined
Jul 22, 2018
Messages
8,731
Reaction score
12,861
Location
Province of Ontario
Rating - 0%
0   0   0
Hello! New reefer here, not new to tanks. I’m using 2 vipers for now. Currently set at 20blue and 2 white @18” above water. No coral yet still cycling. Just looking for % advice but everyone seems to be all over the place. 100 gallon tank, 5 feet long, 18” deep,” 20” tall
Any input is appreciated
That seems good to me until it matures up a bit.
White especially helps the ugly stages, low light, low phosphate is a big help in reducing the amount and length of time it stays.

I’ve never moved my whites higher than 5% ever and during the first 6 months, 10%blue, started ramping up blues 10% a month and stopped at 80% and 3%. Never touched them in the following 2 years.

Below is two, Vipers over a 65g, 3 years old.


MagnoliaTanks

New Member
View Badges
Joined
May 13, 2021
Messages
9
Reaction score
5
Location
Ocean Springs
Rating - 0%
0   0   0
That seems good to me until it matures up a bit.
White especially helps the ugly stages, low light, low phosphate is a big help in reducing the amount and length of time it stays.

I’ve never moved my whites higher than 5% ever and during the first 6 months, 10%blue, started ramping up blues 10% a month and stopped at 80% and 3%. Never touched them in the following 2 years.

Below is two, Vipers over a 65g, 3 years old.
that helps a bunch! Thanks! I’ve honestly only been running the light to feed and when I want to see the fish. Your tank looks awesome by the way! Not worried about sps for a little while just wanna get some lps in there. So ready!


Bigdaddy05

Well-Known Member
View Badges
Joined
Mar 19, 2020
Messages
534
Reaction score
515
Location
near Buffalo,ny
Rating - 0%
0   0   0
That seems good to me until it matures up a bit.
White especially helps the ugly stages, low light, low phosphate is a big help in reducing the amount and length of time it stays.

I’ve never moved my whites higher than 5% ever and during the first 6 months, 10%blue, started ramping up blues 10% a month and stopped at 80% and 3%. Never touched them in the following 2 years.

Below is two, Vipers over a 65g, 3 years old.
Have u checked par? I'm running 1 over my 65 gal and have it set to 100 blue and 20 white and it seems like low par for what I read online


Uncle99

7500 Club Member
View Badges
Joined
Jul 22, 2018
Messages
8,731
Reaction score
12,861
Location
Province of Ontario
Rating - 0%
0   0   0
Have u checked par? I'm running 1 over my 65 gal and have it set to 100 blue and 20 white and it seems like low par for what I read online
Only once when installed.
At 14” above the water, 100% both channels under the lights was 650-700 PAR.

At 14” above the water, 80% blue and 3% white was 250-350 PAR at the surface and at the bottom, 24” down, 80-100PAR.

But I ran two over my 65g.


JIsBusyReefing

Active Member
View Badges
Joined
Oct 4, 2020
Messages
215
Reaction score
168
Location
Harrisburg
Rating - 0%
0   0   0
Do you all think that three 165 watt units over a 2ft x 4ft x 30in tank is overkill? I added the third unit awhile back because of the height thinking two wouldn't get enough par at the bottom and because I wanted more even spread.


oreo54

5000 Club Member
View Badges
Joined
Sep 18, 2017
Messages
5,532
Reaction score
3,411
Rating - 0%
0   0   0
Do you all think that three 165 watt units over a 2ft x 4ft x 30in tank is overkill? I added the third unit awhile back because of the height thinking two wouldn't get enough par at the bottom and because I wanted more even spread.
Those lights aren't run at 165w
At best 110.
Normally almost dimmed to 1/2 if that if run blue heavy/ white low.

Figure accordingly.


AndifromGer

New Member
View Badges
Joined
Jun 24, 2021
Messages
2
Reaction score
2
Location
Germany
Rating - 0%
0   0   0
Hey Guys, really awesome thread! Thank you for so much information.
I bought the viparspectra 165w for my 112L (30g) standard tank which is 80 x 35 x 40cm (31 x 13 x 15 inch).
Before i had a red sea reef led 50 over the right side and a fluval nano 20w over the left side of the tank.
The viparspectra is ~10inch above waterlevel, cant get higher cause of ceiling height.

I got a dark spot on the left corner of the tank, i think i will just remove the lenses for better spread.

Since my corals are used to the Reef LED 50 on full power, do you think i can start with 40% on blue with the vipar? The tank seems really dark overall compared with the 2 lights before.


Zvargulis

New Member
View Badges
Joined
Aug 20, 2021
Messages
1
Reaction score
1
Location
Australia
Rating - 0%
0   0   0
Hey All,

This is my vipar 165 install, due to ease of install and allowing my cat continue to hang out ontop of my hood. I chose to cut a hole in my hood and mount the LED fixture ontop. (3d Printed parts available here: https://www.thingiverse.com/thing:4937042)

The light is about 200mm from the water surface on a 2ft cube and am noticing that on edges of the tank maybe ~10% form the sides, the light falls off and does not cover everything. I am planning to turn some t5 fluros back on that were previously installed to bring this back the light spread / cover extra parts of the spectrum that might be missed from this light.
At the moment I am at 8% white 30% blue.

Appreciate to hear form anyone that is running T5s with Vipar, and if there was a specific t5 color that works well with this LED fixture.

















ApoIsland

Valuable Member
View Badges
Joined
Apr 13, 2020
Messages
1,089
Reaction score
1,293
Rating - 0%
0   0   0
Do you all think that three 165 watt units over a 2ft x 4ft x 30in tank is overkill? I added the third unit awhile back because of the height thinking two wouldn't get enough par at the bottom and because I wanted more even spread.
Definitely not overkill. I had 4 mounted about 12 inches over a 4x2 120g and absolutely needed that to cover the tank side to side and front to back. LEDs are powerful but moat are laser beams straight down with minimal spread. Good thing these fixtures are so cheap.

OP
OP
Nicholas Dushynsky

Nicholas Dushynsky

Valuable Member
View Badges
Joined
Jul 30, 2017
Messages
1,199
Reaction score
1,348
Location
Devon, England
Rating - 0%
0   0   0
Hey Guys, really awesome thread! Thank you for so much information.
I bought the viparspectra 165w for my 112L (30g) standard tank which is 80 x 35 x 40cm (31 x 13 x 15 inch).
Before i had a red sea reef led 50 over the right side and a fluval nano 20w over the left side of the tank.
The viparspectra is ~10inch above waterlevel, cant get higher cause of ceiling height.

I got a dark spot on the left corner of the tank, i think i will just remove the lenses for better spread.

Since my corals are used to the Reef LED 50 on full power, do you think i can start with 40% on blue with the vipar? The tank seems really dark overall compared with the 2 lights before.
I would remove the lenses and turn the light up slowly over a course of months no more than 5 % at a time and leave it there for a week and monitor if you see a negative reaction either retracted or bleaching then drop it back to where it was last happy. Just try to not shock anything.

OP
OP
Nicholas Dushynsky

Nicholas Dushynsky

Valuable Member
View Badges
Joined
Jul 30, 2017
Messages
1,199
Reaction score
1,348
Location
Devon, England
Rating - 0%
0   0   0
Hey All,

This is my vipar 165 install, due to ease of install and allowing my cat continue to hang out ontop of my hood. I chose to cut a hole in my hood and mount the LED fixture ontop. (3d Printed parts available here: https://www.thingiverse.com/thing:4937042)

The light is about 200mm from the water surface on a 2ft cube and am noticing that on edges of the tank maybe ~10% form the sides, the light falls off and does not cover everything. I am planning to turn some t5 fluros back on that were previously installed to bring this back the light spread / cover extra parts of the spectrum that might be missed from this light.
At the moment I am at 8% white 30% blue.

Appreciate to hear form anyone that is running T5s with Vipar, and if there was a specific t5 color that works well with this LED fixture.















Mine is mounted 238mm above the water on a 24x18x18 with lenses removed. I'll post my latest pic in a minute. With settings etc.

OP
OP
Nicholas Dushynsky

Nicholas Dushynsky

Valuable Member
View Badges
Joined
Jul 30, 2017
Messages
1,199
Reaction score
1,348
Location
Devon, England
Rating - 0%
0   0   0

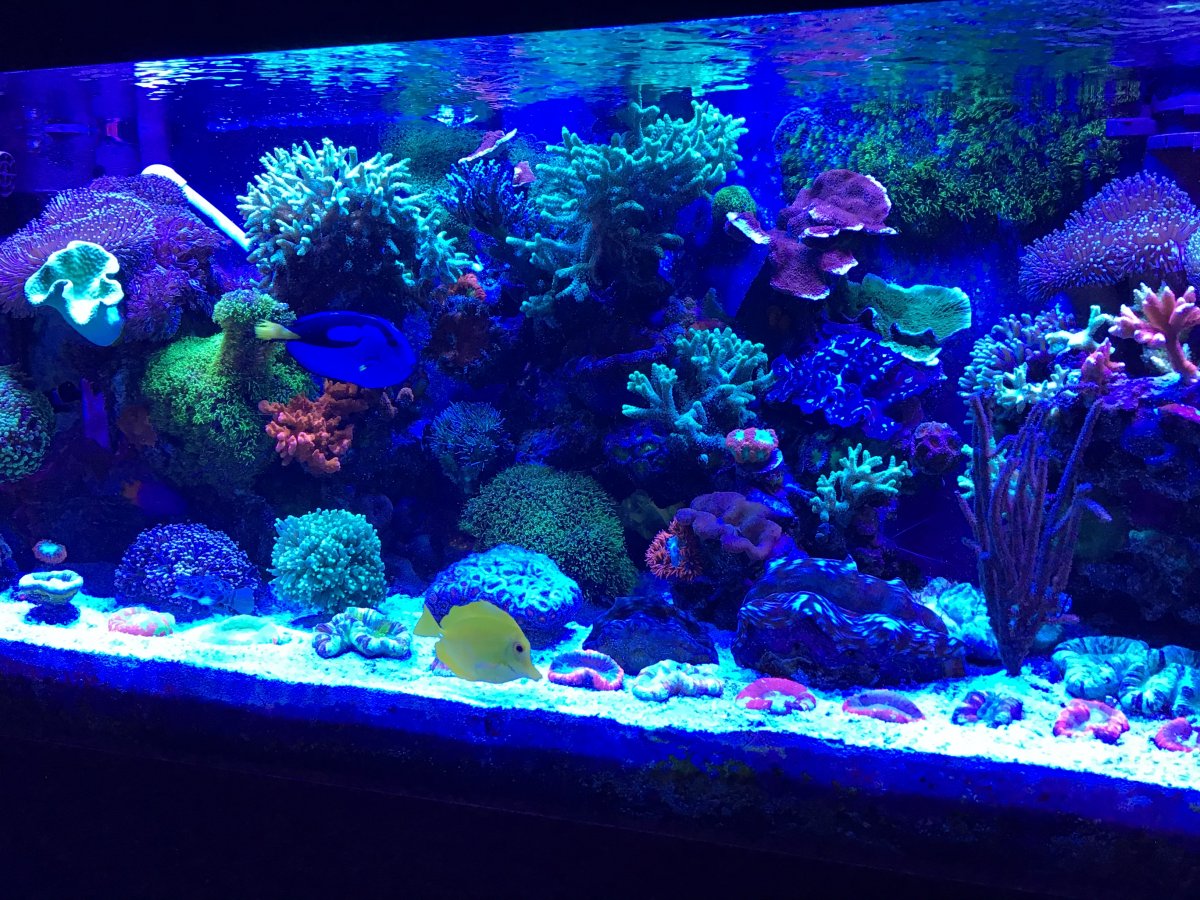

I haven't posted for a while, tank and light still going strong. These are my latest tank shots from tonight. 20/08/21
I'm still running with my custom layout from feb this year.
Currently running channel 1@ 75% and channel 2 @ 32%
both channels
Then channel 1 only
