160 Gallon Seamless Bowfront from Aquavim

JeffLED

Community Member
View Badges
Joined
Feb 23, 2020
Messages
49
Reaction score
27
Welcome to my build thread. If pictures are worth 1000 words, then I plan on saving myself some typing with some photos.
I have a few "strategies" or "philosophies" that I have always stuck with in reef keeping:
  1. Over-do equipment
  2. Under-do stock list
  3. Stock inhabitants that can adapt to conditions - avoid trying to adapt conditions to accommodate inhabitants
  4. Limit anything that requires supplemental support (spot feeding of filter feeders, testing and dosing of non-standard trace elements, etc.)
  5. Prefer livestock that has a unique lifestyle (think clown & 'nem, Pistol shrimp & Goby)
Here are some of the details of the aquarium:
  1. 165 Gallon Seamless Bowfront from Aquavim
  2. The aquarium is drilled for an overflow and return, but I have converted the system in a Herbie system by adding a return line around the back of the aquarium, and using both drilled lines for overflows to the sump.
  3. Apex EL Reef controller
  4. Tunze ATO with redundant reservoir
Without further adieu, here is the current set-up/plan.
Steps completed:
I had a 75 gallon in my old house. I have moved the stock from the 75 into the new aquarium. The 75 is currently serving as the QT tank.

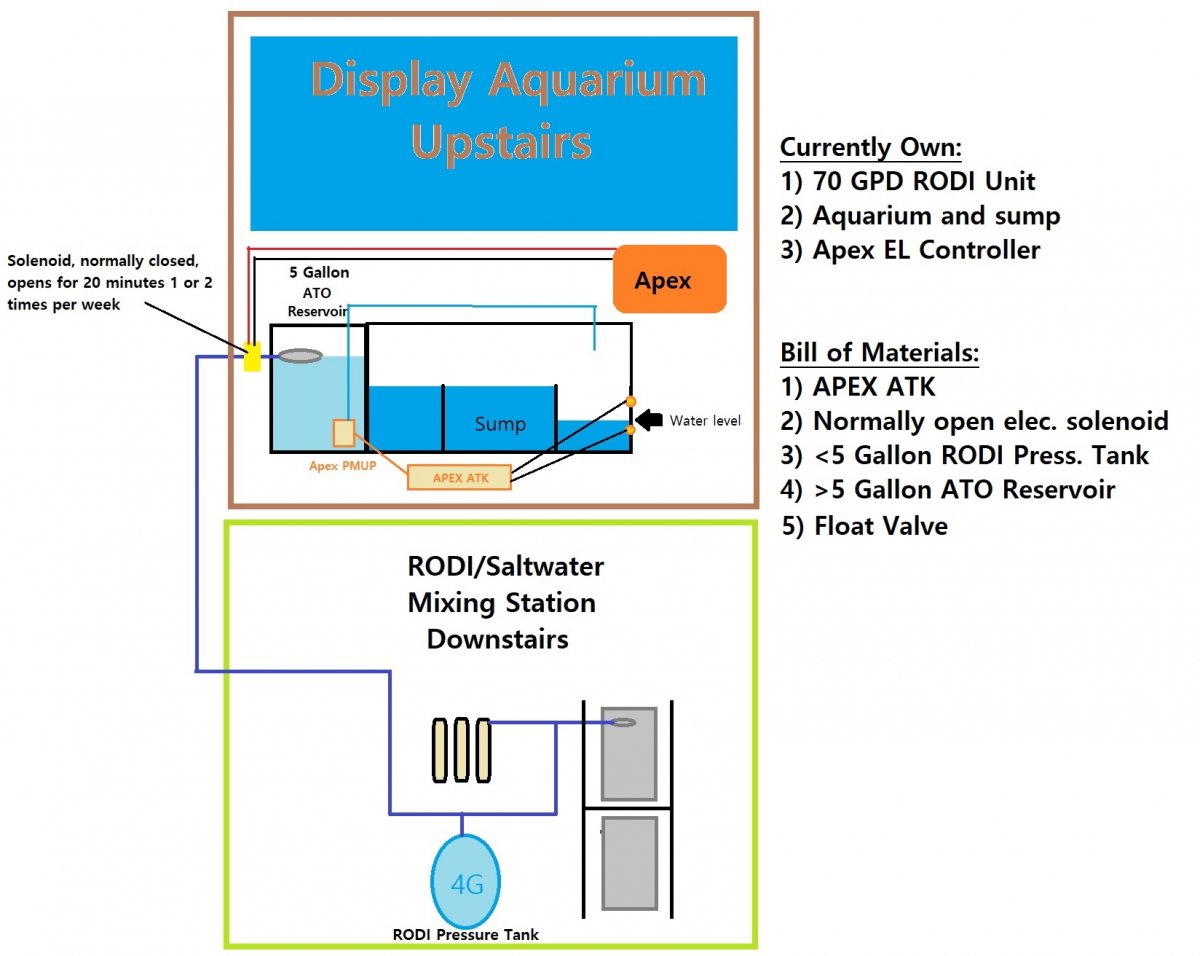

This setup has been great thus far. Best part of all has been the spotfree car wash I have setup in my garage. It is basically an ATO reservoir with a standard float valve. I turn a knob and 5 gallons of spot free water (0TDS) drains into the reservoir with a freshwater pump attached.

Here is an image of the aquarium:

I want to point out my "favorite" hack/DIY feature is definitely the stand lights. I have always powered LED stand lights from the Apex EL 24V power supply. They would turn on when I opened the left door. I found myself wanting the lights to go on when either door was opened, so it was just a quick little DIY hack.


I spliced the cable to run to two different IR switches that are wired in parallel. After the IR switches, I have used two 12V LED strips that are wired in series. When either door is opened on my stand, both lights will come on. When both doors are closed in the stand, both lights go off.

This is what it all looks like when the lighting is on.

My next priorities are stocking the tank with inhabitants. I welcome any comments or suggestions, and thanks for taking a look at my build. ATO.jpg

Maxout

Bleigh

The lich queen
View Badges
Joined
Jan 15, 2019
Messages
7,653
Reaction score
20,010
Location
Charlotte, NC
Wow! This is so detailed and well thought out! I feel like you just gave us the recipe for the secret sauce! Can’t wait to see the amazing things you do with it!


revhtree

Owner Administrator
View Badges
Marketplace Rating
100
Joined
May 8, 2006
Messages
42,802
Reaction score
65,621
Great build thread!


Ron Reefman

Lets Go Snorkeling!
View Badges
Joined
Aug 12, 2012
Messages
8,265
Reaction score
18,659
Location
SW Florida
Great artwork, or whatever we should call the computer design images.

You look to be off to a strong start!

OP
JeffLED

JeffLED

Community Member
View Badges
Joined
Feb 23, 2020
Messages
49
Reaction score
27
I am back and pleading to all for some assistance. I have a thought on a way to make my water change program much easier, I just want to run the design past Reef2Reef for thumbs up approvals. I currently run a sort of Herbie system with a fine gate valve on the main line (I like quiet).
I have a saltwater mixing station in my basement with the typical 32 gallon Brute Trashcans. I use a pump to move saltwater upstairs to the display tank at the rate of ROUGHLY 1 gallon/minute. The pump has a float switch, so when the brute is close to empty, it will shut itself off. The problem I have is needing to watch water levels because once I drain too much out, I will not have any new water mixed as replacement. Here is my "design" so I would never need to monitor actual water volumes in/out.

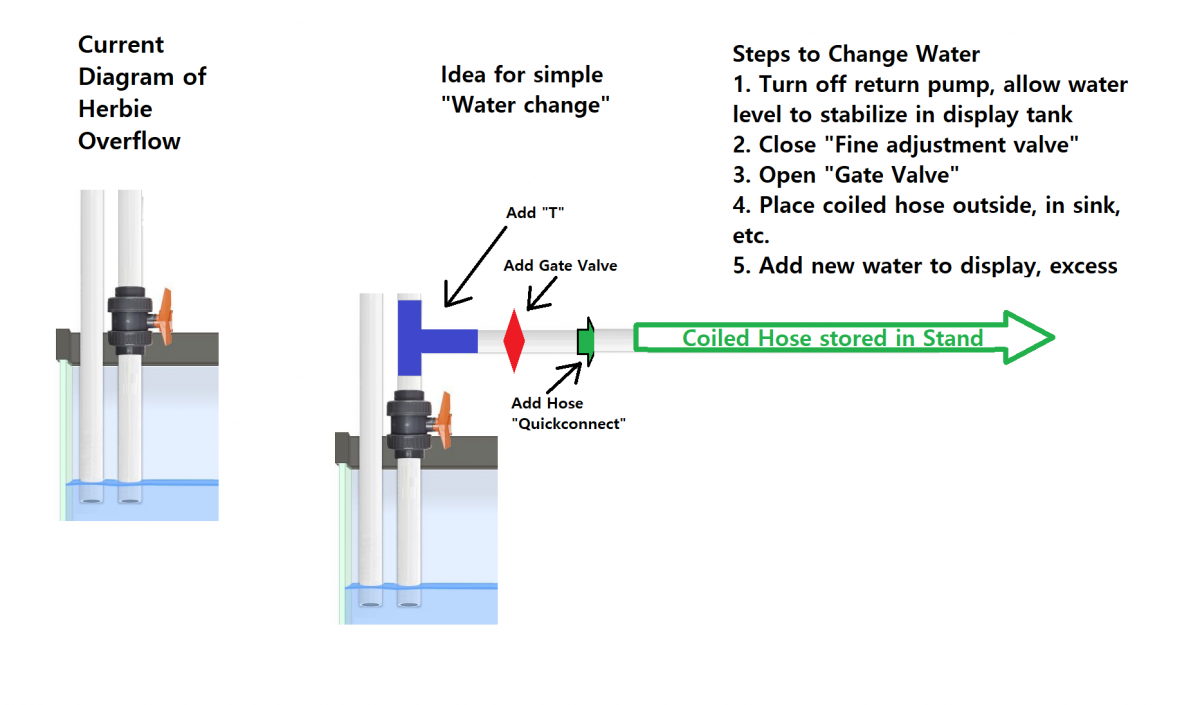

Basics of the design:
  1. Add a "T" above the fine gate vale
  2. Add a second gate valve to the "T"
  3. Add quick connect (or hose) just past the second gate valve.
Here are the steps for a water change.
  1. Turn off main return pump and allow display tank water to level out (should be inline with top of main return line)
  2. Close fine gate valve
  3. Open new gate valve
  4. Run coiled hose in stand outside, into sink, toilet, etc.
  5. Add hose from saltwater mixing station to display tank, allow pump to run until it turns off
  6. Once complete, reverse steps, but I would know that I have exchanged the perfect amount of water.
The thought is that for every gallon that enters the display, an equal amount of water would drain through the main drain line, leading to a near perfect 1:1 exchange of water. I have not seen this design elsewhere, maybe someone has. Does this sound like a prudent design?


OP
JeffLED

JeffLED

Community Member
View Badges
Joined
Feb 23, 2020
Messages
49
Reaction score
27
Ready for the worst update on a tank build ever?!?

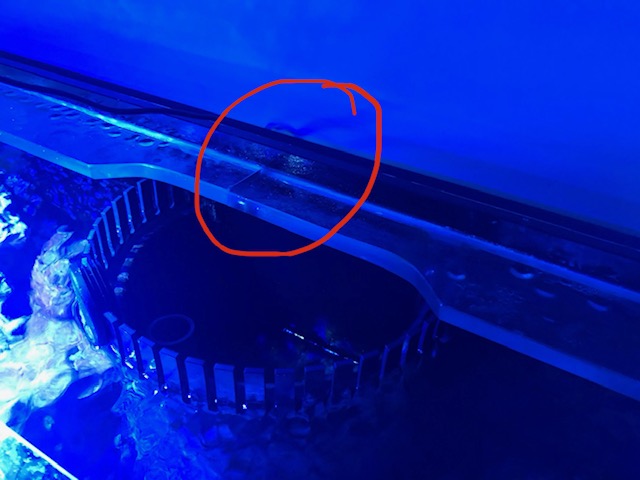

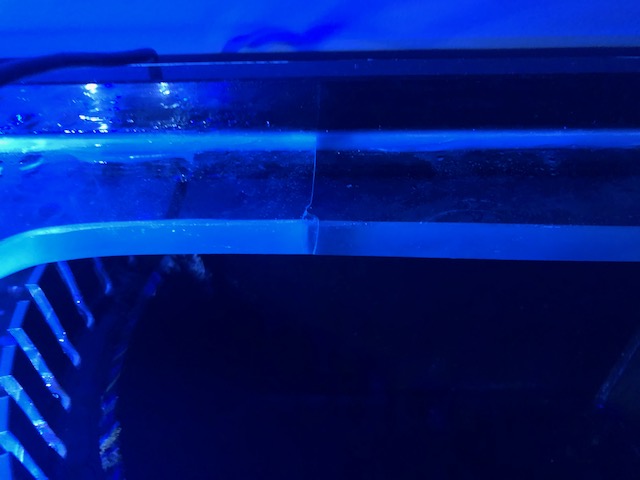

I was feeding the fish the other day and noticed an unusual line in the eurobrace on my aquarium. Upon further inspection, I noticed it is fully cracked! Uh oh. I quickly contacted the manufacturer, Aquavim. It took a few days, but here was their reply:

"Our specialist says it's best to replace it, as it is risky to have a glass tank without the euro-bracing. You can do this by emptying the aquarium first (as currently the water is applying pressure to all sides of the tank), and then finding a piece of glass that is the same size, and gluing this with silicone glue underneath the piece that has the crack, so that they are glued together and you get double reinforcement. Pls note, it is very important that the tank is COMPLETELY empty without water before you do this.

Please update us on the process and contact us if you have any questions."


Euro crack.jpeg Eurocrack2.jpeg
