180 gallon reeftank stand pipe

Rafaelpadro24

Community Member
Review score
+0 /0 /-0
View Badges
Joined
May 15, 2022
Messages
40
Reaction score
52
Review score
+0 /0 /-0
Location
Royal Palm Beach
Hello, just need some feedback in regards on what should be the height of the stand pipe located in both of my weird in my 180 gallon Glasscages rimless tank. I picked up this unit used and I needed to install new plumbing. Each weir has a 1.50 inch drain pipe and 1 inch supply line. Any feedback is greatly appreciated. Trying to button up this system to get it filled and cycled.

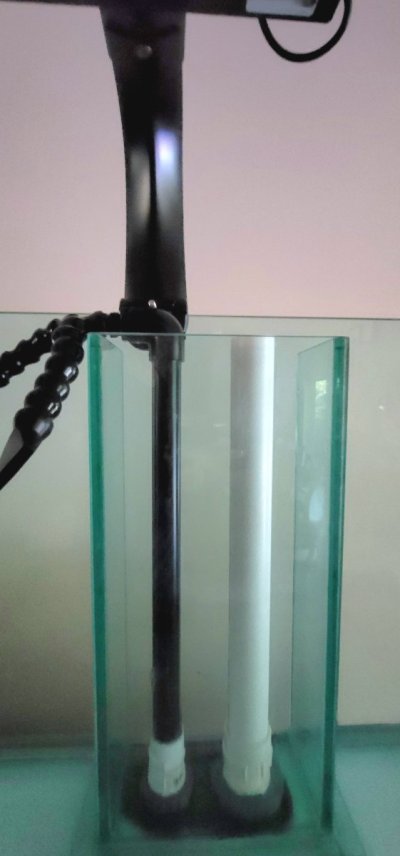

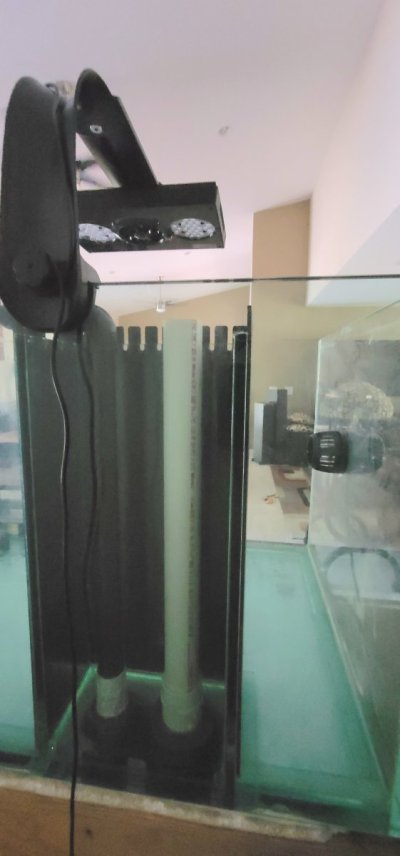

20220802_143718.jpg 20220802_143815.jpg

Reef Chasers Aquaculture
Avast

NowGlazeIT

Happy to help, Ask away.
Review score
+0 /0 /-0
View Badges
Joined
Oct 28, 2017
Messages
6,116
Reaction score
11,389
Review score
+0 /0 /-0
Location
Coachella Valley
If it were me I would work towards a full siphon drain.
Unfortunately I can't fit a duorso in the weir between the 1.5 inch drain and 1 supply there is no room for a 1.5 inch duorso. I was looking in using a maggie muffler to silence the drain sound.
What about leaving one standpipe short for the full siphon and in the other overflow, you use a taller standpipe for emergency. Giving you a herbie drain over the combined overflows.


Joe Glass Cages

Passionate Glass Cages’s Team Member
Review score
+0 /0 /-0
View Badges
Joined
Dec 13, 2019
Messages
972
Reaction score
4,605
Review score
+0 /0 /-0
Location
Dickson, TN
thanks for the Bat Signal @Jekyl

@Rafaelpadro24
return looks good. Maybe remove a tooth on the weir for the returns. Someone mentioned a durso for the drains, perfect suggestion. Maggie Muffler is an alternative to the Durso



Let me know if you wanna chat.

AquaCave Logo Banner
OP
R

Rafaelpadro24

Community Member
Review score
+0 /0 /-0
View Badges
Joined
May 15, 2022
Messages
40
Reaction score
52
Review score
+0 /0 /-0
Location
Royal Palm Beach
Unfortunately I can't fit a duorso in the weir between the 1.5 inch drain and 1 supply there is no room for a 1.5 inch duorso. I was looking in using a maggie muffler to silence the drain sound
thanks for the Bat Signal @Jekyl

@Rafaelpadro24
return looks good. Maybe remove a tooth on the weir for the returns. Someone mentioned a durso for the drains, perfect suggestion. Maggie Muffler is an alternative to the Durso



Let me know if you wanna chat.

Partner Membership 2023
OP
R

Rafaelpadro24

Community Member
Review score
+0 /0 /-0
View Badges
Joined
May 15, 2022
Messages
40
Reaction score
52
Review score
+0 /0 /-0
Location
Royal Palm Beach
I ended making a couple silencers kinda like the ones from lifereef. Basically they are just a larger diameter pvc pipe just a bit higher than the drain pipe with a cap on it and drill a hole on the cap for venting and on the bottom of the pipe you cut slits to allow water to flow up between the stand pipe and the silencer. I cut mine bellow the weir and painted them black.

20220806_160254.jpg 20220824_114149.jpg
