Ok here is my story…. Back around 2008 I had a roughly 2000 gallons of saltwater tanks at my house (no tank over 135 gallons) but ended up having to sell it all due to moving to another state. In Dec of 2013 I decided to get back into the hobby and purchased a JBJ AIO 40 gallon and kept that until Aug of 2015 when I had to move again to another state so I broke it all down and sold that.

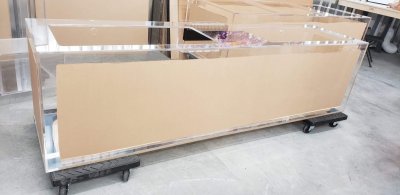

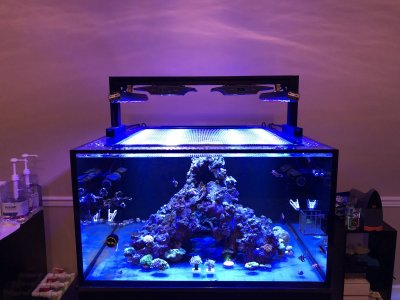

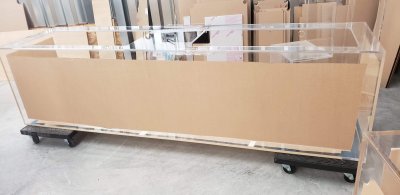

Now fast forward to Jan of 2019 I decided to get back into the hobby once again… So I purchased a IM 40 to try and duplicate my reef tank from 2013-2015. Well I bought a bunch of high end stuff and got it going but it only lasted until May before I got bit with the “go bigger bug” so I purchased a IM112. Before I could get it set up I found out the house I was renting was going into foreclosure so that pushed us to buy our first house. I moved in to said house in July of 2019 and got the IM112 set up pretty quickly as I had everything in various QT tanks and a frag tank. It didn’t take too long before I realized the IM112 was not the best option for my new house and of course the “go bigger bug” was nipping at my tail also. So I decided to order my new tank which has prompted this built thread. It is a Acrylic 96X24X24 (240G) display tank that I will be doing in the wall, the stand will be 48” tall.

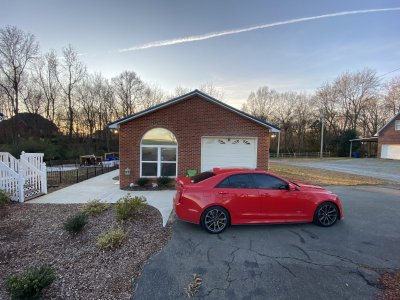

A little about the house / fish room setup. I have a detached building that is 25’X24’ (600 Sqft.). 362 Sqft. of it is finished living space which is where me and my son spend our time playing video games, watching the fish and hanging out. 238 Sqft. is a climate controlled finished garage where the tank and all of the equipment will be housed. I have always wanted an in wall tank and what better time than to do it now!


Equipment I already have for the build:

LifeReef Custom Sump and refugium

LifeReef Skimmer

LifeReef reactors (3 if / when I need them)

Lifegard Aquatic Pro-MAX 90watt UV

Dual Sicce SDC 9.0 return pumps

Dual Maxspect Gyre XF350

Neptune Apex Controller with dual EB832’s

Neptune Trident

Neptune LDK

Neptune AFS

JBJ ¼ HP Chiller (if needed)

Jager Trutemp 300 watt heater

Finnex 500 watt heater

AutoAqua AWC

Seneye Reef monitor (can use during setup for ammonia monitoring)

Dual 75 gallon reservoirs (1 salt, 1 RO) with Reeflo Dart / Snapper hybrid mixing pump.

BRS 6 stage RODI with water saver upgrade and triple DI saver kit



The lights I currently have but will replace.

2 Giesemann Vervve’s

4 Orphek OR260 Blue Plus

1 Orphek OR290 Blue Plus

1 Orphek OR290 Day Plus

I am thinking about going with 2 Reef Breeders Photon 48-V2+ to simplify my lighting for $1200 or I can go with 2 Giesemann Matrixx II 4x54W T5's for $600. Thoughts??? I think I should just go with the Photon's

The IM112 is Bare bottom but I don’t know if I should do the new build as bare bottom or not. Thoughts???

I really don’t plan on making this a reef tank however I will plan on using what coral I currently have in the IM112 (I may eventually go fish only). What I have is a few pieces of SPS and then mostly Zoas, torches, hammers, Lobo’s, Scoly’s, rock flowers, BTA, Favia, etc.

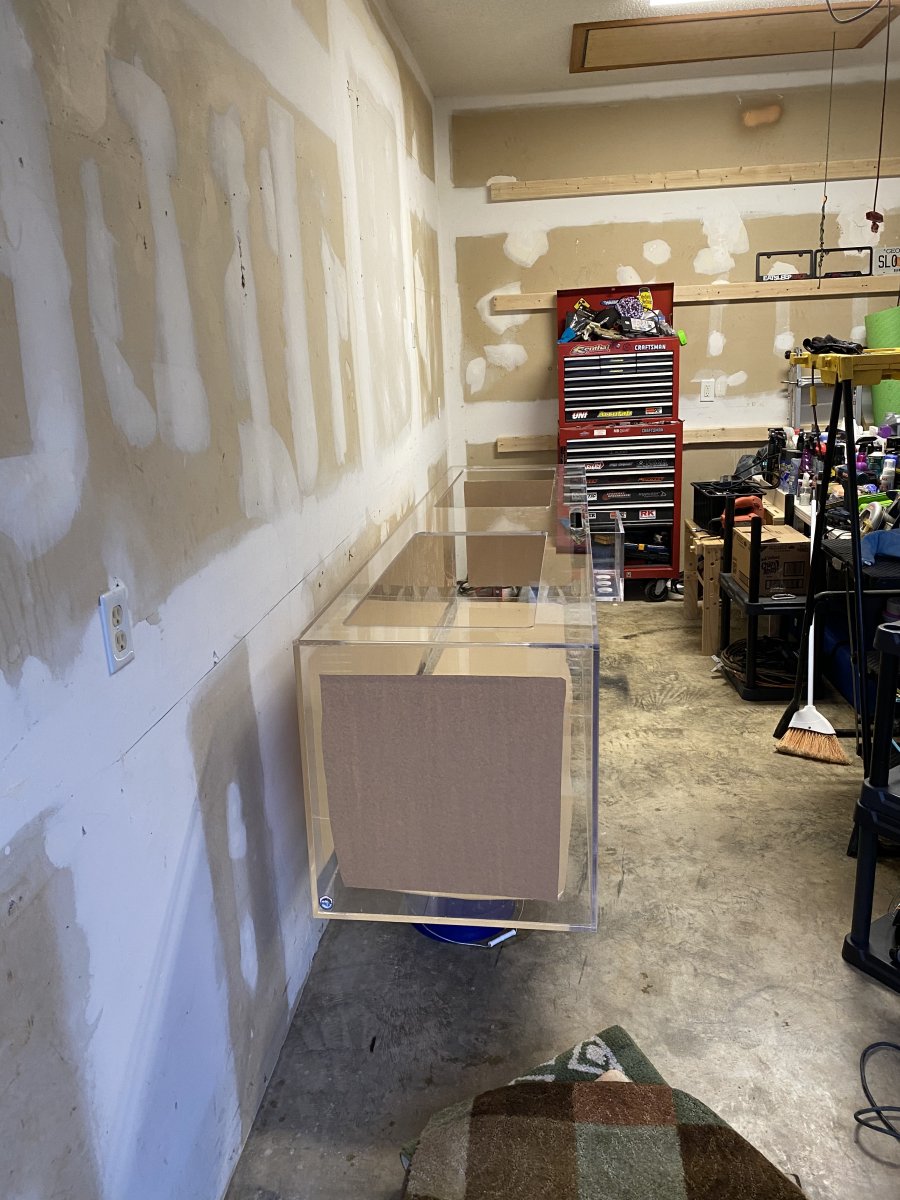

I will be picking the tank up this weekend 12/14/19 and will most likely start the install the following weekend (pending availability of my helper).

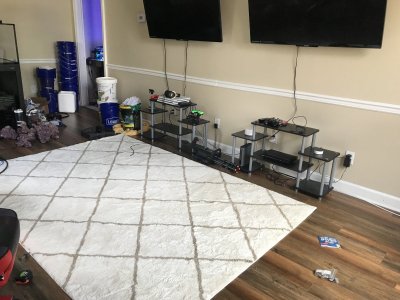

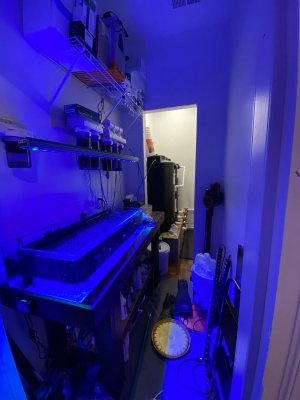

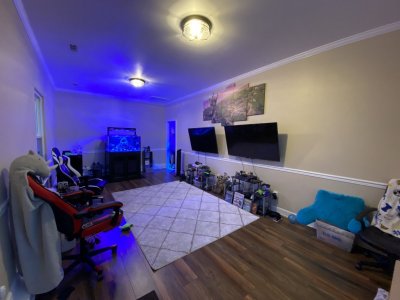

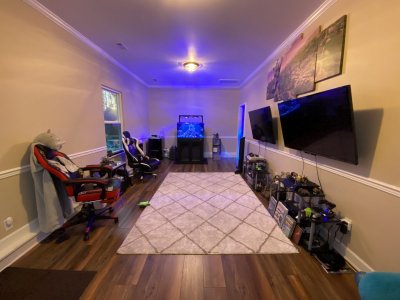

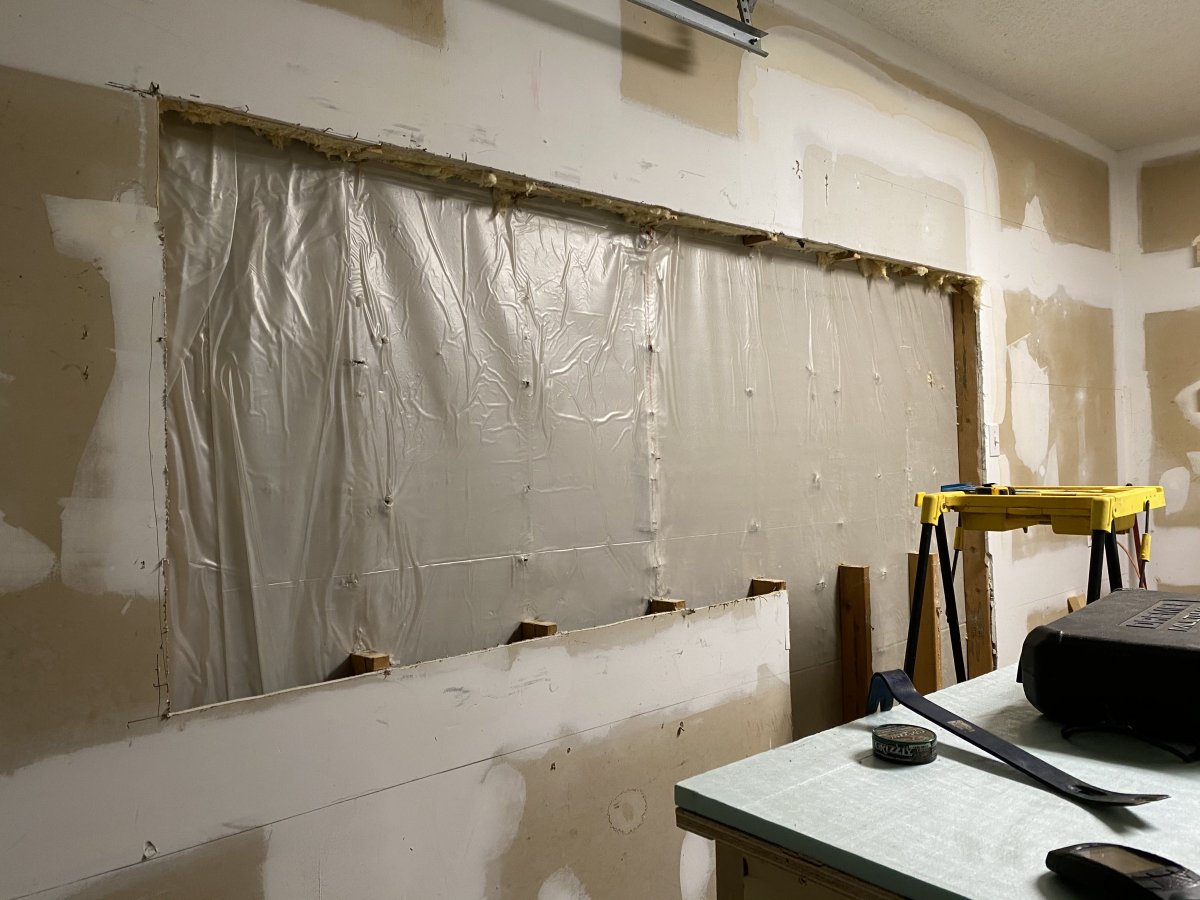

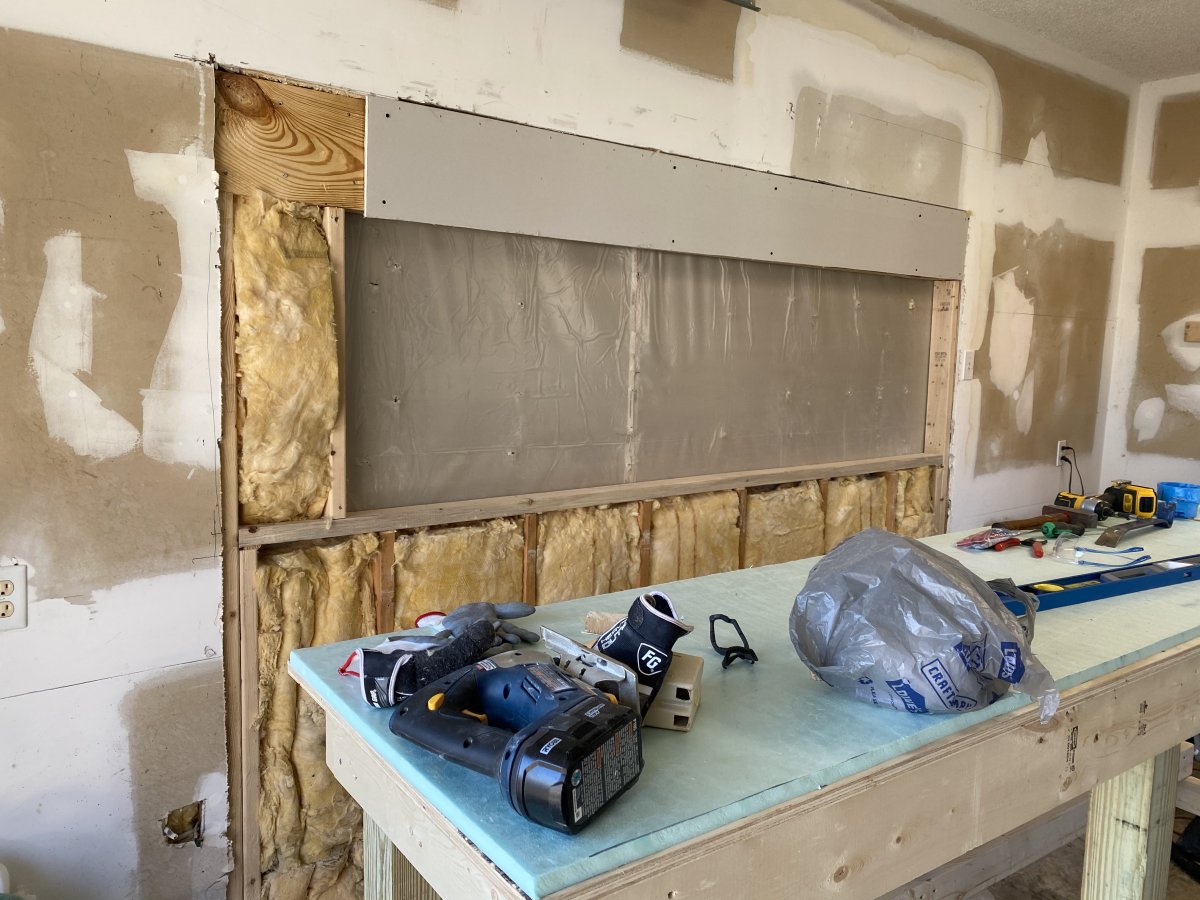

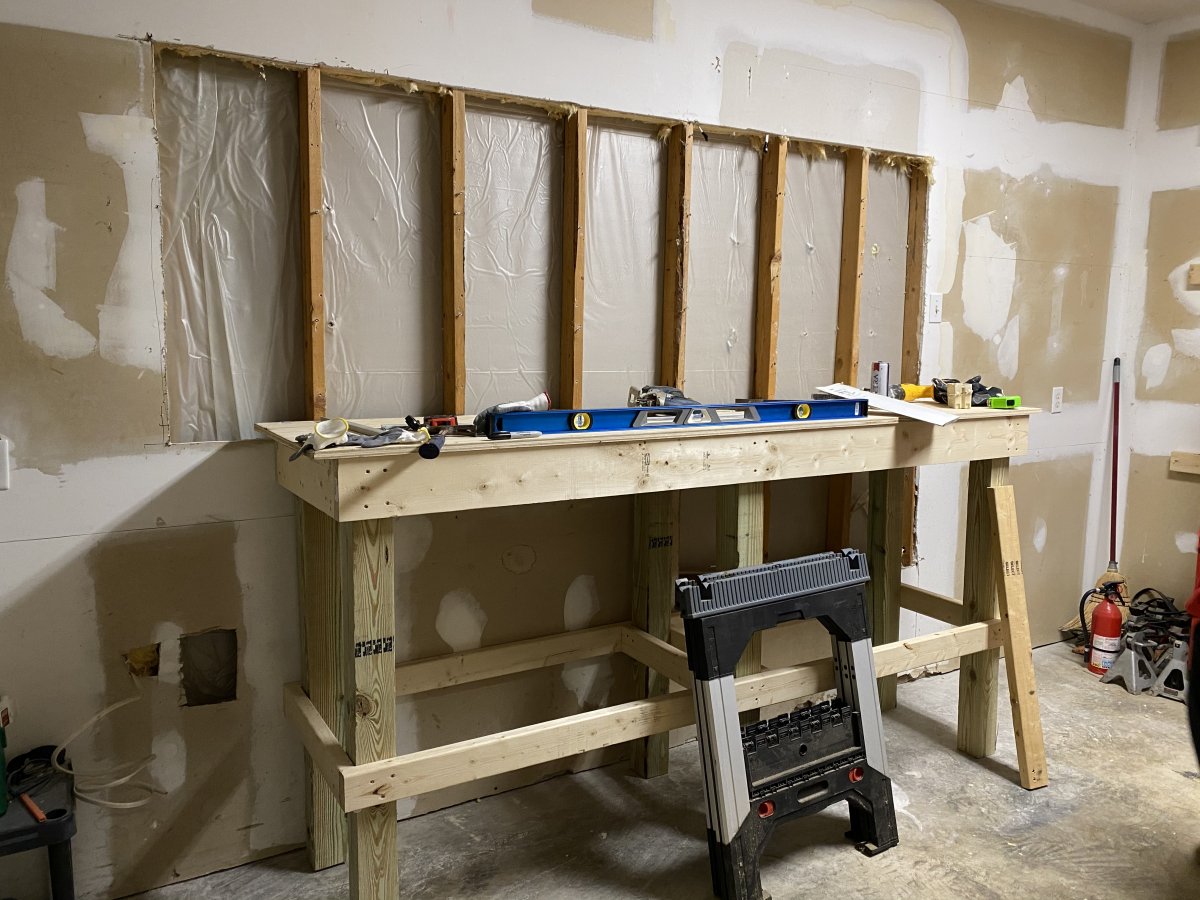

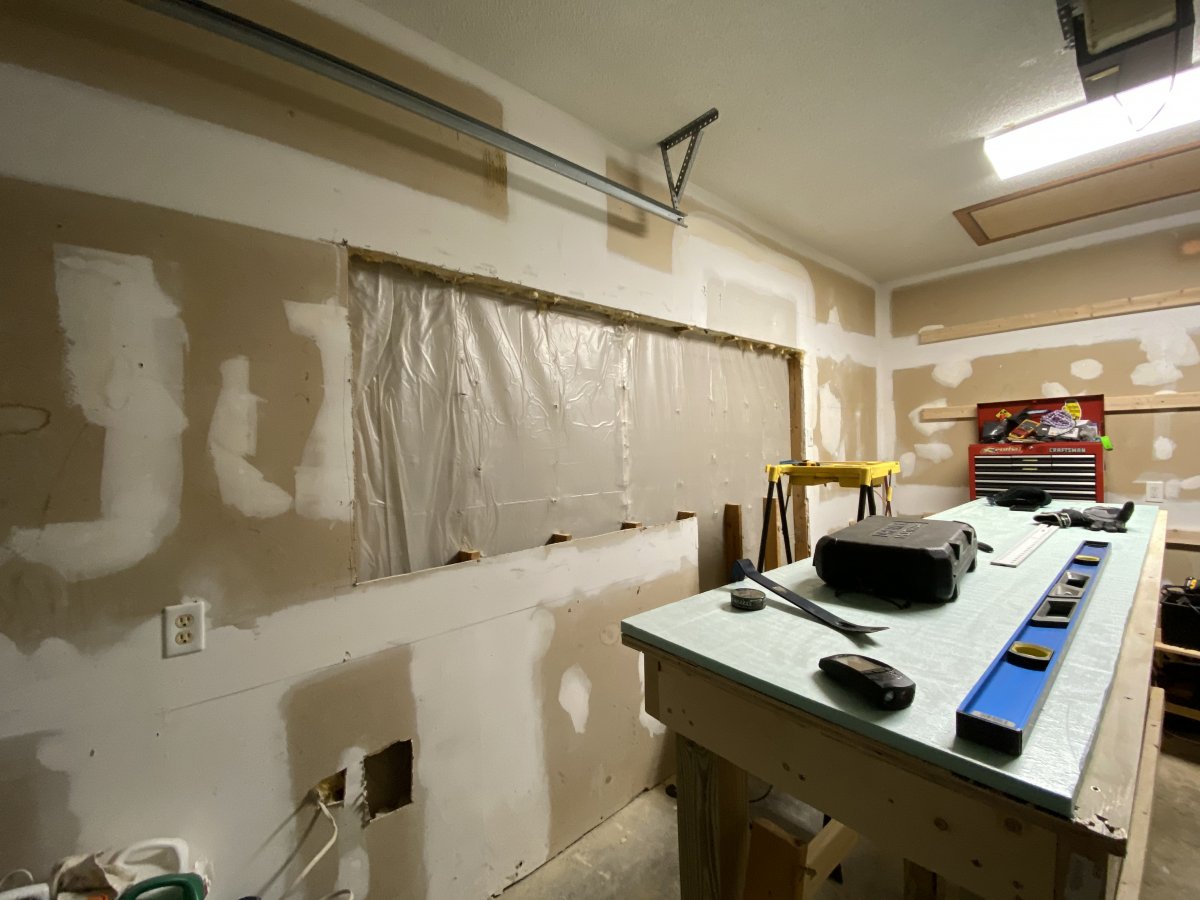

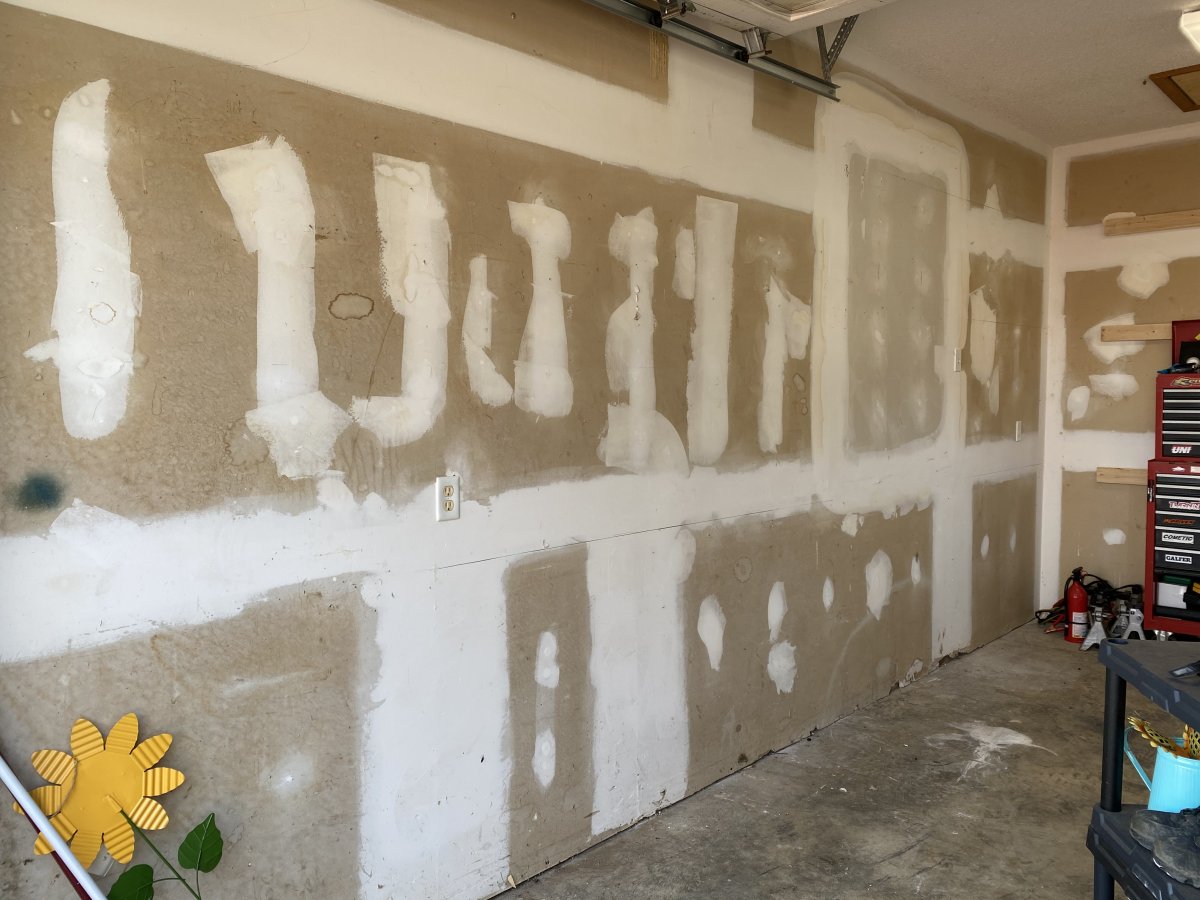

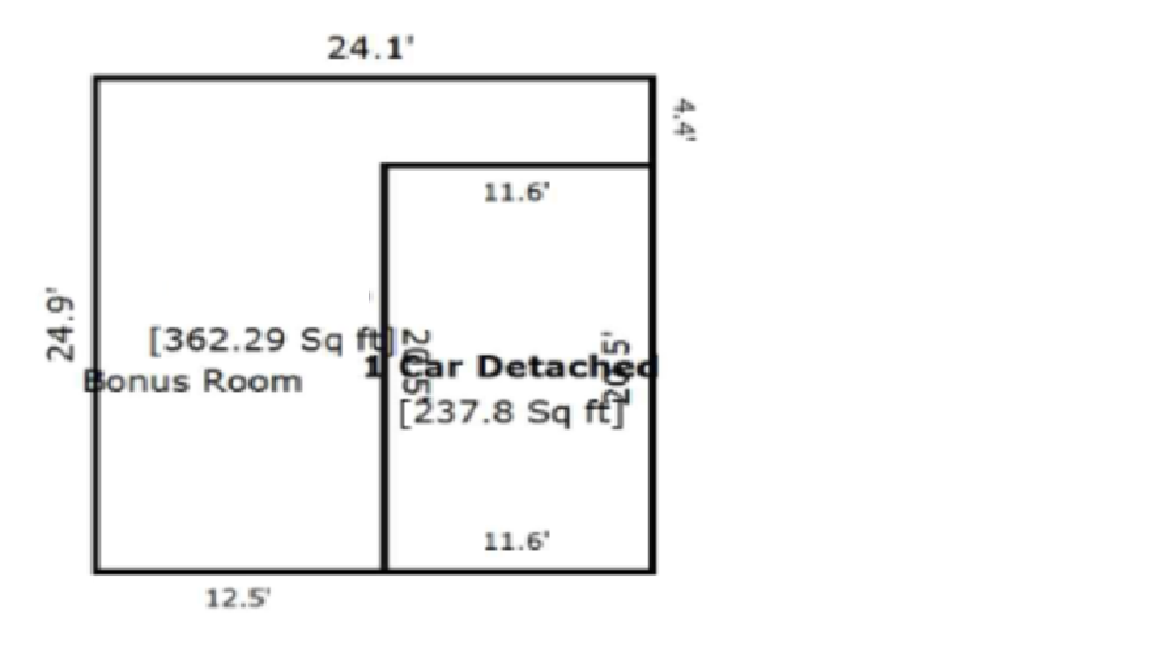

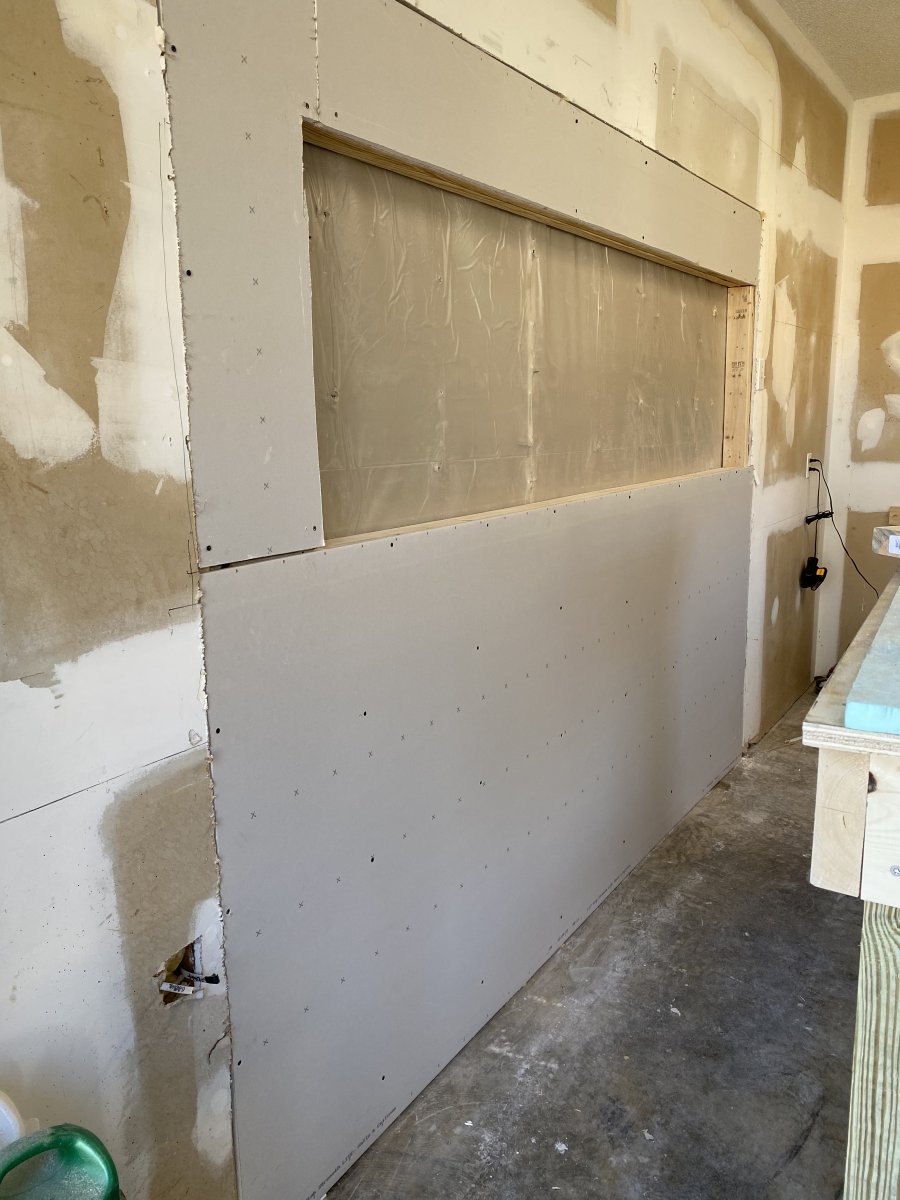

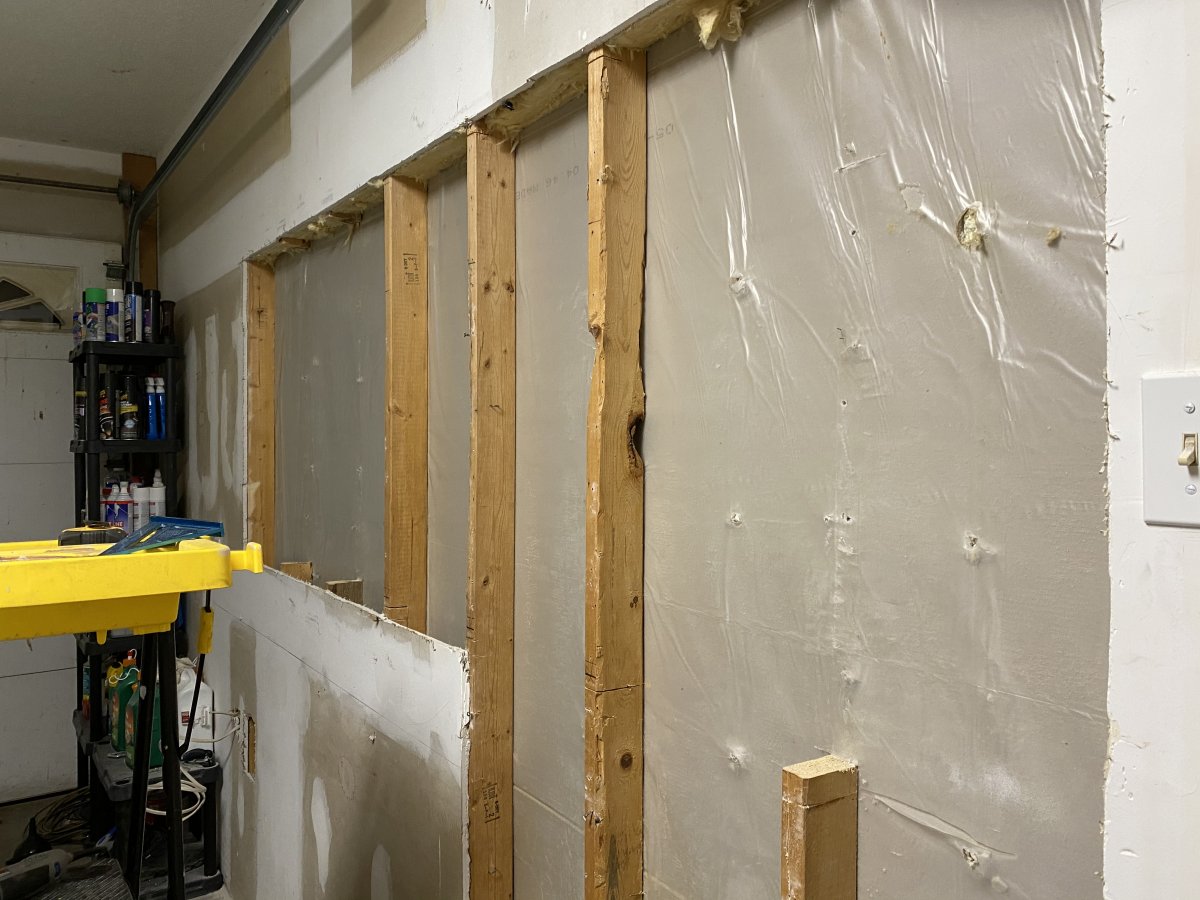

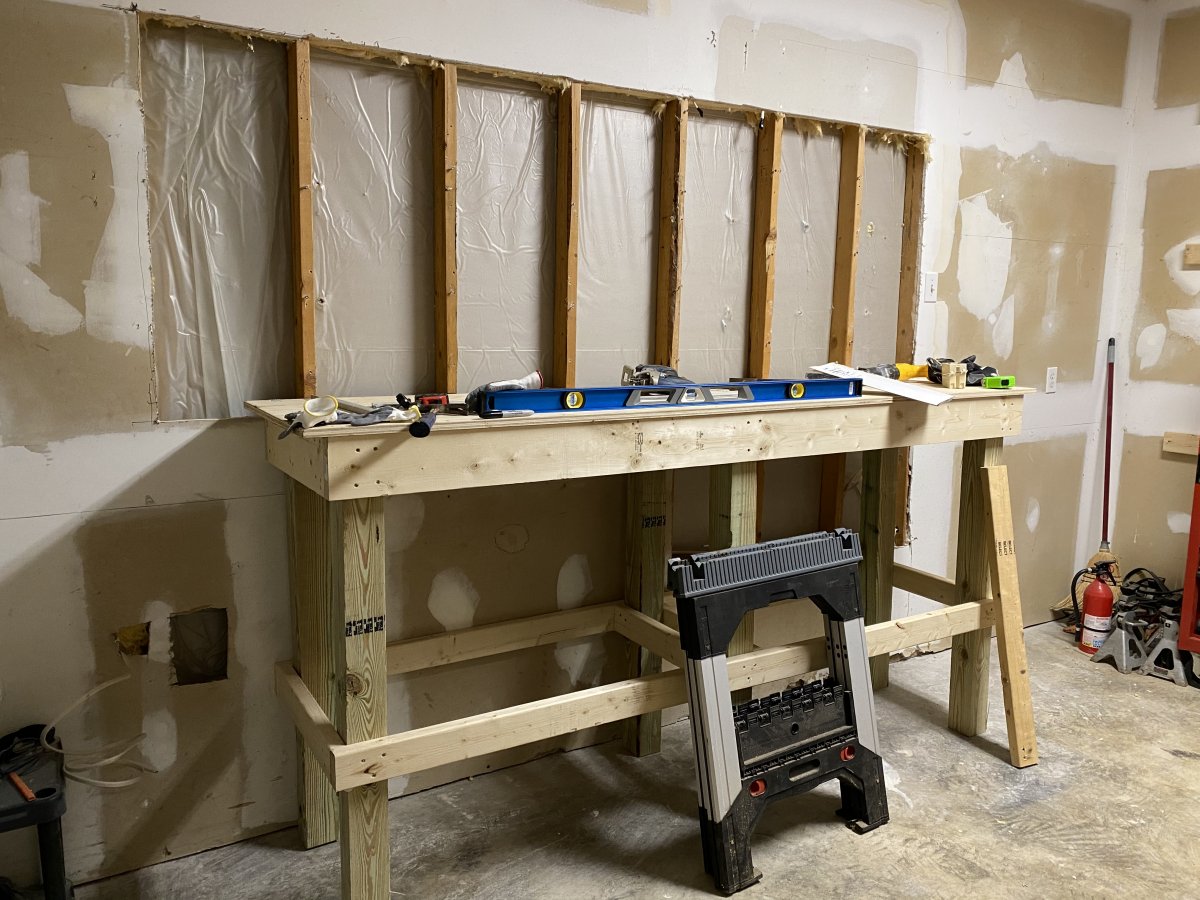

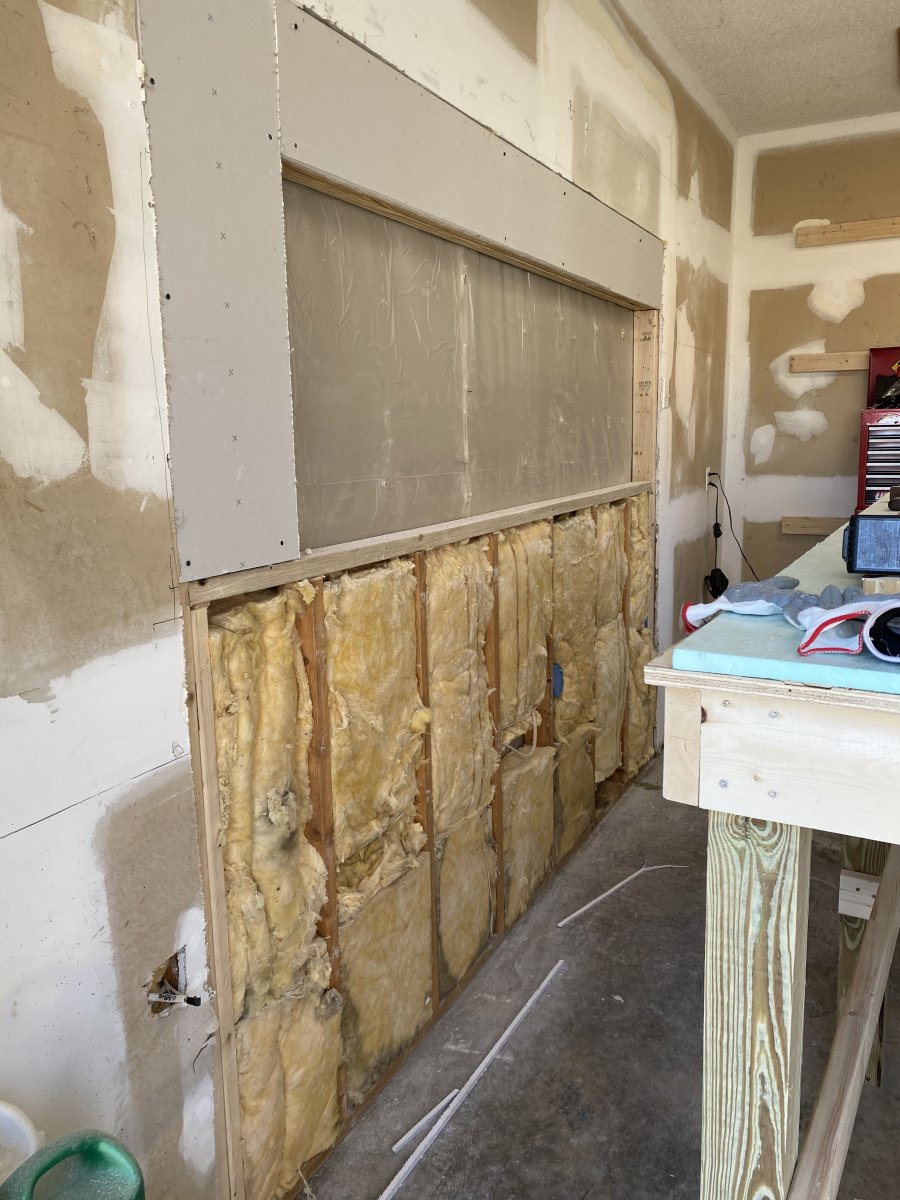

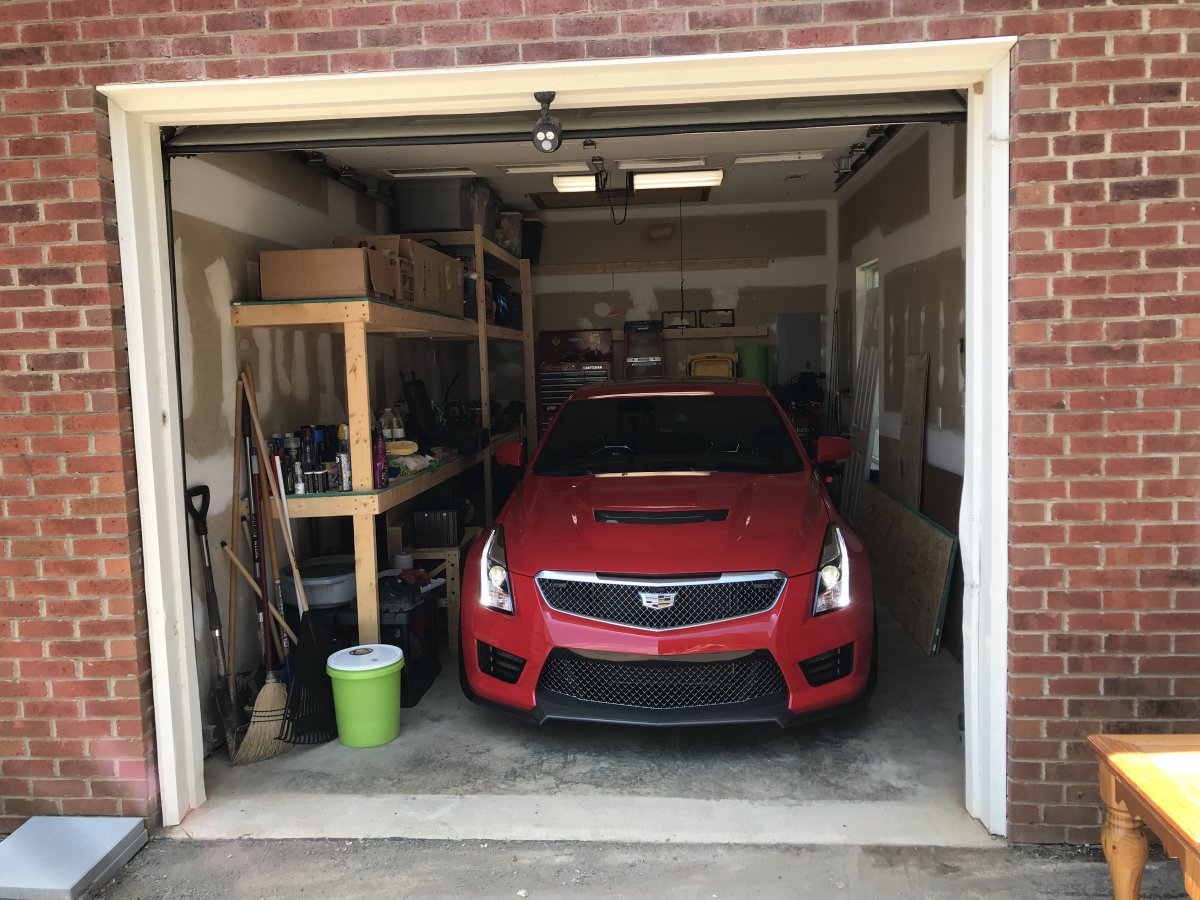

I have attached a few pictures and one of the floor plan. The 11'X4' area is where I currently have my frag tank, dual 75 gallon reservoirs, and RODI system but I may move all that into the garage area as it will cut down on some plumbing. The tank will be in the wall that divides the garage from the finished area you can see it in one of the pictures. I have already removed all the shelving in preparation for the tank which can be seen in the pictures. The (2) 55" TV's will be moved to the back wall where the current IM112 is.

Untitled.png IMG_0470.JPG IMG_1939.JPG IMG_1950.JPG IMG_1951.JPG IMG_0646.JPG IMG_1768.JPG IMG_0380.JPG IMG_1955.JPG IMG_1956.JPG IMG_1957.JPG IMG_1958.JPG

Last edited:
Mega Meltdown After Sale
OP
Badilac

Badilac

Active Member
View Badges
Joined
Apr 11, 2019
Messages
390
Reaction score
347
Location
Unionville

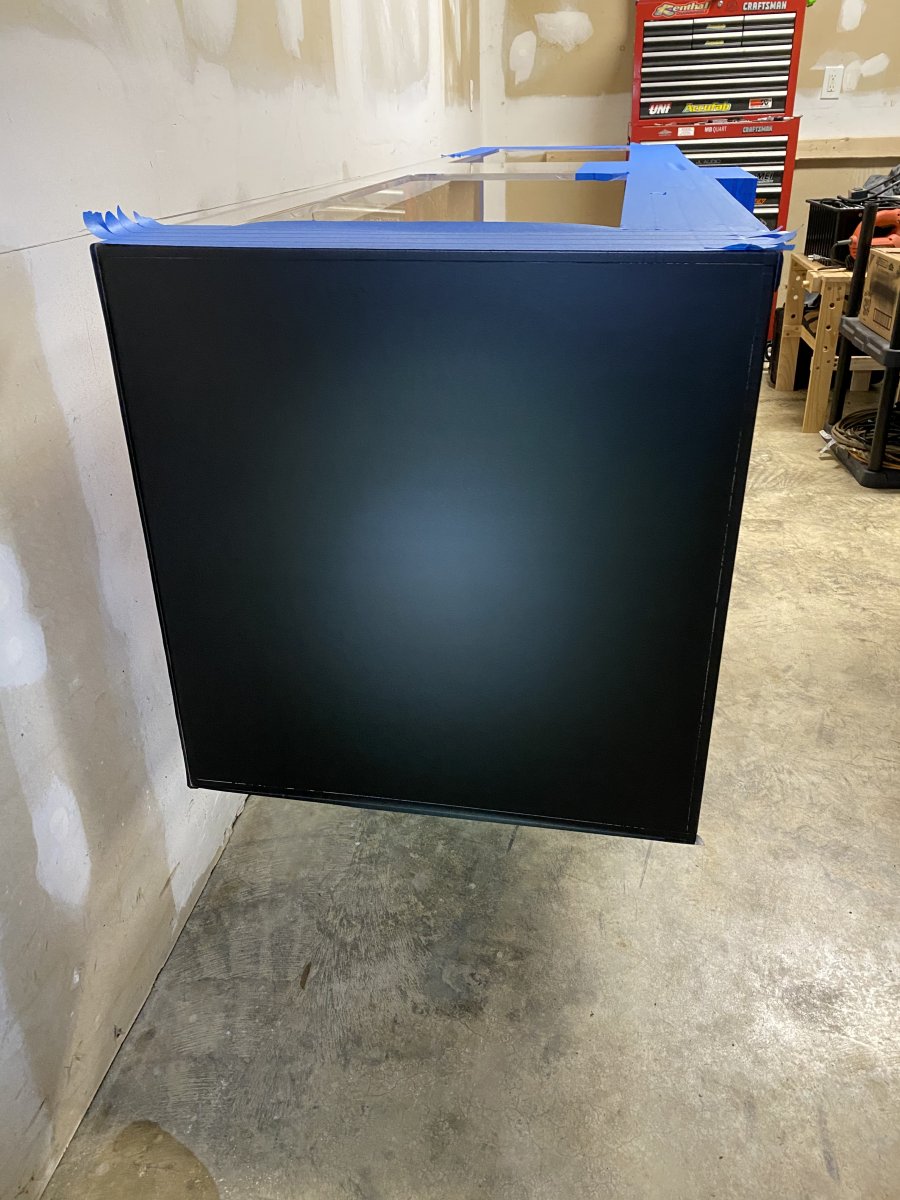

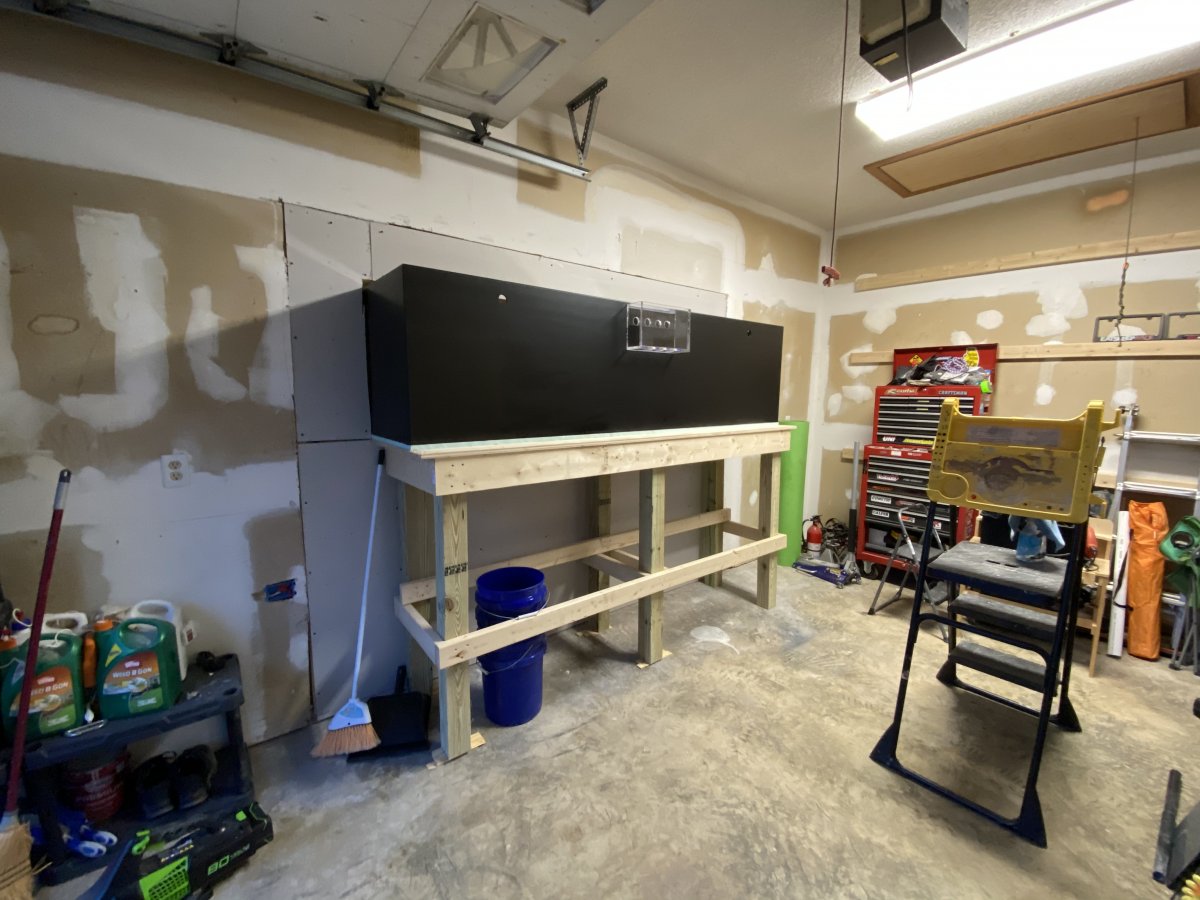

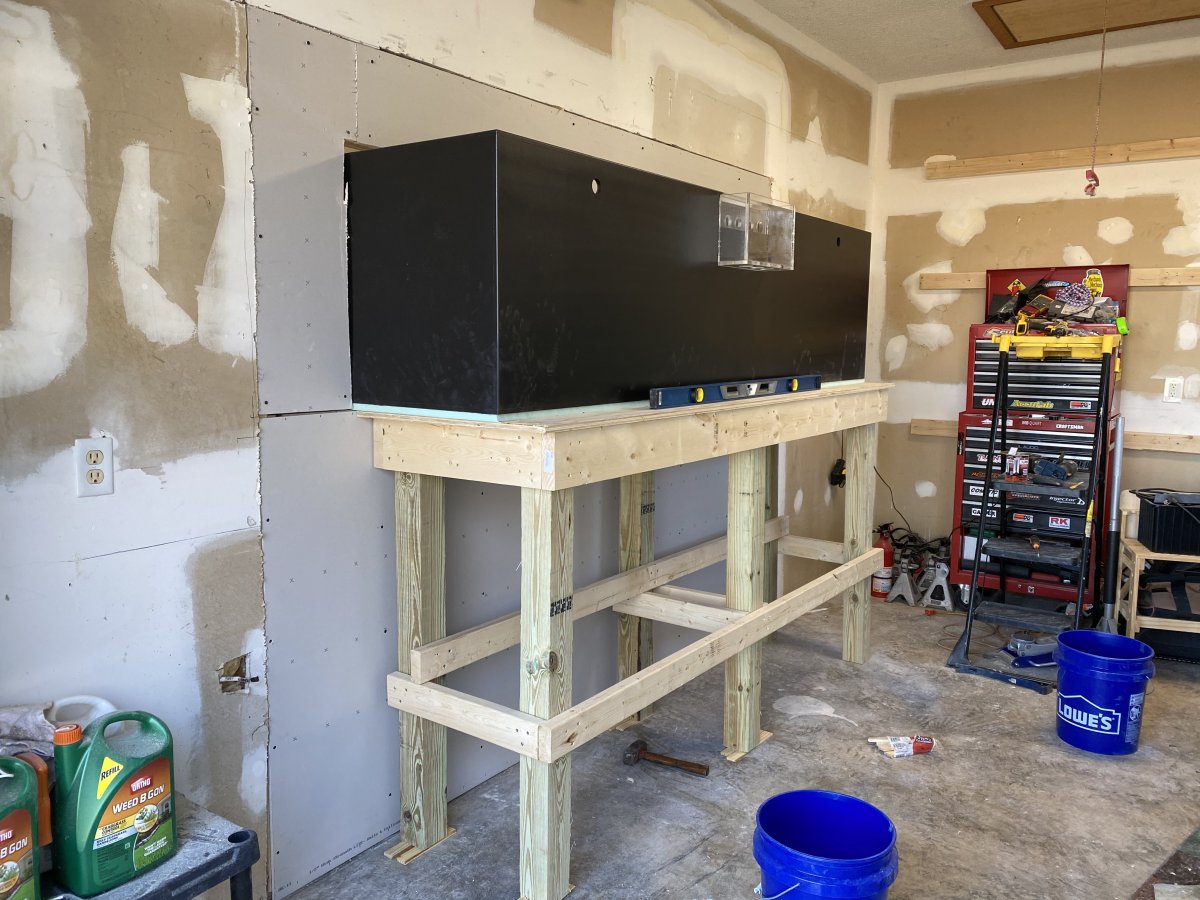

Painting of the back and sides is all done. Well it’s actually plastidip instead of paint that why it can be removed easily if needed. I also got my new lights in today also. Had to reorder some plumbing parts as I didn’t realize schedule 80 bulkheads are larger than schedule 40. The new fittings should be here Friday and we will start the install in the wall on Thursday. So I’m making progress.

226D771F-EB05-4C46-81E0-B1980CF771C3.jpeg A7F394D5-D7CF-4862-B5BB-160CB8763803.jpeg 89FEE408-3653-45C4-8D97-D2000A107AB9.jpeg 38426840-54CE-4B48-BBC0-F907EB25F84A.jpeg

OP
Badilac

Badilac

Active Member
View Badges
Joined
Apr 11, 2019
Messages
390
Reaction score
347
Location
Unionville

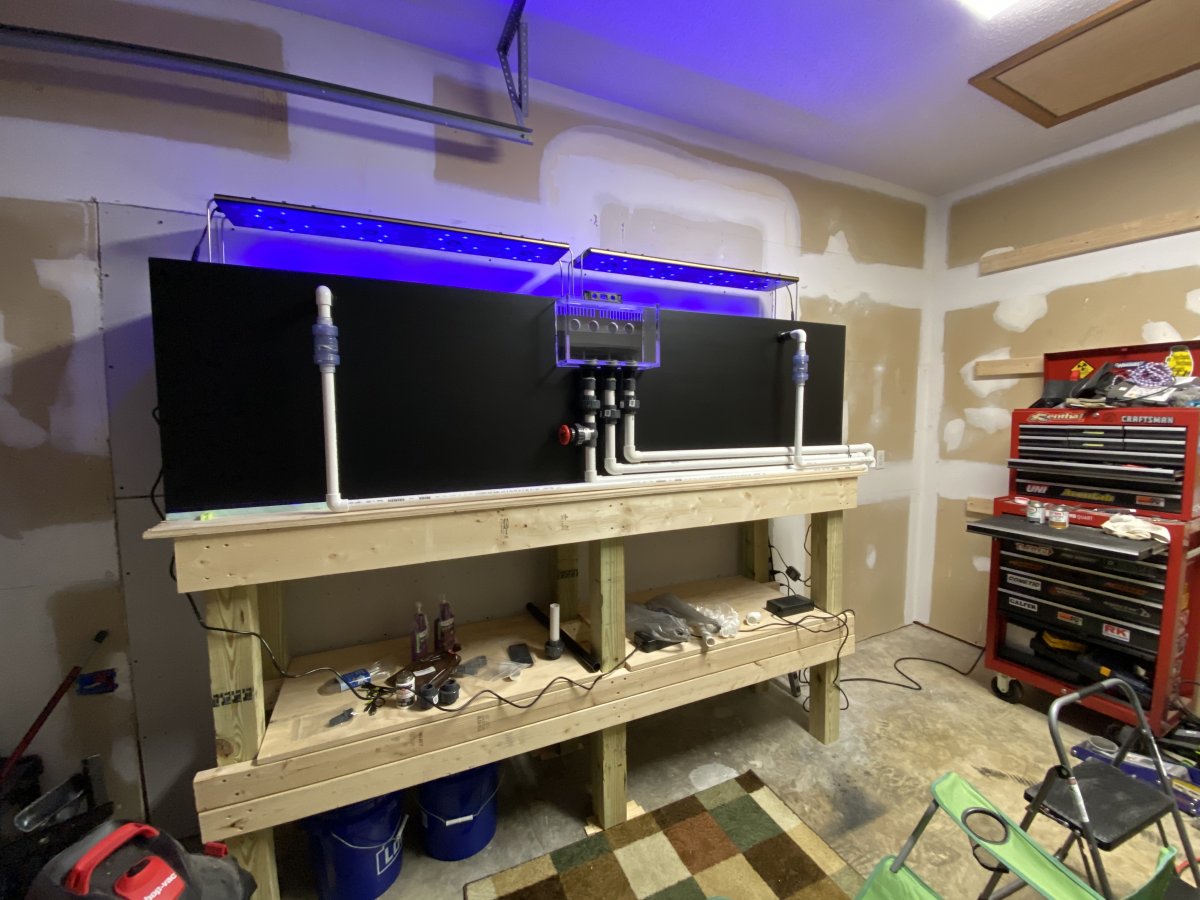

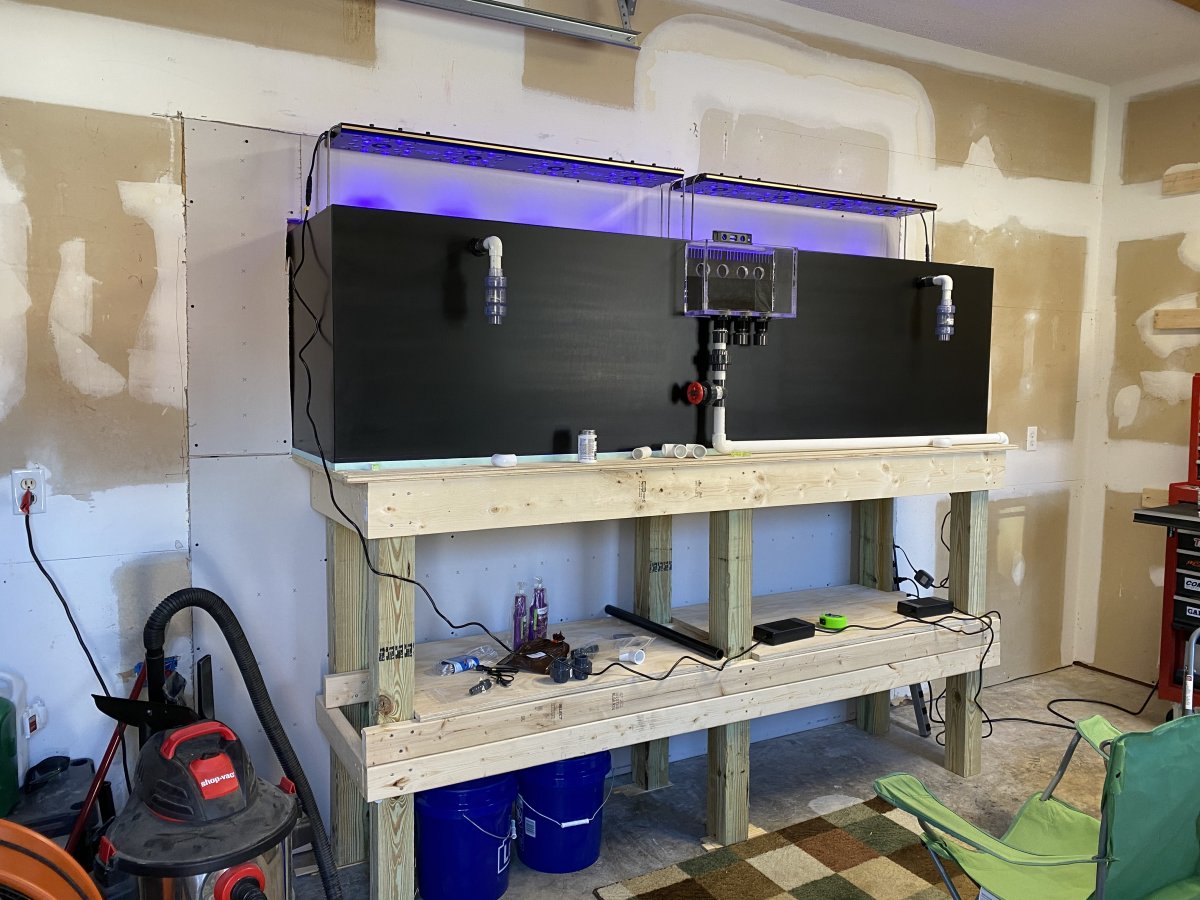

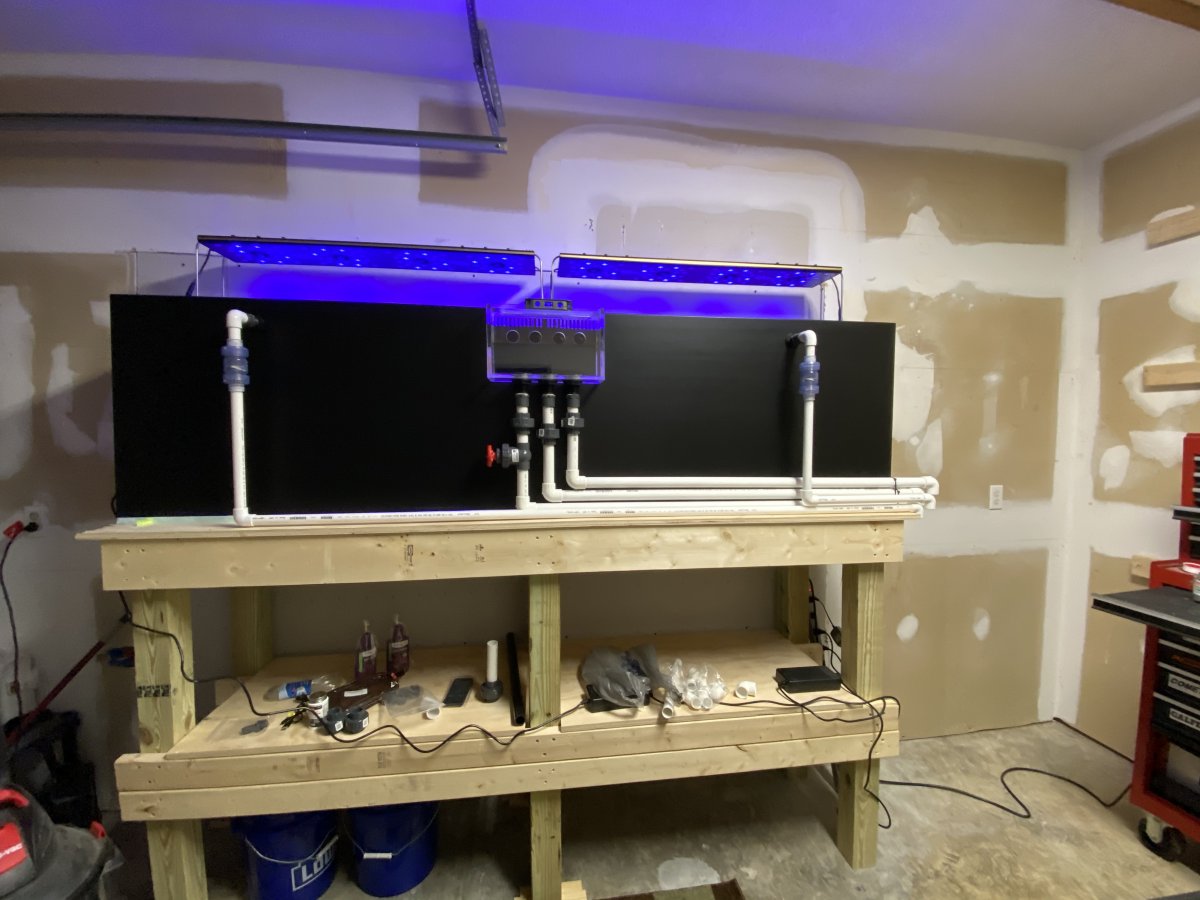

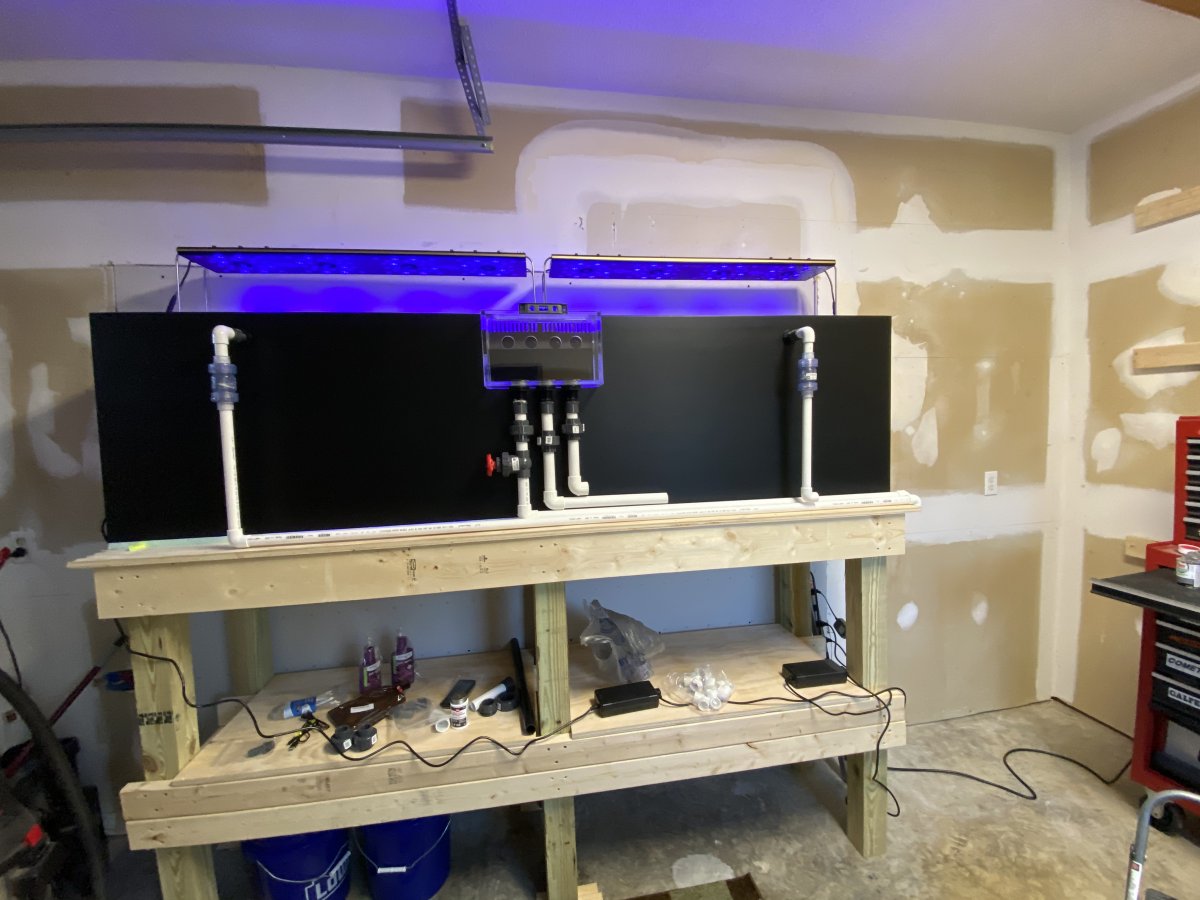

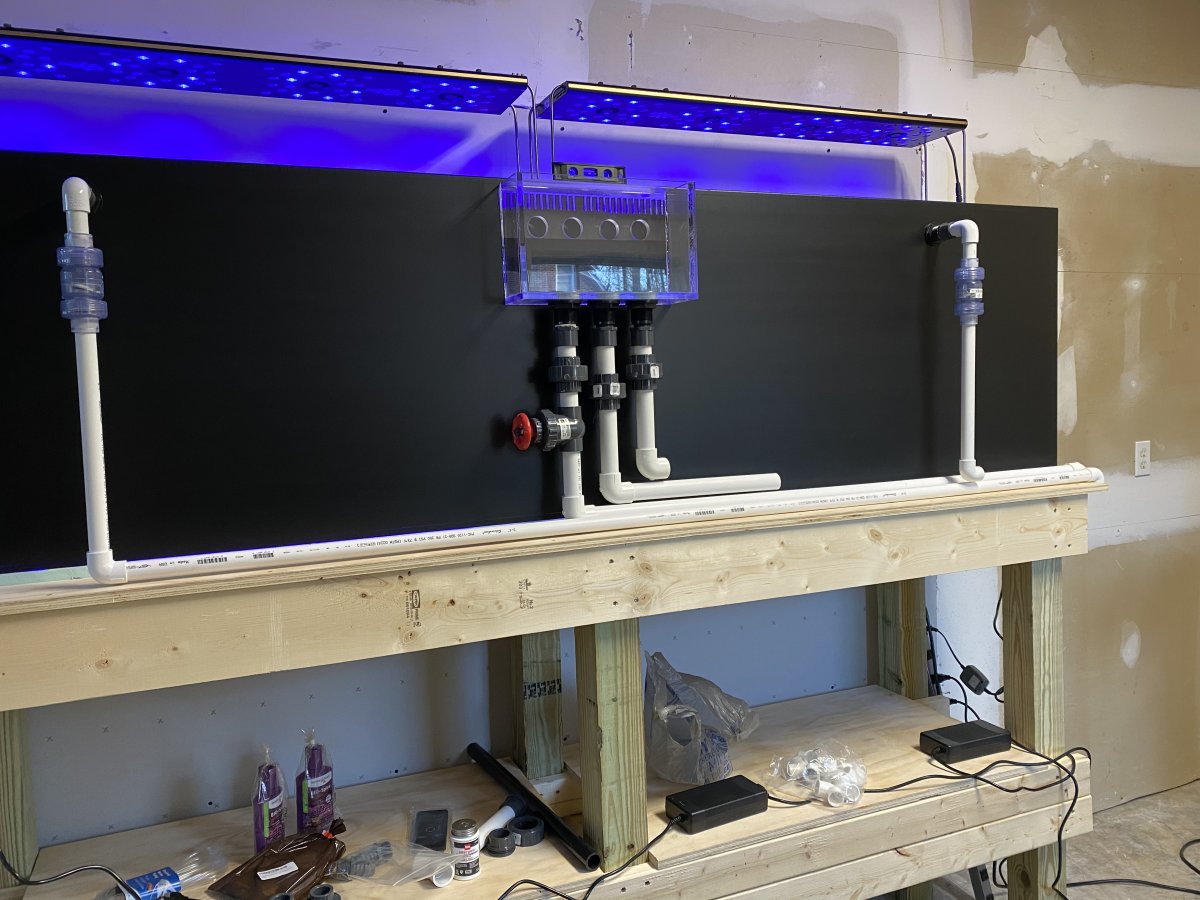

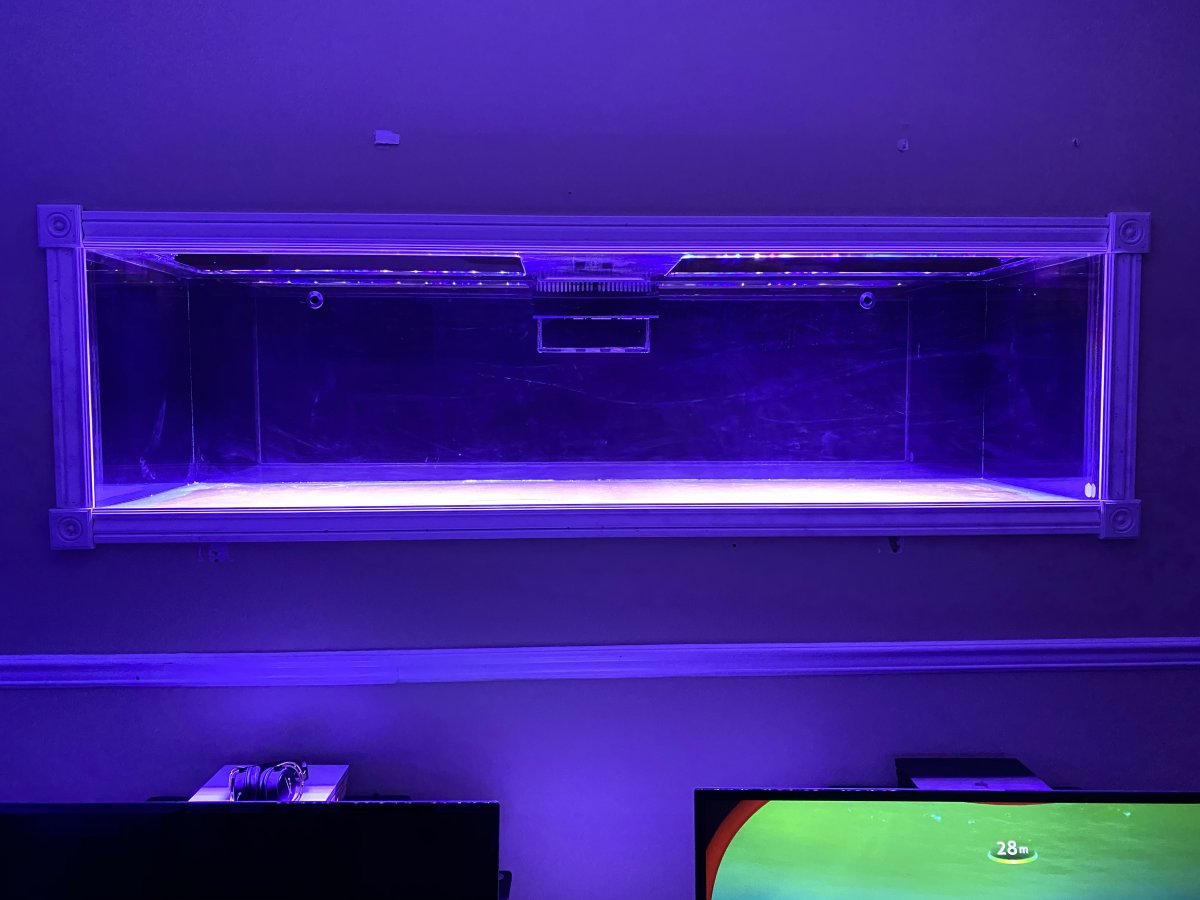

got lights over the tank, got 3/4 of the tank filled with RO water (no picture), did some plumbing today. Got move the sump over tomorrow and finish the plumbing.

8FC987BA-07C9-4D76-98B7-FB3C05BC3C38.jpeg 8D0192CE-71FB-4A4C-A2F0-19A13DF83AE0.jpeg E6308DDA-B8FC-4CDC-8DF0-3B2DDC2ED657.jpeg 29E74C98-80E0-4744-A323-1716BA2B0F3B.jpeg 551897DA-7BAE-47FB-B9BE-8B2E85159262.jpeg 0B322684-0206-443F-9A68-D59D9B08C1D5.jpeg 67FE75E7-AF19-4ECF-A712-BF6CE73AE94A.jpeg DB4E8975-643B-4521-8C1B-85082BC287AF.jpeg

Aquarium Specialty - dry goods & marine livestock
OP
Badilac

Badilac

Active Member
View Badges
Joined
Apr 11, 2019
Messages
390
Reaction score
347
Location
Unionville

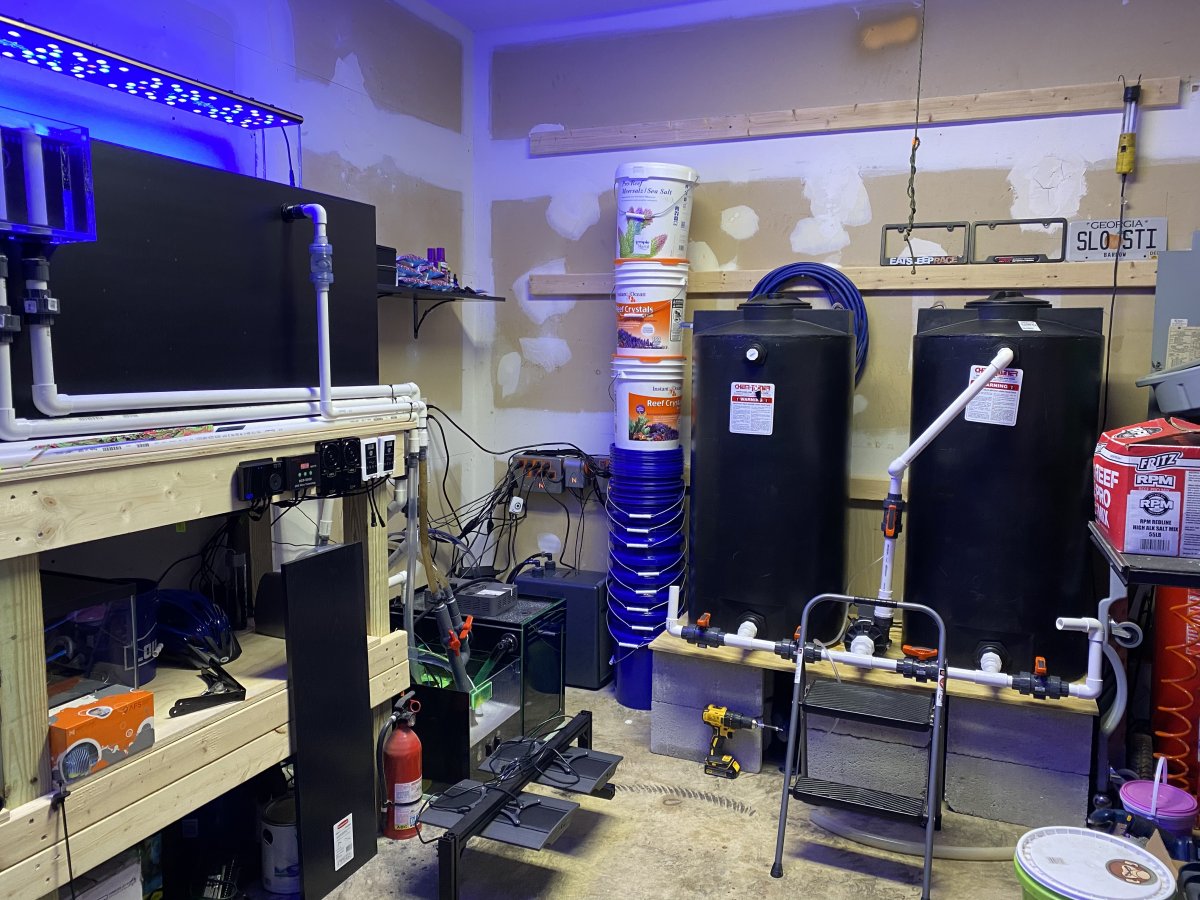

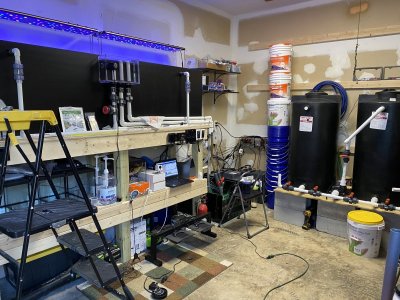

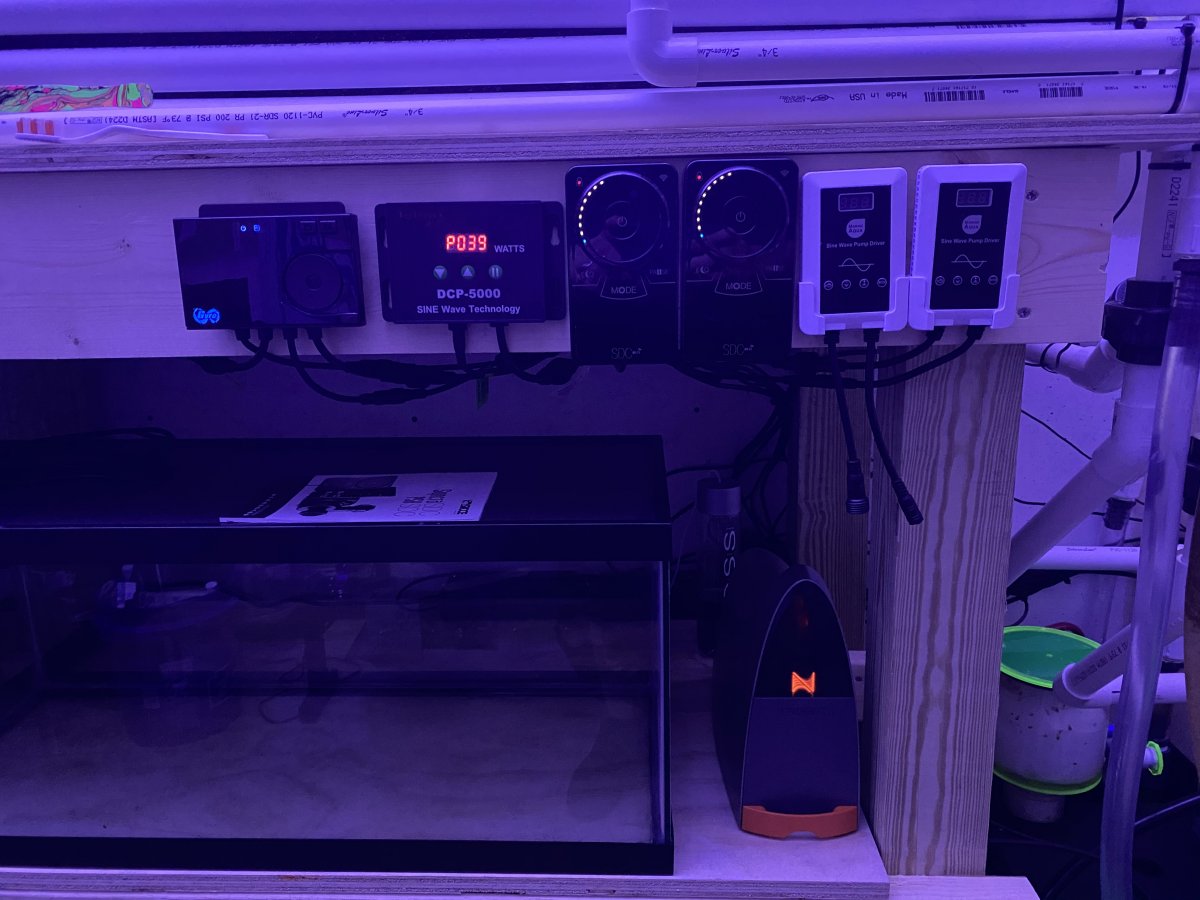

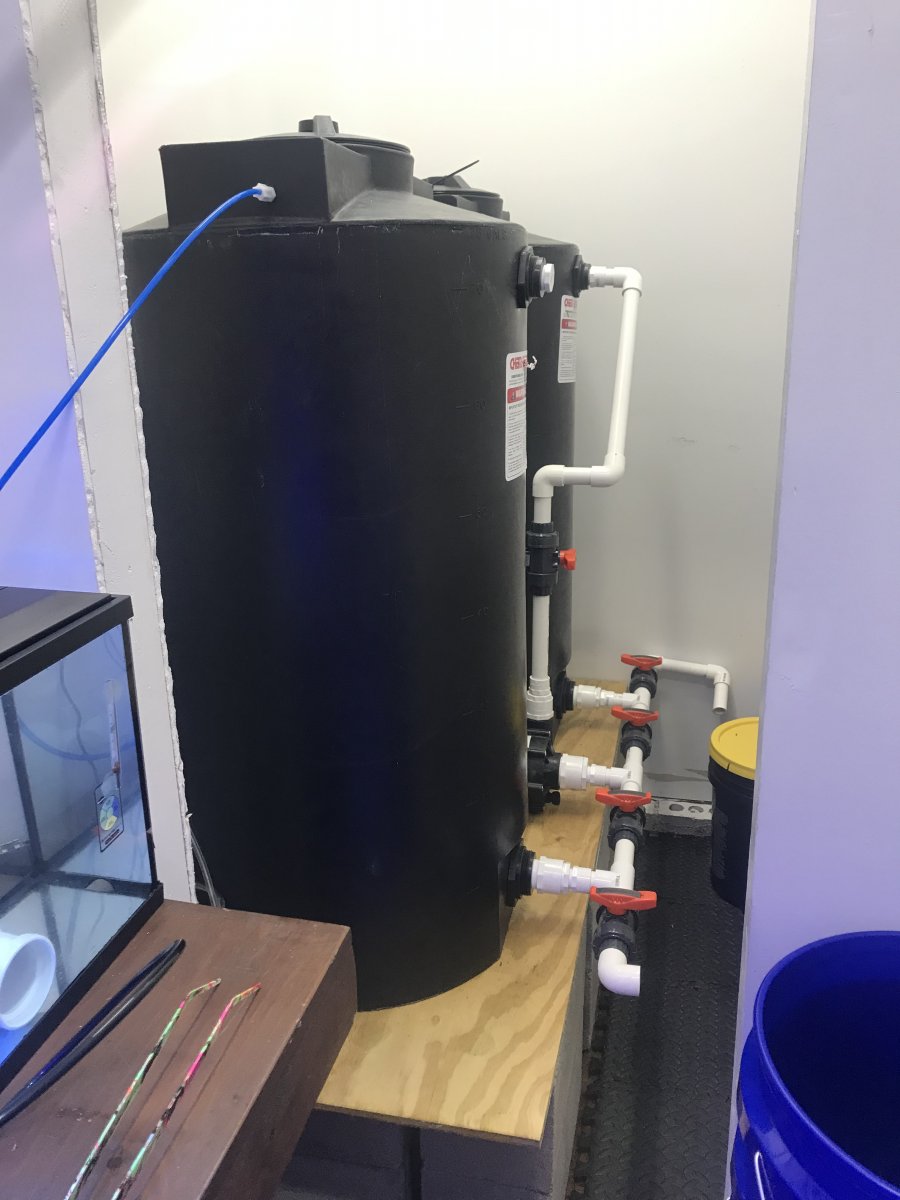

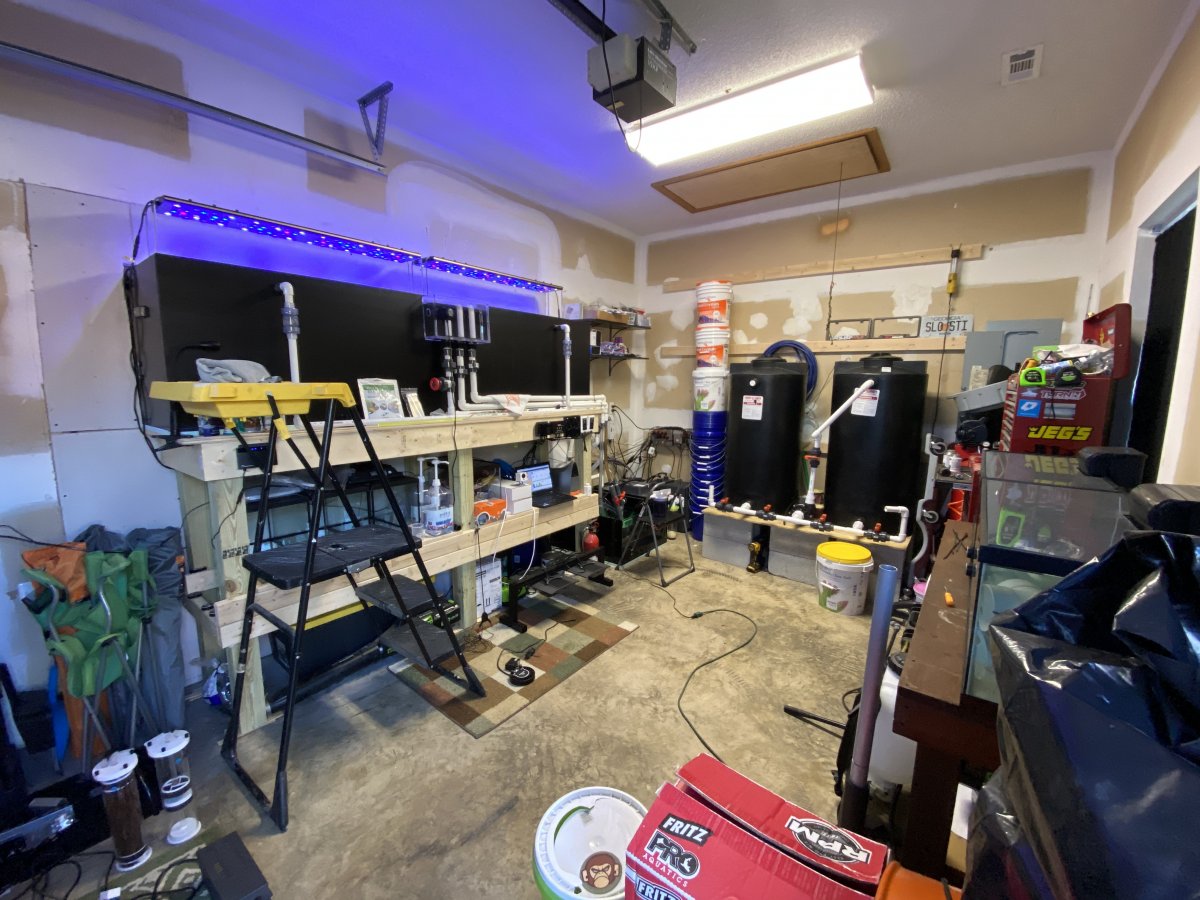

Few new pictures. Got some fish in QT today, got the 75 gallon mixing station reservoirs moved out to the garage got the UV plumbed, got the pump controllers mounted, installed a few shelf’s. Slowly each day I’m getting it cleaned up.

0CD03C35-E621-404B-BF6F-9A4A3CEEE6FC.jpeg D068A2F2-BFF7-47CF-95F3-F3A165BBA7A1.jpeg 28C0998F-BFA1-4DEC-8422-F4C744195B64.jpeg DCE711BB-458B-4DCC-A9CD-B7ABC0831B93.jpeg AA59D175-2D21-4A3C-AB75-ED404774ECE8.jpeg C806FDFD-66C1-4A19-BB9D-958AEC739D7B.jpeg C41D608A-8526-40A1-BA3E-24C4808C7C0D.jpeg 56EA8695-B057-4042-ACA2-062C5693DCBA.jpeg C801247B-CFCD-41A2-9D65-D3B441BB1736.jpeg BAEF841F-7E5B-4FAE-94E8-CC227C446CC5.jpeg F25C9764-7051-4CE5-8912-266ED4A9FECE.jpeg

OP
Badilac

Badilac

Active Member
View Badges
Joined
Apr 11, 2019
Messages
390
Reaction score
347
Location
Unionville

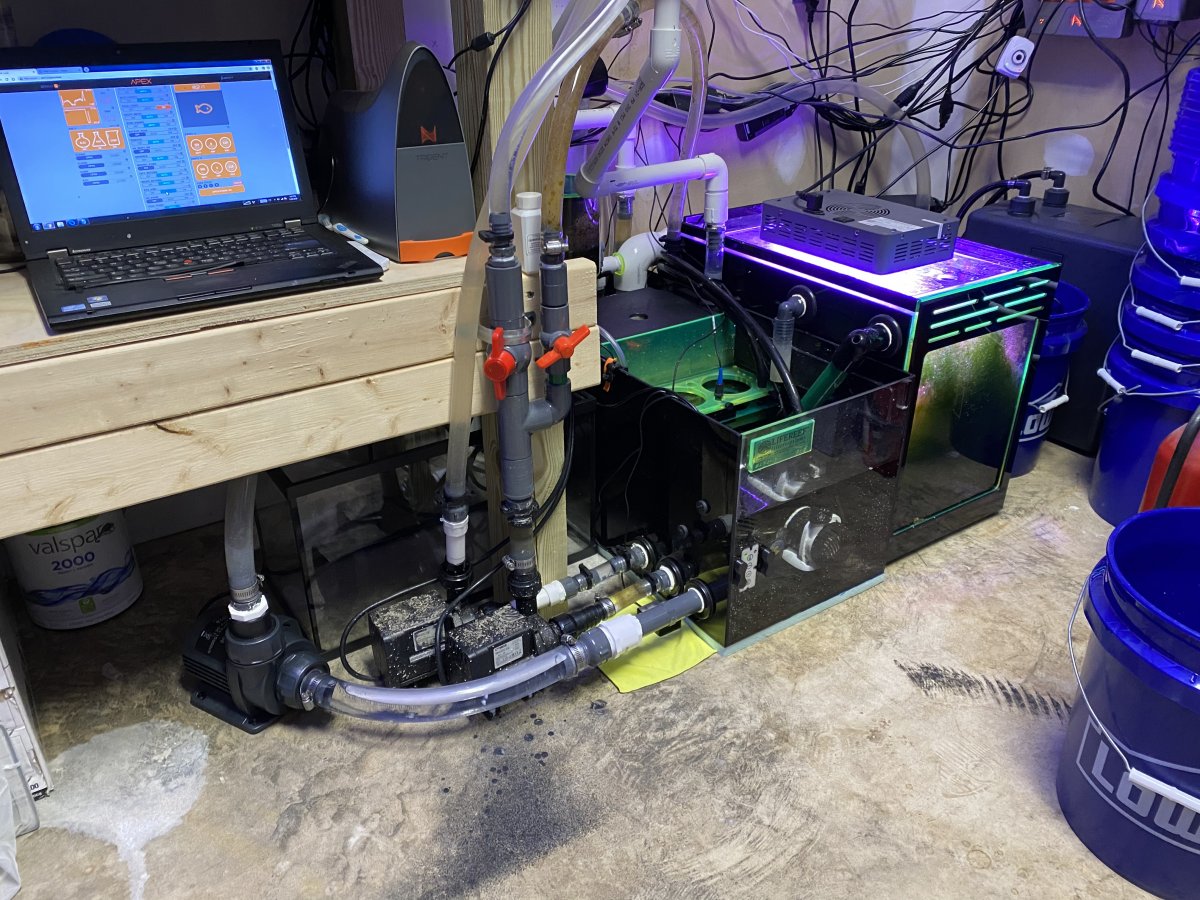

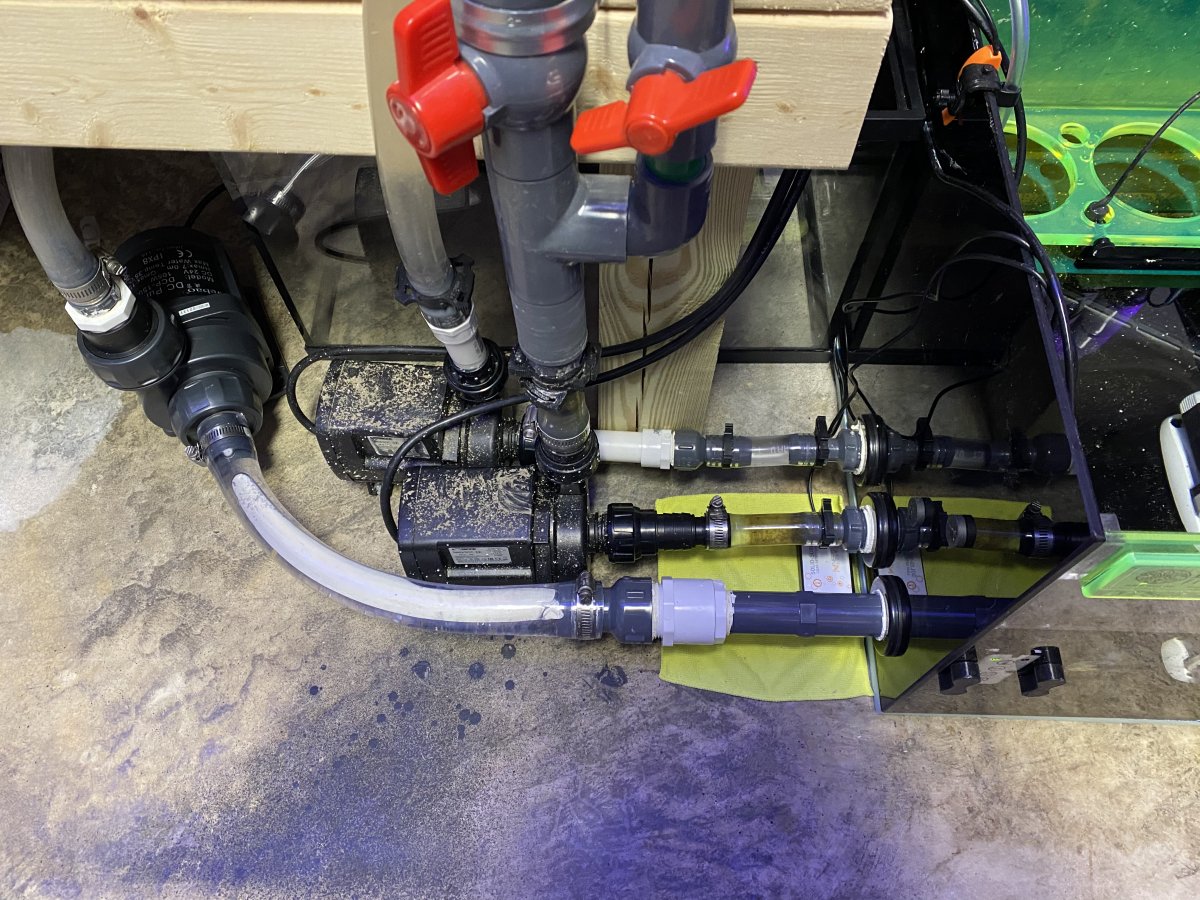

Well I did some work on the sump. The pump I had running the UV took a crap so I purchased a Jebao DCP-15000 to run it. Since I had to change the pump I decided to run all the pumps external to help with keeping the water cooler during the summer months. I had to drill 3 1” holes and install bulk heads, then redo the plumbing to accommodate the changes.

Before the changes the 500 watt heater I had running couldn’t keep up so I had to add a backup 300 watts. It’s crazy the 500 watt heater use to cycle on for about 1 hour then off for 1.5hrs before the changes. Then it took about 1 full day for the 800 watts to get it back up to 77. I think everything turned out good and I’m happy with the end result.

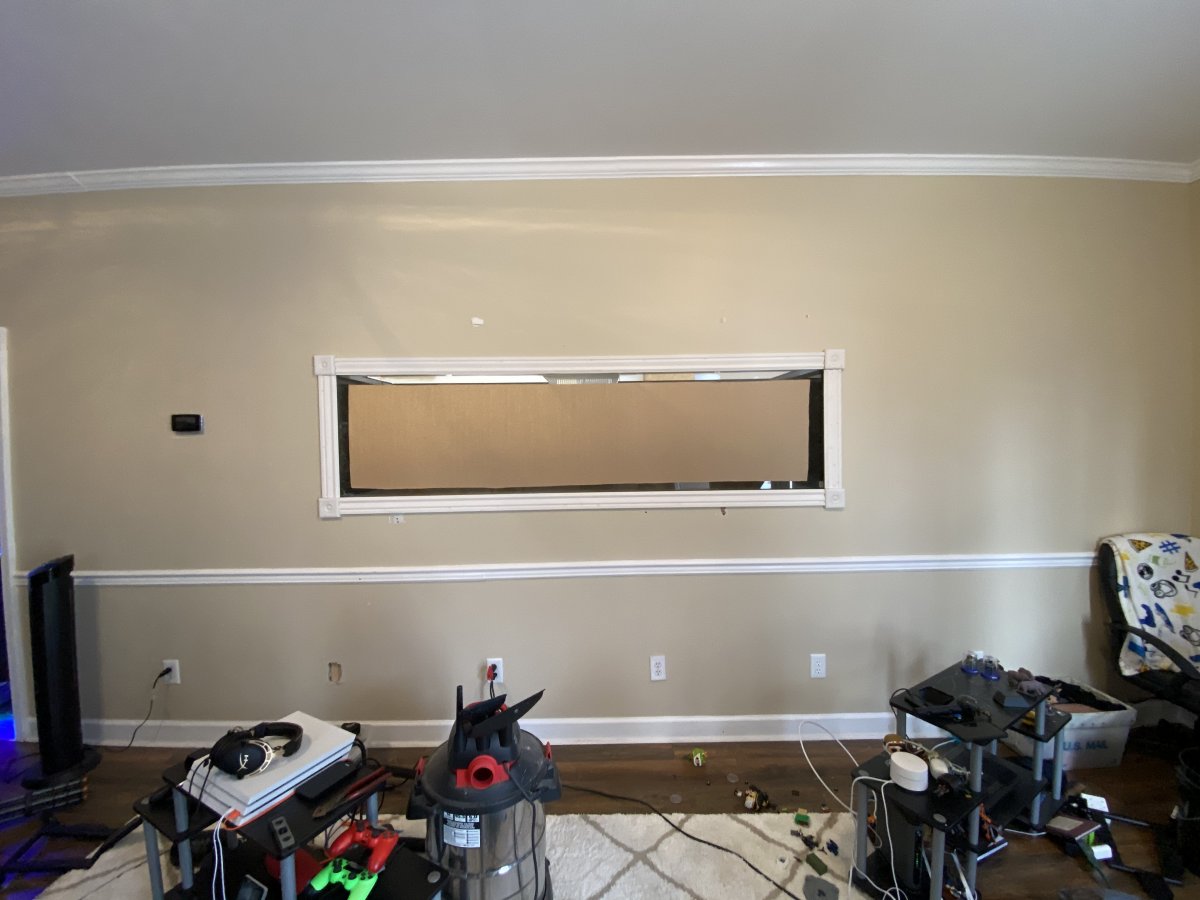

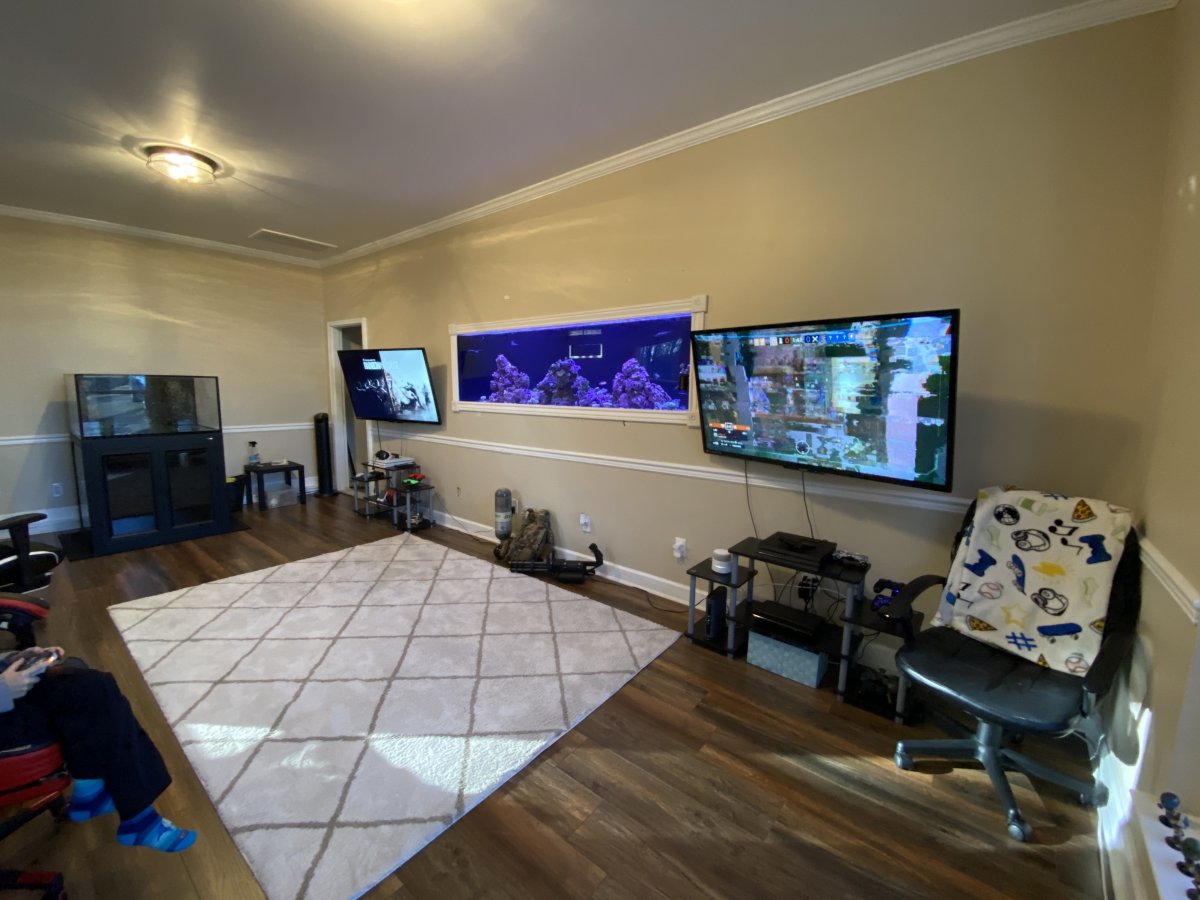

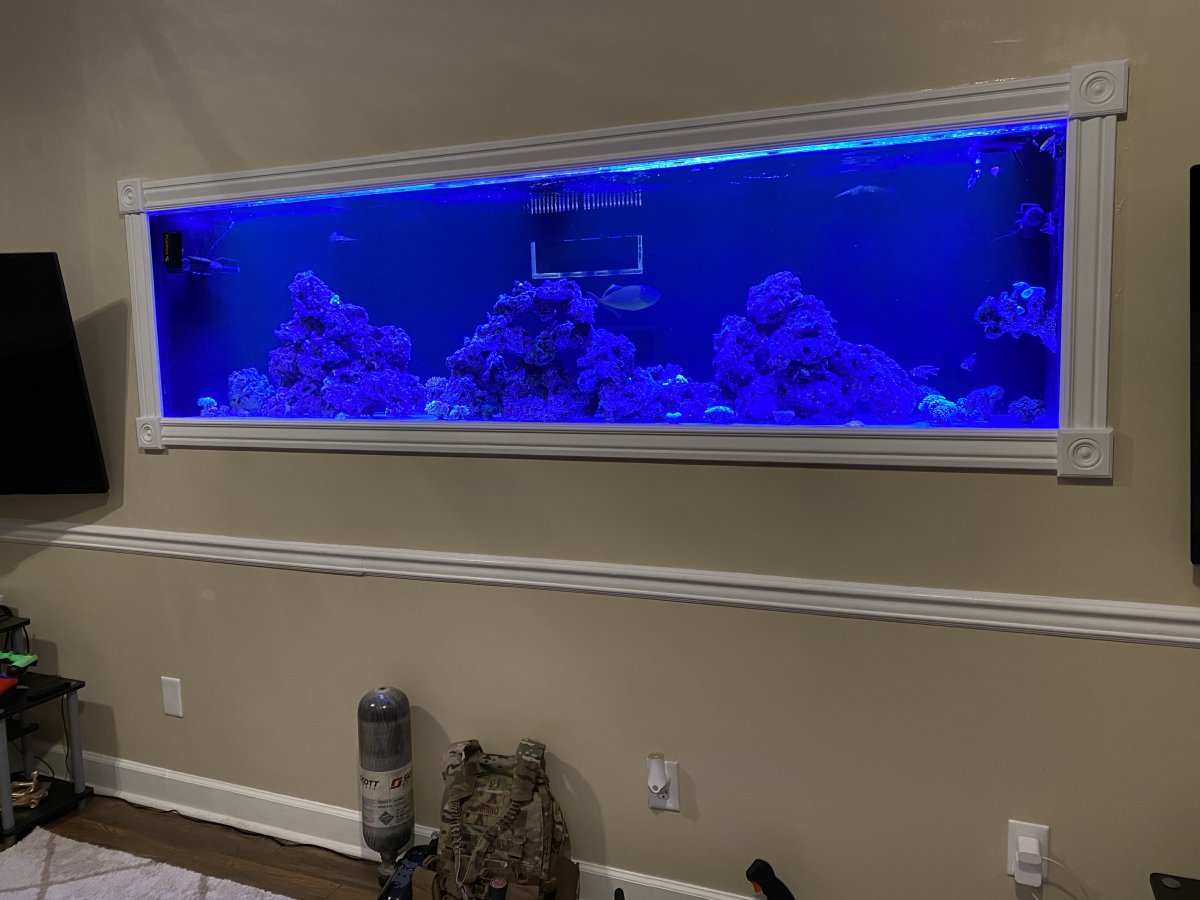

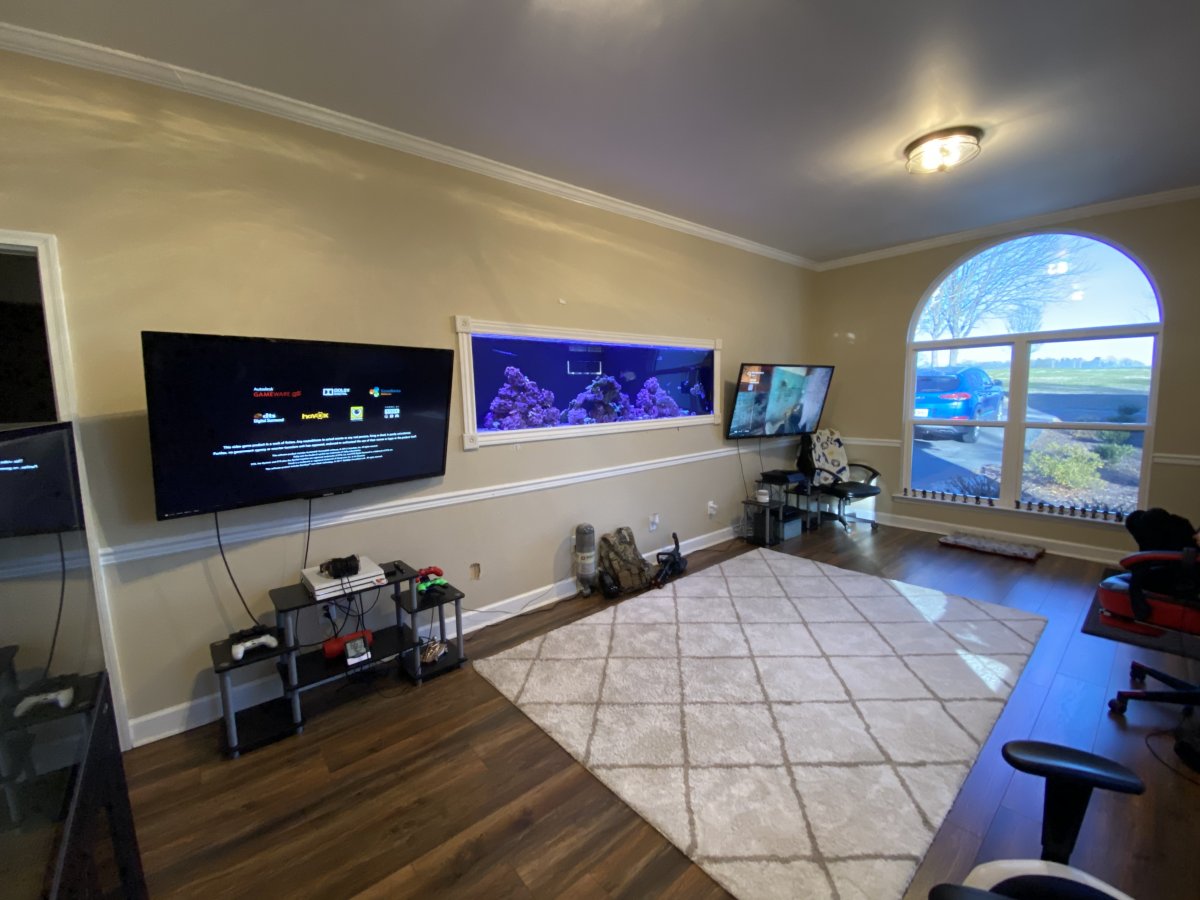

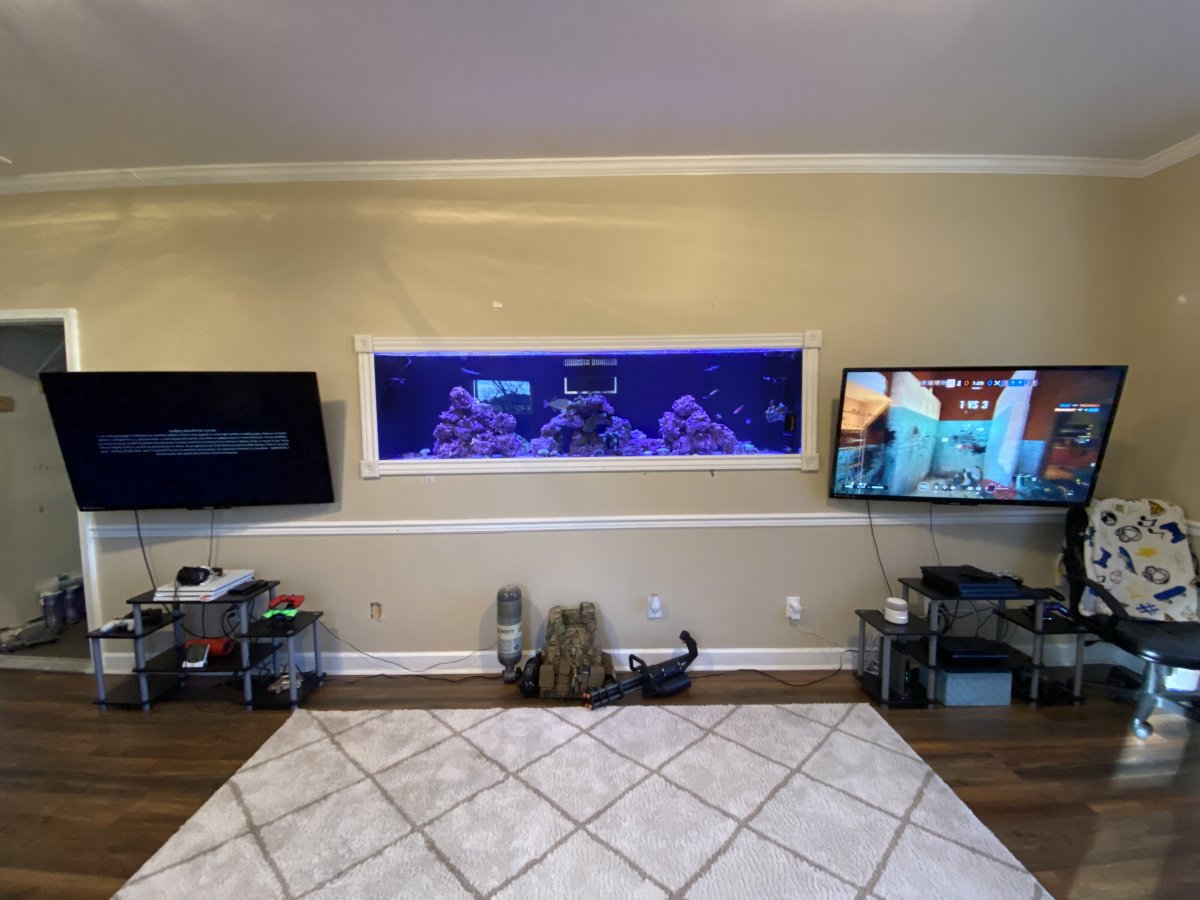

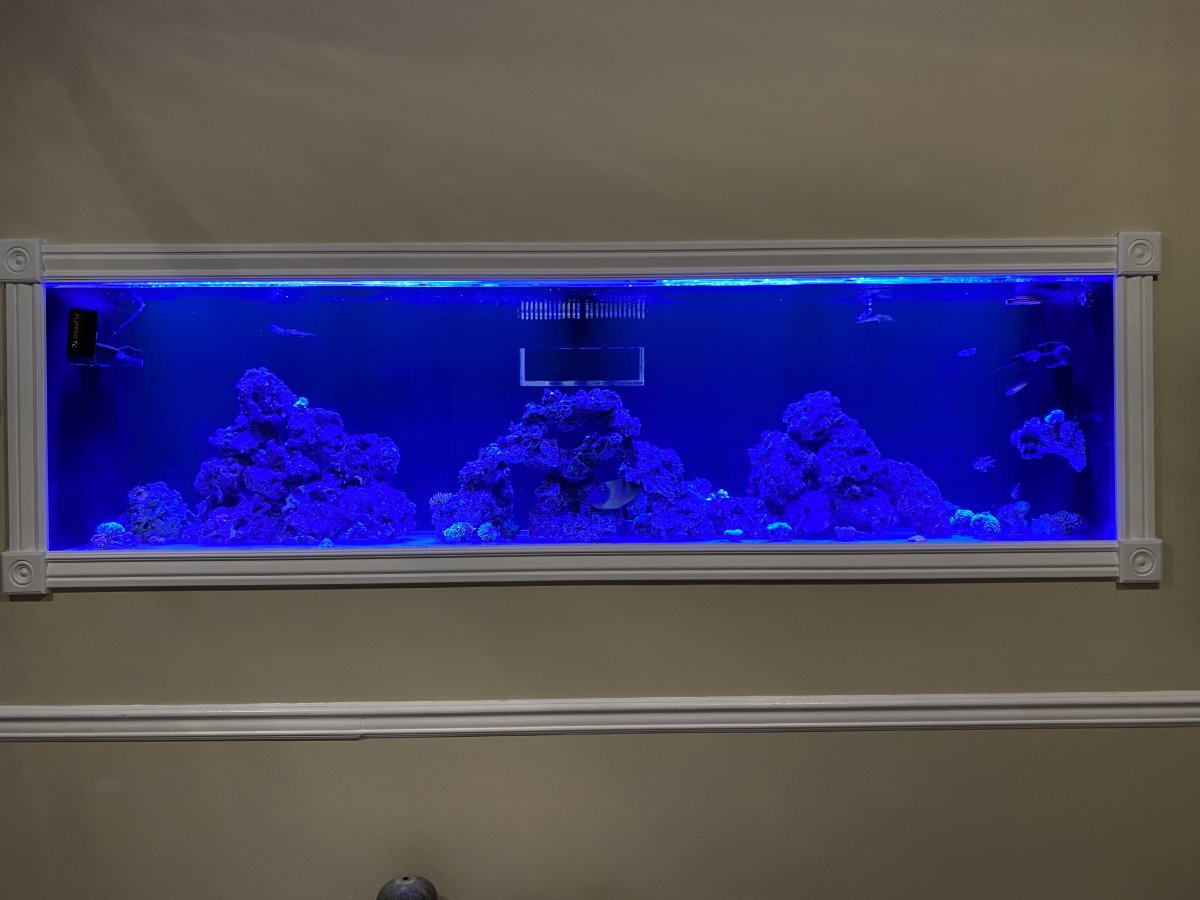

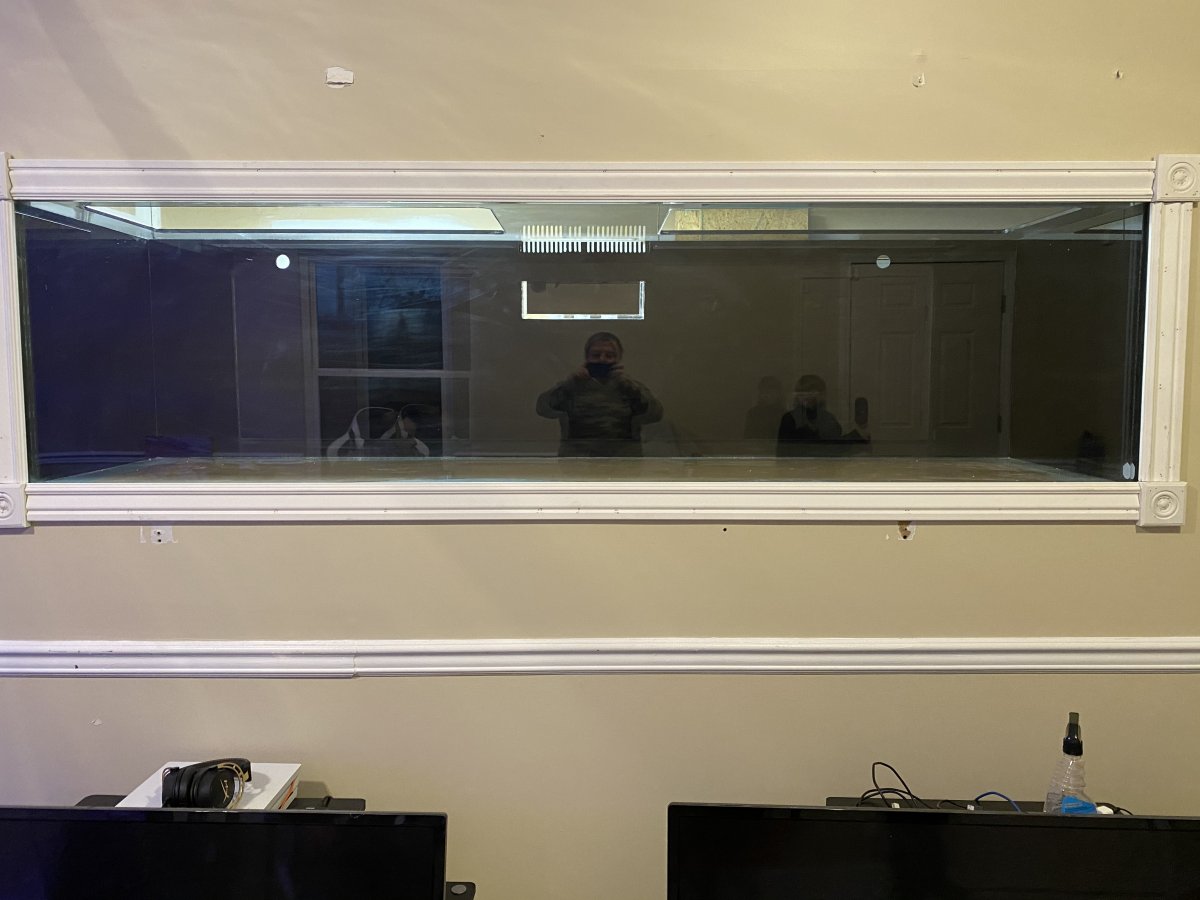

I also finally siliconed around all the trim, then painted the trim and wall. Finally it’s done.

I have a few fish in QT. Redsea Sailfin, Yellow Belly Blue Hippo, Sohal Tang, Purple Tang, Yellow Tang, Blue Spot Puffer. I lost a Blue Line Trigger and Aussie Harlequin sk in QT unfortunately.

Also got some Bropsis in the tank unfortunately so I treated the tank with Reef Flux so hopefully that will knock it out.

51443787-F197-43D1-B00E-7A87153CC081.jpeg 7BCD70EB-AC5B-49D3-9C34-85E448F35F9B.jpeg 3298B85E-E539-479F-860A-9105FF12F830.jpeg 9F613CD4-2F66-4879-B214-B3D4A1B0CB7B.jpeg 54F4853C-3F6C-4773-BD38-837649CCAE83.jpeg 3E4A3D57-2D28-440C-A73E-B85418256D26.jpeg 61B7D777-572C-443B-855F-4AC9567C7A88.jpeg 14DCD9B1-8810-4072-A1CF-D09F3398EB6E.jpeg

OP
Badilac

Badilac

Active Member
View Badges
Joined
Apr 11, 2019
Messages
390
Reaction score
347
Location
Unionville
Small update.

Reef Flux Knocked out the Bropsis in about 2 weeks. Been fighting hair algae, nothing uncommon for the new setup.
Cheato is now dying off though.

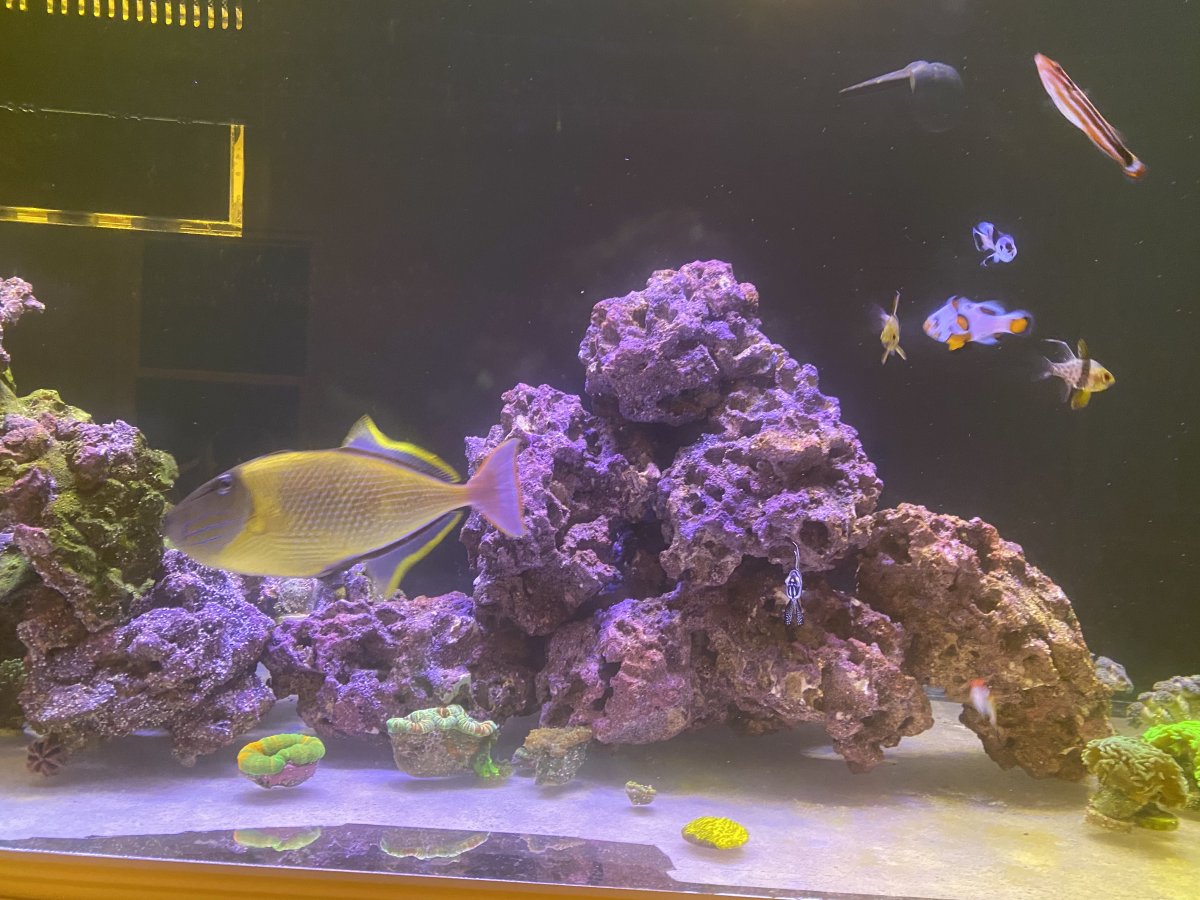

Purchased a few fully QT'ed fish from Bay Bridge Aquarium, Just waiting to take delivery. (2) convict tangs, kole eye tang, baby queen angel, copper band butterfly, pair of red sea clowns.
I also just finished QT on a Clown trigger.
So basically I have a buttload of fish waiting to go into the DT.

1 Gyre XF350 stopped working to I had to remove, disassemble and clean it. I also took this time to clean the other one and change the origination from horizontal to vertical.

Left my glass top open after feeding and with in 30 mins my Noako Wrasse committed suicide. RIP little guy.

Aquarium Specialty - dry goods & marine livestock
OP
Badilac

Badilac

Active Member
View Badges
Joined
Apr 11, 2019
Messages
390
Reaction score
347
Location
Unionville
I forgot to mention the most annoying failure recently.

My Trident failed after 6 months of use, after a long drawn out process with Neptune they agreed to replace it. It took 10 days before the agreed to replace it and another 5 before they actually shipped the replacement. It's pretty frustrating that its only 6 months old and it took 15 days before they shipped it and I wont actually get it for another 7 days. So the tank will be without it for 22 days. So I have just been blindly dosing what I would normally dose on a daily basis. Its always something! It doesn't make sense to me. We spend all this money on "nice" "expense" equipment and something always needs to be tinkered with.
