Borat Peristaltic Pump Copy Build....

[Dukereefnz]

We are still in lock down so it hard to source parts loacally.
Still ordering bits...


Ordered... fingers crossed it is the right one, looks like it.

- 3-4 sheets of 5mm A4 size white perspex acrylic (I buy pre-cut A4 size acrylic as it's cheaper)
- 18x ball bearings 4mm/13mm ID/OD
- M4 countersunk screws and M4 nuts - have
- M3 screws - have
- Tensol 12 acrylic glue
- Arctic F8 PWM cooling fan (80mm diameter) - Purchased $22 NZ
- Rotary encoder
- Mean Well Constant Voltage LED Driver 25.2W 12V
- Murata Power Solutions Through Hole Switching Regulator, 5V dc Output Voltage, 1.5A Output Current
- TMC2209 v1.2 stepper motor driver - Purchased $16 NZ
- Arduino Nano
- Samsung IC2 SSD1306 OLED DIsplay x 2 = 13nz
- Santoprene tubing 3.2mm bore x 6.4mm OD - purchased $53.85 NZ for 1m
- Push-on straight connector,5mm ID hose
- JST crimp connectors
- 22 AWG wires - have
- 100uf 24V capacitor
- 90 degree angle mini USB male to female extension connector (30cm length)
- C14 panel mount power connector
- 2x RS PRO M8 x 30mm Shoulder Bolt - 4 purchased China $16 NZ
- 2x Easyfix A2 stainless steel flange head nuts - have
- 10x Easyfix A2 stainless steel large flat washers M8 x 2mm - have
- 4x M3 washers- have
- Nema 17 stepper motor, 0.71NM 1.8A - Purchased $31 NZ

- DS3231 AT24C32 IIC Module Precision Clock Module DS3231SN for Arduino Memory x 2 = Purchased $11.60 NZ​

- 5PCS Half / Plum axis rotary encoder, handle length 15mm / 20mm code switch / EC11 / digital potentiometer with switch 5Pin 3Pin - purchased NZ $6.04​



[Dukereefnz]

- 100uf 24V capacitor
- Rotary encoder

Hi - do you have a part number for these please?



[Just a Wrasse.]

I have a Arduino - Duinotech Uno - from a starter kit....
From Dr Google..

Arduino is a microcontroller based electronic platform which is open for everyone, means anyone can use it without any cost.

Now let’s get dive into the answer of differences between Arduino Uno and Arduino Nano.

1. Basically Arduino Nano is very much similar to Arduino UNO. Bothe of the board use the same micro controller like Atmega328p and also share the same program.
2. The main difference between these two bards is in size, Uno is double to Nano.
3. Basically USB cables are used for the programming in Arduino Uno and on the contrary in Arduino Nano uses the mini USB cable.

Below a chart is given to differentiate between them:

So s long as the UNO can fit - it is OK to use... otherwise I will buy a NANO.

Cool, keep us updated and share some pictures when it's done as Id like to see if!



[Borat]

- 100uf 24V capacitor
- Rotary encoder

Hi - do you have a part number for these please?

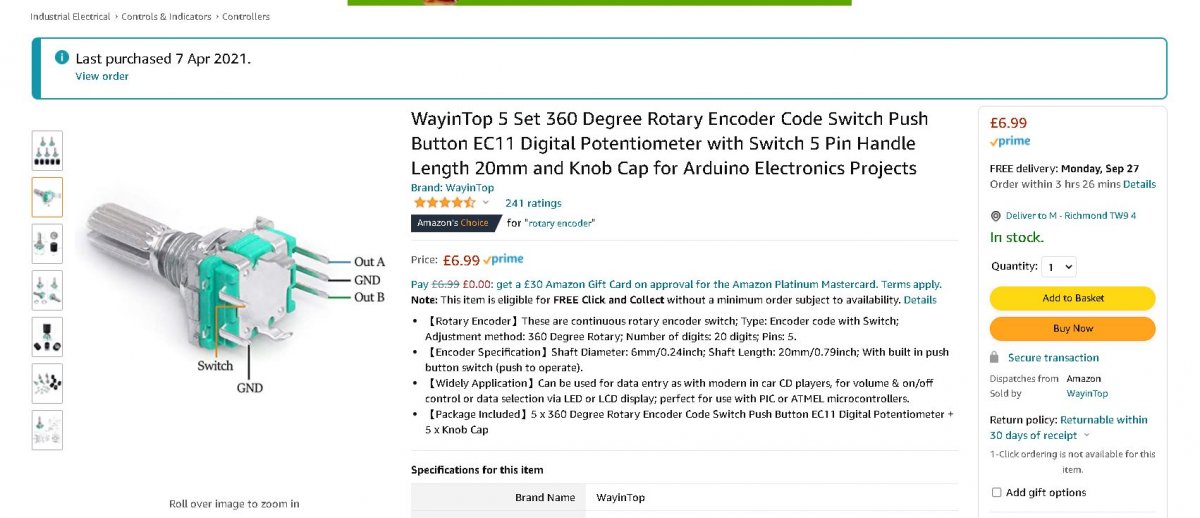

This is the rotary encoder that I bought, it does not matter which one you use as soon as its for Arduino. They may differ by number of pins (5pins vs 4pins) but it's a small thing - important thing is reviews whether the encoder is OK-ish.

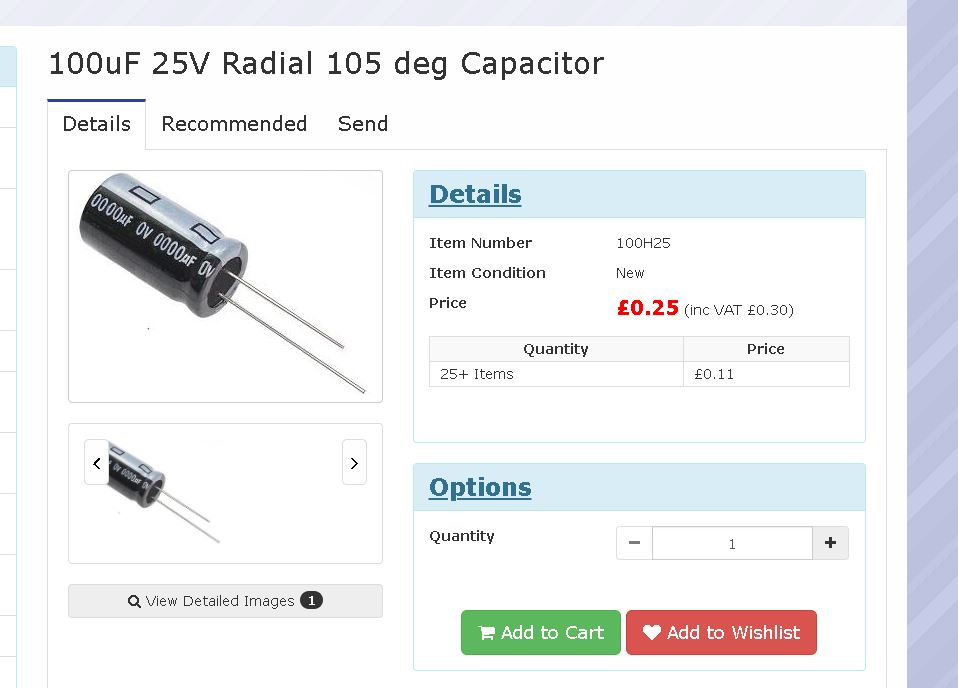

As for capacitors - you need any reasonable 100uf capacitor (just google). Voltage - wise it just needs to be rated equal to or greater than 12v.. 24v is adequate - those will last..



[Borat]

I use something like this:



[Borat]

These are so cheap that I simply bought a box of all kinds (500 pieces):



[Borat]



[Borat]

How is it going, dude (trying to sound US&American)?

Really keen to see some first pics of your pump being born..



[Dukereefnz]

Mr Borat - the parts are rolling in.
Still a lot to go.
Got the fan and the motor so far.

My next task is to draw up the box and the mounting, you said you had a jig... are you able to share the dimensions?
Thanks.

Once I have the parts drawn in 2D - I will get them laser cut.
Max thickness is 10mm - so I will be joining two for the hose clamp part.
