Great thanks! Ya, its an AC pump. I had it in storage so figured I'd try to use it but I think it's just way too much. It's like 15x turnover. lol

here is what mine looks like

Top Shelf Aquatics
OP
trevorhiller

trevorhiller

Well-Known Member
Review score
+7 /0 /-0
View Badges
Joined
Oct 22, 2021
Messages
826
Reaction score
545
Review score
+7 /0 /-0
Location
Williamsport
Rating - 0%
0   0   0
Tank Update
I cleaned up the tank today and swapped the Reborn substrate for the newly re-released old style, large particle Reborn. This was the substrate I wanted since planning my tank, but unfortunately it stopped being available during Covid-19. It may seem silly to some to swap the substrate for a different particle size, but this was the look I was going for and it really allows you to crank up the flow without the substrate blowing around. I'm much more satisfied now.

Equipment:
I'm still ramping up the lighting slowly to get the coral used to the Radion XR30 I installed. Most of these were grown under Radions, but I suspect they've probably gotten used to lower light so I started a 45 day acclimaton period. I'm now hitting 150-160 micromols at the top of the rockscape and about 100 micromols at the bottom. So far the corals seem to be reacting positively to the extra light.


Fish:
Banggai Cardinalfish has finished QT and been acclimated to the tank. I'm still experiencing some agression between the Tomini and the Flame Hawkfish, so I have a mirror on the tank again at the moment. I bought a acclimation box and left the Banggai in it for a week prior to releasing and so far the other fish don't seem to mind him at all.

Corals:
I'm starting to see some growth-I believe my PAR was very low and contributing to slow growth. I also finally have some specks of coralline on the glass in the sump and on the plastic weirs in the tank.

Dosing:
Kalkwasser dosing decreased by about 50% when I switched to the XR30. I suspect I undershot the initial intensity and decreased the demand but I'm slowly ramping this back up. Alk is hovering around 9.0.

Problems/Nuisances:
My chaeto was finally starting to grow since adding the Eco Chic by Tunze, but now it is beginning to be covered by hair algae. I suspect the hair algae is going to win as the chaeto seems to be decreasing in size and I've notice a lot of little pieces making their way up to the display tank. If this chaeto doesn't work, I may try a different type of algae. I bought some pods from Top Shelf Aquatics with my last coral order and they came with a few pieces of red algae (I believe Ogo and something else?). Just for fun, I glued them to a piece of rubble and stuck them in the refugium section and they are growing well. It's odd how chaeto doesn't like to grow for some people well.

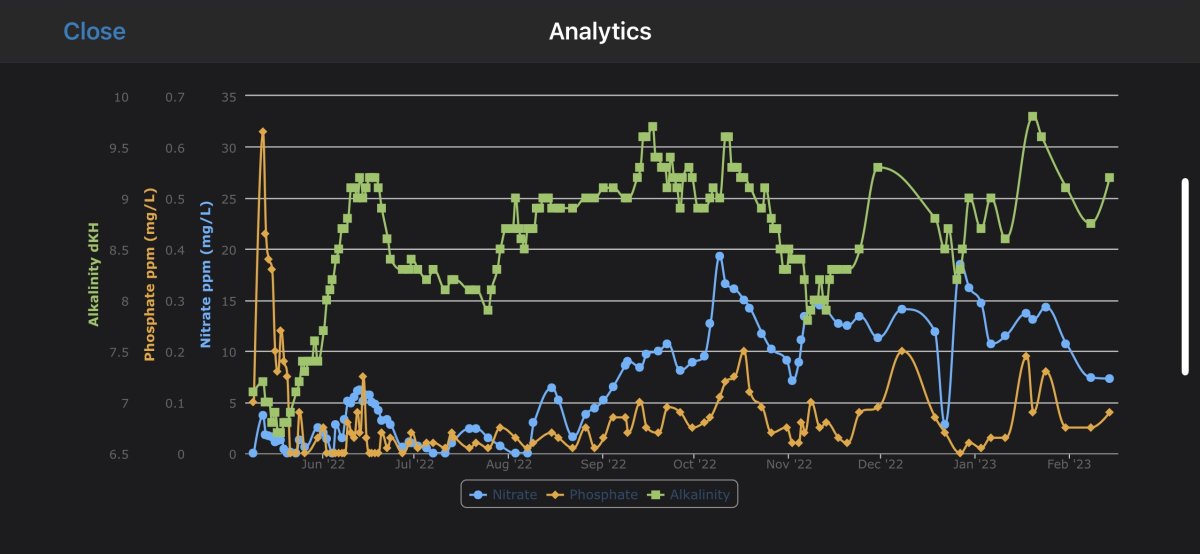

My nitrates and phosphates are finally starting to get up to the point where I may want to do something about them. 15/0.2. I have some GFO on hand that I may add, but right now the corals look ok and I'm cutting back the feeding since the new fish are doing well and getting fat. I'd really like to try Phosphate Rx that Melev's Reef uses, but the horror stories of LaCl3 have me scared--especially after it took 3 tries to get a Tomini Tang to survive. I'm not sure if I am willing to give Lanthanum a try. For now I'm still debating on a phosphate management strategy if/when I need to start reducing them.

After cleaning today I had to get some pictures of the tank, its inhabitants and a few of the corals that are showing some growth.


Attachments

  • Aquarium Left Side.jpg
    Aquarium Left Side.jpg
    272.8 KB · Views: 15
  • Aquarium Front View.jpg
    Aquarium Front View.jpg
    311.9 KB · Views: 12
  • Flame Hawkfish 1.jpg
    Flame Hawkfish 1.jpg
    248.1 KB · Views: 9
  • Duncan.jpg
    179.1 KB · Views: 9
  • Rainbow Pectinia.jpg
    Rainbow Pectinia.jpg
    226.7 KB · Views: 10
  • Ricordea Florida.jpg
    Ricordea Florida.jpg
    215.8 KB · Views: 8
  • Micromussa.jpg
    214.2 KB · Views: 9
  • Pincushion Urchin.jpg
    Pincushion Urchin.jpg
    163.4 KB · Views: 8
  • Banggai Cardinalfish 2.jpg
    Banggai Cardinalfish 2.jpg
    171.1 KB · Views: 8
  • Banggai Cardinalfish 1.jpg
    Banggai Cardinalfish 1.jpg
    127.2 KB · Views: 9
  • Chalice.jpg
    197.4 KB · Views: 13
  • Aquarium Right Side View.jpg
    Aquarium Right Side View.jpg
    266.9 KB · Views: 12
  • Bubblegum Digitata.jpg
    Bubblegum Digitata.jpg
    146.3 KB · Views: 11
  • Flame Hawkfish.jpg
    Flame Hawkfish.jpg
    237.4 KB · Views: 12
  • Long Spine Sea Urchin.jpg
    Long Spine Sea Urchin.jpg
    150.9 KB · Views: 9
  • Peppermint Shrimp.jpg
    Peppermint Shrimp.jpg
    214.9 KB · Views: 15
Tidal Gardens

VanJoe

New Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 3, 2021
Messages
22
Reaction score
11
Review score
+0 /0 /-0
Location
JAX
Rating - 0%
0   0   0
Based on just the dimensions, it looks like it's not going to fit. That section of the sump is 14.88" x 12.36". The dimensions of the reef mat is 8.3" x 10.6" and the skimmer i'm running is 8.24" x 6.74". I thought i might be able to sneak it in as it seems smaller on the base and gets wider as you go up, but probably not worth the risk.

complete rookie here, am thinking of buying this tank and came across this great build thread. With the small size of the sump and the filter sock area (and the gate valve right there on the down pipes) there really isn't a way to get a filter mat roller to fit is there? None are small enough? Your comment on putting it the skimmer area was a first for me. Everything I've ever read and seen online shows people putting it in the filter sock area. What, would you plumb your downflow into the skimmer section instead? Completely new to sumps.

(looking some more it looks like the small Klir 4 might fit if the drain gate valve doesn't get in the way)

Thanks for any input.

Last edited:

VanJoe

New Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 3, 2021
Messages
22
Reaction score
11
Review score
+0 /0 /-0
Location
JAX
Rating - 0%
0   0   0
Tank Update
I cleaned up the tank today and swapped the Reborn substrate for the newly re-released old style, large particle Reborn. This was the substrate I wanted since planning my tank, but unfortunately it stopped being available during Covid-19. It may seem silly to some to swap the substrate for a different particle size, but this was the look I was going for and it really allows you to crank up the flow without the substrate blowing around. I'm much more satisfied now.

Equipment:
I'm still ramping up the lighting slowly to get the coral used to the Radion XR30 I installed. Most of these were grown under Radions, but I suspect they've probably gotten used to lower light so I started a 45 day acclimaton period. I'm now hitting 150-160 micromols at the top of the rockscape and about 100 micromols at the bottom. So far the corals seem to be reacting positively to the extra light.


Fish:
Banggai Cardinalfish has finished QT and been acclimated to the tank. I'm still experiencing some agression between the Tomini and the Flame Hawkfish, so I have a mirror on the tank again at the moment. I bought a acclimation box and left the Banggai in it for a week prior to releasing and so far the other fish don't seem to mind him at all.

Corals:
I'm starting to see some growth-I believe my PAR was very low and contributing to slow growth. I also finally have some specks of coralline on the glass in the sump and on the plastic weirs in the tank.

Dosing:
Kalkwasser dosing decreased by about 50% when I switched to the XR30. I suspect I undershot the initial intensity and decreased the demand but I'm slowly ramping this back up. Alk is hovering around 9.0.

Problems/Nuisances:
My chaeto was finally starting to grow since adding the Eco Chic by Tunze, but now it is beginning to be covered by hair algae. I suspect the hair algae is going to win as the chaeto seems to be decreasing in size and I've notice a lot of little pieces making their way up to the display tank. If this chaeto doesn't work, I may try a different type of algae. I bought some pods from Top Shelf Aquatics with my last coral order and they came with a few pieces of red algae (I believe Ogo and something else?). Just for fun, I glued them to a piece of rubble and stuck them in the refugium section and they are growing well. It's odd how chaeto doesn't like to grow for some people well.

My nitrates and phosphates are finally starting to get up to the point where I may want to do something about them. 15/0.2. I have some GFO on hand that I may add, but right now the corals look ok and I'm cutting back the feeding since the new fish are doing well and getting fat. I'd really like to try Phosphate Rx that Melev's Reef uses, but the horror stories of LaCl3 have me scared--especially after it took 3 tries to get a Tomini Tang to survive. I'm not sure if I am willing to give Lanthanum a try. For now I'm still debating on a phosphate management strategy if/when I need to start reducing them.

After cleaning today I had to get some pictures of the tank, its inhabitants and a few of the corals that are showing some growth.
Any more updates? :)

Just bought this tank. Looks like a great package. How have you liked that sized UV and the plumbing of it? Use a DC pump on the UV so you can change the flow as needed?

Thanks.

Last edited:
OP
trevorhiller

trevorhiller

Well-Known Member
Review score
+7 /0 /-0
View Badges
Joined
Oct 22, 2021
Messages
826
Reaction score
545
Review score
+7 /0 /-0
Location
Williamsport
Rating - 0%
0   0   0
complete rookie here, am thinking of buying this tank and came across this great build thread. With the small size of the sump and the filter sock area (and the gate valve right there on the down pipes) there really isn't a way to get a filter mat roller to fit is there? None are small enough? Your comment on putting it the skimmer area was a first for me. Everything I've ever read and seen online shows people putting it in the filter sock area. What, would you plumb your downflow into the skimmer section instead? Completely new to sumps.

(looking some more it looks like the small Klir 4 might fit if the drain gate valve doesn't get in the way)

Thanks for any input.

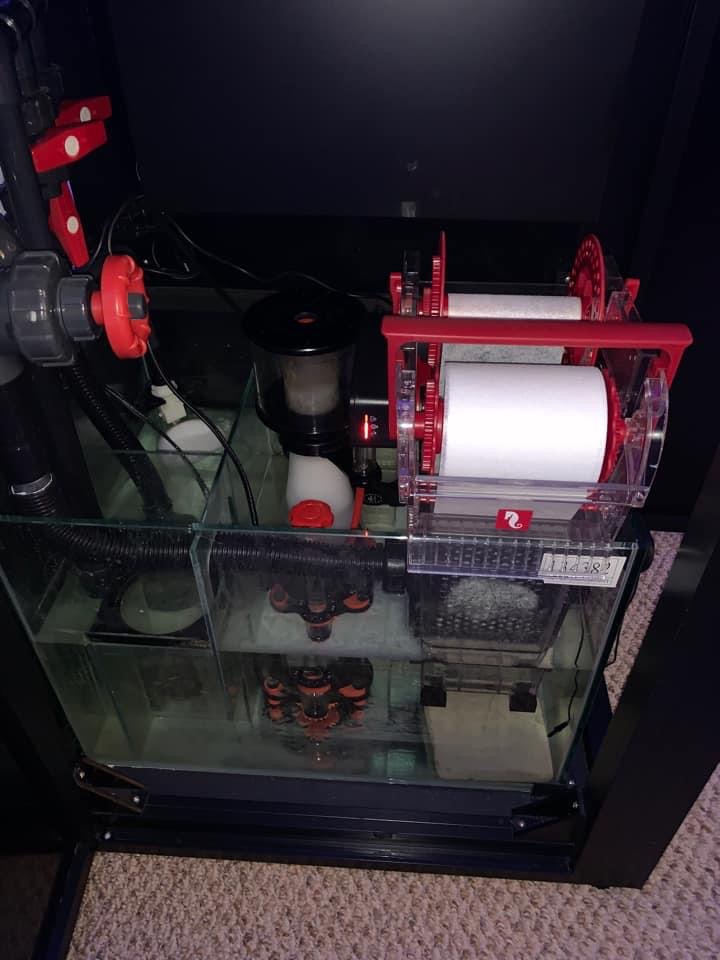

I think most people who use the filter roller in it just skip over the sock area. Sort of like this example someone else did.

For me I would need to downsize my skimmer and I paid a lot for it and really like it, so I don’t want to do that at this point.

6248BAE2-8A7A-465B-8643-3064D452FE95.jpeg 8855D5F1-EA45-4221-943B-747E605C18DB.jpeg 780DB2BC-8248-4A0A-925B-A6CBA8A418FF.jpeg ADBD2FCB-C090-4837-A226-BF0F1143A42D.jpeg

OP
trevorhiller

trevorhiller

Well-Known Member
Review score
+7 /0 /-0
View Badges
Joined
Oct 22, 2021
Messages
826
Reaction score
545
Review score
+7 /0 /-0
Location
Williamsport
Rating - 0%
0   0   0
Any more updates? :)

Just bought this tank. Looks like a great package. How have you liked that sized UV and the plumbing of it? Use a DC pump on the UV so you can change the flow as needed?

Thanks.
I’ll try to get another tank update done soon. I do like the UV I got, it seems to work well. But if I could do it over I would probably buy the more expensive Classic Aqua UltraViolet sterilizer that has the inlet/outlet on the same side for easier plumbing. I don’t know how the model I have is supposed to be mounted but the inlet and outlet on opposite sides is goofy—not to mention the body is tapered so there are no handy mounting options for it that I know of.

A DC pump or even plumbing it into the manifold would work great (assuming you have a large enough return pump).


VanJoe

New Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 3, 2021
Messages
22
Reaction score
11
Review score
+0 /0 /-0
Location
JAX
Rating - 0%
0   0   0
I think most people who use the filter roller in it just skip over the sock area. Sort of like this example someone else did.

For me I would need to downsize my skimmer and I paid a lot for it and really like it, so I don’t want to do that at this point.

6248BAE2-8A7A-465B-8643-3064D452FE95.jpeg 8855D5F1-EA45-4221-943B-747E605C18DB.jpeg 780DB2BC-8248-4A0A-925B-A6CBA8A418FF.jpeg ADBD2FCB-C090-4837-A226-BF0F1143A42D.jpeg


That Red Sea reefmat sure looks huge for this little sump.

Last night I came across a couple of posts on Facebook that I believe are both for the Reef 900 (which appears to have the same size sump as the 600) that show them having the Klir dropped right into the sock holder.










OP
trevorhiller

trevorhiller

Well-Known Member
Review score
+7 /0 /-0
View Badges
Joined
Oct 22, 2021
Messages
826
Reaction score
545
Review score
+7 /0 /-0
Location
Williamsport
Rating - 0%
0   0   0
That Red Sea reefmat sure looks huge for this little sump.

Last night I came across a couple of posts on Facebook that I believe are both for the Reef 900 (which appears to have the same size sump as the 600) that show them having the Klir dropped right into the sock holder.









Interesting… they seem popular for these tanks. I’ve seen some pretty terrible reviews of them, but maybe some are actually having success with the drop in 4” rollers.

I would love a roller mat, the socks drive me crazy and I’m even the constantly tinkering type… my filter socks clog in like 1-2 days.

www.dinkinsaquaticgardens.com
OP
trevorhiller

trevorhiller

Well-Known Member
Review score
+7 /0 /-0
View Badges
Joined
Oct 22, 2021
Messages
826
Reaction score
545
Review score
+7 /0 /-0
Location
Williamsport
Rating - 0%
0   0   0

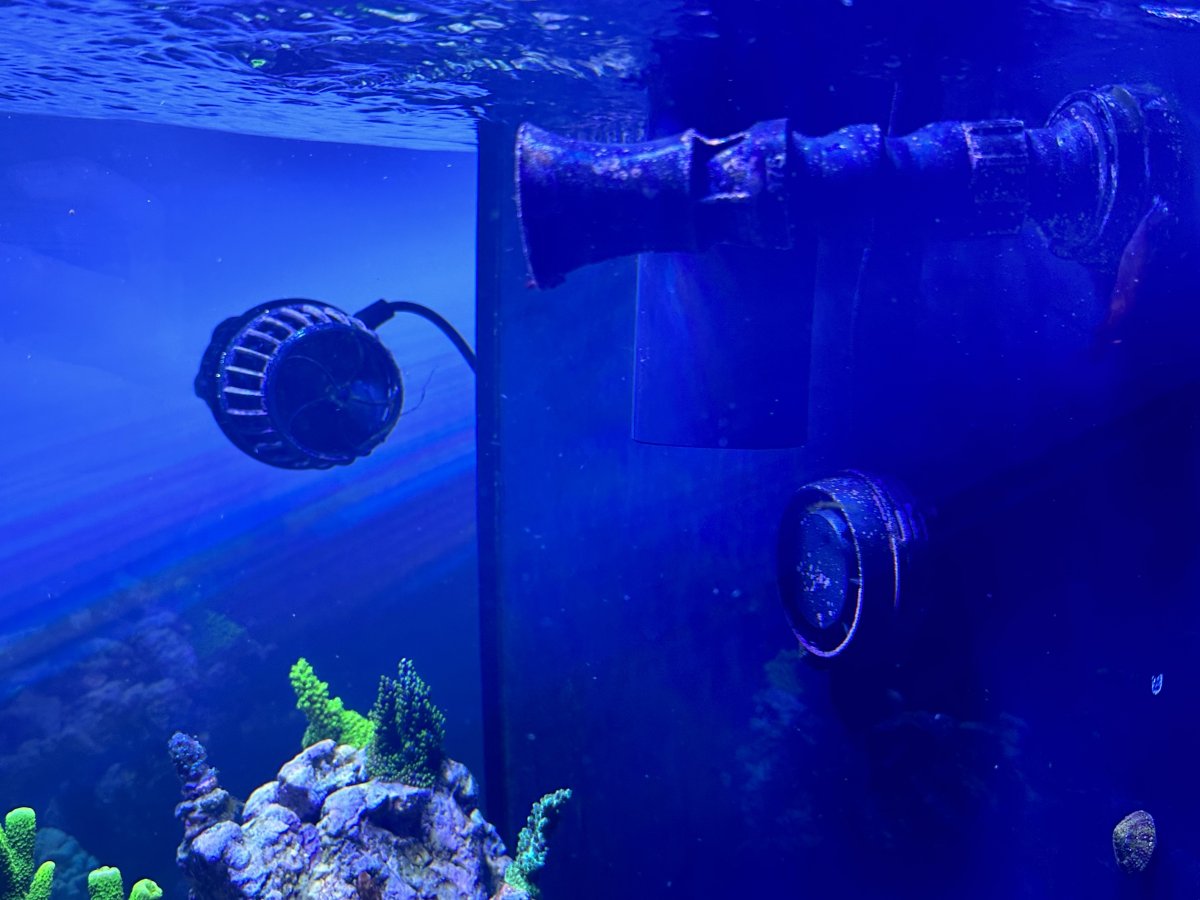

Hey nice setup, any updates? Also how are your neros going on the back wall, no issues with the dry side being submerged??

My Nero 3s have been working well, I've seen no issues with the magnets submerged in the water reservoir on the back. Mine are both positioned in the ATO though, so it is only fresh water they are exposed to. I couldn't get the magnet to stick on the left side of the tank in the overflow because of the glass thickness (it's sort of a double wall design from what I can tell). With all the sponges and stuff growing in there anyway I don't think I'd want to stick my hand in there to pull the magnet for cleaning anyhow. I am debating about moving one of them though because I do have some detritus collect between my aquascape and the back wall.

Tank Update: January 2023


Fish
1x Banggai Cardinalfish
1x Flame Hawkfish
1x Tomini Tang
2x Oscellaris Clownfish

Inverts & Clean Up Crew
1x Diadema Sea Urchin
1x Peppermint Shrimp
~65x Trochus Snails
3x Pincushion Urchin
1x Tuxedo Urchin
1x Limpet
2x Electric Blue Leg Hermits
2x Money Cowries
3x Nassarius Snails
3x Emerald Crabs

I need to restock my CUC once the weather here in Pennsylvania is a little warmer.

Current Dosing Regimen:
I recently switched from Kalkwasser + Tropic Marin All-For-Reef to Kalkwasser & a hybrid 3-Part Balling system. The All For Reef wasn't for me. My calcium was consistently running over 500 even with my Alk around 8.0. I wanted finer control plus a higher pH-hence the strategy below:

Part A- Bulk Reef Supply Calcium Chloride
Part B- Belle Chemical Sodium Hydroxide f/Amazon using Randy Holmes-Farley's Recipe
Part C- Balling C
Magnesium - Bulk Reef Supply Magnesium Chloride & Sulfate
Trace Elements- Tropic Marin Trace A- & K+

Current Hardware
Lighting: 1x Radion XR30 PRO, 1x Tunze Ecochic 8821 (Refugium Light) (Radion Schedule Posted Below)
Light Program: Overall Intensity: 82%, UV 100%, Violet 100%, Royal 100%, Blue 100%, Green 15%, Red 15%, Warm White 35%, Cool White 35%. Schedule: 1100-2300.
Skimmer: Ultra Reef UKS-160
Return Pump: Sicce SDC 6.0
Flow: 2x Nero 3
Dosing Pumps: 2x Ecotech Versas (Kalk and Calcium), 1x BRS 1.1 mL/min doser (for NaOH)
UV: Aqua Ultraviolet Advantage 15 Watt
Controller: Neptune Apex & Trident (I removed the Profilux a few months ago to be able to add trident and I didn't like the GHL software, see my classified ad if you want a steal on a Profilux!)
Ozone: Poseidon 200 Ozone generator (I just added this the other day, it seems to work well, but I have only turned it on for a about 20 minutes so far. It's a powerful unit for my tiny tank. I need to rearrange my EB832 and get it programmed. My ORP typically runs higher because my probe is in my sump and gets some algae growth on it - I need to clean it off every few weeks)

Nuisance Algae:
I am still battling hair algae. It's greatly improved since it first started, by I am still removing rocks, spraying with hydrogen peroxide and scrubbing them every so often to put a dent in it. I also have a lot of hair algae growing in my refugium chamber in addition to the Dragon's Breath algae I am currently growing. This has kept my phosphates low for the most part. I haven't needed any GFO or the like.

Nuisances:
I have killed a few pest anemones that pop out of the live rock every once in a while. I'm sure they are some sort of aiptasia, but they don't look like the aipatasia I have had in previous tanks or what others commonly post. They also fortunately grow slower than what I remember. I also noticed the other day a vermetid snail shell coming off a frag plug from one of my zoas and some other algae growing from another zoa. I snapped off the vermetid snail shell and pulled the entire zoa plug since they've spread off the plug anyhow (you can see the hole in the one picture). Taking frags off the plugs and dipping with Bayer pesticide has worked well so far for me controlling what gets into the tank.

Corals:
Slow but steady growth. I did have some STN on my Oregon Tort (my most expensive frag a few weeks ago). I fragged it to try to save it, but it seems to be recovering and now I have two pieces. I also had a forest fire digitata and Hawkins Echinata have some necrosis near the same time frame. Both are recovering so far as well. I'm debating about moving my of my Neros off the back wall to change up the flow a bit as I think my SPS could use some counter flow. I know I would have faster growth, but tinkering with my dosing strategy and playing with a CO2 scrubber over the last few months surely has set them back. At this point, my dosing strategy is staying what it is with no plans to change.

Through this I did learn that my home is high in CO2. Adding the CO2 scrubber brought my pH up around 0.2-0.3 pH points. I don't plan to use it long term but had some media given to me for free and wanted to experiment. If I do another tank in the future, I will probably build-in a skimmer snorkel or add an ERV to my home. For now, the Sodium Hydroxide is working well for a pH boost. I will say that my corals definitely seem to react to the higher pH both in coloration, polyp extension and growth rates.

Future Plans:
I just bought an ozone generator, so I have plans to get that permanently installed. Right now it is just sitting on the floor next to my tank. Also when I bought my XR30 I bought some ReefBrite supplemental LEDs but didn't hook them up as I thought it would be too much light shock for the corals. I've thought about setting them up for some extra light spread or possibly sending them back to Saltwater Aquarium since the AI Blades have been introduced (they look really nice, but I don't NEED them right now). As I said, I am also debating about moving one of my Neros to change up the flow pattern. I am also trying to stop tinkering so much and let the corals grow.

I could go on and on about things that I have messed with, changed or experimented with but this could get quite lengthy. If you have questions about anything feel free to ask and I'll be happy to answer any specifics.

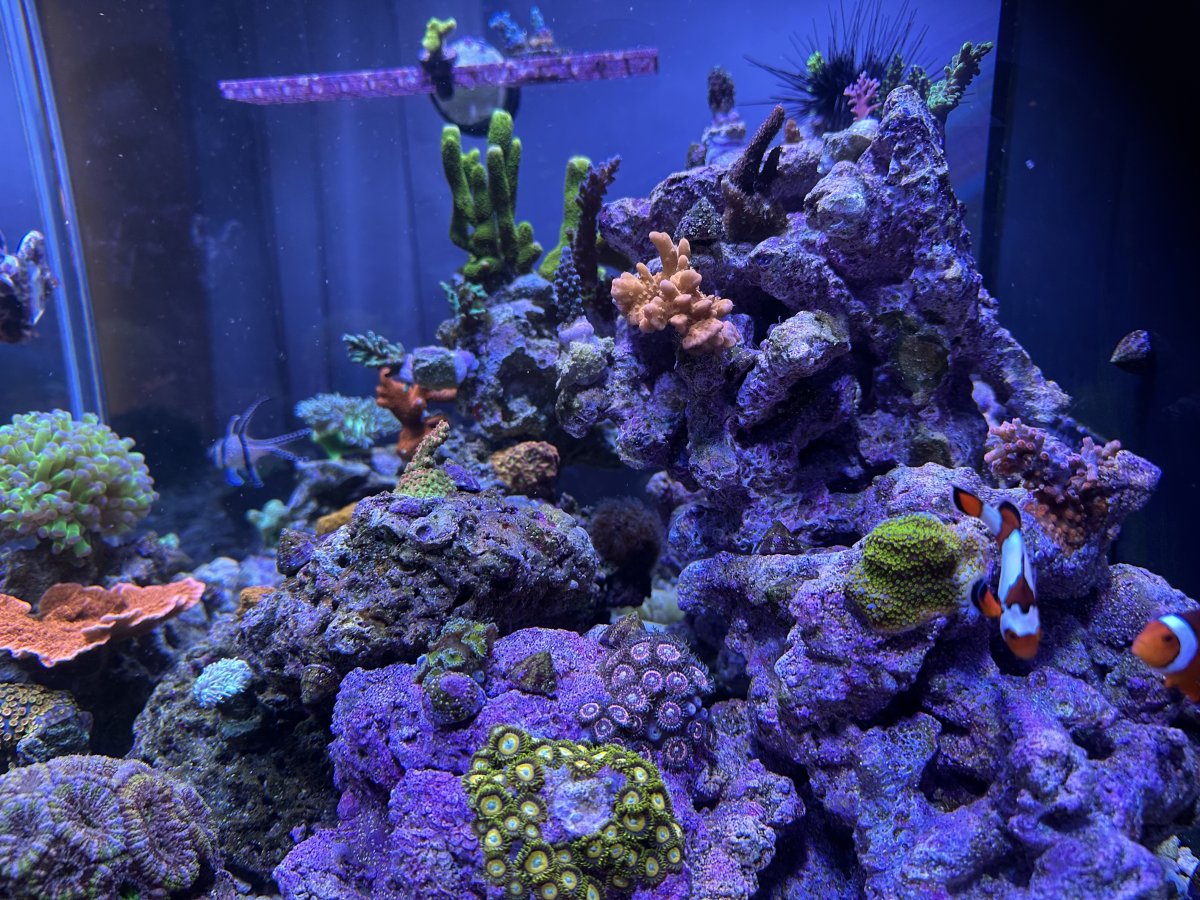

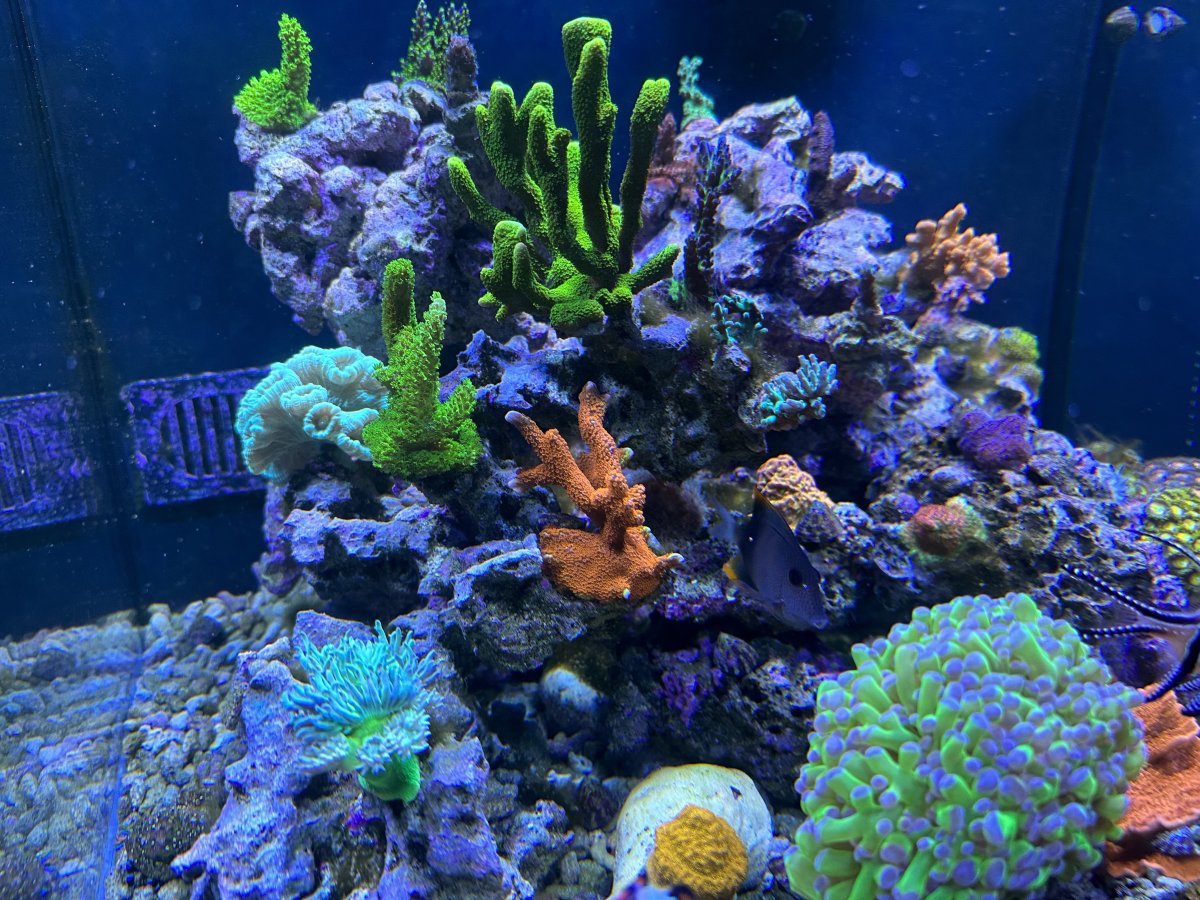

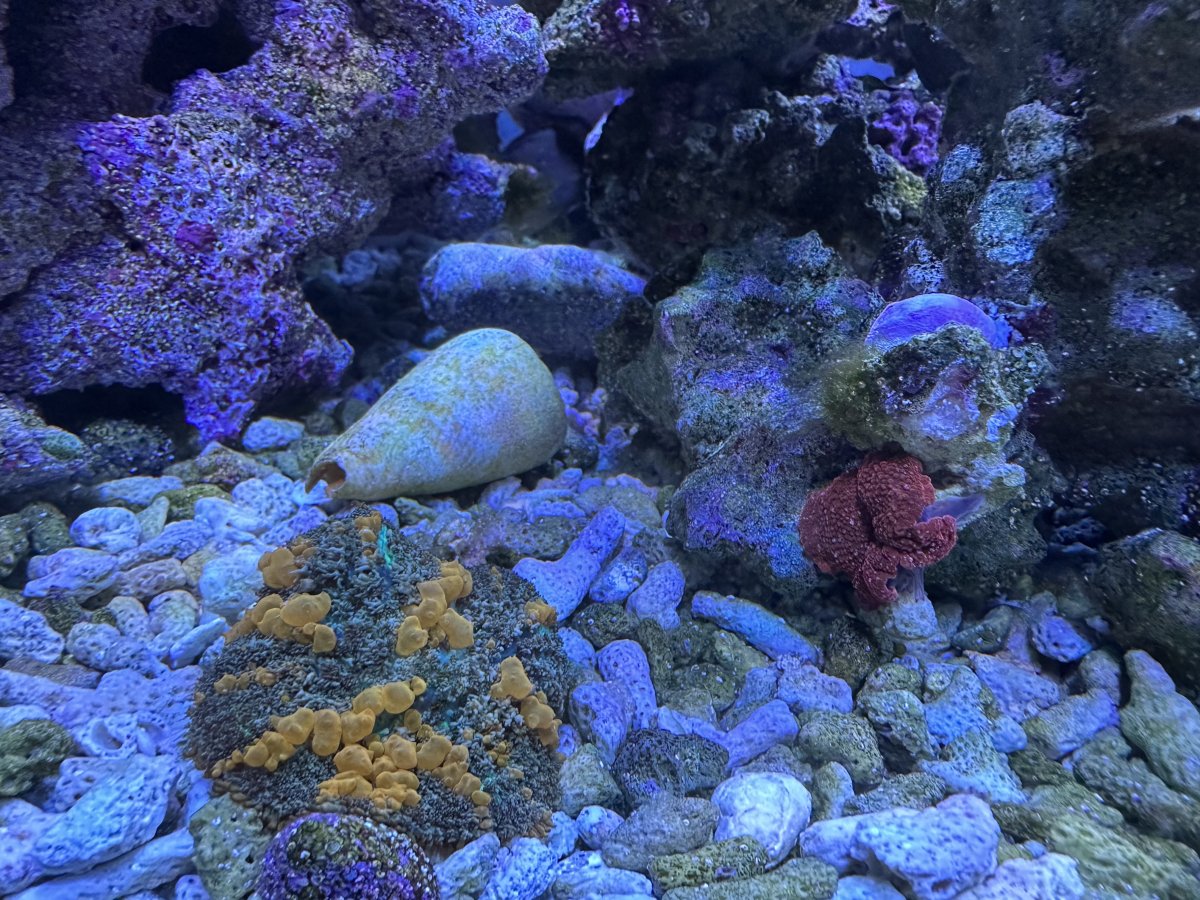

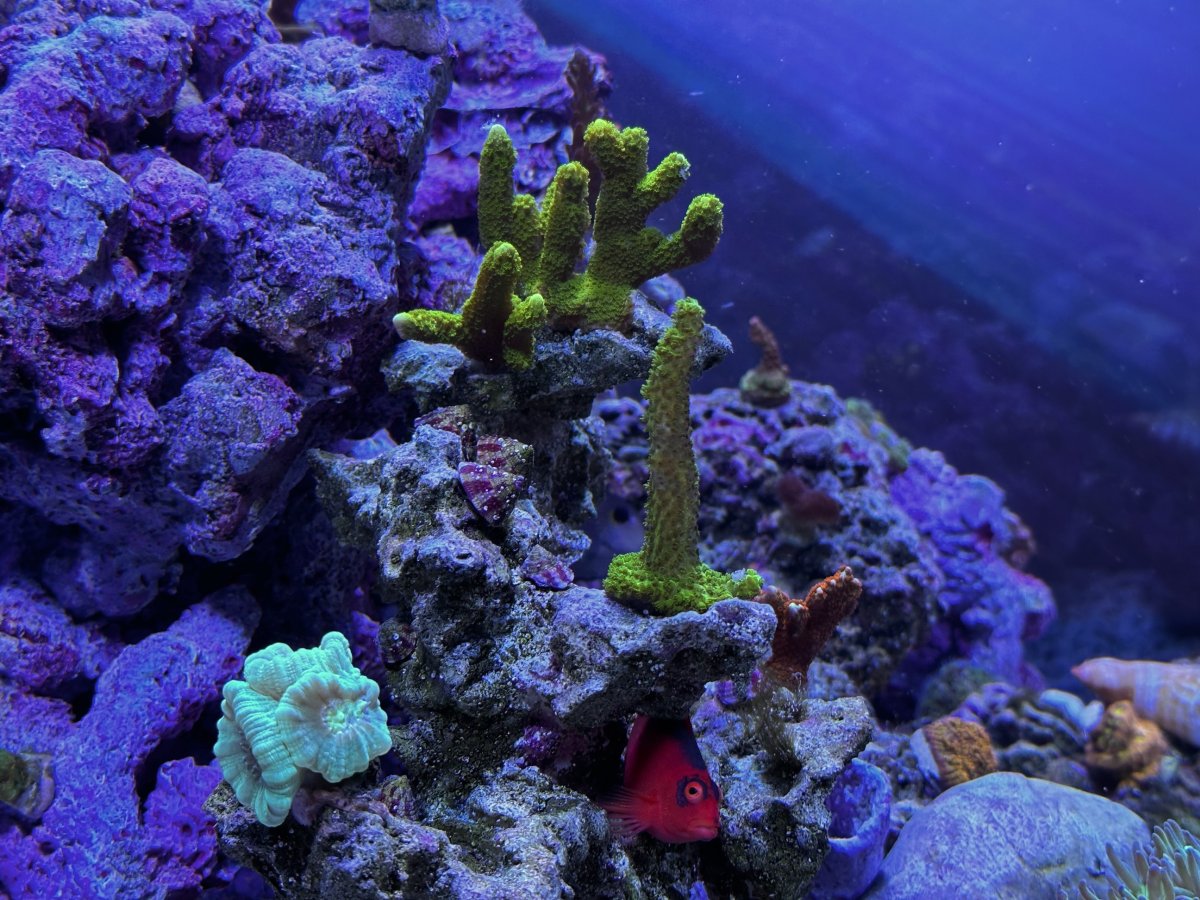

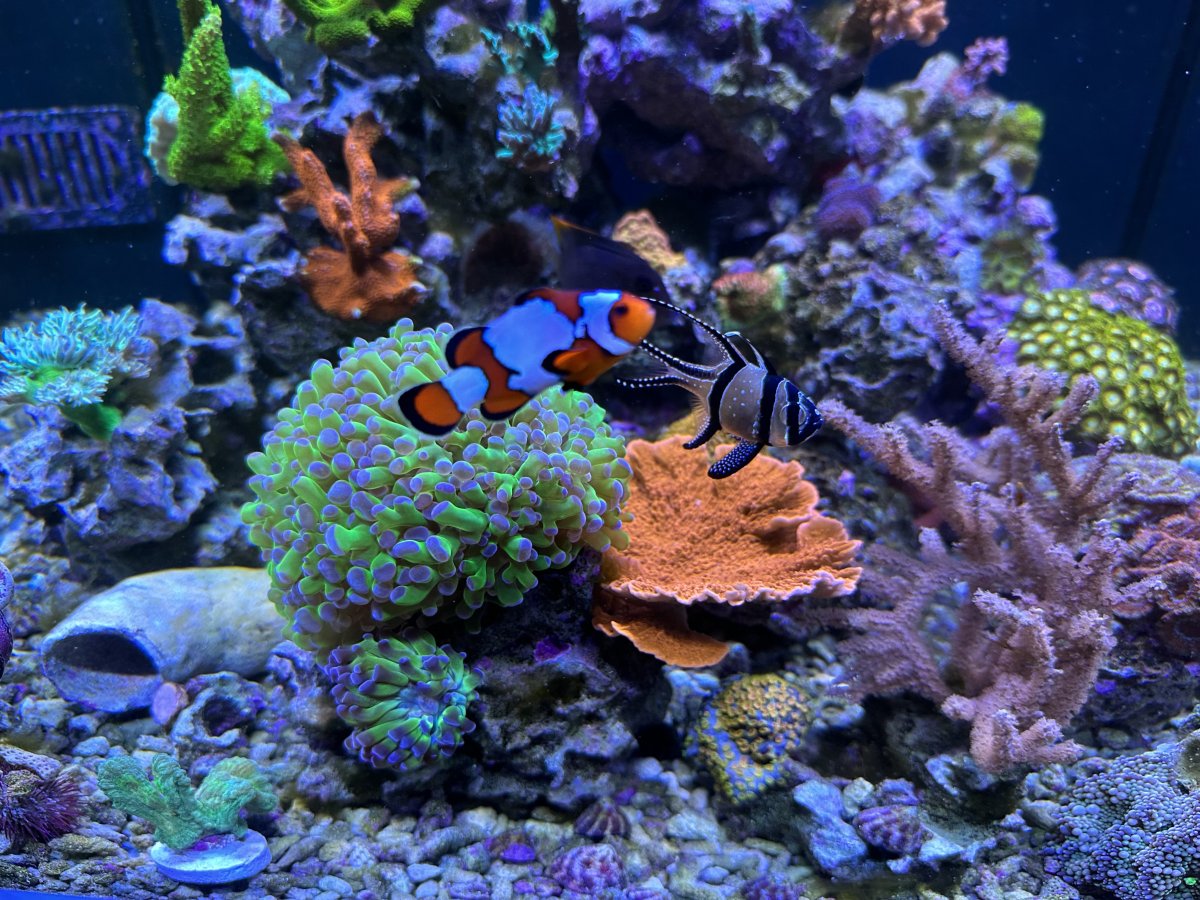

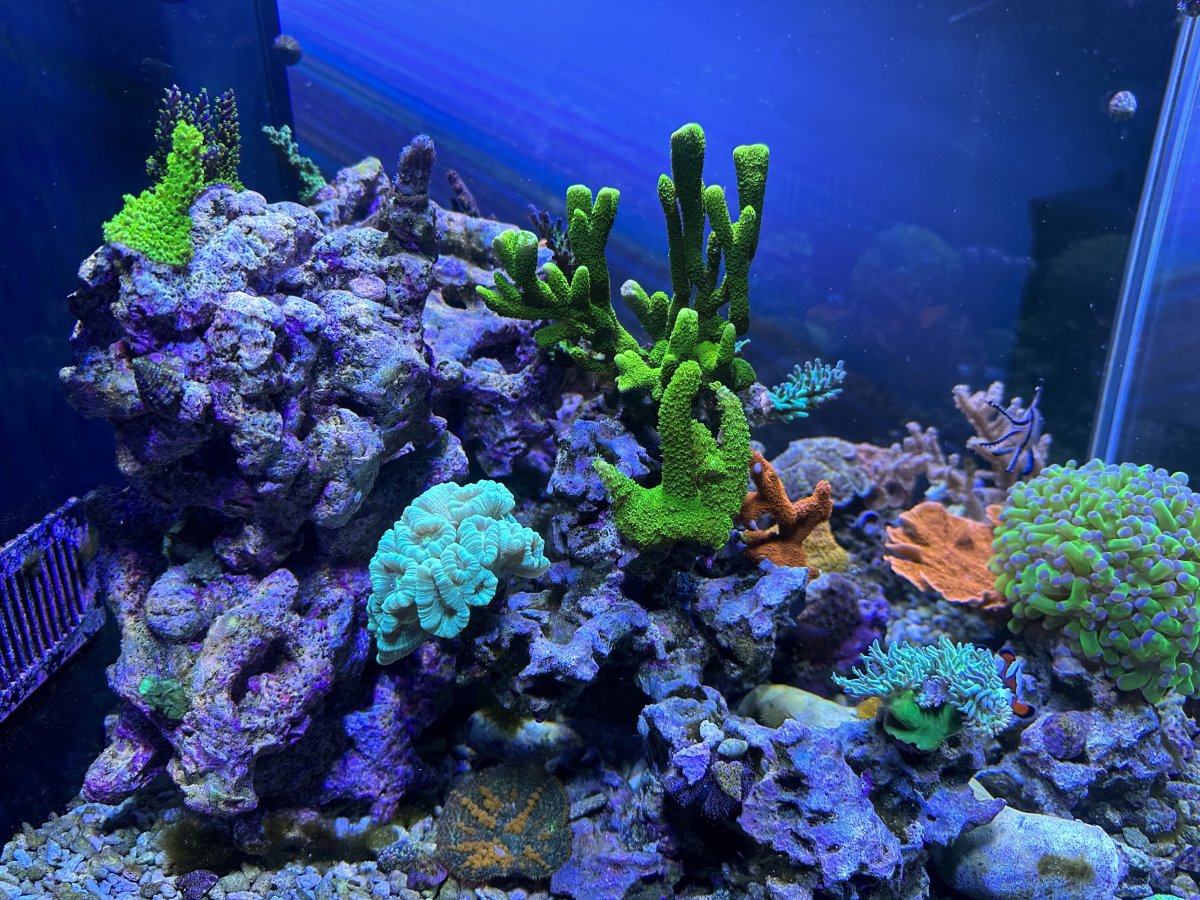

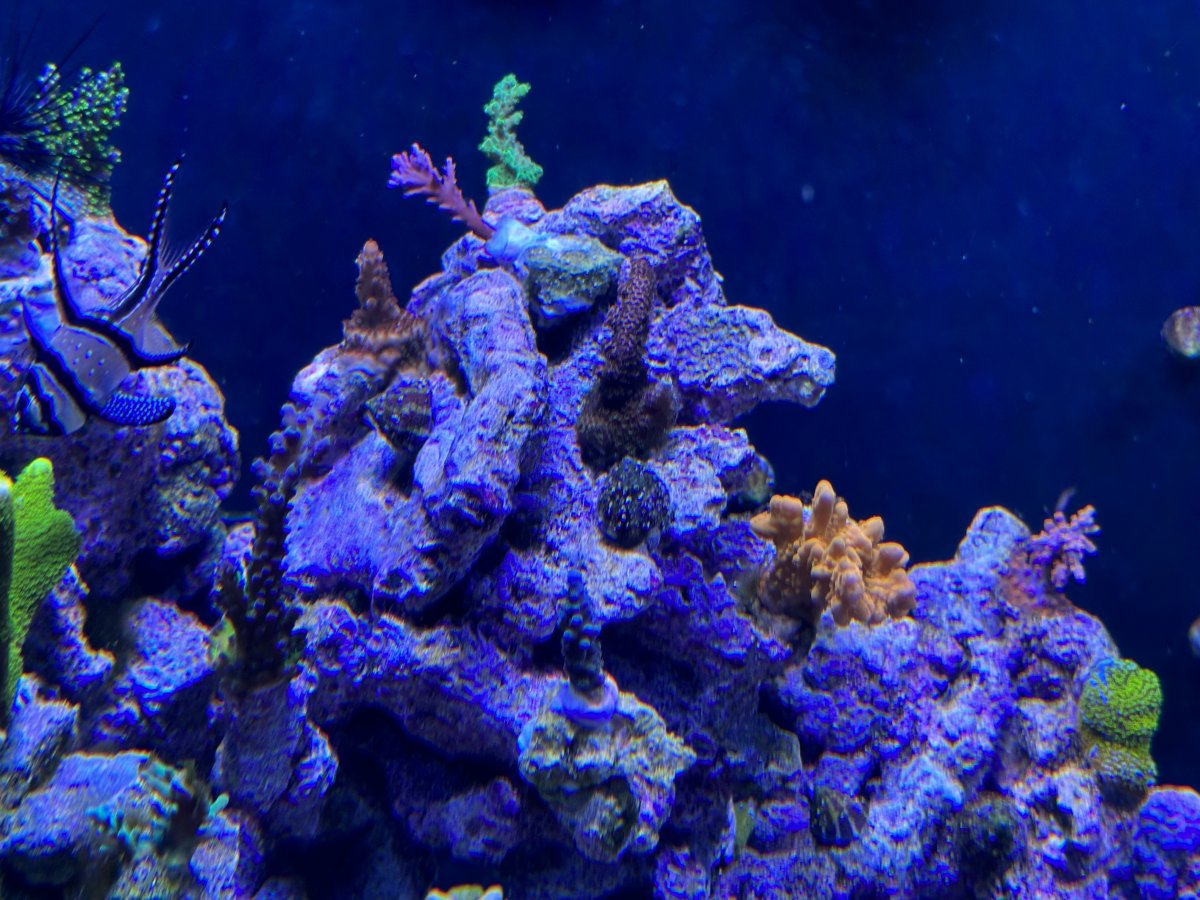

Reef Jan23 1.jpg Reef Jan23 2.jpg Reef Jan23 3.jpg Reef Jan23 4.jpg Reef Jan23 5.jpg Reef Jan23 6.jpg Reef Jan23 7.jpg Reef Jan23 8.jpg Reef Jan23 9.jpg Reef Jan23 10.jpg Reef Jan23 11.jpg
